Seavo SV3b-62026 Series User manual

SV3b-62026 Series Motherboard
User Guide
Ver 1.0

- 1 -
深圳市信步科技有限公司 地址：深圳市福田区车公庙泰然工贸园 210 栋西座 5H T 86-755-88251900 F 86-755-88251910 www.seavo.com
Contents
1. Models and Attentions......................................................................................................................... 2
2. Specification........................................................................................................................................ 3
3. Data Flow............................................................................................................................................ 4
4. Jumpers / Headers and Connectors................................................................................................... 5
5. Definition of Jumpers / Headers and Connectors............................................................................... 7
6. BIOS setup........................................................................................................................................ 12

- 2 -
深圳市信步科技有限公司 地址：深圳市福田区车公庙泰然工贸园 210 栋西座 5H T 86-755-88251900 F 86-755-88251910 www.seavo.com
1. Models and Attentions
1.1 Models
This manual is applied to following models:
1.2 Attentions
1) Notes under a table or figure indicate the difference of models, or alternative definition of
specific pin of the header (jumper/connector).
2) How to identify the first pin of a header or jumper
Usually, there is a thick line or a triangle near the header’s or jumper’s pin 1.
Square pad, which you can find on the back of the motherboard, is usually used for pin 1.
Model
Chipset
COM
LAN
HDMI
VGA
USB
Mini-PCIE
LVDS/eDP
SV3b-62026
i5-6200U
6
2
1
1
6
2
eDP
Model
USB
SV3b-62026 + SV-M6-CU
14

- 3 -
深圳市信步科技有限公司 地址：深圳市福田区车公庙泰然工贸园 210 栋西座 5H T 86-755-88251900 F 86-755-88251910 www.seavo.com
2. Specification
Model
SV3b-62026
CPU
Intel® Core i5-6200U Dual-core, clock speed 2.3G, TDP 15W
Display
1 * VGA
1 * HDMI [1]
1 * eDP [2]
Memory
Support DDR3L-1333/1600,
1 * SO-DIMM Slot, Up to 32GB
Storage
1 * SATA3.0 + 1 * mSATA [3]
Ethernet
2 * intel WGI211AT for 1000 Mbps[4]
Audio
Realtek ALC662 5.1 Channel HDA Codec , Support MIC/Line-out Ports
COM
5* RS232+ 1 * RS232/RS485
Other Ports
USB: 2 * Rear I/O(USB3.0/USB2.0) +4 * Headers(USB2.0)[5]
8 * GPIO
1 * PS/2 Pin Header
2 * Mini PCI-E[3] [5]
1 * SIM Card Pin Header
1 * Front Audio
1 * DC_IN Power Input Connector
Temperature
Storage: -20~75℃
Operating: 0~60℃
BIOS
AMI UEFI BIOS
Factor
3.5inch (146mm * 105mm)
Notes:
[1]: HDMI and COM1 (DB9) Connectors on rear I/O share the same position and are mutually exclusive,
when HDMI populated, COM1 is available via J_COM1 Pin Header.
[2]: The eDP supports a max resolution of 4096x2304@60Hz.
[3]: Mini PCI-E2 slot supports mSATAby default, mSATAand S_ATA1 share the same signal, if mSATAis
desired, S_ATA1 should be removed.
[4]: LAN2 and USB2.0 Connectors on rear I/O share the same position and are mutually exclusive,.
[5]: Mini PCI-E1 slot supports WIFI and 3G by default.And if Mini PCI-E1 do not support 3G device, one
more front USB header can be supplied (see page 7).

- 4 -
深圳市信步科技有限公司 地址：深圳市福田区车公庙泰然工贸园 210 栋西座 5H T 86-755-88251900 F 86-755-88251910 www.seavo.com

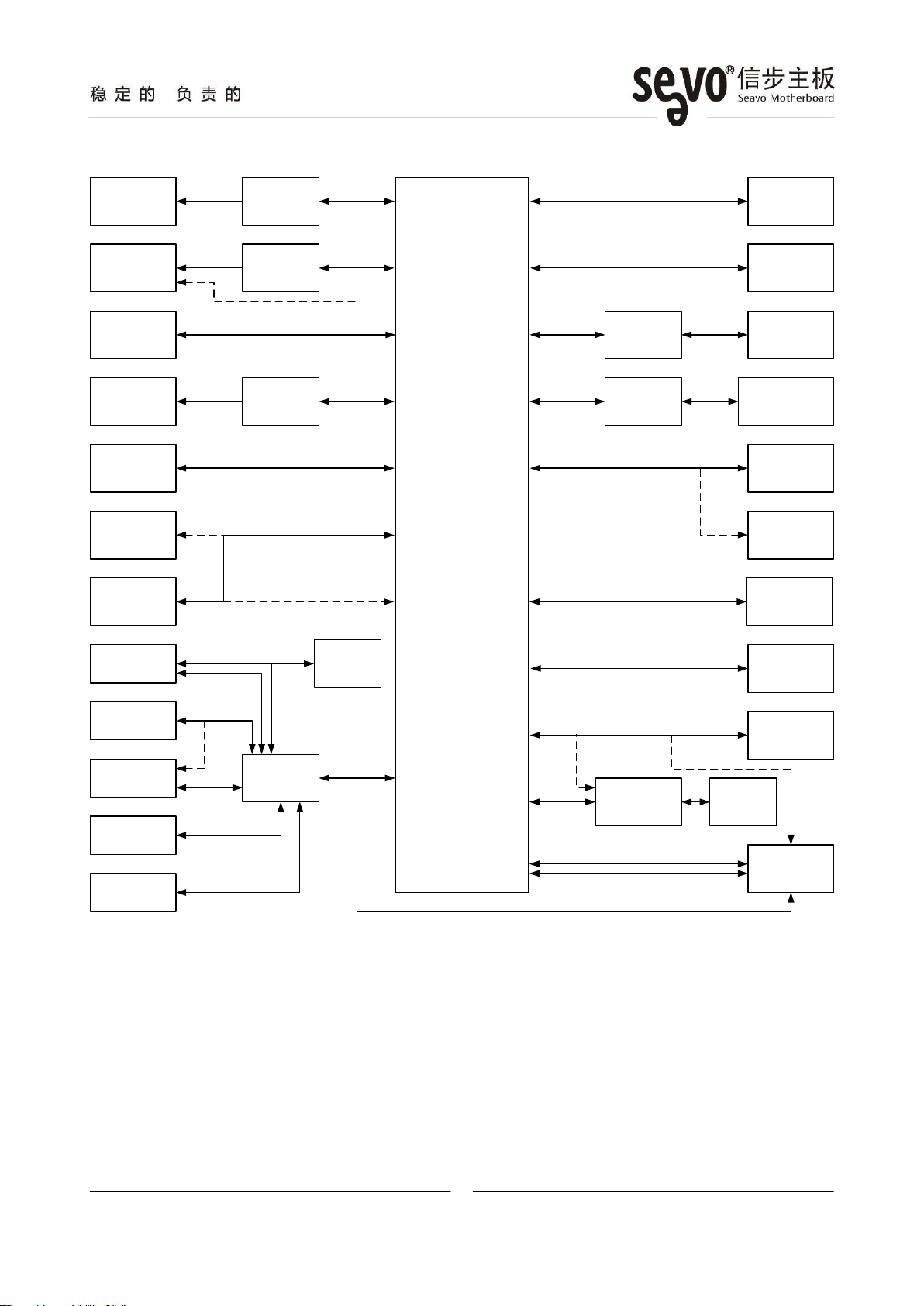

3. Data Flow
6th GEN
Intel® CoreTM,
Celeron®
Processor
VGA
DB15 Port DDR3L SO-DIMM
SATA2
Port
COM1 Port
(or HDMI)
LVDS
Header Convertor
LINE OUT
& MIC
Header
ALC662-
VD
Super
I/O
i211AT RJ45 Port
USB2.0*2
Port
(or RJ45)
Convertor
HDMI
(or COM1)
SATA1
Port
MINI-SATA
Port
i211AT RJ45 Port
(or USB2.0*2)
USB3.0*2
Port
USB2.0*2
Header
USB2.0*2
Header
USB2.0*2
Header
MINI-PCIE
Port SIM Header
SVIO
COM5/6
Header
COM1~4
Header
GPIO
Header
PS2
Header
FAN
Header
COM6
RS485
Header

- 5 -
深圳市信步科技有限公司 地址：深圳市福田区车公庙泰然工贸园 210 栋西座 5H T 86-755-88251900 F 86-755-88251910 www.seavo.com
4. Jumpers / Headers and Connectors

- 6 -
深圳市信步科技有限公司 地址：深圳市福田区车公庙泰然工贸园 210 栋西座 5H T 86-755-88251900 F 86-755-88251910 www.seavo.com
Jumpers / Headers and Connectors
1
Front Audio Pin Header
P7
15
System Fan Connector
P12
2
Seavo IO Connector
P7
16
DC12V Power Input Connector
P12
3
Front USB Pin Headers
P8
17
PS/2 Pin Header
P12
4
RS485 Signal Pin Header
P8
18
VGA Pin Header
P13
5
Front Panel Pin Header
P8
19
Clear CMOS Jumper
6
Front USB3 Pin Header
P8
20
Mini PCI-E2 Slot
7
GPIO Pin Header
P9
21
SATA 3.0 Connector
8
COM5-6 Pin Header
P9
22
SO-DIMM Slot
9
COM1-4 Pin Header
P9
23
Mini PCI-E1 Slot
10
SIM Card Pin Header
P10
24
VGAConnector
11
eDP Signal Pin Header
P10
25
HDMI Connector [1]
12
eDP VDD Select Jumper
P11
26
LAN Connectors
13
LVDS Backlight Control Pin Header
P11
27
USB3.0 Connectors
14
SATA Power Pin Header
P12
Notes:
[1]: HDMI and COM1 (DB9) Connectors on rear I/O share the same position and are mutually exclusive.

- 7 -
深圳市信步科技有限公司 地址：深圳市福田区车公庙泰然工贸园 210 栋西座 5H T 86-755-88251900 F 86-755-88251910 www.seavo.com
5. Definition of Jumpers / Headers and Connectors
[1] Front Audio Pin Header (4*2 Pin 2.0mm)
Location
Header
Pin
Definition
Pin
Definition
J_AUDIO1
1
LOUT_R
2
MCIN_R
3
GND
4
GND
5
GND
6
GND
7
LOUT_L
8
MCIN _L
[2] Seavo IO Connector (20*2)
Location
Header
Pin
Definition
Pin
Definition
SVIO
1
+ 5 V
2
+ 5 V
3
USB0-
4
USB2-
5
USB0+
6
USB2+
7
GND
8
GND
9
SERIRQ
10
GND
11
USB1-
12
USB1+
13
GND
14
SVIO_CLK-
15
SVIO_CLK+
16
GND
17
PCIE_RX1-
18
PCIE_RX1+
19
GND
21
WAKE#
22
NC
23
PCIE_TX1-
24
PCIE_TX1+
25
GND
26
LAD3
27
LFRAME#
28
LAD2
29
SIO_GP40SB
30
LAD1
31
SIO_GP10SB
32
LAD0
33
+ 3.3VSB
34
GND
35
+ 5 V
36
PCI_RST#
37
+ 5 V
38
SVIO_LCLK
39
+ 3.3V
40
+ 3.3V

- 8 -
深圳市信步科技有限公司 地址：深圳市福田区车公庙泰然工贸园 210 栋西座 5H T 86-755-88251900 F 86-755-88251910 www.seavo.com
[3] Front USB Pin Headers (5*2 Pin 2.00mm)
Location
Header
Pin
Definition
Pin
Definition
F_USB1
F_USB2
1
+ 5 V
2
+ 5 V
3
USB3-[1]
4
USB4-[1]
5
USB3+[1]
6
USB4+[1]
7
GND
8
GND
10
GND
Note:
[1]: F_USB2(pin3/pin5) share the same signal with 3G, and F_USB2(pin4/pin6) share the same
signal with one USB2.0 of SVIO. They can’t be used simultaneously.
[4] RS485 Signal Pin Header (2*1 Pin 2.54 mm)
Location
Connector
Pin
Definition
Pin
Definition
J485
1
RS485_A1
2
RS485_B1
[5] Front Panel Pin Header (5*2 Pin 2.54 mm)
Location
Header
Pin
Definition
Pin
Definition
F_PANEL1
1
HD LED+
2
Power LED+
3
HD LED-
4
Power LED-
5
GND
6
PWR+
7
RESET#
8
PWR-
9
N/C
[6] Front USB3 Pin Header (5*2 Pin 2.00mm)
Location
Header
Pin
Definition
Pin
Definition
F_USB3
1
+ 5 V
2
+ 5 V
3
USB5-
4
USB6-
5
USB5+
6
USB6+
7
GND
8
GND
10
GND

- 9 -
深圳市信步科技有限公司 地址：深圳市福田区车公庙泰然工贸园 210 栋西座 5H T 86-755-88251900 F 86-755-88251910 www.seavo.com
[7] GPIO Pin Header (5*2 Pin 2.00mm)
Location
Header
Pin
Definition
Pin
Definition
J_GPIO1
1
PCH_GPO1
(0xFDAE0548 Bit0,H)[1]
2
PCH_GPO2
(0xFDAE0550 Bit0,H)
3
PCH_GPO3
(0XFDAE0558 Bit0,H)
4
PCH_GPO4
(0xFDAE0560 Bit0,H)
5
GND
6
PCH_GPO5
(0xFDAC04F0 Bit0,H)
7
PCH_GPO6
(0xFDAC04F8 Bit0,H)
8
PCH_GPO7
(0xFDAF0488 Bit0,H)
9
PCH_GPO8
(0XFDAF0480 Bit0,H)
10
+ 3.3V [2]
Note:
[1]: “H”or “L”means the default voltage is High or Low level.
[2]: Power on this Pin and GPIO output is 3.3V signaling by default, 5V is available if specified
(resistor selectable).
[8] COM5-6 Pin Headers (3*2 Pin 2.00mm)
Location
Header
Pin
Definition
Pin
Definition
J_COM5-6
1
COM5_RXD
2
COM6_RXD
3
COM5_TXD
4
COM6_TXD
5
GND
6
GND
[9] COM1-4 Pin Headers (20*2 Pin 2.00mm)
Location
Header
Pin
Definition
Pin
Definition
J_COM1-4
1
COM1_DCD [1]
2
COM1_RXD
3
COM1_TXD
4
COM1_DTR
5
GND
6
COM1_DSR
7
COM1_RTS
8
COM1_CTS
9
COM1_RI
10
GND
11
COM2_DCD [1]
12
COM2_ RXD
13
COM2_ TXD
14
COM2_DTR
15
GND
16
COM2_DSR
17
COM2_RTS
18
COM2_CTS

- 10 -
深圳市信步科技有限公司 地址：深圳市福田区车公庙泰然工贸园 210 栋西座 5H T 86-755-88251900 F 86-755-88251910 www.seavo.com
19
COM2_RI [1]
20
21
COM3_DCD [1]
22
COM3_RXD
23
COM3_TXD
24
COM3_DTR
25
GND
26
COM3_DSR
27
COM3_RTS
28
COM3_CTS
29
COM3_RI [1]
30
GND
31
N/C
32
COM4_RXD
33
COM4_TXD
34
COM4_DTR
35
GND
36
COM4_DSR
37
COM4_RTS
38
COM4_CTS
39
N/C
40
GND
Note:
[1]: These signal also can be 5V/12V if specified (resistor selectable).
[10] SIM Card Pin Header (6*1 Pin 2.00mm)
Location
Header
Pin
Definition
Pin
Definition
J_SIM1
1
UIM_PWR
2
GND
3
UIM_DAT
4
UIM_CLK
5
UIM_RST
6
UIM_VPP
[11] eDP Connector (20*2 Pin 1.25mm)
Location
Header
Pin
Definition
Pin
Definition
LVDS1
1
VDD [1]
2
VDD [1]
3
N/C
4
GND
5
VDD [1]
6
VDD [1]
7
N/C
8
EDP_TX0_D-
9
N/C
10
EDP_TX0_D+
11
GND
12
GND
13
N/C
14
EDP_TX1_D-
15
N/C
16
EDP_TX1_D+
17
GND
18
N/C
19
N/C
20
EDP_TX2_D-
21
N/C
22
EDP_TX2_D+

- 11 -
深圳市信步科技有限公司 地址：深圳市福田区车公庙泰然工贸园 210 栋西座 5H T 86-755-88251900 F 86-755-88251910 www.seavo.com
23
GND
24
GND
25
N/C
26
EDP_TX3_D-
27
N/C
28
EDP_TX3_D+
29
GND
30
GND
31
N/C
32
EDP_HPD#
33
GND
34
GND
35
N/C
36
EDP_AUX_D-
37
N/C
38
EDP_AUX_D+
39
N/C
40
GND
Note:
[1]: Panel Power VDD is 3.3V by default, 5V or 12V is selectable by “LVDS VDD Select Jumper”
(JC_LVDS1, Location 12).
[12] eDP Select Jumper (3*2 Pin 2.54mm)
Location
Jumper
Setting
Function
JC_LVDS1
1-2(Default)
+ 3.3V
3-4
+ 5V
5-6
+ 12V
[13] LVDS Backlight Control Pin Header (6*1 Pin 2.00mm)
Location
Header
Pin
Definition
Pin
Definition
LVDS_P1
1
GND
2
GND
3
PWM_ADJ
4
LVDS_BKL_EN
5
+ 12V
6
+ 12V
[14] SATA Power Pin Headers (wafer 4*1 Pin 2.00mm)
Location
Connector
Pin
Definition
Pin
Definition
P_SATA1
1
+ 12V
2
GND
3
GND
4
+ 5V
[15] System Fan Connector (3*1 Pin 2.54mm)
Location
Connector
Pin
Definition
Pin
Definition
SYS_FAN
1
GND
2
+ 12V
3
FAN Speed Detection

- 12 -
深圳市信步科技有限公司 地址：深圳市福田区车公庙泰然工贸园 210 栋西座 5H T 86-755-88251900 F 86-755-88251910 www.seavo.com
[16] DC Power Input Connector (wafer 4*1 Pin 2.54mm)
Location
Connector
Pin
Definition
Pin
Definition
DC_IN1
1
+9~28V
2
+9~28V
3
GND
4
GND
[17] PS/2 Pin Header (wafer 6*1 Pin 2.0mm)
Location
Header
Pin
Definition
Pin
Definition
J_KBMS1
1
KB_CLK
2
KB_DATA
3
MS_CLK
4
GND
5
+ 5V
6
MS_DATA
[18] VGA Pin Header (wafer 12*1 Pin 2.00mm)
Location
Connector
Pin
Definition
Pin
Definition
J_VGA1
1
CRT_ON
2
CRT_VS
3
CRT_HS
4
GND
5
CRT_R
6
GND
7
CRT_G
8
GND
9
CRT_B
10
GND
11
VGA_SDA
12
VGA_SCL
[19] Clear CMOS Jumper (3*1 Pin 2.54mm)
Location
Jumper
Setting
Function
JC_LVDS1
1-2(Default)
Normal
2-3
Clear CMOS
6. BIOS setup
See “SV3b-62026 BIOS Quick Start Guide” & “SV3b-62026 BIOS Specification Summary Sheet”for
detail information of BIOS setup.
【End】
