Sedecal VET-X APR-VET Instruction Manual

Operation
Veterinary Systems
High Frequency Generators
APR-VET Console
Technical Publication
OM-0118R0

¡ IMPORTANTE ! ... Protección ante los rayos-X
LOS EQUIPOS DE RAYOS-X SON PELIGROSOS PARA EL PACIENTE Y EL OPERADOR
A MENOS QUE LAS MEDIDAS DE PROTECCION SEAN ESTRICTAMENTE OBSERVADAS
Si el equipo de rayos-X no se usa adecuadamente, puede causar lesiones. Por este motivo, las instrucciones
aquí incluidas se deben leer y comprender en su totalidad antes de intentar poner el equipo en funcionamiento.
Estaremos gustosos de asistir y cooperar en poner el equipo en marcha.
Aunque el equipo está construido según las normas de seguridad más estrictas y presenta un alto grado de protección contra las
radiaciones-X, ningún diseño practico puede ofrecer una protección completa. Tampoco ningún diseño practico puede obligar al operador
a tomar las precauciones adecuadas para prevenir la posibilidad de que cualquier persona de manera descuidada, poco sensata o
ignorante, se exponga a radiaciones directas o indirectas.
Es importante que cualquier persona relacionada con radiaciones-X esté debidamente entrenada y tome las medidas adecuadas para
asegurar la protección contra posibles lesiones.
El fabricante asume que todo operador y personal de servicio autorizado para manejar, instalar, calibrar o mantener este equipo, es
consciente del peligro que conlleva la exposición excesiva a las radiaciones-X, está suficientemente entrenado y posee los conocimiento
necesarios para ello. Por lo tanto, el equipo aquí descrito se vende entendiendo que el fabricante, sus agentes y representantes
no tienen ninguna responsabilidad en caso de lesiones o daños que puedan resultar de la exposición a dichas radiaciones.
Existen diversos materiales y dispositivos protectores, cuyo uso es recomendable.
IMPORTANT ! ... X-ray Protection
X-RAY EQUIPMENT IS DANGEROUS TO BOTH PATIENT AND OPERATOR
UNLESS MEASURES OF PROTECTION ARE STRICTLY OBSERVED
X-ray equipment if not properly used may cause injury. Accordingly, the instructions herein should be thoroughly
read and understood before attempting to place this equipment in operation. We will be glad to assist and
cooperate in placing this equipment in use.
Although this apparatus is built to the highest safety standards and incorporates a high degree of protection against X-radiation other
than the useful beam, no practical design of equipment can provide complete protection. Nor can any practical design compel the
operator to take adequate precautions to prevent the possibility of any persons carelessly, unwisely, or unknowingly exposing themselves
or others to X-radiation.
It is important that everyone working with X-radiation be properly trained and take adequate steps to insure protection against injury.
The manufacturer assumes that all operator and service personnel authorized to use, install, calibrate and maintain this equipment
is cognizant of the danger of excessive exposure to X-radiation, is sufficiently trained and has the required knowledges for it. The
equipment herein described is sold with the understanding that the manufacturer, its agents, and representatives are not liable for
injury or damage which may result from exposure to X-radiation.
Various protective material and devices are available. It is recommended that such materials and devices be used.
IMPORTANT ! ... Protection contre les rayons-X
L’EQUIPEMENT RAYONS-X EST DANGEREUX A LA FOIS POUR LE PATIENT ET POUR L’OPERATEUR
A MOINS D’OBSERVER STRICTEMENT LES CONSIGNES DE PROTECTION
L’équipement à rayons-X peut provoquer des blessures s’il n’est pas correctement utilisé. En conséquence,
les instructions de ce manuel doivent être lues attentivement et bien assimilées avant de tenter de mettre en
route ce matériel. Nous serons heureux de vous assister et de coopérer à l’installation de ce matériel.
Bien que cet équipement soit construit selon les normes de construction les plus sévères et qu’il comporte un haut degré de protection
contre le rayonnement-X en dehors du rayon utile, aucune conception n’apporte une protection totale. De même qu’aucune conception
ne peut obliger l’opérateur à prendre les précautions adéquates afin d’éviter que toute personne ne s’expose ou n’expose les autres
au rayonnement sans précaution, de façon imprudente et inconsciente.
Il est important que toutes les personnes travaillant avec le rayonnement-X soit correctement formées et prennent les mesures adéquates
afin de se protéger contre toute blessure.
Le constructeur suppose que tous les utilisateurs et le personnel d’entretien autorisé à utiliser, installer, calibrer et entretenir cet équipement
est conscient du danger de l’exposition excessive au rayonnement-X, est suffisamment formé et possède les connaissances nécessaires
pour cela. L’équipement décrit dans le présent manuel est vendu sous réserve que le fabricant, ses agents et représentants ne soient
pas tenus pour responsables des blessures ou dommages qui pourraient résulter d’une exposition aux rayons-X.
Plusieurs matériels de protection et systèmes sont disponibles. L’utilisation de ces matériels et systèmes de protection est recommandée.

DECLARACION AMBIENTAL
SOBRE LA VIDA UTIL DEL EQUIPO O SISTEMA
Este equipo o sistema contiene componentes y materiales peligrosos para el medioambiente (tales
como tarjetas de circuito impreso, componentes electrónicos, aceite dieléctrico usado, plomo,
baterías, etc), los cuales se consideran y son residuos peligrosos al finalizar la vida útil del equipo o
sistema, según establecen las normas internacionales, nacionales y locales.
El fabricante recomienda que al finalizar la vida útil de equipo o sistema, se contacte con un
representante autorizado del fabricante o con un gestor autorizado de residuos para la retirada de este
equipo o sistema.
ENVIRONMENTAL STATEMENT
ON THE LIFE CYCLE OF THE EQUIPMENT OR SYSTEM
This equipment or system contains environmentally dangerous components and materials (such as
PCB‘s, electronic components, used dielectric oil, lead, batteries etc.) which, once the life-cycle of the
equipment or system comes to an end, becomes dangerous and need to be considered as harmful
waste according to the international, domestic and local regulations.
The manufacturer recommends to contact an authorized representative of the manufacturer or an
authorized waste management company once the life-cycle of the equipment or system comes to an
end to remove this equipment or system.
DECLARATION D’ENVIRONNEMENT
SUR LA VIE UTILE DE L’EQUIPEMENT OU SYSTEME
Cet équipement ou système contient des composants et matériaux dangereux pour l’environnement
(ex: électroniques cartes, composants électroniques, huile diélectrique usée, plomb, batteries, etc.),
lesquels sont considérés comme résidus dangereux en cycle terminal de vie d’un équipement ou
système, en accord avec les normes internationales, nationales et locales en vigueur.
Le fabricant recommande une fois le cycle terminal de l’équipement ou système atteint, de contacter
un représentant autorisé du fabricant ou les autorités compétentes en la matière afin d’organiser et
de gérer le recyclage adéquat de cet équipement ou appareil.

High Frequency Generators - Veterinary Systems APR-VET
Operation
OM-0118R0
REVISION HISTORY
REVISION DATE REASON FOR CHANGE
0DEC 1, 2005 First edition
This Document is the English original version, edited and supplied by the manufacturer.
The Revision state of this Document is indicated in the code number shown at the bottom of this page.
ADVISORY SYMBOLS
The following advisory symbols will be used throughout this manual. Their
application and meaning are described below.
DANGERS ADVISE OF CONDITIONS OR SITUATIONS THAT
IF NOT HEEDED OR AVOIDED WILL CAUSE SERIOUS
PERSONAL INJURY OR DEATH.
ADVISE OF CONDITIONS OR SITUATIONS THAT IF NOT
HEEDED OR AVOIDED COULD CAUSE SERIOUS PERSONAL
INJURY, OR CATASTROPHIC DAMAGE OF EQUIPMENT OR
DATA.
Advise of conditions or situations that if not heeded or
avoided could cause personal injury or damage to equipment
or data.
Note .Alert readers to pertinent facts and conditions. Notes represent
information that is important to know but which do not necessarily
relate to possible injury or damage to equipment.

High Frequency Generators - Veterinary Systems APR-VET
Operation
OM-0118R0
SAFETY SYMBOLS
The following safety symbols will be used in the equipment.
Their meaning are described below.
Attention, consult accompanying documents.
Ionizing radiation.
Type B equipment.
Dangerous voltage.
Ground.
This symbol indicates that the waste of electrical and
electronic equipment must not be disposed as unsorted
municipal waste and must be collected separately. Please
contact an authorized representative of the manufacturer or
an authorized waste management company for information
concerning the decommissioning of your equipment.

High Frequency Generators - Veterinary Systems APR-VET
Operation
OM-0118R0 i
TABLE OF CONTENTS
Section Page
1 INTRODUCTION 1.........................................................
1.1 General Features 3...................................................
1.2 Product Identification 4................................................
1.3 Certifications 5.......................................................
1.4 Classification 5.......................................................
2SAFETY 7................................................................
2.1 General 7...........................................................
2.2 Responsibilities 8.....................................................
2.3 Maximum Permissible Dose (MPD) 9...................................
2.4 Radiation Protection 9.................................................
2.5 Monitoring of Personnel 10.............................................
2.6 Protection against Electric Shock Hazards 10.............................
2.7 Protection against Hazards from Unwanted or Excessive Radiation 10........
3 OPERATING CONTROLS 11................................................
3.1 Radiography and General Controls 13....................................
3.1.1 Power ON / OFF 13.............................................
3.1.2 Bucky / No Bucky Selection 13...................................
3.1.3 Focal Spot Indicators 14.........................................
3.1.4 Status Indicators 14.............................................
3.1.5 Self Diagnostic Indicators 15.....................................
3.1.6 Radiographic Parameters 16.....................................
3.2 Automatic Exposure Control (AEC) 18....................................
3.3 Anatomical Programmer (APR) 19.......................................
3.4 Exposure Controls 24..................................................
3.5 Heat Units 25.........................................................
3.6 Exposure Counters 25.................................................
3.7 Error Codes 25........................................................

High Frequency Generators - Veterinary Systems APR-VET
Operation
OM-0118R0
ii
Section Page
3.8 Brakes 28............................................................
3.8.1 Brakes of the Tube-collimator Support for Sliding Column 28.........
3.8.2 Brakes of the Tube-collimator Support for Variable SID Column 28....
3.8.3 Brakes of the Fixed Radiographic Table with Floating Table-Top 29....
3.9 Bucky Cassette Tray 29................................................
3.10 Collimator Controls 29..................................................
4 OPERATING SEQUENCES 31...............................................
4.1 Start-up Routine 31....................................................
4.2 X-ray Tube Warm-up Procedure 31......................................
4.3 Radiographic Operation 32.............................................
4.4 AEC Operation 33.....................................................
4.5 APR Operation 34.....................................................
5 PERIODIC MAINTENANCE 35...............................................
5.1 Operator Tasks 35.....................................................
5.2 Service Tasks 36......................................................
6 TECHNICAL SPECIFICATIONS 37...........................................
6.1 Factors 37............................................................
6.2 Range of Radiographic Parameters 37...................................
6.3 Duty Cycle 37.........................................................
6.4 Physical Characteristics 38.............................................

High Frequency Generators - Veterinary Systems APR-VET
Operation
OM-0118R0 1
SECTION 1 INTRODUCTION
This manual contains all the necessary information to understand and operate
the Veterinay Systems with High Frecuency Generator and Radiographic
Console APR-VET. It provides a general description, safety and regulatory
information, operation instructions and specifications concerning the
equipment.

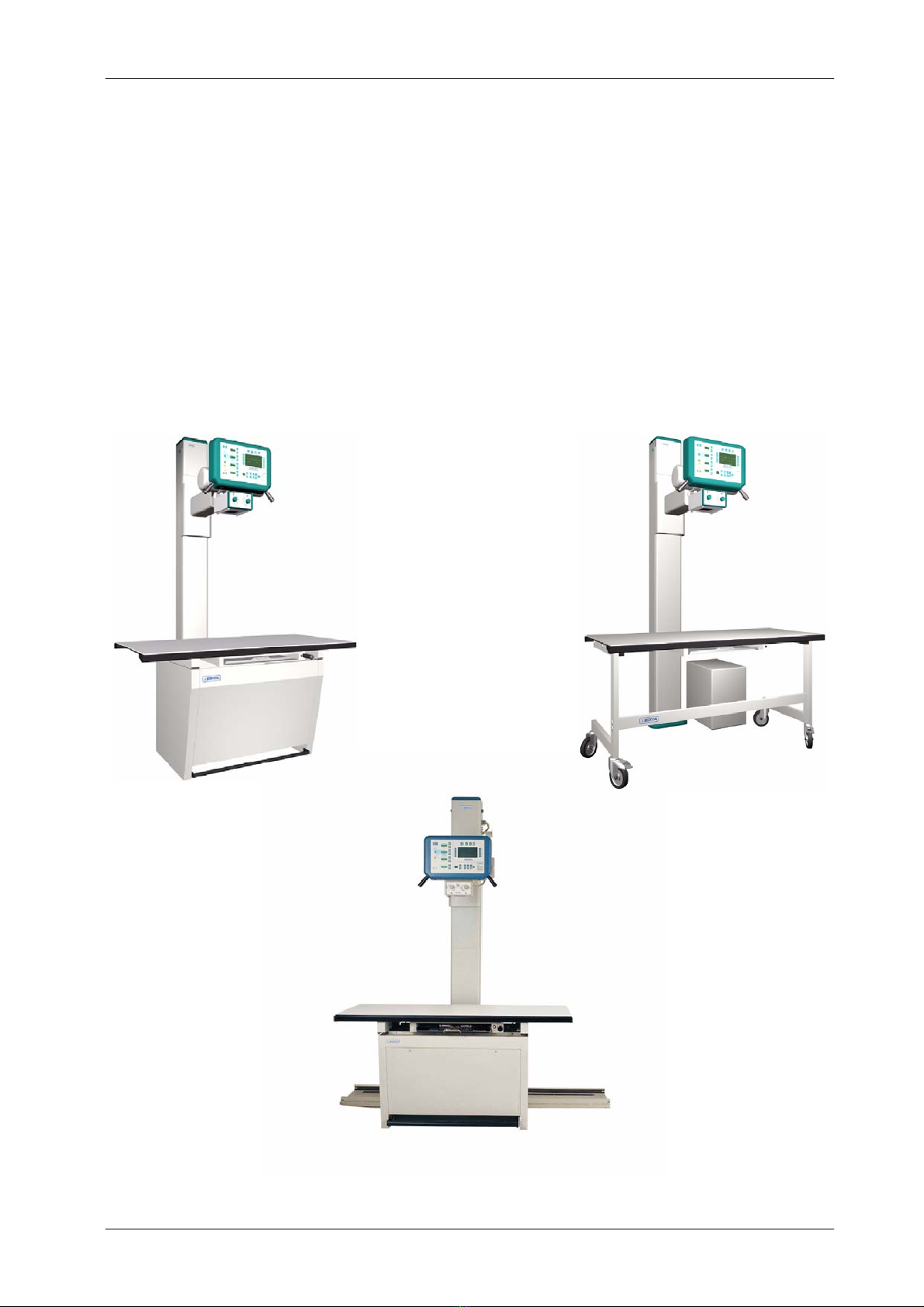

Illustration 1-1
Veterinay Systems APR-VET

High Frequency Generators - Veterinary Systems APR-VET
Operation
OM-0118R0
2
These Veterinary Systems consist of:
•High Frequency X-ray Generator designed for general radiography in
Veterinary applications. It provides all the advantages of high frequency
waveform generators including lower patient dose, shorter exposure
times and greater accuracy and consistency.
The generator is controlled by multiple microprocessors providing
increased exposure consistency, efficient operation and extended tube
life. A high level of self-diagnosis greatly increases serviceability and
reduces down time.
•Radiographic Console APR-VET with controls and displays for
radiographic operations and general functions. The operator can select
tecniques in one, two or three points or use any anatomical programming
(APR).
The Console is designed to provide an easy operation and it is the
interface with the Generator and the rest of the System. Optionally, the
Console can be installed alone or assembled on a pedestal.
•Tube-Collimator Assembly and Radiographic Table. The System
configuration is based on both components.
GTube-Collimator Assembly. Available in three versions: Fixed
SID, Variable SID or Sliding Column. This assembly includes the
X-ray Tube, Collimator and Control Console.
GRadiographic Table.Two different models available for a better
patient positioning: Fixed Table with Floating Table-Top and
Mobile Table with wheels.
The Fixed Table includes a Bucky and/or a Cassette Tray and the
Generator is installed inside the Table.
In the case of the Mobile Table, the Bucky and/or the Cassette Tray
are assembled to the column and the generator is placed at the
base.

High Frequency Generators - Veterinary Systems APR-VET
Operation
OM-0118R0 3
1.1 GENERAL FEATURES
The main features of this System are:
•Constant potential at high frequency single phase or three phase.
•Three point control by selecting kVp, mA and Exposure Time, or two
point control by selecting kVp and mAs, or one point control by selecting
kVp with AEC operations.
•Anatomical Programming (APR).
•Self-diagnostic warnings that identify malfunctions in the equipment.
•Tube protection circuitry that prolongs tube life and increases system
performance.
•Equipped with closed loop control of X-ray tube current, kVp and
filaments, which minimize potential errors and the need for
readjustments.
•Automatic line voltage compensation due to closed loop operation of
X-ray tube current and kVp.
•Heat Unit storage for the X-ray tube. Data available after turning Off / On
the equipment.
•Bucky Connection (optional).
•Automatic Exposure Control (AEC) which accomodates the most
popular exposure detectors (optional).

High Frequency Generators - Veterinary Systems APR-VET
Operation
OM-0118R0
4
1.2 PRODUCT IDENTIFICATION
The major items in the equipment have some identification labels attached to
them which provide the following manufacturer and product information.
•Product
•Model.
•Volts (V), Line Phases, Frequency (Hz), and Power (kVA, kW).
•Date of manufacture.
•Serial number.
•Part number.
•Manufacturer.
•Place of manufacture.
•Certification.

High Frequency Generators - Veterinary Systems APR-VET
Operation
OM-0118R0 5
1.3 CERTIFICATIONS
The X-ray Unit covered by this Operation Manual is authorized to be marked
with CE MARKING in accordance with the provisions of the Council Directive
93 / 42 / EEC.
1.4 CLASSIFICATION
The X-ray Generator covered by this Operation Manual is classified as:
•Protection against Electric Shock: Class I -- Type B applied parts.
•Protection against Harmful Ingress of Water: Ordinary.
•Degree of Safety in the presence of Flammable Anesthetics Mixture with
air or with oxygen or with nitrous oxide: Not suitable for use in the
presence of Flammable Anesthetics Mixture with air or with oxygen or
with nitrous oxide.
•Mode of Operation: Continuous operation with intermittent loading.
•Permanently Installed Equipment.

High Frequency Generators - Veterinary Systems APR-VET
Operation
OM-0118R0
6
This page intentionally left blank.

High Frequency Generators - Veterinary Systems APR-VET
Operation
OM-0118R0 7
SECTION 2 SAFETY
2.1 GENERAL
Keep this Operating Manual with the equipment at all times and periodically
review the Operating and Safety instructions.
For continue safe use of this equipment follow the
instructions in this Operation Manual. Study this manual
carefully before using the equipment and keep it at hand for
quick reference.
THE EQUIPMENT DESCRIBED IN THIS MANUAL MUST BE
ONLY HANDLE BY QUALIFIED PERSONNEL PREVIOUSLY
TRAINED IN IT.
X-RAY EQUIPMENT IS DANGEROUS TO BOTH PATIENT AND
OPERATOR UNLESS PROTECTION MEASURES ARE
STRICTLY OBSERVED.
IT IS VITALLY IMPORTANT THAT EVERYONE ASSOCIATED
WITH X-RAY RADIATION IS FAMILIAR WITH THE SAFETY
AND REGULATORY INSTRUCTIONS CONTAINED WITHIN
THIS MANUAL, IN PARTICULAR, THE STATEMENT AT THE
BEGINNING OF THIS MANUAL ENTITLED “IMPORTANT!...
X-RAY PROTECTION”.
THESE INSTRUCTIONS SHOULD BE THOROUGHLY READ
AND UNDERSTOOD BEFORE ATTEMPTING TO PLACE THIS
EQUIPMENT IN OPERATION.
Although X-radiation can be hazardous, X-ray equipment does not pose any
danger when it is properly used. Please ensure that all service and operating
personnel are properly trained and informed on the hazards of radiation. Those
responsible for the system must understand the safety requirements for X-ray
operation. Please study this manual and the manuals for each system
component to be fully aware of all the safety and operational requirements.

High Frequency Generators - Veterinary Systems APR-VET
Operation
OM-0118R0
8
2.2 RESPONSIBILITIES
ENSURE THAT ALL PERSONNEL AUTHORIZED TO USE THE
EQUIPMENT ARE AWARE OF THE DANGER OF EXCESSIVE
EXPOSURE TO X-RAY RADIATION.
THE EQUIPMENT HEREIN DESCRIBED IS SOLD WITH THE
UNDERSTANDING THE MANUFACTURER, ITS AGENTS, AND
REPRESENTATIVES ARE NOT LIABLE FOR INJURY OR
DAMAGE WHICH MAY RESULT FROM OVEREXPOSURE OF
PATIENTS OR PERSONNEL TO X-RAY RADIATION.
THE MANUFACTURER DOES NOT ACCEPT ANY
RESPONSIBILITY FOR OVEREXPOSURE OF PATIENTS OR
PERSONNEL TO X-RAY RADIATION GENERATED BY THIS
EQUIPMENT WHICH IS A RESULT OF POOR OPERATING
TECHNIQUES OR PROCEDURES.
NO RESPONSIBILITY WILL BE ASSUMED FOR ANY
EQUIPMENT THAT HAS NOT BEEN SERVICED AND
MAINTAINED IN ACCORDANCE WITH THE MANUFACTURER
INSTRUCTIONS, OR WHICH HAS BEEN MODIFIED OR
TAMPERED WITH IN ANY WAY.
IT IS THE RESPONSIBILITY OF THE OPERATOR TO ENSURE
THE SAFETY OF THE PATIENT WHILE THE X-RAY
EQUIPMENT IS IN OPERATION BY VISUAL OBSERVATION,
PROPER PATIENT POSITIONING, AND USE OF THE DEVICES
THAT ARE INTENDED TO PREVENT PATIENT INJURY.
ALWAYS WATCH ALL PARTS OF THE SYSTEM TO VERIFY
THAT THERE IS NO INTERFERENCE AND NO POSSIBILITY
OF COLLISION WITH THE PATIENT OR WITH OTHER
EQUIPMENTS.
SHOULD ANY INTERFERENCE (EMC) BE DETECTED WITH
OTHER EQUIPMENT, PLEASE POSITION OTHER
EQUIPMENT AWAY FROM THIS ONE.

High Frequency Generators - Veterinary Systems APR-VET
Operation
OM-0118R0 9
2.3 MAXIMUM PERMISSIBLE DOSE (MPD)
Before operation, persons qualified and authorized to operate this equipment
should be familiar with the Recommendations of the International Commission
on Radiological Protection, contained in Annals Number 60 of the ICRP, with
applicable National Standards, and should have been trained in use of the
equipment.
2.4 RADIATION PROTECTION
Because exposure to X-ray radiation may be damaging to health, use great care
to provide protection against exposure to the primary beam. Some of the effects
of X-ray radiation are cumulative and may extend over a period of months or
years. The best safety rule for X-ray operator is “Avoid exposure to the primary
beam at all times”.
Any object in the path of the primary beam produces secondary (scattered)
radiation. The intensity of the secondary radiation is dependent upon the
energy and intensity of the primary beam and the atomic number for the object
material struck by the primary beam. Secondary radiation may be of greater
intensity than that of the radiation reaching the film. Take protective measures
to safeguard against it.
An effective protective measure is the use of lead shielding. To minimize
dangerous exposure, use such items as lead screens, lead impregnated
gloves, aprons, thyroid collars, etc. The lead screen should contain a minimum
of 2.0 mm of lead or equivalent and personal protective devices (aprons,
gloves, etc.) must contain a minimum of 0.25 mm of lead or equivalent. For
confirmation of the local requirements at your site, please refer to your “Local
Radiation Protection Rules” as provided by your Radiation Protection Advisor.
WHILE OPERATING OR SERVICING X-RAY EQUIPMENT,
ALWAYS KEEP A DISTANCE NOT LESS THAN 2 METERS
FROM THE FOCAL SPOT AND X-RAY BEAM, PROTECT
BODY AND DO NOT EXPOSE HANDS, WRISTS, ARMS OR
OTHER PARTS OF THE BODY TO THE PRIMARY BEAM.

High Frequency Generators - Veterinary Systems APR-VET
Operation
OM-0118R0
10
2.5 MONITORING OF PERSONNEL
Monitoring of personnel to determine the amount of radiation to which they have
been exposed provides a valuable cross check to determine whether or not
safety measures are adequate. It may reveal inadequate or improper radiation
protection practices and potentially serious radiation exposure situations.
The most effective method of determining whether or not the existing protective
measures are adequate is the use of instruments to measure the exposure.
These measurements should be taken at all locations where the operator, or
any portion of the body may be exposed. Exposure must never exceed the
accepted tolerable dose.
A frequently used, but less accurate, method of determining the amount of
exposure is the placement of film at strategic locations. After a specified period
of time, develop the film to determine the amount of radiation.
A common method of determining whether personnel have been exposed to
excessive radiation is the use of personal radiation dosimeters. These consist
of X-ray sensitive film or thermoluminescent material enclosed within a holder
that may be worn on the body. Even though this device only measures the
radiation which reaches the area of the body on which they are worn, they do
provide a reasonable indication of the amount of radiation received.
2.6 PROTECTION AGAINST ELECTRIC SHOCK HAZARDS
This X-ray Unit has been classified as equipment of type-B ( ) in accordance
with IEC 60601-1.
This equipment meets the following Safety Standards: IEC 60601-1,
IEC 60601-2-7.
ACCORDING TO THE MDD/93/42/EEC, THIS UNIT IS
EQUIPPED WITH EMC FILTERS. THE LACK OF THE PROPER
GROUNDING MAY PRODUCE ELECTRICAL SHOCK TO THE
USER.
2.7 PROTECTION AGAINST HAZARDS FROM UNWANTED OR EXCESSIVE
RADIATION
Statement of compliance: This X-ray Unit with radiation protection in
accordance with IEC 60601-1-3 for which compliance is to be stated.
This equipment meets Standard IEC 60601-1-3 requirements.

High Frequency Generators - Veterinary Systems APR-VET
Operation
OM-0118R0 11
SECTION 3 OPERATING CONTROLS
Except for the brakes of the mobile components in the system, all the controls,
indicators and displays are located on the Console. They are grouped in
functional modules.
Use the operating controls as described in this manual, any other
non-indicated combination can cause an incorrect operation of the
equipment.
Illustration 3-1
APR-VET Console
s
8. Film / Screen Combination
9. AEC Reset
10. Patient Size Selection (APR)
11. APR Display Selectors
12. Self-Diagnostic Indicator
13. Status Indicators
1. On
2. Off
3. Bucky / No Bucky Selection
4. Focal Spot Indicators
5. Radiographic Parameters
6. AEC Density Parameters
7. AEC Area Selection
12
3
5
11
12
7
8
4
10
12
6
11
13
9
SEDECAL
WARNING:
THIS X-RAYUNIT MAY BE DANGEROUS TO
PATIENT AND OPERATOR UNLESS SAFE
EXPOSURE FACTORS AND OPERATING
INSTRUCTIONS ARE OBSERVED. TO BE
USED BY AUTHORIZED PERSONNEL ONLY.
ATENCION:
ESTA UNIDAD DE RAYOS-X PUEDE SER
PELIGROSA PARA EL PACIENTE Y EL
OPERADORA MENOS QUE LOSFACTORES
DE SEGURIDAD E INSTRUCCIONES DE
OPERACION SEAN OBSERVADOS. USO
RESERVADOAL PERSONAL AUTORIZADO.
kVp
mAs
mA
Note .

High Frequency Generators - Veterinary Systems APR-VET
Operation
OM-0118R0
12
USE THE EQUIPMENT HAND-GRIPS TO CONTROL AND
DRIVE THE UNIT MOVEMENTS, NEVER PUSH DIRECTLY ON
THE X-RAY TUBE OR COLLIMATOR.
MONITOR THE SYSTEM MOVEMENTS WITH SPECIAL CARE.
AVOID ANY IMPACT OF THE SYSTEM ON FLOOR, CEILING
OR OTHER ELEMENTS IN THE ROOM. IT MAY CAUSE
SERIOUS DAMAGE TO THE EQUIPMENT.
MONITOR WITH SPECIAL CARE THE PATIENT POSITION TO
AVOID INJURY TO PATIENT CAUSED BY TABLE-TOP
MOVEMENTS. PATIENT EXTREMITIES BE KEPT AWAY FROM
MOBILE COMPONENTS OF THE UNIT.
OPERATOR SHOULD NEVER MOVE TABLE-TOP FROM
LATERAL SIDE (PATIENT HEAD OR FEET). IT MAY CAUSE
FINGERPINCH UNDER THE TABLE-TOP.
INTRAVENOUS TUBING, CATHETERS AND OTHER PATIENT
CONNECTED LINES SHOULD BE ROUTED AWAY FROM
MOVING EQUIPMENT.
