Seeley Braemar RPCQi Series User manual

(English)
INSTALLATION MANUAL
RPCQi Evaporative Coolers
Original English Instructions
ON ON
OFFOFF
COOL
SPEED
INTERNA TIONAL
AIR

i |
TABLE OF CONTENTS
TABLE OF CONTENTS i
IMPORTANT SAFETY INSTRUCTIONS 1
Read and Save These Instructions for Future Reference. 1
Employer and Employee Responsibilities 1
Installer and Maintenance Contractors - Risk Assessment 1
PREPARING TO INSTALL THE COOLER 2
Cooler Location 2
ACCESS FOR SERVICING AND MAINTENANCE 2
PREPARING THE DROPPER (IF REQUIRED) 2
Levelling the Dropper 2
MOUNTING THE COOLER 3
CONVEYING THE COOLER TO THE ROOF 3
ELECTRICAL REQUIREMENTS 4
INSTALLING THE MAINS POWER CABLE 4
INSTALLING THE CONTROLLER CABLE 4
MULTIPLE COOLER INSTALLATIONS WITH EXTERNAL AIR SENSOR 5
WATER REQUIREMENTS 5
Water Supply: 5
Bleed Control 5
Recommended Bleed Rates 5
INSTALLING THE DRAIN VALVE (OPTIONAL) 6
CONNECTING THE MAGIQTOUCH/MAGIQCOOL CONTROLLER OR SWITCH PLATE 6
MagiQcool Wall Control Displays “Service” 6
COMMISSIONING THE COOLER 7
Diagnostic Led 7
Salinity Led 7
Magiqtouch Controller Information 7
FAULT CODES 8
TESTING THE DIRECT DRIVE MOTOR 8
CHANGING THE WATER MANAGEMENT METHOD FOR THE MAGIQCOOL CONTROL 8
SETTING THE WATER LEVEL 9
TESTING THE DRAIN VALVE 9
REFITTING THE PAD FRAMES 9
TESTING THE PUMP 9
ADJUSTING COOLER SETTINGS 10
COMMISSIONING COMPLETION CHECKLIST 11
Cooler 11
Weatherseal 11
Plumbing 11
Drain Valve 11
Power 11
Ductwork 11
Flushing Chillcel Pads 11
Final Test 11
Customer Handover 11
Clean-Up 11
Final Check 11
TROUBLE SHOOTING 12
WARNING! Failure to install and commission the product in compliance with these instructions, or failure to do
the job properly and competently, may void the customer’s warranty. Further, it could expose the Installer and/or
the Retailer to serious liability.

BRAEMAR RPCQi EVAPORATIVE COOLERS INSTALLATION MANUAL |1
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS FOR
FUTURE REFERENCE.
Means for all pole disconnection must be incorporated in the
xed wiring in accordance with the wiring rules.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualied persons in
order to avoid a hazard.
The following specications for the cooler water supply are
required:
Min Water Pressure: 100kPa (15psi)
Max Water Pressure: 800kPa (115psi)
New hose sets supplied with the appliance are to be used and
old hose-sets should not be re-used.
WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK, OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
a) Installation work and electrical wiring must be done by
qualied person(s) in accordance with all applicable codes
and standards, including re-rated construction.
b) When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.
c) Ducted fans must always be vented to the outdoors.
d) Do not use this fan with any solid-state speed control device.
FOR AUSTRALIAN BUSHFIRE PRONE AREAS
WARNING: If this evaporative cooler is installed in a BAL-12.5
to 29 area the evaporative cooler dropper duct and ashings
shall be adequately sealed at the roof to prevent gaps greater
than 3mm. The dropper duct, ashings and sealant shall be
non-combustible.
The following additional components are also required.
A non-combustible buttery closure with a maximum aperture of
3mm installed inside the dropper duct as close as practicable to
the roof lining.
Pad frames tted with non-combustible, corrosion-resistant
mesh ember guards with a maximum aperture of 2mm.
Tank bottom surrounds to be tted with non-combustible,
corrosion-resistant material.
AND
Pad frame grilles made with non-combustible, corrosion-
resistant material.
The above components are available through Seeley
International Sales, Australia.
EMPLOYER AND EMPLOYEE RESPONSIBILITIES
The installation and maintenance of evaporative coolers at
height has the potential to create Occupational Health and
Safety issues for those involved. Installers are advised to
ensure they are familiar with the relevant State and Federal
legislation, such as Acts, Regulations, approved Codes of
Practice and Australian Standards, which o󰀨er practical
guidance on these health and safety issues. Compliance
with these regulations will require appropriate work practices,
equipment, training and qualications of workers.
Seeley International provides the following information as a
guide to contractors and employees to assist in minimising risk
whilst working at height.
INSTALLER AND MAINTENANCE CONTRACTORS -
RISK ASSESSMENT
A risk assessment of all hazardous tasks is required under
legislation. A risk assessment is an essential element that
should be conducted before the commencement of work, to
identify and eliminate the risk of falls or to minimise these risks
by implementing control measures. There is no need for this to
be a complicated process, it just is a matter of looking at the job
to be done and considering what action(s) are necessary so the
person doing the job does not injure themselves.
This should be considered in terms of:
• What are the chances of an incident happening?
• What could the possible consequence be?
• What can you do to reduce, or better still, completely get rid of
the risk?
SOME POINTS TO CONSIDER
• What is the best and safest access to the roof and working
areas?
• If a worker is alone, who knows they are there and if they get
into di󰀩culty, how can they summon help? (Call someone on
the ground? Mobile phone? Etc.)
• What condition is the roof in? Should the trusses, underside or
surface be checked?
• Does the worker have appropriate foot wear? (Flat sole jogger
type is advisable.)
• Are all power cables / extension leads safe and appropriately
rated?
• Are all ladders, tools and equipment suitable in good
condition?
• Where ladders are to be used, is there a rm, stable base for
them to stand on? Can they be tied or secured in some way
at the top? Is the top of the ladder clear of electricity supply
cables?
• Is there a roof anchor to attach a harness and lanyard to? If
so, instruction should be issued for the use of an approved
harness or only suitably trained people used.
• Are all tools and materials being used, prevented from slipping
and falling onto a person at ground level? Is the area below
the work area suitably protected to prevent persons walking in
this area?
• Does the work schedule take into account weather conditions,
allowing for work to be suspended in high winds, thunder
storms/lightning or other types of weather giving wet, slippery
surfaces?
• Is there an on-going safety check system of harnesses, ropes,
ladders and access/lifting equipment and where they exist on
roofs, anchor points before the commencement of work?
• Is there a system which prevents employees from working
on roofs if they are unwell or under the inuence of drugs or
alcohol?
• Are there any special conditions to consider i.e. excessive roof
pitch, limited ground area, fragile roof, electrical power lines?
OTHER IMPORTANT REQUIREMENTS
• Never force parts to t because all parts are designed to t
together easily without undue force.
• Never drill holes in the tank of the cooler.
• Check the proposed cooler location, to ensure that it is
structurally capable of supporting the weight of the cooler, or
provide an adequate alternate load bearing structure.
Ensure the installation complies with all local and national
regulations with regards to electrical, plumbing and bushre
construction requirements.

2 |
PREPARING TO INSTALL THE COOLER
COOLER LOCATION
Check the proposed cooler location to ensure it is structurally
capable of supporting the weight of the cooler. If the roof is
structurally inadequate, provide an alternate load bearing
structure.
The ideal location for the cooler is in a central position on the
roof (away from sleeping areas and where people spend most
of their time) so that the duct runs are of approximately the
same length. Carefully consider neighbouring residences and
noise levels when locating the cooler, if necessary talk to the
customer and the neighbour before carrying out the installation.
Always locate the cooler where it will receive adequate fresh air
and not in a recess where it may be starved for air or where the
air is polluted.
Ensure location is a minimum of:
• 3m from a solid fuel heater ue,
• 1.5m from a gas ue,
• 5m from a sewer vent, and
• 600mm from a wall.
The cooler must be mounted at least 3m, preferably 5m away
from any TV antenna or antenna cables.
Make sure the cooler is not between the antenna and the
transmission tower that is providing the television signal to the
home.
Allow adequate access to and around the cooler for
maintenance. Provision must be made for access to electricity,
water supplies and drains.
RPCQi MODELS
ILL1646-A
Note! Do you need to discuss the installation of items like
safety anchor points with the customer
PREPARING THE DROPPER (IF REQUIRED)
LEVELLING THE DROPPER
Ensure the top of the dropper is level and square in all
directions (use a spirit level). This helps with levelling the cooler.
Cut a 50mm diameter cable exit hole in the dropper then t and
screw the cable grommet into position.
ACCESS FOR SERVICING AND
MAINTENANCE
The cooler should be installed in a position that allows adequate
access for installation, future maintenance and servicing
activities. This should comply with installation guidelines and
any local, State and National regulations.
Consider the following for the installation location:-
• Which has clear access to and around the cooler
• Which is clear of xtures in line with below clearances
• Which is clear of fall edges (> 3m away)
• Which is structurally capable of supporting the weight of the
cooler and service technicians
Required clearances around the cooler for future maintenance
and servicing are shown adjacent.
Extra service or warranty charges may apply for the cost of
any equipment or additional labour involved in accessing
the cooler if these guidelines are not met.
ILL3000
ILL3001
ILL2129-A

BRAEMAR RPCQi EVAPORATIVE COOLERS INSTALLATION MANUAL |3
Side & Top Discharge Models
These units are required to be mounted onto a level platform
and must be strong enough to support the unit under operating
and prevailing conditions.
Inside these units will be a exible connector kit intended to be
tted on site to allow better alignment to duct work.
IMPORTANT
Installation must be in accordance with Municipal Building
Regulations, Relevant Electrical Wiring Regulations, and any
other relevant Codes and Regulations.
All installation work to be carried out by Authorized Persons
only.
CONVEYING THE COOLER TO THE ROOF
Lifting and installing the cooler is made easier by removing the
pad frames rst. They can be replaced at the very end of the
installation procedure.
Do not slide the cooler, lift and carry it. It is recommended
that at least 2 people carry the cooler whenever it needs to be
moved. Do not drop the cooler. Always handle with care.
Important! For lifting or pulling purposes when using ropes or
slings, always apply the ropes around fan housing. Never tie
them to any or all of the 4 corner pillars.
WARNING! Take care that the ends of ladders, etc. don’t
penetrate into the opening of the cooler,
CAUTION! Never try to raise the cooler to the roof alone.
MOUNTING THE COOLER
Down Discharge Models
These units have been designed to be directly mounted on top
of a suitably sized and strengthened metal duct. Fixing is by
means of self drilling screws or rivets through the steel mount
on the bottom of unit to metal duct.
ILL3002
ILL3004

4 |
ELECTRICAL REQUIREMENTS
INSTALLING THE MAINS POWER CABLE
The power cable, included with your cooler will have boot lace
ends ready for connection to the mains power supply.
Means for all pole disconnection must be incorporated in the
xed wiring in accordance with the wiring rules.
Field Wiring
Pass the power cable through the conduit gland located on
corner of unit.
Terminate the power cable in a junction box installed nearby.
Refer to the eld wiring diagram below. The xed wiring must
be tted with an all pole disconnection switch that breaks the
active and neutral in accordance with local wiring rules. We
recommend the junction box be located and installed on the
dropper.
WARNING! Do not let the cable, the cable ends, or the control
box get wet.
ILL2149-A
GROMMET
CONTROLLER
CABLE POWER
INSTALLING THE CONTROLLER CABLE
Seeley International recommends:
• Not routing data/communication and supply mains voltage
cables in the same conduit.
• Not cable tying or taping data/communication and supply
mains voltage cables together.
• A minimum separation distance, as specied by your
local wiring standards, between data/communication and
supply mains cables. In Australia, this minimum separation
distance is 50mm .
Connect one end of the control cable (with ferrite suppressor) to
the cooler electronics box. The wall control cable can be tted
to either of the RJ ports
Down Discharge Units
A hole is provided in the side of the blower housing for control
cable entry. The control cable can be passed through this hole
and wired to the control box. On installation pass the cables
through the hole into the dropper and then into the roof cavity
Side & Top Discharge
Using knockout located on the corner pillar on the opposite side
to the mains connection
Feed looped end of the controller cable through the supplied
grommet then t the grommet into hole left after knock out was
removed.
Note! It is important to route the control and power cables out
through included grommets / conduit.
Note! The maximum length for the wall control cable to travel
alongside the power cable is 10m.
WARNING! Do not let the cable, the cable ends, or the control
box get wet.
IMPORTANT REMINDER!
Do not route extra-low voltage data/communication and low
voltage supply mains cables without rst consulting your local
wiring standards. Routing data/communication cables and
supply mains cables in close proximity can present an electrical
hazard and can be detrimental to the performance of the
product, resulting in intermittent communication errors, locking
up of screens, displays dropping out and inconsistent erratic
operation.
It is required that all units be connected to the mains supply
through an independent circuit, suitably protected by fuse or
circuit breaker. Ensure that the power supply is su󰀩cient for the
rating indicated on the serial plate. Wire the unit in accordance
with all state and local regulations.
NOTE
An all pole disconnection switch must be incorporated in the
xed wiring in the accordance with the wiring rules.
ILL3005
ILL2149-A
ILL3006

BRAEMAR RPCQi EVAPORATIVE COOLERS INSTALLATION MANUAL |5
Installation of the cooler water supply must conform to
local plumbing rules, regulations and standards.
The following specications for the cooler water
supply are required:
Water Connection ½”BSP
Min Water Pressure 100kPa (15psi)
Max Water Pressure 800kPa (115psi)
Min Water Flow 8 liters/min (2.1 gallons/min)
Max Water Temperature 40°C (104°F)
Important! If the water pressure exceeds maximum
specication then a pressure reducing valve is required
and must be supplied and tted by the installer.
WATER REQUIREMENTS
KJ
I
H
H = Overflow
I = Tank
J = Plastic Nut
K = Threaded Bush
L = O Ring (Between H & K)
10
5
L
BLEED CONTROL
To reduce the accumulation of salts and minerals in the cooler
when running for long periods it is essential to bleed a certain
amount of water. Increased ow of make up water reduces
the salt content. The bleed rate will vary with the water supply
quality, but should initially be set to the minimum recommended
bleed rates as set out in below. If your water supply is of
poor quality, higher bleed o󰀨 rates are necessary to ensure
reasonable pad life and cooler performance. Place the hose
from the bleed tap into the overow pipe. Connect suitable pipe
work to bottom of the overow bush so that water drains directly
to waste. Drain plumbing must be in accordance with local
regulations.
C
D E
B
A
H
G
IJK
F
A = Brass Nut
B = Washer
C = Brass Adaptor
D = Plastic Elbow
E = Plastic Nut
F = Valve
G = Float
H = Overflow
I = Tank
J = Plastic Nut
K = Threaded Bush
L = O Ring (between H & K)
L
WATER SUPPLY:
Mains connection is made to the oat valve tted in the
reservoir. The oat valve must be set to maintain the reservoir
water level about 10 mm below the overow level.
The mains water supply should be tted with a ball valve and
connection to the unit from the stopcock be made with the
appropriate copper pipe and ttings.
NOTE:
Flush the mains supply before connection to the unit to remove
any foreign matter which may foul the valve seat. Remember to
use a Pipe Cutter to cut copper pipe.
BLEED CONTROL
Max
Min
B
A
C
D
E
A = Bleed Tap
B = Min/Max Label
C = Corner Pillar
D = Supply Hose from Pump
E = Bleed Hose to Drain
The bleed control tap is located externally on a corner pillar.
Adjustment to the bleed rate is made by turning the black/
red tap control to the desired setting. Check the bleed rate
by running into a graduated container for a set time, say 10
minutes.
NOTE.
Ensure tube is not pinched when replacing pads.
RECOMMENDED BLEED RATES

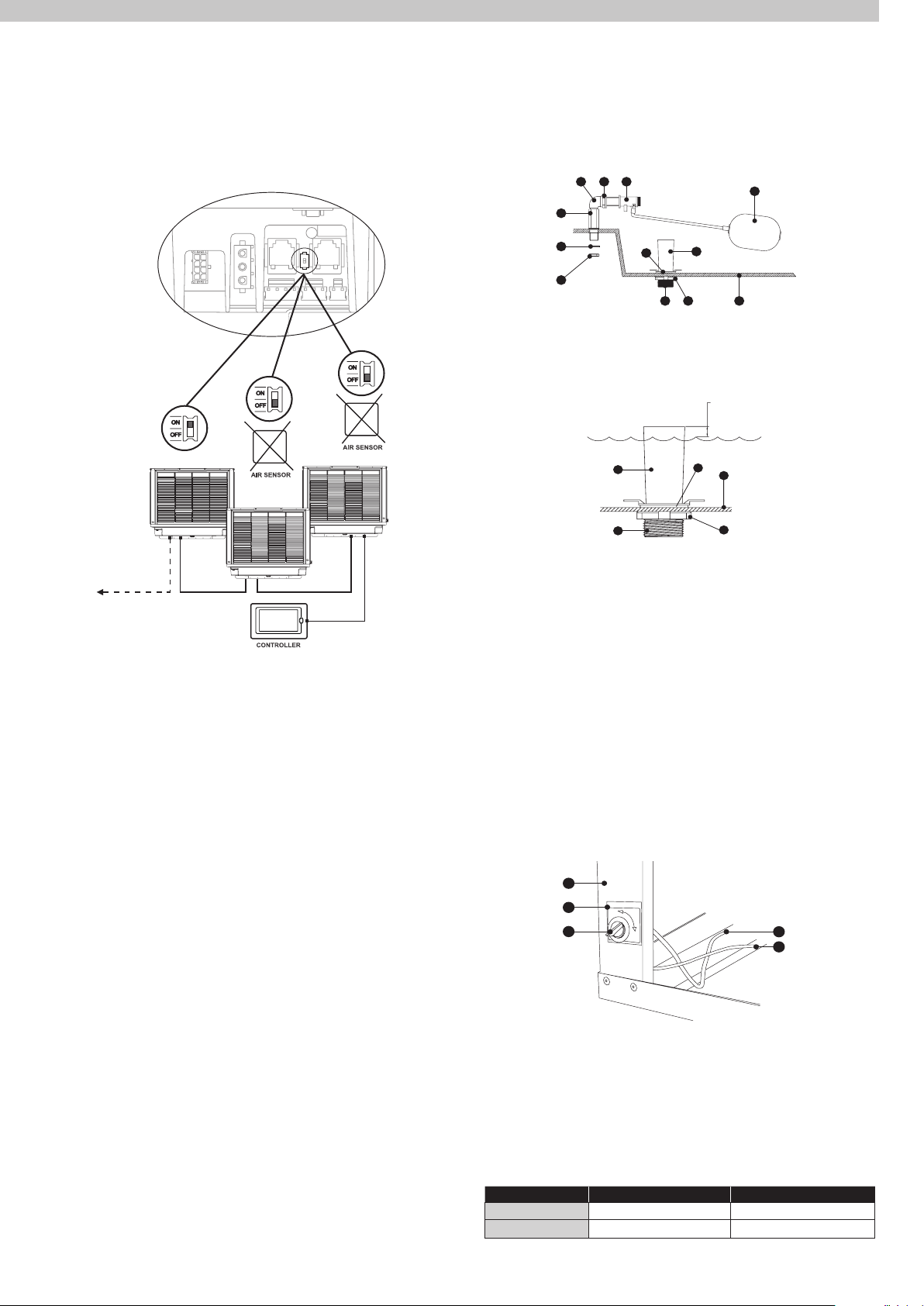

MULTIPLE COOLER INSTALLATIONS WITH
EXTERNAL AIR SENSOR
Cooler electronics tted with External Air Sensors or have a
spare RJ connector can be installed as follows;
Ensure all cooler electronics dipswitches are set to ‘OFF’ except
for the last cooler in series. The last cooler dipswitch should be
switched to ‘ON’ to ensure communication reliability.
Only 1 x External Air Sensor will operate in a multi-cooler
installation. If multiple External Air Sensors are tted disconnect
the External Air Sensor plug from each of the cooler electronics’
except for the last cooler in the series.
UP TO 60
COOLERS WITH
TOTAL CABLE
LENGTH <500m
OR ONE EXTERNAL
AIR SENSOR
EXT
EXT
<20m
<40m
<40m
Model L per 10min L per hr
RPCQi75 1.2 7
RPCQi150 1.6 10
ILL3012
ILL3007
ILL3008
ILL3009

6 |
ILL2150-A
ILL746-B
D
A
B
C
E
F
G
A = Drain Valve
B =
Power Lead (plugs into control box)
C = O-Ring
D = Tank
E = Nut
F = Drain Adaptor
G = Lock Nut
INSTALLING THE DRAIN VALVE (OPTIONAL)
Water drained from the cooler must be carried away to a
suitable discharge point in accordance with local regulations.
Important! Never drain water from the cooler directly on to the
roof.
Make sure the “O”-ring (C) is tted before placing the drain
valve into the hole. Screw the nut (E) up tightly by hand
underneath to locate the drain valve. Locate the drain adaptor
(F) up against the bottom of the drain valve thread and secure
with the second, larger nut (G). Make sure that you use the
correct drain adaptor. Make sure the drain water discharge
ows freely away from the cooler.
Important! Do not over-tighten plastic ttings.
Remove Shorting pins then connect the drain valve cable to the
cooler electronics box.
An optional Water Manager Kit, Part # 073392, can be supplied
with the cooler or at a later date if required. The water manager,
which is fully automatic, is controlled by the cooler control
electronics combined with your Braemar wall control. The
system is designed to ensure that the water is always fresh,
maintains your cooler in good condition and ensures optimum
cooling performance.
Refer to the installation manual provided with the wall controller
for instructions on installing the controller. Coolers are supplied
with a 20m (66’) control cable. Longer cable lengths are
available from Seeley.
Important! The maximum cable length allowed from the
MagIQtouch controller to the rst cooler is 25 metres (82’). For
any additional coolers added into the system with a link module
the maximum allowed length is 40 metres (131’). Therefore,
failure of the product or components to operate correctly due
to modication to supplied cables, or the use of non-approved
cables will NOT be accepted under the Manufacturer’s
Warranty.
We have this cable available through our sales order o󰀩ce and
spare parts outlets in the following lengths:
Part No. Length Details
833880 20m MagIQtouch Controller Cable (No Ferrite)
823553 20m MagIQtouch Controller Cable (With Ferrite)
862873 1.5m MagIQtouch Controller Cable (No Ferrite)
861265 3m MagIQtouch Controller Cable (No Ferrite)
864396 30m MagIQtouch Controller Cable (With Ferrite)
864402 40m MagIQtouch Controller Cable (With Ferrite)
CONNECTING THE MAGIQTOUCH/
MAGIQCOOL CONTROLLER OR SWITCH
PLATE

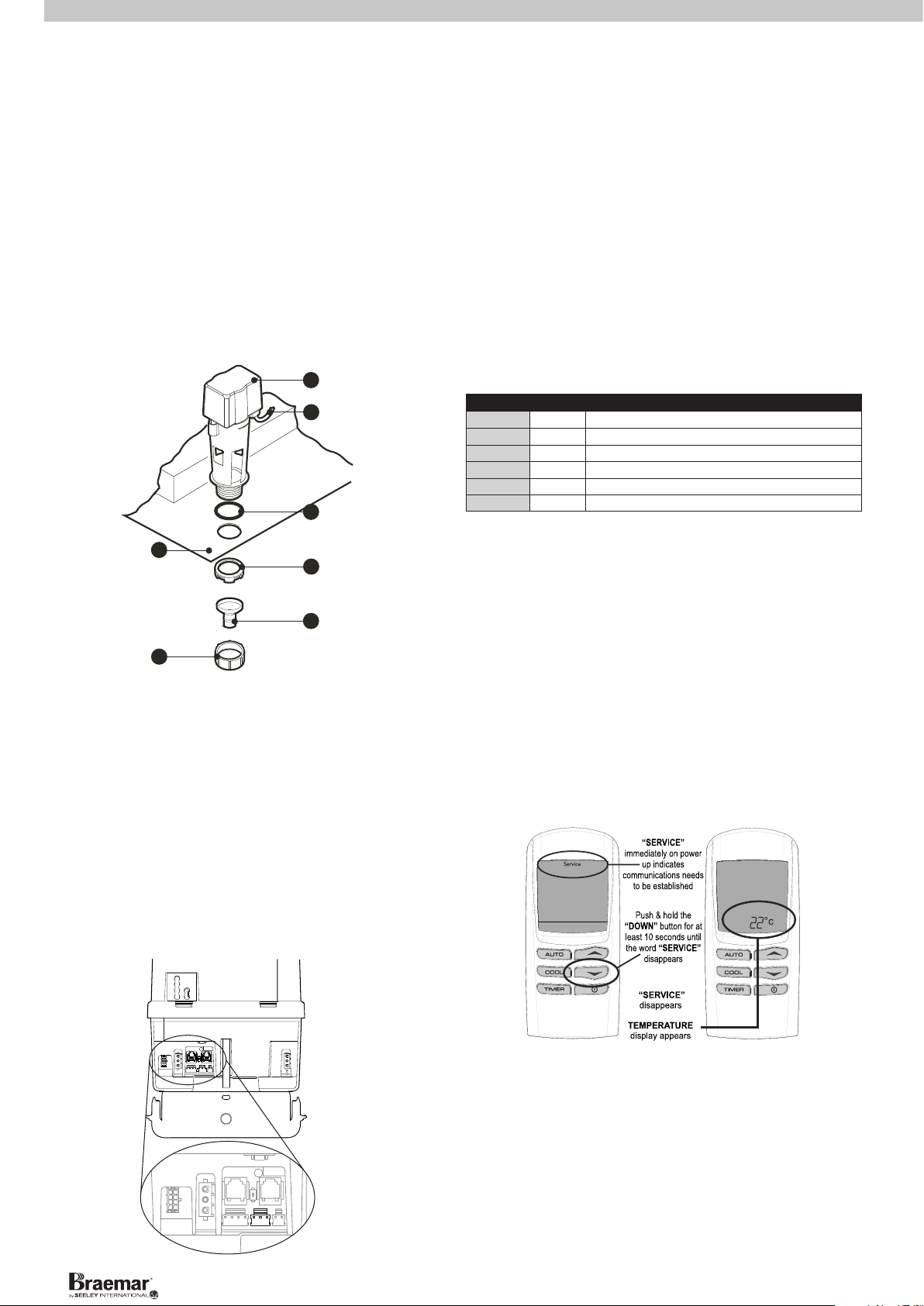

MAGIQCOOL WALL CONTROL DISPLAYS
“SERVICE”
If on initial Installation of a Cooler, or after the wall control has
been changed, the word “SERVICE” appears on the MagIQcool
Wall control screen and the unit does not respond to the
pushing of any buttons even though the backlighting responds.
This is easily rectied and means that communication needs
to be established between the Wall control and the electronic
controller inside the Cooler.
To establish communications simply push and hold the “DOWN”
button until the word “SERVICE” disappears from the screen
and the temperature appears. This may take up to 10 seconds.
Once communications has been established the unit can be
operated.
IMPORTANT
Do not press up when in service mode. Unit will not start
ILL3010
ILL2150-A
ILL2122-B

BRAEMAR RPCQi EVAPORATIVE COOLERS INSTALLATION MANUAL |7

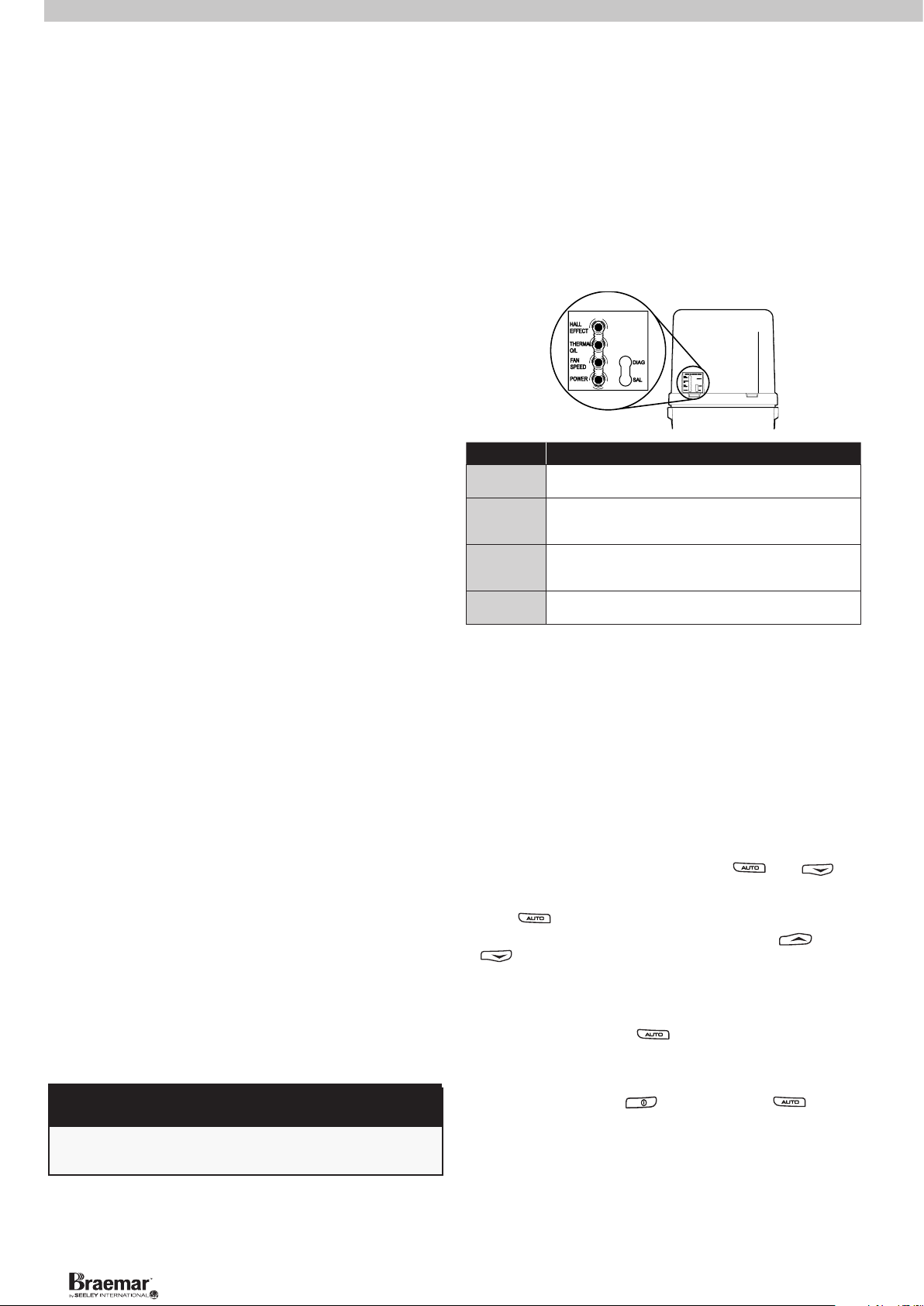

Colour Flash Indicates
No glow No power or a failure has occurred. (Check
power supply to cooler including isolating
switch, circuit breaker and plug and socket
connection in the roof space.)
Green Every 2 sec Normal Operation.
Red 1 Flash Fault Code #1
Communication Failure.
2 Flash Fault Code #2
Failure to Detect Water at Probes.
4 Flash Fault Code #4
Failure to Clear Probes during drain.
Sal Flash Indicates
OFF Not Applicable
1 Flash WaterMiser®salinity is below the set point.
2 Flash WaterMiser®salinity is above the set point.
3 Flash The Salinity Control Method is set for Timed Drain
4 Flash The Salinity Control Method is set for Continuous Bleed.
(Bleed Funnel used)..
5 Flash Thermostatic Control (no Water) operation set.
Continuously on
(When probes
immersed in water)
Water not detected. The probes are immersed in water
but are open circuit, or measured salinity is less than
20µs/cm (the water has very little salt content).
Continuously on -
(No water in tank)
WaterMiser® / Drain Valve option is active
ILL1661-A
ILL1659-A
Once the controller is connected, power up the cooler using the
ON/OFF switch on the cooler electronics box.
DIAGNOSTIC LED
Look at the front of the cooler electronics box where 2 LEDs are
situated on the right hand side. The top LED glows green or red
acting as a diagnostic indicator. If the top LED is double ashing
green, everything is OK, this is normal operation.
SALINITY LED
The bottom LED is red only and displays salinity setting
information.
COMMISSIONING THE COOLER
Sal Flash Controller Salinity Setting
5 Flash Salinity Control set
5 Flash Timed Drain
4 Flash The Salinity Control method is set for continuous bleed
(bleed tray used)
5 Flash Thermostatic Control No Water
(no water) operation
Salinity LED Indication for evaporative coolers tted with bleed
trays and shorting links only.
ILL1641-A
MAGIQTOUCH CONTROLLER INFORMATION
Diagnosis and cooler operating information can also be viewed
from the MagIQtouch Controller. Faults are displayed on the
screen as they occur.
Current cooler operation information can be temporarily
displayed on the “Status Information Display” option in the
GENERAL SETTINGS menu.
IMPORTANT NOTES:
• The cooler electronics box is a non-serviceable part.
Do not open or attempt to repair any components.
• The cooler electronics box cover will only open and close with
the ON / OFF switch in the “OFF” position. Do not try to force
the cover open with the switch in the “ON” position.
• Always turn “OFF” mains power to the cooler before checking
connections or touching wiring and components connected to
the cooler electronics box.
• Take care to position the cables into the cover slots when
closing, so that they do not become caught or pinched.
ILL1823-A
When this option is turned on, a temporary information display
window becomes accessible on all MANUAL and PROGRAM
screens.
ILL1660-A

8 |
Fault Code 01 (1 Red Flash) = Communication Failure.
• Ensure wall control cable is tted correctly.
• Check the wall control cable is in good condition.
Fault Code 02 (2 Red Flashes) = Failure to detect water at
probes within 8 minutes.
• Ensure water pressure is su󰀩cient to ll and maintain the tank
to specied level within 8 minutes.
• In areas of hard or polluted water, blockage of the strainer/
lter in the water inlet solenoid valve may restrict water ow.
• Water level set too low. For Braemar coolers the water level
should be set to 5mm below the oat valve base.
• Ensure probe plug is properly connected (If drain kit is tted).
• Plug connections at electronic module are upside down or
misaligned. (If drain kit is tted)
• Water too pure for the probes to sense water is present.
• Pressure build up in pipes can lock up the solenoid valve
when a non-return isolation valve is used in the water supply
line. It is recommended to use a ball valve, i.e. NOT a non-
return type of shut o󰀨 valve.
• Check drain valve is closing and not cycling due to debris
being caught under drain valve washer. (If drain kit is tted)
Fault Code 04 (4 Red Flashes) = Failure to clear probes
during drain within 4 minutes .
• Check the drain valve opens and water drains from the tank,
with nothing obstructing the outow of water. (e.g. drain hose
kinked)
• Excessive drain hose lengths or bends cause air locking and
won’t allow water to drain.
• Build up of foreign material in drain hose not allowing water to
drain away correctly.
• Screws used to x drain hoses to drain adaptors restricting
water from draining from tank.
• Drain valve has failed to open when drain was initiated.
• Inlet water solenoid not shutting o󰀨 water when the drain is
open.
• Water will only ow one way through the inlet water solenoid
valve. Therefore, it must be installed correctly. Directional
arrow must be pointing towards the oat valve assembly. If
not, water will not shut o󰀨. (Directional arrow can be found on
the bottom of the solenoid valve body).
• Debris interfering with water sensor probes.
• Probes not clipped onto mounting brackets correctly.
• Check cooler is level and water drains quickly.
Fault Code 07 (7 Red Flashes) = Incorrect supply frequency
(Hz). (MagIQcool Controller Only)
This fault will only be seen when the mains power supply
frequency deviates from normal frequency by more than 8%.
Mains power supply frequency should be 50Hz. If the frequency
deviates outside preset limits of 46-54Hz then this fault will be
indicated.
• Petrol generators are the most likely cause of this type of
fault. This typically will not occur on mains power supplies.
FAULT CODES
EXTRA NOTES FOR THE MAGIQTOUCH
CONTROLLER ONLY
Fault Code 07 (7 Red Flashes) = Motor Error.
(MagIQtouch Controller Only)
LED Indicates
Hall E󰀨ect ON = Normal operation.
OFF = One or more Hall e󰀨ects sensors in motor not detected.
Thermal O/L ON = Normal Operation.
OFF = Thermal Overload in motor tripped.
(Caution! Motor in overload may re-start without warning).
Fan Speed ON = Normal Operation.
OFF or Flashing = Motor is not rotating within 30% of its set
speed.
Power Mains power is applied to the motor when the fan ON button of
the controller has been pressed.
ILL1651-A
TESTING THE DIRECT DRIVE MOTOR
This RPCQi cooler incorporates a Seeley electronically
commutated Direct Drive motor. No setup is required for this
motor as it automatically adjusts to provide optimum output for
each installation.
Turn the cooler on at the MagIQtouch Controller, in “FAN ONLY”
mode. Look at the front of the cooler electronics box where 4
LEDs are situated on the left hand side. LEDs 1 - 4 should be
on (glowing green).
CHANGING THE WATER MANAGEMENT
METHOD FOR THE MAGIQCOOL CONTROL
For models where WaterMiser probes and drain valve are tted,
the drain frequency is typically managed by salinity control. If
you do wish to change from salinity control to regular operation
of the drain valve every 65 mins, follow these programming
steps.
To enter Parameter mode, the following process must be
carried out within 4 minutes of power being applied to the
cooler. If unsure of time since the last power “ON”, remove
power to the cooler (Isolator Switch or Circuit Breaker) for a
minimum of 6 seconds so the mode can be entered.
1.While wall control is OFF, push and hold and
buttons for minimum three (3) seconds. The screen will then
display “A1” - (Water Salinity Control Method) and “Param”.
2.Press to enter the “value” screen.
3.To alter the “value” of selected parameter, press or
. Numbers will change to show di󰀨erent values the
parameter can be set to.
WaterMiser = 0
Timed Drain = 1 (every 65 mins)
Non-Drain Valve salinity control (bleed etc.) = 2
4.To store the value, press . Screen will go blank
momentarily as wall control stores parameter change, and
returns screen to “Param” screen.
5.To exit parameter mode or escape from an alteration without
storing a change press button instead of button.
Note! Once step 4 has been carried out, new parameter
change is permanent until again altered.
6.If no buttons are pushed on wall control, after 3 minutes
screen will reset to “OFF” state. Procedure to enter parameter
mode must be re-initiated.

BRAEMAR RPCQi EVAPORATIVE COOLERS INSTALLATION MANUAL |9
ILL1615-A
Turn on the mains water supply to the cooler.
Turn the cooler on at the controller, in “COOL” mode.
Adjust set temperature slider / fan speed buttons to be close
to current room temperature so that fan speed remains low or
manual speed 1.
Isolate power to the cooler electronics and disconnect the
pump, making sure the plug is kept away from any water. Turn
the power back on.
ILL1663-A

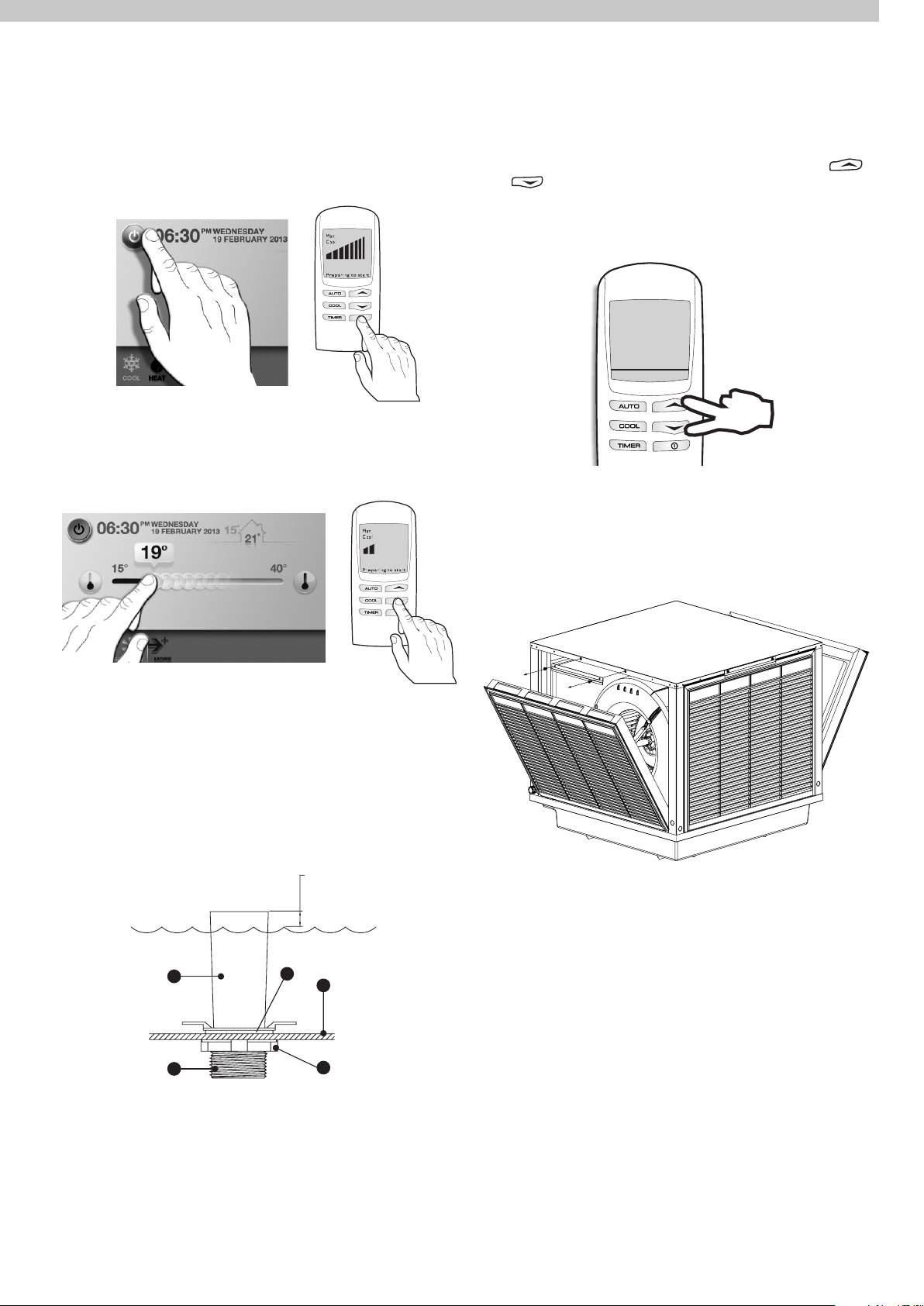

SETTING THE WATER LEVEL
ILL2117-A
ILL2118-A
Allow the tank (reservoir) to ll with water. The oat valve will
eventually stop the water from entering the cooler. Wait for this
to happen and check the water level.
The oat valve must be set to maintain the reservoir water level
about 10 mm below the overow level. Adjust oat by bending
arm to set height.
KJ
I
H
H = Overflow
I = Tank
J = Plastic Nut
K = Threaded Bush
L = O Ring (Between H & K)
10
5
L
TESTING THE DRAIN VALVE
REFITTING THE PAD FRAMES
Ret the pad frames to unit
Ensure all pads have been correctly tted before attaching and
tightening the pad retaining locking strips with a philip head
screwdriver.
With the wall control in “OFF” mode, press and hold the
and buttons together for 1 second on the MagIQcool
controller, “dr” is displayed and the drain valve will open.
Select the “SETTINGS” mode on the MagIQtouch Controller
and select the “COOLER” sub-heading. Select the “MANUAL
DRAIN” option to operate and test the drain valve.
A294-B
Test the pump by turning the cooler on at the MagIQtouch
controller, in “COOL” mode. Check that water is evenly
distributed to all pads.
Note! If the cooler has not been on before it will run a “Pre-Wet”
routine where the pump will operate to saturate the pads.
This cycle takes 2 minutes, then the fan will start automatically.
TESTING THE PUMP
ILL3008
ILL3011

10 |
ILL1664-A
About Appliance
Displays information such as model number, serial number and
software version for all coolers connected to the controller.
Min/Max Set Temperature
Denes the maximum and minimum temperature values.
Night Quiet Mode
Restricts fan speed to a specied level during a specied
period.
Manual Drain
Turns cooler o󰀨 and drains the tank.
Pad Flush
Turns cooler o󰀨 and runs pump for a specied amount of time.
Drain And Dry
Cooler will drain and fan will run for 1 hour every day at a
specied time.
Water Manager (If drain kit is tted)
Select the preferred water management method:
• Salinity Measurement - replaces water when Salinity level
reaches set point.
• Timed Drain - drains Tank After 8 tank ll cycles or every 1-2
hours (system dependant).
• No Drain Control - salinity control external to electronics
eg. continuous bleed.
• No Water Thermostatic - allows Thermostatic control in VENT
mode. No water present. Cooling performance is limited.
Weatherseal Open Speed
The cooler fan will turn on at the specied Weatherseal opening
speed for the rst 10 seconds each time it starts up. It will then
return to the set fan speed.
Prewet
When COOL mode is activated, the pump will run for 90
seconds before the fan is switched on.
Salinity Level
Sets the salinity level at which the tank will drain in “SALINITY
MEASUREMENT” mode.
Tank Drain Delay
Sets the time delay before the drain valve opens after the pump
in the cooler is turned o󰀨.
AutoClean
Select the preferred cleaning interval (50 / 100 / 200 hours).
At 8.00am after the selected running hours has been reached,
the cooler will drain the tank, ll with fresh water and operate
the pump for 5 minutes. When complete, drains the tank and
returns to previous operation mode.
ADJUSTING COOLER SETTINGS
Within the SETTINGS menu of the MagIQtouch Controller is the
COOLER sub-heading. Here various settings of the cooler can
be adjusted.
It is required that all units be connected to the mains supply
through an independent circuit, suitably protected by fuse or
circuit breaker. Ensure that the power supply is su󰀩cient for the
rating indicated on the serial plate. Wire the unit in accordance
with all state and local regulations.
NOTE
An all pole disconnection switch must be incorporated in the
xed wiring in the accordance with the wiring rules.

BRAEMAR RPCQi EVAPORATIVE COOLERS INSTALLATION MANUAL |11
COMMISSIONING COMPLETION CHECKLIST
FLUSHING CHILLCEL PADS
□PADS FLUSHED - To prevent initial start-up odours from the
cooling pads, it is a requirement to ush water through them
and drain the tank. Operate in COOL mode, lowest speed
for 5 minutes, then drain the tank. Repeat several times if
necessary.
FINAL TEST
□ Once you are satised that the cooler is installed and
commissioned correctly, run the cooler and ensure that
everything is working as it should.
CUSTOMER HANDOVER
□ Principles of Ducted Evaporative Cooling explained.
□How far the windows need to be opened.
□How to turn the cooler on.
□How to operate the MagIQtouch controller.
□How to drain the cooler.
□How to isolate power and water to the cooler.
□Maintenance Schedule requirements.
□The customer has been given the owner’s manuals &
warranty card.
CLEAN-UP
□All the installation rubbish has been removed and, if
applicable, any property damage repaired. Your aim should
be to have the customer not even be aware that you have
been on site.
FINAL CHECK
□With all chillcel pads and panels in place and the unit running
for a short period in cooling mode, ensure all pads have even
water saturation and there are no visible water leaks.
COOLER
□SECURE - The cooler is secure and level on the dropper
using all xings supplied.
□SEALED - The dropper and all penetrations are correctly
ashed and sealed.
PLUMBING
□ FLUSHED - The water pipes were ushed of any foreign
materials before connection to cooler was made.
□NO EXTERNAL LEAKS - The water is connected with no
leaks at ttings.
□NO INTERNAL LEAKS - Check all internal water hoses
are securely tted to water distribution spreaders and other
internal ttings.
□SECURE - Water pipes are correctly saddled as per plumbing
regulations.
□OWNER INSTRUCTIONS - The owner has been instructed
on how to isolate the water to the system in case of
emergency.
DRAIN VALVE
□INSTALLED - The drain valve is installed correctly, as detailed
in this installation manual.
□DISCHARGE - The drain water does not discharge onto the
roof surface.
□WATER LEVEL - Water level has been set correctly, as
detailed in this installation manual.
□ TESTED - Drain the tank. Check the drain ttings and pipes,
making sure there are no leaks.
POWER
□REGULATIONS - The power supply adheres to all local and
national regulations and is wired back to the distribution board
on its own separate circuit.
□CHECK CABLES - Cables have been correctly connected to
the control boxes:
□Power supply
□ Motor cables (x2)
□Control cable
□Drain valve
□Solenoid cable
□Pump cable
□Probe cable
□OWNER INSTRUCTIONS - The owner has been instructed
how they can electrically isolate the unit at the meter box in
case of an emergency.
DUCTWORK
□NO LEAKS - All ducts are hung correctly and there are no air
leaks.
□CONTROLLER SEALED - All wall holes behind the
MagIQtouch controller have been sealed.
□QUIET - Check that the cooler runs quietly and with an even
distribution of air to all outlets.
□AIR BALANCE - The air balance for all outlets has been
adjusted to the customer’s satisfaction.

12 |
TROUBLE SHOOTING
Symptom Cause Action
Inadequate cooling Under-sized cooler. Replace with larger cooler.
Under-sized ducts. Carry out cooling load design to determine correct size unit,
ducting and outlets required.
Clogged or dirty cooling pads. Clean or replace pads.
Dry pads or lack of water while cooler is operating. Check water distribution system for possible obstruction in
hoses. Check pump.
Insu󰀩cient air discharge openings or inadequate exhaust
from building, causing high humidity and discomfort.
Make sure there is adequate provision for exhausting stale
air from building (open windows and doors).
Excessive ambient humidity (see also item above re
inadequate exhaust).
On days during summer when ambient humidity is high the
cooler will not reduce the temperature as much as on drier
days. There is no remedy except to shut o󰀨 the pump.
Noisy cooler Fan out of balance due to dirt. etc. Clean the fan.
Too much back pressure.
Tight duct bends.
Grilles too small.
Re-evaluate design; improve duct layout; change grille sizes.
Pump fails to operate. Circuit breaker tripped. Check pump for faults. Replace if necessary.
Pump motor failure. Replace pump.
Fan fails to start. Main power circuit breaker tripped. Check cause of overload. Reset circuit breaker.
Fan motor burned out. Replace motor.
Low system voltage. Consult with power supply authority.
Check fault condition via the tri-colour LED on cooler
electronics box.
Rectify fault as indicated and restart the cooler.
MagIQtouch Controller failure. Replace MagIQtouch Controller.
Pump runs but no water circulation
/ Pump runs but pads lack water
Insu󰀩cient water in tank. Adjust oat level.
Water hoses blocked. Check and clean out blockage.
Pump strainer blocked. Clean pump strainer.
Insu󰀩cient water supply pressure Check and conrm water supply pressure
Water solenoid is installed incorrectly Check installed in the correct water ow direction
Continuous overow of water. Float valve adjustment not correct. Adjust oat valve.
Heavy pad deposits. Clean or replace pads.
Drain Valve failure. Replace Drain Valve.
Water solenoid is installed incorrectly Check installed in the correct water ow direction
Water entering cooler outlet. Loose water hose connections. Tighten connections.
Water hose broken. Replace cracked or broken hoses.
Cover not tted on oat valve. Replace oat valve.
Pads not tted correctly into pad frames. Install pad frame correctly.
Incorrect or damaged pads. Replace with new Chillcell pads.
Unpleasant odour. New cooler pads. Fill tank, run pump for a short period to wash pads, drain
tank, rell and repeat several times if odour persists. Odour
will dissipate after a number of hours of operation.
Cooler located near source of unpleasant odour. Remove source of odour or relocate cooler.
Algae in tank water. Drain pan, clean thoroughly with strong cleansing agent,
rell, change pads.
Pads remain wet after shut down. Run fan on "vent" for 10 minutes after cooling cycle to dry
pads out.
Heavy pad deposits. Clean or replace pads.
Air Sensor not working Air Sensor not plugged into the control box Plug Air Sensor cable into the electronics control box.
Air Sensor failure Replace Air Sensor

BRAEMAR RPCQi EVAPORATIVE COOLERS INSTALLATION MANUAL |13

seeleyinternational.com AU 1908
625410-B
It is the policy of Seeley International to introduce continuous product improvement.
Accordingly, specications are subject to change without notice.
Please consult with your dealer to conrm the specications of the model selected.
RPCQi
Cooler Installation Manual
Now provided on the internet
Refer www.seeleyinternational.com
For Australia Only
Seeley International Technical Support
1300 650 399
Seeley Spare parts Distributors
1300 367 437
Authorised Service Agents
1300 650 644
Service - All regions other than Australia: Please contact your local distributor.
seeleyinternational.com
Manufactured by: Seeley Internation PTY LTD
ALBURY MANUFACTURING
77 North Street, Albury, NSW 2640
