SEGA ENTERPRISES GUNBLADE NY DELUXE User manual

GUNBLADE DELUXE TABLE OF CONTENTS
INTRODUCTION OF THE OWNER'S
MANUAL 1
GENERAL PRECAUTIONS 2
INSTALLATION LOCATION PRECAUTIONS 3
SAFETY AND REGULATORY
INFORMATION 3
GAME REGISTRATION
(
not included
)
4
SPECIFICATIONS 5
INSTALLATION ITEMS 6
ASSEMBLING THE MACHINE 7
LEG ADJUSTERS 13
ASSEMBLY CHECKS 14
OPERATION 17

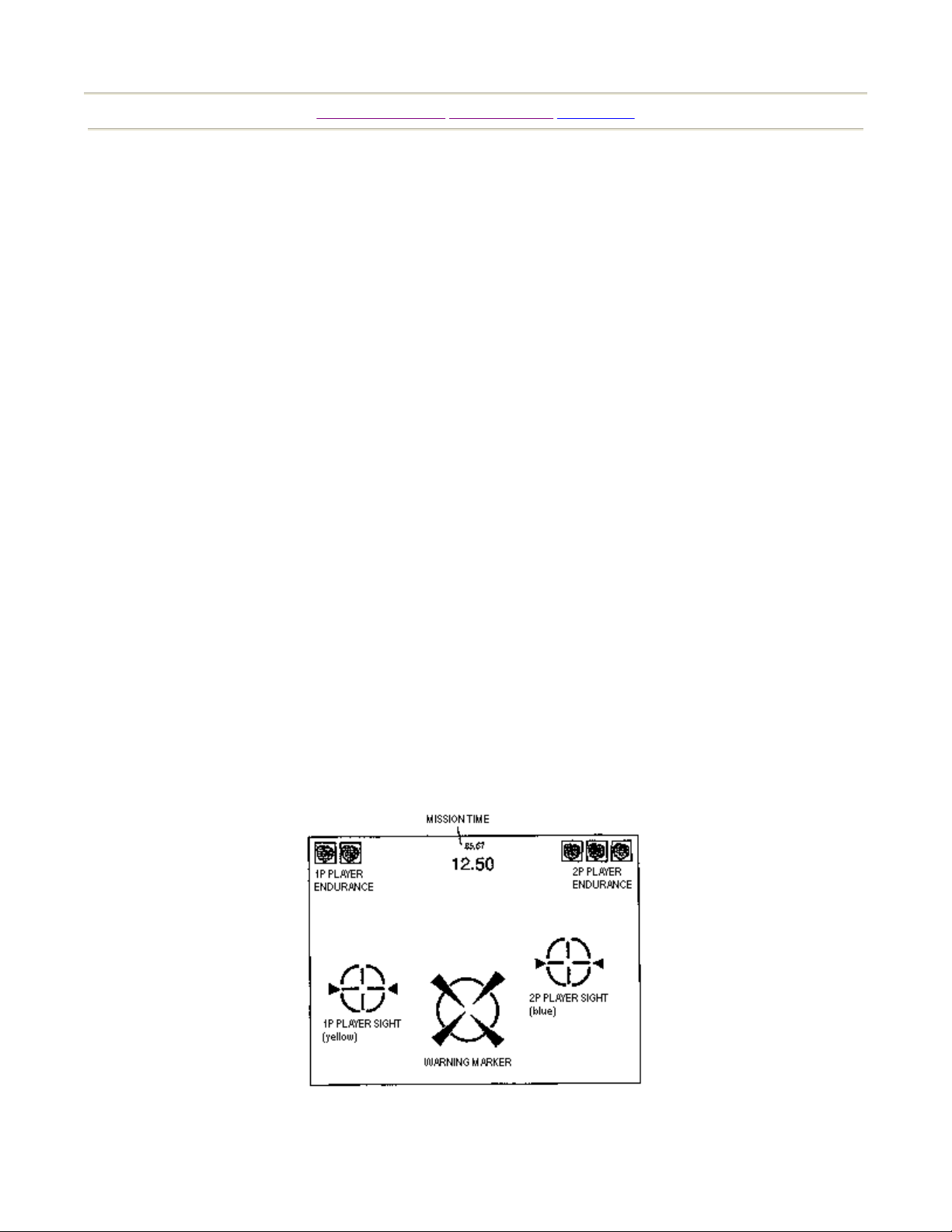

HOW TO PLAY 18
EXPLANATION OF TEST AND DATA
DISPLAYS 19
SWITCH UNIT 20
TEST MODE 21
MEMORY TEST 22

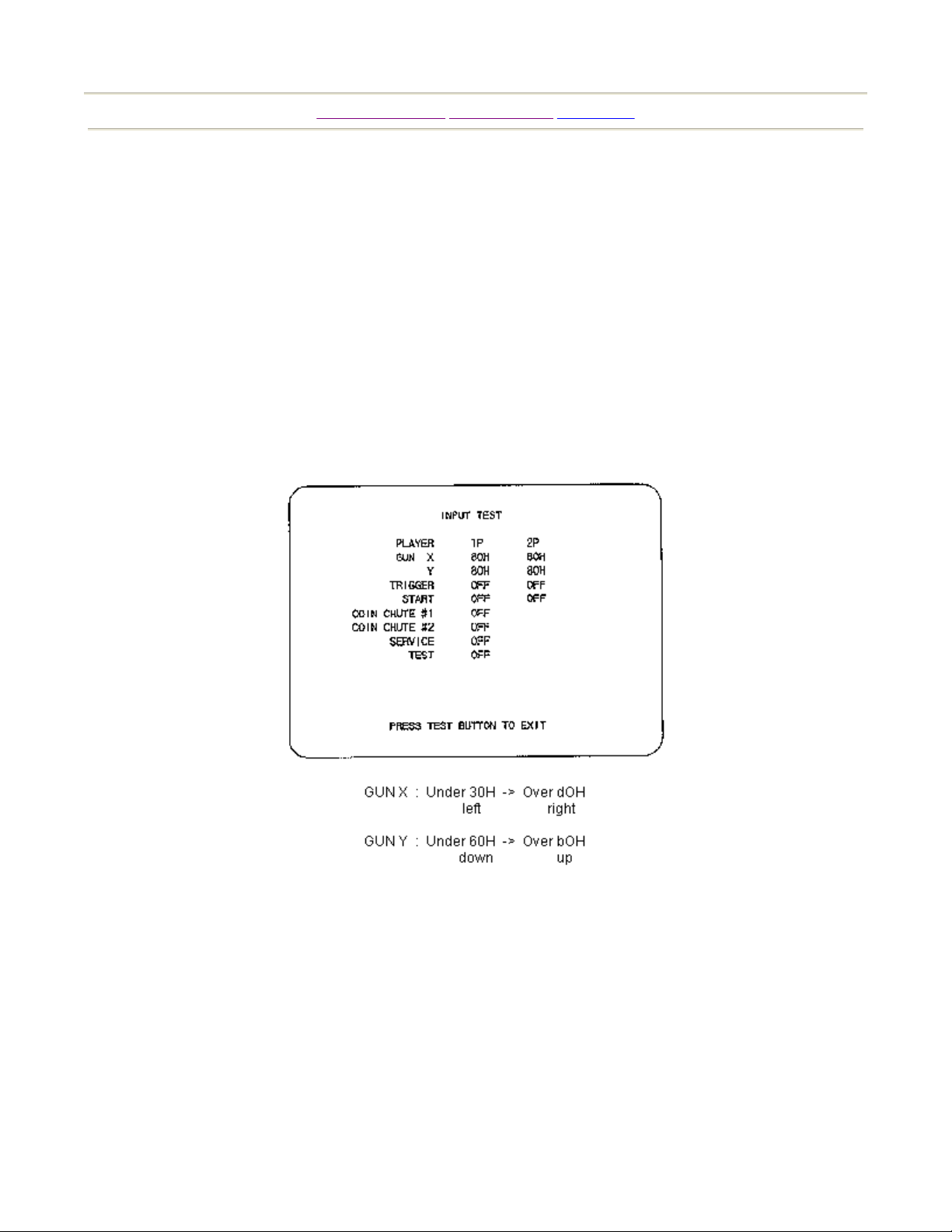

INPUT TEST 23
OUTPUT TEST 24
SOUND TEST 25
CRT TEST 26
GAME ASSIGNMENTS 27
COIN ASSIGNMENT 28
COIN CREDITS 29
MANUAL SETTINGS 30
AIM SET 32
BOOKEEPING 33
BACK UP DATA CLEA
R
34
SERVICE INFORMATION
CONTROLLE
R
35
VR ADJUSTMENT 36
TRIGGER SWITCH 37
MICRO SWITCH 38
MOTOR BRUSH 39
GREASING 40
COIN SELECTO
R
41
Pa
g
e 1 of 2Gunblade NY Service Manual
7/12/2005htt
p
://www.sauservice.com/manuals/Gunblade%20Folder/GB00.html

PROJECTOR CARE AND
ADJUSTMENT 42
STATIC CONVERGENCE
ADJUSTMENT 43
FLUORESCENT LAMP 45
PERIODIC INSPECTION 46
TROUBLESHOOTING 47
GAME BOARD 49
GAME BOARD SERVICE RECORD (not
included
)
51
DESIGN RELATED PARTS 52
PARTS IDENTIFICATION 53
PARTS REPLACEMENT RECORD (not
included
)
85
MANUAL COMMENTS 86
WIRING DIAGRAM 87
Pa
g
e 2 of 2Gunblade NY Service Manual
7/12/2005htt
p
://www.sauservice.com/manuals/Gunblade%20Folder/GB00.html

[Table of Contents] [Next Page]
INTRODUCTION OF THE OWNERS MANUAL
SEGA ENTERPRISES, LTD., has for more than 30 years been supplying various innovative and
p
opular amusement products to the world market. This Owners Manual is intended to provide detailed
descriptions together with all the necessary installation, game settings and parts ordering information
related to GUN BLADE NY, a new SEGA product.
This manual is intended for those who have knowledge of electricity and technical expertise, especially
in ICs, CRTs, microprocessors, and circuit boards. Read this manual carefully to acquire sufficient
knowledge before working on the machine. Should there be a malfunction, non-technical personnel
should under no circumstances touch the interior system. Should the need arise, contact our main office
or the closest branch office listed below.
SEGA ENTERPRISES, INC. (USA)
Customer Service
45133 Industrial Drive
Fremont, CA 94538
Phone [phone]
Fax [phone]
7:30 am - 4:00 pm, Pacific Standard Time
Monda
y
thru Frida
y
Pa
g
e 1 of 1Introduction of the Owners Manual
7/12/2005htt
p
://www.sauservice.com/manuals/Gunblade%20Folder/GB01.html

[Table of Contents] [Previous Page] [Next Page]
General Precautions
Follow Instructions: All operating and use instructions should be followed.
Attachments: Do not use attachments not recommended by the product manufacturer as they may
cause hazards.
Accessories: Do not place this product on an unstable cart, stand, tripod, bracket, or table. The
p
roduct may fall, causing serious injury to a child or adult, and serious damage to the product. Use only
with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product.
Any mounting of the product should follow the manufacturer's instructions, and should use only
mounting accessories recommended by the manufacturer.
Moving the Product: This product should be moved with care. Quick stops, excessive force, and
uneven surfaces may cause the product to overturn.
Ventilation: Slots and openings in the cabinet are provided for ventilation, to ensure reliable
operation of the product and to protect it from overheating; these openings must not be blocked or
covered. The openings should never be blocked by placing the product in a built-in installation such as a
bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been
adhered to.
Power Sources: This product should be operated only from the type of power source indicated on
the marking label. If you are not sure of the type of power supply to your location, consult your local
p
ower company. For products intended to operate from battery power or other sources, refer to the
operating instructions.
Grounding or Polarization: This product is equipped with a three-wire grounding-type plug, a
p
lug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a
safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your
obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.
Power Cord Protection: Power-supply cords should be routed so that they are not likely to be
walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs,
convenience receptacles, and the point where they exit from the product.
Overloading: Do not overload wall outlets, extension cords, or integral convenience receptacles
as this can result in a risk of fire or electric shock.
Object and Liquid Entry: Never push objects of any kind into this product through openings as
they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock.
N
ever spill liquid of any kind on the product.
Servicing: Do not attempt to service this product yourself as opening or removing covers may
expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
Dama
g
e Re
q
uirin
g
Service: Un
p
lu
g
this
p
roduct from the wall outlet and refer servicin
g
to
Pa
g
e 1 of 2General Precautions
7/12/2005htt
p
://www.sauservice.com/manuals/Gunblade%20Folder/GB02.html

qualified service personnel under the following conditions:
a) If the power cord or plug is damaged;
b) If liquid has been spilled, or objects have fallen into the product;
c) If the product has been exposed to rain or water;
d) If the product does not operate normally when following the operating instructions.
Adjust only those controls that are explained in the operating instructions. An improper
adjustment of other controls may result in damage and will often require extensive work by
a qualified technician to restore the product to its normal operation;
e) If the product has been dropped or damaged in any way;
f) When the product exhibits a distinct change in performance; this indicates a need for
service.
Replacement Parts: When replacement parts are required, be sure the service technician has used
replacements parts specified by the manufacturer or that have the same characteristics as the original
p
art. Unauthorized substitutions ma
y
result in fire, electric shock, or other hazards.
Pa
g
e 2 of 2General Precautions
7/12/2005htt
p
://www.sauservice.com/manuals/Gunblade%20Folder/GB02.html

[Table of Contents] [Previous Page] [Next Page]
Safety Check: Upon completion of any service or repairs to this product, ask the service
technician to perform safety checks to determine that the product is in proper operating condition.
Heat: The product should be situated away from heat sources such as radiators, heat registers,
stoves, or other products (including amplifiers) that produce heat.
Cleaning: When cleaning the monitor glass, use water or glass cleaner and a soft cloth. Do not
apply chemicals such as benzene, thinner, etc.
Location: This an indoor game machine, DO NOT install it outside. To ensure proper usage,
avoid installing indoors in the places mentioned below:
zPlaces subject to rain/water leakage, or condensation due to humidity;
zIn close proximity to a potential wet area;
zLocations receiving direct sunlight;
zPlaces close to heating units or hot air;
zIn the vicinity of highly inflammable/volatile chemicals or hazardous matter;
zOn sloped surfaces;
zIn the vicinity of emergency response facilities such as fire exits and fire extinguishers;
zPlaces subject to any type of violent impact;
zDusty places.
INSTALLATION PRECAUTIONS
zVerify the amperage of the branch circuit outlet before plugging in the power plug. Do not
overload the circuit.
zAvoid using an extension cord. If one is required, use an extension cord of type SJT, 16/3 AWG
rated min. 120 VAC, 7A.
zMoving this unit requires a minimum clearance (of doors, etc.) of 32" (W) by 77" (H).
zFor the operation of this machine, secure a minimum area of 32" (W) by 42"(D).
REGULATORY APPROVALS
This game has been tested and found to comply with the Federal Communications Commission
Rules.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This game has been tested and listed by Underwriters Laboratories, Inc., to ANSI/UL22.
Pa
g
e 1 of 1General Precautions
(
cont.
)
7/12/2005htt
p
://www.sauservice.com/manuals/Gunblade%20Folder/GB03.html

[Table of Contents] [Previous Page] [Next Page]

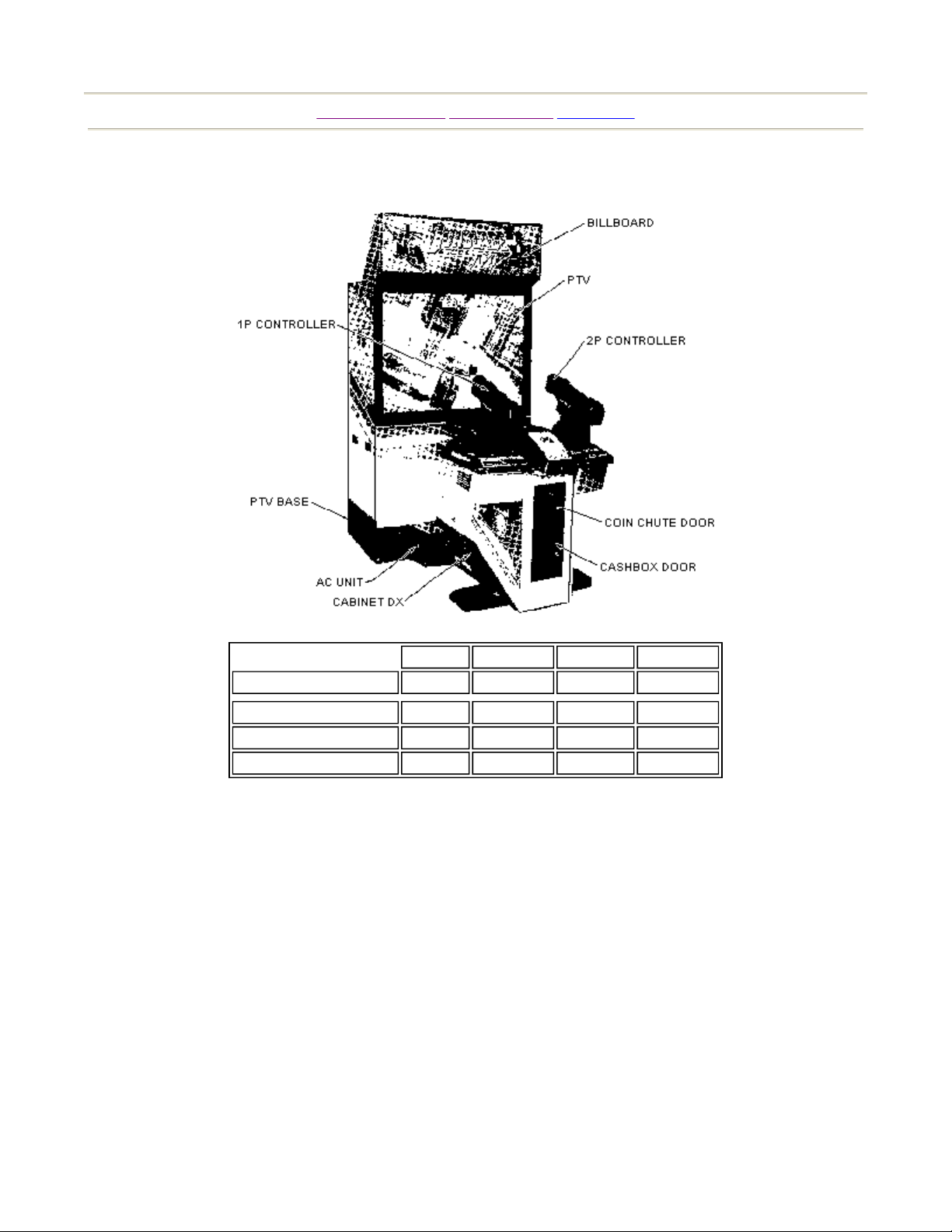

SPECIFICATIONS
WIDTH LENGTH HEIGHT WEIGHT
A
SSEMBLED GAM
E
48 I
N
73 I
N
89 I
N
662 LB
S
PTV 45 IN 27 IN 82 IN 298 LBS
PTV BASE 48 IN 24 IN 11 IN 45 LBS
CABINET DX 33 IN 48 IN 50 IN 320 LBS
Pa
g
e 1 of 1S
p
ecifications
7/12/2005htt
p
://www.sauservice.com/manuals/Gunblade%20Folder/GB05.html

[Table of Contents] [Previous Page] [Next Page]
INSTALLATION ITEMS
The following items are supplied with the machine. Be sure that these items remain with the game if it is
transported or sold.
1 Service Manual, Gun Blade NY
1 Tamperproof wrench, M4
1 Tamperproof wrench, MS
1 Remote Controller, Mitsubishi Pro
j
ection TV
Pa
g
e 1 of 1Installation Items
7/12/2005htt
p
://www.sauservice.com/manuals/Gunblade%20Folder/GB06.html

[Table of Contents] [Previous Page] [Next Page]
ASSEMBLY AND PRECAUTIONS
zPerform the assembly work by following the procedure stated herein. Failing to comply with the
instructions can cause an injury or electrical shock.
zAssembly should be performed as per the instructions in this manual. This is a complex machine
and erroneous assembly can cause electrical shock or damage to the machine resulting in
undesired operation.
zWhen assembling the machine, be sure that more than one person is available to perform the
work. Depending on the assembly work, there are some cases in which performing the work alone
can cause personal injury or damage the game.
When carrying out the assembly work, follow the procedure in the following sequence:
1 Assembling the PTV
2 Assembling the cabinet
3 Securing in place (leg adjusters)
4 Power supply
5 Assembly check
ASSEMBLING THE PTV
The PTV unit for this game is shipped assembled. However, refer to these directions if you should need
to disassemble the PTV unit for maintenance.
WARNING!
When performing work on the PTV unit, be sure that two or more persons are available to do the work.
When mounting the PTV on the PTV base, be sure that the work is performed by 4 or more persons.
Executing the work by less than 4 persons can cause severe injury.
CAUTION!
To perform the work safely, be sure to prepare a step or ladder which is secure and stable. Using an
unstable ste
p
can cause both
p
ersonal in
j
ur
y
and dama
g
e to the
p
roduct.
Pa
g
e 1 of 1Assembl
y
and Precautions
7/12/2005htt
p
://www.sauservice.com/manuals/Gunblade%20Folder/GB07.html

[Table of Contents] [Previous Page] [Next Page]
WARNING!
Make sure that all the leg adjusters are in contact with the floor. If they are not, the cabinet can move,
causing an accident.
This machine has 8 casters and 6 leg adjusters. When the installation position has been determined,
cause the leg adjusters to come into contact with the floor, and make adjustments so that the casters are
raised approximately 5mm from the floor. Ensure that the machine is level.
Move the machine to the installation position.
Cause all of the leg adjusters to make contact with the floor. By using a wrench, make adjustments in the
height of the leg adjusters to ensure that the machine is level.
After making adjustments, fasten the leg adjuster nut upwards to secure the height of the leg adjuster.
Pa
g
e 1 of 1Le
g
Ad
j
usters
7/12/2005htt
p
://www.sauservice.com/manuals/Gunblade%20Folder/GB13.html

[Table of Contents] [Previous Page] [Next Page]
Assembly Checks
In the test mode, perform the following tests:
Pa
g
e 1 of 1Assembl
y
Checks
7/12/2005htt
p
://www.sauservice.com/manuals/Gunblade%20Folder/GB14.html

[Table of Contents] [Previous Page] [Next Page]
OPERATION
To ensure safe operation of the product, be sure to comply with all the following
precautions.
WARNING!
Be sure that all the leg adjusters are in contact with the floor surface. If they are not, the cabinet can
move and cause an accident.
Do not put any heavy items on the product. Placing heavy items on the product can cause a accident. Do
not climb on the game. Climbing on the game can cause accidents as well as damage to the controller
and other parts. To inspect the upper portion of the game, use a sturdy step or ladder.
CAUTION!
To avoid electric shock, check to see if door and cover parts are damaged or omitted.
To avoid accidents, be sure to provide a sufficient space for operation by considering the most crowded
situations. Insufficient space for operation can cause customers to come in contact with the moving parts
of the game and hit each other, resulting in injury.
To avoid injury and trouble, be sure to pay careful attention to the behavior of players and
visitors.
WARNING!
To avoid electric shock and short circuit, do not allow customers to put hands and fingers or extraneous
matter into openings of product or small openings in and around the doors.
To avoid falls or injuries, prevent customers from leaning on or climbing on the game.
To avoid electric shock, do not allow the customers to unplug the power plug without good reason.
To avoid injury resulting from falling objects or electric shock due to spilled liquids, do not allow
customers to place heavy items or drinks on the machine.
CAUTION!
Immediately stop such violent acts as hitting and kicking the product. Such acts can cause damage to
p
arts or breaka
g
e, resultin
g
in in
j
ur
y
from fallin
g
fra
g
ments.
Pa
g
e 1 of 1O
p
eration
7/12/2005htt
p
://www.sauservice.com/manuals/Gunblade%20Folder/GB17.html

[Table of Contents] [Previous Page] [Next Page]
HOW TO PLAY
Insert coin(s). When the number of credits needed for game play are available, "PRESS START" is
displayed. Press the start button to have the mission select screen appear.
Choose from one of the three missions, REGAIN THE UN HQ, BIG APPLE LIBERATION, and
SCORE ATTACK REMIX, by sighting the desired one and pulling the trigger.
Moving the sight with the controller and pulling the trigger fires projectiles repeatedly.
The enemy who is trying to shoot you is indicated with a warning marker.
In the missions except SCORE ATTACK REMIX, destroying all the enemies in a stage clears that
stage, allowing procession to the next stage. In the SCORE ATTACK REMIX, when one minute has
elapsed in each stage, the player proceeds to the next stage.
When each player's endurance is exhausted, the game is in the status of waiting to continue. If no coins
are inserted to continue the game, the game is over.
Features of Each Mission
R
EGAIN THE UN HQ
To regain the UN headquarters. The difficulty is relatively easy.
B
IG APPLE LIBERATIO
N
Confront the terrorists to regain Manhattan. This level is relatively difficult.
SCORE ATTACK REMIX
Different from the above two missions, each stage in this mission ends in one minute and the player
p
roceeds to the next stage. Also, note that in this mission, which stage the player proceeds to after
finishing a stage depends on the score earned in the stage that was finished.
Advice
The enemy's projectile can be shot down. Pay attention not only to attacking but also to defense.
When attacked, the enemy is thrown in the air or escapes. When attacking the enemy, read its
movements ahead of time.
There is nothing the player should not shoot. Depending on the attack, some items will explode. Try to
effectively utilize these explosions.
Pa
g
e 1 of 1How to Pla
y
7/12/2005htt
p
://www.sauservice.com/manuals/Gunblade%20Folder/GB18.html

[Table of Contents] [Previous Page] [Next Page]
EXPLANATION OF TEST AND DATA DISPLAY
By operating the switch unit, periodically perform the tests and data check. When installing the machine
initially, or collecting cash, or when the machine does not function properly, perform checks in
accordance with this section.
The following test modes should be utilized as applicable.
Items Descri
p
tion
Installation of Machine
When the machine is installed,
p
erform the followin
g
:
1. Check to see that each setting
is per standard setting made at the
time of shi
p
ment.
2. In the INPUT test mode, check
each SW and VR.
3. In the OUTPUT test mode,
check each of the lamps, motors,
etc.
4. In the MEMORY test mode,
check the IC's on the PC board.
Memory
Choose MEMORY test in the
MENU mode to allow the
memory test to be performed. In
this test, PROGRAM RAMs,
ROMs and IC s on the PC board
are checked.
Monthly Servicing
Monthl
y
p
erform the followin
g
:
1. MEMORY test.
2. Ascertain each settin
g
.
3. In the INPUT test mode, test
the CONTROL device.
4. In the OUTPUT test mode,
check each of the lam
p
s.
Control System
In the INPUT test mode, check
each SW and VR.
Adjust or replace each SW or
VR.
If the problem can not be solved
yet, check the CONTROL's
moves.
Monitor In the MONITOR
ADJUSTMENT mode, check to
Pa
g
e 1 of 2Ex
p
lanation of Test and Data Dis
p
la
y
7/12/2005htt
p
://www.sauservice.com/manuals/Gunblade%20Folder/GB19.html

see if the MONITOR adjustment
is correct.
IC Board 1. MEMORY TEST
2. In the SOUND test mode,
check the sound related ROMs.
Data Check Check such data as game play time and histogram to adjust the
difficult
y
level, etc.
Pa
g
e 2 of 2Ex
p
lanation of Test and Data Dis
p
la
y
7/12/2005htt
p
://www.sauservice.com/manuals/Gunblade%20Folder/GB19.html

[Table of Contents] [Previous Page] [Next Page]
WARNING!
Do not touch places other than those specified. Touching places not specified can cause an electric
shock or short circuit.
Open the coin chute door and the switch unit shown will appear. The functioning of each SW is as
follows:
TEST BUTTON For the handlin
g
of the test button, refer to the followin
g
p
a
g
es.
SERVICE
BUTTON Gives credits without registering on the coin meter.
SPEAKER
VOLUME
Can adjust the volume of all speakers of the machine. By considering the
environmental aspects of the installation location, adjust to the appropriate sound
volume.
SUPER
WOOFER VOL Only the sound volume of the cabinet superwoofer can be adjusted.
COIN METE
R
Re
g
isters total number of coins.
Pa
g
e 1 of 1Switch Unit
7/12/2005htt
p
://www.sauservice.com/manuals/Gunblade%20Folder/GB20.html

[Table of Contents] [Previous Page] [Next Page]
Test Mode
The Test Menu allows the functioning of each part of the Cabinet to be checked, the monitor to be
adjusted, and the coins and game related various settings to be performed.
zPress the Test Button to cause the following Test Menu to be displayed on the monitor.
zPress the Service Button until the arrow ---> is moved to the desired item to make a selection.
zBring the arrow ---> to the desired item and press the Test Button to enter the selected item's test.
zChoosing EXIT and pressing the Test Button will finish the test mode, and the game mode returns
on the screen after network checking.
Pa
g
e 1 of 1Test Mode
7/12/2005htt
p
://www.sauservice.com/manuals/Gunblade%20Folder/GB21.html

[Table of Contents] [Previous Page] [Next Page]
Memory Test
The Memory Test mode is for checking the on-board memory IC functioning. GOOD is displayed for
normal ICs and BAD is displayed for abnormal ICs.
zWhen the test is completed, if the results are shown as below, it is satisfactory.
zWhen the test is not finished, IC Board malfunctioning may be the cause.
zAfter finishing the test, press the Test button to return to the Menu mode.
Pa
g
e 1 of 1Memor
y
Test
7/12/2005htt
p
://www.sauservice.com/manuals/Gunblade%20Folder/GB22.html

[Table of Contents] [Previous Page] [Next Page]
Input Test
When Input Test is selected, the monitor will show the following, allowing you to watch the status of
each switch. On this screen, periodically check the status of each switch.
zBy pressing each switch, if the display on the right-hand side of the name of each switch changes
to ON from OFF, the switch and the wiring connections are satisfactory. When the Controller
(Lever) is operated in the direction of the arrow, the right-hand side indication of the Switch name
becomes ON.
zTo check Coin Chute #1 and Coin Chute #2 Coin Switches, open the Coin Chute Door and insert
coin(s) into the slot.
zTo return to the Menu mode, press the Test button.
Pa
g
e 1 of 1
7/12/2005htt
p
://www.sauservice.com/manuals/Gunblade%20Folder/GB23.html

[Table of Contents] [Previous Page] [Next Page]
Output Test

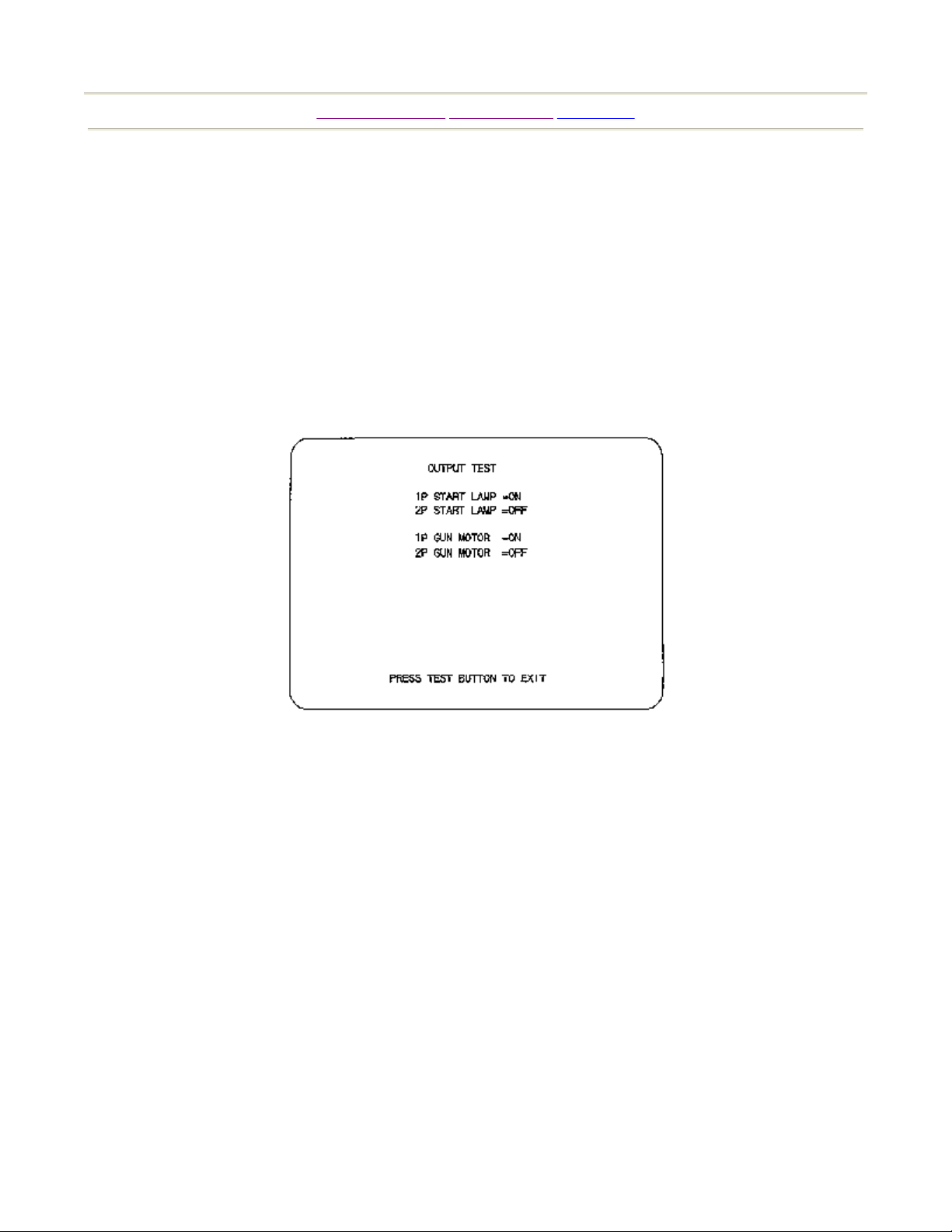

Selecting Output Test allows the status of each lamp to be viewed. Periodically check the status of each
lamp on this screen.
<--- Repeatedly displays sequentially in order of Winner Lamp, 7-SEG. At this time lamp and 7-SEG L-
ED tests are performed in the manner corresponding to the item displayed.
This game does not have 7-SEG LED. During the display of 7-SEG, only the Start button flashes.
zWhile this screen is displayed, the Start button continues to flash.
zPress the Test button to return to the menu mode.
Pa
g
e 1 of 1Out
p
ut Test
7/12/2005htt
p
://www.sauservice.com/manuals/Gunblade%20Folder/GB24.html
