You are now the proud owner of a SEIKO KINETIC
®
Cal. 5D22/5D44. For best results, please
read the instructions in this booklet carefully before using your SEIKO KINETIC
®
. Please keep
this manual handy for ready reference.
Sie sind jetzt stolzer Besitzer einer SEIKO KINETIC®Kal. 5D22/5D44. Lesen Sie diese
Bedienungsanleitung vor der Verwendung Ihrer SEIKO KINETIC®aufmerksam durch, um die
optimale Nutzung dieser Uhr zu gewährleisten. Heben Sie diese Bedienungsanleitung gut auf,
um jederzeit wieder nachlesen zu können.
Vous voici l’heureux propriétaire d’une montre SEIKO KINETIC®Cal. 5D22/5D44. Pour en obtenir
de bonnes performances, veuillez lire attentivement les explications de ce mode d’emploi avant d’
utiliser votre montre SEIKO KINETIC®. Conservez ce mode d’emploi pour toute référence ultérieure.
Grazie di aver acquistato questo orologio SEIKO KINETIC® Cal. 5D22/ 5D44. Per ottenerne i migliori
risultati leggere attentamente le istruzioni di questo libretto prima di passare all'uso dell'orologio
stesso. Tenere poi il manuale a portata di mano, per ogni eventuale futura, ulteriore consultazione.
Usted es ahora un orgulloso propietario de un Reloj SEIKO KINETIC®Cal. 5D22/5D44. Para los
mejores resultados, por favor lea las instruciones de este librito cuidadosamente antes de utilizar
su Reloj SEIKO KINETIC®. Le rogamos que guarde este conveniente manual para pronta referencia.
Você pode sentir-se orgulhoso de ter adquirido um SEIKO KINETIC®Cal. 5D22/5D44. Para obter
dele os resultados máximos, solicitamos-lhe que, antes de usar o seu SEIKO KINETIC®, leia
atentamente as instruções contidas neste opúsculo. E guarde este manual para referências futuras.
1_KINETIC 5D22 5D44_E.indd 2 07.8.22 1:13:30 PM

English
3
IFor the care of your watch, see "TO PRESERVE THE QUALITY OF YOUR
WATCH" in the attached Worldwide Guarantee and Instruction Booklet.
CONTENTS
Page
FEATURES................................................................................................................................................... 4
DISPLAY AND BUTTON OPERATION ......................................................................................................... 5
CROWN WITH DRIVING WHEEL................................................................................................................ 7
HOW TO CHARGE AND START THE WATCH............................................................................................. 8
HOW TO READ THE DIRECT DRIVE INDICATOR ...................................................................................... 10
TIME/CALENDAR SETTING. ....................................................................................................................... 17
IMPROPER FUNCTION ............................................................................................................................... 19
AUTOMATIC HAND ALIGNMENT............................................................................................................... 20
POWER SOURCE (KINETIC E.S.U.) ............................................................................................................ 21
SPECIFICATIONS ........................................................................................................................................ 22
1_KINETIC 5D22 5D44_E.indd 3 07.8.22 1:13:30 PM

English
4
❖THE KINETIC E.S.U. is an abbreviation for KINETIC ELECTRICITY STORAGE UNIT,
which is the name of the power source employed in the KINETIC movements.
FEATURES
Unlike the conventional quartz watch powered by the button-type battery, the
KINETIC is an analog quartz watch equipped with an Automatic Generating
System, the unique technology developed by SEIKO, which generates electrical
energy to power the watch by utilizing the movement of the arm or wrist, and
stores it in the KINETIC ELECTRICITY STORAGE UNIT (KINETIC E.S.U.) The watch
is equipped with a direct drive indicator that constantly displays how long the
watch will keep operating. The direct drive indicator also dynamically displays
the electric power generation status while charging the watch.
CAUTION
●The movement of your arm while the watch is worn generates electrical
energy to power the watch. Even if the watch is worn on your arm, it will
not be charged while your arm is not in motion.
●It is recommended that the watch be worn on your wrist daily for at least
10 hours.
●If you do not wear the watch for more than the continuous operating time
that it displays, charge the watch as necessary so as not to stop operation
of the watch until the next time you wear it. Refer to “How to charge and
start the watch” for further details.
1_KINETIC 5D22 5D44_E.indd 4 07.8.22 1:13:31 PM

English
5
DISPLAY AND BUTTON OPERATION

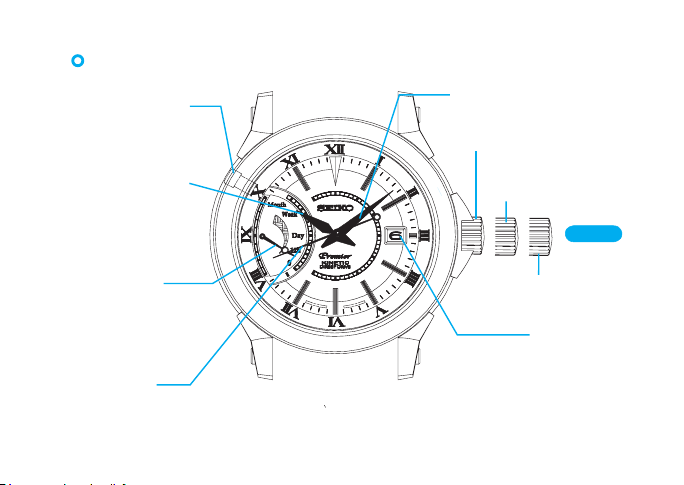

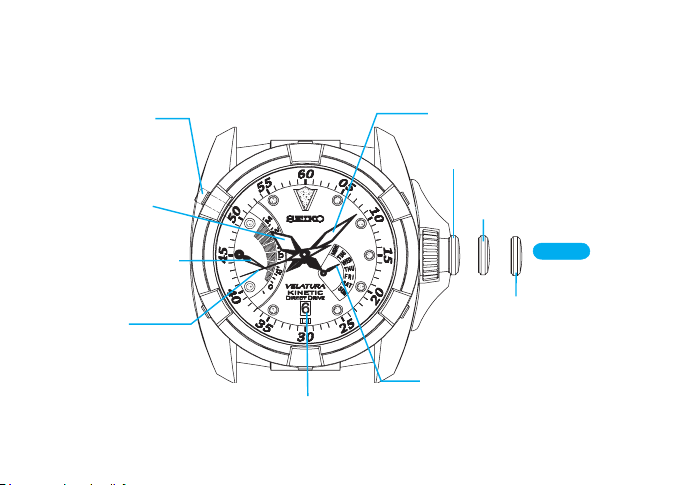

First click position: Date
and day setting
Second click position:
Time setting
Hour hand
Direct drive indicator hand
(for indicating amount of
power reserved, power
generation status and
amount of generated
power)
Date
Day hand (retrograde day indicator)
Minute hand
❖The position of the date window and day hand may differ depending on the model.
Normal position: Electric power
generation by manual winding
Second hand
Button (only used for
special operations)

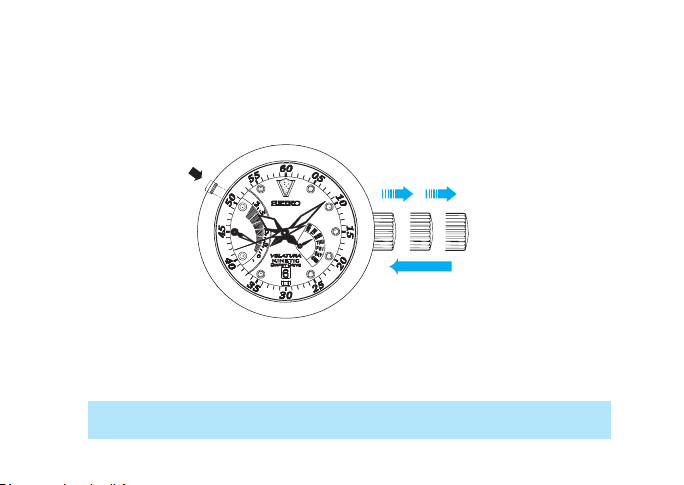

● CAL. 5D44
CROWN
1_KINETIC 5D22 5D44_E.indd 5 07.8.22 1:13:38 PM

English
6
First click position: Date
setting
Second click position:
Time setting
Hour hand
Direct drive indicator
hand (for indicating
amount of power
reserved, power
generation status and
amount of generated
power)
Date
Minute hand
Normal position: Electric power
generation by manual winding
Second hand
Button (only used for
special operations)
● CAL. 5D22
CROWN
❖The position of the date window may differ depending on the model.
1_KINETIC 5D22 5D44_E.indd 6 07.8.22 1:14:00 PM

English
7
uSome models may have a crown with a special structure as illustrated
below. Refer to the following instructions when operating this type of
crown, as it should be operated in a different way from that of ordinary
ones.
CROWN WITH DRIVING WHEEL

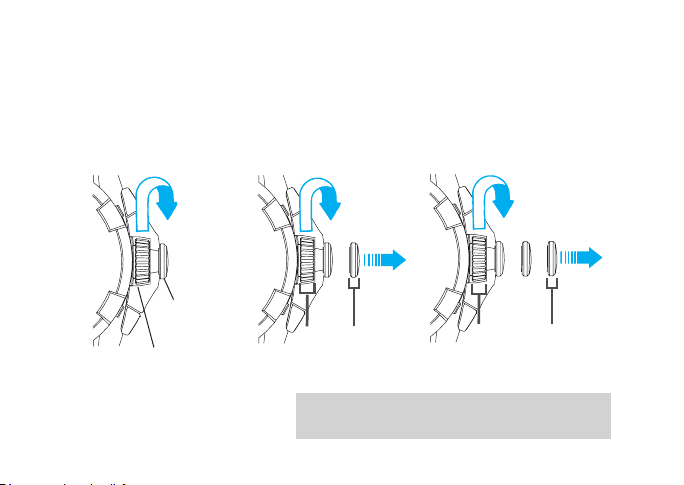

To pull out the crown, pull out the A portion (crown).
To turn the crown, turn the B portion (driving wheel).
Normal position First click position Second click position
Driving wheel
Crown
AB
A
B
1_KINETIC 5D22 5D44_E.indd 7 07.8.22 1:14:01 PM

English
8
HOW TO CHARGE AND START THE WATCH

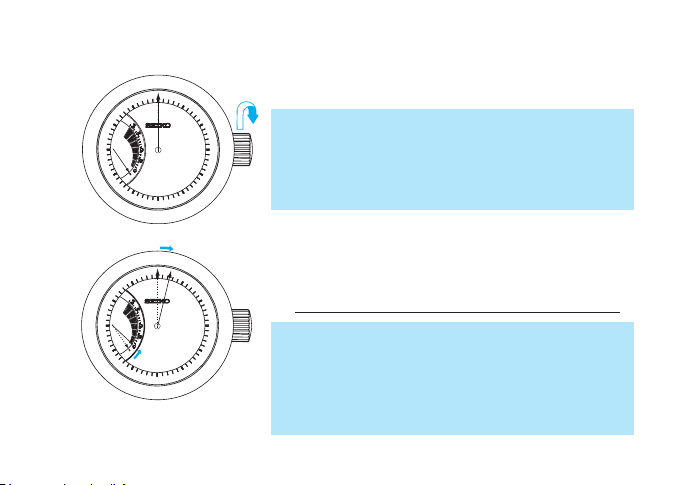

1. Turn the crown clockwise repeatedly to charge
the watch.
2. After electric power generation by turning the
crown continues for a certain period, the direct
drive indicator hand moves to point at scale
marking 0 and the second hand starts moving.
Make sure to stop turning the crown to check it.
✽The manual winding mechanism for generating the
electric power functions when the crown is turned
clockwise. The watch can also be charged when the
crown is turned in a reciprocating motion.
✽When the watch is completely stopped, the direct
drive indicator hand points at scale marking 1 under
the 0 position (standby position).
✽If the second hand does not move even though the
crown is turned, turn the crown more quickly.
✽If the watch has been left untouched for several years,
the second hand starts moving in 2-second intervals
after the crown is turned. This is not a malfunction.
Charge the watch by turning the crown until the direct
drive indicator hand moves from the standby position to
the 0 position. It may take approximately 5 to 6 minutes.
1_KINETIC 5D22 5D44_E.indd 8 07.8.22 1:14:03 PM

English
9

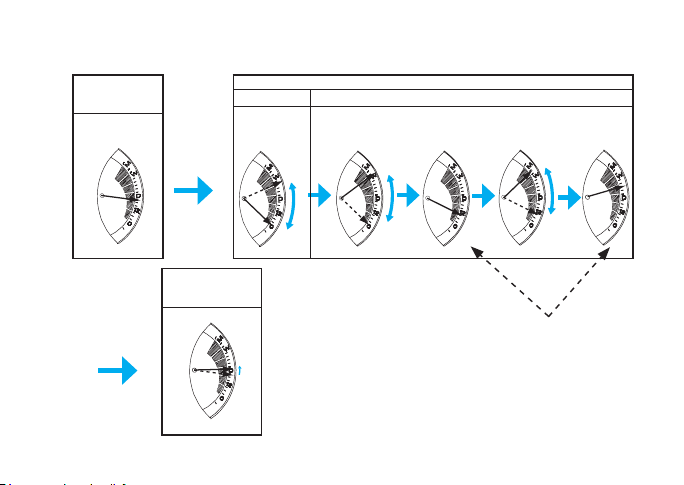

✽The direct drive indicator hand moves up and down to display the electric power generation
status.
✽When you stop turning the crown, the indicator hand displays the amount of power generat-
ed by the current manual winding for approximately 4 seconds, and then the hand returns to
display the total amount of power reserve. Charge the watch until the indicator hand points
at the second marking above "0"(approximately 6 hours of power reserve).
✽This watch will keep on operating for approximately 1 month (30 days) if it is fully charged.
However, it is not necessary to charge the watch fully, as it is charged automatically while it
is worn on your wrist.
✽Refer to "How to read the direct drive indicator” for further details.
3. Continue to turn the crown to sufficiently charge the watch.
Power generation
status display
Generated power
amount display Power reserve display
1_KINETIC 5D22 5D44_E.indd 9 07.8.22 1:14:06 PM

English
10
HOW TO READ THE DIRECT DRIVE INDICATOR
The direct drive indicator can be used to check the following:
(1) Power reserve amount (continuous operating time)
(2) Real-time power generation status and newly generated amount of power
while charging the watch

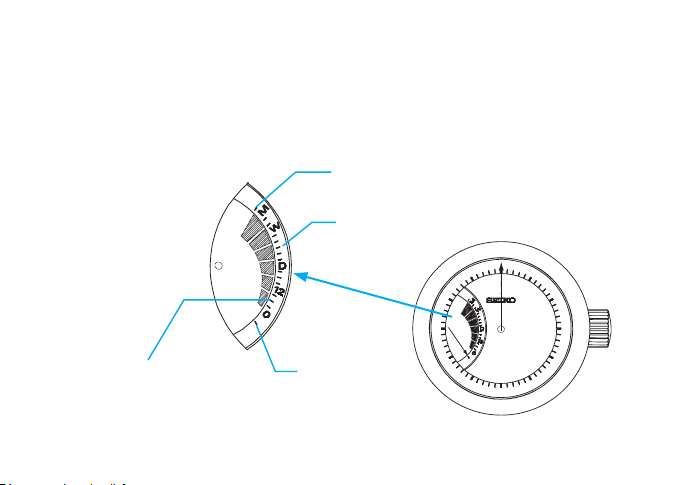

“M+1” position
Power reserve/
generated power scale
Standby position
Scale marking
1_KINETIC 5D22 5D44_E.indd 10 07.8.22 1:14:07 PM
