Parani-ESD100/110/200/210
User Guide
Version 1.0.0
2006-08-14

2
User Guide for the Parani-ESD100/110/200/210
Version 1.0.0
Firmware version 1.0.X
Last revised on June 14, 2006
Printed in Korea
Copyright
Copyright 2002, Sena Technologies, Inc. All rights reserved.
Sena Technologies reserves the right to make changes and improvements to its product without
providing notice.
Trademark
Parani™ is a trademark of Sena Technologies, Inc.
Windows® is a registered trademark of Microsoft Corporation.
Ethernet® is a registered trademark of XEROX Corporation.
Notice to Users
When a system failure may cause serious consequences, protecting life and property against such
consequences with a backup system or safety device is essential. The user agrees that protection
against consequences resulting from system failure is the user's responsibility.
This device is not approved for life-support or medical systems.
Changes or modifications to this device not explicitly approved by Sena Technologies will void the
user's authority to operate this device.
Precautions and Safety
Electricity
Use only the supplied AC adapter. Use of unauthorized power adapter is not recommended. Electrical
shock may result.
Do not kink or crease the power cable or place heavy objects on the power cable. Fire can result from
damaged power cables.
Do not handle power plug and adapter with wet hands. Electrical shock may result.
Immediately power off the product and unplug the AC adapter if smoke or odors emit from the product
and adapter. Fire can result from improper use.
Immediately power off the product and unplug the AC adapter if water or other liquids are present. Fire
can result from improper use.
Product
Parani-ESD meets the RS-232 standards. Do not wire with non-standard products. Damage to your
products may result from improper use.
Do not drop or subject the device to impact. Damage to your products may result from improper use.
Keep away from harsh environments including humid, dusty, and smoky areas. Damage to your
products may result from improper use.
Do not use excessive force on the buttons or attempt to disassemble the device. Damage to your
products may result from improper use.
Do not place heavy objects on the product. Damage to your products may result from improper use.
Technical Support
Sena Technologies, Inc.
210 Yangjae-dong, Seocho-gu
Seoul 137-130, Korea
Tel: [phone]
Fax: [phone]
E-Mail: suppor[email protected]om
Website: http://www.sena.com

3
Contents
1. Introduction 6
1.1. Overview ...................................................................................................................................6
1.2. Package Check List ...................................................................................................................6
1.3. Product Specification..................................................................................................................7
2. Getting Started 8
2.1. Panel Layout ..............................................................................................................................8
2.2. Connecting the Hardware ..........................................................................................................8

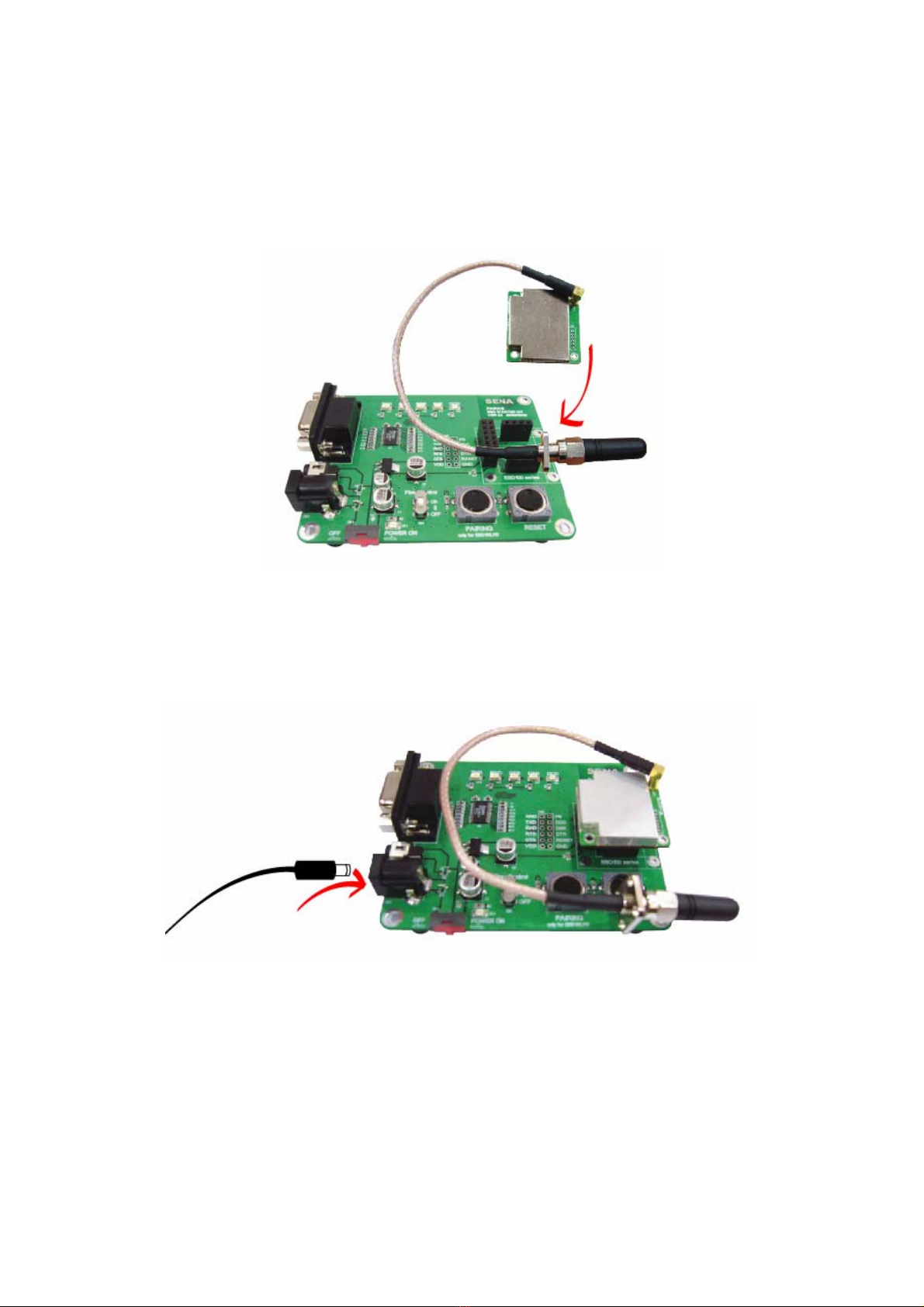

2.2.1. Connecting Parani-ESD to Jig Board ..............................................................................9
2.2.2. Connecting Power to Jig Board .......................................................................................9
2.2.3. Connecting a Device to Jig Board .................................................................................10
3. Configuration 11
3.1. Operation Modes......................................................................................................................11
3.2. Serial Ports...............................................................................................................................12
3.2.1. Data Bit ..........................................................................................................................12
3.2.2. Hardware Flow Control..................................................................................................12
3.2.3. Software and Utility........................................................................................................12

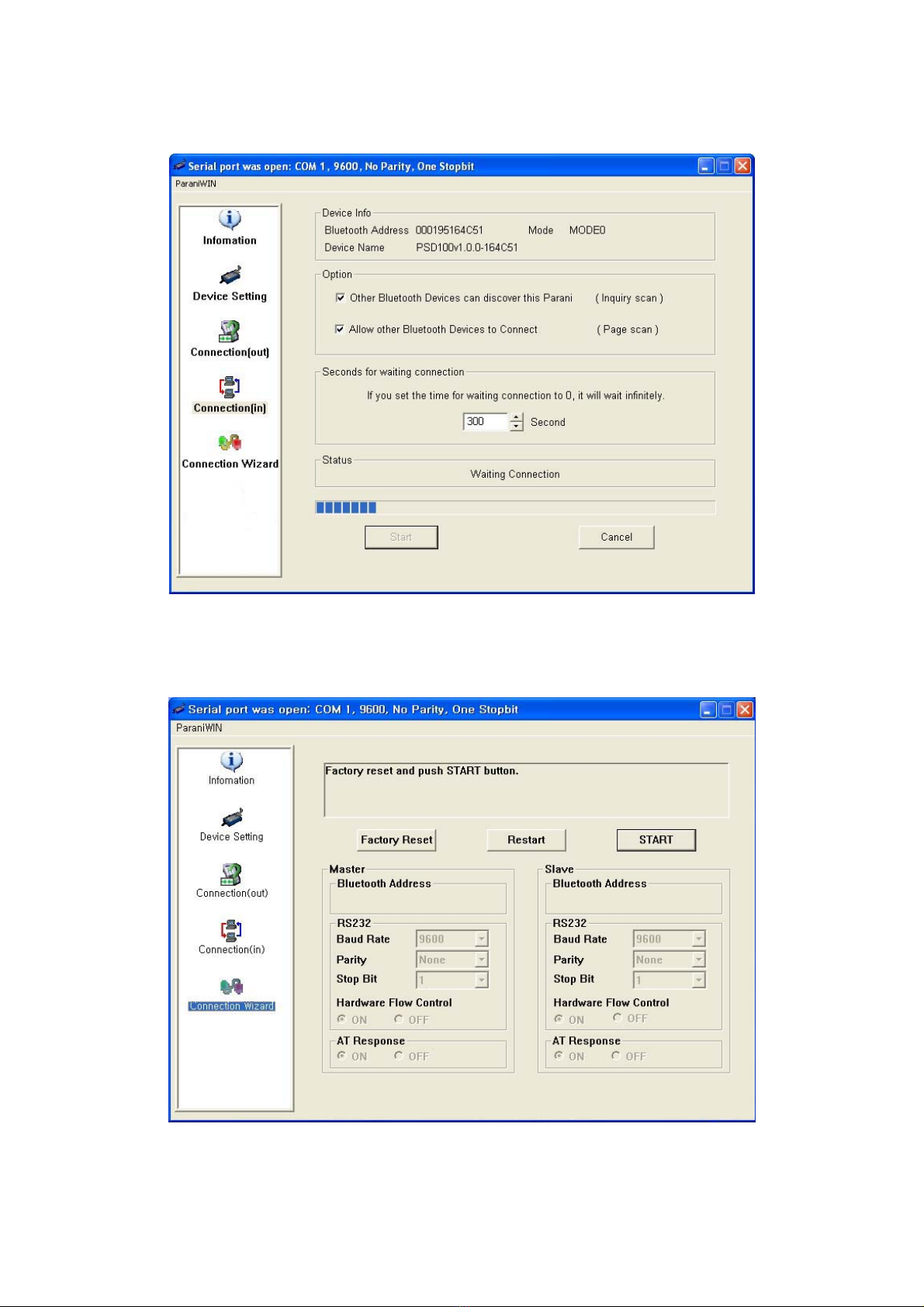

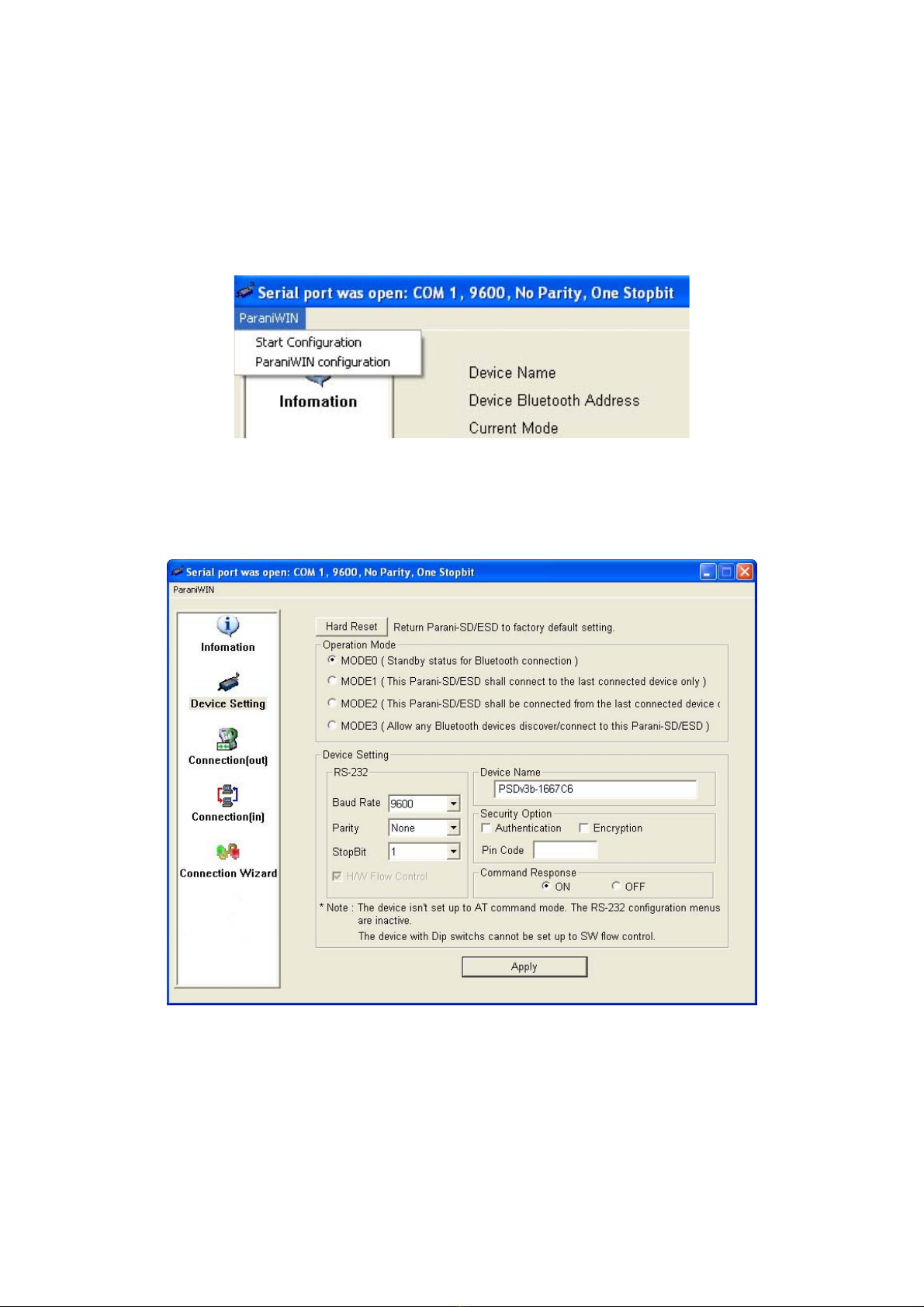

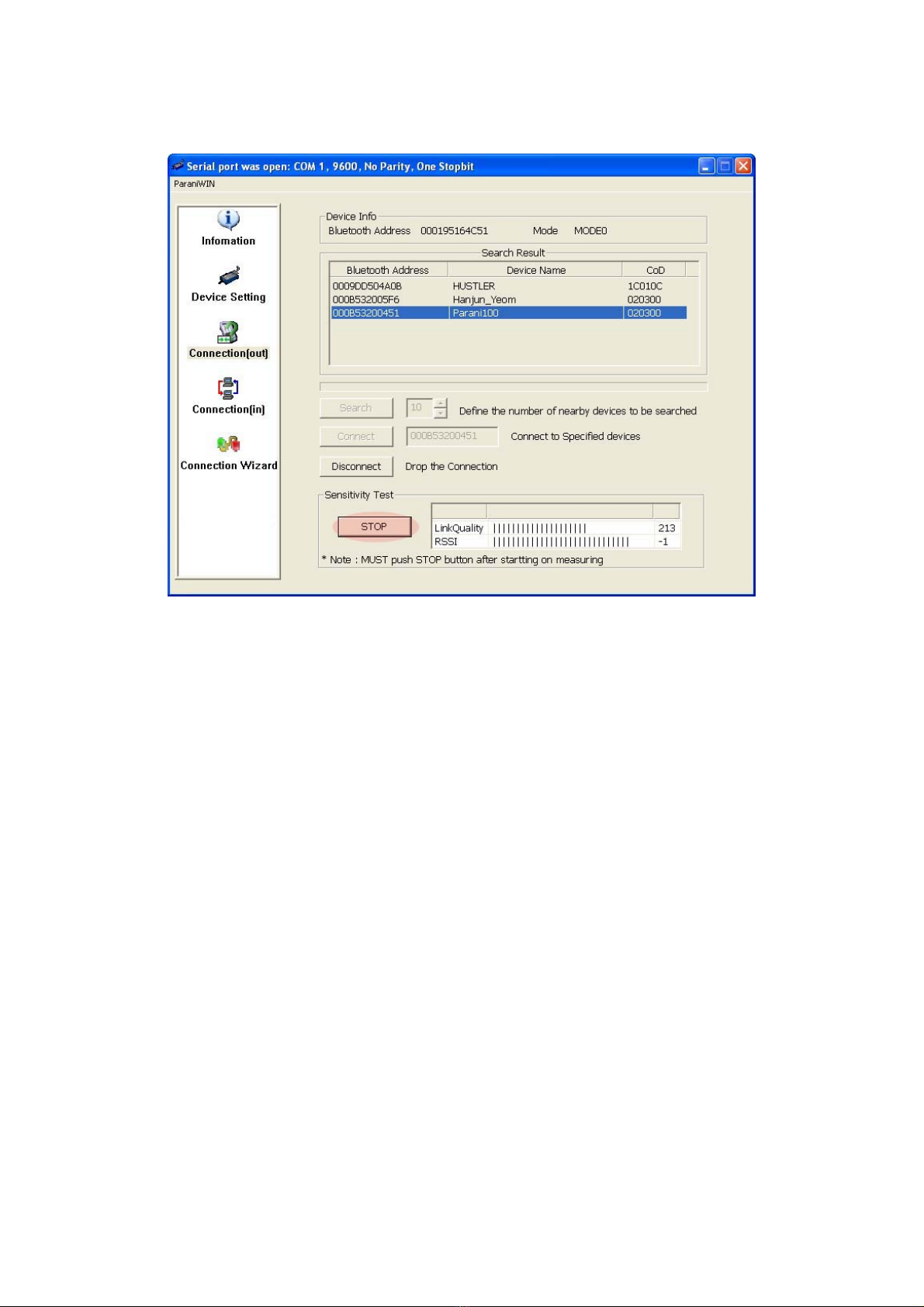

3.2.4. ParaniWIN......................................................................................................................13

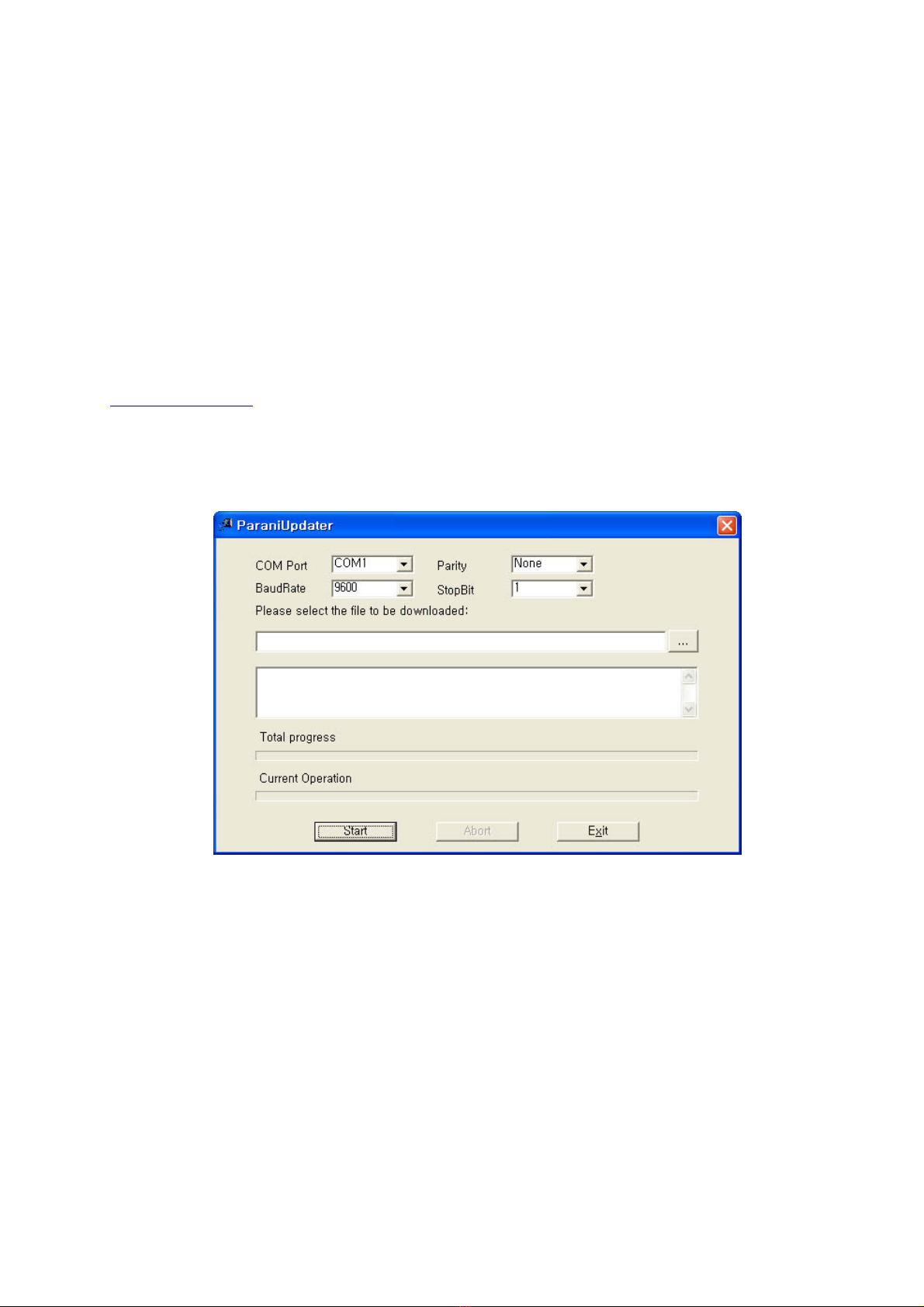

3.2.5. ParaniUpdater................................................................................................................19
3.2.6. Terminal Program ..........................................................................................................19
4. Approval Information 21
4.1. FCC .................................................................................................................................21
4.1.1. FCC Compliance Statement..........................................................................................21
4.1.2. RF Exposure Statement.................................................................................................21
4.1.3. Do not.............................................................................................................................21
4.2. CE .................................................................................................................................21
4.2.1. EC-R&TTE Directive......................................................................................................21
5. RF Information 22
5.1. Radio Frequency Range ..........................................................................................................22
5.2. Number of Frequency Channel................................................................................................22
5.3. Transmission Method...............................................................................................................22
5.4. Modulation Method...................................................................................................................22
5.5. Radio Output Power.................................................................................................................22
5.6. Receiving Sensitivity ................................................................................................................22
5.7. Power Supply...........................................................................................................................23
Appendix A: Connections 24
A.1. Pin Assignment........................................................................................................................24
A.1.1. Parani-ESD100/110.......................................................................................................24
A.1.2. Parani-ESD200/210.......................................................................................................25
A.1.3. DCD Signal....................................................................................................................25
A.1.4. RST Signal.....................................................................................................................26
A.1.5. Pairing Signal (only for Parani-ESD100/110) ................................................................26
A.2. Connection Diagram................................................................................................................27
A.2.1. Parani-ESD100/110.......................................................................................................27
A.2.2. Parani-ESD200/210.......................................................................................................29
Appendix B: AT Commands 31
B.1. Terminology..............................................................................................................................31
B.1.1. AT Command.................................................................................................................31
B.1.1. AT Response .................................................................................................................31
B.1.2. Operation Mode.............................................................................................................31
B.1.3. Operation Status............................................................................................................31
B.1.4. Security..........................................................................................................................31
B.1.5. Symbols.........................................................................................................................32
B.2. Command Category.................................................................................................................32
B.3. Command Description .............................................................................................................33

4
B.3.1. ATZ..............................................................................................................................33
B.3.2. AT&F............................................................................................................................33
B.3.3. AT.................................................................................................................................33
B.3.4. AT+UARTCONFIG,Baudrate,Parity,Stopbit,Hwfc........................................................33
B.3.5. AT+USEDIP?...............................................................................................................34
B.3.6. AT+BTINFO?...............................................................................................................34
B.3.7. AT+BTINQ?..................................................................................................................34
B.3.8. AT+BTLAST?...............................................................................................................34
B.3.9. AT+BTVER?................................................................................................................35
B.3.10. AT+BTRSSI,n............................................................................................................35
B.3.11. AT+BTMODE,n..........................................................................................................35
B.3.12. +++.............................................................................................................................35
B.3.13. AT+SETESC,nn.........................................................................................................36
B.3.14. ATO............................................................................................................................36
B.3.15. AT+BTCANCEL.........................................................................................................36
B.3.16. AT+BTSCAN..............................................................................................................36
B.3.17. AT+BTSCAN,n,to.......................................................................................................37
B.3.18. AT+BTSCAN112233445566,to..................................................................................37
B.3.19. ATD............................................................................................................................37
B.3.20. ATD112233445566....................................................................................................38
B.3.21. ATH............................................................................................................................38
B.3.22. AT+BTKEY=$string....................................................................................................38
B.3.23. AT+BTSD?................................................................................................................39
B.3.24. AT+BTCSD................................................................................................................39
B.3.25. AT+BTFP,n.................................................................................................................39
B.3.26. AT+BTSEC,Authentication,Encryption......................................................................39
B.3.27. AT+BTNAME=$string................................................................................................39
B.3.28. AT+BTLPM,n.............................................................................................................40
B.3.29. AT+DFU.....................................................................................................................40
B.3.30. AT&V..........................................................................................................................40
B.3.31. ATSnn?.....................................................................................................................40
B.3.32. ATSnn=mm................................................................................................................41
B.4. Command Validity....................................................................................................................41
Appendix C: S-Register 43
C.1. S1: Force to Reconnect (default 1)..........................................................................................43
C.2. S2: Enable Hardware Flow Control (default 1)........................................................................43
C.3. S3: Stream UART Policy (default 0) ........................................................................................43
C.4. S4: Enable Remote Name Query (default 1)...........................................................................43
C.5. S6: Enable Low Power Mode (default 0).................................................................................44
C.6. S10: Enable SD Response (default 1) ....................................................................................44
C.7. S11: Enable Escape (default 1)...............................................................................................44
C.8. S12: Clear Data Buffer When Disconnected (default 0)..........................................................44
C.9. S14: Enable DTR Transfer (default 1).....................................................................................44
C.10. S15: Enable Disconnect by DTR (default 0)..........................................................................44
C.11. S22: Fast Connect (default 0)................................................................................................44
C.12. S24: Maximum Number of Inquiry Result (default 10) ..........................................................45
C.13. S28: Escape Sequence Character (default 43).....................................................................45
C.14. S31: Page Timeout (default 300)...........................................................................................45
C.15. S33: Inquiry Timeout (default 30) ..........................................................................................45
C.16. S37: Supervision Timeout (default 16000) ............................................................................45
C.17. S46: BD Address of Last Connected Device.........................................................................45
Appendix D: Trouble Shooting 46
D.1 No Data Transmission ..............................................................................................................46
D.1.1 COM Port Settings .........................................................................................................46
D.2 Data Loss or Malfunctioning.....................................................................................................46
D.2.1Hardware Flow Control....................................................................................................46

5
D.2.2 SD Response .................................................................................................................46
D.3 Transmission Delay ..................................................................................................................47
D.3.1 RF Processing Delay......................................................................................................47
D.3.2 RF Transmission Environment.......................................................................................47
Appendix E: How make a RS232 interface Jig Board 48

6
1. Introduction
1.1.Overview
Parani-ESD is a module device for wireless serial communication using the Bluetooth technology that
is international standard of short range wireless communications. Parani-ESD accomplishes more
reliable wireless communication. As Parani-ESD can communicate with other Bluetooth devices, user
may construct various communications with it.
Parani-ESD provides several models with different communication ranges from 30m (Parani-
ESD200/210) up to 100m (Parani-ESD100/110) for user’s various applications. In terms of noise,
Parani-ESD delivers better quality of communication than standard RS232 cables.
Parani-ESD has the most compact design of the same kind devices and can be placed conveniently
into any devices or equipments. Its detachable antenna of variety optimizes the quality and distance of
wireless communications.
Parani-ESD can be configured and controlled by typical AT commands. User can easily configure
Parani-ESD on the terminal program such as HyperTerminal and implements the wireless
communication without modifying user’s existing serial communication program. In addition to the
basic AT commands, Parani-ESD provides some expanded AT commands for its various functions.
User friendly ParaniWizard and ParaniWIN are also provided for easy setup on Microsoft Windows.
The FHSS (Frequency Hopping Spread Spectrum) technique of Bluetooth lets Parani-ESD have less
radio interference and no danger of hacking in air. Parani-ESD also supports authentication and data
encryption.
1.2. Package Check List
- Parani-ESD100/110/200/210
- A hardcopy of Quick Start Guide
- CD-ROM including the HelloDevice Manager and User Guide

7
1.3. Product Specification
ESD100/110 ESD200/210
Serial speeds 1200bps to 230400bps
Flow Control: None, Hardware RTS/CTS
Serial Interface
2.54mm Header 2X6 2.54mm Header 1X4X2
Bluetooth v1.2
Protocol: RFCOMM, L2CAP, SDP
Profile: General Access Profile, Serial Port Profile
Class 1 Class 2
Level: 18dBm Level: 2dBm
Bluetooth Interface
ESD100-Working distance:
Nominal 100m
ESD110-Working distance:
Up to 100m
ESD210-Working distance:
Nominal 30m
ESD210-Working distance:
Up to 30m
Configuration ParaniWIN, ParaniWizard, Modem AT command set
Firmware Update ParaniUpdater for SD&ESD
Power Supply voltage: DC3.3V
Environmental Operating temperature: -20 ~ 70 oC
Humidity : 95% (Non-condensing)
Dimension
- ESD100
27.5 mm L (1.08 in.)
27.7 mm W (1.09 in.)
14.0 mm H (0.55 in.)
- ESD110
27.5 mm L (1.08 in.)
30.0 mm W (1.18 in.)
14.0 mm H (0.55 in.)
Dimension
- ESD200
18.0 mm L (0.7 in.)
20.0 mm W (0.78 in.)
11.7 mm H (0.47 in.)
- ESD210
18.0 mm L (0.7 in.)
20.0 mm W (0.78 in.)
11.7 mm H (0.47 in.)
Physical properties
Weight
5 g Weight 2 g
Approvals FCC, MIC
Warranty 1-year limited warranty

8
2. Getting Started
This chapter describes how to set up the Parani-ESD Series for the first time.
- 2.1 Panel Layout explains the panel layout.
- 2.2 Connecting the Hardware describes how to connect the Parani-ESD Series, the power, and the
serial device to the Jig Board.
Following items are pre-required to get started.
- One Jig Board (included in the Starter Kit package).
- One DC power adapter or one USB power cable (included in the Starter Kit package).
- One serial console cable for configuration (included in the Starter Kit package).
- One PC with RS232 serial port.
- Terminal emulation program running on the PC
2.1. Panel Layout
This section describes the panel layout of the Jig Board.
Figure 2-1 The panel layout of Jig Board
2.2. Connecting the Hardware
This section describes how to connect the Parani-ESD Series to the Jig Board and the Jig Board to
the serial device for initial testing.
- Connect the Parani-ESD Series to Jig Board.
- Connect a power source to Jig Board for the Parani-ESD Series.
- Connect Jig Board for the Parani-ESD Series to a serial device.

9
2.2.1. Connecting Parani-ESD to Jig Board
Connect the Parani-ESD Series to the Jig Board as shown below.
Figure 2-2 Connecting Parani-ESD to Jig Board
2.2.2. Connecting Power to Jig Board
Connect the power jack to the power connector of the Jig Board for the Parani-ESD Series using the
DC power adapter or USB power cable that is included in the package.
Figure 2-3 Connecting Power to Jig Board

10
2.2.3. Connecting a Device to Jig Board
Connect the serial data cable between the Jig Board and the serial device. If necessary, supply the
power to the serial device attached to the Jig Board.
Figure 2-4 Connecting a Device to Jig Board

11
3. Configuration
3.1. Operation Modes
In addition to the serial port configurations such as bit/second, data bit, parity, stop bit, flow control,
Parani-ESD has some configurations for Bluetooth. For getting the most out of Parani-ESD, user
should understand the following Bluetooth connection schemes.
A Bluetooth device can play a role as a master or slave. Master tries to connect itself to other
Bluetooth device, and slave is waiting to be connected from other Bluetooth devices. A Bluetooth
connection is always made by a pair of master and slave. A slave can be in two modes, Inquiry Scan
or Page Scan mode. Inquiry Scan mode is waiting the packet of inquiry from other Bluetooth devices
and Page Scan mode is waiting the packet of connection from other Bluetooth devices. Every
Bluetooth device has its unique address, called BD (Bluetooth Device) address, which is composed of
12 hexa-decimal numbers.
Parani-ESD has 4 operation modes as follows. Each mode can be identified with LED indicators as
illustrated in next section.
Table 3-1 The Parani-ESD Operation Modes
Mode Description
Mode0 Parani-ESD must be in Mode0, when it is directly controlled byAT commands.
In this mode, there is no response when power on or software reset, and Parani-ESD is just
waiting for AT command input. Neither master nor slave is assigned to Parani-ESD in mode0.
User can change the configurations of Parani-ESD in this mode.
The factory default is set to Mode0.
Mode1 Parani-ESD tries to connect the last connected Bluetooth device.
Parani-ESD in Mode1 is to be a master and tries to connect the last connected Bluetooth
device. Parani-ESD always stores the BD address of the Bluetooth device to which Parani-
ESD has connected last time. When Parani-ESD is initially used or after hardware reset, there
is no BD address stored in Parani-ESD. In this case, Mode1 does not make any sense and
mode change from other operation modes to Mode1 is not allowed. The mode change to
Mode1 can be made after Parani-ESD succeeds to connect to other Bluetooth device in
Mode0. Once changed to Mode1, Parani-ESD will try to connect automatically the last
connected Bluetooth device whenever power on or software reset.
Parani-ESD in Mode1 cannot be discovered or connected by other Bluetooth devices.
Mode2 Parani-ESD is waiting for the connection from the last connected Bluetooth device.
Parani-ESD in Mode2 is to be a slave and waiting for the connection only from the last
connected Bluetooth device. Just like Mode1, if there is no BD address stored in Parani-ESD,
the mode change from other operation modes to Mode2 is not allowed. Once changed to
Mode2, Parani-ESD will wait for the connection from the last connected Bluetooth device
whenever power on or software reset.
Parani-ESD in Mode2 cannot be discovered or connected to Bluetooth devices other than the
last connected device.
Mode3 Parani-ESD is waiting for the connection from any other Bluetooth devices.
Parani-ESD in Mode3 acts like in Mode2, but allows any connection from other Bluetooth
device. Most of general Bluetooth device is set to Mode3.
Parani-ESD in Mode3 can be discovered and connected from any other Bluetooth devices.

12
3.2. Serial Ports
The applicable settings for serial ports are as follows.
Table 3-2 The Parani-ESD Serial Port Settings
Serial Port Settings Values
Baud rate 1200, 2400, 4800, 9600, 19200, 38200, 57600, 115200, 230400
Data bite 8
Parity No parity, Even parity, Odd parity
Stop bit 1, 2
Hardware Flow Control Use, No Use
The values in box are the factory defaults. The flow control setting is configurable only through dip
switch.
3.2.1. Data Bit
Parani-ESD supports only 8 data bit. In the case of 7 data bit, please contact the technical support.
3.2.2. Hardware Flow Control
Parani-ESD plugged into its host system transmits data from host to the other side Bluetooth device.
These data is saved temporarily in the internal buffer of Parani-ESD and sent repeatedly until the
transmission is completed packet by packet. When the radio transmission condition is not good
enough to send data promptly, it can cause the transmission delay. If the host sends more data when
the buffer is full, buffer overflow will make Parani-ESD malfunction consequently. In order to prevent
this buffer overflow, Parani-ESD works as follows.
In case of using hardware flow control, Parani-ESD makes RTS be ‘disable’ to stop receiving further
data from the host when the buffer becomes full. RTS will be ‘able’ to begin receiving data again from
the host when the buffer has some room for more data.
In case of not using hardware flow control, Parani-ESD clears the buffer to secure the room for next
data when the buffer becomes full. This means the loss of data. As the transmission data becomes
large, the possibility of data loss goes higher.
For large data transmission, use of hardware flow control is highly recommended.
3.2.3. Software and Utility
This configuration software and utility for firmware update comes with the product, which also can be
downloaded from http://www.sena.com
Table 3-3 Configuration Software
Software Purpose Operating System
ParaniWIN Configuration MS Windows 98SE or Higher
ParaniWizard Pairing Configuration
ParaniUpdater Firmware Update MS Windows 98SE or Higher

13
3.2.4. ParaniWIN
ParaniWIN is a program running on Microsoft Windows for the configuration of Parani-ESD. Install
ParaniWIN on your computer. Plug a Parani-ESD into the serial port of the computer and turn on the
power. Run ParaniWIN.
Figure 3-1 Serial Port Setting
Set each option properly and click [Confirm]. If the settings are different from the host computer, error
message will pop up. If the Parani-ESD is in the status of connection, warning message will pop up.
Then the current connection can be cancelled by [Disconnect] button on the main window.
Figure 3-2 Error Message Box

14
Figure 3-3 Main Window

15
Figure 3-4 Information Window
Serial port settings can be changed by <Start Configuration> and <ParaniWIN Configuration> of
ParaniWIN in the menu bar at upper left corner of the window without re-running the ParaniWIN
program.
Figure 3-5 Menu Bar at Upper Left corner of ParaniWIN
The icons in the left side window come to the corresponding windows.
In device configuration window, hardware reset can be executed or operation mode and RS232 can
be configured as well. Security option also can be configured in this window.
Figure 3-6 Device Setting Window
Parani-ESD supports two security options, Authentication and Encryption. If you check the
Authentication option, you must also enter the Pin Code value. If the authentication is activated, the
connection, only between the Master and Slave device that share the same Pin Code, is established.
In case that Parani-ESD connects to other Bluetooth device that enables authentication, you must
know the other device’s Pin Code. In general Bluetooth devices, 1234 or 0000 is used as a default

16
value. If you check Encryption option, the Parani-ESD encrypts packets and sends them. The
Encryption options works well in case that only one between Master and Slave uses this option.
Parani-ESD has 4 response messages, ‘OK’, ‘ERROR’, ‘CONNECT’, and ‘DISCONNECT’. In some
cases, these responses can affect the host system unexpectedly. To prevent this, user can set the
Command response to ON or OFF.
Click [Apply] button to reflect the given options to Parani-ESD actually.
Connect(out) icon will show the following window to search and connect other Bluetooth devices.
Figure 3-7 Connect(out) Window
Click [Search] button to search nearby Bluetooth devices. The maximum number of devices to be
searched can be controlled. Select one of the devices searched and click [Connect] button. The
selected Bluetooth device must be in Page scan mode. Click [Disconnect] button to cancel the
connection normally.
After the connection is established, you are able to test sensitivity by pushing the START button.

17
Figure 3-8 Sensitivity Test
The sensitivity test shows LInkQuality and RSSI values. The sensitivity is fine, If the LinkQuality is
closer to 255 and RSSI is closer to 0. In general, the sensitivity is the best when the distance is 10
meters. You can push the STOP button in order to terminate the sensitivity test. The sensitivity test will
continue until the STOP button is pushed. If you close the ParaniWIN Window without pushing the
STOP button, you must restart Parani-ESD to terminate the test.
Connection(in) icon will show the following window to make Parani-ESD wait to a connection from the
other Bluetooth device. The waiting time in seconds can be controlled. With 0 input for this waiting
time, Parani-ESD keeps waiting for connection until [Cancel] button is clicked.

18
Figure 3-9 Connection(in) Window
If the Connection Wizard icon is clicked, an easy pairing menu to use appears as follows:
Figure 3-10 Connection Wizard Window

19
This menu make easy pairing configuration of Parani-ESD. To use this menu, follow next steps.
Step 1. Connect the first ESD and then push the START button.
Step 2. Disconnect the first ESD, connect the second ESD and then push the Next button after setting
up Slave configuration.
Step 3. Disconnect the second ESD, once again connect the first ESD and then push the Finish
button. The pairing configuration finished. From now, when the ESD restarts the pairing connection
will be established automatically.
3.2.5. ParaniUpdater
Parani-ESD support firmware update. You can download new firmwares of Parani-ESD at
http://www.sena.com. With ParaniUpdater, you can update firmware of Parani-ESD by selecting the
firmware image file and pushing Start button.
* Note: DO NOT power off Parani-ESD while the firmware update is progressing. It may damage the
firmware seriously.
Figure 3-11 ParaniUpdater Window
.
3.2.6. Terminal Program
A terminal program is an application that will enable a PC to communicate directly with a modem. If
you are using Windows 98SE or higher version of Windows, HyperTerminal program as it is included
as part of the operating system. Parani-ESD provides some extended AT commands for its
configurations on terminal program.
This manual will explain the method using HyperTerminal. If you need to install HyperTerminal, click
start>setting>control panel>add/remove programs. For more precise information, please refer to Help
of Microsoft Windows.
Attach Parani-ESD to serial port of host computer and power on.

20
Launch HyperTerminal. It can be found in start >programs >accessories >communication
>HyperTerminal. Select the Serial port that Parani-ESD will be connected to.
Input the same settings into Serial port configuration window as Parani-ESD settings.
The settings need to be set correctly, otherwise, error message may be shown up on the screen or
cause malfunctioning of Parani-ESD.
Figure 3-12 HyperTreminal
Choose the settings in File->Properties->Settings->ASCII setup that let you turn echo on in
HyperTerminal; this will show the response Parani-ESD sends on the screen.
You now get the HyperTerminal window where you are able to control Parani-ESD with AT commands.
For expanded AT commands that Parani-ESD provides, please refer to Appendix A. AT commands.
Example of AT commands:
AT+BTINFO?
000B53000509,PSDv3b-000509,MODE0,STANDBY,0,0,HWFC
OK
AT+BTINQ?
000B5320007E,PSDv2a-20007E,001F00
0004B300E205,AP2002:1 #0,020300
OK
ATD000B53000509
OK
CONNECT 000B53000509
