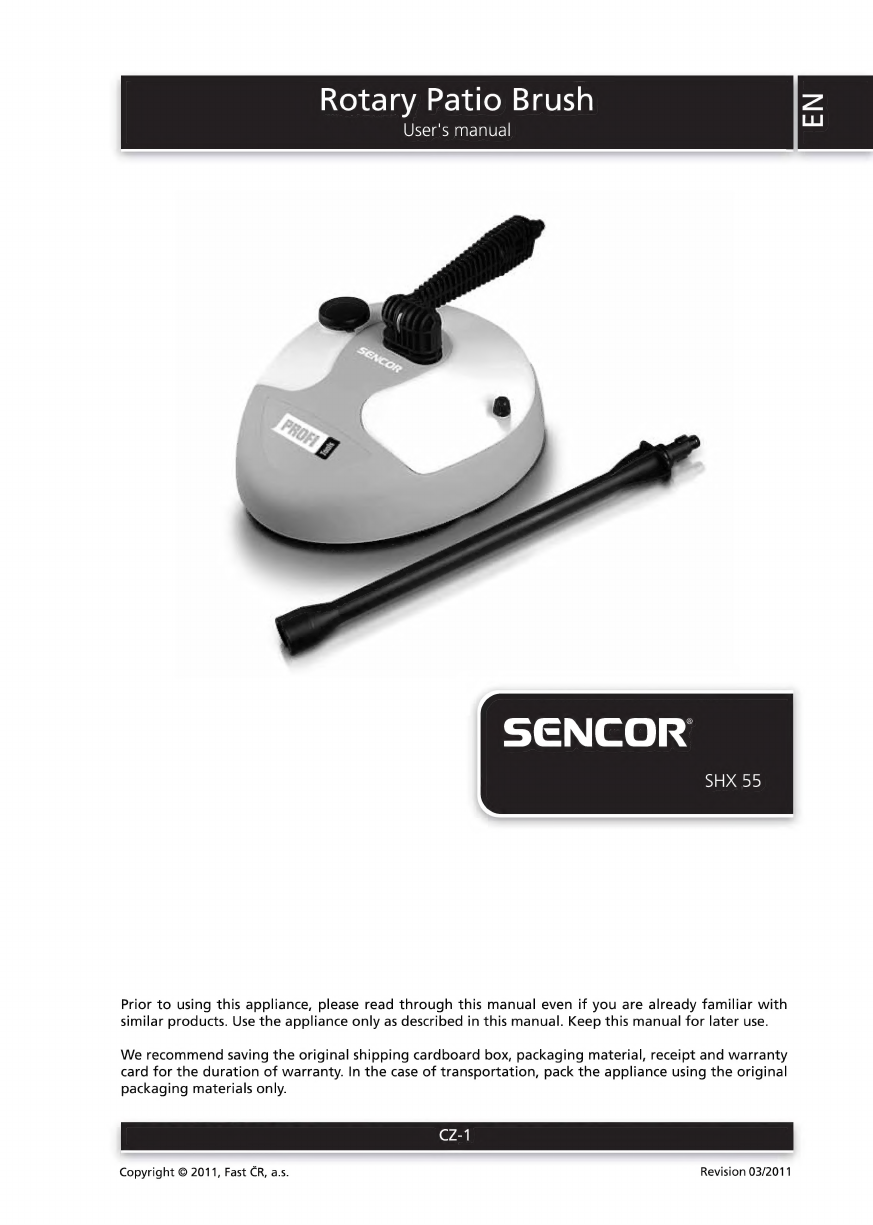

Sencor SHX 55 User manual

Rotary Patio Brush
User's manual
SENCOR
Prior to using this appliance, please read through this manual even if you are already familiar with
similar products. Use the appliance only as described in this manual. Keep this manual for later use.
We recommend saving the original shipping cardboard box, packaging material, receipt and warranty
card for the duration of warranty. In the case of transportation, pack the appliance using the original
packaging materials only.
CZ-1
Copyright O 2011, Fast CR, a.s. Revision 03/2011

Rotary Patio Brush
SHX 55

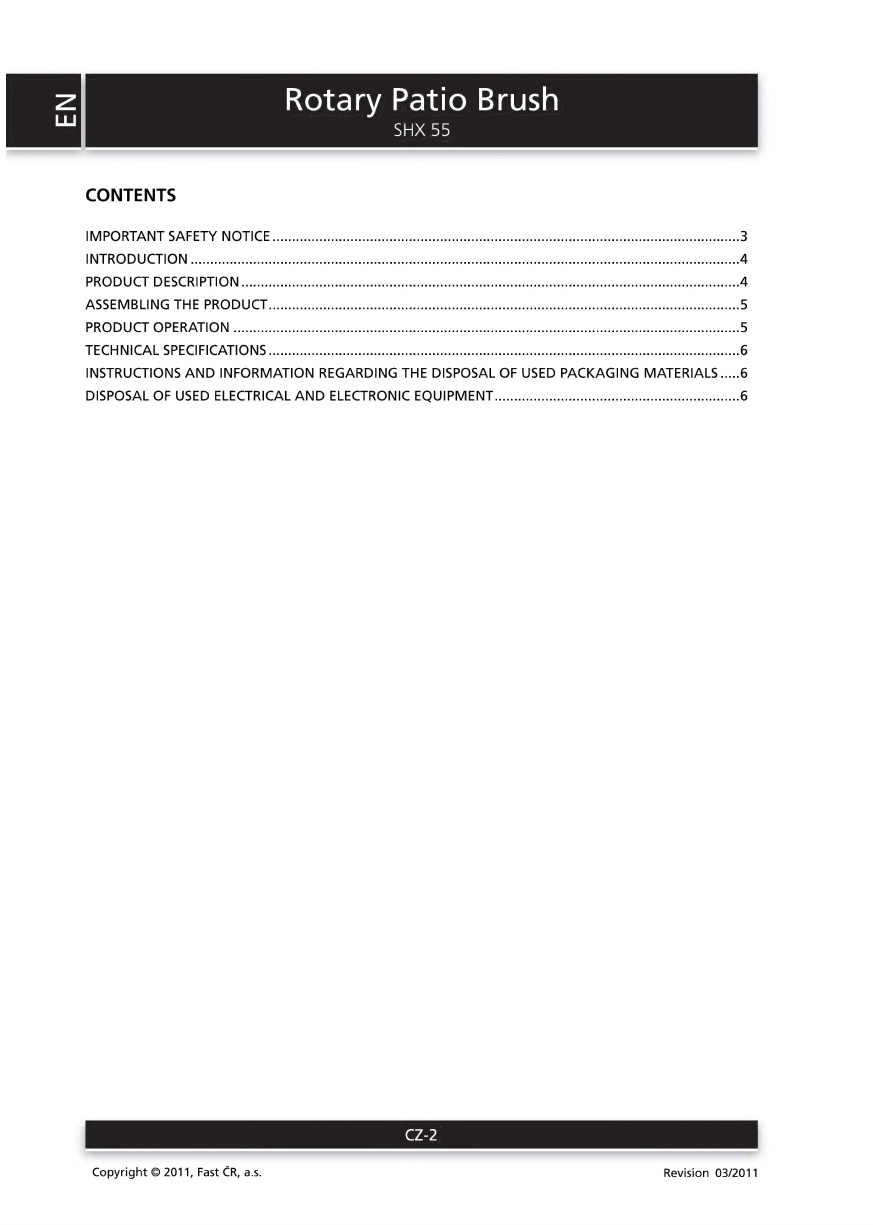

CONTENTS
IMPORTANT: SAFETY NOTICE 2:04: irsana iaaa naaku SUPPE ine araia aa aAA Ea ei 3
INTRODUCTION me —— — —— ————— — —— RN 4
PRODUCT DESCRIPTION) i oadpur sno uuo tx iod antis aha dU Sis m PEER ERRARE quii o ERRER ENANA PERDU E PER REA RR rna ansa s REA US ERA 4
ASSEMBLING THE PRODUCT 2iecics6ociic d peser Rena cde duit bad duet a Ca D 2eyeuadad e aeos tbe Ka KELE irine EEE osito ends 5
PRODUCT. OPERATION e ——————————— 5
TECHNICAL SPECIFICATIONS t cet 6
INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS .....6
DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT ............... eere nnn 6
Copyright O 2011, Fast CR, a.s. Revision 03/2011

Rotary Patio Brush
SHX 55

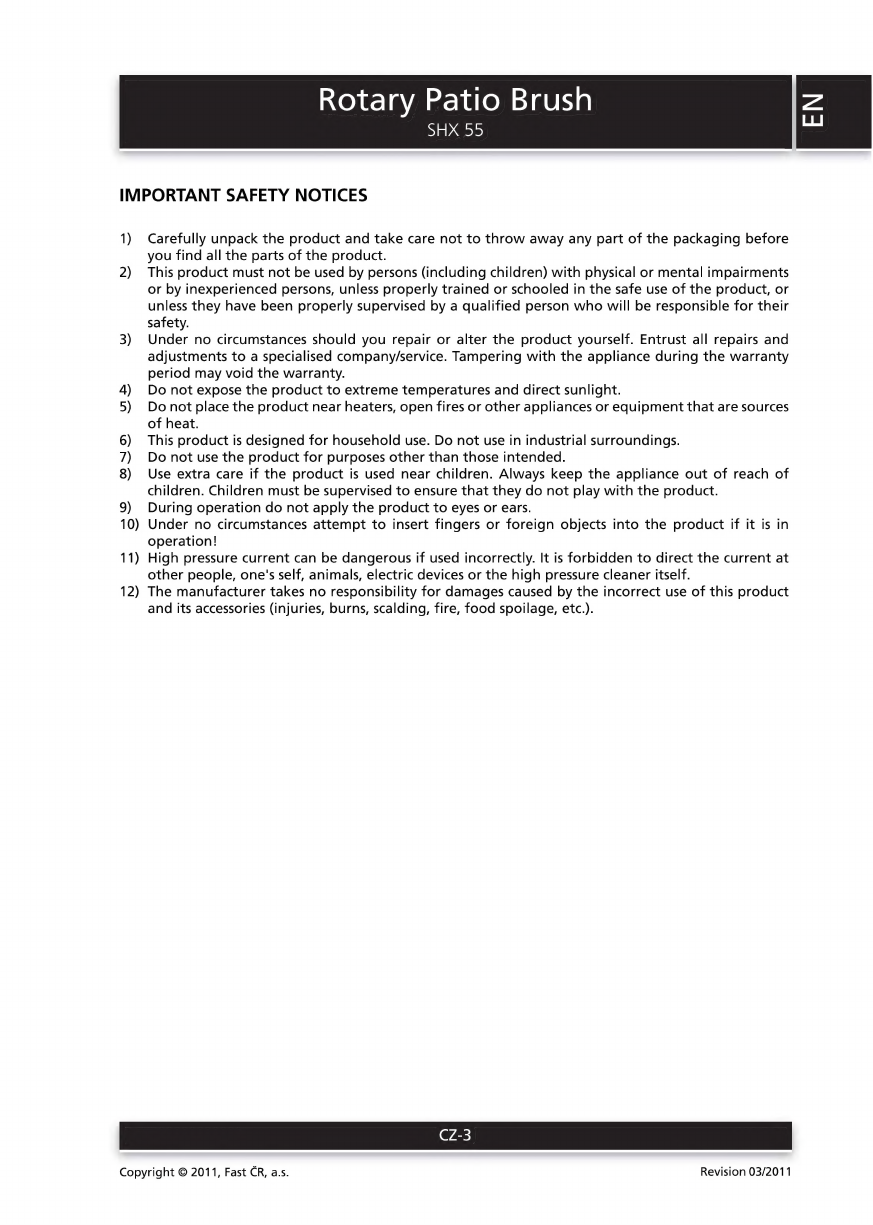

IMPORTANT SAFETY NOTICES
1)
2)
3)
4)
5)
6)
7)
8)
9)
10)
11)
12)
Carefully unpack the product and take care not to throw away any part of the packaging before
you find all the parts of the product.
This product must not be used by persons (including children) with physical or mental impairments
or by inexperienced persons, unless properly trained or schooled in the safe use of the product, or
unless they have been properly supervised by a qualified person who will be responsible for their
safety.
Under no circumstances should you repair or alter the product yourself. Entrust all repairs and
adjustments to a specialised company/service. Tampering with the appliance during the warranty
period may void the warranty.
Do not expose the product to extreme temperatures and direct sunlight.
Do not place the product near heaters, open fires or other appliances or equipment that are sources
of heat.
This product is designed for household use. Do not use in industrial surroundings.
Do not use the product for purposes other than those intended.
Use extra care if the product is used near children. Always keep the appliance out of reach of
children. Children must be supervised to ensure that they do not play with the product.
During operation do not apply the product to eyes or ears.
Under no circumstances attempt to insert fingers or foreign objects into the product if it is in
operation!
High pressure current can be dangerous if used incorrectly. It is forbidden to direct the current at
other people, one's self, animals, electric devices or the high pressure cleaner itself.
The manufacturer takes no responsibility for damages caused by the incorrect use of this product
and its accessories (injuries, burns, scalding, fire, food spoilage, etc.).
CZ-3
Copyright © 2011, Fast CR, a.s. Revision 03/2011

Rotary Patio Brush
SHX 55

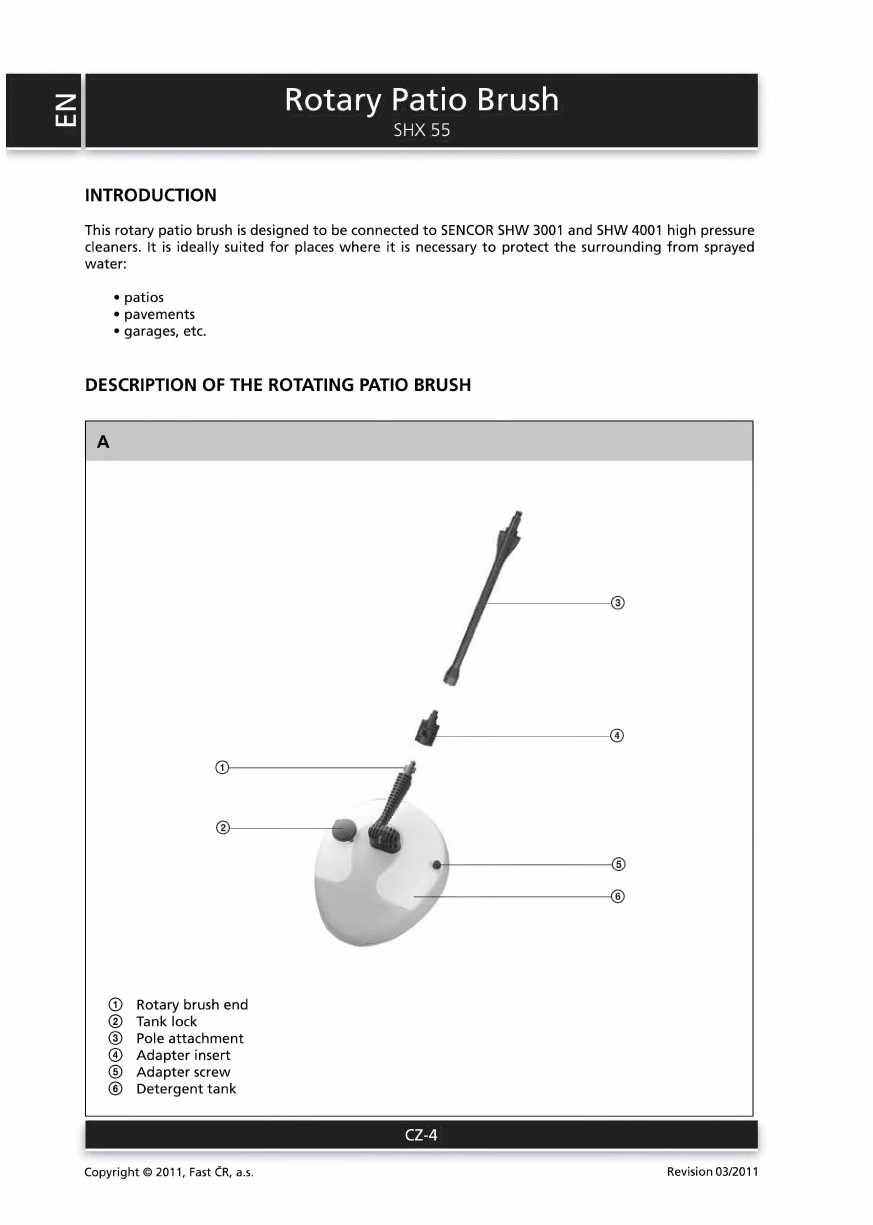

INTRODUCTION
This rotary patio brush is designed to be connected to SENCOR SHW 3001 and SHW 4001 high pressure
cleaners. It is ideally suited for places where it is necessary to protect the surrounding from sprayed
water:
e patios
* pavements
* garages, etc.
DESCRIPTION OF THE ROTATING PATIO BRUSH
Rotary brush end
Tank lock
Pole attachment
Adapter insert
Adapter screw
Detergent tank
eeGooemoo
Copyright O 2011, Fast CR, a.s. Revision 03/2011

Rotary Patio Brush
SHX 55
ASSEMBLING THE PRODUCT
1) Attach the adapter insert on to the rotary brush end so that both protrusions on the rotary brush
end enter the appropriate openings in the adapter insert.
2) Then gently push the adapter insert and turn it by 90° clockwise so that it locks into place.
Note:
The adapter insert needs to be inserted all the way in before being locked in, otherwise it is not
possible
to turn and lock in place.
3) Screw the supplied pole attachment on to the tread of the adapter insert.
Now attach the pistol of the high pressure cleaner (not included with this product):
1) Insert the pole attachment into the pistol so that the lugs fit inside the openings inside the pistol.
2) No gently press the working attachment into the pistol and turn it 90°.
3) The working attachment will be arrested in the pistol.
PRODUCT OPERATION
The rotary patio brush can be used to clean both with clean water and with a shampoo solution. If the
shampoo solution is necessary proceed as follows:
1 Open the tank cover and pour in max. 750 ml of a shampoo solution.
2) Using the adjustment screw set the desired shampooing intensity - screwing in will reduce the
intensity, screwing out will increase the intensity.
3) The brush is now ready for use (continue by following the user's manual of the high pressure
cleaner).
A Caution
Use only cleaning agents intended for use in high pressure cleaners. Never use liquids
containing organic solvents, acids, flammable compounds, colourings, oils and compounds
whose fumes are flammable, explosive or toxic.
CZ-5
Copyright © 2011, Fast CR, a.s. Revision 03/2011

Rotary Patio Brush
SHX 55
TECHNICAL SPECIFICATIONS
Tank volUMe NN 750 ml
Dimensions (length x width x heighħt)........s.sessssessennnennnrrnnrrnnnrrnnnrrnnrrnnnrnnnnnnnnnrnnnnrnnnsnnnne 330 x 280 x 720 mm
Dimensions of the rotary brush (length x width)......................... esses 315 x 270 mm
de —————————————————— 1.2 kg
Amendments to the text and technical parameters are reserved
INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED
PACKAGING MATERIALS
Dispose of packaging material at a public waste disposal site.
DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES
The meaning of the symbol on the product, its accessory or packaging indicates that
this product shall not be treated as household waste. Please, dispose of this product at
your applicable collection point for the recycling of electrical & electronic equipment
waste. Alternatively in some states of the European Union or other European states
you may return your products to your local retailer when buying an equivalent new
product. The correct disposal of this product will help save valuable natural resources
and help in preventing the potential negative impact on the environment and human
health, which could be caused as a result of improper liquidation of waste. Please ask
your local authorities or the nearest waste collection centre for further details. The im-
proper disposal of this type of waste may fall subject to national regulations for fines.
For business entities in the European Union
If you wish to dispose of an electrical or electronic device, request the necessary infor-
mation from your seller or supplier.
Disposal in other countries outside the European Union
If you wish to dispose of this product, request the necessary information about the cor-
rect disposal method from local government departments or from your seller.
C € This product meets all the basic EU regulation requirements that relate to it.
Changes to the text, design and technical specifications may occur without prior notice and we
reserve the right to make these changes.
