Sencor ONE 2020 User manual

Electric scooter
Scooter ONE 2020
USER’S MANUAL
EN

EN 3
EN
Revision 10/2021Copyright © 2021, Fast ČR, a. s.
Contents
1. Package contents and scooter description..........................................................................................4
1.1. Package contents .......................................................................................................................................4
1.2. Description of scooter Scooter One 2020 ...........................................................................................4
2. Control ..........................................................................................................................................................5
2.1. Control panel and applications ...............................................................................................................5
2.2. Driving modes .............................................................................................................................................5
2.3. Starting the operating mode ...................................................................................................................5
2.4. Multifunctional button ...............................................................................................................................6
3. Assembly of the scooter Scooter One 2020..................................................................................... 6
4. Charging.......................................................................................................................................................7
5. Battery over-discharge protection..........................................................................................................8
6. Folding and transport............................................................................................................................... 9
7. Driving Scooter One 2020....................................................................................................................10
8. Safety instructions.................................................................................................................................... 11
9. Maintenance and adjustment............................................................................................................... 12
10. Technical specifications.......................................................................................................................... 13
11. EU Declaration of Conformity...............................................................................................................16
Contents

4 EN
EN
Revision 10/2021Copyright © 2021, Fast ČR, a. s.
Package contents and scooter description
1. Package contents and scooter description
1.1. Package contents
1× Electric scooter Scooter One 2020
1× Charging adapter
1× Set of Allen keys
4× Handlebar mounting screw
1× User’s Manual
1.2. Description of scooter Scooter One 2020
a Speed control
b LED lamp
c Mechanical brake and bell
d Release lever of folding mechanism
e Electric motor
f Switch On/Off/ and Control panel
g Hook to secure for transport
h Power supply connector
i Battery space
j Rear LED light/brake light
k Notch for attaching the handlebar when
folded
l Mechanical disc brake
m Stand

EN 5
EN
Revision 10/2021Copyright © 2021, Fast ČR, a. s.
Control
2. Control

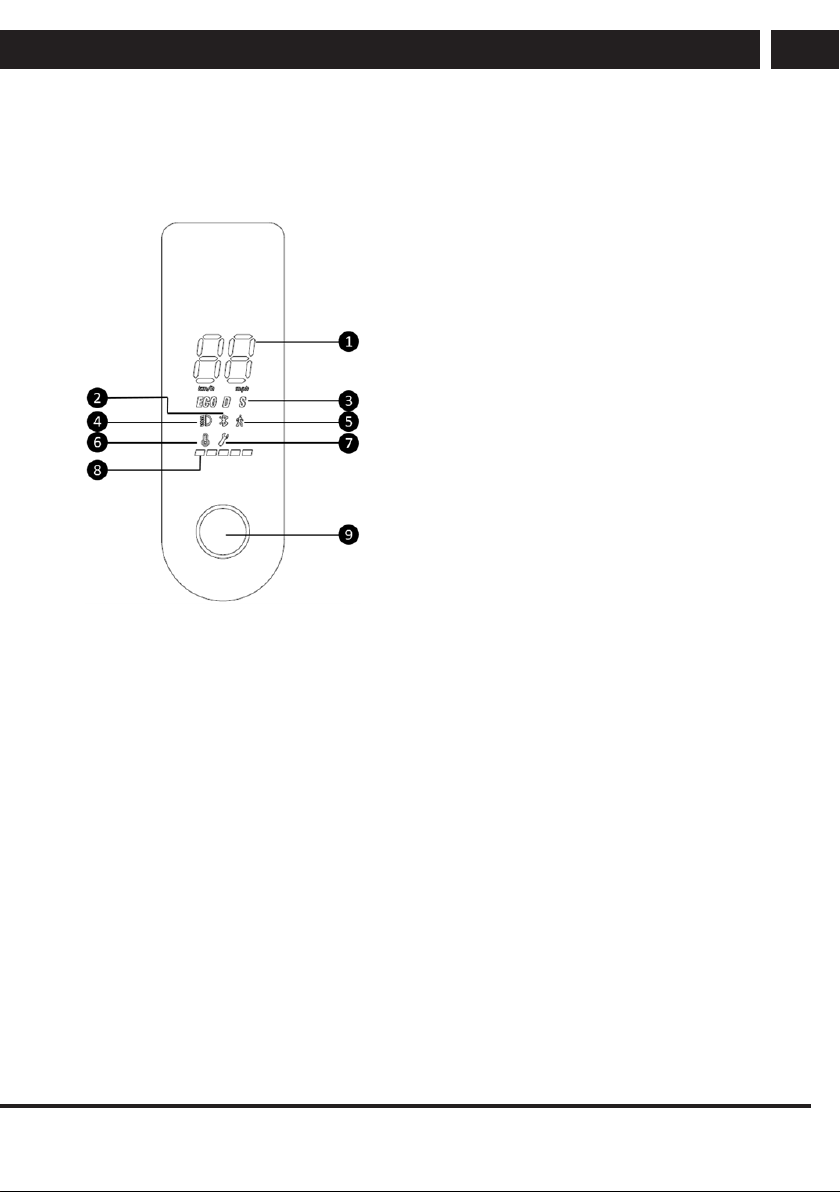

2.1. Control panel and applications
a Actual speed
b Indicator of connected device using
Bluetooth
c Driving modes (ECO - economy; D - drive;
S -sport)
d Light on
e Walk mode - walking speed reduction
f Scooter overheat indicator - when the
temperature exceeds 80°C
g Device fault indicator - contact service
centre
h Battery level indicator
i Multifunctional button
While using Scooter One 2020 you can also use the mobile app „SENCOR SCOOTER“,
which can be downloaded from Google Play Store and Apple APP Store. For example,
this app provides the users with an overview of mileage, cruise control and much more.
More information about the application and its instructions can be found at www.sencor.
cz.
2.2. Driving modes
Switching between driving modes is done by double-clicking the multi-function button.
Walk up to 6 km/h
Eco up to 10 km/h
Drive up to 20 km/h
Sport up to 25 km/h
2.3. Starting the operating mode
1) Turn on the scooter.
2) Press and hold the speed control fully until the display shows 16.
3) Hold the gear lever and press the brake lever at the same time.
4) Release the brake lever.
5) You will be switched to the last set driving mode.

6 EN
EN
Revision 10/2021Copyright © 2021, Fast ČR, a. s.
Assembly of the scooter Scooter One 2020
WARNING:
Always start the operating mode when the SENCOR SCOOTER ONE 2020 is not
in motion.
2.4. Multifunctional button
WARNING:
Always adjust the driving functions before starting the ride.
1) When switched off, press the multifunction button briefly to turn Scooter One 2020
on.
2) When on, pressing and holding the multifunction button for 2 seconds turns Scooter
One 2020 off.
3) When switched on, briefly pressing the multifunction button switches the LED lamp
on.
4) When switched on, a short double-press of the multi-function button switches
between driving modes.
3. Assembly of the scooter Scooter One 2020

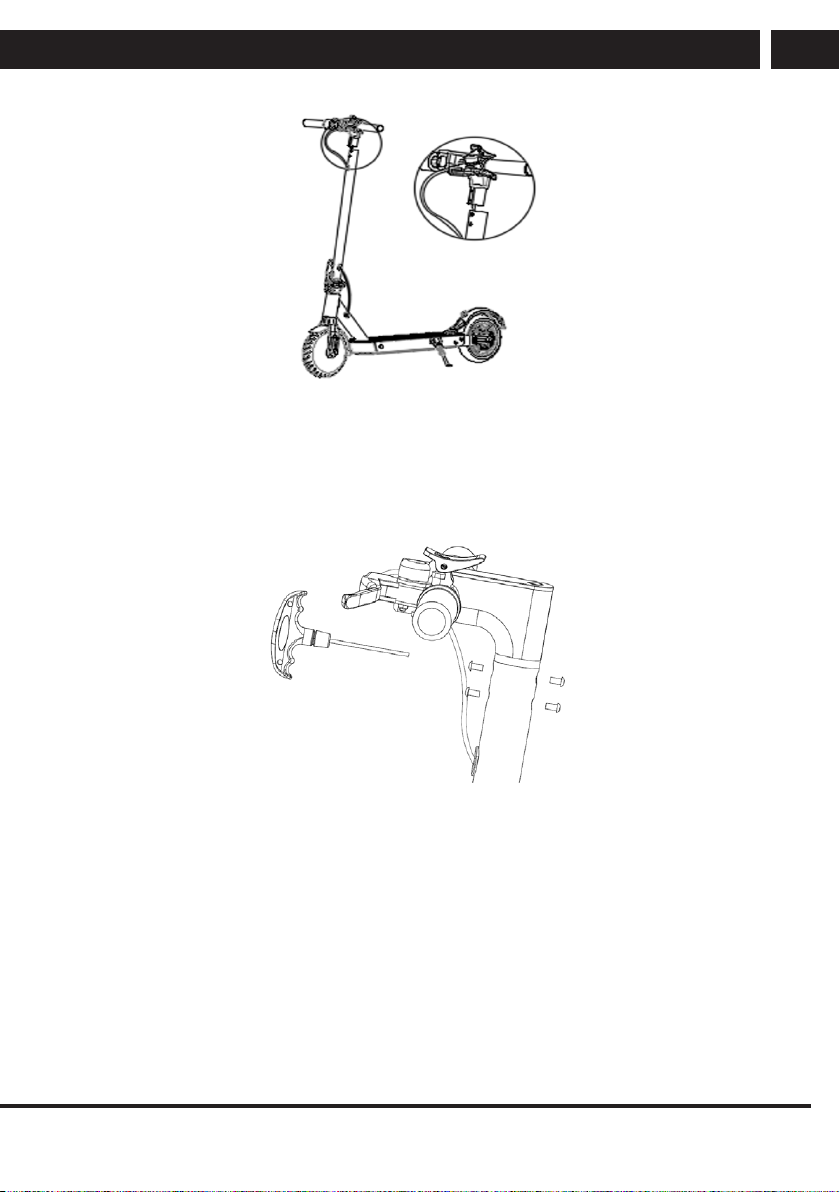

1. Straighten the handlebar bar and clamp it firmly using the locking lever.
2. Check the connections of the control unit connectors to the Control panel. The
connector with wires must be properly connected to prevent any loosening later.

EN 7
EN
Revision 10/2021Copyright © 2021, Fast ČR, a. s.
Charging
3. Carefully connect the handlebar with the steering pipe. Be careful not to damage the
connecting wire when placing it in the steering pipe. The LED lamp must be facing in
the direction of travel.
4. Screw the handlebar to the steering pipe. Fit the two Allen screws from the front and
the two Allen screws from the opposite side as shown. Tighten the screws. Regularly
check the screws while using the product, if they are not loose.
5. Turn on Scooter One 2020.
4. Charging
Make sure the battery is fully charged before starting to drive. Turn on the Control Panel
and check the battery level.
Charging is carried out using the included charging adapter. First of all, uncover the rubber
cap of the charging connector in Scooter One 2020 and connect the charging adapter.
Then plug the adapter into your wall outlet. After the charging process is complete and
the charging adapter is disconnected, cover the rubber cap of the charging connector
again. Check regularly that the protective cap covers the charging connector whenever
charging is not in progress.

8 EN
EN
Revision 10/2021Copyright © 2021, Fast ČR, a. s.
Battery over-discharge protection
The charging indicator is located on the charging adapter and displays 2 states.
1. Red LED: indicates battery charging process
2. Green LED: indicates full battery charge
ALERT:
Use only the original accessories supplied with the device for charging. If
the battery operating time is very short, the battery life is exhausted and we
recommend that you have the battery replaced by an authorized service center.
Warning:
Check the battery location area after each ride. In case of mechanical damage near the
battery, the scooter must not be stored in enclosed spaces.
Recommendation:
If you do not use the device for an extended period of time, we recommend charging
the battery to its full state every two to three months. We do not recommend storing
the device with a discharged battery to avoid irreversible damage to the battery (loss of
capacity).
5. Battery over-discharge protection
The electric scooter is equipped with protection of individual components against damage
due to excessive load in operation and lower battery charge level.
1. If there is an increased load on the electric scooter, for example by frequent uphill
riding or riding up a steep hill, the overheating protection of the control unit and
battery will be activated and the power will be reduced for the necessary time. The
speed will be reduced to a maximum of 15 km/h.

EN 9
EN
Revision 10/2021Copyright © 2021, Fast ČR, a. s.
Folding and transport
2. If the battery level drops below 30%, the maximum speed of the electric scooter is
limited to a maximum of 15 km/h. If the battery level drops below 25%, the speed
will be limited to a maximum of 10 km/h.
ALERT:
Do not modify or tamper with the protective mechanisms of the electric scooter
(Scooter One 2020). This will prevent damage to the individual components of
the electric scooter (Scooter One 2020).
6. Folding and transport
1. The scooter must be turned off. Hold the scooter, unlock the folding mechanism
release lever at the bottom of the handlebar tube and fold the released lever into the
travel direction.
2. Lower the loose handlebar tube towards the rear fender to secure it with the
handlebar hook and notch on the rear fender. Proper folding for transport
3. To carry, hold the Scooter One 2020 by the handlebar tube. For more comfortable
transport, we recommend holding the handlebar tube at a third of its length, on the
side closer to the front wheel.

10 EN
EN
Revision 10/2021Copyright © 2021, Fast ČR, a. s.
Driving Scooter One 2020
7. Driving Scooter One 2020
ALERT:
• Put on a helmet and pads before each ride to prevent injury in the event of a
fall.
• Check that the mechanical brake is fully functional before each ride.
1. Place one foot on the scooter tread and bounce off the ground with the other foot.
2. Once the scooter is in motion, press the speed control lever to start the motor. As
soon as the scooter starts on its own, place the other foot on the scooter surface.
Note:
Motor start and scooter speed can be controlled after reaching min. 5 km/h.

EN 11
EN
Revision 10/2021Copyright © 2021, Fast ČR, a. s.
Safety instructions
3. Stopping is the basis of Scooter One 2020 safe driving. First release the speed
control and then push the mechanical hand brake on the left side of the handlebar.
4. Try the first turns on a flat surface and at slow speed. To turn, move your center of
gravity slightly by tilting gently to the desired direction of travel and slowly turning
the handlebars.
8. Safety instructions
This Electric Scooter One 2020 is designed for fun and recreational use. This is not a
means of transport. Observe the safety of everyone in both private and public areas,
follow the instructions and local traffic regulations.
When meeting pedestrians, pay close attention to your driving and make sure pedestrians
know about your presence. If you are outside their angle of view, ring the bell, slow down
and overtake (overtake from the left for right-hand traffic).
Higher driving speed means automatically a longer braking path. Keep safe speed in case
of unexpected need to stop and keep a safe distance from others. Even on a flat surface,
you may encounter situations or terrain that cause you to lose balance, skid or other
unexpected situations that can cause you to fall. Always concentrate fully on driving.
Check the mechanical brake, battery charge status, wear of components and wheels
before each ride. In case of loose parts or unusual noises, carry out a thorough check and,
if necessary, contact an authorized service center.
Neither the manufacturer nor the distributor are liable for any financial damages,
injuries, accidents, legal disputes or conflicts resulting from non-observance of the safety
instructions.
• Do not drive in the rain and avoid slippery surfaces.
• If you encounter an obstacle in the path, stop and carry the scooter over the obstacle.
• Exercise caution when passing through low ceilinged areas.
• Do not accelerate downhill and always brake well in advance. If you encounter a
steep descent (e.g. a steep hill), stop and guide the scooter.
• Do not add speed while pushing the scooter.
• Always avoid obstacles.
• Avoid carrying heavy luggage on the handlebar.
• Always keep both feet on the scooter tread when driving.
• Operate Scooter One 2020 in designated driving areas. Observe the local regulations
of the regions, parks, cities and states where you want to operate the scooter.
• Do not turn sharply at high speeds.
• Do not drive through puddles, water or drive in the rain.
• Do not ride with other person even in case off children.
• Do not step on the fenders.
• Do not touch the brake components.
• Always hold on the handlebars
• Do not try to ride up the stairs, down the stairs or jump with a scooter.

12 EN
EN
Revision 10/2021Copyright © 2021, Fast ČR, a. s.
Maintenance and adjustment
9. Maintenance and adjustment
The brake mechanism must be adjusted before the first ride. Contact a specialist provider
(eg bicycle service) for proper adjustment. Adjustments cannot be made under warranty or
post-warranty service at the manufacturer or distributor.
If the brakes are too tight or too loose, use a 4mm Allen key and loosen the brake screw
counterclockwise to adjust the length of the brake cable. Then tighten the screw. Adjust
the brake cable tension by adjusting the nut on the mechanical brake attached to the
handlebar.
In the transport condition, a screw (4mm Allen) is accessible in the handlebar tube joint to
tighten its fastening. Before tightening the Allen screw in the steering knuckle, the Allen
screws located in the knuckle socket must first be loosened (shown by the arrows in the
illustration).

EN 13
EN
Revision 10/2021Copyright © 2021, Fast ČR, a. s.
Technical specifications
10. Technical specifications
Sencor Scooter ONE 2020
Key functions
Range up to 25 km
Aluminium frame
Application SENCOR SCOOTER
LED light
LED Display (mode, speed, battery, lighting, Bluetooth)
Drive
Engine output 350 W
Speed mode SPORT up to 25 km/h
mode STANDARD up to 20 km/h
Range up to 25km at 55kg weight
up to 20km at 90kg weight
Cruise control YES
Maximum angle of climb Up to 15°
Wheels
8.5 inch front and rear perforated tires
Dual braking system - electrical and mechanical
Disc brake
Application SENCOR SCOOTER
Available at the Apple App Store and Google Play
Using application security lock.
Range, distance traveled, running time, speed, battery level, etc.
Bluetooth 4.1
Technical specifications
Maximum load 120 kg
Dimensions 108 x 44 x 110 cm (unfolded)
108 x 44 x 50 cm (folded)
Weight 12.5 kg
Operating temperature -10 to 40°C
Storing temperature -20 to 45°C
Adapter
Input voltage 100-240 AC 50/60 Hz
Input current 1.5 A
Output voltage 42 V
Connector Ø 5.5 x 10 mm
Battery
Capacity 7,5 Ah Li-ion
Charging time 4-5 hours
Number of cells 30
Protection against short circuit, overvoltage, overcharge
Service life Up to 500 cycles

14 EN
EN
Revision 10/2021Copyright © 2021, Fast ČR, a. s.
Technical specifications
Input charging voltage 42 V
Rated voltage 36 V
Charging adapter Value and accuracy Unit
Manufacturer's name or trademark, business
identification number and address
Application company: Coming Data
Co.,Ltd ADD:5F-1 13 Wuchung 1RD
Hsin Chung New Taipei 242 Taiwan.
Manufacturer: Powsun Electronic Co.,Ltd ADD:1,
Xingfa Road, ZhuWu YuLiangWei, QingXi
Town, DongGuan GuangDong, China.
-
Model Identification Code CP4215 -
Input voltage 100-240 V
Input frequency 50-60 Hz
Output voltage 42.0 V
Output current 1.5 A
Output 63.0 W
Average speed in active mode 88 %
Efficiency at low load (10%) 82 %
Power consumption without load 0.19 W
Bluetooth
Version 4.1
Maximum transmitter power 100 mW at 2,4 GHz – 2,4835 GHz

EN 15
EN
Revision 10/2021Copyright © 2021, Fast ČR, a. s.
Technical specifications
INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING
Dispose of used packaging material at a place designated by the municipality for waste
disposal.
DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT
This symbol on the products and / or accompanying documents means that
used electrical and electronic products must not be disposed of with normal
household waste For proper disposal, recovery and recycling, please take these
products to designated collection points. Alternatively, in some European Union
countries or other European countries, you may return your products to your
local retailer when buying an equivalent new product. The correct disposal of
this product will help save valuable natural resources and help prevent potential
negative consequences for the environment and human health, which could be
caused by inappropriate waste handling. For more details, please contact your
local authorities or the nearest collection site. Penalties may be imposed for
incorrect disposal of this type of waste, in accordance with national regulations.
For business entities in European Union countries
To dispose of electrical and electronic equipment, request the necessary
information from your dealer or supplier.
Disposal in other countries outside the European Union
This symbol is valid in the European Union. To dispose of this product, request
the necessary information about the correct disposal method from your local
authorities or from your vendor.
Hereby FAST CR a.s. declares that the type of radio equipment Scooter One
2020 complies with Directive 2014/53 / EU.
Changes in text, design and technical specifications are subject to change without notice
and we reserve the right to make changes.

16 EN
EN
Revision 10/2021Copyright © 2021, Fast ČR, a. s.
Technical specifications
EU Declaration of Conformity
Product/Brand Electric scooter/SENCOR
Type/model SCOOTER ONE 2020, production model E9
Battery (10S3P) DC 36 V; 9,7 A; 7,5 Ah; 350 W; IP54; Class III
Adapter (FY0634201500) Input: AC 100-240 V; 50/60 Hz; 1,8A;
IP20; Class II
Output: DC 42,0 V; 63,0 W; 1,5A
Manufacturer FAST ČR, a.s.
Černokostelecká 2111, 100 00 Praha 10, Czech Republic
VAT no: CZ26726548
This Declaration of Conformity is issued under the sole responsibility of the manufacturer.
The subject of the above declaration is in accordance with the relevant Union
harmonization legislation:
Directive MD 2006/42/EC
Directive RED 2014/53/EU
Directive LVD 2014/35/EU
Directive EMC 2014/30/EU
Directive ErP 2009/125/EC
Directive RoHS 2011/65/EU
Relevant harmonized standards and other technical specifications:
EN 60204-1:2006+A1+AC
EN ISO 12100:2010
EN 62479:2010
EN 301 489-1 V2.2.0
EN 301 489-17 V3.2.0
EN 300 328 V2.1.1
EN 60335-1:2002+
A1+A11+A12+A2+A13+A14
EN 17128:2020
EN 55014-1:2017
EN 55014-2:2015
EN 61000-3-2:2014
EN 61000-3-3:2013
Place of
publication:
Prague Name: Ing. Zdeněk Pech
Chairman of the Board
Date of
publication
18. 10. 2021

EN 17
EN
Revision 10/2021Copyright © 2021, Fast ČR, a. s.
Technical specifications
EN Warranty conditions
Warranty card is not a part of the device packaging.
This product is warranted for the period of 24 months from the date of purchase to the end-user. Warranty
is limited to the following conditions. Warranty is referred only to the customer goods using for common
domestic use. The claim for service can be applied either at dealer’s shop where the product was bought, or
at below mentioned authorized service shops. The end-user is obligated to set up a claim immediately when
the defects appeared but only till the end of warranty period. The end user is obligated to cooperate to certify
the claiming defects. Only completed and clean (according to hygienic standards) product will be accepted.
In case of eligible warranty claim the warranty period will be prolonged by the period from the date of claim
application till the date of taking over the product by end-user, or the date the end-user is obligated to take it
over. To obtain the service under this warranty, end-user is obligated to certify his claim with duly completed
following documents: receipt, certificate of warranty, certificate of installation.
This warranty is void especially if apply as follows:
•Defects which were put on sale.
•Wear-out or damage caused by common use.
•The product was damaged by unprofessional or wrong installation, used in contrary to the applicable
instruction manual, used in contrary to legal enactment and common process of use or used for another
purpose which has been designed for.
•The product was damaged by uncared-for or insufficient maintenance.
•The product was damaged by dirt, accident of force majeure (natural disaster, fire, and flood).
•Defects on functionality caused by low duality of signal, electromagnetic field interference etc.
•The product was mechanically damaged (e.g. broken button, fall).
•Damage caused by use of unsuitable media, fillings, expendable supplies (batteries) or by unsuitable
working conditions (e.g. high temperatures, high humidity, quakes).
•Repair, modification or other failure action to the product by unauthorized person.
•End-user did not prove enough his right to claim (time and place of purchase).
•Data on presented documents differs from data on products.
•Cases when the claiming product cannot be indentified according to the presented documents (e.g. the
serial number or the warranty seal has been damaged).
Authorized service centers
Visit www.sencor.eu for detailed information about authorized service centers.
