Electric scooter
Scooter TWO LONG RANGE 2021
USER'S MANUAL
EN
Table of contents EN
Copyright © 2020, Fast ČR, a. s. Revision 08/2020
EN 3
Table of Contents
1. Contents of the package and scooter description ..............................................4
1.1. Supply content .............................................................................................4
1.2. SCOOTER TWO LONG RANGE 2021 description .........................................4
2. Operation .............................................................................................................5
2.1. Control panel and application .....................................................................5
2.2. Multifunction button.....................................................................................5
2.3. Driving modes...............................................................................................6
2.4. Starting the operating mode ........................................................................6
3. Assembling the SCOOTER TWO LONG RANGE 2021 ...........................................7
4. Charging ..............................................................................................................8
5. Protecting the battery against excessive discharging ........................................9
6. Folding and transport ..........................................................................................9
7. Steering the SCOOTER TWO LONG RANGE 2021 ..............................................11
8. Safety instructions ............................................................................................12
9. Maintenance and adjustment ............................................................................13
10. Technical specifications ....................................................................................14
11. EU Declaration of conformity ............................................................................17
Copyright © 2020, Fast ČR, a. s. Revision 08/2020
4 EN
Contents of the package and scooter description
EN
1. Contents of the package and scooter description
1.1. Supply content
1x Electric scooter SCOOTER TWO LONG RANGE 2021
1x Charging adapter
1x Hex key set
4x Handlebar fastening screw
1x User's manual
1.2. SCOOTER TWO LONG RANGE 2021 description
➊Speed control
➋LED light
➌Mechanical brake and bell
➍Folding mechanism release lever
➎Electric motor / front electric brake
➏Power on/off/control panel
➐Transport mode lock hook
➑Charging connector
➒Stand
➓Battery compartment
Rear swingarm
Notch to retain the handlebar in
folded mode
Rear LED light/brake light
Mechanical disc brake
Operation EN
Copyright © 2020, Fast ČR, a. s. Revision 08/2020
EN 5
2. Operation
2.1. Control panel and application
➊ Actual speed
➋Indicator of connected device using Bluetooth
➌Driving modes (ECO - economy; D - drive; S
-sport)
➍Light on
➎Walk mode - walking speed reduction
➏Scooter overheat indicator - when the tempera-
ture exceeds 80°C
➐Device fault indicator - contact service centre
➑Battery level indicator
➒Multifunctional button
While using your SCOOTER TWO LONG RANGE 2021, you can also use “SENCOR
SCOOTER” mobile app available for download at Google Play aand Apple APP Store.
This app offers users for example number of kilometers ridden, cruise control set-
ting function and many others. For more information about the app / user’s manual,
please refer to www.sencor.cz website.
2.2. Multifunction button
CAUTION:
The adjustment of riding properties should always be performed be-
fore starting the ride.
1) Short press the multifunction button while the power is off to turn the SCOOTER
TWO LONG RANGE 2021 on.
2) Hold down the multifunction button for 2 seconds while the power is on to turn
the SCOOTER TWO LONG RANGE 2021 off.
3) Short press the multifunction button while the power is on to turn on the LED
flashlight.
4) When switched on, a short double-press of the multi-function button switches
between driving modes.
Copyright © 2020, Fast ČR, a. s. Revision 08/2020
6 EN
Operation
EN
2.3. Driving modes
Switching between driving modes is done by double-clicking the multi-function
button.
Walk up to 6 km/h
Eco up to 10 km/h
Drive up to 20 km/h
Sport up to 25 km/h
2.4. Starting the operating mode
1) Turn on the scooter.
2) Press and hold the speed control fully until the display shows 16.
3) Hold the gear lever and press the brake lever at the same time.
4) Release the brake lever.
5) You will be switched to the last set driving mode.
WARNING:
Always start the operating mode when the SENCOR SCOOTER TWO
LONG RANGE 2021 is not in motion.
Assembling the scooter two long range 2021 EN
Copyright © 2020, Fast ČR, a. s. Revision 08/2020
EN 7
3. Assembling the SCOOTER TWO LONG RANGE 2021
1. Unfold the handlebar rod and secure it firmly with the lock lever.
2. Make sure that the control unit connectors are connected to the control panel.
The connector with the cords must be connected properly to avoid loosing later on.
3. Carefully connect the handlebar with the handlebar tube. Take care to avoid
damage to the connecting wire while it’s being inserted into the steering tube.
The LED flashlight must point in the ride direction.
4. Screw the handlebar and the handlebar tube together. Insert two hex screws
from the front and two hex screws from the opposite side as shown. Tighten
the screws firmly. Regularly check if the screws don’t get loose while using the
product.
Copyright © 2020, Fast ČR, a. s. Revision 08/2020
8 EN
Charging
EN
Sencor Scooter One EN CZ SK PL HU.indb 7 16.08.2020 21:05:24
5. Turn on the SCOOTER TWO LONG RANGE 2021
4. Charging
Check if the battery is fully charged before starting your ride. Turn on the control
panel and check the battery level.
The charging is performed with the supplied charging adapter. First remove the
rubber cap of the charging connector in the SCOOTER TWO LONG RANGE 2021 and
connect the charging adapter. Then connect the adapter to your power outlet. When
the charging process is finished and the charging adapter is disconnected, cover the
charging connector opening again with the rubber cap. Regularly check if the protec-
tive cap covers the charging connector whenever the charging does not take place.
Sencor Scooter One EN CZ SK PL HU.indb 7 16.08.2020 21:05:24
The charging indicator is located on the charging adapter and shows 2 statuses as
follows:
1. Red LED: Indicates the battery charging process
2. Green LED: Indicates the battery is fully charged
Protecting the battery against excessive discharging EN
Copyright © 2020, Fast ČR, a. s. Revision 08/2020
EN 9
CAUTION:
For charging, use only the original accessories supplied with the appli-
ance. When the battery operating time becomes very short, the battery
lifetime has been used up; we recommend that you have the battery
replaced at your authorized centre.
Recommendation:
If the unit is not to be used for an extended period of time, we recommend to fully
charge the battery once every two to three months. We donot recommend storing
the unit with aflat battery to prevent irreparable damage to the battery (loss of
capacity).
5. Protecting the battery against excessive discharging
The electric scooter is equipped with the protection of each component against dam-
age due to operational overload and lower battery charging level.
1. If the scooter is subject to ahigher load for example due to frequent riding uphill
or riding up asteep hill, the control unit/battery overheating protection will be
enabled, limiting the power for anecessary period of time. The speed will be
reduced to amaximum of 15km/h.
2. If the battery level drops below 30%, the maximum scooter speed will be limited
to 15km/h. If the battery level drops below 25%, the maximum speed will be
limited to 10km/h.
CAUTION:
Donot repair and/or tamper with the electric scooter (SCOOTER TWO
LONG RANGE 2021) protection mechanisms. This will prevent the dam-
age to the individual components of the electric scooter (SCOOTER TWO
LONG RANGE 2021).
6. Folding and transport

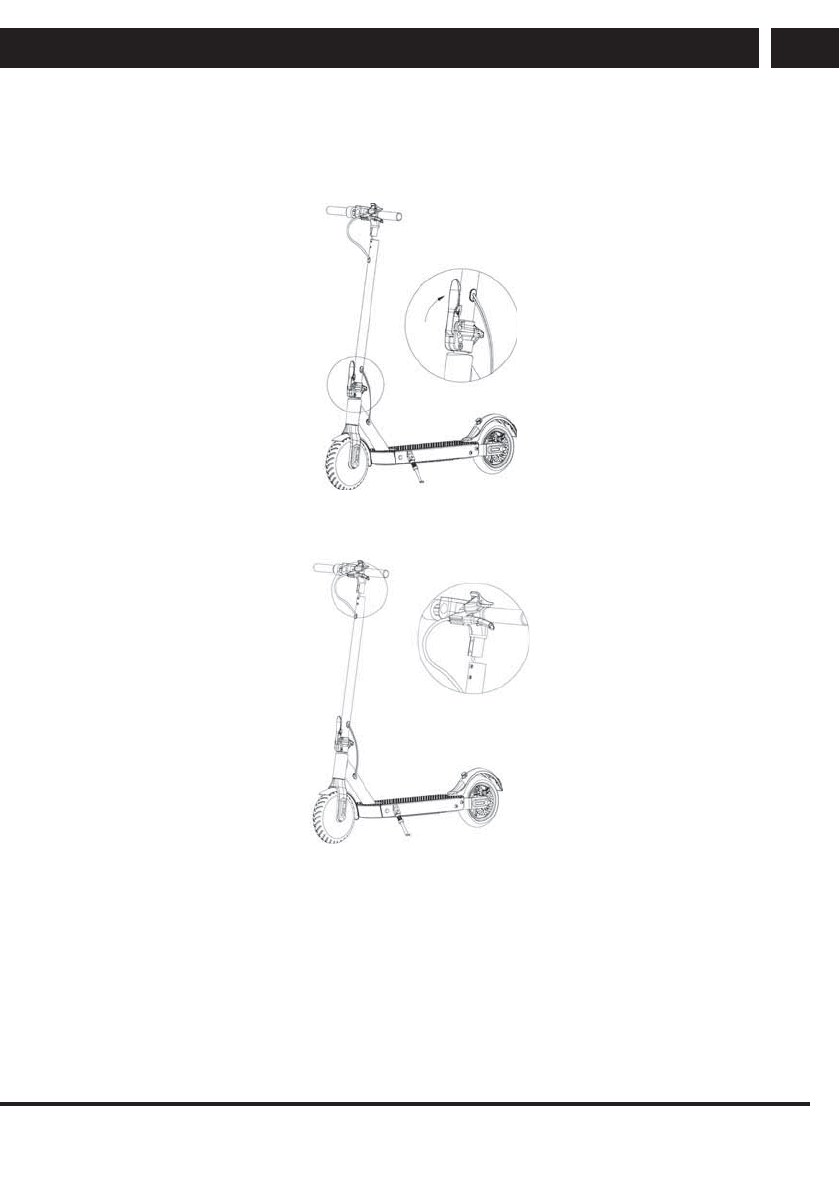

1. The scooter must be turned off. Hold the scooter, unlock the folding mechanism
release lever at the bottom of the handlebar tube and push the released level in
the ride direction.
Copyright © 2020, Fast ČR, a. s. Revision 08/2020
10 EN
Folding and transport
EN
Sencor Scooter One EN CZ SK PL HU.indb 9 16.08.2020 21:05:24
2. Fold the released handlebar tube towards the rear mudguard and lock it using
the hook on the handlebar and notch on the rear mudguard. Correct transport
mode folding
3. To carry the scooter, hold the SCOOTER TWO LONG RANGE 2021’s handlebar
tube. For more convenient transport, we recommend to hold the handlebar tube
in one third of its length on the side near front wheel.
Sencor Scooter One EN CZ SK PL HU.indb 9 16.08.2020 21:05:24
Steering the scooter two long range 2021 EN
Copyright © 2020, Fast ČR, a. s. Revision 08/2020
EN 11
7. Steering the SCOOTER TWO LONG RANGE 2021
CAUTION:
• Before each ride, use helmet and protectors to prevent injury in case
of falling.
• Before each ride, please check if the mechanical brake is fully func-
tional.

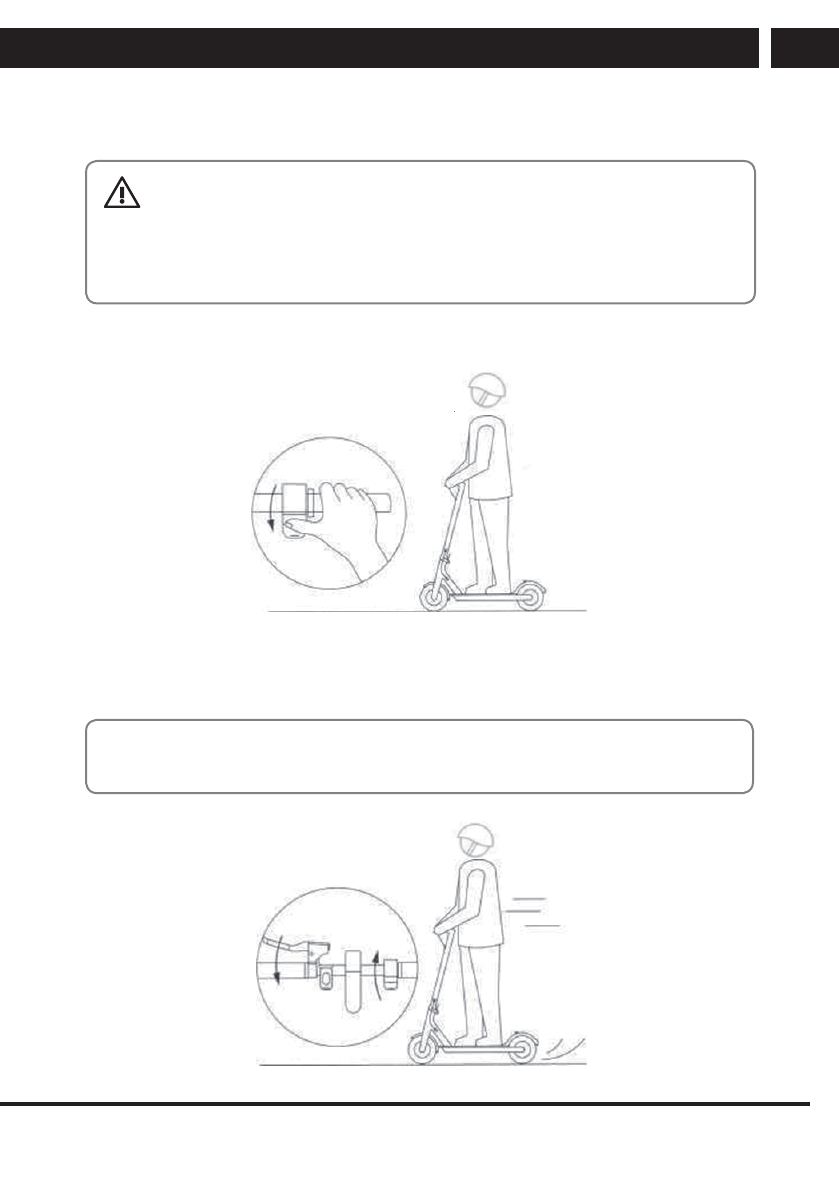

1. Place one foot on the scooter tread and gently bounce off the ground with the
other foot.
Sencor Scooter One EN CZ SK PL HU.indb 10 16.08.2020 21:05:24
2. Once the scooter is in motion, press the speed control lever to start the motor.
As soon as the scooter starts on its own, place the other foot on the scooter
surface.
Note:
Motor starting and speed control of your electric scooter can be performed when
5km/h speed is reached.
Sencor Scooter One EN CZ SK PL HU.indb 10 16.08.2020 21:05:24
Copyright © 2020, Fast ČR, a. s. Revision 08/2020
12 EN
Safety instructions
EN
3. Stopping is essential for safe driving. First release the speed control and then
push the mechanical hand brake on the left side of the handlebar.
4. Try the first turns on aflat surface and at slow speed. To turn, move your centre
of gravity slightly by tilting gently to the desired direction of travel and slowly
turning the handlebars.
8. Safety instructions
This electric SCOOTER TWO LONG RANGE 2021 is designed for entertainment and
recreational use. This is not ameans of transport. Observe the safety of everyone in
both private and public areas, follow the instructions below as well as local traffic
regulations.
When meeting pedestrians, pay close attention to your ride and make sure pedestri-
ans are aware of your presence. If you are outside their angle of view, ring the bell,
slow down and overtake (overtake from the left in case of right-hand traffic).
Higher driving speed means automatically alonger braking path. Keep safe speed in
case of unexpected need to stop and keep asafe distance from others. Even on aflat
surface, you may encounter situations or terrain that cause you to lose balance, skid
or other unexpected situations that can cause you to fall. Always pay close attention
to driving.
Check the mechanical brake, battery charge status, wear of components and wheels
before each ride. In case of loose parts or unusual noises, carry out athorough
check and contact an authorized service centre if necessary.
Neither the manufacturer nor the distributor are liable for any financial damages,
injuries, accidents, legal disputes or conflicts resulting from non-observance of
the safety instructions.
• Donot drive in the rain and avoid slippery surfaces.
• If you encounter an obstacle on your way, stop and carry the scooter over the
obstacle.
• Exercise caution when passing through low ceilinged areas.
• Donot accelerate downhill and always brake well in advance.
If you encounter asteep descent (e.g. asteep hill), stop and guide your scooter.
• Donot add speed while pushing the scooter.
• Always avoid obstacles.
• Avoid carrying heavy luggage on the handlebar.
• Always keep both feet on the scooter tread while riding.
• Operate SCOOTER TWO LONG RANGE 2021 in designated driving areas. Observe
the local regulations of the regions, parks, cities and states where you want to
operate the scooter.
• Donot turn sharply at high speeds.
• Donot ride through puddles, water or in rain.
Maintenance and adjustment EN
Copyright © 2020, Fast ČR, a. s. Revision 08/2020
EN 13
• Donot ride with other person even in case of children.
• Donot step on the mudguards.
• Donot touch the brake components.
• Always hold on the handlebar.
• Donot try to ride up the stairs, down the stairs or jump with your scooter.
9. Maintenance and adjustment
The brake mechanism must be adjusted before the first ride. Contact aspecialized
provider (e.g. abike service) for proper adjustment. Adjustments cannot be made
under warranty or post-warranty service at the manufacturer or distributor.
If the brakes are too tight or too loose, use a4mm hex key and loosen the brake
screw anticlockwise to adjust the brake cable length. Then tighten the screw firmly.
To fine tune, adjust the brake cable tension by turning the nut on the mechanical
brake attached to the handlebar.
Sencor Scooter One EN CZ SK PL HU.indb 12 16.08.2020 21:05:25
In the transport mode, there is ascrew (4mm Allen) accessible in the handlebar tube
joint to tighten its fastening. Before tightening the hex screw in the handlebar tube
joint, the hex screws in the joint socket must be loosened first as shown by the ar-
rows on the figure.
Copyright © 2020, Fast ČR, a. s. Revision 08/2020
14 EN
Technical specifications
EN
10. Technical specifications
SCOOTER TWO LONG RANGE 2021
Key features
Maximum speed up to 25km/h
Travel range up to 45km
Rear wheel suspension
Aluminium framework
SENCOR SCOOTER app available at Google Play and APP Store
LED lighting
LED display (mode, speed, battery, lighting, Bluetooth)
Drive
Engine power 400W
Speed Walk up to 6 km/h
Eco up to 10 km/h
Drive up to 20 km/h
Sport up to 25 km/h
Range up to 45km @ 55kg weight
up to 37km @ 90kg weight
Cruise control Yes
Maximum climb angle up to 15°
Wheels
10-inch front and rear perforated tires
Dual braking system - electrical and mechanical
Disc brake
SENCOR SCOOTER app
Available at Apple App Store and Google Play
Using application security lock
Range, distance ridden, running time, speed, battery level, etc.
Bluetooth 4.0
Technical specifications
Maximum load 120kg
Dimensions 112 x 44 x 118cm (unfolded)
112 x 44 x 51cm (folded)
Weight: 16kg
Working temperature 0 to 40°C
Storage temperature 0 to 45°C
Adapter
Input voltage 100-240V AC 50/60 Hz
Input current 2A
Technical specifications EN
Copyright © 2020, Fast ČR, a. s. Revision 08/2020
EN 15
Output voltage 42V
Connector Φ 5.5 x 10mm
Battery
Capacity 15Ah Li-ion
Charging time max. 9 hours
Number of cells 50
Protection against short-circuit, overvoltage, overcharging, overheating
Battery protection against excessive discharge
Input charging voltage 42V
Rated voltage 37V
Charging adapter Value and accuracy Unit
Manufacturer’s name or trademark,
company ID and address
JIN XIN YU POWER (SHENZHEN) SUPPLY CO., LTD
XVE
No.38, yuanxin roadm, tongle longgang area,
shezhen, guandong
914403003601080704W
-
Model identification code XVE083-4200200 -
Input voltage AC 110-240 V
Input frequency 50/60“ Hz
Output voltage DC 42.0 V
Output current 2.0 A
Output power 84.0 W
Average efficiency in active mode 86 %
Efficiency at low load (10%) 85.7 %
No load power consumption 0.18 W
Bluetooth
Version 4.0
Maximum Transmitter Power 100mW @ 2.4GHz - 2.4835GHz
Copyright © 2020, Fast ČR, a. s. Revision 08/2020
16 EN
Technical specifications
EN
INSTRUCTIONS AND INFORMATION ON DISPOSING OF USED PACKAGING MATERIALS
Take the packaging material to adesignated municipal waste facility.
DISPOSING OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT
This symbol on products or original documents means that used electric
or electronic products must not be added to standard municipal waste. For
proper disposal and recycling, take these products to designated collection
points. Or in some European Union states or other European countries the
products can be returned to the local retailer when buying an equivalent
new product. Correct disposal of this product helps save valuable natural
resources and prevents damage to the environment caused by improper
waste disposal. Ask your local authorities or collection facility for more
details. In accordance with national regulations penalties may be imposed
for the incorrect disposal of this type of waste.
For business entities in European Union states
If you want to dispose of electric or electronic devices, ask your retailer or
supplier for the necessary information.
Disposal in other countries outside the European Union
This symbol is valid in the European Union. If you wish to dispose of this
product, request the necessary information about the correct disposal
method from the local council or from your retailer.
FAST ČR, a.s. hereby declares that the radio device type SCOOTER TWO
LONG RANGE 2021 conforms to the 2014/53/EU directive.
Changes in the text, design and technical specifications may be made without prior
notice and we reserve the right to make such changes.
Sencor Scooter One EN CZ SK PL HU.indb 15 16.08.2020 21:05:25
Sencor Scooter One EN CZ SK PL HU.indb 15 16.08.2020 21:05:25
Technical specifications EN
Copyright © 2020, Fast ČR, a. s. Revision 08/2020
EN 17
#!&%+# *7
)"+!* .,.-*+').%'$F
@D3=9"8"'&++).>B!:3A3$**
(+)&(,+ >==8?A=4B=7C=/4?3=4$**4?=
,+(,+A?3=4?3=4EA3=
&%&##* 36*6
)&'#'*+$#?>>>3>====)!>=3/!(,$"
&'5?CD?CBAE
!%!%#%! $#!'$ ! !#%)(%%#' % !
#! $%! $%! *
")+"-?==C7A?7 ")+"-?=>A7@B7
")+"-?=>A7B@7 ")+"-?=>A7@=7
")+"-'"*?===7>A7 ")+"-'?=>>7CB7
#' %#! $$% #$ %!%#% $"%! $*
C=@@B8>5?=>?GG>> C=FB=8>5?==CG>>G>G>?G?
C??@@5?==EC>===8C8>5?=>F
BB=>A8>5?=>D C>===8C8@5?==DG>G
BB=>A8?5?=>B >AC>F5?=>B
C>===8@8?5?=>F >?>==5?=>=
C>===8@8@5?=>@G> C=?=A8>5?==CG>G
C?ADF5?=>=@==@?E?6>6>
@=>AEF8>?6?6= @=>AEF8>D@6?6=
!$$& *) ,*& 6&#!
!")%&'+!')
%!$$& *>>6>6?=?> %&#*
Other manuals for Scooter Two Long Range 2021
1
Table of contents
Other Sencor Scooter manuals
