Seneca AV SA51 User manual

SA51 TV Mount English
User Manual
94-203 cm
37”-80”
VESA
75x75 ~ 800x450
59 kg
130 lbs
3.2”-20” (8.2-51 cm)
+14°/-8°
±80°
FULL MOTION FLAT PANEL TV MOUNT
www.senecaav.com

Table of Contents
Table of Contents / Introduction . . . . . . . . . . . . . . 2
Supplied Parts & Hardware ...................3
Setup - Step 1 ...............................4
Setup - Step 2...............................5
Setup - Steps 3 to 4 .........................6
Setup - Steps 5 to 6 .........................7
Other Seneca AV Products ....................8
Warranty ...................................8
CAUTION
The wall you plan to ax the Seneca AV mount to must be able to support more than 5 times the weight
of the television and the wall mount combined. Do not use this product for any purpose other than to mount a flat
panel TV on a vertical surface as outlined in this manual. Improper installation may cause damage to your TV or
serious injury. This product should not be mounted to steel stud walls, cinder block or old concrete walls. Consult a
qualified installation contractor if you are unsure about the type of wall you may have.
CAUTION
The maximum loading weight is 130 lbs (59 kg). This wall mount is intended for use up to the maximum
weight restrictions indicated. Use with products heavier than the maximum weights indicated may result in
instability causing possible injury.
Visit our website at senecaav.com for the most recent version of this manual.
Introduction
Thank you for choosing a Seneca AV full motion wall mount. The SA51 is designed to mount flat panel televisions
weighing up to 130 lbs (59 kg), extend up to 20” (51 cm) from your wall, allow you to swivel left and right 80°, and tilt
your TV +14°/-8°. You can also adjust the horizontal level ±5°.
Read these instructions fully before assembly and installation of this mount. If you do not understand these directions,
or have any doubts about the safety of the installation, please consult a qualifi ed installation contractor. Make sure
there are no defective or missing parts. Do not use defective parts. Seneca AV cannot be liable for property damage
or injury caused by incorrect mounting, incorrect assembly, lifting or incorrect use of this product. If there is hardware
missing, or if you are uncertain whether a part is defective, please call Seneca AV directly at 1-855-430-4708 or by email
at support@senecaav.com.
See installation video online at:
www.senecaav.com
2 SA51 Manual | www.senecaav.com

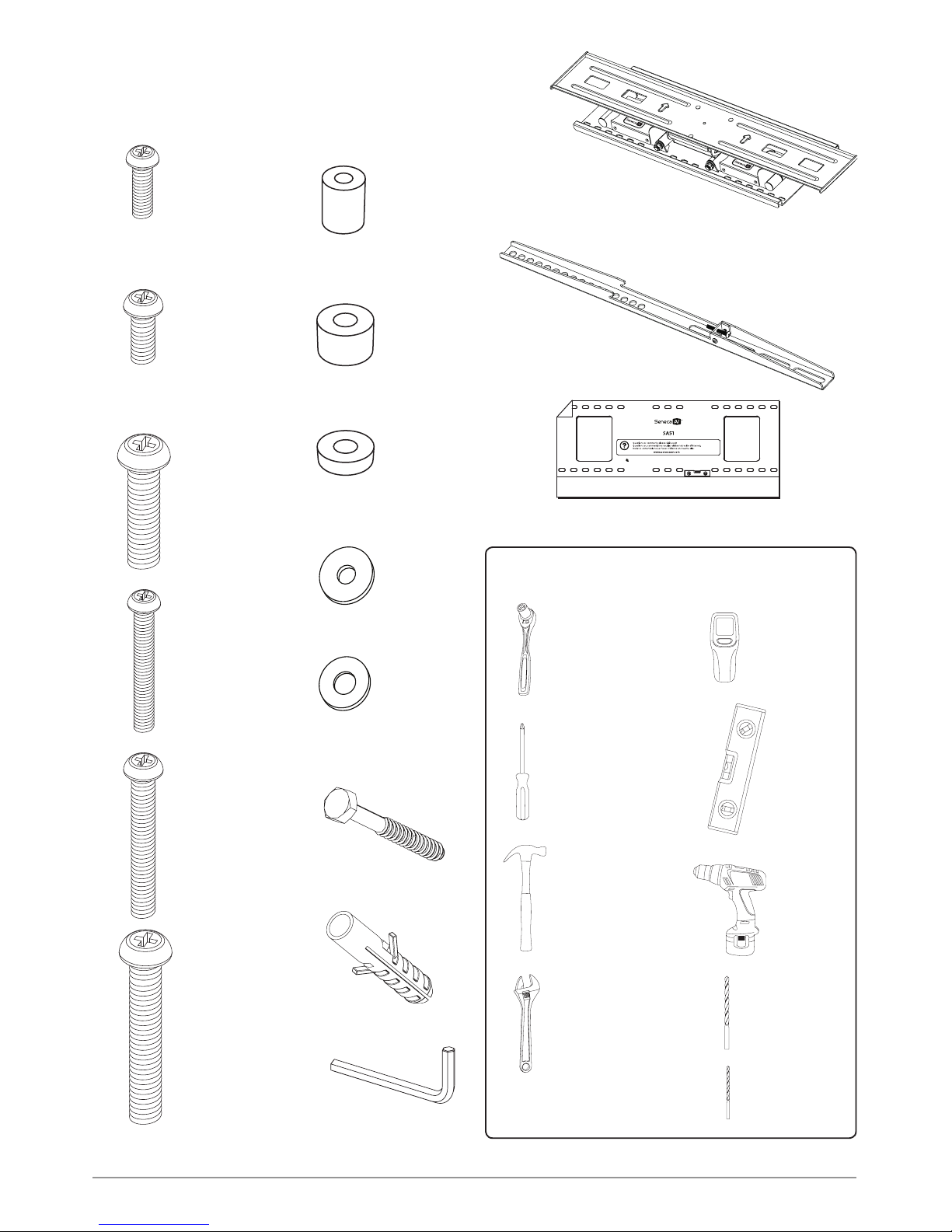

Supplied Parts and Hardware
Wall Plate
L: Lag Bolt
R: TV Bracket
Wall Template
M: Concrete Anchor
K: M8 Washer /
Lag Bolt Washer
x10
x6
J: M5/M6 Washer
x4
x6
x2
E: M6 x 35mm
Bolt
F: M8 x 40mm
Bolt
x4
x4
A: M5 x 12mm
Bolt
B: M6 x 12mm
Bolt
D: M5 x 30mm
Bolt
C: M8 x 25mm
Bolt
x4
x4
x4
x4
x4
x8
G: M5/M6
14mm Plastic Spacer
H: M5/M6/M8
10mm Plastic Spacer
N: Allen Key
x4
I: M5/M6/M8
5mm Plastic Spacer
Required Tools
Socket
Set
Phillips
Screwdriver
Hammer
(for concrete
installs)
Crescent
Wrench
Stud
Finder
Level
Drill
3/8”
Masonry
Bit
7/32”
Wood
Bit
3
SA51 Manual | www.senecaav.com
TIP:
-B efore drilling tap e over each hole to
minimize the amount of dust
-Av ant de bande sur chaq ue trou de
fo rage àréduire la qu antité de poussiè re
-A ntes de perforar c oloque cinta adhe siva
s obre cada agujero p ara reducir al míni mo
l a cantidad de polvo

Step 1.1 Select the correct size of bolt
Seneca AV provides 3 bolt diameters (Metric sizes M5,
M6 and M8) in various lengths.
Part items: A, B, C, D, E, or F.
Select the correct diameter bolt and hand screw into
the back of the TV to determine the correct length.
Use washer (J) for bolts A, B, D or E(M5 or M6 size),
and washer (K) for bolts Cor F(M8 size).
If your TV has a curved back or the mounting holes are
recessed, you can use a combination of spacers (G, H
or I, depending on the selected bolt) to ensure a proper
fit. You can use spacers inside or outside the bracket
arm, as shown in Diagram A.
Step 1.2 Attach TV brackets to the back of the TV
Now that you have selected the correct bolt length and
combination of spacers, it’s time to attach the brackets
to the TV, as shown in Diagram A.
WARNING
Never overtighten a bolt into the back of your flat panel TV.
Do not lay the TV face down on it’s glass front. Use a wall or a TV stand.
Step 1: Attach TV Brackets
There are a wide variety of TVs available that use an assortment of bolt sizes. We provide a selection of mounting
bolts to fit most TVs. If you have any concerns about this mounting hardware or installation call Seneca AV directly
at 1-855-430-4708 or email support@senecaav.com.
Diagram A
Washer
(J or K)
Combination of spacers (G, H or I),
depending on length of bolt and
depth of recess
Bolt
(A thru F)
OR
4 SA51 Manual | www.senecaav.com

CAUTION
Make sure the supporting surface will support
the load limits outlined in the Caution at the bottom
of page two. Tighten lag bolts until the wall plate is flat
against the wall. Do not overtighten lag bolts (L). Each
lag bolt must be screwed into a wood stud.
CAUTION
Make sure the concrete or brick wall is at least
3.5” thick. Make sure the anchor is seated completely
flush with the concrete surface even if there is another
layer of material, such as drywall. If drywall is over 5/8”
thick custom lag bolts must be used. Concrete must be
a minimum of 2000psi in density.
Diagram B Diagram C
Wood Concrete
7/32”
(5.5mm)
3.5” (90 mm) 3.5” (90 mm)
3/8”
(10mm)
M
L
L
KK
5
SA51 Manual | www.senecaav.com
Step 2: Mount Wall Plate
Wood Stud Wall
The wall plate must be mounted to two wood studs. Use
a stud sensor to locate the two studs, clearly marking
the centers of the studs. Use a long level to make sure
these marks are horizontally level. Attach the wall plate
template to the wall at the desired height so that the
stud centers are visible through mounting slots, and drill
four pilot holes. Once you have drilled the pilot holes,
remove the wall plate template.
Attach the wall plate using four lag bolts (L) and lag bolt
washers (K) (see Diagram B). Make sure the wall plate
is flat against the wall surface. Do not over-tighten lag
bolts (L).
Brick or Concrete Wall
Attach the wall plate template to the wall at the
desired height, using a long level to ensure that the
template is level. Mark six hole locations on the wall
for the concrete anchors (we suggest placing the holes
as shown in Diagram C where possible). Drill the six
holes perpendicular to the wall using a masonry bit (see
Diagram C). Do not drill into mortar joints. Remove the
wall plate template. Insert a concrete anchor (M) into
each of these holes until it is flush with the wall surface.
Place the wall plate over the six anchors, then mount
using the lag bolts (L), and washers (K). Make sure the
wall plate is flat against the wall surface. Do not over-
tighten lag bolts (L).
Before you start drilling, attach the wall plate template to your wall. It will make marking and drilling level pilot holes
easier, and catch a lot of the dust. Remember to remove it before you attach the wall plate.

Step 3: Attach TV to TV Plate
Step 4: Level the TV
With the TV brackets firmly secured to the TV, use two people
to lift the TV into position and hook the TV brackets onto the
TV plate, as shown in Diagram D. Tighten safety bolts at the
bottom of the TV brackets as shown in Diagram E.
The SA51 comes pre-tensioned at the factory to allow
you to level the TV ±5° by simply holding the TV and
twisting up or down, as shown in Diagram F. If you need
to tighten or loosen the level mechanism, use a crescent
wrench on the two top nuts, as shown in Diagram G.
CAUTION
Read this section carefully prior to install.
WARNING
Use two people to lift and position the TV onto the TV Plate.
Diagram D
Diagram E
Diagram F Diagram G
Hook
SA51 Manual | www.senecaav.com
6

Step 6: Cable Management
Insert your cables into the cable management clips
provided on the mount arms, as shown in Diagram I.
You may move the clips from one side to the other by
removing the screws that hold the clips to the bottom of
the mount arms.
Your installation is complete.
Diagram I
Step 5: Tilt the TV
Diagram H
The SA51 will tilt +14/-8° to provide the ideal viewing
angle. Loosen the tilt lever on the right side by rotating
it counter-clockwise from bottom to top as shown in
Diagram H. (Loosen the tilt lever on the left side by
rotating it counter-clockwise from top to bottom). To
loosen further, flip the lever to avoid contact with the TV
plate.
Tilt the TV to the desired angle, then tighten the tilt
levers by rotating them clockwise. On the right side, this
is from top to bottom, as shown in Diagram H (on the
left side, from bottom to top). To tighten further, flip the
lever to avoid contact with the TV plate.
7
SA51 Manual | www.senecaav.com

Warranty
Limited Warranty To Original Purchaser
Seneca AV warrants the equipment it manufactures to be free from defects in material and workmanship for the following limited warranty
period of: 24 months parts and labour.
If equipment fails because of such defects and Seneca AV or an authorized dealer is notified within 24 months from the date of shipment with
proof of original invoice, Seneca AV will, at its option, repair or replace the equipment, provided that the equipment has not been subjected
to mechanical, electrical, or other abuse or modifications. Equipment that fails under conditions other than those covered will be repaired
at the current price of parts and labour in eect at the repair. Such repairs are warranted for 90 days from the day of reshipment to the
original purchaser. This warranty is in lieu of all other warranties expressed or implied, including without limitation, any implied warranty or
merchantability or fitness for any particular purpose, all of which are expressly disclaimed.
The information in the owner’s manual has been carefully checked and is believed to be accurate. However, Seneca AV assumes no responsibility
for any inaccuracies that may be contained in the manual. In no event will Seneca AV, be liable for direct, indirect, special, incidental, or
consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages.
www.senecaav.com
Check out more great products from Seneca AV
SA21 SM61 SN21
www.senecaav.com
support@senecaav.com
1-855-430-4708
18-04
