3
602-II

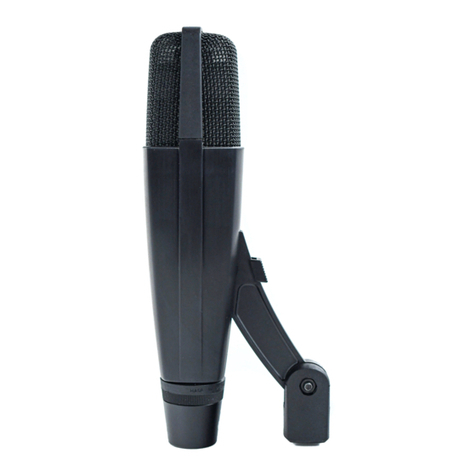

The cardioid 602-II is a dynamic microphone especially
suitable for use with kick drums, bass guitar cabs, tubas
and other low frequency instruments.
Its lightweight high-performance voice coil construction
delivers fast transient signals. The low frequency
extension and mid band attenuation produce an ultra-
smooth pre-shaped signal. The microphone is ideal for
direct use on the most problematic bass signal sources.
Features
yRugged, lightweight aluminium body for stable
positioning on long microphone boom arms
yLightweight high-performance voice coil construction
for fast transient response
yLow frequency extension
y Ideal for direct use on the most problematic bass signal
sources
y Frequency-independent directivity provides effective
rejection of incidental rear noise
yHumbucking coil
yIntegral stand mount
e 602 II_US.fm Seite 3 Donnerstag, 30. März 2006 1:50 13

4
Delivery includes
y 602-II microphone
y Pouch
y Instructions for use
yWarranty Certificate
Removing the sound inlet basket
e 602 II_US.fm Seite 4 Donnerstag, 30. März 2006 1:50 13

5
Positioning the microphone
Kick drums
In order to prevent interference due to crosstalk between
adjacent sound sources, try to position the microphone so
that the interfering sound source is located in the angle
area of the highest cancellation of the microphone
(approx. 180°; see polar diagram).
Position Resulting sound Commentary
Much attack,
little resonance,
dry
Position the microphone
at a distance of a few
centimeters from the
batter head.
Less attack,
much resonance,
smooth,
voluminous
Position the microphone
at the level of the
resonant head.
Less attack Position the microphone
in the middle between
the batter head and the
re-sonant head. For less
attack in all three
positions,
turn the microphone
away from where the
beater strikes.
e 602 II_US.fm Seite 5 Donnerstag, 30. März 2006 1:50 13

6
Polar diagram
Frequency response curve
0°
5
10
15
20
25
dB
30°
60°
90°
30°
60°
90°
120°
150°
180°
150°
120°
2000 Hz
4000 Hz
8000 Hz
16000 Hz
125 Hz
250 Hz
500 Hz
1000 Hz
0
- 50
- 60
- 70
- 80
- 90 20 50 100 200 500 1000 2000 5000 10000 20000 Hz
0°, 1 m 0°, 5 cm
- 40
dBv
e 602 II_US.fm Seite 6 Donnerstag, 30. März 2006 1:50 13

7
Specifications
Transducer principle dynamic
Frequency response 20.....16,000 Hz
Pick-up pattern cardioid
Sensitivity 0.9 mV/Pa (at 50 Hz)
(free field, no load) 0.25 mV/Pa (at 1 kHz)
Nominal impedance (at 1 kHz) 350 Ω
Min. terminating impedance 1 kΩ
Connector XLR-3
Dimensions Ø 60 x L 153 mm
Weight 318 g
Pin assignment of XLR-3 connector
12 3
12
3
++
12 3
XLR
+
XLRXLR
+
