Sensata SSI-12HF3.5N User manual

SSI-12HF3.5N
Owner’s Manual
Form 122185

SSI Series Owners Manual
http://dimensions.sensata.com
Table of Contents:
1. Important Safety Information ............................ 3
1-1 General Safety Precautions ............................... 3
1-2 Battery Safety Precautions ................................. 3
2. Introduction ......................................................... 4
2-1 Features .......................................................... 4
2-2 Nomenclature ……………………………………………….. 4
2-3 Specifications ................................................... 5
3. Locating Controls and Ports ................................. 6
3-1 Front Panel Operation ....................................... 6~7
3-2 Rear Panel Operation ....................................... 7~8
3-3 Protection Features .......................................... 8
3-4 Remote Panel .Connection.................................. 9
4. Installations .......................................................... 10
4-1 General Installation Recommendations................ 10
4-2 DC Wiring Connections ..................................... 11
4-3 Wiring Diagram ................................................ 12
4-4 AC Safety Grounding ........................................ 13
4-5 Inverter Operation ........................................... 13
Troubleshooting Guide ........................................... 14
Maintenance ............................................................ 15
Warranty .................................................................. 15

SSI Series Owners Manual
http://dimensions.sensata.com Page 3
1. Important Safety Instructions
WARNING!
Before using the inverter, please read and save these safety
instructions.
1-1. General Safety Precautions
1-1-1. Do not expose the inverter to rain, snow, spray, bilge or dust. To reduce the risk of hazard, do
not cover or obstruct the ventilation openings. Do not install the inverter in a zero-clearance
compartment. Overheating may result.
1-1-2. To avoid a risk of fire or electrical shock, make sure that existing wiring is in good electrical
condition and not undersized. Do not operate the inverter with damaged or substandard
wiring.
1-1-3. There are some components in the inverter that can cause arcs and sparks. To prevent fire or
explosion, do not put batteries, flammable materials, or anything that should be ignition–
protected around the inverter.
1-2. Battery Safety Precautions
1-2-1. If battery acid contacts skin or clothing, you need to wash with soap and water immediately.
If battery acid contacts your eyes, you need to wash it out with cold running water for at least
20 minutes and get medical attention immediately.
1-2-2. Never smoke, make a spark or create a flame in the vicinity of the battery or the engine.
1-2-3. Do not drop a metal tool on the battery. The resulting spark or short-circuit of this act may
result in an explosion, spark or fire.
1-2-4. Remove personal metal items such as rings, bracelets, necklaces, and watches when operating
with lead-acid batteries. Failure to do so may result in a spark or short circuit event, which can
result in very high temperatures that can melt the metal items and potentially cause serious
bodily harm.
3

SSI Series Owners Manual
http://dimensions.sensata.com Page 4
2. Introduction
2-1 Features
Pure sine output wave with advanced microprocessor control.
•GFCI (Ground Fault Circuit Interrupter) / NEMA5-15R receptacle.
•Optional remote control connection for power ON/OFF button.
•Output frequency 50/60 Hz switch selectable.
•Load control cooling fan.
•LED indication for input, output level & failure status.
•Input polarity reverse, short circuit, under voltage and over voltage protection.
•Output short circuit, overload, over temperature protection.
•Automatic low battery shutdown at 10.5 VDC (with in-rush delay)
Approvals: FCC Class A approved.

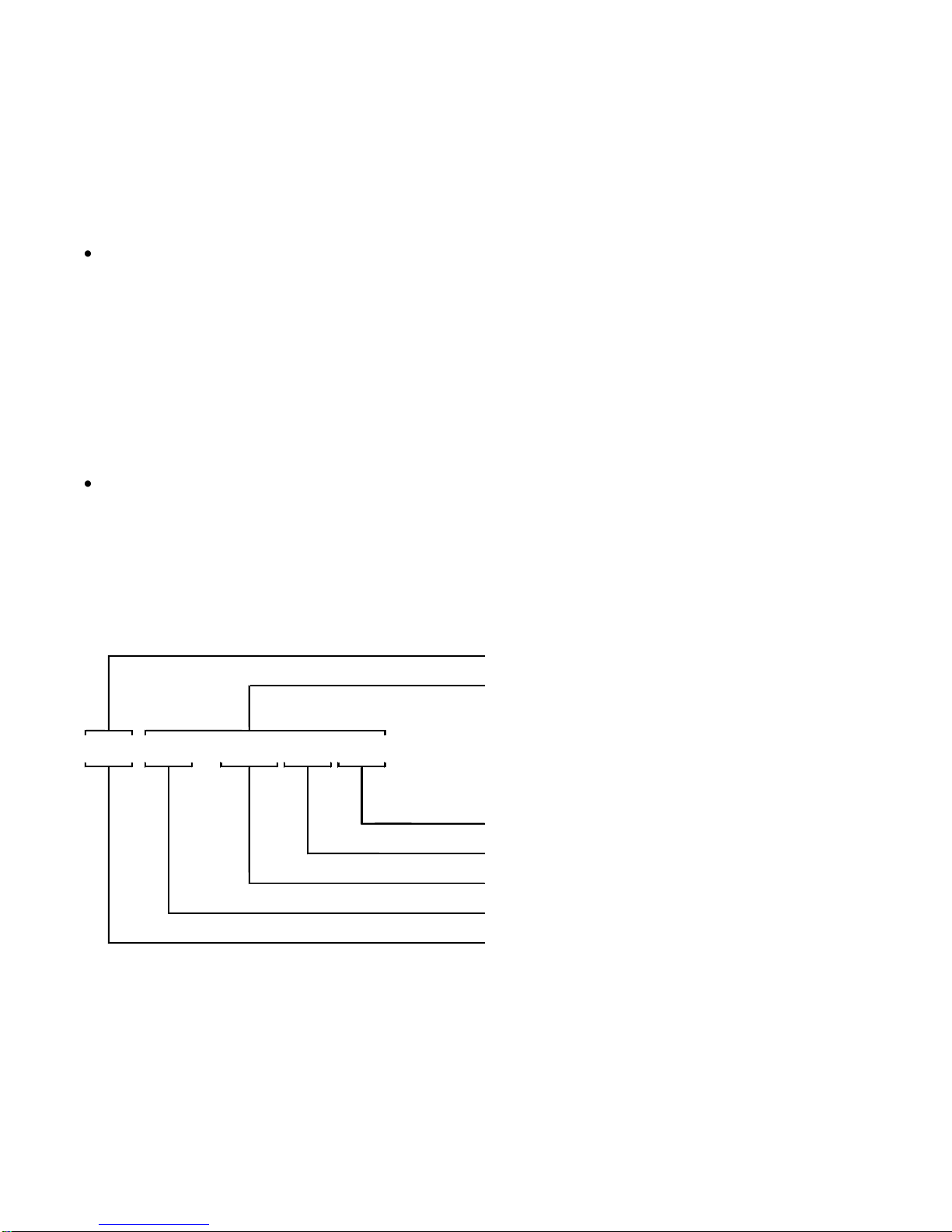

2-2
Nomenclature
-
Pure sine signal output
Wattage output: 3.5 = 350
SSI
12
-
HF
3.5
N
HF: High frequency inverter
Input voltage: 12 = 12VDC
SSI: Sensata Series Inverters
Base model
Three letter suffix designation

SSI Series Owners Manual
http://dimensions.sensata.com Page 5
2-3 Specifications
Specification
Model No.
Item
SSI-12HF3.5N
Continuous Output Power (Watts)
350
Maximum Output Power (Watts)
385
Surge Rating (Max) (Watts)
700
Input voltage (VDC)
12
Input Current (Amps DC)
35
Output Voltage (VAC)
100 / 110 / 120Vac +/- 5%
Frequency (Switch Selectable)
50 / 60Hz +/- 0.05%
Output Waveform
Pure Sine Wave ( THD < 3% )
Efficiency (full load) Max *1
84%
No Load Current Draw (Max.)
.7A
Stand-By Current Draw (Max.)
20µa
Input Voltage Regulation
10.5-15 VDC
Failure Indicator
Red LED
Protection
Overload (Shut down),
Short Circuit (Shut down),
Reverse Polarity (Fuse),
Over / Under Input Voltage (Auto recovery),
Over Temperature (Auto recovery).
Remote Control
Yes (ON / OFF mode controlled by hard wire)
EMC
FCC Class A
Operating Temperature Range
32° to 104° F (0° to 40° C)
Storage Temperature Range
-22° to 158° F (-30° to 70° C)
Cooling
FAN (Controlled by load and temperature)
Dimensions (L x W x H)
7.7 x 6 x 2.8 Inch
196.8 x 152.4 x 71mm
Weight
3.5 Lbs. / 1.6kg
Note: The specifications are subject to change without notice.
*1 : This test condition is normal DC input (13.5V) and temperature 25° C

SSI Series Owners Manual
http://dimensions.sensata.com Page 6
3. Locating Controls and Ports
3-1. Front View
(1) Ventilation Openings:
Allows airflow passing to cool down the inside electronics.
(2)
AC frequency switch settings
:
Output Frequency
Dip Switch
50 Hz
ON
60 Hz
OFF
NOTE: Default frequency setting is 60Hz for USA usage.
1
4
3
2

SSI Series Owners Manual
http://dimensions.sensata.com Page 7
(3) Inverter Status:
Green LED
LED Signal
Status
Solid
————————
Power OK
Red LED
LED Signal
Status
Fast Blink
–––––––––––
Over Voltage Protection
Slow Blink
————
Under Voltage Protection
Intermittent Blink
––––––
Over Temperate Protection
Solid
————————
Over Load Protection
(4) GFCI Outlet: AC output power

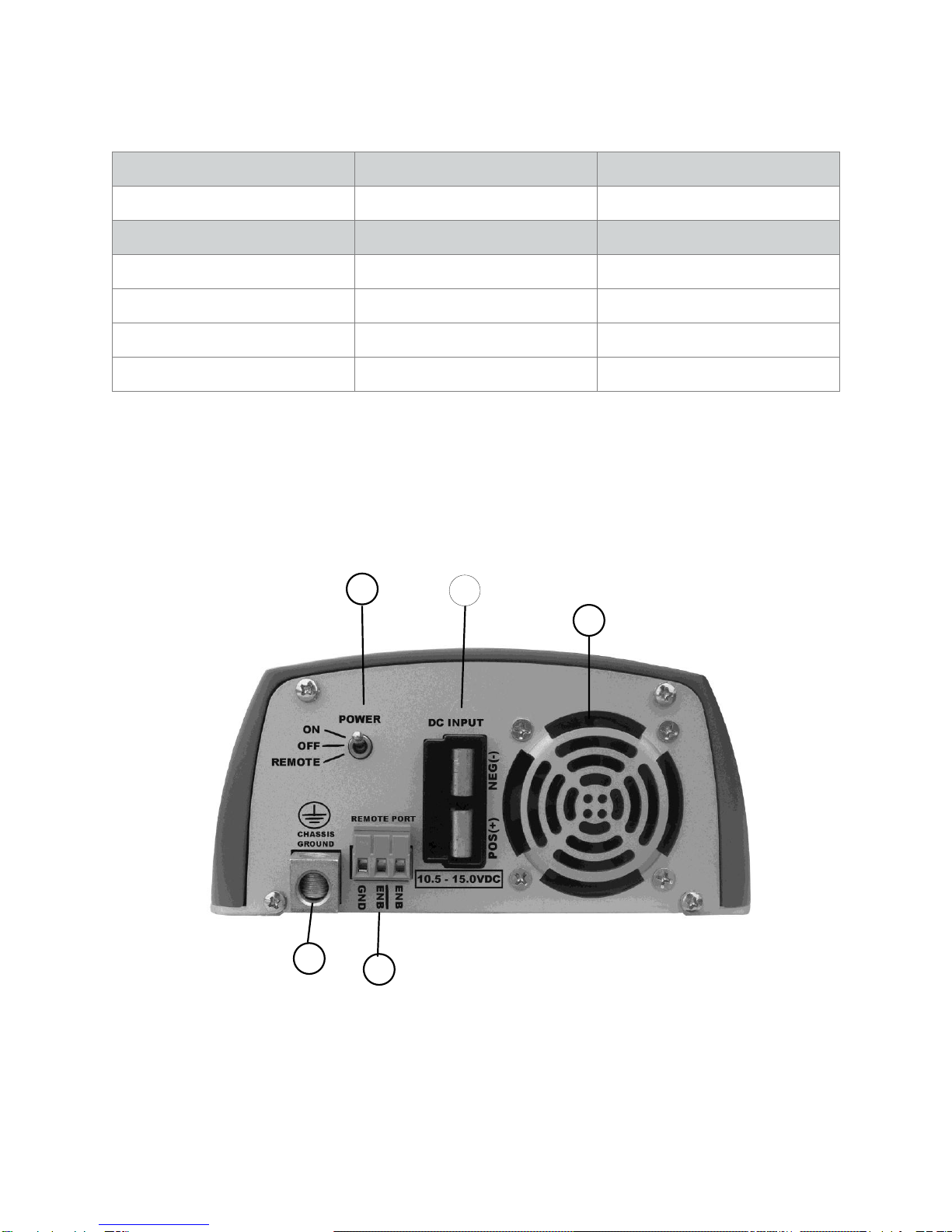

3-2 Rear View
(1) Chassis Ground:
Use wire # 8 AWG to connect Chassis ground with vehicle chassis.
3
2
1
4
5

SSI Series Owners Manual
http://dimensions.sensata.com Page 8
WARNING!
Operating the inverter without proper ground connection may cause an
electrical hazard.
(2) DC Input Terminals:
Connect DC input terminal to 12VDC battery or other power source. Check for appropriate
polarity POS (+) and NEG (-) before connecting battery cables.
WARNING!
Reverse polarity connection will damage the inverter permanently.
Model
DC Input Voltage
Minimum
Maximum
12 V
10.5
15.0
(3) Cooling Fan:
(4) On/Off & Remote Switch:
Before installing the inverter, ensure the main switch is set to ―OFF‖. Before using the remote
unit, ensure the main switch is set to ―REMOTE‖.
(5) Remote Switch Hook-up:
3-3 Protection Features
Model
DC Input (VDC)
Over Temperature Protection
Over Voltage
Under
Voltage
Alarm
Under
Voltage
INTERIOR
Shut-
down
Restart
Shut-
down
Restart
Shut-down
Restart
12 V
16V
13V
11.0V
<10.5V
12.5
55° C
45° C
Note: The specifications are subject to change without notice.

SSI Series Owners Manual
http://dimensions.sensata.com Page 9
3-4
ON / OFF / REMOTE Switch Installation
3-4-1-1. Before installing the inverter, make sure the main switch must be “OFF”.
3-4-1-2. Before using the remote unit, make sure the main switch must be “
REMOTE”.
3-4-1-3. Ensure the remote control contact is off.
3-4-1-4. Remote Port：Place 0.75mm2and Screw type cable between the remote port and
the panel.

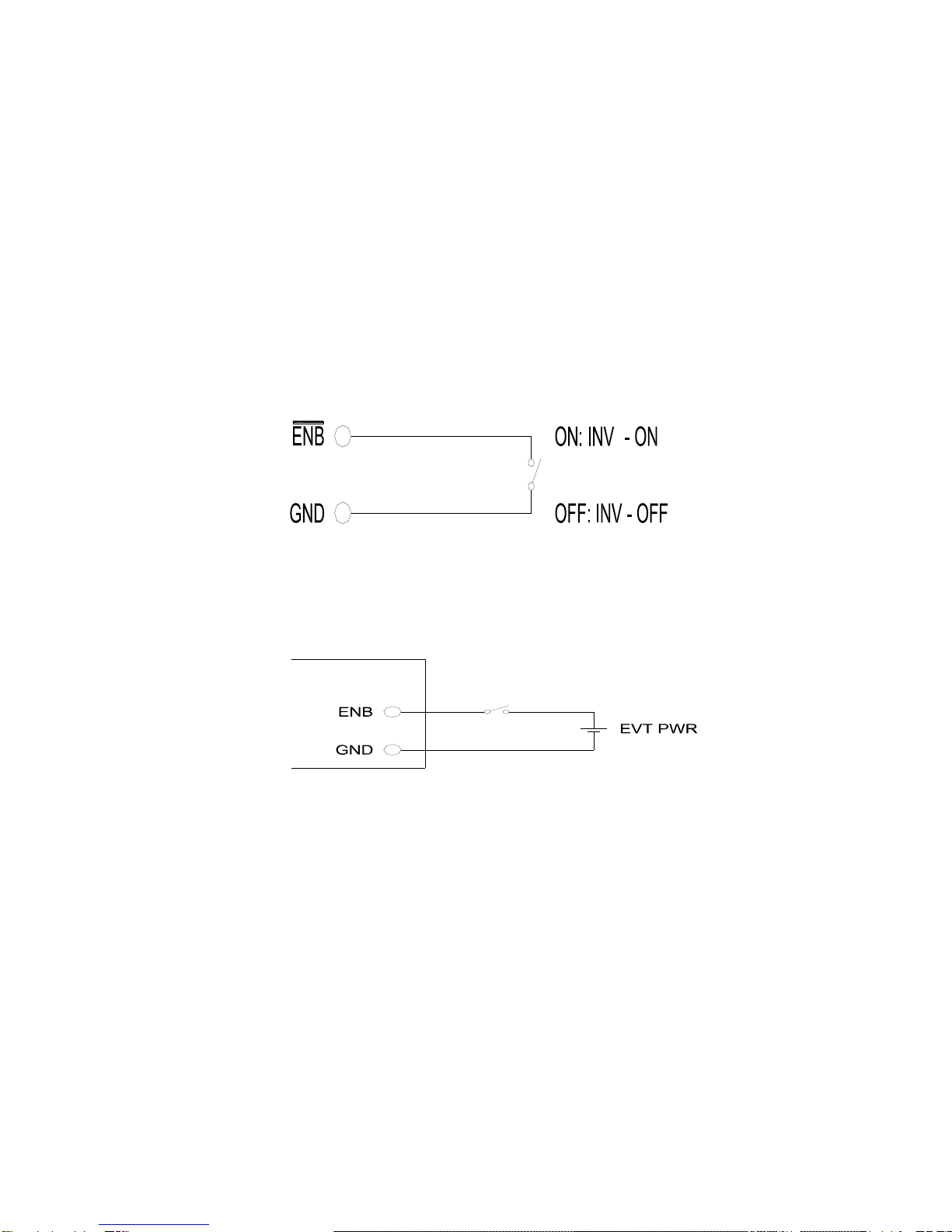

3-4-1-5. Remote port ON/OFF inverter setup status
NOTE: Only one of control mode can be presented. When operating.
MODE Ⅰ
MODE Ⅳ

SSI Series Owners Manual
http://dimensions.sensata.com Page 10
4. Installation
4-1. General Installation Recommendations
The power inverter should be installed in an environment that meets the following requirements:
(a) Do not allow water to drip on or enter into the inverter.
(b) Ambient air temperature should be between 0°C and 40°C, the cooler the better.
(c) Do not install the inverter in a battery compartment or other areas where flammable fumes may
exist, such as fuel storage areas or engine compartments. These gases are very corrosive, and
prolonged exposure will damage the inverter.
(d) Keep the inverter a distance (as least 1 inch) away from surrounding things. Ensure the
ventilation shafts on the front and rear of the unit are not obstructed.
(e) Do not install the inverter in a dusty environment. The dust can be inhaled into the unit when
the cooling fan is working.
(f) Avoid excessive cable lengths. Use the recommended wire lengths and sizes (see section 3-5).
Do not mount the inverter where it will be exposed to the gases produced by the battery.
WARNING!
Shock hazard; before proceeding further, carefully check that the inverter
is NOT connected to any batteries, and that all wiring is disconnected
from any electrical sources. Do not connect the output terminals of the
inverter to an incoming AC source.

SSI Series Owners Manual
http://dimensions.sensata.com Page 11
4-2. DC Wiring Connections
4-2-1 Follow this procedure to connect the battery cables to the DC input terminals of the inverter.
The cables should be as short as possible (less than 10 feet / 3 meters ideally) and large
enough to handle the required current in accordance with the electrical codes or regulations
applicable to the installation.
(a) Cables that are not an adequate gauge (too narrow) or too long will deteriorate inverter
performance such as poor surge capability and frequent low-input voltage warnings and
shutdowns.
(b) These low input voltage warnings are due to DC voltage drop across the cables from the
inverter to the batteries.
(c) The longer and narrower the cables, the greater the voltage drop. Increasing DC cable size
helps improve the situation.
(d) Sensata Technologies recommends the following cables for optimum inverter performance:
Model #
Wire AWG
1-10’
Wire AWG
11-15’
Wire AWG
16-20’
Inline Fuse or
Circuit Breakers
SSI-12-HF3.5N
# 8
# 6
# 6
Up to 40 amps
4-2-2 Connect the cables to the power input terminals on the rear panel of the inverter. The red
terminal represents positive POS. [ + ] and black terminal represents negative NEG. [ –].
Insert the cables into the terminals and tighten the screw to clamp the wires securely.
Sensata Technologies recommends using only high quality (SGX) insulated copper wire and
keep the cable length short, a maximum of 3 to 6 feet.
The installation of a fuse must be on a positive cable. Failure to place a fuse on ―+‖ cables running
between the inverter and battery may cause damage to the inverter and will void warranty.

SSI Series Owners Manual
http://dimensions.sensata.com Page 12
4-3. Wiring Diagram
12
Volts
FUSE
CHASSIS
GROUND
REMOTE PORT
DC INPUT
Rear View
Remote Switch Hook Up (Optional)
(
Rear View
)
POS (+)
NEG (-)
POWER
ENB
ENB
GND
ON
OFF
REMOTE
ENB
GND
ON: INV - ON
OFF: INV - OFF
GND START MODE
ENB
GND
EVT PWR
+12V START MODE
Optional:
Cable assembly
with 50Amp fuse
(P/N: 650350-10)
10.5-15.0VDC

SSI Series Owners Manual
http://dimensions.sensata.com Page 13
4-4. AC Safety Grounding
The AC output ground wire should go to the grounding point for your loads (for example, a distribution
panel ground bus).
3-6-1. The neutral conductor of the AC output circuit of the inverter is automatically connected to the
safety ground during inverter operation. This conforms to National Electrical Code requirements
that separately derived from AC sources (such as inverters and generators) which have their
neutral conductors tied to ground in the same way as the neutral conductors from the utility
tied to ground at the AC breaker panel.
4-5. Inverter Operation
To operate the power inverter, use the ON / OFF switch on the front panel to turn the power ON. The
power inverter is now ready to deliver AC power to your loads. If there are several loads in use, turn
them on separately after the inverter is ―ON‖ in order to prevent over voltage protection (OVP)
resulting from the surge power.
4-5-1. Set the power switch to ―ON‖ position and the buzzer will send out ―beep‖ sound. Then the
inverter will perform a self-diagnostic, and the LED indicators will also appear various colors.
Finally the buzzer will ―beep‖ again and the Input Level and Status LED indicators will turn to
―green‖ in color, then the inverter starts to work successfully.
3-7-2. Set the power switch to the OFF position, and then the inverter stops and all the lights go off.
3-7-3. Set the power inverter switch to ON position and turn the test load ON. The inverter should
supply power to the load. If you plan to accurately measure the true output R.M.S. voltage of
the inverter, a meter such as FLUKE 87 or better, or any Multi-Meter marked as ―True RMS‖
must be used.

SSI Series Owners Manual
http://dimensions.sensata.com Page 14
Troubleshooting
WARNING!
Do not open or disassemble the inverter. Attempting to service
the unit yourself may cause the risk of electrical shock or fire.
Problems / Symptoms
Possible Cause
Solutions
There is no AC power output, and the
status indicator LED is :
a. RED, blinking fast
Over input voltage (OVP)
Check the input voltage, reduce input
voltage
b. RED, blinking slowly
Low input voltage (UVP)
Recharge the battery, check
connections and the cable
c. RED, blinking intermittently
Over Temperature (OTP)
Improve ventilation, make sure
inverter vents are not obstructed,
lower ambient temperature
d. RED, solid ON
Short circuit, overload or wiring
error (OLP)
Check AC wiring for short circuit,
reduce the load

SSI Series Owners Manual
http://dimensions.sensata.com Page 15
Maintenance
To keep your inverter operating properly, there is very little maintenance required. You should clean the
exterior periodically with a damp cloth to prevent accumulation of dust and dirt; please note to have the
inverter turned OFF and not to allow excessive moisture enter the inverter. At the same time, check
connections and tighten the screws on the DC input terminals if necessary.
Warranty
Sensata Technologies guarantees this product against defects in materials and workmanship for a period of
24 months from the date of purchase and will repair or replace any defective power inverters if directly
returned to us with postage pre-paid. Please call Sensata technical support for an RMA number (800-553-
6418)
Please note that Sensata Technologies is only responsible for ensuring our products are operational before
delivering. This warranty will be considered void if the unit has been misused, altered, or accidentally
damaged. Sensata Technologies is not liable for anything that occurs as a result of the user’s fault.

SSI Series Owners Manual
http://dimensions.sensata.com Page 16

SSI Series Owners Manual
http://dimensions.sensata.com Page 17
Important Notice: Sensata Technologies (Sensata) reserves the right to make changes to or
discontinue any product or service identified in this publication without notice. Sensata
advises its customers to obtain the latest version of the relevant information to verify, before
placing any orders, that the information being relied upon is current. Sensata assumes no
responsibility for infringement of patents or rights of others based on Sensata applications
assistance or product specifications since Sensata does not possess full access concerning
the use or application of customers’ products. Sensata also assumes no responsibility for
customers’ product designs.
Form 122185 May 2011
SENSATA TECHNOLOGIES
4467 White Bear Parkway
St. Paul, MN 55110 USA
Phone: [phone]
Fax: [phone]
E-Mail: [email protected]
http://dimensions.sensata.com
