Sensio LUCE User manual

Sensio House, Unit 7, Speedwell Road, Whitwood, Castleford, West Yorkshire, WF10 5PY
www.sensio.co.uk
Technical drawings for illustraon purposes only, Sensio has the right to change any informaon without
prior noce.
Waste Electrical & Electronic Equipment (WEEE)
The symbol on the product, or on the document accompanying the product, the crossed out wheelie
bin symbol, indicates that this product may not be treated as household waste.
Instead it shall be handed over to the applicable collecon point for the recycling of electrical and
electronic waste.
Safety Instrucons
5. Suitable for furniture lighng.
6. When the lamp expires the fing must be replaced
7. Class III safety extra low voltage (SELV).
1. Before commencing installaon or maintenance, isolate the main
electrical supply for the appropriate circuit at the fuse board.
2. This product is only suitable for connecng to a 240V 50Hz supply
with use of a Sensio 24V driver.
3. The lights should be mounted onto a secure surface.
4. Never exceed the total output of the LED driver.
Please read these instrucons carefully before aempng to install this
product. It is advisable to keep these instrucons in a safe place for
future reference.
We recommend that you consult a qualified electrician. All electrical
installaon must be carried out in accordance with current IEE wiring
regulaons (BS7671).
These pThese products must not be modified, if any modificaon are made, it
may invalidate the warranty and may render the product unsafe. These
LED lights operate low voltage (24V).
Do not wire the individual LED light fings directly to the mains. This
product is for indoor use only. Keep out of moisture and use only in
dry rooms.
Important Safety Informaon
• If in doubt, installaon must be carried out by a qualified
electrician.
• Install on smooth flat surface(s) only.
• Do not exceed or stretch the cable length of each LED wire.
• This product is IP20 Rated.
• The waage for each light is 0.6W. Ensure that the LED
dri driver used with these fings has an adequate max waage.
Drill
Ø44mm
Hole Saw
PencilInstallaon
Guide
Driver and 2 x Screws
(SE15090C0 & SE15090W0 Do not include a driver)
Luce Plinth Light/Lights
Components Tools required

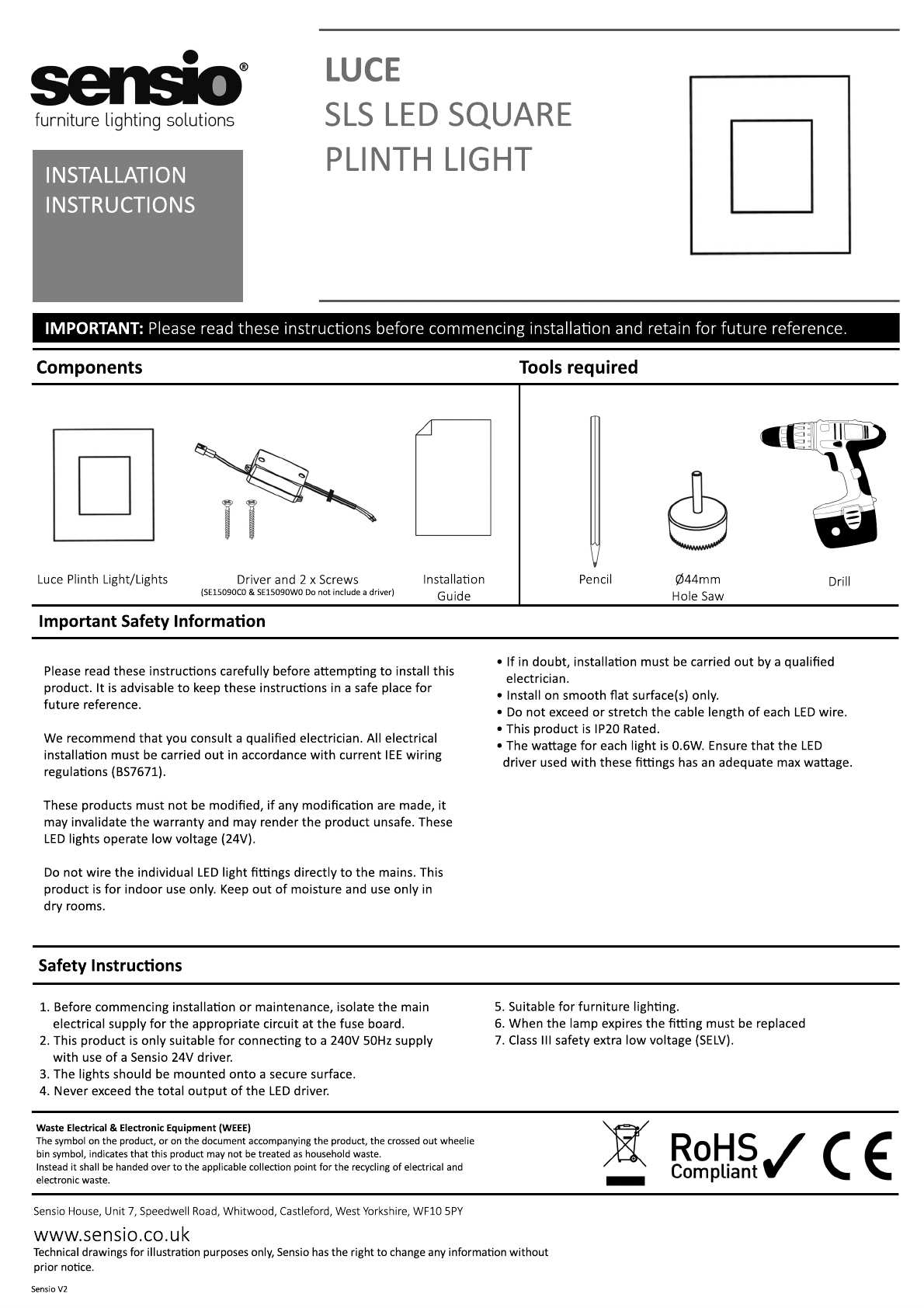

IMPORTANT: Please read these instrucons before commencing installaon and retain for future reference.
LUCE
SLS LED SQUARE
PLINTH LIGHT
INSTALLATION
INSTRUCTIONS
Sensio V2

Maintenance & Care
• Ensure that the power is disconnected prior to cleaning.
• To keep the finish of this product, wipe over with so cloth periodically.
• Do not use harsh chemical solvents, this may dis-colour or damage the finish.
Technical drawings for illustraon purposes only, Sensio has the right to change any informaon
without prior noce.
www.sensio.co.uk
Sensio House, Unit 7, Speedwell Road, Whitwood, Castleford, West Yorkshire, WF10 5PY
Ensure that the plinth light/lights are installed in this
orientaon, so that the diodes are situated at the top of the
plinth light.
Product Informaon
Product Codes:
SE15090C0 & SE15090W0
SE15090C4 & SE15090W4 (4 Light Pack)
SE15090C8 & SE15090W8 (8 Light Pack)
Connect the driver to the mains supply, or
aach a plug.
6
If you are installing a run of lights, proceed to
connect each plinth light together by inserng
the male JB4 connector into the female
connector, in a daisy chain fashion.
54
3
Thread the cables through the hole and insert
the plinth light/lights into the hole.
Proceed to cut the hole/holes using a 44mm
diameter holesaw.
2
Carefully mark the desired locaons for your
plinth light/lights.
1
Installaon
LUCE - SLS LED SQUARE PLINTH LIGHT
Sensio V2
