The RAD Getting Started Guide Introduction 1
Introduction
What Is The RAD?
The Remote Access Device, or “RAD,”is a device that works with
your SentriCard®. When you receive your RAD, it will come with a
combination car/USB charger, visor clip and instructions.
You can use the RAD to:
Send immediate showing notifications on page 7
Automatically keep your SentriCard® updated on page 6
Access REALTOR® NXT Wireless lockboxes with Your PIN and
You’re In on page 9
The RAD does not have any applications to load and you do not
need to pair it with a lockbox. The following sections will guide you
through getting started with your RAD.
Last update to this topic: June 14, 2012.
Top 5 Things to Know About the RAD
Listed below are the top 5 things to know about your RAD:
1. The RAD renews your SentriCard® wirelessly. For more
information on this feature, see How to Renew Your
SentriCard® Using the RAD on page 6.
2. Using the RAD, immediate showing notifications will be sent to
the owner of the lockboxes you access. For more information
about this feature, see Using the RAD to Send Instant Showing
Notifications on page 7.
3. The RAD enables you to access an NXT Wireless lockbox key
compartment without inserting your SentriCard® into the

2Introduction The RAD Getting Started Guide
lockbox. For more information about this feature, see Your PIN
and You’re In on page 9.
4. The RAD must be within 100 feet of the NXT Wireless lockbox
you are trying to access. This distance is an estimate based upon
clear line of sight, excluding any obstructions.
5. Some features such as Your PIN and You’re In require an NXT
Wireless lockbox with firmware version 24.35 or higher. For
information on how to determine your lockbox firmware, please
see How to determine the firmware version of your Lockbox on
page 10.
Last update to this topic: June 20, 2012.
General Information and Warnings
Listed below are some warnings and general information about the
RAD:
Wireless communication does not take place while using or
viewing the RAD’s menu system. Exit any of the menus before
trying to access a lockbox key compartment.
If the cellular service is poor, it is possible for the RAD to drop
its connection and display an error. The RAD will automatically
try to `connect to a cellular service every 15 minutes. Access
logs and other information will not be sent until the RAD has a
valid cellular connection.
The RAD does not have an audible or other notification when
connected with the lockbox. The communication does not occur
until the keypad on the lockbox is activated. This is necessary to
conserve battery power on the RAD.
The battery life on the RAD is approximately 1-2 weeks. This
will vary depending upon usage. To charge the RAD, use the car
charger or the USB charger provided with the RAD. For optimal
usage, do not use the RAD in temperatures below -4 degrees
Fahrenheit or above 140 degrees Fahrenheit. It is not
recommended to leave the RAD in direct sunlight, in a closed
car.
The RAD uses cellular service to communicate with the
REALTOR® Lockbox Web Site. GSM Cellular Networks, such as
AT&T and T-Mobile provide the cellular service. To find more
information about activating the RAD, see the section on when
the RAD is activated on page 3. When the RAD is activated, it
initiates the cellular service setup.

The RAD Getting Started Guide Getting Started 3
If you would like to transfer your RAD to another Agent, contact
your Association. Your Association will deactivate it and re-
assign it to another Agent.
In order to receive showing notification emails or text
messages, you will need to set up your showing notification
preferences in the REALTOR® Lockbox Web Site. You will need
to make sure a valid email address and mobile phone number
are set up in your account. For more information about this
feature, see Using the RAD to Send Showing Notifications on
page 7.
Last update to this topic: December 19, 2012.
Getting Started
Activation and Setup Information
The RAD does not require any software, but you may need to
activate and set it up before first use. The following information will
help you begin using your RAD for the first time.
You may receive your RAD from the Association/Board/MLS or from
SentriLock during a lockbox conversion. Before you can begin using
the RAD you need to:
1. Charge the RAD. Similar to a cell phone, the RAD will need to
be fully charged before you use it. You may use the car charger
that came with the RAD; or if you have a micro USB wall charger
available, you may use that to charge the RAD. The first time
you charge your RAD, SentriLock recommends charging it for
four hours. The battery icon on the RAD screen will have an
exclamation point in the middle of it when you first receive your
RAD. This indicates the RAD battery is critically low, and the
device will have trouble connecting to a cell network until it is
fully charged. While charging the RAD, the battery icon will
appear as a lightning bolt. When the RAD battery is fully
charged, the solid battery icon will appear.

4Getting Started The RAD Getting Started Guide
2. Activate the RAD.Activating the RAD ensures that the RAD
recognizes you as the user and you are activating the cellular
service. To activate the RAD, follow the activation instructions
that came with the RAD.
If your activation instructions say your RAD is activated, you
only need to charge your RAD before you begin using it. If your
instructions tell you to activate the RAD, call 855-351-1627 and
follow the prompts. You will need your SentriCard® serial
number (located on front of your SentriCard®)and the serial
number/IMEI number of the RAD (located on the back of the
RAD).
Last update to this topic: December 20, 2012.
Getting to Know the RAD
This section displays a diagram of the RAD with the name of the
RAD’s various parts. For example; thumbwheel, Micro USB port,
reset button, etc. This section also features some information about
the different notifications found on the RAD’s LCD display screen.

The RAD Getting Started Guide Getting Started 5

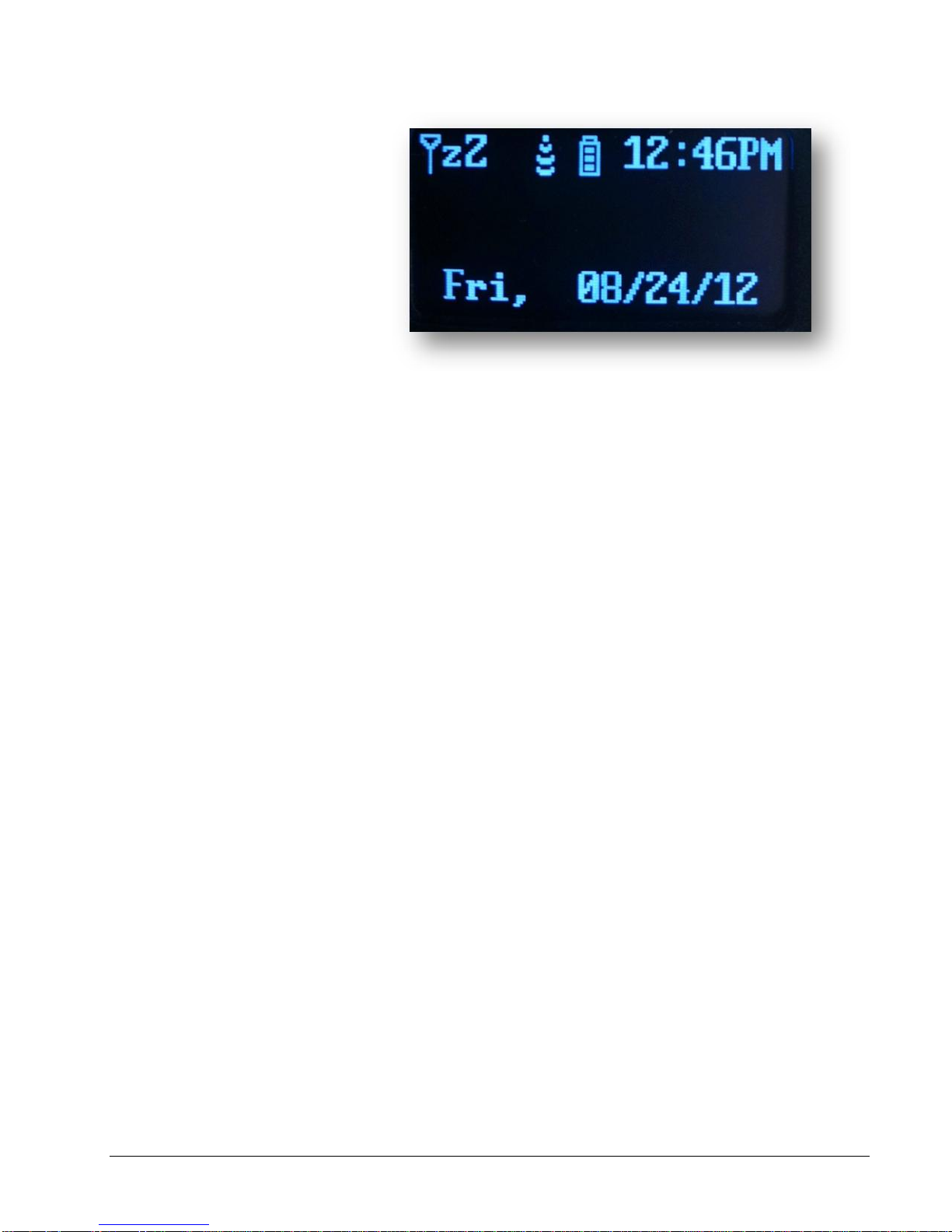

Figure 1 The RAD's LCD Display Screen
On the RAD’s LCD display screen, you will find the following items:
An Inverted Triangle on a Stick
zZ
Signal Strength
Battery Charge Indicator
Time of the Day
Day of the Week
The Date
The Inverted Triangle on a Stick is the antenna icon that displays
the RAD’s signal strength bars.
The zZ on the RAD’s LCD display screen means that the cell module
is conserving the battery power while it does not need to connect.
When it wakes up, it will show the signal strength. The cell module
wakes up when there is activity that would require a connection to
the SentriLock Server.
The Signal Strength icon displays the strength of the cell
connection.
The Battery Charge Indicator displays whether or not the battery is
fully charged. The battery is 100% charged when the battery charge
indicator is solid. While charging, there will be a lightning bolt icon
on the LCD display screen. As soon as the RAD is unplugged, the
battery icon will change to the segmented icon which divides up the
last 99% of battery life to show a rough estimate of how much
power is left on the RAD. If the battery icon contains an exclamation
point in the middle of it, this indicates that the battery is either
measured to below effective operating voltage range, or the cell
module has indicated an undervoltage error. The exclamation point
indicates that the battery is critically low and the device will have
trouble connecting to a cell network.

6Getting Started The RAD Getting Started Guide
The Time of Day, Day of the Week and Date are displayed on the
RAD’s LCD display screen.
Last update to this topic: December 20, 2012.
How to Use the RAD to Renew Your SentriCard®
Renewing your SentriCard® keeps it active and allows you to access
lockboxes. You can check with your Association to find out how
often you need to renew your SentriCard®.
There are 3 ways to renew your SentriCard® using the RAD:
Insert SentriCard®into the RAD
Automatic Renewal
Manual Renewal
When you Insert your SentriCard® into the RAD, it will check to see
if the SentriCard® is expired. If it is, the RAD will renew the
SentriCard®.
The Automatic Renewal occurs after midnight each night. The RAD
will check to see if your SentriCard® needs to be renewed. If it does,
and the RAD has cellular service; the RAD will automatically renew
your SentriCard®. During the automatic renewal, it will upload any
lockbox accesses from your SentriCard® and any additional files on
your card. For example; when you visit a lockbox, your SentriCard®
records your access along with the previous 3 accesses to the
lockbox. During the automatic renewal, all accesses are sent to the
SentriLock Server. Additionally, if you have taken ownership of any
lockboxes, the RAD will upload those files during the automatic
renewal.
You can Manually Renew your SentriCard® at any time. Follow
these steps to manually renew your SentriCard®:
1. Insert your SentriCard® into the RAD (SentriCard’s® gold
chip facing up and going into the RAD). Push past the initial
resistance until no part of your SentriCard® is extending
beyond the RAD.
2. The RAD will display your name and SentriCard® serial
number; followed by the date and time.
3. Press the thumb wheel and select Renew Card.
The RAD will display the Connecting message, and then it
will begin updating the SentriCard®. Wait for the renewal to
finish. While the RAD is in the process of renewing the
SentriCard®, it will display a screen saying “Renewing
card……”

The RAD Getting Started Guide Getting Started 7
DO NOT remove your SentriCard® from the RAD during the
renewal process. Removing the SentriCard® from the RAD
during the renewal process may cause damage to the
SentriCard®.
Once the renewal is complete, the RAD will return to the
Main Menu.
The RAD’s SentriCard® renewal feature does not require a lockbox.
Note: To renew your SentriCard®, you must have your
SentriCard® in a charged RAD with cellular service.
Last update to this topic: July 10, 2012.

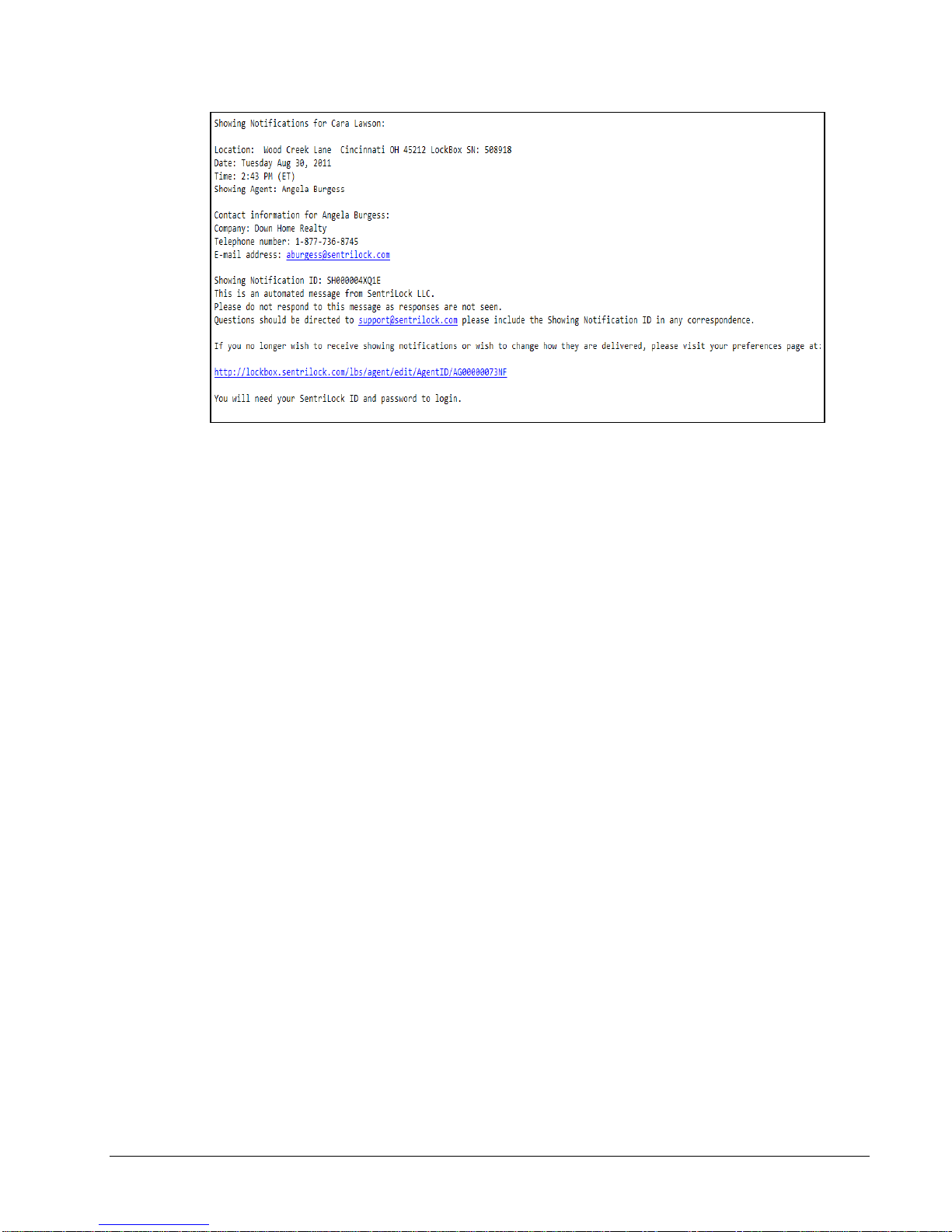

Using the RAD to Send Showing Notifications
Showing notifications tell the lockbox owner who has shown their
listing(s). Each time you access a lockbox with your SentriCard® or
Your PIN and You’re In, showing information is sent to your
SentriCard® or RAD.
Note: If you have accessed an NXT Wireless lockbox, with
firmware 24.35 or higher, the lockbox will send the access
information directly to the RAD and the RAD will send the
information to the SentriLock Server. It is not necessary to
insert your SentriCard® into the RAD. If you are accessing a
previous version of lockbox, you will need to insert your
SentriCard® into the RAD to send showing information.
It is important to assign your lockbox to the listing address. When a
lockbox is assigned to a listing, you can easily identify the property
that has been shown. If you do not assign a lockbox to a listing, you
will see the lockbox serial number, rather than the address in the
showing notification. For more information on assigning your
lockbox to a listing address, see the How to Assign a Lockbox to a
Listing topic in the SentriLock System Guide. You can view the
System Guide from:
https://lockbox.sentrilock.com/manuals/systemguide/default.htm.

8Getting Started The RAD Getting Started Guide
If you are the lockbox owner, and you want to receive showing
notifications, you need to verify your preferences before you can
begin receiving showing notifications. To set up your preferences:
1. Log into the REALTOR® Lockbox Web Site using your
SentriLock ID and password.
2. After logging in, click Manage My Account or the My
Account tab.
3. Click the Preferences tab in the top, left-hand corner.
4. In the Showing Notifications group, use the radio button to
choose how you would like your showing notifications to be
sent to you. You can choose one of the following:
Send notifications as soon as they are available
Send all notifications daily at this time (you select the
time)
5. After choosing your preference, you can select the delivery
method. You can choose one of the following:
Deliver showing notifications as email messages
Deliver showing notifications as text messages to my
phone
Deliver as both, email messages and text messages
6. Click Save Changes. If you choose a text messaging option,
SMS text charges may apply.
7. On the User window, check the information in the Cell
Phone Number and Email Address fields. Depending upon
the delivery method you choose, your showing notifications

The RAD Getting Started Guide Getting Started 9
will be sent to the cell phone number and/or email address
in these fields.
8. Click Save Changes to close the Edit User window.
Note: If you are unable to change your email
address, this means SentriLock imports your contact
information from your Association or MLS. You
would need to change your email address in your
Association or MLS system first, then SentriLock will
import the changes automatically. Contact your
Association or MLS for details. As an alternative,
you could enter an additional email address in the
Copy Showing Notifications group on the Edit
Preferences window.
If you are in an area without cellular service, you
will have to wait until the RAD has cellular service
before it will update your SentriCard® and send
showing notifications to the lockbox owner.
Showing notifications are available for any of the lockbox firmware
versions.
Last update to this topic: December 19, 2012.
How to Use Your PIN and You’re In
The RAD and the NXT Wireless lockboxes work together to provide
you access to the key compartment with just your PIN. You do not
need to remove your SentriCard® from the RAD and insert it into
the lockbox. Your SentriCard® must be in the RAD in order to use
Your PIN and You’re In.
Note: Your PIN and You’re In is available with NXT Wireless
lockboxes using firmware 24.35 or higher. To check the
firmware version on your lockboxes, see How to Determine
the Firmware on your Lockbox on page 10.
Follow these steps to use Your PIN and You’re In:
1. Insert your SentriCard® into the RAD (SentriCard’s® gold
chip facing up and going into the RAD). Push past the initial
resistance until no part of your SentriCard® is extending
beyond the RAD.
Note: You can store your SentriCard® in the RAD.
2. After your SentriCard® has been inserted into the RAD, the
SentriCard® serial number and cardholder’s name will
appear on the RAD’s display screen. This will be followed by
the time and date as well as the SentriCard® status.

10 Getting Started The RAD Getting Started Guide
3. Go to the lockbox and hold the ENT button until the lockbox
keypad illuminates or beeps.
4. Type your PIN + ENT on the lockbox keypad.
5. The MESSAGE light will illuminate on the lockbox.
6. The READY light will illuminate on the lockbox and the
lockbox’s motor will begin turning.
7. The lockbox key compartment will open when the motor
finishes turning.
8. With cellular signal:
i. Instant showing notification is sent to the lockbox
owner or Listing Agent (if this feature has been
enabled by the lockbox owner in the REALTOR®
Lockbox Web Site).
ii. Access is visible on the REALTOR® Lockbox Web
Site immediately.
9. With no cellular signal:
iii. RAD displays message saying “there is no
connection.”
iv. The RAD will attempt every 15 minutes to make a
connection; and when it does, the showing
notification is sent to the lockbox owner.
The range of the RAD is up to 100 feet from the lockbox to the RAD
for wireless communication.
If you keep the RAD in your vehicle, it will still work with the Your
PIN and You’re In feature. You do not have to take your RAD with
you in order to access the lockbox.
Last update to this topic: December 19, 2012.
How to Determine the Firmware Version in Your Lockbox
As SentriLock adds features to a lockbox, the firmware of a lockbox
may change.
The series and firmware version in a REALTOR® Lockbox tells it what
features are available and how to respond to various commands.
Every REALTOR® lockbox has a series and firmware version.
Generally, most of the lockboxes in your Association will use the
same series and firmware version.
SentriLock customers use the following series of lockboxes:
GENI OR GENII Series:

The RAD Getting Started Guide Getting Started 11
The visual difference between the GENI and GENII lockbox is the
castling around the key compartment door. Only GENII lockboxes
have the castling around the key compartment door.
NXT and NXT Wireless Series:
The visual difference between the NXT and NXT Wireless lockbox is
the NXT Wireless sticker on the front, left-side of the NXT Wireless
lockboxes.
Below you’ll find the lockbox series and the firmware available in
that series:
GENI-Firmware version 2.02-2.04
GENII-Firmware version 10.10-10.14
NXT-Firmware version 20.20-23.28
NXT Wireless-Firmware version 24.30 or higher
Find Your Lockbox Firmware Version
You can find the firmware version of a lockbox by using the
Firmware Version field on the Lockboxes window in the REALTOR®
Lockbox Web Site. To do this, use the following steps:
1. Log in to the REALTOR® Lockbox Web Site. To access the
Web site, use your Web browser to access:
http://lockbox.sentrilock.com/lbs. You will need your
SentriLock ID and password to log in to the Web site.
2. From the Main Menu window, click My Lockboxes or
Lockboxes.
3. From the Lockboxes window, use the drop-down lists in the
Search bar to search for the serial number of the lockbox.
The search results will display on the Lockboxes window.
4. The Firmware Version field on the Lockboxes window lists
the firmware version of the lockbox.
Last update to this topic: December 19, 2012.

12 Appendix The RAD Getting Started Guide
Appendix
General Specifications
Product Size
Width: 2 ¾ inches
Height: 4 ¾ inches
Depth: 7/8 inches
Federal Communications Commission
W9T-P10300
Industrie Canada
8174A-P10300

The RAD Getting Started Guide Glossary of Terms 13
Glossary of Terms
.
Event Tracker
The Event Tracker is a program that SentriLock developed to assist
Associations, Boards, Brokers and Agents track attendance at various
events, electronically.
GSM Network
GSM Network is a cellular network that cell phones and other mobile devices
connect to.
NXT Wireless Lockbox
The NXT Wireless Lockbox includes any lockboxes with firmware version 24.30 or
higher. You may need to update the firmware version of your NXT Wireless
Lockbox before you can use just your PIN to access the key compartment. Contact
SentriLock Support at 1-877-736-8745 for more information. The NXT Wireless
Lockbox is navy blue, with a “Wireless” indicator sticker on the front of the lockbox.
PIN
PIN stands for Personal Identification Number. This is the code Agents use
along with their SentriCard® at a lockbox. This code is needed in order to
use a SentriCard at a lockbox. Only the owner of the SentriCard® should
know their PIN due to security reasons. The PIN for a SentriCard® can be
changed using the SentriLock Card Utility software and a SentriCard®
reader.
RAD
The Remote Access Device, or RAD, is a device that works with your
SentriCard®. You can use the RAD to send immediate showing notifications,
automatically keep your SentriCard® updated, use Event Tracker and access
the REALTOR® NXT Wireless lockboxes with the Your PIN and You're In
feature.

14 Glossary of Terms The RAD Getting Started Guide
REALTOR® Lockbox Web Site
You can use the REALTOR® Lockbox Web Site to edit and view information.
You can edit listing, Agent and lockbox information. You can view lockbox
access information. You can also use the Web site to access manuals and
contact SentriLock Support. You can access the REALTOR® Lockbox Web
Site from: http://lockbox.sentrilock.com.
SentriCard®
You will use a SentriCard® to access and program lockboxes. A SentriCard®
is an ISO 7816 compliant smart card. Unlike their credit card counterparts,
smart cards utilize an embedded "chip" that contains the security data for
the lockbox system. This chip is immune to magnetic fields as well as
employing tamper detection logic and circuitry. The SentriCard® is the same
size as a credit card.
Serial Number/IMEI
The Serial Number/IMEI field appears on the RAD window in the REALTOR®
Lockbox Web Site. The Serial Number/IMEI field contains the serial
number and International Mobile Equipment Identity (IMEI) number of the
RAD(s). Each RAD has a unique serial number/IMEI number.
Showing Notifications
Each time you access a lockbox using the RAD, the lockbox will immediately
notify the lockbox owner by sending them a showing notification. Showing
notifications are sent through e-mail and/or SMS text messages.
SMS Charges
SMS stands for Short Message Service. SMS is a text messaging service component
of phone, web or mobile communication systems, using standardized
communication protocols that allow the exchange of short text messages between
fixed line or mobile phone devices. Depending upon your mobile equipment
provider, SMS Charges may apply for text messages.
Your PIN and You're In
The RAD and the NXT Wireless lockboxes work together to allow you access to the
key compartment with just your PIN. You do not need to remove your SentriCard®
from the RAD and insert it into the lockbox when using Your PIN and You're In.
