SereneLife SLBSKBG45 User manual

SingleShotBasketballArcadeGame
Indoor/Outdoor One-Player Basketball System
with OneAudio Option, One Game and Large LED Scoreboard

www.SereneLifeHome.com2
IMPORTANT! PLEASE READ THESE ASSEMBLY INSTRUCTIONS
IN ENTIRETY BEFORE ASSEMBLING YOUR PRODUCT.
CHOKE HAZARD: THIS TABLE CONTAINS SMALL BALLS AND PARTS
NOT SUITABLE FOR CHILDREN UNDER 3 YEARS OF AGE.
PARTS LIST
910 11 12
13 14 15 16
2 3 41
x2 x2 x1 x1
6 7 85
x1 x2 x2
x2 x2 x1 x2
x2 x1 x1
x1
18 19 20
x1 x1
21
x1
22
x34
23
x8
24
x6
x1
17
x1 x2
TIME SCORE
Board L Tube Φ22x584x432mm Board Tube Φ22x686mm Left Tube Φ22x883mm Right Tube Φ22x883mm
Left L Tube Φ22x756x349mm Right L Tube Φ22x756x349mm Support Tube Φ22x832mm Mounting Tube Φ22x838mm
Ramp Tube Φ22x559mm Ramp L Tube Φ22x419x387mm Ramp U Tube Φ22x628x451mm Horizontal Tube Φ12.7x628mm
Basketball 7”Dia. Electronic Scorer Switch Sensor Allen Key
Rim Rim Support Plate Ination Pump with Needle End Cap
Backboard M6 Washer M6 x 20mm Bolt M6 x 29mm Bolt

www.SereneLifeHome.com 3
PARTS LIST
PRE-INSTALLED PARTS
ASSEMBLY INSTRUCTIONS:
1. Find a clean, level place to begin the assembly of your Basketball Game.
We recommend that two adults work together to assemble this basketball game.
2. Remove all the parts from the box and verify that you have all of the listed parts
as shown on the Parts list below. Carefully cut or tear the four corners of the box
so that the bottom of the box can be used as your work surface.
BEFORE ASSEMBLY - Please inspect and layout all your POLES and parts
25
x4
26
x4
27
x2
28
x24
29
x4
30
x1
31
x1
M6 x 42mm Bolt M6 x 48mm Bolt M6 x 35mm Bolt M6 Nut
3 x 26mm Screw Wrench Ball Ramp with Side Netting
A1 A2
x1 x2
x9 x2
A3 A4
Net Spring Lock Plastic Pole Insert Lock Pin
1 3 4 5 67 8 9 10 11 122

www.SereneLifeHome.com4
PARTS IDENTIFIER
FIG. 1 & 2
3. Attach the Board Tubes (#2) to the Left Tubes (#3) and Right Tubes (#4) using
spring lock as shown in FIG. 1.
4. Attach the Support Tubes (#7) to the Mounting Tubes (#8) using spring lock as
shown in FIG.2.
FIG. 3
5. Attach the Left L Tube (#5) and Right L Tube (#6)
together using spring lock as shown in FIG. 3.
222
3
3
4
4
7
8
X 2
X 1
X 1
X 2
X 2
A2
Spring Lock
FIG. 1 FIG. 2
7
8
A2
Spring Lock
FIG. 3
5
6
X 1
X 1
A2
Spring Lock
5
6

www.SereneLifeHome.com 5
FIG. 4
6. Attach the Left and Right L Tubes (#5 and #6) to Left
and Right Tubes (#3 and #4) using Bolts(#26), Washers
(#22) and Nuts (#28), and then attach the Left and Right
L Tube (#5 and #6) to the Mounting Tube (#8) using Bolts (#26), Washers (#22)
and Nuts(#28) as shown in FIG. 4A & 4B.
7. Attach the Support Tube and Mounting Tube (#7 and #8) to the Board Tube (#2)
using Bolts (#24), Washers (#22) and Nuts (#28) as shown in FIG. 4C, repeat this
step for other side.
Note: Make sure the spring lock is face down.
22
24
26
28
X 6
X 2
X 4
X 6
5
3
4
2
8
86
7
7
2
26
28
22
22 26
28
22
28
24
FIG. 4
FIG. 4A
FIG. 4B
FIG. 4C

www.SereneLifeHome.com6
1
9
12
22
24
27
X 2
X 2
X 1
X 6
X 2
X 2
28
X 4
12
2
1
1
2
9
9
5
6
1
12
2
24
28
22
28
22
22
28 22
25
27
A3
FIG. 5
FIG. 5A
FIG. 5B
FIG. 5
8. Attach the Horizontal Tube (#12) to the Board Tube (#2) using Bolts (#24),
Washers (#22) and Nuts (#28) as shown in FIG. 5A. And then insert the Board L
Tubes (#1) to the Board Tube (#2) as shown in FIG.5.
9. Attach the Ramp Tubes (#9) to the Left and Right L Tubes (#5 and #6) using Bolts
(#27), Washers (#22) and Nuts (#28) as shown in FIG. 5B.

www.SereneLifeHome.com 7
FIG. 6
10. Attach the Ramp L Tubes (#10) to the Ramp Tubes (#9) using spring lock as
shown in FIG. 6.
10
X 2
FIG. 6
A2
Spring Lock
9
9
Long
Short
10
10

www.SereneLifeHome.com8
FIG. 7
11. Tear o the paper in front of Electronic
Scorer (#14) and stick it to the Backboard
(#21), then using four Screws (#29)
as shown in FIG. 7.
14
21
29
X 1
X 1
X 4
TIME SCORE
FIG. 7
29
14
21
14
15
17
22
X 1
X 1
X 12
23
28
X 8
X 8
18
X 1
FIG. 8
FIG. 8A
14
17
21
14 18
23
22
22 22
28
15
23
FIG. 8
12. Attach the Rim (#17) to the Backboard (#21) using four
Bolts (#23) and four Washers (#22), attach the Rim Support
Plate (#18) to the back of backboard using four Nuts (#28)
as shown in FIG. 8.
13. Attach the Switch Sensor (#15) to the Backboard (#21)
using four Bolts (#23), eight Washers (#22) and four Nuts
(#28) as shown in FIG. 8.
14. Connect the wire of the Switch Sensor (#15) to the
Electronic Scorer (#14) as shown in FIG. 8A.

www.SereneLifeHome.com 9
FIG. 9
13. Slide elastic straps and sleeve of Ball Ramp with Side Netting (#31) onto Board
Tubes as shown in FIG. 9A & 9B.
14. Slide the Ramp U Tube (#11) into the sleeve of Ball Ramp with Side Netting (#31)
as shown in FIG. 9C.
15. Connect the Ramp U Tube (#11) to the Ramp L Tube (#10) using spring lock as
shown in FIG. 9D.
16. Slide the Horizontal Tube (#12) in front of the Ball Ramp with Side Netting (#31)
and attach it to the Ramp U Tube (#11) using Bolts (#24), Washers (#22) and
Nuts (#28) as shown in FIG. 9E.
X 1
X 2
X 2
X 2
12
X 1
11
X 1
31
22
24
28
FIG.9
FIG.9D
FIG.9B
11
31
31
31
11
10
FIG.9E
28
12 24
11
22
A2
Spring Lock
FIG.9C
FIG.9A

www.SereneLifeHome.com10
FIG. 10
17. With the help of another adult, attach the Backboard (#21) to the Board Tubes
(#1) using Bolts (#25), Washers (#22), Nuts (#28) and End Cap (#20) as shown in
FIG.10A. At each bottom hole of the backboard, attach the ramp tabs of Ball
Return with Netting (#31) using Bolts (#25), Washers (#22) and Nuts (#28) as
shown in FIG.10B .
18. Insert the Lock Pins (#A4) to the Left and Right L Tubes (#5 and #6) as shown in
FIG. 10C.
FIG. 10
31
12
21
1
FIG. 10A
Ramp Tab
21 1
2
A1
A4
X 8
X 4
X 4
22
22
22
22
22
25
25
25
28
28
28
X 2
20
20
Back View.
FIG. 10B
FIG. 10C

www.SereneLifeHome.com 11
IMPORTANT!
MAKE SURE TO USE THE LOCK PIN (#A4) WHEN FOLDED.
FIG. 11
19. Folding position when not in use the basketball game and insert the Lock Pin
(#A4) as shown in FIG. 11.
Note:
The lock pin (#A4) needs to be removed from its original position when the game
is being used before insertion to the new position when folded.
Lock Pin
FIG. 11

www.SereneLifeHome.com12
ELECTRONIC SCORER OPERATION

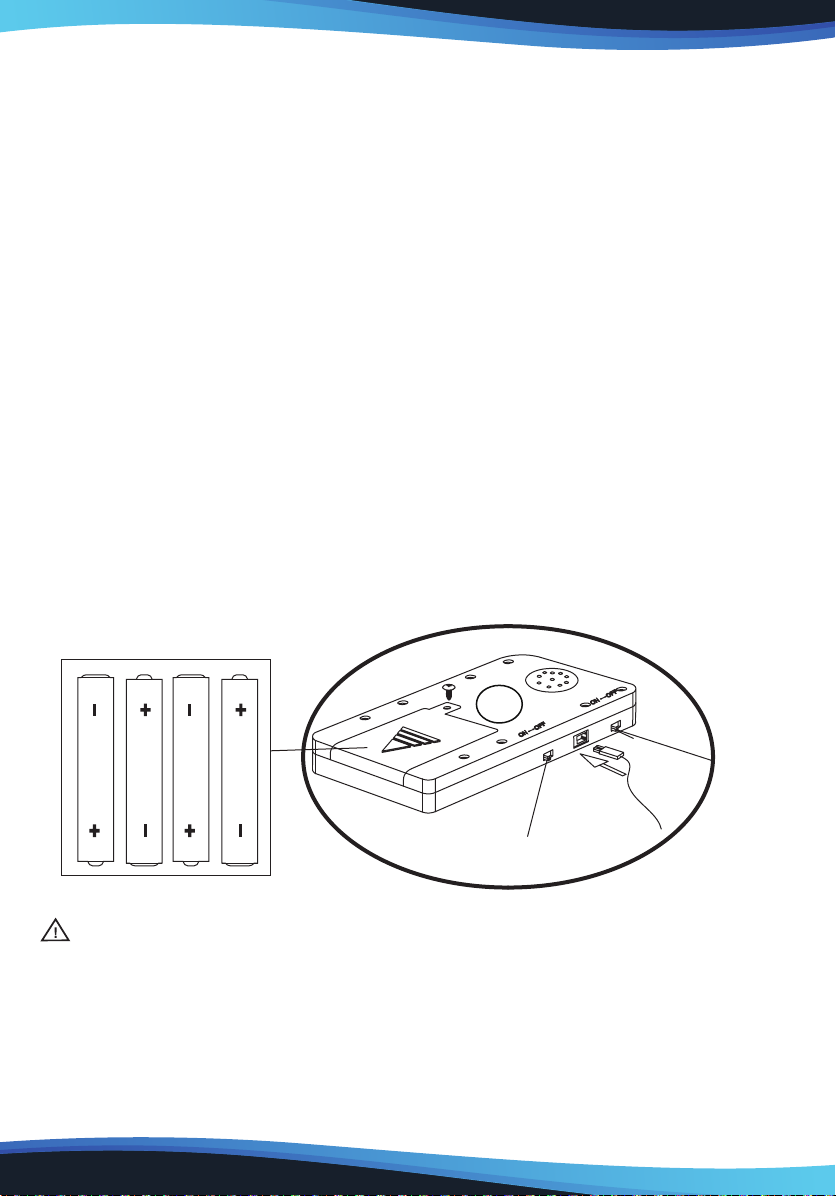

Installing Batteries
Battery Box: Unscrew bolt using a screwdriver and open the battery box. Insert 4
“AA” batteries ( not included) in the order of polarity as shown on the inside cover.
Then close the cover using a screwdriver. Turn the power ON using the ON/OFF
switch.
Reminder
a. Batteries must be installed according to the correct polarization (+ and -)
requires.
b. Please clean the battery contacts and also those of the devices prior to battery
installation.
c. If the game will not be used for a long period of time, we recommend that the
batteries should be removed.
WARNING:
1. Requires 4 “AA” batteries (not included).
2. Do not mix old and new batteries.
3. Do not mix alkaline, standard (carbon zinc), or rechangeable (nickel-cadmium)
batteries.
SOUND
ON/OFF
POWER
ON/OFF
14

www.SereneLifeHome.com 13
HOW TO PLAY
1. Sound ON/OFF: Use this switch while the game is on to turn the sound OFF
and ON.
2. While game is in Sleep Mode, if a basketball is scored, the game will turn back on
and the score board will begin the 5 sec. countdown.
3. After nishing the game, turn OFF the scorer by using the ON/OFF switch.
NOTE: The scoreboard will turn o after 5 minutes, if not in use, however, we
recommend turning the ON/OFF switch to OFF when the game will not be used
for an extended period of time.
WARNING: Changes or modications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
