SereneLife SLBSKBG90 User manual

DualShotBasketballArcadeGame
Indoor/Outdoor Two-Player Basketball System
with OneAudio Options, 8 Different Games
and Large LED Scoreboard

www.SereneLifeHome.com2
IMPORTANT! PLEASE READ THESE ASSEMBLY INSTRUCTIONS
IN ENTIRETY BEFORE ASSEMBLING YOUR PRODUCT.
CHOKE HAZARD: THIS TABLE CONTAINS SMALL BALLS AND PARTS
NOT SUITABLE FOR CHILDREN UNDER 3 YEARS OF AGE.
WARNING:
1. Require 3pcs AA Batteries (Not included).
2. Do not mix old and new batteries.
3. Do not mix alkaline, standard (carbon zinc), or rechangeable (nickel-cadmium)
batteries.

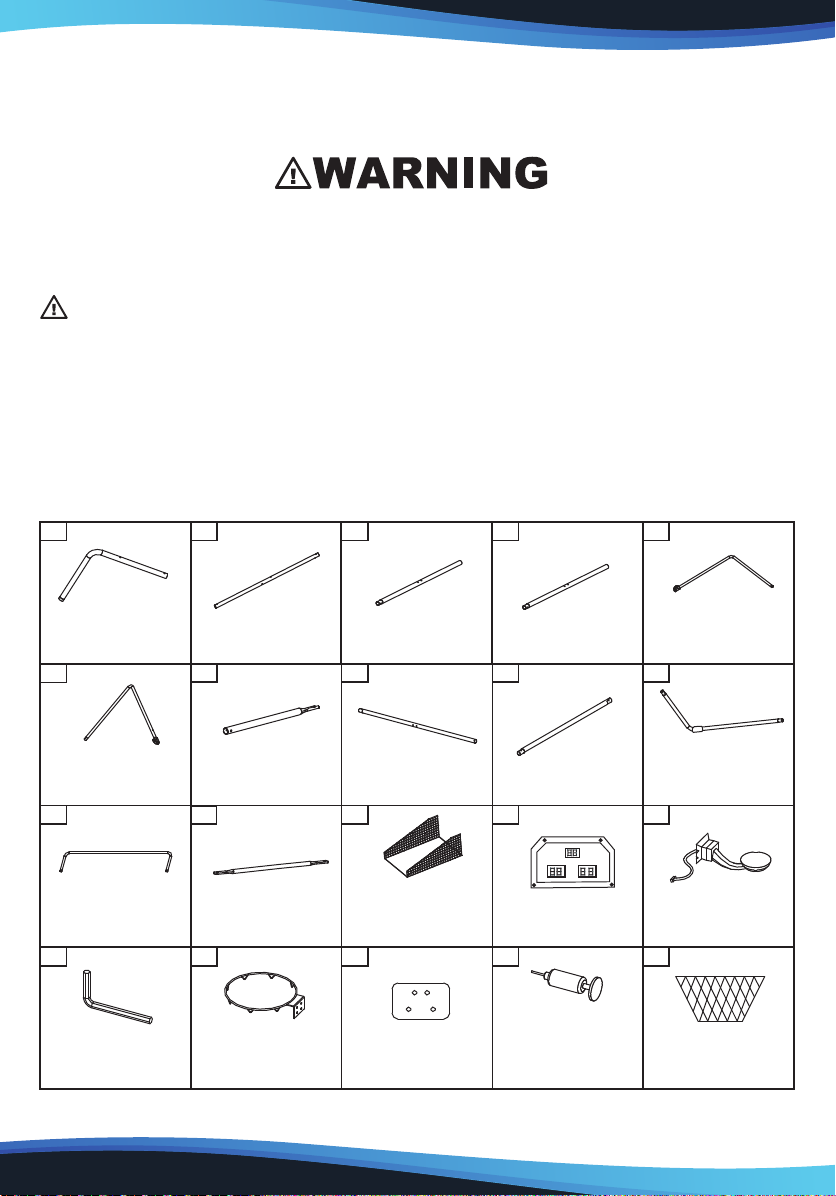

PARTS LIST
6
11
2 3 4 51
7 8 9 10
12 13 14 15
16 17 18 19 20
Pre-installed
Board L Tube
2pcs Board Tube 2pcs Left Tube 1pc Right Tube 1pc Left L Tube 1pc
Right L Tube
1pc
Ramp U Tube
1pc
Allen Key
1pc
Support Tube
2pcs Mounting Tube 2pcs Ramp Tube 2pcs Ramp L Tube 2pcs
Switch Sensor
2pcs
Net
2pcs
Horizontal Tube
2pcs
Ball Ramp with
Side Netting
1pc Electronic Scorer
1pc
Inflation Pump
with Needle
1pc
Rim SupportPlate
2pcs
Rim
2pcs

www.SereneLifeHome.com 3
PARTS IDENTIFIER
ASSEMBLY INSTRUCTIONS
1. Find a clean, level place to begin the assembly of your Basketball Game.
We recommend that two adults work together to assembly this basketball game.
2. Remove all the parts from the box and verify that you have all of the listed parts
as shown on the Parts List. Carefully cut or tear the four corners of the box so
that the bottom of the box can be used as your work surface.

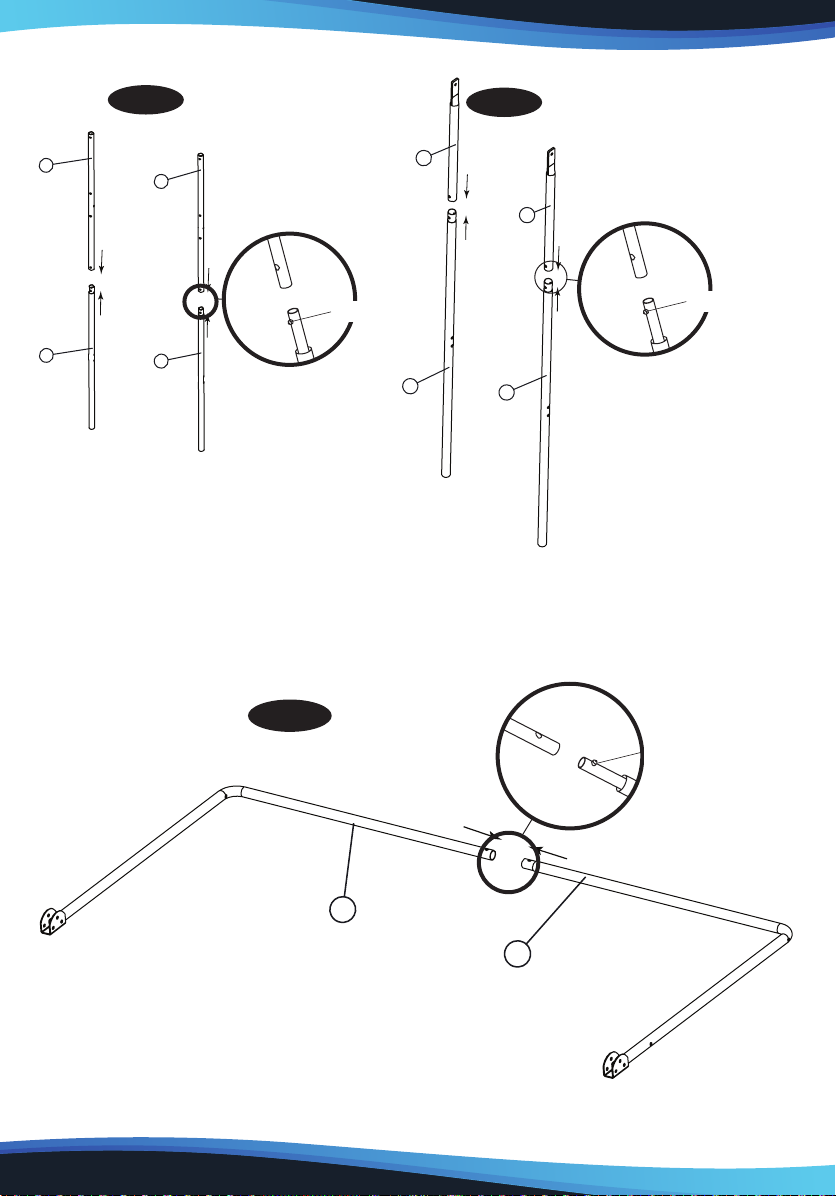

FIG. 1 & 2
3.AttachtheBoardTubes(#2)totheLeftTube(#3)andRightTube(#4) 
usingspringlockasshowninFIG.1.
4.AttachtheSupportTubes(#7)totheMountingTubes(#8)usingspring 
lockasshowninFIG.2
21 22 23 24 25
26 27 28 29 30
31 32 33
HOME VISITOR
TIME
Pre-installed
34 35
Pre-installed Pre-installed
Backboard
1pc M6 Washer 46pcs
M6 Nut
32pcs Basketball 7” Dia.
4pcs 3.5 x 10mm Bolt
4pcs
Lock Pin
2pcs
Wrench
1pc
M6 x 20mm Bolt
16pcs M6 x 29mm Bolt
6pcs M6 x 42mm Bolt
4pcs
M6 x 50mm Bolt
4pcs
M6 x 35mm Bolt
2pcs Spring Lock 9pcs
36 37 38 39
4 x 28mm Bolt
2pcs
Control Box
1pc Control Wire
1pc Self - Stick Strap 2pcs
Plastic Pole Insert
2pcs
Electronic Scorer
Face Plate
1pc

www.SereneLifeHome.com4
FIG. 3
5. Attach the Left L Tube (#5) and Right L Tube (#6) together using spring lock as
shown in FIG.3
FIG. 1
22
34
Spring Lock
FIG. 2
7
7
88
Spring Lock
5
6
FIG. 3
Spring Lock

www.SereneLifeHome.com 5
FIG. 4

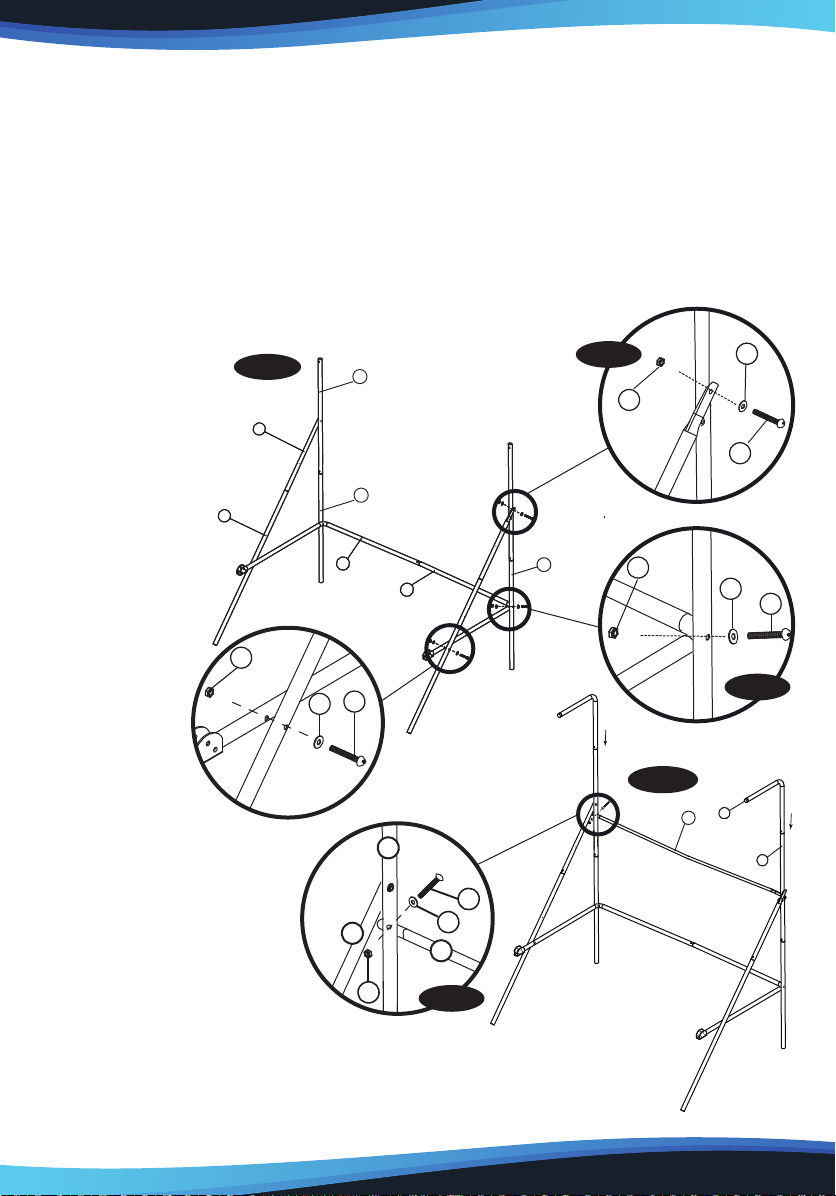

6. Attach the Left and Right L Tubes (#5 and #6) to Left and Right Tubes (#3 and #4)
using Bolts(#26), Washers (#22) and Nuts (#27), and then attach the Left and
Right L Tube (#5 and #6) to the Mounting Tube (#8) using Bolts (#26), Washers
(#22) and Nuts (#27) as shown in FIG. 4A & 4B.
7. Attach the Support Tube and Mounting Tube (#7 and #8) to the Board Tube (#2)
using Bolts (#24), Washers (#22) and Nuts (#27) as shown in FIG. 4C, repeat this
step for other side.
Note: Make sure the spring lock is face down.
FIG. 5
8. Attach the Horizontal
Tube (#12) to the Board
Tube (#2) using Bolts(#24),
Washers (#22) and Nuts
(#27) as shown in FIG5. Then insert the Board L Tubes
(#1) to the Board Tube (#2) as shown in FIG.5.
FIG. 5
12
1
2
22
28
24
12
1
2
27
24
22
12
2
7
FIG. 4B
FIG. 4
8
7
5
6
8
7
5
6
4
3
27
22
26
24
27
22
2
22
24
22
6
27
27
26
22
FIG. 4A
FIG. 4C

www.SereneLifeHome.com6
FIG. 6 & 7

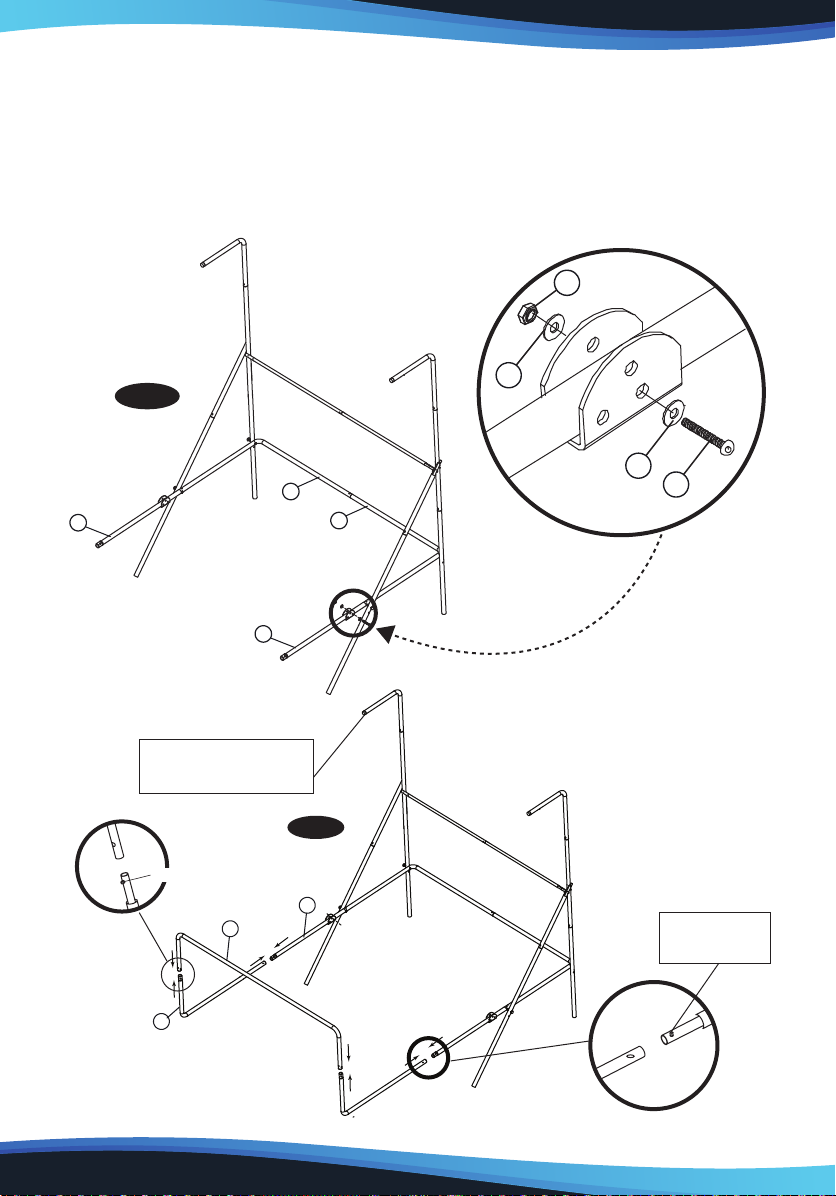

9. Attach the Ramp Tubes (#9) to the Left and Right L Tubes (#5 and #6) using Bolts
(#32), Washers (#22) and Nuts (#27) as shown in FIG 6.
10. Attach the Ramp L Tubes (#10) to Ramp U Tube (#11) using spring lock, and
then place the Ramp L Tube (#10) to the Ramp Tube (#9) using spring lock as
shown in FIG.7.
9
5
6
9
FIG. 6
22
27
22 32
11
9
FIG. 7
10
#34
Spring Lock
Spring Lock
#35
Plastic Pole Insert

www.SereneLifeHome.com 7
FIG. 8 & 9

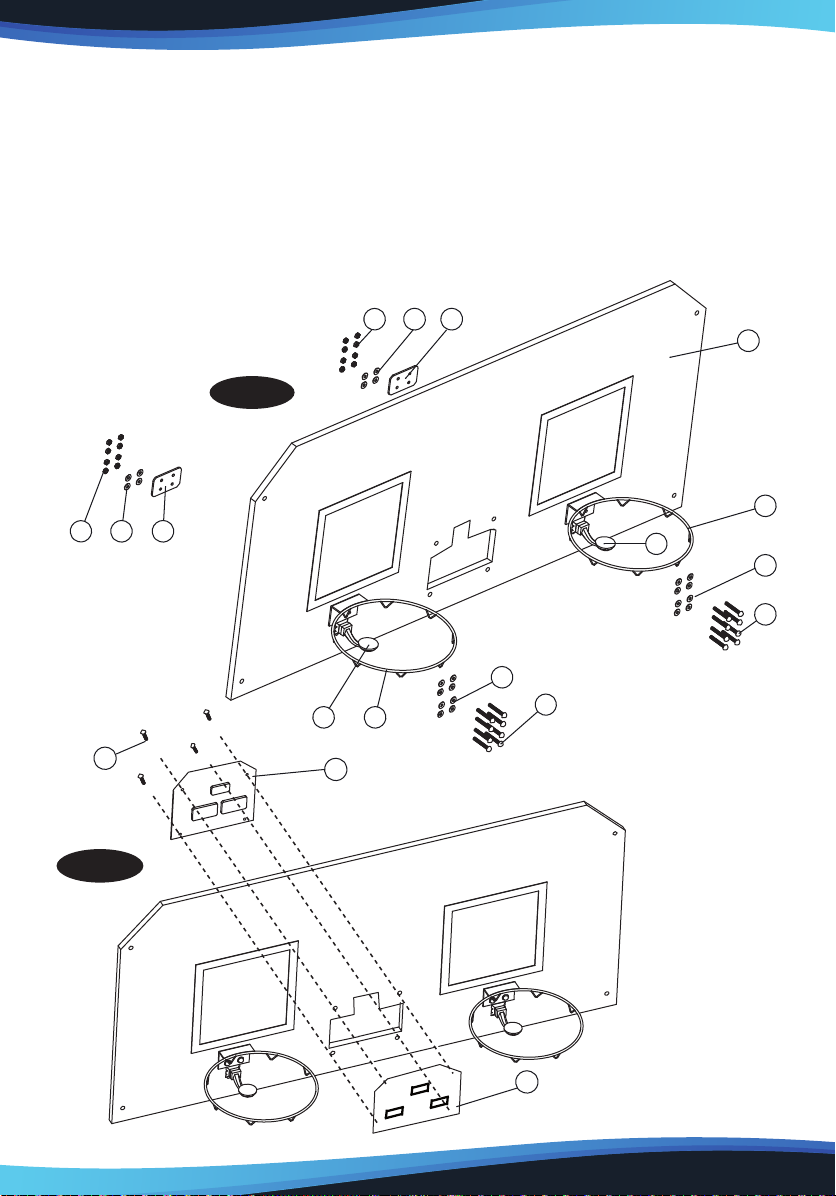

11. Attach the Rim Assemblies (#17) and Rim Support Plates (#18) to the Backboard
(#21) using the Bolts (#23), washers (#22) and Nuts (#27). And then attach the
Switch Sensor (#15) to the Backboard (#21) using the Bolts (#23), washers (#22)
and Nuts (#27). Make sure that you use washer on both sides of the backboard
as shown in FIG. 8.
12. Attach Electronic Scorer Face Plate (#30) to Backboard and connect with the
Electronic Scorer (#14) using Bolts (#29) as shown in FIG. 9.
FIG. 9
14
29
30
TIME
VISITOR
HOME
FIG. 8
23
22
1715
15
17
23
22
21
182272
182272

www.SereneLifeHome.com8
FIG. 10
13. Slide elastic straps and sleeve of Ball Ramp with Side Netting (#13) onto Board
Tubes as shown in FIG. 10A & 10B & 10C.
14. Slide the Horizontal Tube (#12) in front of the Ball Ramp with Side Netting (#13)
and attach it to the Ramp U Tube (#11) using Bolts (#24), Washers (#22) and
Nuts (#27) as shown in FIG.10D.
FIG.10
12
13
24 22
12
27
27
24 22
FIG.10A
13
FIG.10C
FIG.10D
FIG.10B

www.SereneLifeHome.com 9
FIG. 11
15. With the help of another adult, Attach the Backboard (#21) to the Board Tubes
(#1) using Bolts (#25), Washers (#22) and Nuts (#27) as shown in FIG.11 A.
At each bottom hole of the backboard, attach the ramp tabs of Ball Return with
Netting (#13) using Bolts (#25), Washers (#22) and Nuts (#27) as shown in FIG.11 B.
16. Insert the Lock Pins (#33) to the Left and Right L Tubes (#5 and #6) as shown in
FIG. 11 C.
FIG. 12
17. Connect the Sensor Wire of Switch Sensor to the Electronic Scorer (#14) as
shown in FIG. 12. Connect the Control Wire (#37) to the Electronic Scorer (#14)
as shown in FIG.12 and 12A.
.
14
37
FIG. 12 FIG. 12A
Sensor wire
Electronic Scorer
Sensor wire
Control Wire
ON/OFF
CONTROL
WIRE
VISITOR
25
22
27
22
Ramp Tab
Backside of
Backboard.
FIG. 11B
FIG. 11A
#33
Lock Pin
FIG.11C
12
13

www.SereneLifeHome.com10
FIG. 13
18. Attach the Control Box (#36) to middle of the Ramp U Tube (#11) using two
Bolts (#38) as shown in FIG.13 A.
19. Run the rest of the Control Wire (#37) through the loops on the Ball Return with
Side Netting (#13) and plug it into the Control Box (#36). Place the Control Wire
(#37) on the Ramp U Tube (#11) using the Self - Stick Straps (#37) as shown is
FIG.13 B.
FIG. 13
Control Box
Control Wire
38
36
FIG. 13A
Control Wire
37
39
FIG. 13B

www.SereneLifeHome.com 11
FIG. 14
20. Folding position when not in use the basketball game and insert the Lock Pin
(#33) as shown in FIG 14.
Note: The lock pin (#33) needs to be removed from its original position when
the game is being used before insertion to the new position when folded.
FIG. 14
Lock Pin
IMPORTANT!
Make sure to use the Lock
Pins (#33) to secure the Ball
Return with Side Netting in
place.

www.SereneLifeHome.com12
ELECTRONIC SCORER OPERATION
Installing Batteries:
Using a screwdriver, unscrew lid and open the battery box. Insert 3 “AA” batteries
(not included) in the order of polarity as shown on the inside cover.
Close the cover and tighten screw. Turn the power ON using the ON/OFF switch.
if the game will not be used for a long period of the time, we recommend that the
batteries should be removed.
CONTROL BOX OPERATION
• Press "ON/OFF" to activate the scorer.
• Scoreboard "HOME" shows "01" (pre- set game 1).
• Press "SELECT UP and DOWN" to select a game.
• Press "SELECT UP and DOWN" to enter selected game mode.
• Press "SOUND" to switch sound ON/OFF while playing.
• Press "PAUSE" to pause or start time counting.
• Press and hold the button "ON/OFF" 3 seconds to turn off scorer.
• Press and hold the button "RESET" 3 seconds to reset the games.
Note: If no shot is made or no button is pressed in 15 mins, scorer will be turned
off automatically.
ON/OFF
CONTROL
WIRE
VISITOR
ON/OFF PLAY SELECT
UP SELECT DOWN
SOUND PAUSE RESET

www.SereneLifeHome.com 13
CHOOSE FROM 8 DIFFERENT GAME OPTIONS
1. Beat the time Clock
• Press "PLAY" to enter game 1.
• Press "UP/Down" to select single/multiple players (P1/P2/P3/P4).
• Press "PLAY" after the number of player is selected.
• Press "UP/Down" to select playing time, 30/45/60 seconds.
• Press "PLAY" to begin the game.
• Scoreboard "HOME" shows Player 1, 3; Scoreboard "VISITOR" shows Player 2, 4.
• All shots worth 2 points until last 10 seconds, each score counts 3 points.
• Countdown 5 seconds to next player's turn when one player nishes game.
• Player with more points scored wins (LED will ash on player with higher score).
• Press "PLAY" to restart this game.
2. 3 Point Beat the Time Clock
• Press "PLAY" to enter game 2.
• Press "UP/Down" to select single/multiple players (P1/P2/P3/P4).
• Press "PLAY" after the number of player is selected.
• Press "UP/Down" to select playing time, 30/45/60 seconds.
• Press "PLAY" to begin the game.
• Scoreboard "HOME" shows Player 1, 3; Scoreboard "VISITOR" shows Player 2, 4.
• All shots made count 3 points.
• Countdown 5 seconds to next player's turn when one player nishes game.
• Player with more points scored wins (LED will ash on player with higher score).
• Press "PLAY" to restart this game.
3. Battle Back
• Press "PLAY" to enter game 3.
• Press "UP/Down" to select playing time, 30/45/60 seconds.
• Press "PLAY" to begin the game.
• Shot made in "HOME" frame, +2 points scored display on "HOME" board and -2
points for "VISITOR".
• Shot made in "VISITOR" frame, +2 points scored display on "VISITOR" board
and -2 points for "HOME".
• Once a player scores 10 points who wins and game is nished.
• Press "PLAY" to restart this game.

www.SereneLifeHome.com14
4. Horse
• Press "PLAY" to enter game.
• Press "UP/Down" to select multiple players (P2/P3/P4)
• Press "PLAY" after the number of player is selected
• Player has to make a shot in 2 seconds.
• First player is allowed to shoot at any hoop (Home or VISITOR). If rst player
scores in 2 seconds, no letter is given. Game continues for next player.
Scoreboard will display "next player (P2P3/P4)" and LED will ash twice in a
second. After ash, next player has to duplicate the shot in the same hoop
selected by rst player.
• If player can't score in 2 seconds, player receives the rst letter "H" which will
display on scoreaboard. Game remains for the same player untill the player
scores. If player keeps missing, player receives "O" followed by "R", "S", "E". The
letter "E" is given, the player is out.
• The rst player to spell "horse" loses. Players stay in repeat step d.e.f. till game is
nished
• The last player to spell "horse" wins
• Press "PLAY" to restart this game
5. Check Point
• Press "PLAY" to enter game 5.
• Press "UP/Down" to select single/multiple players (P1/P2/P3/P4).
• Press "PLAY" to begin the game.
• "HOME" displays "player", "VISITOR" displays "24" points, pre-set 40 seconds
playing time.
• Points scored will display on scoreboard "HOME".
• Before time is out, once 24/52/68/86 points is scored, playing time increases
10/20/10/20 seconds respectively
• Countdown 5 seconds to next player's turn when one player nishes game.
• Player with more points scored wins ( LED will ash on player with higher score)
• Game is nished when a player scores 99 points
• Press "PLAY" to restart this game

www.SereneLifeHome.com 15
6. Around the World
• Use tape to mark the shooting lines.
• Press "PLAY" to enter game 6.
• Press "UP/Down" to select single/multiple players (P1/P2/P3/P4).
• Press "PLAY" after the number of player is selected.
• Scoreboard "HOME" displays Player 1/2/3/4, "VISITOR" displays scored points.
• Once score comes to 14 points or time comes to 99 seconds countdown 5
seconds to next player's turn when one player nishes game.
• Player who nishes the game rst wins (LED will ash on winner).
• Press "PLAY" to restart this game.
7. Left and Right shoot
• Press "PLAY" to enter game 7.
• Press "UP/Down" to select single/multiple players (P1/P2/P3/P4).
• Press "PLAY" after the number of player is selected.
• Press "UP/Down" to select playing time, 30/45/60 seconds.
• Press "PLAY" to begin the game.
• Scoreboard "HOME" displays Player, "VISITOR" displays points.
• Make a shot in "HOME" frame when LED is asing on "HOME", 2 points scored
display on "HOME".
• Make a shot in "VISITOR" frame when LED is asing on "VISITOR", 2 points
scored display on "VISITOR".
• Countdown 5 seconds to next player's turn when one player nishes game.
• Player with more points scored wins (LED will ash on player with higher score).
• Press "PLAY" to restart this game.
8. One to One
• Press "PLAY" to enter game 8.
• Press "UP/Down" to select playing time, 30/45/60 seconds.
• Press "PLAY" to begin the game.
• Shot made in "HOME" frame, 2 points scored for "HOME", all shots count 3
points in last 10 seconds.
• Shot made in "VISITOR" frame, 2 points scored for "VISITOR", all shots count 3
points in last 10 seconds.
• Player with more points scored wins when time is out.
• Press "PLAY" to restart this game.

Questions? Issues?
We are here to help!
Phone: [phone]
Email: suppor[email protected]
