1.0 General information
Every Model 231RS has been calibrated and tested before shipment to guarantee performance
of all pressure ranges.
The Model 231RS has eld selectable unidirectional and bidirectional pressure ranges,
congurable 0 to 5 VDC, 0 to 10 VDC , and 1 to 5 VDC output, true two-wire 4 to 20 mA
output, and auto-zero capability. Each unit is factory calibrated to the highest pressure range.
The range label on the side of the unit indicates the factory calibrated range. Reminder: Your
application’s highest line pressure should be less than or equal to the highest pressure
range of the 231RS range code you selected when you purchased the 231RS. See Range
Codes in table below. (Range codes also listed on inside of housing cover).
Model 231RS pressure transducers sense differential pressure and convert this difference
in pressure to a proportional high level analog output for unidirectional and bidirectional
pressure ranges.

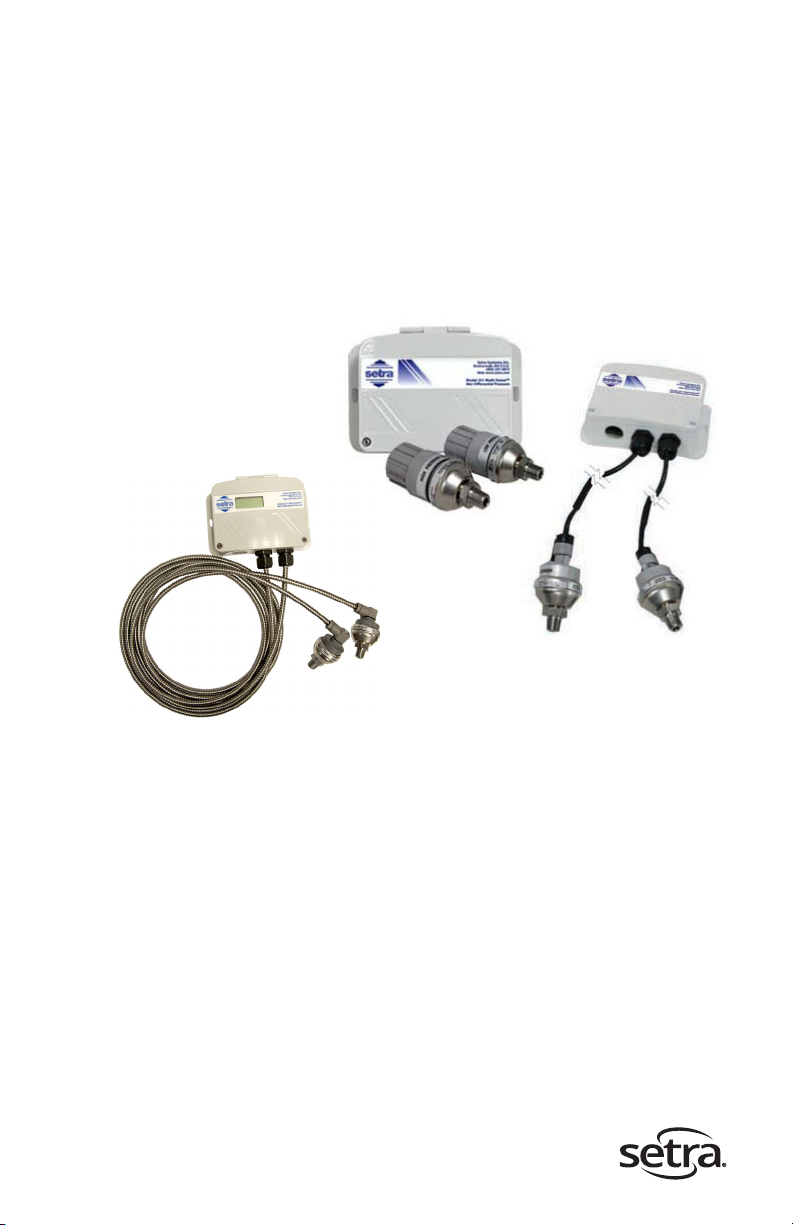

Your Model 231RS Multi-Sense pressure transducer has been ordered in one of the following
versions:
231RS w/ Conduit
231RS w/ Cable
231RS w/ Armored Cable
is shipping with the following:
Version Unidirectional Bidirectional
RS1 5, 10, 25, 50, psid ±5, ±10, ±20, ±50, psid
RS2 7.5, 15, 37.5, 75 psid ±7.5, ±15, ±37.5, ±75 psid
RS3 10, 20, 50, 100 psid ±10, ±20, ±50, ±100 psid
RS4 15, 30, 75, 150 psid ±15, ±30, ±75, ±150 psid
RS5 25, 50, 125, 250 psid ±25, ±50, ±125, ±250 psid
Conduit Version
(231GRSX3MX)
Cable Version
(231GRSX4MXXX)
Armored Cable Version
(231GRSXAJXXX)
Item Qty. Item Qty. Item Qty.
Housing 1 Housing 1 Housing 1
Pressure transducers 2 Pressure Transducers 2 Pressure Transducers 2
User Manual 1 Cable Assemblies 2Cable Assemblies 2
User Manual 1 User Manual 1

4
2.0 Mechanical installation
2.1 Media compatibility
Model 231RS transducers are designed to be used with any gas or liquid compatible
with 17-4 PH stainless steel. Never totally submerge the unit in any liquid.
2.2 Environment
The operating temperature limits of the Model 231RS are as follows:
Compensated temperature range °F(°C) ±30 to +130 (0 to +54)
Operating temperature range °F(°C) -4 to +185 (-20 to +85)
Storage temperature range °F(°C) -4 to +185 (-20 to +85)
2.3 Pressure tting
Typically standard pipe ttings and installation procedures should be used.
Model 231RS have 1/4” -18” NPT male ttings. The high pressure port and low pressure
connections are located on the bottom of the unit, labeled “HI(+)” and “LO(-)” respectively.
Important:
Each remote sensor is labeled “HIGH PRESSURE SENSOR” or “LOW PRESSURE SENSOR”.
Match up the high pressure sensor to the high pressure electrical terminals, and the low
pressure sensor to the low pressure electrical terminals. Otherwise, the performance may not
meet the product linearity specications.
Moisture precautions:
The Model 231RS is provided with a 0.875” DIA. conduit opening for electrical termination,
intended for a 1/2” I.D. conduit connection. This opening must be sealed according to standard
industry practices in order to prevent moisture ingress into the Model 231RS.
2.4 Mounting
The Model 231RS can be easily mounted using the two mounting screws located on the side
of the unit.
2.5 Installation procedures
For differential pressure measurements at high line pressure, it is recommended that the
pressure sensor be installed with a valve in each line, plus a shunt valve across the high and
low (reference) pressure ports as shown.
Important:
Do not exceed maximum range pressure with the total of differential pressure and line
pressure.

5
Valve A1
High
Low Pressure
Remote Sensor
High Pressure
Remote Sensor
Valve B1
Low
Model 231RS
Valve A = High side valve
Valve B = Low side valve
1Valves not included. PipePipe
Figure 1
Model 231RS (Conduit version, P/N: 231GRSX3MXXX) - Outline drawing
Figure 2
1.98
(50.3)
4.0
(10.2)
5.56
(141.2)
6.0
(152.4)
2.0
(50.8)
R 0.1
(2.5)
0.35
(8)
Front view
Side view
(21.95)
2x
5.16
(131.1)
1.56
(39.6)
1.220
(30.99)
1.240
0.95
(31.50)
(24.1)
1/2” Conduit
Opening
Bottom view
0.864

6

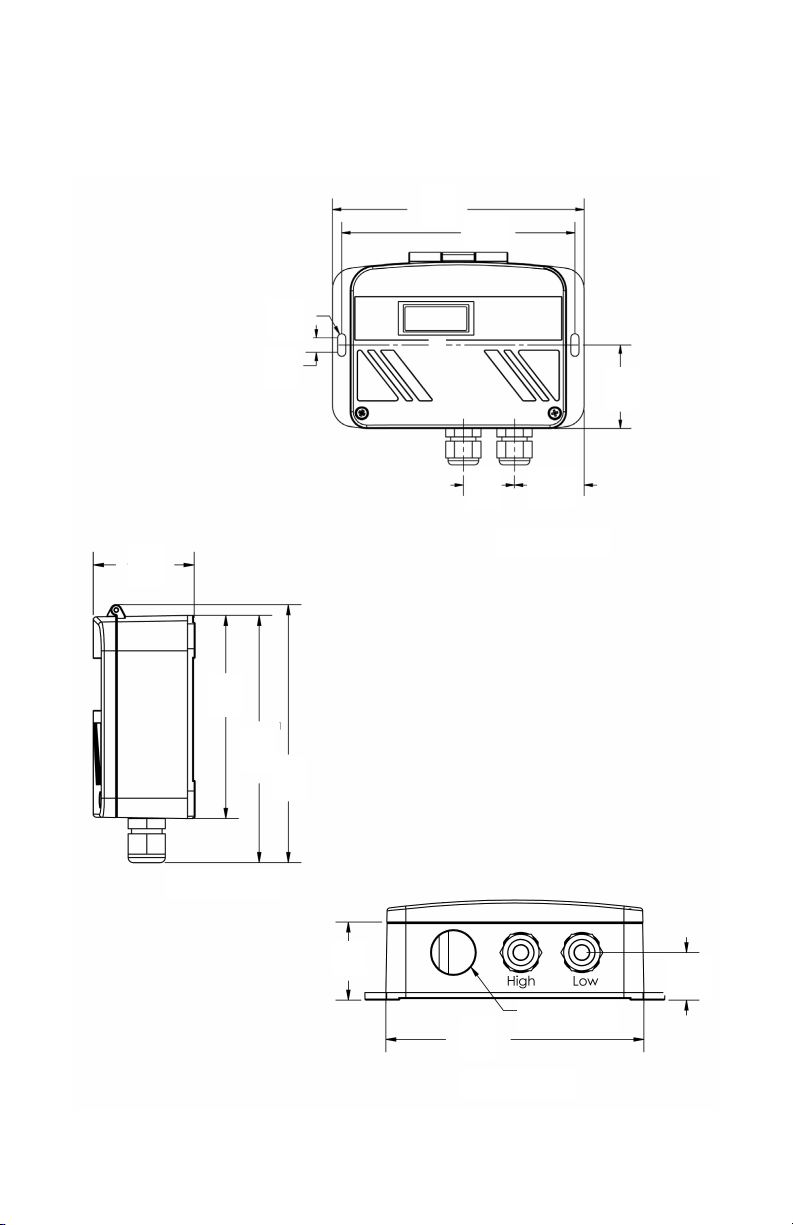

Model 231RS (Cable version, P/N: 231GRSX4MXXX)
Model 231RS (Armored Cable Version, P/N: 231GRSXAJXXX)
Outline Drawing
Figure 3
2.0
(50.8)
1.22
(31)
1.66
(42.2)
6.0
(152.4) 5.56
(141.2)
0.35
(8.8)
R 0.1
(2.5)
1.98
(50.3)
4.0
(10.2)
4.87
5.08
(129)
1.56
(39.6)
5.16
(131.1)
1/2” Conduit
Opening
0.95
(24.1)
(123.6)
Front view
Side view
Bottom view

7
3.0 Electrical installation
To access the electrical connections, turn the screws on the top of the case counter clockwise
until the hinged cover can be flipped up. The screws are captured and secured in the cover.
Wiring is through the 1/2” conduit openings and PG ttings in the case of remote sensors with
cable option. Both current and voltage outputs are reverse wiring protected.
Note: The Zero terminals, connected to digital output, provide a contact closure relay for
automatic reset to zero pressure by the monitoring system. CAUTION: ZERO input is for dry
contact, do no apply voltage to ZERO Terminals
3.1 Electrical termination
Wiring: 2-Wire - 4 to 20 mA (Current Output) and Remote Zero
Model 231RS when congured as a current output transducer is a true 2-wire, 4-20 mA
current output device and delivers rated current into any external load of 0-250 ohms.
When congured as a 4-20 mA current output device the current flow is in one direction only.
PLEASE OBSERVE POLARITY. WARNING: Damage may result on the unit if AC power is
applied when the output switch is congured in position “A” (4-20).
We suggest that an electrical cable shield be connected to the system’s loop circuit ground to
improve electrical noise isolation.
Min. Supply Voltage: 15 + .02 x (Resistance of receiver plus line)
Max. Supply Voltage: 30 + .004 x (Resistance of receiver plus line)
The optional remote zero is a normally open relay wired between COM and REMOTE ZERO
terminals. In order to initiate ZERO function the relay contact should be closed and sensor
must be vented to atmosphere.

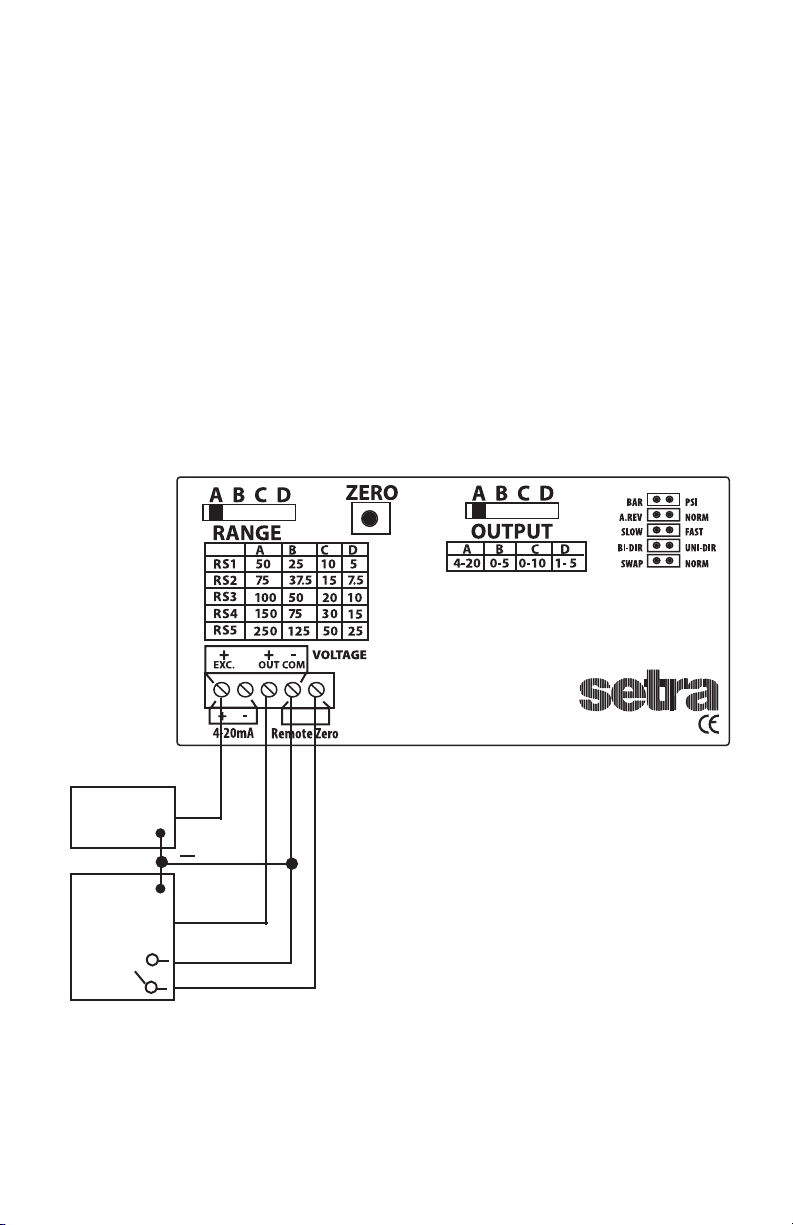

Figure 4

8
3.2 Electrical termination
Wiring: 3-Wire, 0 to 5, 0 to 10, 1-5 VDC and Remote Zero
Model 231RS when congured for voltage output is a 3-wire circuit device with three terminals
available for wiring. The -Excitation and -Output are commoned on the circuit.
Model 231RS can operate from 15-30 VDC (18-30 VAC) nominal output power supply.
Note: The Zero terminals, connected to digital output, provide a contact closure relay for
automatic reset to zero pressure by the monitoring system.
CAUTION: ZERO input is for dry contact, do no apply voltage to ZERO Terminals
The optional remote zero is a normally open relay wired between COM and REMOTE ZERO
terminals. In order to initiate ZERO function the relay contact should be closed.
DC/AC
Power Supply
Controller
Voltage
+
+
Relay
Figure 5

9
3.3 Remote sensors installation
Conduit Version (P/N: 231GRSX3MX)
For conduit version remote sensors, use the following instructions:
1. Install the remote sensors into the system plumbing (use 3/4” hex to tighten”)
Important:
Each remote sensor is labeled “HIGH PRESSURE SENSOR” or “LOW PRESSURE
SENSOR”, respectively. Match up the high pressure sensor to the high “HI (+)” pressure
electrical terminals, and the low “LO (-)” pressure sensor to the low pressure electrical
terminals. Otherwise, the performance may not meet the product linearity specications.
2. Install a 1/2” conduit tting into the remote sensor top cover and fasten the retaining nut.
3. Feed wires from a flexible conduit through the remote sensor top, cover fasten the wires
to terminals.
4. Screw on the top cover.
5. Fit conduit into conduit tting, and tighten conduit watertight strain relief.
To connect the wires from the remote sensor to the unit, remove the terminal blocks from the
circuit board and use the following chart:
Installation of the Model 231RS is now complete.

10

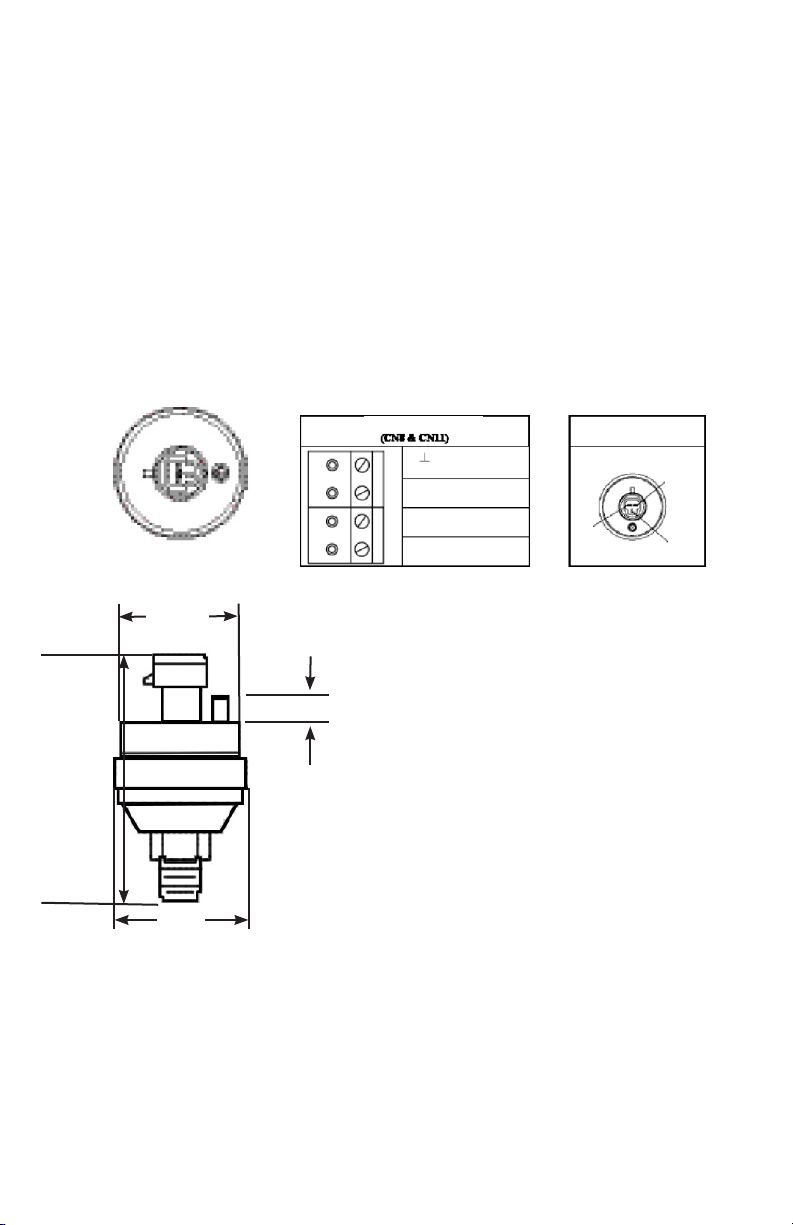

Chart 1. Electrical wiring chart
for High & Low Pressure Sensors
(Conduit version)
CAUTION:
Reverse excitation will permanently
damage unit. Please follow wiring
instructions carefully.
Figure 6
Dimensional Drawing
1.40
(35.48)
3.61
(91.74)
3/4” HEX
1/4” NPT
1.62
(41.22)
1.68
(42.57)
in.
(mm)
1/2 inch
conduit
opening
Conduit adapter
Terminal block
(GND)
(+OUT)
(COM)
(+EXC)
4
3
2
1

11
IN
(MM)
3.00
(76.0)
1.46
(37.1)
0.325
(8.3)
1.62
(41.2)
Chart 2. Electrical wiring color chart for
High & Low Pressure sensors (Cable
version)

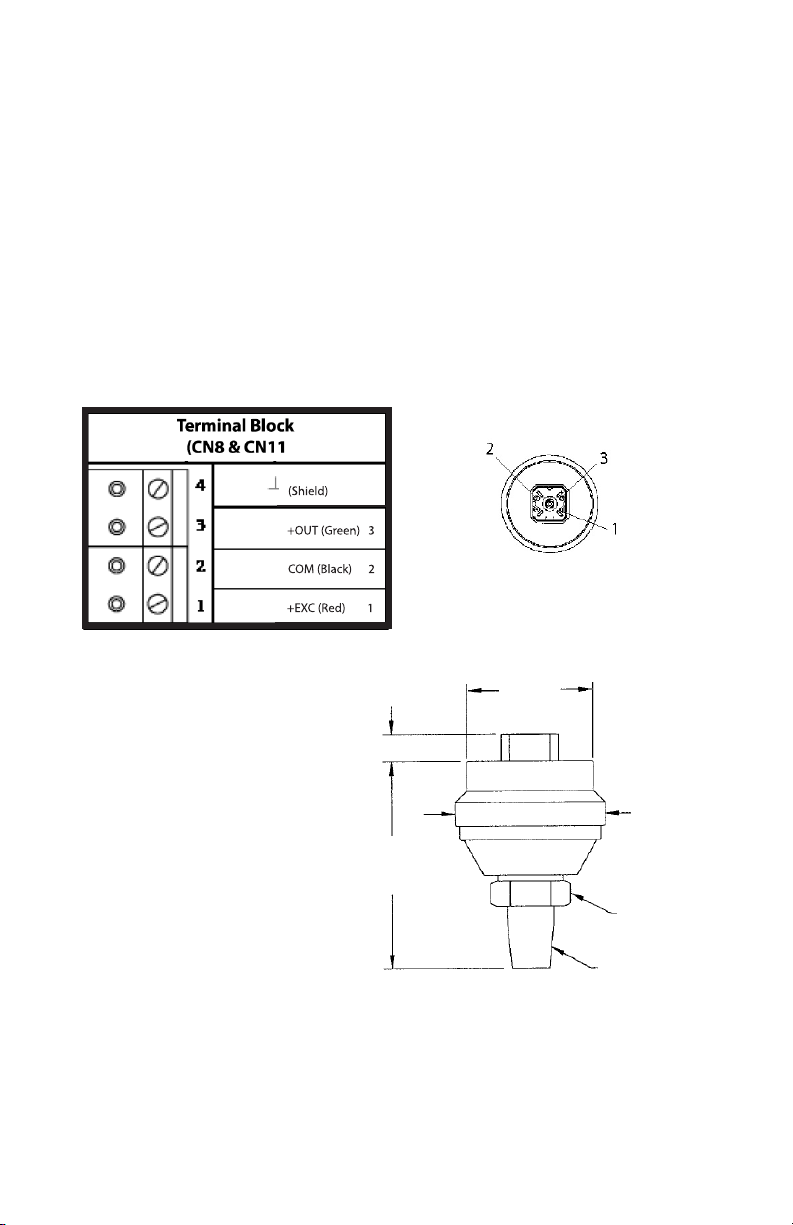

3.3 Remote sensors installation
Cable Version (P/N: 231GRSX4MXXXX)
For cable version remote sensors, use the following instructions:
1. Install the remote sensors into the system plumbing (use 3/4” hex to tighten”)
Important:
Each remote sensor is labeled “HIGH PRESSURE SENSOR” or “LOW PRESSURE
SENSOR”, respectively. Match up the high pressure sensor to the high “HI (+)” pressure
electrical terminals, and the low “LO (-)” pressure sensor to the low pressure electrical
terminals. Otherwise, the performance may not meet the product linearity specications.
2. Attach the cable provided to the 3-Pin Packard connector on the remote sensor.
3. Feed the cable through the PG tting on the bottom of the unit and tighten the tting.
4. Remove the terminal blocks from the circuit board and use the following chart:
Important: Prior to putting the unit into service, complete conguration setup in Section 4.
After conguration is complete, press the “Zero” button.”
Terminal block
4
3
2
1
+OUT (White)
COM (Black)
+EXC (Red)
(Shield)
C
A
B
A
B
C
3-Pin Packard
Connector

12
OPTIONAL HIRSCHMANN CONNECTOR
Type: G4A1M #931807-106
Top View: Hirschmann Connector
Type: G4A1M#931807-106
Chart 3. Electrical wiring color chart
for High & Low Pressure sensors
(Armored Cable version)
3.3 Remote Sensors Installation
Armored Cable Version (P/N: 231GRSXAJXXXX)
For Armored Cable version remote sensors, use the following instructions:
1. Install the remote sensors into the system plumbing (use 3/4” hex to tighten”)
Important:
Each remote sensor is labeled “HIGH PRESSURE SENSOR” or “LOW PRESSURE
SENSOR”, respectively. Match up the high pressure sensor to the high “HI (+)” pressure
electrical terminals, and the low “LO (-)” pressure sensor to the low pressure electrical
terminals. Otherwise, the performance may not meet the product linearity specications.
2. Attach the cable provided to the 3-Pin Packard connector on the remote sensor.
3. Feed the cable through the PG tting on the bottom of the unit and tighten the tting.
4. Remove the terminal blocks from the circuit board and use the following chart:
Important: Prior to putting the unit into service, complete conguration setup in Section 4.
After conguration is complete, press the “Zero” button.”
ø1.62
(ø41.2)
3/4” HEX
1/8” NPT
ø1.38
(ø35.1)
0.29
(7.4)
2.24
(56.9)

13
4.0 CONFIGURATION
Range selection switch: The unit is set to the highest range when calibrated at the factory.
To select the other ranges, slide the switch to the right. Important: Push “zero” button after
installing the Model 231RS, and after changing range.
Auto zero button: Press and hold the “ZERO” push-button for 2 seconds to automatically
reset zero or provide contact closure on “Remote Zero, see gure 4 and gure 5. Sensors
must be vented to atmosphere.
Electrical output: The unit is set at the factory to 4-20 mA. To select another output, move
the slide switch to the right. Push the “Zero” button after changing the electrical output mode.
Sensors must be vented to atmosphere.
Electrical connections: Electrical termination for power supply, 3-wire voltage output and
2-wire true 4-20 mA current output, and remote zero wiring.
BAR/PSI: Jumper selectable engineering units in Bar ranges or PSI.
A. REV/NORM:
A.REV: Analog Reverse: When in reverse mode, the output increases when the differential
pressure decreases and decreases as pressure increases.
NORM: When in Normal mode output increases as pressure increases and decreases as
pressure decreases.
SLOW/FAST: When Slow mode is selected, 5-second averaging is provided for surge damping.
SWAP/NORM: Jumper selectable Port Swap feature eliminates costly re-plumbing when
incorrectly installed or replaced. Go from NORMAL to SWAP and the jumper makes the “HI”
Port “LO” and the “LO” port “HI.
High pressure electrical terminals (HI): High pressure sensor termination.
Low pressure electrical terminals (LO): Low pressure sensor termination.

14
5.0 Returning products for repair
Please contact a Setra application engineer (800-257-3872, 978-263-1400) before returning
unit for repair to review information relative to your application. Many times only minor eld
adjustments may be necessary. When returning a product to Setra, the material should be
carefully packaged and shipped prepaid to:
Setra Systems, Inc.
159 Swanson Road
Boxborough, MA 01719-1304
Attn: Repair Department
To ensure prompt handling, please supply the following information and include it inside the
package or returned material:
• Name and phone number of person to contact.
• Shipping and billing instructions.
• Full description of the malfunctions.
• Identify any hazardous material used with the product.
NOTES:
Please remove any pressure ttings and plumbing that you have installed and enclose any
required mating electrical connectors and wiring diagrams.
Allow approximately 3 weeks after receipt at Setra for the repair and return of the unit. Non-
warranty repairs will not be made without customer approval and a purchase order to cover
repair chargers.
Calibration Services
Setra maintains a complete calibrations facility that is traceable to the National Institute
of Standards and Technology (NIST). If you would like to recalibrate or recertify your Setra
pressure transducers or transmitters, please call our Repair Department at 800-257-3872
(978-263-1400) for scheduling.

15
6.0 Limited warranty & limitation of repair
SETRA warrants its products to be free from defects in materials and workmanship, subject
to the following terms and conditions: Without charge, SETRA will repair or replace products
found to be defective in materials or workmanship within the warranty period; provided that:
a) the product has not been subjected to abuse, neglect, accident, incorrect wiring not
our own, improper installation or servicing , or use in violation of instructions furnished
by SETRA;
b) the product has not been repaired or altered by anyone except SETRA or its
authorized service agencies;
c) the serial number or date code has not been removed, defaced, or otherwise
changed; and
d) examination discloses, in the judgment of SETRA, the defect in materials or
workmanship developed under normal installation, use and service;
e) SETRA is notied in advance of and the product is returned to SETRA transportation
prepaid.
Unless otherwise specied in a manual or warranty card, or agreed to in a writing signed by
a SETRA ofcer, SETRA pressure and acceleration products shall be warranted for one year
from date of sale.
The foregoing warranty is in lieu of all warranties, express, implied or statutory, including but
not limited to, any implied warranty of merchantability for a particular purpose.
SETRA’s liability for breach of warranty is limited to repair or replacement, or if the goods
cannot be repaired or replaced, to a refund of the purchase price.
SETRA’s liability for all other breaches is limited to a refund of the purchase price. In no
instance shall SETRA be liable for incidental or consequential damages arising from a
breach of warranty, or from the use or installation of its products.
No representative or person is authorized to give any warranty other than as set out above or
to assume for SETRA any other liability in connection with the sale of its products.
For all CE technical questions, contact Setra Systems, USA. EU customers may contact our
EU representative Hengstler GmbH, Uhlandstr 49, 78554 Aldingen, Germany (Tel: +49-7424-
890; Fax: [phone]).

Setra Systems, Inc.
159 Swanson Road, Boxborough, MA 01719
800.257.3872 • www.setra.com
SS231RS REV. E 07/2019
