ASSEMBLY INSTRUCTIONS

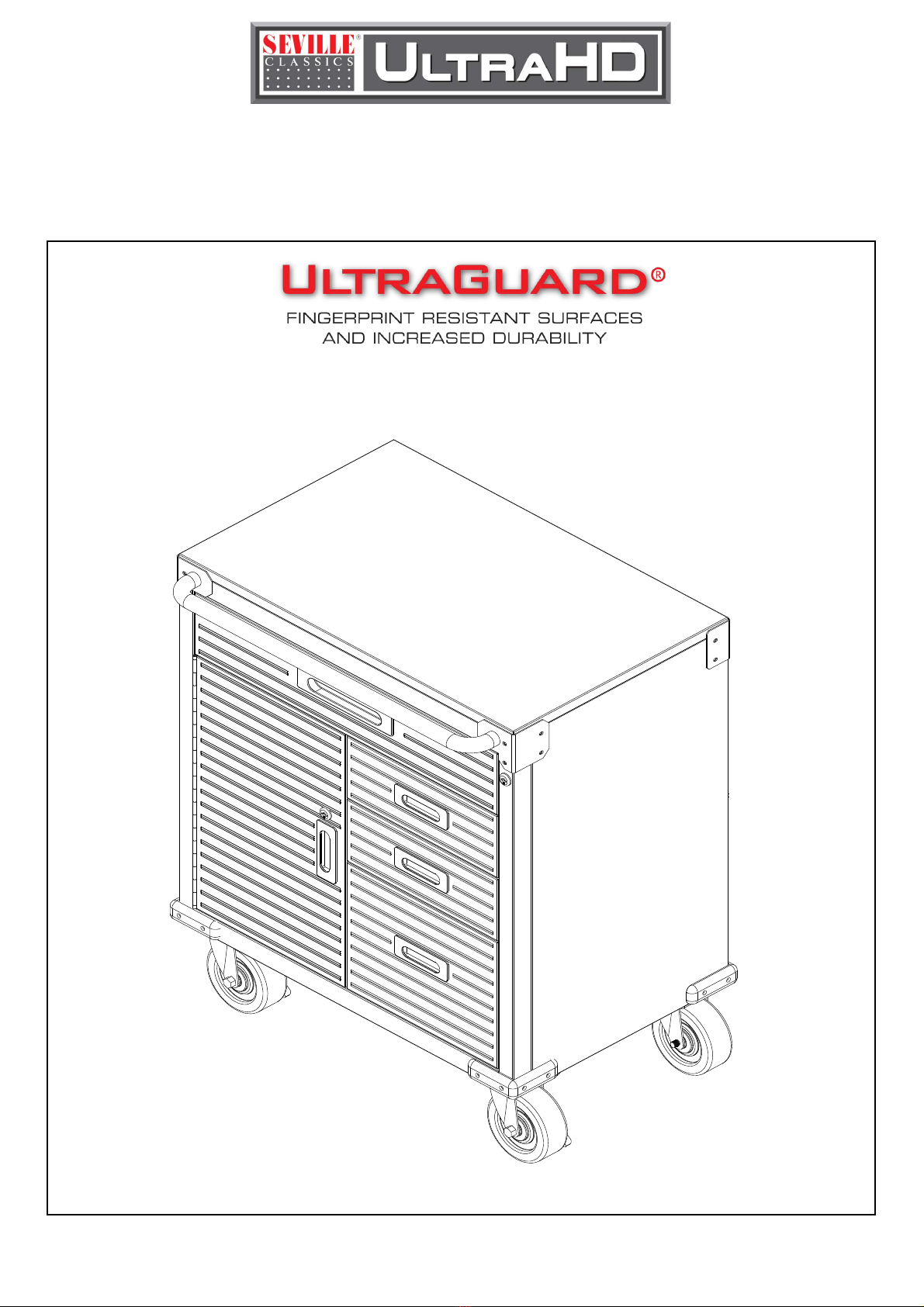

UltraHD®Stainless-Steel Rolling Cabinet (Model No. 20210)
28 in. W x 18 in. D x 34.5 in. H
(71.1 cm x 45.7 cm x 87.6 cm)
Reference page 17for special care
and maintenance of stainless steel
SC200310

1 2

3
Small Drawer
Medium Drawer
Large Drawer

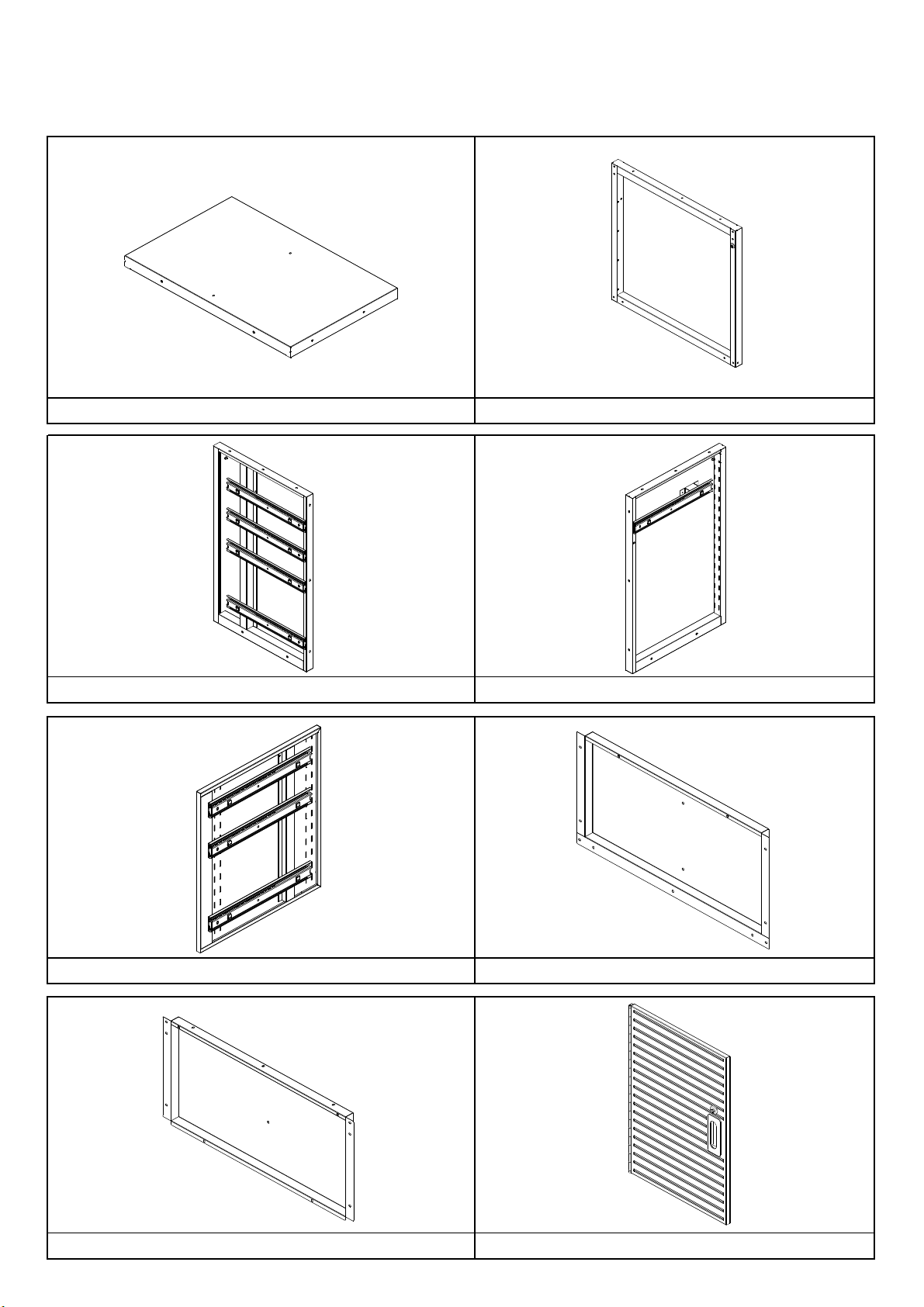

PARTS LIST
Please check the parts carefully according to the parts list. If you are missing any parts, please contact our
customer service department (please see page 17.)
(#4) LEFT PANEL x 1 PC
(#3) RIGHT PANEL x 1 PC
(#7) UPPER BACK PANEL x 1 PC
(#8) DOOR x 1 PC
(#5) MIDDLE PANEL x 1 PC
(#6) BOTTOM BACK PANEL x 1 PC
(#1) BOTTOM PANEL x 1 PC
(#2) FRONT FRAME x 1 PC
4

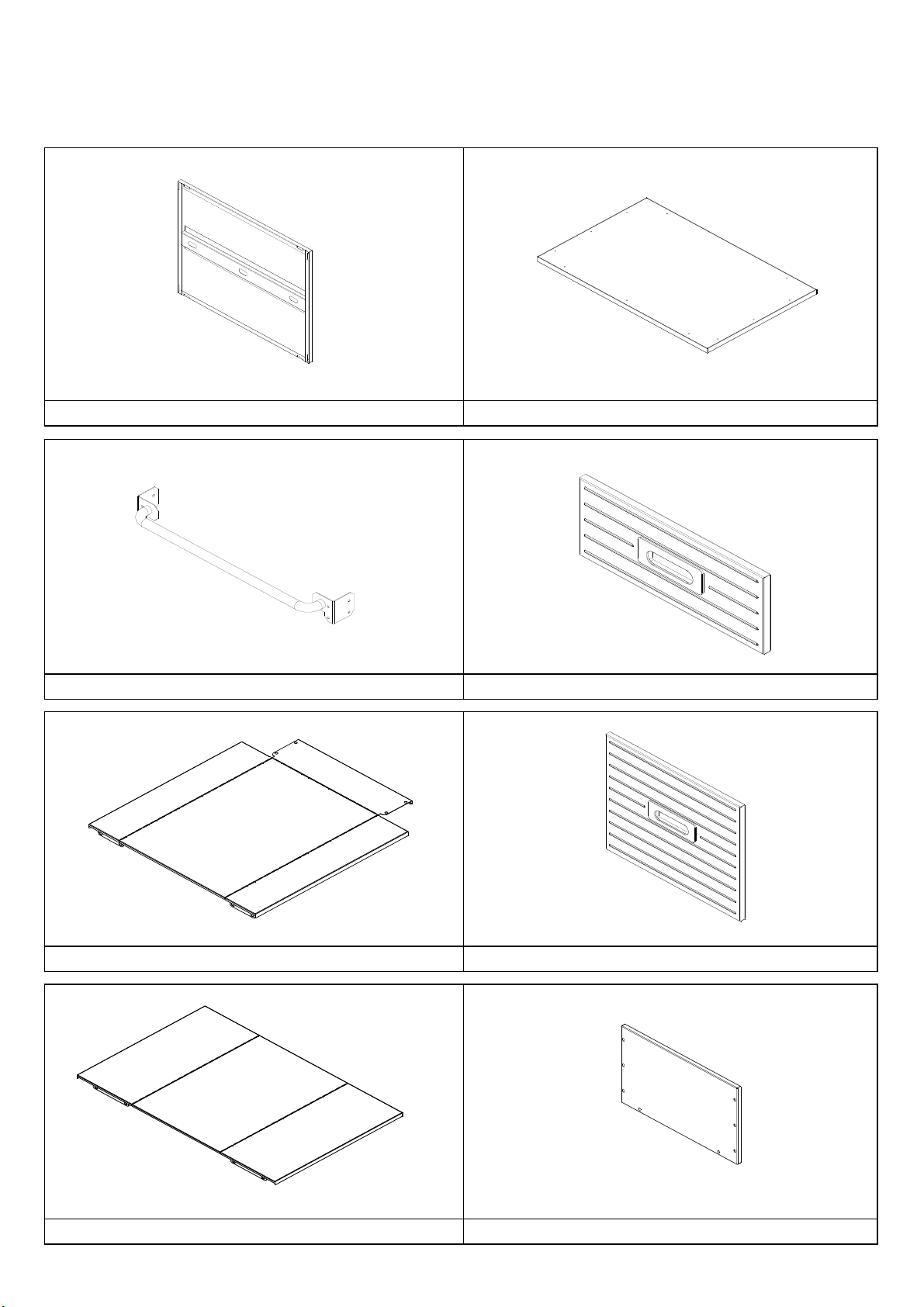

(#9) MIDDLE SHELF x 1 PC
(#10) STAINLESS STEEL TOP x 1 PC
(#12-1) SMALL DRAWER FRONT PANEL x 2 PCS
(#11) PUSH BAR x 1 PC
(#13-2) MEDIUM DRAWER CASE x 1 PCS
(#13-4) MEDIUM DRAWER BACK PANEL x 1 PCS
(#12-2) SMALL DRAWER CASE x 2 PCS
(#13-1) MEDIUM DRAWER FRONT PANEL x 1 PCS
5
PARTS LIST
Please check the parts carefully according to the parts list. If you are missing any parts, please contact our
customer service department (please see page 17.)

(#16-3) LARGE DRAWER RIGHT PANEL x 1 PC
(#16-1) LARGE DRAWER FRONT PANEL x 1 PC
(#16-2) LARGE DRAWER LEFT PANEL x 1 PC
(#16-4) LARGE DRAWER BOTTOM PANEL x 1PC
(#15) SWIVEL WHEEL W/O BRAKE x 2 PCS
(#17) BUMPER x 4 PCS
(#16-5) LARGE DRAWER BACK PANEL x 1 PCS
(#14) SWIVEL WHEEL WITH BRAKE x 2 PCS
6
PARTS LIST
Please check the parts carefully according to the parts list. If you are missing any parts, please contact our
customer service department (please see page 17.)

(#18) RIGHT BACK CORNER PROTECTOR x 1 PC
(#19) LEFT BACK CORNER PROTECTOR x 1 PC
(#24) SCREWDRIVER x 1PC
(#25) SCREW D (M8 x 18) x 16 PCS
(#20) SCREW A (M4 x 8) x 59 PCS
(#21) SCREW B (M4 x 8) x 74 PCS
(#22) DOOR / DRAWER KEY x 2 STRINGS
(#23) HOOK x 4 PCS
7
PARTS LIST
Please check the parts carefully according to the parts list. If you are missing any parts, please contact our
customer service department (please see page 17.)

(#26) SCREW C (M4 x 18) x 16 PCS
(#27) Middle Crossbar x 1 PC
(#28) LARGE DRAWER MAT x 1 PC
(#29) SMALL DRAWER MAT x 3 PCS
8
PARTS LIST
Please check the parts carefully according to the parts list. If you are missing any parts, please contact our
customer service department (please see page 17.)

TIP:
Step 1.
Step 3.
A magnetic screwdriver is included for your
convenience. If a power screwdriver is used, keep
torque setting on LOW.
Open the package. Remove and place all parts to
the side. Then open the package of the Stainless
Steel Top (#10).
The Stainless Steel Top is packed within an inner
cardboard box. Assemble on top of the cardboard
to help avoid scratching the stainless steel top
Install Front Frame (#2)
Locate the Front Frame (#2) and attach to the
"Front" of the Stainless Steel Top (#10) using Screw
Driver (#24) and Screw A (#20).
The screw holes have some tolerance so make sure
that the top and sides of the Front Frame are
flushed with the Stainless Steel Top – this may save
time by avoiding having to make slight
adjustments later.
Install the Left Panel (#4)
Attach the Left Panel (#4) to Front Frame (#2) and
Stainless Steel Top (#10). Make sure the “Top” of
the Left Panel (#4) is on the Stainless Steel Top (#10)
and the screw holes are lined up to the Front Frame
(#2). Use Screw Driver (#24) and Screw A (#20) to
tighten the Left Panel (#4) to the Front Frame (#2)
and Stainless Steel Top (#10).
9
UltraHD® Stainless-Steel Rolling Cabinet (Model No. 20210)
*NOTE: We recommend using TWO people to assemble the cabinet.
NOTE:

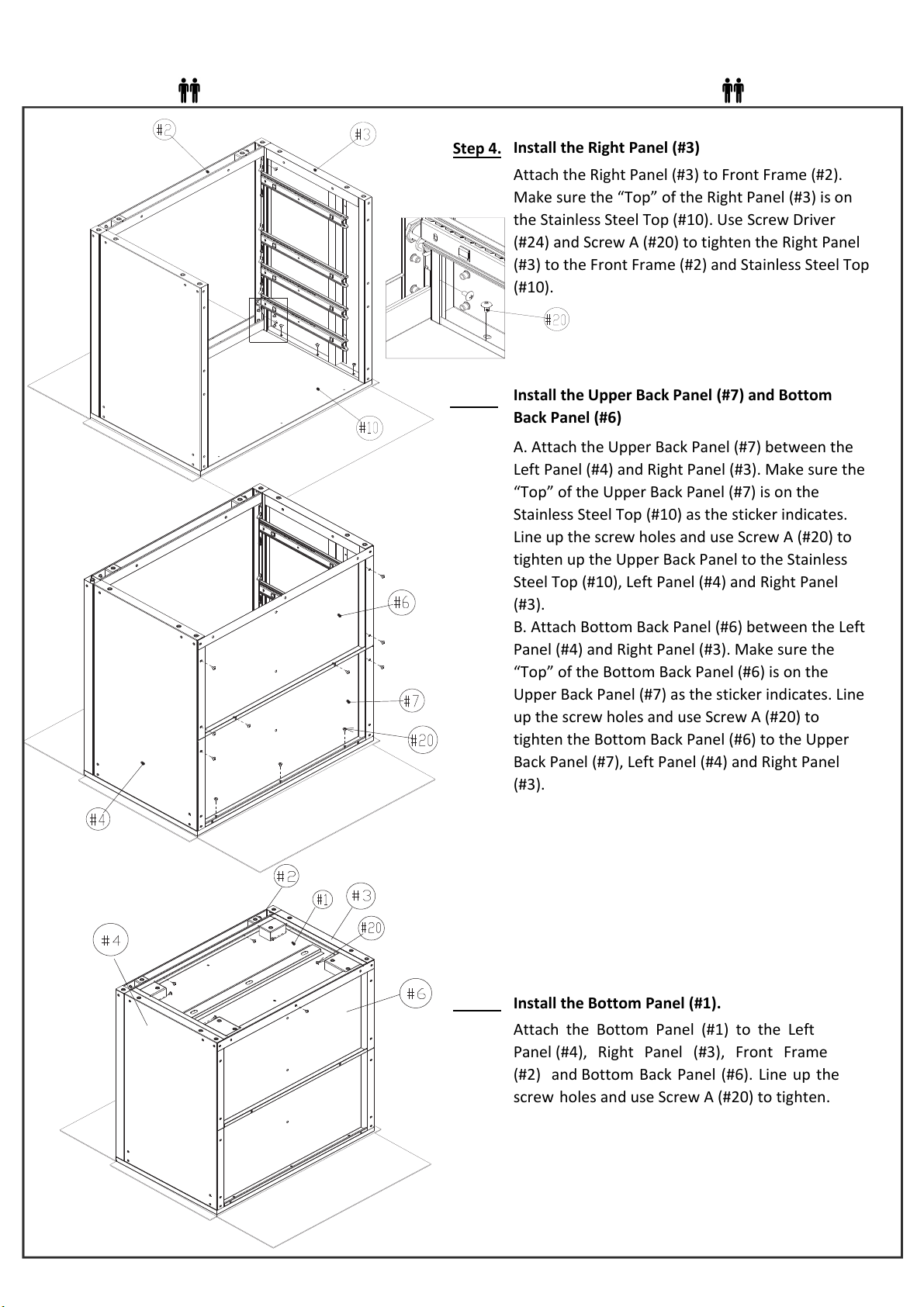

Step 2.
NOTE:

Step 4.
A. Attach the Upper Back Panel (#7) between the
Left Panel (#4) and Right Panel (#3). Make sure the
“Top” of the Upper Back Panel (#7) is on the
Stainless Steel Top (#10) as the sticker indicates.
Line up the screw holes and use Screw A (#20) to
tighten up the Upper Back Panel to the Stainless
Steel Top (#10), Left Panel (#4) and Right Panel
(#3).
B. Attach Bottom Back Panel (#6) between the Left
Panel (#4) and Right Panel (#3). Make sure the
“Top” of the Bottom Back Panel (#6) is on the
Upper Back Panel (#7) as the sticker indicates. Line
up the screw holes and use Screw A (#20) to
tighten the Bottom Back Panel (#6) to the Upper
Back Panel (#7), Left Panel (#4) and Right Panel
(#3).
Install the Right Panel (#3)
Attach the Right Panel (#3) to Front Frame (#2).
Make sure the “Top” of the Right Panel (#3) is on
the Stainless Steel Top (#10). Use Screw Driver
(#24) and Screw A (#20) to tighten the Right Panel
(#3) to the Front Frame (#2) and Stainless Steel Top
(#10).
Install the Upper Back Panel (#7) and Bottom
Back Panel (#6)
Install the Bottom Panel (#1).
Attach the Bottom Panel (#1) to the Left
Panel (#4), Right Panel (#3), Front Frame
(#2) and Bottom Back Panel (#6). Line up the
screw holes and use Screw A (#20) to tighten.
10
UltraHD® Stainless-Steel Rolling Cabinet (Model No. 20210)
*NOTE: We recommend using TWO people to assemble the cabinet.

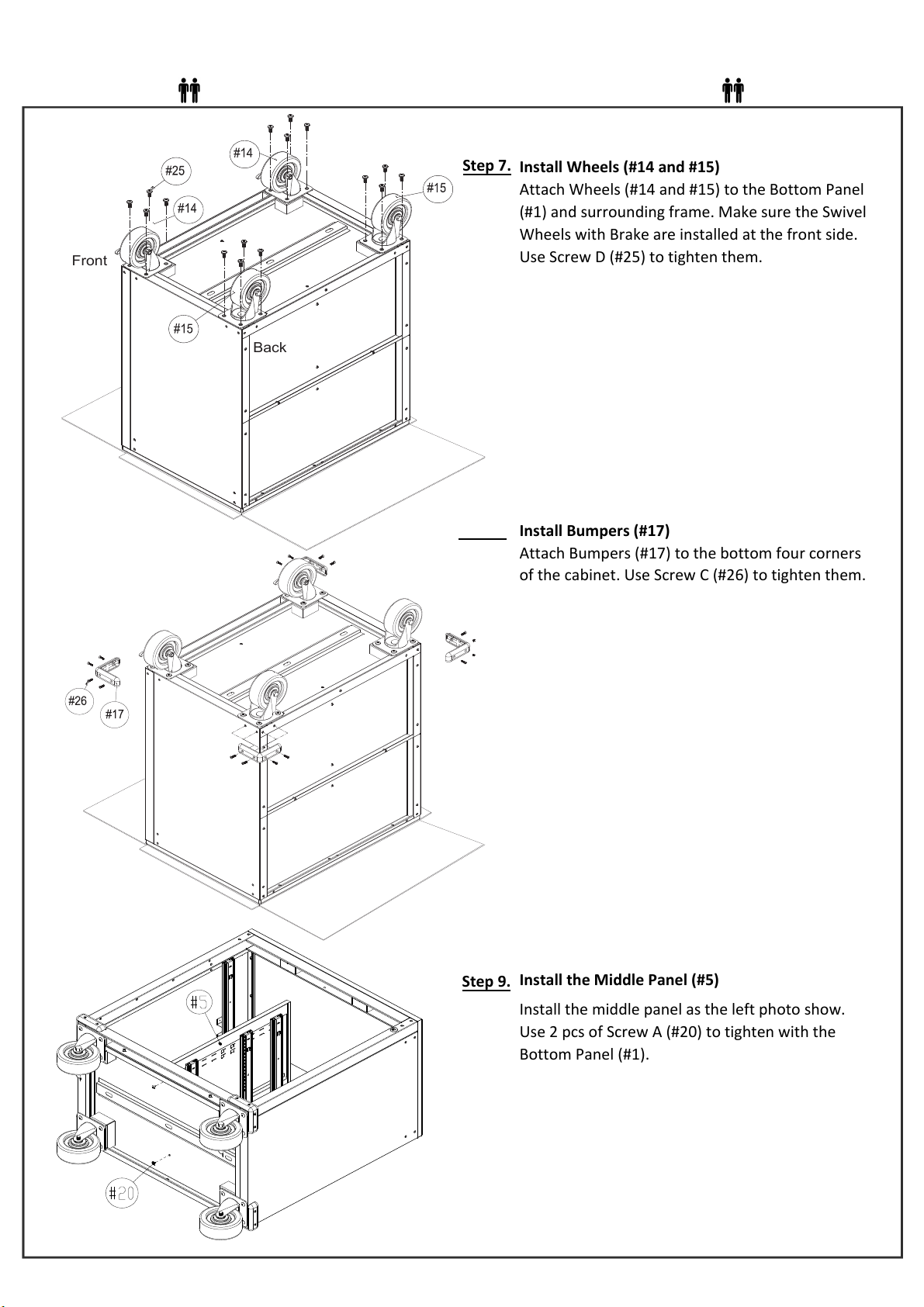

Step 5.
Step 6.

Step 7.
Step 9.
Install the middle panel as the left photo show.
Use 2 pcs of Screw A (#20) to tighten with the
Bottom Panel (#1).
Install the Middle Panel (#5)
Install Bumpers (#17)
Attach Bumpers (#17) to the bottom four corners
of the cabinet. Use Screw C (#26) to tighten them.
Install Wheels (#14 and #15)
Attach Wheels (#14 and #15) to the Bottom Panel
(#1) and surrounding frame. Make sure the Swivel
Wheels with Brake are installed at the front side.
Use Screw D (#25) to tighten them.
11
Front
Back
UltraHD® Stainless-Steel Rolling Cabinet (Model No. 20210)
*NOTE: We recommend using TWO people to assemble the cabinet.
Step 8.

Step 10.
Note:
Step 11.
Install Middle Crossbar (#27)
Install the Middle Crossbar (#27) with the Left
Panel (#4) and Middle Panel (#5) as the left
photo shows. Use Screw A (#20) to tighten.
Make sure the inner side of the Middle Crossbar is
facing upward.
Attach the Push Bar (#11) and Back Corner
Protection (#18 and #19)
Attach the Push Bar (#11) to the front side of
the cabinet. Use 8 pcs of Screw A (#20) to
tighten. Then attach the Right Back Corner
Protection (#18) to the right side of the
cabinet and Left Back Corner Protection (#19)
to the left side of the cabinet. Use 10 pcs of
Screw A (#20) to tighten them.
12
Lift the Storage Cabinet upright, fix the Middle Panel (#5) with the Upper
and Bottom Back Panel (#6 & #7) using 3 pcs of Screw A (#20) to tighten.
UltraHD® Stainless-Steel Rolling Cabinet (Model No. 20210)
*NOTE: We recommend using TWO people to assemble the cabinet.

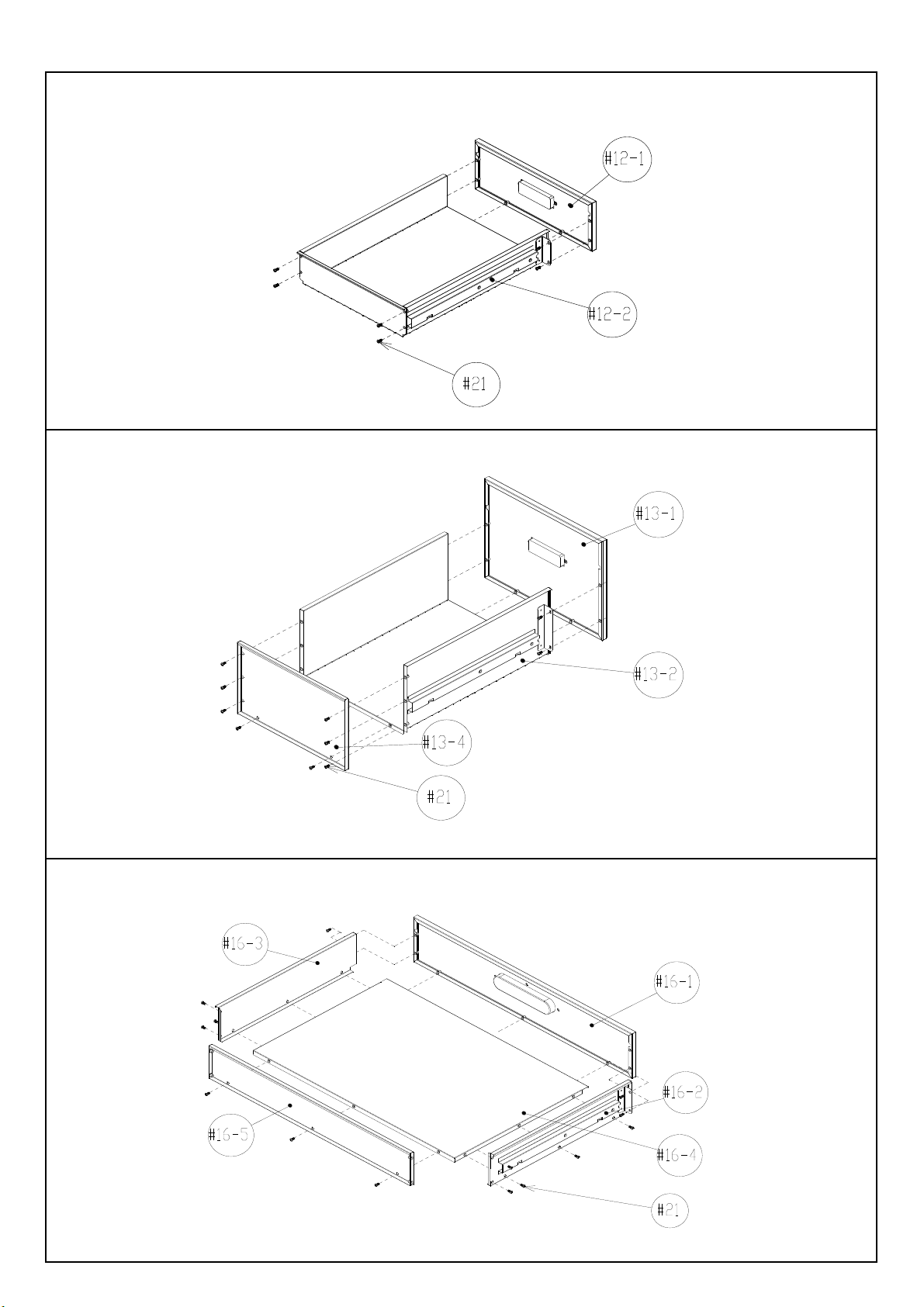

Step 12:
Step 14: Install Large Drawer Back Panel (#16-5).
Attach the Large Drawer Back Panel (#16-5) to the
rest of the assembled drawer. Use Screw B (#21)
to tighten.
Install Large Drawer Base Panel (#16-4)
Fit and attach Large Drawer Base Panel (#16-4) into
the back slot of stainless steel Drawer Front
(#16-1), use Screw B (#21) to tighten.
Install Large Drawer Side Panel (#16-2 & #16-3)
Attach Large Drawer Side Panels (#16-2 and #16-3)
to the back of Drawer Front (#12-1). Make sure the
Drawer Side Panels (#12-2 and #12-3) are placed
all the way into the slot, making contact with the
inner wall of the front panel. Line up the screw
holes and use Screw B (#21) to tighten them.
13
UltraHD® Stainless-Steel Rolling Cabinet (Model No. 20210)
*NOTE: We recommend using TWO people to assemble the cabinet.
Step 13:

Step 15.
Step 16.
Install Small Drawer (#12)
Fold up all three panels of the Small Drawer
Case (#12-2), slide the Left and Right Drawer
Panel into Small Drawer Front panel (#12-1) use
Screw B (#21) to tighten the drawer.
Repeat Step 15 to assemble 2nd small drawer.
Install Medium Drawer (#13)
Fold up all three panels of the Medium Dr awer
Case (#13-2), slide the Left and Right Dr awer
Panel into Medium Drawer Front panel (#13-1 )
use Screw B (#21) to tighten the drawer
Attach the Medium Drawer Back Panel (#13-4)
t o the folded drawer panel, use 8pcs Screw B
(#21 ) to tighten.
14
UltraHD® Stainless-Steel Rolling Cabinet (Model No. 20210)
*NOTE: We recommend using TWO people to assemble the cabinet.

Step 17: Place the Large Drawers (#16)
Pull out the sliders completely, then attach the large
drawer to the sliders. Make sure the square holes on the
drawer side panels are line up, and the drawer is hooked
onto the sliders completely.
Use 4 pcs Screw B (#21) to tighten the drawer,
and put the Drawer Mat (#28) into the drawer.
DO NOT tighten any screws completely until all the
drawers are adjusted well.
The oval hole at the front of the slider allows for the gaps
between the drawers to be adjusted.
Make the adjustments once all the drawers are installed
UltraHD® Stainless-Steel Rolling Cabinet (Model No. 20210)
*NOTE: We recommend using TWO people to assemble the cabinet.
15
Note:

Step 18.
Note: The Medium Drawer is at the bottom
Place the Small and Medium Drawers (#12) (#13)
Pull out the sliders completely, then attach the
drawer to the sliders. Make sure the square holes
on the drawer side panels are line up, and the
drawer is hooked onto the sliders completely.
Use 4 pcs Screw B (#21) to tighten the drawer,
and put the Drawer Mat (#29) into the drawer.
Repeat Step 18 to place the rest of the drawers
The oval hole at the front of the slider allows for the gaps
between the drawers to be adjusted. Make the adjustments
once all the drawers are installed
UltraHD® Stainless-Steel Rolling Cabinet (Model No. 20210)
*NOTE: We recommend using TWO people to assemble the cabinet.
16

Step 19.
Step 20.
Install the Shelf (#9).
a. Decide the height for each Middle Shelf (#9), place the Hooks (#23) into the hook slot and push down.
Note: The Middle Shelf has 4 Hooks at four corners for support. Place the 4 Hooks at the four corners
and make sure they are the same height.
b. Place the Middle Shelf (#9) into the cabinet and push down onto the Hooks (#23).
Install the Door Panel (#8)
Attach the Door (#8) to the unit using
Screw B (#21) to tighten.
Note: The screw holes on the door hinge have
tolerance, enabling the door to be adjusted and
centered in the door frame.
UltraHD® Stainless Steel Care Instructions
The stainless steel is protected with UltraGuard™ fingerprint
resistant finish. DO NOT use traditional stainless-steel
cleaners.
To safely manage unwanted fingerprints and prevent new
stains, perform the following steps once monthly:
• Lightly wipe with warm water and clean microfiber cloth
• Always wipe in the direction of the surface grain (NEVER ACROSS)
• Wipe away excess water with dry clean cloth
UltraHD® Stainless-Steel Rolling Cabinet (Model No. 20210)
*NOTE: We recommend using TWO people to assemble the cabinet.
17

CONTACT INFORMATION
If you are missing any parts, have any questions, or need additional assistance in assembly, please contact our
bilingual (English and Spanish) customer service department at:
Seville Classics, Inc.
19401 Harborgate Way Torrance, CA 90501 USA
Telephone: [phone] within USA
Fax: [phone]
Hours: 9:00am - 4:30pm (Pacific Standard Time)
E-mail: [email protected]
Website & Online Store: www.sevilleclassics.com
***Please visit our website or call and inquire about our additional UltraHD Line***
UltraHD® Line
UltraHD® Tall Storage Cabinet UltraHD® Mega Rolling Cabinet
Model No. 16236 (Granite)
Model No. 20143 (Graphite)
Model No. 20153 (Red)
Model No. 20133 (White)
Model No. 16238 (Granite)
Model No. 20148 (Graphite)
Model No. 20158 (Red)
18

UltraHD® Wall Cabinet with Open Shelf
Model No. 20217
UltraHD® Trash Bin
UltraHD® Lighted Workcenter
UltraHD® 2-Door Rolling Workbench
UltraHD® 6-Foot Height Adjustable Workbench
UltraHD® Line
UltraHD® 4-Drawer Rolling Cabinet
Model No. 20205 (Granite)Model No. 20296 (Granite)
Model No. 20141 (Graphite)
Model No. 20230 (Granite)
Model No. 20246 (Graphite)
Model No. 20150 (Red)
Model No. 20262 (Granite)
Model No. 20142 (Graphite)
Model No. 20152 (Red)
Model No. 20247 (Granite)
Model No. 20246 (Graphite)
Model No. 20157 (Red)
