Sewhacnm SI 4100 User manual

Digital Weighing Controller
SI 4100
Instruction Manual

Digital Weighing Indicator
SI 4100
- 2 -
CONTENTS
1. Before Installation
---------------
3 page
2. Introduction
---------------
4 page
3. Specification
----------------
5 page
4. Installation
4-1. External Dimension & Cutting Size

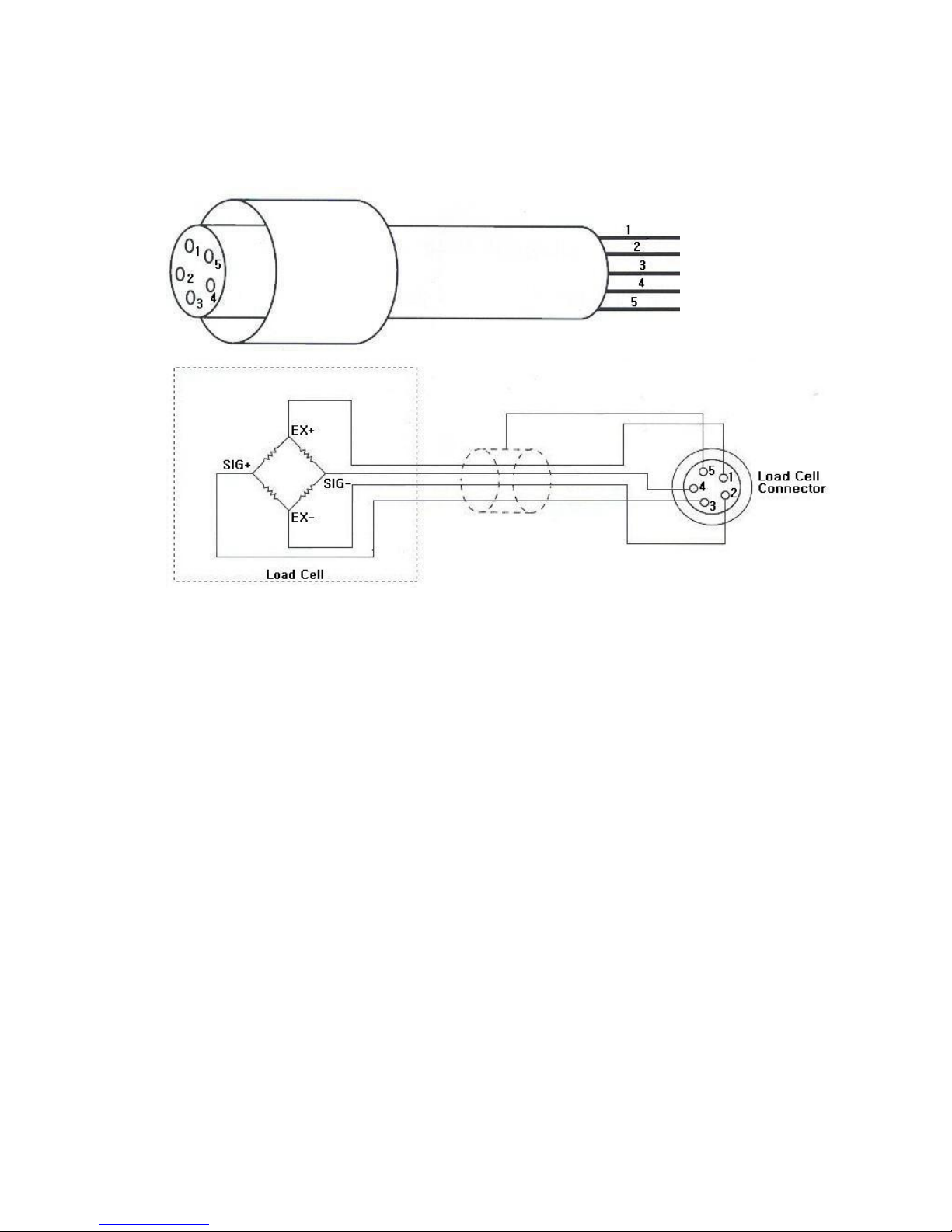

4-2. Load Cell Installation
4-3. Installation Components
---------------
---------------
---------------
---------------
11page
11 page
12 page
12 page
5. Set-up
5-1. Calibration
5-2. TEST Weight Calibration Mode
5-3. Simulation Calibration Mode(Without Test Weight)
5-4. Set-up
5-5. F-Function
---------------
---------------
---------------
---------------
---------------
---------------
14 page
14 page
14 page
17 page
20 page
21 page
6. Interface
6-1. Serial Interface (RS-232C)
6-2. Current Loop Interface
6-3. Print Interface (Centronics Parallel Interface)
6-4. Analog Output Interface (0~10V)
6-5. Analog Output Interface (4~20mA)
6-6. Serial Interface (RS-232C / 422 / 485)
6-7. BCD INPUT
6-8. BCD OOUTPUT
6-9. Command Mode
---------------
---------------
---------------
---------------
---------------
---------------
---------------
---------------
---------------
---------------
42 page
42page
45page
46page
47page
49page
50page
51page
52page
53page
7. Error & Treatment
7-1. Load Cell Installation
7-2. Calibration Process
7-3. Indicator Error & Treatment
7-4. Indicator Test Mode
---------------
---------------
---------------
---------------
---------------
56page
56page
56page
57page
58page
Warrantee Certification
---------------
59page

Digital Weighing Indicator
SI 4100
- 3 -
1. BEFORE INSTALLATION
1-1. Caution / Warning Marks
This mark warns the possibility to arrive death or serious injury in
case of wrongly used.
This mark cautions the possibility to arrive serious human body
injury or product lose in case of wrongly used.
1-2. Other Marks
Warning for Electric Shock or Damage.
Please do not touch by hand
Protective Ground(Earth) terminal
Prohibition of Operation process
1-3. Copy Rights
1).All Right and Authority for this Manual is belonged to Sewhacnm Co.,Ltd.
2).Any kinds of copy or distribution without Sewhacnm Co.,Ltd’s permission will be prohibited.
1-4. Inquiries
If you have any kinds of inquiries for this model, please contact with your local agent or Head Office.
Head Office : Sewhacnm Co.,Ltd.
Website : www.sewhacnm.co.kr
Email : [e-mail]
Warning
Caution

Digital Weighing Indicator
SI 4100
- 4 -
2. INTRODUCTION
2-1. Introduction
Thank you for your choice of this “SI 4100” Industrial Digital Weighing Controller.
This “SI 4100” model is advanced model of “SI 4100”, with powerful communication performance.
With 2ports serial port communication and precise weighing control system, you can upgrade your
weighing process.
This “SI 4100” Weighing Controller has various kinds of “Weighing Mode”, like Limit, Packer, and
Check weighing Mode, so you can apply various kinds of weighing applications.
Please review this instruction Manual and learn more about information about “SI 4100”.
Enjoy your process efficiency with “SI 4100” Weighing Controller.
2-2. Cautions
1) Don’t drop on the ground or avoid serious external damage on item.
2) Don’t install under sunshine or heavy vibrated condition.
3) Don’t install place where high voltage or heavy electric noise condition.
4) When you connect with other devices, please turn off the power of item.
5) Avoid from water damage.
6) For the improvement of function or performance, we can change item specification without prior notice
or permission.
7) Item’s performance will be up-dated continuously base on previous version’s performance.
2-3. Features
1) All Modules and Option Cards are isolated to maximize accuracy and performance.
2) External input terminal inside.(4pcs:Can be set by F11 mode)
3) By using “Photo-Coupler” on each module(Option, Analog board, In/Out), we improved “Impedance
problem”, “Isolation ability among inputs”, “Leading power problem”, and “Noise covering
function”.
4) Data back-up function, when the sudden power off
5) Set value Error check function added –If each set value is not correct for selected “weighing mode”,
“E” will be displayed and will not operate until correct set value input.
6) Polycarbonate film panel, strong against dust and water
7) 2port Serial Interface - RS-232C (Com. Port1) is standard installed.
8) Weight Unit selection Function added. (“g”, “kg”, “t” selectable – F40)
9) Variable options(Order in advance, Refer Chapter 5. Interface)

Digital Weighing Indicator
SI 4100
- 5 -
3. SPECIFICATION
3-1.Analog Input & A/D Conversion
Input Sensitivity
0.3㎶/ Digit
Load Cell Excitation
DC 10V ( - 5V ~ + 5V )
Max Input Signal
Max3.2mV/V
Temperature Coefficient
[Zero] ±16PPM/℃
[Span] ±3.5PPM/℃
Input Noise
±0.3㎶P.P
Input Impedance
Over 10㏁
A/D Conversion Method
Sigma-Delta
A/D Resolution(Internal)
520,000 Count(19bit)
A/D Sampling Rate
Max 500times / Sec
Non-Linearity
0.005% FS
Display Resolution(External)
1/20,000
3-2. Digital Part
Display
Parts
Specification
Display
Main Display
7Segments, 7digits VFD green Color
Size :12.7(H) ×7.0(W)mm
Min. Division
×1, ×2, ×5, ×10, ×20, ×50
Max display value
+999,950
Under Zero value
"-" (Minus display)
Status lamp
Steady, Zero, Tare,
Run, Hold, Print, Comm.
" ▼" Condition display Lamp
SP1, SP2, SP3, SP4 , kg, g, t
Green LED Display(3Ø )
K e y
Number, Function,
CAL. Lock Key
Number Key(10), Function(5),
CAL. Lock keys (1pcs)
3-3. General Specification
Power Supply
AC110/220V±10%), 50/60Hz, about 30VA
Operating Temperature Range
-10℃~ 40℃
Operating Humidity Range
Under 85% Rh (non-condensing)
External Dimension
200mm(W)ｘ105mm(H)ｘ165mm(L)
Net Weight(kg)
About 2.3kg
Gross Weight(kg)
About 3.0kg
※AC 110V, Power supply is an optional before ex-factory.

Digital Weighing Indicator
SI 4100
- 6 -
3-4. Option Card
Option No.1
Printer Interface : Centronics Parallel
Option No.2
Analog Output (0~10V or 0~5V)
Option No.3
Analog Output (4~20mA)
Option No.4
Serial Interface : RS-232C / 422 / 485
Option No.5
BCD INPUT (P/N change purpose)
Option No.6
BCD Output
Option No.7
Ethernet
※Serial Interface (RS-232C) or Current Loop is Standard installed.
In the Optional Serial port, there is no Current Loop function.
3-5. Front Panel (Display / Key Pad)
3-5-1. Status Lamp (ANNUNCIATORS) : “▼” Lamp is “ON”.
Steady
When the weight is Steady, “▼” Lamp is turn on.
Zero
When the current weight is Zero, “▼” Lamp is turn on.
(Displayed weight is Zero, “▼” Lamp is turn on.)
Tare
Tare function is set, “▼” Lamp is turn on.
(Tare Reset “▼” Lamp is turn off.)
Run
Weighing Batch is started, “▼” Lamp is turn on.
(Under F21-01, 05, 06 setting)
Hold
Hold function is sec, “▼” Lamp is turn on.
(Hold Reset “▼” Lamp is turn on.)
Print
When print key input, “▼” Lamp is turn on.
(Under F38-00 setting, option port : F68-00)
Comm.
When indicator transfers or receives data from other devices, “▼” Lamp is turn on.
If the “▼” is off although there is some data transference, please check communication setting.
Set point Relay
Weight Display
Weight Unit
Calibration Lock-Key
F-Function Key

Digital Weighing Indicator
SI 4100
- 7 -
3-5-2. Key Operation
Make Weight value as Zero.
Under F08, you can set the Zero key operation range, as 2%, or 5%, or 10%, or 20%
of Max Capacity.
※Under “Tare” key input, Zero key will not be activate within operation range
Make Weight value as Zero, including Tare Weight.
Under F09, you can set the Tare key operation range, as 10%, 20%, 50%, or 100% of
Max Capacity.
※Whenever pressing “Tare” key, you can set the Tare continuously.
TARE RESET
1. Remove the Set TARE function.
If you press this key, TARE set value will be removed and display gross weight.
FUNCTION KEY
1. “F-TEST” Mode Entrance : Press “F” key for 5sec.
2. Under “F-function Mode”, Move to next Function or move to certain function
No.(Press function No. and press “F” key)
3. Function key (Refer “Function keys”)
To START or STOP weighing process.
First input, SI 4100 Controller Starts weighing process, and Second input, SI 4100
Controller stops weighing process.
※This function will be activated under F21- setting, only.
Hold the Weight display when indicator detects “Peak Hold”, or “Sample Hold”.
First input, SI 4100 Controller takes “Hold” point, and Second input, SI 4100
Controller remove “Hold” function.
※You can select “Hold” function on F10.
You can set each weighing process as a certain P/N.
Each weighing process will be saved with Sp1, Sp2, Sp3, Sp4 set values.(Max 50
kinds of P/N you can set)
And you can call certain P/N with each set value.
P/N save : Select P/N and input Sp1, Sp2, Sp3, Sp4 values and save.
P/N call : P/N + Number key + Enter

Digital Weighing Indicator
SI 4100
- 8 -
Under Print installation, you can print out the “Sub-total data” of current P/N.
Printed Data : Accumulated count and weight of current P/N.
Under Print installation, you can print out the “Grand-total data” of current P/N.
Printed Data : Accumulated count and weight of All P/N.
Sp1 set value setting or Check
Value setting : Press this key set Sp1 value with No. keys. Press Enter and save
new set value.
Check set value : Press this key Sp1 value will be display during 5sec.
Sp2 set value setting or Check
Value setting : Press this key set Sp2 value with No. keys. Press Enter and save
new set value.
Check set value : Press this key Sp2 value will be display during 5sec.
Sp3 set value setting or Check
Value setting : Press this key set Sp3 value with No. keys. Press Enter and save
new set value.
Check set value : Press this key Sp3 value will be display during 5sec.
Sp4 set value setting or Check
Value setting : Press this key set Sp4 value with No. keys. Press Enter and save
new set value.
Check set value : Press this key Sp4 value will be display during 5sec.
1. Manual Print
Whenever press this key, you can print out.
2. Calibration mode
- Digit setting
Whenever pressing “0”key, digit will be change 1, 2, 5, 10, and 50.
- Decimal point position
Whenever pressing “0”key, decimal point will be change.
※Decimal Point set will be done in the calibration mode.

Digital Weighing Indicator
SI 4100
- 9 -
1. Modify the set value during setting process.
2. Calibration mode
- Move back to previous step.
3. F-function setting mode
- Change F-function No.
F-function no.(number key) + Clear directly move to that F-function
4. Function key : Sub-total, Grand-total manual delete.
1. Save set value during setting process.
2. Calibration mode
- Save current setting and move to next step.
3. F-Function mode
- Save current F-function setting, and move to next F-function
Press 1time to enter “Calibration” mode.

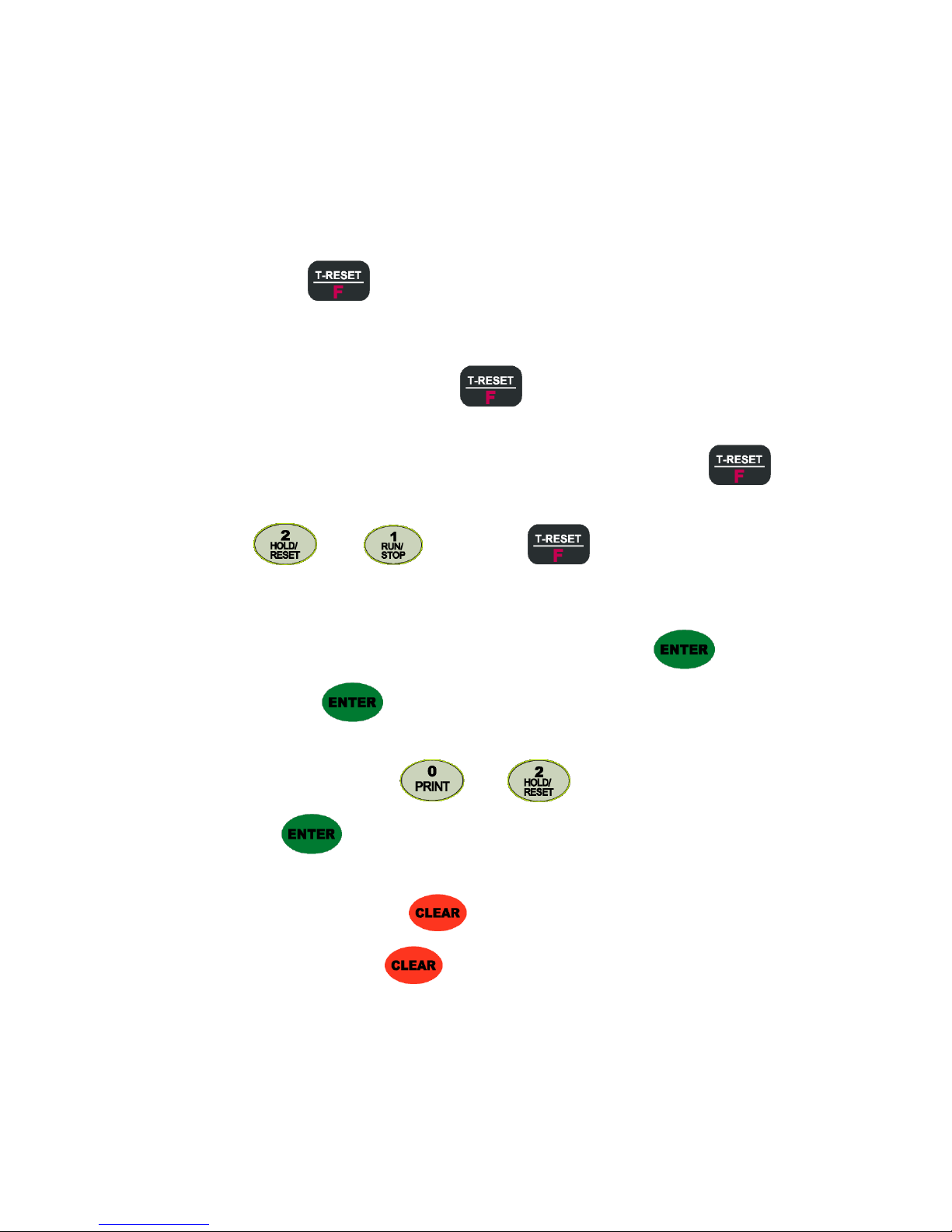

※Function Keys (Combined Key functions)
Function Key
Contents
Manual Discharge
Remove remained material with manual discharge function.
All gates will be opened(SP1,Sp2,SP3,SP4 relay output)
※Only activated under “F28-01”setting.
Delete current P/N’s accumulated weighing count and weight
(If you set F44-01, the data will be automatically deleted after “Sub-Total
Print).
Delete all P/Ns’ accumulated weighing count and weight
(If you set F44-01, the data will be automatically deleted after “Grand-
Total Print).

Digital Weighing Indicator
SI 4100
- 10 -
3-6. Rear Panel
○
1POWER AC IN
- Power switch : Power on/off switch.
- Fuse : AC250V / 0.5A , φ5.25 , 20mm.
- AC IN : Available Input AC 110V / 220V.
※The standard power supply isAC 220V(Fixed when ex-warehouse), if you want to have AC 110V,
please inform in advance.
②Option Card 1
③Option Card 2
※Option Card Connector installed for Optional Interface or Output.
(Printer I/F, Analog out, RS-422/485, or RS-232C(two port)
④LOAD CELL Connector (N16-05)
⑤SERIAL I/F
“RS-232C” or “CURRENT LOOP”(9Pin, D-Type Female) are built-in as standard
⑥External Input : External control input for wired remote control.
Refer to F-Function F11 to select desired function mode.
Input signal …………………………… Optical-Isolator
⑦Relay Output Terminal : Set point(SP1, SP2, SP3, SP4) and Finish, Empty relay output.
(Refer “F21” setting.)
Warning
③OPTION CARD
②
○
3
○
6
○
5
○
4
○
7
○
1
○
1

Digital Weighing Indicator
SI 4100
- 11 -
4. INSTALLATION
4-1. External Dimension & Cutting Size
(External Dimension)
(Unit :mm)
4-2. Installation Components
Power Cable
Communication Connector(D-SUB 9P)
Load-cell Cable
94
188
186
165
105
200
162
92
3
(Cutting Size) (Unit : mm)

Digital Weighing Indicator
SI 4100
- 12 -
4-3. Load Cell Installation
4-3-1. Load Cell Connector Specification
4-3-2. Load Cell Installation
1) You can connect Max 8pcs of same capacity Load cells at once. (350Ω)
2) You have to make horizontal balance on the ground.
3) If you install more than 2pcs of Load cells, use Summing box and adjust output signal difference as
minimum. It can make wrong weighing process caused by each load cell’s variation.
4) If there is some temperature difference around Load cell, it can cause wrong weight measurement.
5) Don’t do Welding job or Arc discharge around installation place. But, there is no choice, please
disconnect power cable and Load cell cable.
6) If you measure static electricity material, please make earth between down part and up part of Load
cell.
RED(EXC+)
WHITE(EXC-)
GREEN(SIG+)
BLUE(SIG-)
YELLOW(SHLD)

Digital Weighing Indicator
SI 4100
- 13 -
4-2-3. Formula to plan the precise weighing system
This “SI 4100” weighing controller’s Max input sensitivity is 0.2㎶/ Digit.
And for precise weighing system, the following formula must be satisfied.
Caution : “Input sensitivity” means Min. output voltage variation of weighing part to change 1digit.
So, please do not make large input voltage to make reliable weighing system.
Single Load cell use
EⅹBⅹD
A : Load cell capacity(kg)
B : Load cell Voltage(mV)
D : Digit
E : affirmation Voltage of Load cell
N : Number of Load cell
0.2㎶≤
A
Plural Load cells use
EⅹBⅹD
0.2㎶≤
AⅹN
Example1.)
Number of Load cell : 1pcs
Load cell capacity : 500kg
Load cell Related output : 2mV/V
Division : 0.05kg
Affirmation Voltage of Load cell : 5,000mV
Max Capacity of Weighing System : 300kg
Then, estimation result for this weighing system with formula,
5000ⅹ2ⅹ0.05
= 1 ≥ 0.2㎶
The calculated value is larger than 0.2㎶,
so this system has no problem.
500
Example2.)
Number of Load cell : 4pcs
Load cell capacity : 500kg
Load cell Voltage : 2mV/V
Digit : 0.10kg
Affirmation Voltage of Load cell : 5,000mV
Max Capacity of Weighing System : 1,000kg
Then, estimation result for this weighing system with formula,
5000ⅹ2ⅹ0.10
= 0.5 ≥ 0.2㎶
The calculated value is larger than 0.2㎶,
so this system has no problem.
500ⅹ4
※ According to “Resolution” or “Capacity”, it might not be calibrated like calculation.
Cautions
!

Digital Weighing Indicator
SI 4100
- 14 -
5. SET-UP
5-1. Calibration
Calibration is the process of adjusting weight balance between “Real weight” on the load cell and
“Displayed weight of Indicator”. When you replace LOAD CELL or Indicator, you have to do Calibration
process once again
5-2. Test Weight Calibration Mode (Using Test weight)
Prepare the test weight as at least 10% of your weighing scale’s max capacity.
Remove “CAL-BOLT” on the indicator’s front panel and press “CAL - LOCK S/W” inside.
※Remark: If “P-W”is displayed, you should input the pass word to start calibration mode.
1. At normal mode, remove “CAL-BOLT” on the Front panel
123
2. And press “CAL - LOCK S/W” inside.
Check the “SET-CAL. message on display.
5et-Cal
※To save the each step, press key, and for the cancel or move back, press key.
3. If you press key, Calibration Mode starts.
After displaying “C999999”,
C999999
4. Input the max capacity of your weighing scale,
And press key.
Ex) Load cell CAPA: 20kg, division : 0.001 Input 20000
C 20000
5. Define the optimal position of decimal point.
Whenever you press key, the location of decimal point
will be changed.
Ex) Load Cell CAPA: 20kg, division : 0.001kg input 20.000
p 20.000

Digital Weighing Indicator
SI 4100
- 15 -
6. Press key to save and move to next step.
p 20.000
7. Define the optimal Digit/Division value of weighing measurement.
Whenever you press key, the Digit/Division value will
be changed in order of “1 2 5 10 20 50” .
Ex) Load cell CAPA: 20kg, division : 0.001 Input division “1”
d 1
8. press key to save the Digit/Division value and move
to next step
d 1
※Caution : (Division value /Max capacity value) cannot over 1/20,000.
If the division is so small compare with max capacity, Error message “ Err 01 “ will be displayed
and move back to “CAPA” step again.
9. When you press key, the indicator starts the dead process
to find “Zero” span.
dead
10. Indicator will search “DEAD weight” during 5seconds.
After find optimal “Zero” span , step is automatically
Moves to next.
Cal-1 0
※Caution: At this step, if there is some force or vibration on weighing scale, and unstable condition will be
continued, “ErrorA” will be display, and “DEAD value” will not be calculated.
Please remove all the force or vibration and process it again.
11. Span Calibration mode start.
l 20.000

Digital Weighing Indicator
SI 4100
- 16 -
12. Input the weight of your “Test weight”. And press key.
Ex) Load Cell CAPA: 20kg, division 0.001
Use test weight which is at least 10% of
max CAPA(20kg) = minimum 2kg of test weight is needed.
Input test weight 2.000 to indicator.
l 2.000
13. When “UP” is displayed, load your test weight on the scale (weigh
bridge) Ex) Load Cell CAPA: 20kg, division 0.001
Up
14. And press key.
Do not remove the test weight from weigh bridge.
Up
15. Indicator will calculate span value during 5sec.
Cal-2 0
16. After finish calculation, span value will be displayed.
Please remove the test weight from weigh bridge.
0.629238
※Caution : The “Test Weight’s value” must be at least 10% Max capacity of weighing scale.
“at least 10%” means to guarantee precise weighing process you have to make standard with at least
10% of the max capacity weight.
We programmed the calibration will not be done, when you load less than 10% of the max capacity.
17. Press key to save all calibration process.
After then it resets automatically.
Now, fasten the Calibration Bolt on the front panel.
end

Digital Weighing Indicator
SI 4100
- 17 -
5-3. Simulation Calibration Mode (Calibrate without Test weight)
Through this “Simulation Calibration Mode” you can do simple calibration process without Test weight.
This calibration mode uses “Load cells’ max capacity” and “Rated output value(mV)”.
Simulation calibration’s degree of accuracy is lower than test weight calibration.
By simulation calibration’s characteristic, measured weight can be different with actual weight, according to
load cell’s actual output.
1. At normal mode, remove “CAL-BOLT” on the Front panel
123
2. And press “CAL - LOCK S/W” inside.
Check the “SET-CAL. Message on display.
5et-Cal
3. Press key, to start Simulation Calibration Mode
CellCal
※To save the each step, press key, for the cancel or move back, press key.
4. Press key to enter calibration mode.
After “CAPA” is displayed, Check the max Capacity of your load cell.
(Refer the label on the load cell, or test report.)
C999999
5. After input max capacity of your load cell (at the label),
press key
Ex) Load cell CAPA: 30kg, division : 0.01 Input 3000
C 3000
In case of multiple pieces of load cells are installed, make sum of each load cell’s capacity and make setting
with max capacity. EX) There are 4pcs of load cells, and each load cell’s Max capa is1,000kg.
Then, total Max Capacitywill be 4,000kg(1,000 x 4) and you have to input 4,000.

Digital Weighing Indicator
SI 4100
- 18 -
6. Define the optimal position or decimal point
Whenever you press key, the location of decimal point
will be changed.
p 30.00
7. Press key to save Digit / Decimal point and
move to next step.
Ex) Load cell CAPA: 30kg, division : 0.01 Input 30.00
p 30.00
8. Define the optimal Digit/Division value of weighing measurement.
Whenever you press key, the Digit/Division value will
be changed in order of “1 2 5 10 20 50” .
Ex) Load cell CAPA: 30kg, division : 0.01 Input division “1”
d 1
9. press key to save the Digit/Division value and
move to next step.
d 1
※Caution : (Division value /Max capacity value) cannot over 1/20,000.
If the division is so small compare with max capacity, Error message “ Err 01 “ will be displayed
and move back to “CAPA” mode again.
10. Under this step, measure the “DEAD Weight of Weighing Scale
When you press key, the indicator starts the dead process
to find “Zero” span.
dead
11. Indicator will search “DEAD weight” during 5seconds.
After find optimal “Zero” span , step is automatically
Moves to next.
Cal-1 0

Digital Weighing Indicator
SI 4100
- 19 -
12. At this step input Max Output rate(mV) of load cell.
Cell0Ut
13. Input Load cell Output Rate(mV/V) (refer the load cell label)
Ex) Load cell Related output : 1.989 mV/V
o1.98900
※Caution : Due to some variation between “Stated output rate” and “Real Output rate” of load
cell, there might be some weight difference after finishing calibration.
If you want to make more precise weighing process, please measure real output rate of load cell and input the
measured value. Then the weight measurement will be more precise than before.
14. After inputting R.O. value, press key.
Calculated “Span value” will be displayed.
0.087234
15. Press key to save all calibration process and fasten the
Calibration Bolt.
end
※Caution : To process “Simulation Calibration” process, All indicator has its’ own standard value of
2mV gap. So, if you replaced analogue board, you have to input standard value of 2mv gap.
And you can check the this 2mV gap value on F96. (Normally, the gap value is between 200,000 ~400,000)

Digital Weighing Indicator
SI 4100
- 20 -
5-4. Set-up
Set-up means set the F-function and make SI 4100 weighing controller will perform more accuracy.
(Considering external / internal environmental condition)
※remarks : In case that “P-W”is displayed, you have to check the pass word.
5-4-1. Enter the Set-up Mode
Method : Press key for 4sec. Then you can enter “F-Test” mode. Under this mode, press
No.1 key and enter the “F-function” mode.
5-4-2. F-Function Change
Under F-function mode, Whenever press key, the Function No. will be increased one by
one. Increase to F-90 and return to F-01
If you move to certain function No., press f-function no. with number key and press key.
Ex) If you want to call “F21-XX ” directly under “F-function mode”.
Press “ ” and “ ” key and press key.
Then, you can call “F22-XX” directly.
5-4-3. F-Function Set Value Change
Under F-Function mode, input New set value with Number keys and press key to save.
If you don’t press key, the new set value will not be memorized.
Ex) If you want to change the “F01-01” to “F01-02”.
Under “F01-01” mode, press “ ” and “ ” key.
And press key to save.
5-4-4. Exit “F-function” Mode
Under “F-function” mode, press key, you can move back to “F-Test” mode.
Under “F-Test” mode, press key once again, you can move back “Stand-by” mode.
