1. Introduction
With Mobile Tester you can use our mobile printers with mobile phones of Symbian
OS by Wi-Fi.
The UI, the menu and the configuration of Symbian OS might be different by models.
So for more detailed information, please refer to the product manual of mobile phone.
⊙
⊙⊙
⊙ Required system.
- Over Nokia S60 3rd Edition.
- Over MIDP 2.0, CLDC 1.1.
- Supporting JSR75

LK
LKLK
LK-
--
-PXX
PXXPXX
PXX
SEWOO TECH
SEWOO TECHSEWOO TECH
SEWOO TECH 4
44
4 Rev. 1.00
Rev. 1.00Rev. 1.00
Rev. 1.00
2. Installation
You can install Mobile Tester by copying JAR file in the memory or by using PC.
⑴ Installation with Nokia “PC Suite” (Nokia utility)
① Connect USB Cable of the PC to the Mobile phone.
② Choose “PC Suite” on the menu of the mobile phone.
Menu >> Connectivity >> USB 

 Choose USB connection mode as “PC Suite”.

LK
LKLK
LK-
--
-PXX
PXXPXX
PXX
SEWOO TECH
SEWOO TECHSEWOO TECH
SEWOO TECH 5
55
5 Rev. 1.00
Rev. 1.00Rev. 1.00
Rev. 1.00

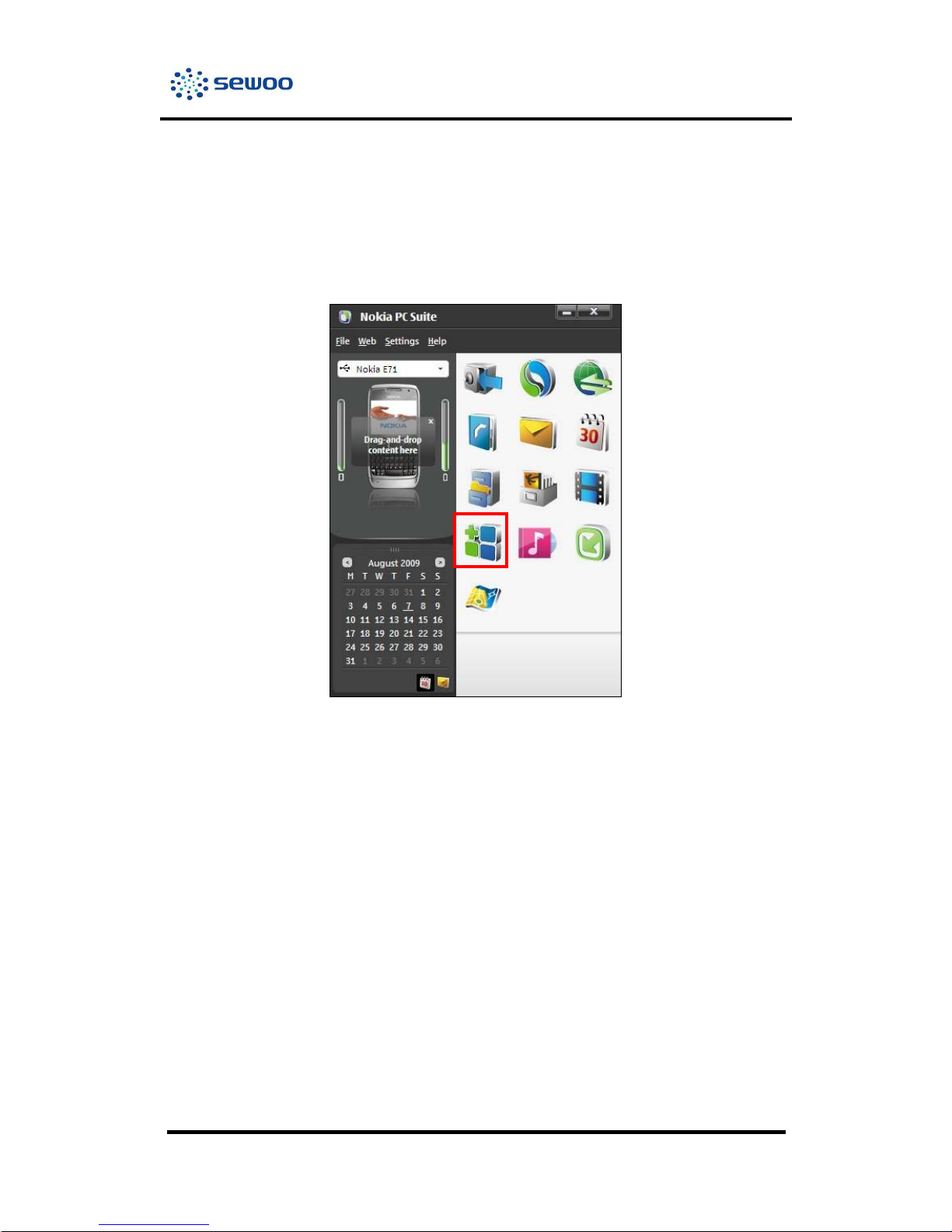

③ Open “PC Suite” on the host PC and execute “Install Applications” menu.
Choose & install the JAR file.
④ Install procedure on mobile phone is as follows.

LK
LKLK
LK-
--
-PXX
PXXPXX
PXX
SEWOO TECH
SEWOO TECHSEWOO TECH
SEWOO TECH 6
66
6 Rev. 1.00
Rev. 1.00Rev. 1.00
Rev. 1.00
⑵ Installation with Memory Card (MicroSD).
1. Insert memory card to card reader or mobile phone and connect one of them to HOST
PC with USB cable. (When using mobile phone, you have to choose Mass Storage.
[ Menu >> Connectivity >> USB ])
2. Copy the JAR file to the location you want with memory card on HOST PC.
(When you do the cope with card reader, insert the memory card to mobile phone)
3. Open the JAR file.
[ Menu >> Office >> File manager ]
4. Install procedure on mobile phone is as follows.

LK
LKLK
LK-
--
-PXX
PXXPXX
PXX
SEWOO TECH
SEWOO TECHSEWOO TECH
SEWOO TECH 7
77
7 Rev. 1.00
Rev. 1.00Rev. 1.00
Rev. 1.00
※
※※
※ Caution
CautionCaution
Caution: When you remove memory card from mobile phone with power on, please
use “Remove Memory Card” menu on [ Menu >> Tools >> Memory ].
3. Wi-Fi setting up
① When you excute [ Menu >> Connectivity >> WL N wiz. ], you can
search Wi-Fi devices around.
※
※※
※ Self TEST
Self TEST Self TEST
Self TEST – When you turn on the printer with pushing feed button, you can see
printer information on the printed paper.

LK
LKLK
LK-
--
-PXX
PXXPXX
PXX
SEWOO TECH
SEWOO TECHSEWOO TECH
SEWOO TECH 8
88
8 Rev. 1.00
Rev. 1.00Rev. 1.00
Rev. 1.00
② After choosing Wi-Fi device(=mobile printer), choose “Define access point” on the
option. The mobile phone stores and sets access point (=mobile printer) information.
③ After storing Access Point information, you can see a mark on the list.

LK
LKLK
LK-
--
-PXX
PXXPXX
PXX
SEWOO TECH
SEWOO TECHSEWOO TECH
SEWOO TECH 9
99
9 Rev. 1.00
Rev. 1.00Rev. 1.00
Rev. 1.00
④ Choose “Edit access point” menu on the option.
⑤ On network mode, you can choose Ad-hoc or Infrastructure.
And on security mode you can choose WPA, WPA2, WEP…
⑥ When using Infrastructure mode and AP is set as DHCP, you can execute program
after step⑤
⑤⑤
⑤.
⑦ When using AD-hoc mode, choose “ advanced settings” menu on Option.

LK
LKLK
LK-
--
-PXX
PXXPXX
PXX
SEWOO TECH
SEWOO TECHSEWOO TECH
SEWOO TECH 10
1010
10 Rev. 1.00
Rev. 1.00Rev. 1.00
Rev. 1.00
⑧ Choose “IPv4 settings”.
⑧ Set up Phone IP address, Subnet mask & gateway on the phone.
Set up the number in “Phone IP address” same as IP address of the printer till Class C.
※
※※
※ Caution
CautionCaution
Caution – When you want to disconnect current connection and connect to other
Wi-Fi device, do the disconnection work at [ Menu >> Connectivity >> WL N
wiz ] and back to the program and connect the other device.

LK
LKLK
LK-
--
-PXX
PXXPXX
PXX
SEWOO TECH
SEWOO TECHSEWOO TECH
SEWOO TECH 11
1111
11 Rev. 1.00
Rev. 1.00Rev. 1.00
Rev. 1.00
4. Program Menu .
⑴
⑴⑴
⑴ Print Text
Print Text Print Text
Print Text
Print Text supports OLEPOS Command.
⑵
⑵⑵
⑵ Print Sample
Print Sample Print Sample
Print Sample
You can test the contents of sample source files supplied by printer manufacturer in
normal receipt form (Barcode & Text).
⑶
⑶⑶
⑶ Print Image
Print Image Print Image
Print Image
You can print image on this Menu. You can preview the image to print.
Program supports JPG(JPEG), PNG, GIF.

LK
LKLK
LK-
--
-PXX
PXXPXX
PXX
SEWOO TECH
SEWOO TECHSEWOO TECH
SEWOO TECH 12
1212
12 Rev. 1.00
Rev. 1.00Rev. 1.00
Rev. 1.00
⑷
⑷⑷
⑷ MSR Read
MSR Read MSR Read
MSR Read
This menu can read magnetic stripe card from MSR module of the printer.
(5)
(5)(5)
(5) Connect Interface
Connect InterfaceConnect Interface
Connect Interface
This menu is for Wi-Fi Interface connection with a printer.
During connection, you can see the IP of mobile phone.
For more information like security mode and network mode… please refer to chapter #3
on this manual or the manual of mobile phone.
