SEWOO LK-P SERIES Instruction sheet

CONFIGURATION MANUAL(Conguration Tool)
The manual and product are protected by copyright.
J. STEPHEN Lab., Ltd.
Rev.B 12/17
MOBILE PRINTER
MODEL : LK-P SERIES

2
Table of Contents
1. Instruction 3
2. Emulation Setting 4
3. Code Page Setting (ESC/POS Only) 5
4. Density Setting (ESC/POS Only) 6
5. Power Save Mode Setting 7
6. Label Media Setting(CPCL, ZPL, EPL Only) 8
7. Bluetooth Setting 9
7-1. Numeric Comparison Setting 10
8. NFC Setting 12
9. Wi-Fi Setting 13

3
1. Instruction
You can change the conguration settings of your printer by using Conguration Tool Utility.
To congure the printer with Conguration Tool Utility.
1. Make sure that you have a PC running Windows XP or later.
2. Download Conguration Tool utility from the Sewoo website at (www.miniprinter.com).
3. Connect your printer to your PC using USB cable (Recommended).
4. Run the Conguration Tool utility.
5. Select the connection in the Printer Connection Settings.
6. Click the Open Port.
7. Click the button for the settings you want to congure.

4
2. Emulation Setting
To congure Printer’s Emulation with Conguration Tool Utility.
1. Click Get Emulation to check current emulation.
2. Update or check your settings.
A. CPCL F/W (You can Select CPCL or ESC/POS)
B. ZPL F/W (You can Select ZPL or EPL)
3. Click Emulation you want to use and wait for the beep and power off to nish.
4. Turn on the printer to use.
Use the following table to Printer’s Emulation setting.
For more information, Please contact your supplier.
Model Compatible Emulation
LK-P12 ESC/POS, CPCL, ZPL
LK-P21 ESC/POS, CPCL, ZPL
LK-P20(P20II) ESC/POS, CPCL, ZPL, EPL

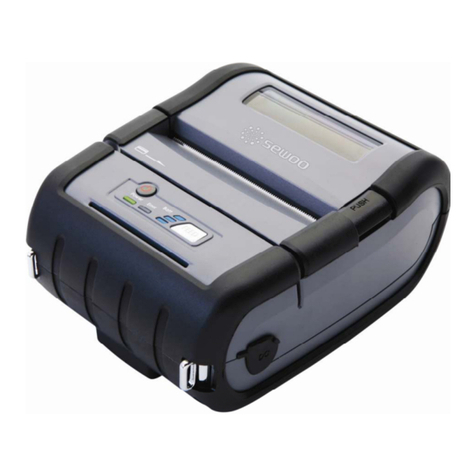

LK-P30(P30II) ESC/POS, CPCL, ZPL, EPL
LK-P41 ESC/POS, CPCL
LK-P43 ESC/POS, CPCL, ZPL, EPL

5
3. Code Page Setting(ESC/POS Only)
To congure Code Page settings with Conguration Tool Utility.
(Code page can be set by command in CPCL, ZPL)
1. Update or check the Code Page in the Code Page Setting.
2. Click Save Code Page to nish.
3. Click Print Code Paget to test the printer is set correctly.
Use the following table to Code Page Settings.
Code Page Description
CP_437 MS-DOS United States, Australia, New Zealand, South Africa
CP_737 MS-DOS Greek
CP_850 MS-DOS Latin-1
CP_852 MS-DOS Latin-2
CP_857 MS-DOS Turkish / Latin-5
CP_858 MS-DOS Multilingual / Latin-1 with euro symbol
CP_860 MS-DOS Portuguese
CP_862 MS-DOS Hebrew
CP_863 MS-DOS Canadian French
CP_864 MS-DOS Arabic
CP_865 MS-DOS Nordic / Danish / Norwegian
CP_866 MS-DOS Russian / Cyrillic
ISO_8859_2 Latin Alphabet No. 2
ISO_8859_9 Latin Alphabet No. 5(Turkish)
MAZOVIA Polish
CP_1250 Windows Central Europe
CP_1251 Windows Cyrillic
CP_1252 Windows West European Latin 1
CP_1253 Windows Greek
CP_1254 Windows Turkish
CP_1257 Windows Baltic
CP_1258 Windows Vietnamese

6
4. Density Setting(ESC/POS Only)
To congure Density setting with Conguration Tool Utility.
1. Update or check the Density in the Density Settings.
2. Click Save Density to nish.

7
5. Power Save Mode Setting(ESC/POS Only)
To congure Power Save Mode setting with Conguration Tool Utility.
1. Update or check the Power Save Mode in the Power Save Mode.
2. Click Save Power Save Mode to nish.
Use the following table to Printer’s Emulation setting
Mode Description
None Power Save Set the mode to None Power Save.
Power Off Mode Sets time interval between absence of printer use and automatic
turning off of printer power.
Power Save Mode Sets time interval for automatic entering into power saving mode
while the printer is in use.

8
6. Label Media Setting(CPCL, ZPL, EPL Only)
To congure Label Media Type setting with Conguration Tool Utility.
1. Update or check the Label Media Settings in the Label Media Setting.
2. Select Sensor position and Click Media type (Gap or Black Mark or Continuous) to nish.
Use the following table to Label Media setting.
Type Gap Black Mark(Lower)
Description
Type Black Mark(Upper) Continuous
Description

9
7. Bluetooth Setting
To congure Bluetooth setting with Conguration Tool Utility.
(Bluetooth is Optional Interface. For more information, Please contact your supplier)
1. Click Get Bluetooth Information.
2. Update or check your settings
3. Click button you need to set to nish.

10
7. Bluetooth Setting
Use the following table to Bluetooth setting
Name Description
BT Address The MAC address for Bluetooth Module.
Bluetooth device
name (Bluetooth ID)
The Name of Bluetooth Printer to pair.
PIN Code Pin code to pair (Default : 0000 or 1234)
iOS auto connection
Settings
Allowing iOS devices to automatically reconnect the printer.

11
7-1. Numeric Comparison Setting
1. Click the ‘Enable’ tab on the Numeric Comparison Settings.
2. Reboot a printer.
3. Click the Bluetooth device name on the PC or mobile Bluetooth setting screen.
4. The passkey(6 digits) will be displayed on the printer and the device.
(If a printer doesn’t have a LCD, the passkey will be printed out.)
5. Please press the Feed button on the printer & press ‘Pairing’ button on the PC or mobile device.
(There is a pairing time out 10 seconds. Make sure to press the feed button on the printer
in 10 seconds.)
6. You get a ‘Pairing Success’ printout after pairing job.
MOBILE MOBILE
Please make sure to have the same passkeys .
PRINTER
NOTE A display type can be slightly different depending on device models.

12
1. Turn on the NFC function on your mobile devices.
(Choose either NFC P2P mode or standard mode / Connection is not available with NFC card mode.)
NOTE A display type can be slightly different depending on device models.
2. If you take your mobile device close to the printer NFC tag,
a mobile application will be automatically executed.
NOTE If a mobile application is not installed on mobile devices, NFC function is not available.
Go to CD -> NFCPrint_Sample to install the application.
8. NFC Setting

13
8. Wi-Fi Setting
To congure Wireless LAN settings with Conguration Tool Utility.
(Wi-Fi is Optional Interface. For more information, Please contact your supplier.)
1. Click Start Wi-Fi Settings.
2. Select the connection in the Port Information.
3. Click Open port.
4. Click Get Wi-Fi Information.
5. Update or check your settings.
6. Click Save Wi-Fi Information to nish.
9

14
8. Wi-Fi Setting
Use the following table to Wireless LAN setting.
Number Name Description
1SSID The Network name to connect.
2Wi-Fi Mode Set the mode of the device to adhoc, infrastructure
or SoftAP.
3Wi-Fi Channel Set the channel to use.
4Wi-Fi Encryption Set the type of Encryption to none, WEP-64,
WEP-128 or WPA.
5Wi-Fi Authentication Set the type of Authentication to open system,
shared key or both
6Using KEY ID Set the number of KEY to use from No. 1 to No. 4.
7TCP Port Set the port to use.
8KEY ID 1 ~4 Enter value for up to 4 KEYs to ASCII or HEX
9WiFi Band Choose 2.4GHz or 5GHz.
10 DHCP Settings Set the LPD to use.
11 WPA Authentication Set the queue name to use with LPD Enable
12 WPA Encryption Set the type of Authentication to WPA-PSK,
WPA2-PSK, Auto

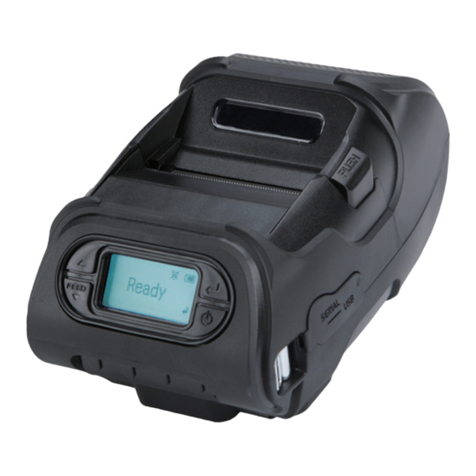

(LK-P12,P20II,P30II,P41,P43,P22 is xed to
AUTO)
13 Country Name Channel values depend on countries.
14 Country Channel Available channels for the country chosen

15
8. Wi-Fi Setting
7. To Set Wi-Fi printer correctly, you need to check the AP’s or
Router’s setting in advance. Ex) D-Link Router (Model: DIR-820L)

28-6, Gajangsaneopdong-ro, Osan-si, Gyeonggi-do, 18103, Republic of Korea
TEL : [phone] FAX : [phone]
www.miniprinter.com
J. STEPHEN Lab., Ltd.
