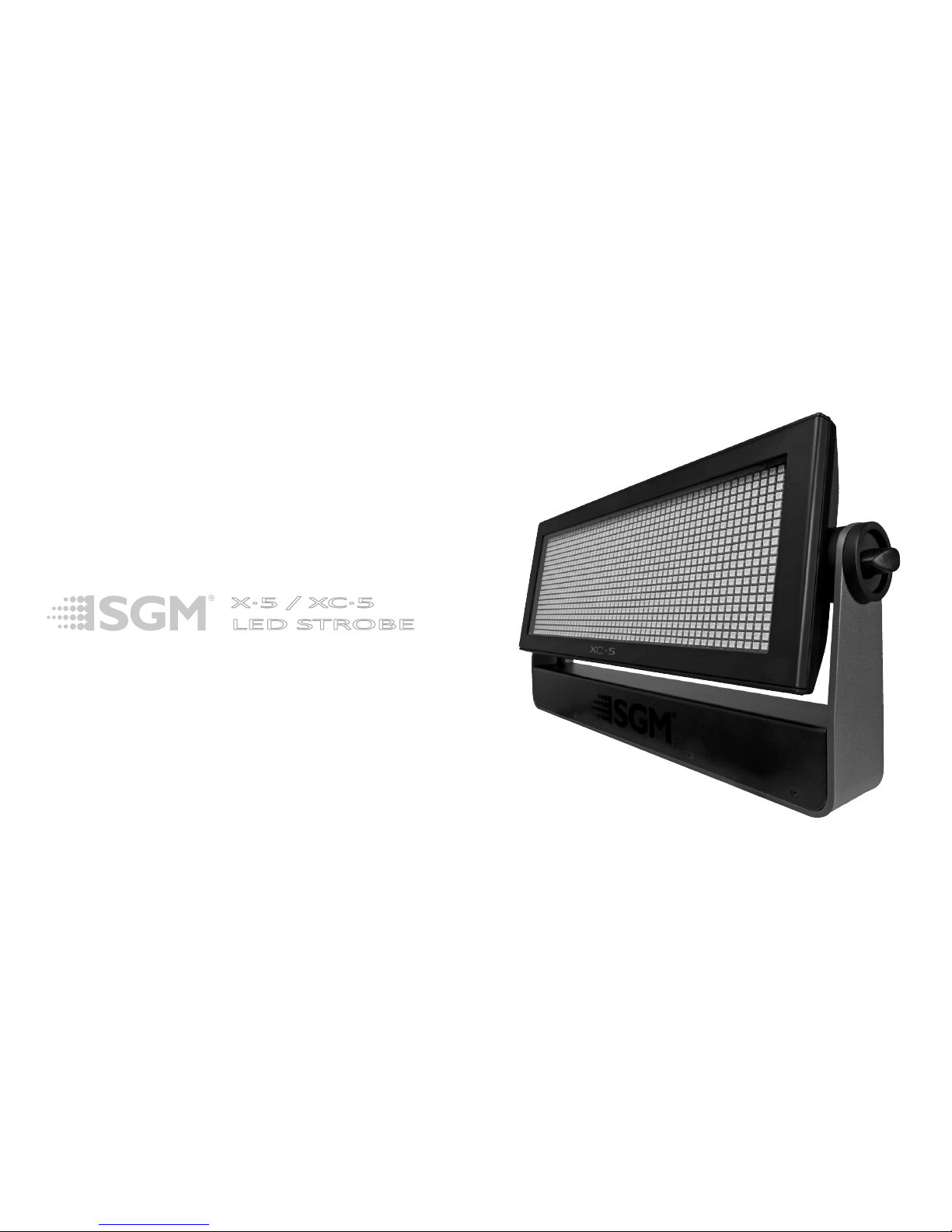

SGM X-5 User manual

X·5 / XC·5
LED STROBE

2
X·5 / XC·5 LED STROBE
USER MANUAL REV. 2
X·5 / XC·5 LED Strobe dimensions
All dimensions in mm. Drawing not to scale.

3
X·5 / XC·5 LED STROBE
USER MANUAL REV. 2
© 2010-2012 SGMTM. Information subject to change without notice. SGM and all afliated
companies disclaim liability for any injury, damage, direct or indirect loss, consequential
or economic loss or any other loss occasioned by the use of, inability to use or reliance
on the information contained in this manual. The SGM logo, the SGM name and all other
trademarks in this document pertaining to services or products by SGM or its afliates and
subsidiaries are trademarks owned or licensed by SGM or its afliates or subsidiaries.
X·5 / XC·5 LED Strobe uk

4
Contents
Safety Information....................................................................................................5
Preparation for Use...................................................................................................7
Controller Operation.................................................................................................9
Setup..............................................................................................................10
DMX Control Summary...........................................................................................12
Service......................................................................................................14
DMX Protocols........................................................................................................15
Specifications.........................................................................................20
Users notes.......................................................................................................................22

5
Safety Information
Strobe lights are known to trigger epileptic seizures in persons who are photosensitive.
• Do not open: there are no user-serviceable parts inside.
• Always ground (earth ) the xture electrically.
• Use only a source of AC power that compiles with local building and electrical codes and has both overload and
earth leakage protection.
• Do not expose the xture to rain or moisture.
WARNING!
This product is for professional use only! It is not for household use.
To guard against electric shock.
