SGM MOVING HEADS SERIES User manual
USER
MANUAL
MOVING HEADS SERIES
G-7 SPOT
2
G-7 Spot dimensions
G-7 SPOT
USER MANUAL REV. A
All dimensions in millimeters and inches. Drawing not to scale.
© 2018 SGM Light A/S®. The information in this document is subject to change without notice.
SGM and all afliated companies disclaim liability for any injury, damage, direct or indirect loss, consequential
or economic loss, or any other loss occasioned by the use of, inability to use, or reliance on the information
contained in this manual. The SGM logo, the SGM name, and all other trademarks in this document pertaining
to SGM services or SGM products are trademarks owned or licensed by SGM, its afliates, and subsidiaries.
English edition
This manual covers installation, use, and maintenance of the SGM G-7 Spot.
3
Contents
Safety information.....................................................................................................................4
Overview .................................................................................................................................5
Preparing for installation............................................................................................................6
Installing / Rigging the G-7 Spot..................................................................................................6
Connecting AC power................................................................................................................8
Conguring the device...............................................................................................................8
Connecting to a DMX control device ............................................................................................9
Conguring the device for DMX control........................................................................................9
Conguring the device for DMX control......................................................................................10
Control menu .........................................................................................................................11
RDM......................................................................................................................................11
Factory default .......................................................................................................................11
Fixture properties ...................................................................................................................12
Fixture properties ...................................................................................................................13
Gobo wheels ..........................................................................................................................13
Gobo replacement...................................................................................................................14
GORE-TEX® Membrane ...........................................................................................................15
Accessories ...........................................................................................................................16
G-7 Spot Top Hat.....................................................................................................................16
Troubleshooting .....................................................................................................................17
Maintenance...........................................................................................................................18
Ordering Information ...............................................................................................................19
Support hotline.......................................................................................................................19
Approvals and certications.....................................................................................................19
User Notes.............................................................................................................................20
User Notes.............................................................................................................................21
4
Safety information
• Do not open the device; there are no user-serviceable parts inside.
• Ensure that power is cut off when wiring the device to the AC mains supply.
• Ensure that the device is electrically connected to earth (ground).
• Do not apply power if the device or mains cable is in any way damaged.
• Do not immerse the xture in water or liquid.
DANGER! Risk of electric shock. Do not open the device.
• Install in a location that prevents accidental contact with the device.
• Install only in a well-ventilated space.
• Install at least 0.3 m (12 in.) away from objects to be illuminated.
• Install only in accordance with applicable building codes.
• Ensure a minimum clearance of 0.1 m (4 in.) around the cooling fans.
• Do not paint, cover, or modify the device, and do not lter or mask the light.
• Keep all ammable materials well away from the device.
• Allow the device to cool for 15 minutes after operation before touching it.
CAUTION: Exterior surface temperature after 5 min. operation = 55 °C (131 °F). Steady state = 65 °C (149 °F).
WARNING! Take measures to prevent burns and re.
• Do not look directly at the light source from close range.
• Take precautions when working at height to prevent injury due to falls.
• For Permanent Outdoor Installations (POI), ensure that the xture is securely fastened to a load-bearing surface with suitable
corrosion-resistant hardware.
• For a temporary installation with clamps, ensure that the quarter-turn fasteners are turned fully and secured with a suitable
safety cable.
•
For elevated installations, secure the xture with suitable safety cables, and always comply with relevant load
dimensioning, safety standards, and requirements.
• The standard safety wire cable must be approved for a safe working load (SWL) of 10 times the weight of the xture, and
it must have a minimum gauge of 5 mm.
WARNING! Take measures to prevent personal injury.
WARNING!
Read the following safety precautions carefully before unpacking, installing,
powering, or operating the device.
SGM luminaries are intended for professional use only. They are not suitable for household use.
Les luminaires SGM sont impropre à l’usage domestique. Uniquement à usage professionnel.
This product must be installed in accordance with the applicable installation code by a person familiar with
the construction and operation of the product and the hazards involved.
Ce produit doit être installé selon le code d’installation pertinent, par une personne qui connaît bien
le produit et son fonctionnement ainsi que les risques inhérent.
5
The G-7 Spot is a fast, compact, and lightweight mid-sized moving head spot with high-output and low power consumption, designed
for multiple applications, including when wireless operation is essential.
The G-7 Spot features:
• An IP66 rated moving head with 6500K white LED engine*
• CMY color mixing with dichroic RGB macros, linear CTO and a CTB lter
• 6º to 48º zoom range
• Built-in wireless DMX
• Fully RDM implemented
• Two independent gobo wheels
• Variable and exchangeable 0-100% frost effect with a soft diffusion
• Low power consumption
• Superior thermal management for high reliability
*The lightsource of the xture is expected to run until about 20,000 hours LM-70/TM-21.
Overview
I
F
D
J
A
G
B
E
K
H

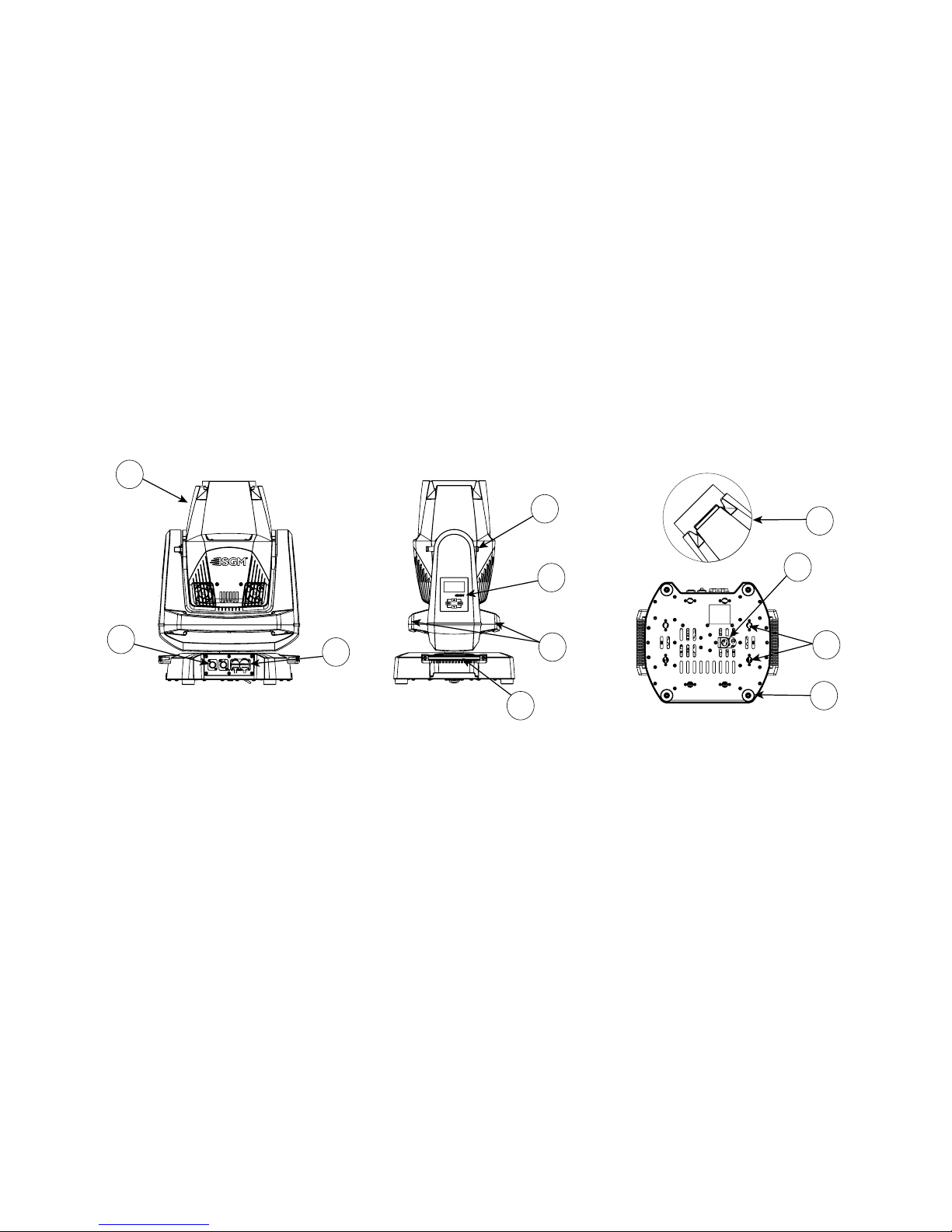

A: Front lens
B: Power in and out
C: DMX in and out
D: Tilt lock/unlock
E: Display and control panel
F: Yoke handles
G: Base handle (x2)
H: G-7 with Tophat (accessory)
I: Safety wire attachment point
J: Holes for omega bracket (x8)
K: Rubber feet (x4)
C
Parts identication and terminology
Figure 1: G-7 Spot parts and terminology
This manual suits for next models
1
