Owner’s & Operator’s Manual
SGM Industries, LLC TB 220TM Turf Brush
It is imperative for your safety that you read and understand these instructions before
operating the TB 220TM Turf Brush. If you have any questions please contact SGM
Industries, LLC at the address below. Keep these instructions in a convenient place for
future reference.
SGM Industries, LLC
1875 Ridgemont Court
Montgomery, IL 60538
Phone: [phone]
[email protected]
sgmindustries.com

TB 220TM Turf Brush Owner’s Manual Rev DCopyright 2015 SGM Industries, LLC Page 2 of 11

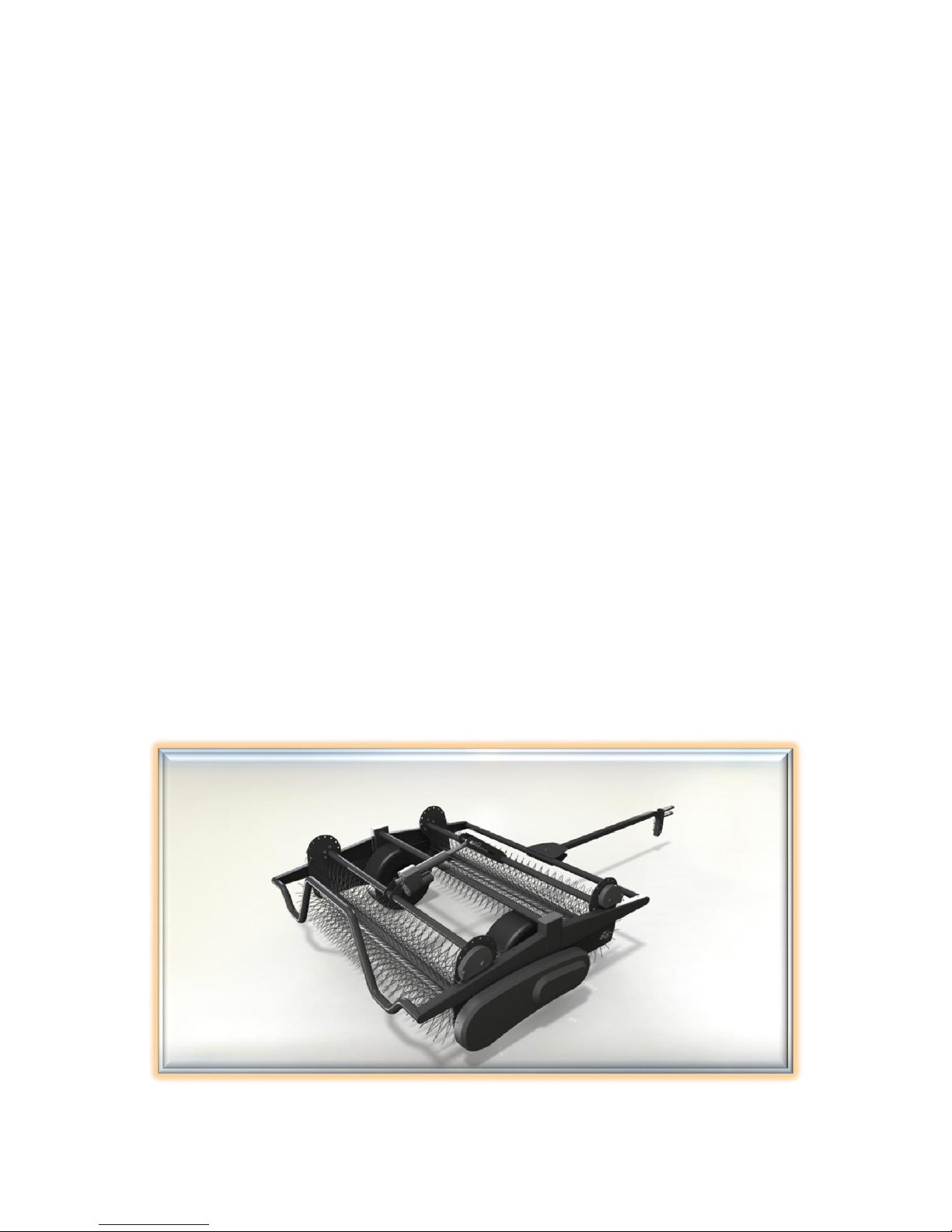

Overview
The TB 220TM Turf Brush is the second generation grooming tool with two
cylindrical brushes which rotate in the same direction. The unit is used by
groundskeepers to improve the appearance, quality, and the growing conditions
of turf on golf courses and numerous sports fields. Various vehicles can be used
to tow the brush such as lightweight tractors and utility vehicles.
The TB 220TM Turf Brush can be used in several different applications. Utilized as
a groomer, the brush will lift up the bent-over grass blades so that a mower can
cleanly cut them. The brush can also be used to incorporate topdressing
materials into the canopy of the turf. The rotating action of the brushes
integrates the topdressing much deeper into the canopy so the materials are not
removed the next time the turf is mowed. The TB 220TM Turf Brush is a superb
tool for backfilling materials into holes left in the turf after an aeration operation
has been completed.
Both brushes will begin to rotate as the unit is pulled along the ground.
To travel from work area to work area, the operator raises the brushes by means
of a high speed electric actuator. This lifts the brushes to a safe distance above
the turf.
A new feature of the TB 220TM Turf Brush is the ability to remove aerifier cores
from the green surface. The TB 220TM Turf Brush will move a surprisingly large
amount of sand or topdressing material and now, due to the fully enclosed and
sealed side covers, aerifier core removal should not present a problem.

TB 220TM Turf Brush Owner’s Manual Rev DCopyright 2015 SGM Industries, LLC Page 3 of 11
Safety Information
As an owner or operator of the TB 220TM Turf Brush, it is extremely important that you
read and understand the contents of this manual before attempting to use the brush.
The operator is ultimately responsible for his/her safety as well as the safety of others
nearby. Any piece of equipment with moving parts is potentially hazardous. There is no
substitute for an operator who recognizes the potential hazards and follows sensible
safety practices.
Equipment Safety Guidelines
Read and understand the owner’s manual before attempting to use the brush.
Do not consume alcoholic beverages or drugs while operating the TB 220TM Turf
Brush. Consult your doctor about any prescription medications before operating
the unit.
Keep all safety devices, guards, and decals in place and functional. Replace or
repair any items as needed before operation.
Review all safety instructions with all users on an annual basis.
Wear approved safety shoes and safety glasses when using the unit.
Keep unauthorized people away from the areas of operation.
Never allow children to operate the brush.
Do not wear loose clothing that could become entangled in moving parts.
Be sure the work area is free of debris and loose objects.
The brush is not intended for riders.
Raise the brushes off the ground properly for transport to prevent damage.
Avoid excessive speed during operation. Use extreme caution and maintain
minimum speed when traveling on hillsides, rough terrain, or near drop-offs. Do
not make sharp turns and/or traverse steep slopes. Care should be used when
traveling up or down hills.
Shut off the tow vehicle and set the parking brake when leaving the brush
unattended.
Never work under any equipment unless it is blocked up correctly.
Check and tighten all fasteners as needed.
The warranty and the liability of the manufacturer are voided if any alteration of
the equipment is performed.
The TB 220TM Turf Brush should be stored away in a safe location after use. If
you are storing the unit on the rear bumper, be sure the ground is level and able
to support the brush. A concrete floor is recommended. Brace the unit to an
adjacent wall to eliminate possible tipping.

TB 220TM Turf Brush Owner’s Manual Rev DCopyright 2015 SGM Industries, LLC Page 4 of 11
Assembly and Setup
The TB 220TM Turf Brush is very straightforward to setup. Very few assembly steps are
required. Follow the instructions below and you will be ready to operate the brush.

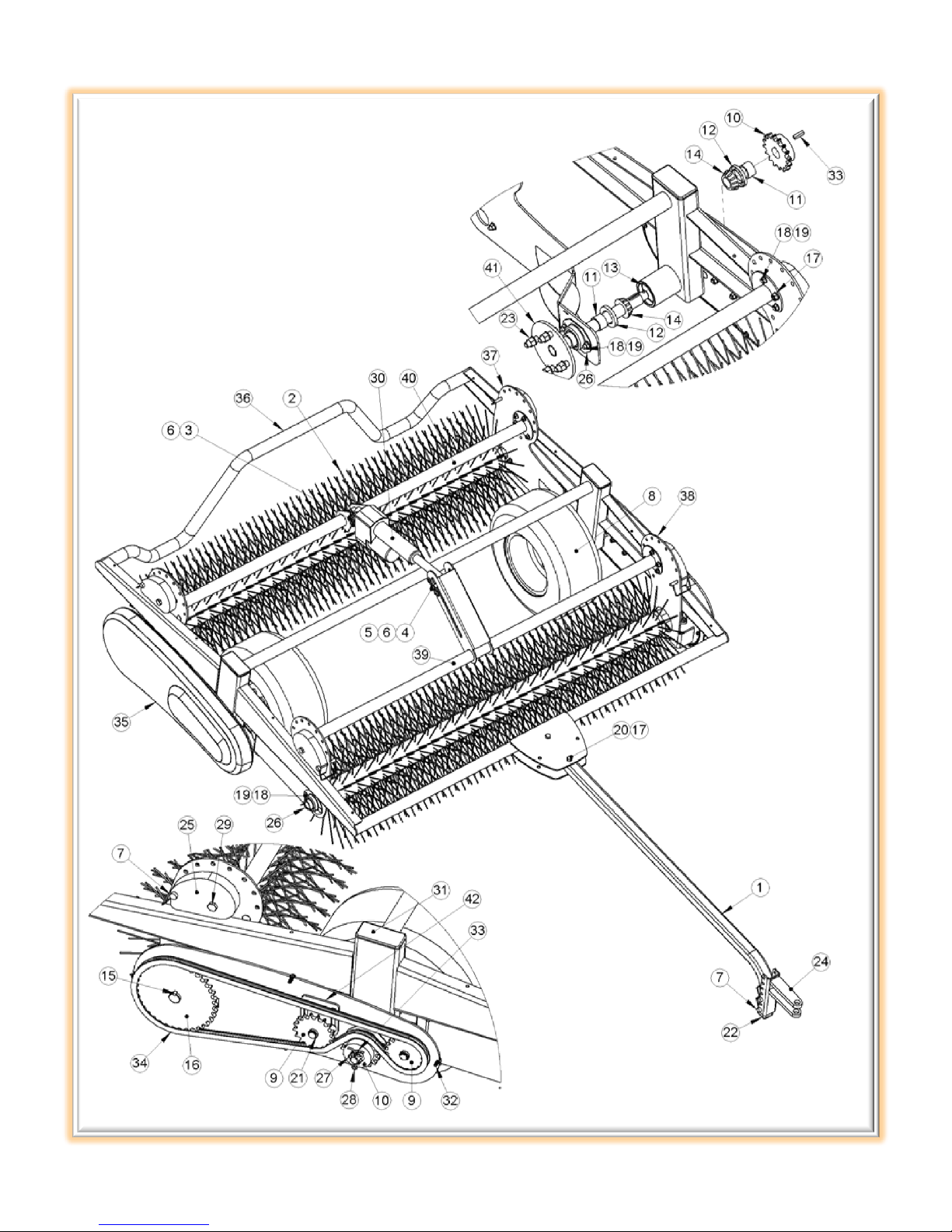

Assemble the hitch tube (1) to the frame (36) using the hex bolts and nuts (20 &
17) provided. (Image A) Tighten these fasteners securely.
Attach the unit to the desired tow vehicle. Adjust the position of the hitch
weldment (24), using the two quick-release lynch pins (7), until the hitch tube (1)
is parallel to the ground. (Image B) It is important to perform this setup on a
level and flat surface. The hitch weldment (24) and the hitch tube (1) can both
be positioned in two different orientations to encompass a large range of tow
vehicles.
Connect the actuator control box harness assembly to the brush harness. Route
the cable as needed so it does not become tangled or allowed to catch on
anything during use. The red battery clip should be attached to the positive lug
on the tow vehicle battery, and the black battery clip is connected to the
negative lug.
Check the tires for proper inflation of 14 psi (97 kPa).
The TB 220TM Turf Brush comes from the factory with all initial lubrication
already performed. The brushes are set in the lockout position for shipping.
Please see page 5 for information on adjusting brush height.
Image A Image B

TB 220TM Turf Brush Owner’s Manual Rev DCopyright 2015 SGM Industries, LLC Page 5 of 11
General Operation
The TB 220TM Turf Brush should always be transported by raising the brushes off
the ground using the actuator. This is easily accomplished by pressing up on the
actuator switch until the brushes are fully raised. A clicking sound will be heard
in the actuator when the maximum up and down positions are reached.
Do not exceed 10 mph (24 km/h) when transporting the unit.
The brush height should be set to the third hole for normal use. The user can
change this depending on his/her needs by simply pulling the lynch pin (7) and
positioning it in a different hole in the brush support weldment (37 & 38). (See
Image C) Although there are 8 holes available, holes 1 through 4 should be the
main holes used depending on the brushing procedure being performed at the
time. Use holes 1 or 2 to set the brush more aggressive, hole 3 as a middle
setting, and hole 4 to set the brush less aggressive. When adjusting brush
height, there is no need to make any chain adjustments. The front or rear
brushes can be positioned in the lockout hole if the user wishes to only run one
brush for a less aggressive application.
SGM Industries, LLC recommends that the unit be stored inside when not in use.
The rear bumper is designed to allow this. The unit can be rotated up into a
vertical position for storage. Be sure the ground is level and able to support the
brush. A concrete floor is recommended. Brace the unit to an adjacent wall to
eliminate possible tipping. If storing in this method, do not try to lift the unit by
yourself. This is a two person operation. Lower the unit slowly to prevent
damage.
Do not store the unit with the brushes in contact with the ground. This can
cause the brushes to become deformed.
Image C
