SGS HKE Product guide

Operating Manual and Test Log

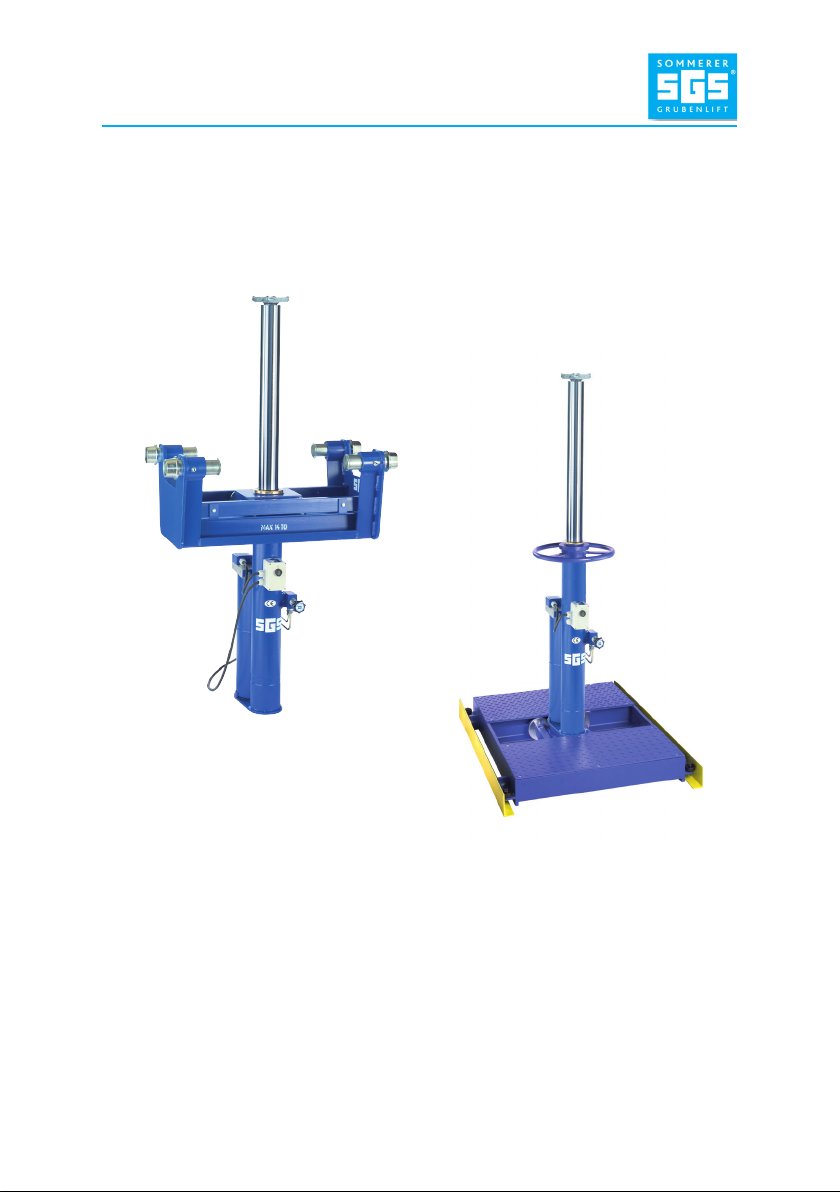

Pit lift
HKE / FKE
Lifting capacity 10 t, 14 t, 20 t
SOMMERER PIT LIFT

Important:
• Releasehandbrakesothatthevehiclecanroll.
►When working under lifts with drive-on rails, always observe the
shift in center of gravity when lifting axles or body parts. When the
counterweight of the axle is not on the rail, the lifting platform can
become overloaded or the stability can be reduced.
• Disconnecttheliftfromthepowersupplyatnight.
Notes:

Content page
Data Sheet 4
Test Log 5
1. SAFETY REGULATIONS 6
1.1. Introduction 6
1.2. Application areas of the SOMMERER pit lifts 6
1.3. Notes for compliance with the operation manual 6
1.4. Operation of the site operator 7
1.5. Hazards handling the pit lifts 7
1.6. Organisationals methods 8
1.7. Maintenance tasks, fault clearance, disposal 9
1.8. Specichazards 9
1.9. Safety regulations 10
2. DESCRIPTION 11
2.1. Utilization and application 11
2.2. Description of design and functions 11
2.3. Transport 12
3. INSTALLATION 12
3.1. General 12
3.2. Setup and installation location HKE 12
3.3. Bleeding 13
3.4. Setup and installation location FKE 14
3.5 Electrical connection 14
4. OPERATION 15
4.1 Lifting loads 16
4.2 Lowering loads 16
4.3 Load bearing devices and support bridges 17
4.4 Instructions for use 17
5. MAINTENANCE 18
5.1. Special instructions 18
5.2. Maintenance 18
5.3. Oil level check 19
6. MALFUNCTIONS 19
6.1. General 18
6.2. Troubleshooting 20
6.3. Replacement equipment and repair 20
7. WARRANTY 21
8. ELECTRICAL- AND HYDRAULIC DIAGRAM 22
8.1. Electrical Diagram HKE/FKE 400 V (Standard) 22
8.2 Electrical Diagram HKE/FKE 240 V 23
8.3 Pit lift control 23
9. HYDRAULIC DIAGRAM HKE/FKE 24
10. REPLACEMENT PARTS LIST 25
11. EC-DECLARATION OF CONFORMITY 26

4
Pit lift model:
Lifting capacity:
Year of manufacture:
Factory no.:
HKE/FKE HKE/FKE HKE/FKE HKE/FKE
Liftingcapacity 10t 14t 16t 20t
Max.hydr.operating
pressure
160bar 220bar 205bar 255bar
Electricalconnection
3kW,16A
400V 400V 400V 400V
Loweringspeed:max.0,15m/s
Stroke:800mm
Controller:electrohydraulic
Commissioning log:
Theliftwasinstalledandcommissionedinaccordancewiththe
instructionson______________
________________________________
Place/Date
_________________________________
Expert
Nameofexpert Address
Decienciesnoted Date/Siteoperator
Decienciescorrected Date/Signature
Data Sheet

5
Date of
inspec-
tion
No defects/
defects to
be correc-
ted
Yes/no
Decien-
cy cor-
rected
Yes/no
Deci-
ency
corrected
Name, address,
occupation,
employer of
expert
Conrmati-
on of site
operator
Test Log
Thispitliftwassubjectedtoaregularinspectiononthespecieddate
inaccordancewiththeregulationsoftheGermanBGG945/BGR500
andtheMachineryDirective.2006/42/EC

6
1. Safety regulations
1.1. Introduction
SOMMERERpitliftsarearesultofmanyyearsofexperience.Thehigh
qualitystandardandthesuperiordesignguaranteereliability,longser-
vicelifeandefcientoperation.Youshouldreadthisoperatingmanual
attentivelyandalwaysobservethecontentstopreventunnecessary
damageandhazards.Thisoperatingmanualisapplicablebothforrail-
mountedpitliftsaswellasforfreelymovablelifts.
1.2. Application areas of the SOMMERER pit lifts
SOMMERER pit lifts are only permitted to be used for partial lifting
of vehicles with support afterwards and/or for lifting and lowering
vehicle parts (e.g. engines, gearboxes etc.). In doing so, the load
must not exceed the maximum permitted load capacity of the pit
lift.
Important: Any other or use beyond the described purpose is
deemed as unintended use.
ERICHSOMMERERGMBHshallnotbeliablefordamagearisingfrom
this.Theriskforthisshallbebornesolelybytheuser.Intendeduse
alsoincludes:
• compliancewithallinstructionsinthisoperatingmanual
• compliancewiththeinspectionandservicingworkandthespecied
tests.
1.3. Notes for compliance with the operating manual
• Thebasicrequirementforsafehandlingandtrouble-freeoperation
ofthepitliftistheknowledgeofthebasicsafetyinstructionsand
safetyregulations.
• Theoperatingmanualmustbeobservedbyallpersonswhoworkon
thepitlift.ThisparticularlyappliesforChapter1.8SpecicHazards.
• Theapplicablerulesandregulationsfortheoperatingsitemust
beobservedinadditiontothesafetyinstructionsintheoperating
manual.

7
1.4. Obligation of the site operator
Thesiteoperatorisobligedtoonlyallowpersonstoworkonthesystem
who
• arefamiliarwiththebasicregulationsforoccupationalhealthand
safetyandaccidentpreventionandwhohavebeeninstructedabout
handlingthesystem.
• havereadandunderstoodthesafetychapterandwarningsand
haveconrmedthiswiththeirsignature.
1.5. Hazards handling the pit lift
TheSOMMERERpitliftshavebeendesignedandconstructedaccor-
dingtothestateoftheartandtherecognisedsafetyregulations.Ne-
vertheless,unintendedusemayendangerlifeandlimboftheoperator
ordamageproperty.Thepitliftisonlypermittedtobeused:
• fortheintendeduse
• insafe,faultlesscondition
► Faultswhichcanadverselyaffectsafetymustberectiedimmediately.
• Onlyputthepitliftinmotioniftherearenopersonsinthedanger
area.
• Themovementrangeofthepitliftmustbekeptclear.
• Nopersonsarepermittedtobepresentinthemovementrangeof
thepitlift.
• Themaximumpermittedloadcapacityofthepitliftmustnotbe
exceeded.
• Climbingonthepitlift,ridingonitandclimbingontheloadare
forbidden!
• Onlyloadliftcentrally,liftvehicleandcheckthesafevehiclesupport;
donotlifttotherequiredheightuntilthen
• Securethevehicleagainstrollingaway.

8
• Maketheliftingandloweringmovementsevenly.Monitortheload
duringthemovement.
• Pit lifts and transmission lifts are not suitable for holding loads over
an extended period. Therefore, the raised load must be secured using
support bridges or support blocks.
1.6. Organisational measures
• Theoperatingmanualmustalwaysbekeptreadytohandatthe
operatingsiteofthepitlift.
• Inadditiontotheoperatinginstructions,observeandenforcethege-
nerallyapplicablestatutoryandotherbindingregulationsconcerning
accidentpreventionandenvironmentalprotection.
• Checkatleastoccasionallythesafetyandrisk-consciousworkof
thepersonnelandcompliancewiththeoperatinginstructions.
• Usepersonalprotectiveequipmentifnecessaryorrequiredbyregu-
lations.
• Observeallsafetyinstructionsanddangerwarningsonthepitlift.
• Allsafetyinstructionsanddangerwarningsonthepitliftmustbe
maintainedinlegiblecondition.
• Donotmakeanychanges,attachmentstoandmodicationsofthe
pitliftwhichcouldaffectsafetywithoutthepermissionofthemanu-
facturer.Thisparticularlyappliesforweldingonload-bearingparts.
• Sparepartsmustcomplywiththetechnicalrequirementsspecied
bythemanufacturer.Thisisonlyguaranteedfororiginalparts.
• Complywithlegaldeadlinesorthosespeciedintheoperatingma-
nualforrecurringtests/inspections.
►In the event of malfunctions, shut down the pit lift immediately and
secureagainstrestarting.Havefaultsrectiedimmediately.

9
1.7. Maintenance tasks, fault clearance, disposal
• Complywiththeadjustmentandmaintenancework,inspectionsand
datesincludinginformationaboutthereplacementofparts/individual
componentsspeciedintheoperatingmanual.Theseactivitiesmust
onlybeperformedbyqualiedpersonnel.
• Alwaystightenscrewconnectionswhichhavebeenundoneorloo-
senedduringmaintenanceandrepairwork.
• Arrangesafeandenvironmentallysounddisposalofoperatingand
auxiliarymaterials(hydraulicoil)andexchangeparts.
1.8. Specichazards
Hydraulics, pneumatics
• Workonhydraulicequipmentmustonlybeperformedbypersons
withknowledgeandexperienceofhydraulics.
• Checkalllines,hosesandscrewconnectionsregularlyforleaksand
externallyrecognisabledamage.Rectifyanydamageimmediately.
Squirtingoilcanresultininjuriesandre.
• Depressurisepressurelinestobeopened(hydraulics,compressed
air)beforestartingrepairwork.
►Lay and mount hydraulic and compressed air lines properly. Do not
mix up connections. Fittings, length and quality of the hose lines must
comply with the requirements.
Oils, grease and other chemical substances
Observetheapplicablesafetyregulationsfortheproductwhenhand-
lingoils,greasesandotherchemicalsubstances.

10
1.9. Safety regulations
Applied safety regulations
The following standards were implemented in the design:
• ThesafetydevicescomplywithEN1494:2009-5
• Theliftcomplieswiththesafetyregulationsofthefollowingdirecti-
ves:2006/42ECMachineryDirective..
• TheCEDeclarationofConformityispartofthisoperatingmanual.
Observe the following during operation:
• Theaccidentpreventionregulationsofyourcountryapply
• 89/391/EECSafetyandhealthprotectionofemployees
• 89/654/EECSafetyandhealthprotectioninworkfacilities.
• 89/655/EECSafetyandhealthprotectionwhenusingworkequip-
ment
• 89/656/EECSafetyandhealthprotectionwhenusingpersonalpro-
tectiveequipment
• 92/58/EECSafetyand/orhealthlabelingintheworkplace
Applied safety standards
• ENISO12100-1:2003/DINEN294/prEN349/EN414/EN418/
prEN811/EN50099/EN60204/ISO1219/ISO/DIS11530
►EU-Directives are available: DITR German Information Centre for
Technical Regulations in DIN e.V., Berlin

11
2. Description
2.1. Utilization and application
Thepitliftisdesignedexclusivelyfortheverticalliftingofmotor
vehiclesoverassemblypits,withamax.axleloadcorrespondingtothe
max.liftingcapacityofthelift.
Theliftmustbecommissionedbyacompetentandtrainedperson.The
designoftheliftmaynotbemodiedinanyway.
Theloadraisedusingtheliftmustbesupportedusingsuitablesupport
systems.ERICHSOMMERERGmbHalsoprovidesthesesupport
systems.
►For FKE-FV: When working under lifts with drive-on rails, always
observe the shift in center of gravity when lifting axles or body parts.
When the counterweight of the axle is not on the rail, the lifting
platform can become overloaded or the stability can be reduced.
►Always comply with the detailed operating and maintenance
instructions.
2.2. Description of design and functions
Theseelectrohydraulicpitliftsaredesignedforliftingmotorvehicles
aboveassemblypits.Thepitliftcanbemovedlengthwaysandcross-
waysinthepit.
ThepitliftHKEconsistsessentiallyofasupportingplatewithaxles
andrunningrollers.Theliftingcylinderisweldedtothemidpointofthe
supportingplate.Abaseplateisweldedunderneaththeliftingcylinder.
AtFKE,thebaseplateisconnectedtothechassis.Thecontrolisper-
formedusinganUPpushbuttoninstalledontheliftandanUP-DOWN
buttonloweringvalve.
Thepistonrodandguidearebuiltintotheliftingcylinder.Atthetop,the
pistonrodhasaholedrilledtotakeholdingdevices.Anattachedsup-
portplateservesastheloadbearingdevice.Othersuitablesupports
canbeattachedforspecialloadapplicationpointsonvehicles(see
accessories).
Thehydraulicaggregateislocatedattherearofthecylinder.Forvehic-
lesthathavetobeliftedattwopoints,attachablecrossmembersmust
beused(seeaccessories:axlecrossbeams,supportsystems).

12
2.3. Transport
Thepitliftcanbetransportedstandingorlying.Theoilllingnozzle
withintegratedoildipstickisreplacedduringtransportbyatightly
sealingstopper.Thisstoppermustbereplacedbytheoilllingnozzle-
beforecommissioning
3. Installation
3.1. General
l
Thepitliftshouldbeinstalledbythemanufacturer’sorthesales
company‘strainedinstallers.Ifthesiteoperatorhassufcientlytrained
installers(experts),thepitliftcanalsobeinstalledbythem.
Thecorrectinstallationandcommissioningmustbeinspectedbyan
expertandconrmedinthecommissioninglogonpage4.
3.2. Setup and installation location HKE
Adjustable chassis:
• Thechassisissuitedforaspacingof860to1,000mmbetweenthe
runningrails.
• Theupto14,5tadjustablerolleraxlesmustbesetsothatthedis-
tancebetweentherollercollarandtherunningrailsisnomorethan
10mm.
• Pushthechassisoncealongtheentirelengthofthepittoensure
this.
• Thedistancefromtherollercollartothepitrunningrailmustnot
exceed10mmatanypoint!
• Inthisposition,theM10safetyboltsmustbedrilled.Todothis,rst
tightentheboltssothatthetipoftheboltpressesintotheaxle.
• Thendrilltheaxlewithan8mmdrillbit.Securethesafetyboltswith
locknutsaftertightening.

13
Welded chassis (from 16 t or on request):
• Thechassiswasmanufacturedaccordingtoyourpitsize;theroller
collarmustmakecontactwiththerunningrail.
• Hereagain,themaximumdistancebetweentherollercollarandthe
runningrailmustnotexceed10mm.
►In general, the following applies to both the adjustable and the welded
chassis
• Thestandardrunningrollersareauthorizedonlyforattoslightly
conicalcontact;theymayneedtobeadaptedbyre-turningtomore
tiltedrunningrails.Foranextrachargewewillprovidethecorres-
pondingrollers(sketchrequired!).
• It is not permitted to extend the rollers to compensate for misalign-
ment.
• Itmaybenecessarytostraightenthepitbyweldingincompensating
proles.Protrudingconcrete,interferingpipingorwiring,etc.must
beremoved.
• Suspendtheliftinthechassis;mountthelockingbracketaccording
totheinstructions.
3.3. Bleeding
• Ifthelift(hydraulicunit)hasdrawninairduetooilleveltoolow,oil
mustbelledintheheadplateattheoilnozzlewhenthepistonrod
islowered.
• Extendliftcompletelyandll0.1lofhydraulicoilattheunit.
• Openthebleedscrewontherightoftheheadplateby3turns,
• Moveliftcompletelytothetop(againststop)andkeeprunninguntil
onlyoilstilldischarges.
• Closebleedscrew.
• Lowerliftcompletely;ifnecessarypresspistonrodcompletelytothe
bottombyhand.Indoingso,excessoilmaydischargeattheunit.

14
• Checkoillevelmonitoringonthelift.Repeattheprocedureifneces-
sary.
3.4. Setup and installation location for FKE
Dependingonthemodel,thepitliftisguidedonthepitoorinor
onrunningrails,oritisfreelymovableontheoorofthepit.
Chassis model Z
ModelZhasachassisthatrunsontheoorinU-proles,L-prolesora
atsteelplateinstalledatthesite(preferablyU100).Theprolesmust
bealignedexactlyparallel,towithin10mm.Toinstalltherollers,open
theU-proleatasuitablelocation.
Thepitliftisalsofreelymovablecrosswiseinthechassis.
► Important!BeforeinsertingthechassisandliftintheU-prole,they
must be secured so that they cannot move.
Chassis model F
TheFmodelhasachassiswhichrunsalongtheoor,similartotheZ
model.Aatsteelplatecanbeusedfortherunningsurface.Therollers
oftheliftthenrunontheatsteel.Thischassiscanbeguidedlaterally
inthepitbymeansofadjustablespacerrollers.
Chassis model FV
Thechassisofthisliftisfreelymovableupto1,000kgonsteering
rollers.Loadsexceeding1,000kgpushdownonthesprings,sothat
theframeisontheoor.Theliftisboltedsolidlytothemidpoint.The
runningrollersoftheliftthenrundirectlyontheoorofthepit.Theoor
mustbesuitableforthispurpose,i.e.level,solidandclean.
Chassis model FV-Q
AchassismodelFV.Inadditiontheliftcanalsobemovedcrossways
onitschassis.Undernormalconditions,theliftiscompletelystable.
Sincethechassisisnotsecuredontheooragainsttipping,youshould
beawareoftheresultingdangers.Extremesideloadingonaliftthat
canbemovedlaterallycanresultinadditionaltippingmoments.There-
fore,sideloadingshouldalwaysbeavoided.
3.5. Electrical connection
Thepitliftmaybeconnectedonlytoa3-phase400Vsupplywith3x16
Afuses.Afterconnection,runthemotorjustbriey.Ifthepumpdoes
notsupplyoil(thepistonroddoesnotextend),then2phasesmust

15
beswappedwitheachother.Ifaconnectioncable,otherthantheone
whichissupplied,isusedforthelift,itisessentialtouseanH07RNF
castrubbercable.
Checksupplylinefordamageandreplaceimmediatelyifnecessary.
Theliftisalsoavailablefor240Vmainspower.Specialcircuitdiagrams
mustbeobservedhere.Cableswithlargecrosssectionarerequired.
4. Operation
Therespectiveapplicableaccidentpreventionregulationsmustbe
compliedwith.
• Thepitliftisonlypermittedtobeoperatedbytrainedpersonnel.
• Onlyputthepitliftinmotionifthereisnodangertopersons.
• Themovementrangeofthepitliftmustbekeptclearandnoper-
sonsarepermittedtobeinthemovementrange.
• Themaximumpermittedloadcapacityofthepitliftmustnotbe
exceeded.
• Climbingonthepitlift,ridingonitandclimbingontheloadare
forbidden.
• Onlyloadliftcentrally,liftvehicleandcheckthesafevehiclesupport;
donotlifttotherequiredheightuntilthen.
• Ensurethatloadiscentered!Holdnon-centeredloadswithcross
members(2-pointsupport).
• Theloadbearingdevicemustbecentredontheload.Watchoutfor
theshiftincentreofgravityduringlifting.
• Maketheliftingandloweringmovementsevenly.Monitortheload
duringthemovement.
• Theraisedloadmustbesupportedwithsupportbridgesorsupport
blocks.
• Enginesmustbesecuredreliablyagainstslipping,slidingandtilting

16
ontheloadbearingdevice.
• Movingtheliftunderloadisonlypermittedifspecialsafetymeasu-
resareobserved.
• Attachedequipment(e.g.gearboxplates)forengineandgearbox
installationandremovalmustnotbepivotedortiltedsothatthe
structuralstabilityisreduced.Thismeans:allloadstobeliftedare
centeredandevenlydistributed.
4.1. Lifting loads
• Beforeusingtheliftforavehicle,releasethehandbrakeandshift
thetransmissiontoneutral.
• Attachliftinggearateven,load-bearingpointswhicharespecied
bythevehiclemanufacturer.
• Theloadbearingdevicemustbecenteredontheload.Watchout
fortheshiftincentreofgravityduringlifting.
• Youmustkeepthemovementareaofthevehiclefree,andkeepthe
vehiclebeingmovedunderobservation.
• Itisforbiddenforanyonetoentertheareaofmovement.
• Intheeventofmalfunctions,shutdowntheunitimmediatelyand
notifysupervisor/servicedepartment.
• AlwaysobservetheapplicableregulationsEN1494:2009-5/BGG
945/BGR500
• Toraiseorlower,presstheappropriatepushbutton.orloweringvalve
4.2. Lowering loads
►Make lowering movements slowly and evenly. Monitor the load during
the movement.
• Monitortheloadduringthemovement.

17
• Removerollingawayprotection(wheelchocks).
• Raisevehicleslightlyandremovesupportbridges.
• Onlyopenthethreadedspindleaverylittleforloweringtheload.
• Theloweringspeediscontinuouslycontrolledbyturningthethrea-
dedspindleanticlockwise.
• Turnthethreadedspindleasfarasthestopforfurtherlowering
withoutload.
4.3. Load bearing devices and support bridges
Variousloadbearingdevicesareavailableforliftingvehiclesandvehic-
leparts.Theseincludesupportplates,crossmembers,gearboxplates,
specialmountingsandextensions.
Liftedvehiclesmustbesecuredwithsupportbridgesorsupportblocks.
Supportbridgesarealwaysmanufacturedtothepitdimensions.Their
securesupportmustbeguaranteedoverthecompletelengthofthepit.
4.4. Instructions for use
Themanualforcesforstartingtheunloadedpitliftareatmost300N,
andtheforcesrequiredtomaintainthemotionaremax.200N.Ifthese
forcesareexceeded,e.g.becauseofaroughrunway,thenasecond
personmustassist.
• Neverexceedthemaximumpermittedloadcapacityoftheload
bearingdevices.
• Irrespectiveoftheloadbearingdevice,theloadcentreofgravity
mustalwaysbepreciselycentralabovethepitlift.
• Onlyuseloadbearingdeviceswithappropriatestuds.
• Donotstackextensionpieces.
• Transportofvehiclesonthepitliftisnotpermittedwhentheliftis
completelyloweredandifthepartshavebeensecuredwithstraps
orchains.

18
• Attachallloadbearingdevicesdirectlytothepistonrod.
• Donotuseanystrokeextensionbetweenliftandliftinggear(cross
member,gearboxplateetc.).
• Theliftsarenotsuitableforuseincarwashsystems;ifusedthere,
theymustbesuitablycoveredandprotectedtopreventdamage
fromthehighhumidity.Thewarrantydoesnotcoverrust!Residue
fromunderbodysealingcompoundswilldestroytheseals.
• Duetothecornerloadofthesupportingplates,damagetotheoor
cannotberuledout.Coveringwithtilesisonlyappropriatewhenthe
oorisverylevel.
• Undernormaloperatingconditions,thisuniversalliftingdeviceis
completelystable.Sincethechassisisnotsecuredagainsttipping
ontheoor,youshouldbeawareofthepossibledangers.Therefo-
re,sideloadingshouldalwaysbeavoided.
5. MAINTENANCE
5.1. Special instructions
OriginalSOMMERERPITLIFTSrequireminimalmaintenance.Itis
importantthatthepistonrodbekeptclean.Damagemustbe
immediatelypolishedoutwithagentletransition.Whenworkingwith
stronglyadheringunderbodycompounds(underbodyprotection,wax
etc.)thepistonrodmustbefullycoveredor-beforeloweringthelift-
cleaned
Suchcompoundsgumuptheupperdirtandwaterwiperring,which
thennolongerfunctionsproperly.
►Do not clean pit lifts with high-pressure or steam cleaners,
since cleaning agents can penetrate the valves and cause
malfunctions.
5.2. Maintenance
Thepistonrod,studsoftheloadcarryingdevice,runningrollersand
othermovingpartsmustalwaysbelightlyoiled.

19
Everytimethatitisretracted,thepistonrodpassescompletelythrough
theplungersystemintothehydraulicoil,andistherebyautomatically
lubricatedandprotectedagainstcorrosion.
Thehydraulicoilmustbechangedafternomorethansixyearsof
operation.TheinitialllatthefactoryiswithBPHLPHM35.
Acomparableoilcanbeusedwhenchangingtheoil.
5.3. Oil level check
Important for oil level check
►Disconnect the pit lift from the compressed air network!
►Check oil only when unit is not under pressure
►Check oil only when lift is not in motion.
►Ensure absolute cleaniness
► Useonlylteredhydraulicoil
►Check oil level at least once per month.
Bleeding
Thepitliftissuppliedlledwithoil,andhasbeenbled.If,afteran
extended period of operation or after an oil change, the piston rod
extends jerkily, then the bleed screw underneath the head plate
on the cylinder should be opened until oil escapes.
6. Malfunctions
6.1. General
• Quiteoftentheproblemsthatcauseamalfunctionareminor.Lo-
catingthecauseofamalfunctionisalmostalwaysthemosttime-
consumingtaskintroubleshooting.Asanautomotiveexpert,you
cancarryoutnearlyalltroubleshootingtasksyourself,inorderto
savemoney.
• Beforeshipping,everyliftissubjectedtoseveralprecisefunction
testsunderoperatingconditionswithanexcessiveload.Inaddition,
asealcheckandcompletenesscheckarecarriedout.
However,ifpartsaremissingatthetimeofdelivery,orifmalfunctions
occurduringcommissioning,theninourdailyexperiencethecauseis
inmostcasesbeyondourcontrol.

20
6.2. Troubleshooting
a) Lift does not pump or will not hold a load
• Insufcientoilpossiblylostduringtransport.Addlow-viscosity
hydraulicoil(HLP35)asfarastheuppermarkonthedipstick.Ram
mustbefullyinstartingposition!
• Checkthenon-returnvalveonthecylinder.Removeanydirtthat
maybepresent,orreplacethevalve.
Iftheserstpointsarecorrect,thenthegrooveringintheguidemust
bedefective.Thisgenerallydoesnotoccuruntilafteratleastfour
years.Inthiscase,theliftmustbeoverhauled.
Removaloftheguide:Disconnectthepitliftfromthepowersupply.
Unscrewtheguideusingasuitabletool.Thepistonrodcanremainin
thelift.Afterinstallation,bleedthelift;seepage13.
b) Oil loss on the piston rod
• Resealtheguide,replacethewiperringandthegroovering
c) Oil loss on the lifting or lowering spindle
• Replaceseals;lubricateallslidingpartswithMolykote.
6.3. Replacement equipment and repairs
Smallrepairscanbecarriedoutbythecustomer,assumingtechnical
competence.Replacementpartssetsareavailable.
Pleasenotethefollowingwhenorderingreplacementparts:Inaddition
totheitemnumberfromthereplacementpartslist,youmustspecifythe
modelandloadcapacity(fromthedatasheet),oralternativelythemain
dimensionsofthepistonrod,theliftheight,andtheyearofmanufac-
ture.
Intheeventofmajorrepairs,andafter4to5yearsatthelatest,thelift
shouldundergothoroughmaintenanceandoverhaul,forsafetyrea-
sons.
Wewillrepairyourequipmentwithinafewdays,withafullfactory
warranty.Replacementequipmentisavailableforcommonmodelsand
loadcapacities
This manual suits for next models
1
Table of contents
Popular Lifting System manuals by other brands

Aqua Creek Products
Aqua Creek Products Power EZ 2 manual

Ravaglioli
Ravaglioli RAV222 NL Original instructions

Aquatic Access
Aquatic Access IGAT-180 AD Installation guide / instruction manual

Hardi
Hardi Commander Twin Force Plus Instruction book

Clarke
Clarke CML5 Operation, maintenance & instruction manual

stellar labs
stellar labs Slider40 owner's manual
