Mec 3084ES User manual

Part # 91863
August 2020
3084ES Serial Number Range
11700000 - Up
Operator’s Manual
3084ES Speed LevelTM

Page i 3084ES Speed LevelTM - Operator’s Manual
August 2020
Revision History
Date Reason for Update
August 2020 Update to ANSI 92.20-2020
1401 S. Madera Avenue, Kerman, CA93630 USA
Toll Free: 1 - 877 - 632 - 5438
Phone: 1 - 559 - 842 - 1500
Fax: 1 - 559 - 842 - 1520
[email protected]
www.MECawp.com
MEC Aerial Work Platforms

Page ii 3084ES Speed LevelTM - Operator’s Manual
August 2020
Table of Contents
Section 1 - Introduction . . . . . . . . . . . . . . . . 1
Introduction.....................1
Section 2 - Safety . . . . . . . . . . . . . . . . . 2
Safety.......................2
Safety Alert Symbols & Fall Protection . . . . . . . . . . . . . . 3
Section 3 - Specifications . . . . . . . . . . . . . . . 4
Specifications.....................4
Section 4 - Hazards . . . . . . . . . . . . . . . . . 5
Electrocution Hazard . . . . . . . . . . . . . . . . . . . 5
Minimum Save Approach Distance . . . . . . . . . . . . . . . 6
Tip-over Hazards . . . . . . . . . . . . . . . . . . . . 8
Fall Hazards & Collision Hazards . . . . . . . . . . . . . . . . 10
Additional Safety Hazards . . . . . . . . . . . . . . . . . . 11
Section 5 - Jobsite Inspection . . . . . . . . . . . . . . 12
Jobsite Inspection . . . . . . . . . . . . . . . . . . . . 12
Section 6 - Function Tests and Operating Instructions . . . . . . . 13
FunctionsTest.....................13
Operating Instructions . . . . . . . . . . . . . . . . . . . 14
Section 7 - Emergency Systems . . . . . . . . . . . . . 20
Emergency Systems . . . . . . . . . . . . . . . . . . . 20
Section 8 - Fold Down Platform Railings . . . . . . . . . . . 21
Fold Down Platform Railings . . . . . . . . . . . . . . . . . 21
Section 9 - Machine Inspections . . . . . . . . . . . . . 23
Machine Inspections . . . . . . . . . . . . . . . . . . . 23
Pre-Start Inspection Checklist . . . . . . . . . . . . . . . . . 25
Monthly Inspection Checklist . . . . . . . . . . . . . . . . . 26
Quarterly Inspection Checklist. . . . . . . . . . . . . . . . . 27
Annual Inspection Report . . . . . . . . . . . . . . . . . . 28
Section 10 - Maintenance . . . . . . . . . . . . . . . 29
Maintenance.....................29
Routine Maintenance . . . . . . . . . . . . . . . . . . . 31
Support the Platform ...................32
Lubrication......................33
Section 11 - Battery Charger . . . . . . . . . . . . . . 34
Battery Charger . . . . . . . . . . . . . . . . . . . . 34
Section 12 - Component Locations . . . . . . . . . . . . 36
Component Locations . . . . . . . . . . . . . . . . . . . 36
UpperControls.....................38

Page iii 3084ES Speed LevelTM - Operator’s Manual
August 2020
LowerControls.....................39
Section 13 - Decals . . . . . . . . . . . . . . . . . 40
Decals.......................40
Section 14 - Troubleshooting . . . . . . . . . . . . . . 44
Troubleshooting . . . . . . . . . . . . . . . . . . . . 44
Section 15 - Serial Plate. . . . . . . . . . . . . . . . 45
SerialPlate .....................45
Section 16 - Transport and Lifting Instructions . . . . . . . . . 46
Transport and Lifting Instructions . . . . . . . . . . . . . . . . 46
Lifting and Tie Down Instructions . . . . . . . . . . . . . . . . 48

Page 1 3084ES Speed LevelTM - Operator’s Manual
August 2020
Introduction
This Operator’s Manual has been designed to provide you, the owner, user or operator, with the
instructions and operating procedures essential to properly and safely operate your MEC Aerial Work
Platform for positioning personnel, along with their necessary tools and materials, to overhead work
locations.
This Operator's Manual and other manuals provided by MEC on the
machine must be read and understood prior to operating your MEC Aerial
Work Platform. The operator should not accept operating responsibility
until he/she has read and understands the operator’s manual as well as
having operated the MEC Aerial Work Platform under supervision of an
authorized, trained and qualified operator.
It is essential that the operator of the aerial work platform is not alone at
the workplace during operation.
Modifications of this machine from the original design and specifications
without written permission from MEC are strictly forbidden. A
modification may compromise the safety of the machine, subjecting the
platform occupants and personal around the machine to serious injury or
death.
Your MECAerial Work Platform has been designed, built, and tested to provide safe, dependable
service. Only authorized, trained and qualified personnel shall be allowed to operate or service the
machine.
MEC, as manufacturer, has no direct control over machine application and operation. Proper safety
practices are the responsibility of the owner, user and operator.
If there is a question on application and/or operation contact:
1401 S. Madera Avenue, Kerman, CA93630 USA
Toll Free: 1 - 877 - 632 - 5438
Phone: 1 - 559 - 842 - 1500
Fax: 1 - 559 - 842 - 1520
[email protected]
www.MECawp.com
MEC Aerial Work Platforms
Section 1 - Introduction

Page 2 3084ES Speed LevelTM - Operator’s Manual
August 2020
Safety
DO NOT operate this machine until you have read and understood this manual, have
performed the Workplace Inspection, Pre-Start Inspection and Routine Maintenance, and have
completed all the test operations detailed in the Operating Instructions section.
Failure to read, understand and follow all safety rules, warnings, and instructions could result in
serious injury or death. For your safety and the safety of those around you, you must operate your
machine as instructed in this manual.
MEC designs aerial work platforms to safely and reliably position personnel, along with their
necessary tools and materials, at overhead work locations. The owner/user/operator of the machine
should not accept responsibility for the operation of the machine unless properly trained.
ANSI and other applicable standards identify requirements of all parties who may be involved with
self-propelled elevating work platforms. The Manual of Responsibilities is considered a part of this
machine and can be found in the manual compartment, located at the platform control station. To
ensure safe use of machine, inspections and training specified in ANSI/SIAA92.22 & A92.24 must be
performed at designated intervals as prescribed.
This product can expose you to chemicals known to the State of California
to cause cancer and birth defects or other reproductive harm. For more
information go to www.p65warnings.ca.gov.
Section 2 - Safety Safety

Page 3 3084ES Speed LevelTM - Operator’s Manual
August 2020Section 2 - Safety Safety Alert Symbols & Fall Protection
MEC manuals and decals use symbols, colors and signal words to help you recognize important
safety, operation and maintenance information.
RED and the word DANGER – Indicates an imminently hazardous
situation which, if not avoided, will result in death or serious injury.
ORANGE and the word WARNING – Indicates a potentially hazardous
situation which, if not avoided, could result in death or serious injury.
YELLOW with alert symbol and the word CAUTION – Indicates a
potentially hazardous situation which, if not avoided, may result in minor
or moderate injury.
YELLOW without alert symbol and the word CAUTION – Indicates a
potentially hazardous situation which, if not avoided, may result in
property damage.
GREEN and the word NOTICE – Indicates operation or maintenance
information.
Fall Protection
ART_4713
Operators must comply with employer, job site and governmental rules
regarding the use of personal protective equipment.
If required by your employer or job site, use personal fall protection
equipment (PFPE) when operating this machine.
All PFPE must comply with applicable governmental regulations, and must be
inspected and used in accordance with the PFPE manufacturer’s instructions.
Fall restraint must be properly attached to a designated anchorage point
when driving or operating the machine. Attach only one fall restraint to each
anchorage point.

Page 4 3084ES Speed LevelTM - Operator’s Manual
August 2020
Specifications
Working Height* 36 ft* 11.0 m*
Platform Height 30 ft 9.0 m
Stowed Height Rails Up 105 in 2.67 m
Rails Folded Down 70 in 1.78 m
Maximum Number of Occupants 5
Lift Capacity (Evenly Distributed) 1,500 lb 680 kg
Platform Dimensions
Length (Inside Rails) 14 ft 4.27 m
Platform Width (Inside Rails) 72 in 1.83 m
Guardrail Height 43.5 in 1.1 m
Toeboard Height 6 in 15 cm
Overall Length 14 ft 6 in 4.4 m
Overall Width 84 in 2.13 m
Wheel Base 100 in 2.54 m
Wheel Track 72.0 in 1.83 m
Turning Radius Inside 8 ft 0 in 2.44 m
Outside 16 ft 8 in 5.08 m
Ground Clearance 10 in 25 cm
Machine Weight** (Unloaded) (Approx.) 8,000 lb** 3,630 kg**
Drive System (Proportional) Drive Speed (Platform Elevated) 0 – 0.75 mph 1.2 km/h
Drive Speed (Platform Lowered) 0 – 4 mph 6.4 km/hr
Lift/Lower Speed (Approx.) 30 sec / 40 sec
Gradeability 40% 21.8°
Ground Pressure/Wheel (Maximum) 87 psi 6.1 kg/cm²
Wheel Load 2,610 lb 1,186 kg
Tire Size-Standard 26 x 12D / 380NHS
Tire Pressure, 12 Ply Pneumatic 45 psi 3.1 bar
Wheel Lug Nut Torque 75-85 ft/lb 102-115 Nm
Hydraulic Pressure Main System 2,800 psi 193 bar Lift System 2,800 psi 193 bar
Steer 2,000 psi 138 bar
Hydraulic Fluid Capacity 23 GAL 87 liters
Electric Motor 8 h.p. (6 kW): 3600 rpm
Power Source – Voltage 48 Volts DC
Batteries Eight 6 Volt DC 350 amp hour industrial, deep cycle
Battery Charger Input 120 Volt AC, 50.60 Hz, 18 Amp—240 Volt AC, 50.60 Hz, 9 Amp
Output 48 Volt DC, 32 Amp, 1500 W, Timed Shutoff
Leveling Side to Side 14°
Front to Rear 10°
Brakes Multi-disc / Dual Rear Wheel
Meets requirements of ANSI 92.20-2020 and CSA B354.6-2019.
*Working height adds 6 feet (2 m) to platform height.
**Weight may increase with certain options or country standards.
Section 3 - Specifications Specifications

Page 5 3084ES Speed LevelTM - Operator’s Manual
August 2020
Electrocution Hazard
ELECTROCUTION HAZARD!!! THIS MACHINE IS NOT INSULATED!
DEATH OR SERIOUS INJURY will result from contact with or inadequate
clearance from any electrically charged conductor.
You must maintain a CLEARANCE OF AT LEAST 10 FEET (3.05 m)
between any part of the machine, or its load, and any electrical line or
apparatus carrying over 300 Volts up to 50,000 Volts. One foot (30.5 cm)
additional clearance is required for every additional 30,000 Volts.
Observe Minimum Safe Approach Distance.
DO NOT work in close proximity to, or in contact with, energized power lines and electrical
equipment. This machine is not insulated and WILL NOT protect the operator from injury or the
machine from damage.
Refer to Table and all applicable governmental regulations for the minimum safe distances from
energized power lines and electrical equipment.
ART_3060
ART_3070
Minimum Save Approach Distance
Voltage Minimum Safe Approach Distance
Phase to Phase Feet Meters
0 to 300 Volts Avoid Contact
Over 300V to 50kv 10 3.05
Over 50KV to 200KV 15 4.60
Over 200KV to 350KV 20 6.10
Over 350KV to 500KV 25 7.62
Over 500KV to 750KV 35 10.67
Over 750KV to 1000KV 45 13.72
DO NOT touch the machine if it contacts energized power lines.
Personnel in the platform:
Move away from the platform rails,
DO NOT attempt to operate the machine, and
DO NOT touch any part of the machine until energized power lines are shut off.
Personnel on the ground:
DO NOT approach the machine and
DO NOT touch or attempt to operate the machine until energized power lines are turned off.
Do not operate the machine during electrical storms or lightning.
DO NOT use the machine as a ground for welding unless properly equipped with a weld line to
platform option.
•
•
•
•
•
Section 4 - Hazards Electrocution Hazard

Page 6 3084ES Speed LevelTM - Operator’s Manual
August 2020Section 4 - Hazards Minimum Save Approach Distance
ART_3265
No go zone
Spotter
required
zone
Personal
protection
barriers
FRONT VIEW
(a) Distribution lines up to and including 133 kV
SIDE VIEW
6.4
6.4
3
3Sag
Variations
in sag
(b) Transmission lines greater than 133 kV
No go zone Spotter
required
zone
Sway
10
10
8
8
FRONT VIEW SIDE VIEW
Sag
Variations
in sag
Sag
Sag
LEGEND
CLEARANCES FROM LIVE AERIAL CONDUCTORS
= No shading, in the front views, indicates no proximity requirements
= Light shading indicates spotter is required
= Heavy shading indicates the NO GO ZONE
(a) Affected area
Min. volts
Min. volts
Max. volts
Higher voltage
Lower voltage
(b) Avoid simultaneous contact across
areas of high potential difference
5000 V
20000 V
15000 V
10000 V
5000 V

Page 7 3084ES Speed LevelTM - Operator’s Manual
August 2020Section 4 - Hazards
When working in the area of energized conductors the user shall direct and the operator shall comply
with the requirements to:
Stay at least 10 feet away from power lines with any part of their body, conductive object or any
part of the MEWP.
If work requires working nearer than 10 feet, stop and consult a qualified person with respect
to electrical transmission and distribution to have appropriate measures taken (such as de-
energizing and grounding).
If there is a question that the power lines may carry more than 50kV, consult a qualified person
with respect to electrical transmission and distribution before proceeding.
If working or approaching closer than explained above, it shall only be done by a qualified
person with respect to electrical transmission and distribution. Only qualified persons may
work on electric circuit parts or equipment that has not been de-energized. Such persons shall
be capable of working safely on energized circuits and shall be familiar with the proper use
of special precautionary techniques, personal protective equipment, insulating and shielding
materials and insulated tools.
a.
b.
c.
d.

Page 8 3084ES Speed LevelTM - Operator’s Manual
August 2020Section 4 - Hazards Tip-over Hazards
ART_3065
DO NOT OVERLOAD
DO NOT exceed the maximum platform capacity (see Specifications). The
weight of options and accessories will reduce the rated platform capacity
and must be factored into the total platform load. Refer to the decals on the
options.
DO NOT elevate the platform when the machine is on a surface that is soft,
non-planar, or exceeds the leveling range of the machine.
The tilt alarm will sound when the machine is off level. If the alarm sounds
when the platform is lowered, DO NOT attempt to elevate the platform.
Carefully lower, re-level the machine, or move the machine to a surface within
the leveling range.
ART_3064
DO NOT ELEVATE
OR DRIVE ELEVATED
ON A SURFACE
THAT EXCEEDS THE
LEVELING RANGE
If the alarm sounds when the platform is raised, use extreme caution to lower
the platform.
Driving in stowed position: Use extreme care and slow speeds when driving
across uneven terrain, debris, unstable or slippery surfaces, and near holes or
drop-offs.
Driving with the platform elevated: DO NOT drive on or near uneven terrain,
unstable surfaces or other hazardous conditions.
ART_3063
DO NOT DRIVE
ELEVATED ON
IRREGULAR OR
UNSTABLE SURFACE
DO NOT push off or pull toward any object outside the platform.
Maximum Allowable Side Force
ANSI and CSA CE and AUS
250 lbs (1,100 N) 90 lbs (400 N)
DO NOT elevate the platform when wind speeds are in excess of 28 m.p.h.
(12.5 m/s). If these wind speeds occur when the platform is elevated, carefully
lower and discontinue operation.
ART_3069
DO NOT PUSH OR PULL
OBJECTS OUTSIDE
PLATFORM
DO NOT increase the surface area of the platform (i.e. cover the rails with
tarp or plywood). Increased surface area exposed to the wind will decrease
machine stability.
DO NOT attach overhanging loads or use the machine as a crane.
DO NOT transport tools and materials unless they are evenly distributed and
can be safely handled by personnel in the platform. Secure all tools and loose
materials to prevent injury to personnel below the platform.

Page 9 3084ES Speed LevelTM - Operator’s Manual

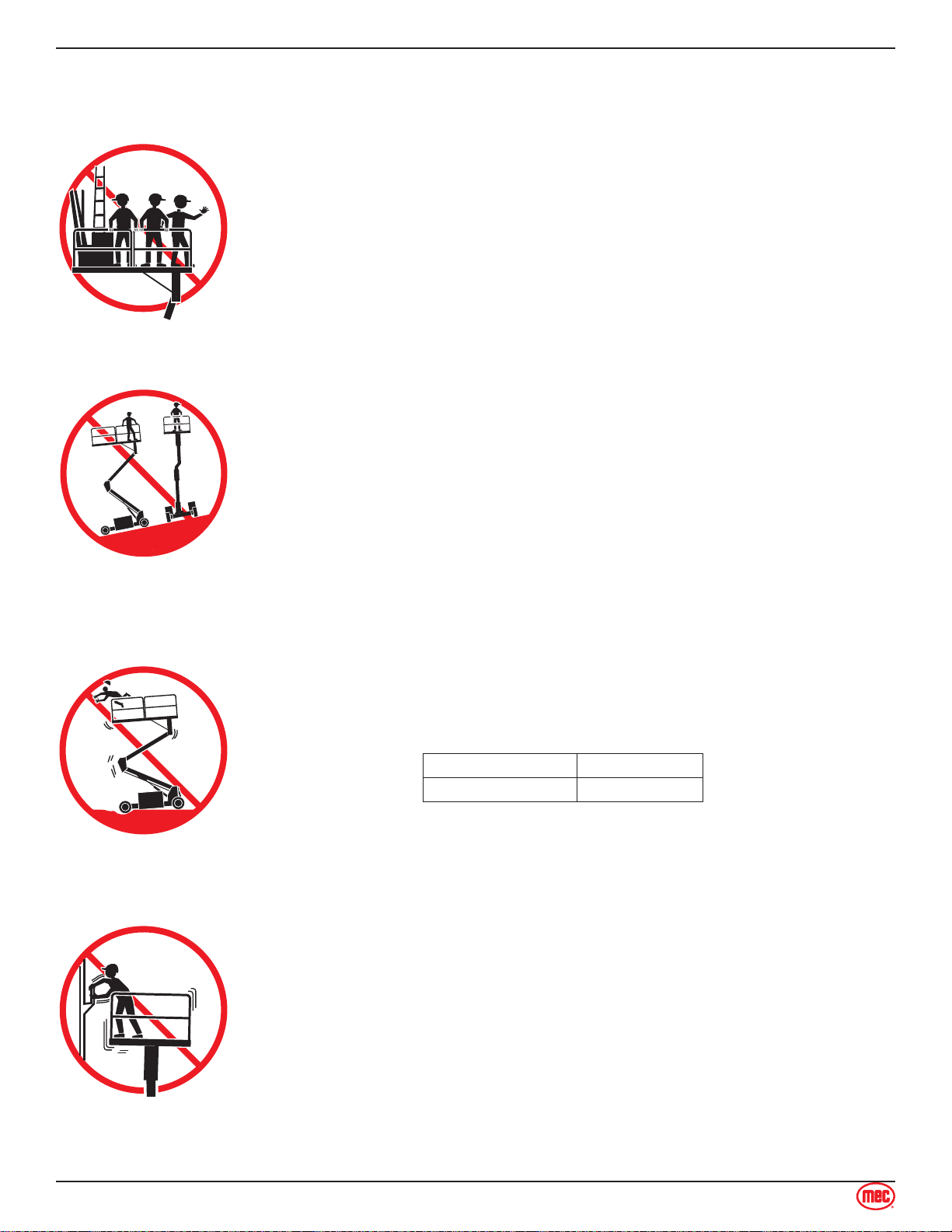

August 2020Section 4 - Hazards
ART_3071
DO NOT ELEVATE IN
WINDY CONDITIONS
DO NOT alter or disable machine components that may affect safety and
stability.
DO NOT replace items critical to machine stability with items of different weight
or specification.
DO NOT modify or alter the work platform without written permission from
MEC, as modifications can increase weight and/or surface area resulting in
instability.
ART_3059
DO NOT USE AS
CRANE
DO NOT place ladders or scaffolds in the platform or against any part of the
machine.
DO NOT use the machine on a moving or mobile surface or vehicle.
Ensure that all tires are in good condition, air filled tires are properly inflated
and lug nuts are properly torqued.

Page 10 3084ES Speed LevelTM - Operator’s Manual
August 2020Section 4 - Hazards Fall Hazards & Collision Hazards
Fall Hazards
ART_3067
DO NOT CLIMB ON
RAILS
DO NOT sit, stand or climb on the platform guard rails. Maintain a firm footing
on the platform floor at all times.
DO NOT exit the platform when elevated
DO NOT climb down from the platform when elevated.
Keep the platform floor clear of debris.
DO NOT fasten a fall restraint lanyard to an adjacent structure.
Ensure that the entry is properly closed before operating the machine.
Operators must comply with employer, job site and governmental rules
regarding the use of personal protective equipment.
ART_3058
DO NOT EXIT
PLATFORM WHEN
ELEVATED
Collision Hazards
ART_3072
ART_3062
ART_3066
Be aware of blind spots while operating this machine.
Watch for overhead obstructions when elevating the platform.
Watch for crushing hazards when holding the platform rail.
Reduce travel speed when moving the machine on slopes, when near
personnel and obstacles, or when surface conditions are wet, slippery or
otherwise limiting.
DO NOT operate in the path of any crane unless the controls of the crane have
been locked out and/or precautions have been taken to prevent any possible
collision.
Stunt driving and horseplay are PROHIBITED.

Page 11 3084ES Speed LevelTM - Operator’s Manual
August 2020Section 4 - Hazards Additional Safety Hazards
Explosion and Fire Hazards
DO NOT operate the machine in hazardous locations or locations where potentially flammable or
explosive gasses or particles may be present.
Damaged Machine Hazards
Conduct a thorough pre-start inspection of the machine and test all functions before each
work shift to check for damage, malfunction and unauthorized modification. Tag and remove
a damaged, malfunctioning or modified machine from service. DO NOT use a damaged,
malfunctioning or modified machine.
Routine maintenance must be performed by the operator before each work shift. Scheduled
maintenance must be performed by a qualified service technician at scheduled intervals. Tag
and remove from service any machine that has not had scheduled preventative maintenance
performed.
Check that all safety and instructional decals are in place and undamaged.
Check that the operator’s, safety and responsibilities manuals are present in the storage
container located in the platform. All manuals must be complete, undamaged and readable.
Bodily Injury Hazards
DO NOT operate the machine when there is a hydraulic fluid or air leak. Hydraulic fluid or air
under pressure can penetrate and/or burn skin.
All compartments must remain closed and secure during machine operation. Improper contact
with components under any cover will cause serious injury. Only trained maintenance personnel
should access compartments. The operator should only access a compartment when performing
pre-operation inspection.
Weld Line to Platform Safety (if equipped)
Read, understand and follow all warnings and instructions provided with the welding power unit.
DO NOT connect weld leads or cables unless the welding power unit is turned off at the platform
controls.
DO NOT operate unless the weld cables are properly connected.
Battery Safety
Burn Hazards
Batteries contain acid. Always wear protective clothing and eye wear when working with
batteries.
Avoid spilling or contacting battery acid. Neutralize battery acid spills with baking soda and
water.
Explosion Hazard
Keep sparks, flame and lighted tobacco away from batteries. Batteries emit explosive gas.
Electrocution Hazard
Avoid contact with electrical terminals.
•
•
•
•
•
•
•
•
•
•
•
•
•
•

Page 12 3084ES Speed LevelTM - Operator’s Manual
August 2020
Jobsite Inspection
DO NOT operate this machine until you have read and understood the Safety section of this
manual, have performed the Pre-Start Inspection, Routine Maintenance, and Functions Test,
have inspected the jobsite for hazards, and have learned the operating procedures for this
machine.
Inspect the jobsite and determine whether the jobsite is suitable for safe machine operation. Do this
before moving the machine to the jobsite.
Be aware of changing jobsite conditions, and continue to watch for hazards while operating the
machine.
Operators must comply with employer, job site and governmental rules regarding the use of personal
protective equipment – see “Fall Protection” on page 3.
Workplace Inspection
Check the jobsite where the machine will be used for all possible hazards, including but not limited to:
Drop-offs or holes, including those concealed by water, ice, mud, etc.
Unstable or slippery surfaces
Bumps, surface obstructions and debris
Overhead obstructions and electrical conductors
Hazardous locations and atmospheres
Inadequate surface and support to withstand all load forces imposed by the machine
Wind and weather conditions
The presence of unauthorized personnel
Other possible unsafe conditions
•
•
•
•
•
•
•
•
•
Section 5 - Jobsite Inspection Jobsite Inspection

Page 13 3084ES Speed LevelTM - Operator’s Manual
August 2020
Functions Test
DO NOT operate this machine until you have read and understood the Safety section of this
manual, have performed the Pre-Start Inspection, Routine Maintenance, and Functions Test,
have inspected the jobsite for hazards, and have learned the operating procedures for this
machine.
The operator must conduct a Functions Test of the machine before each work shift to check that all
machine systems are working properly.
Test the machine on a firm level surface with no debris, drop-offs, potholes or overhead obstructions.
Perform each test outlined in Operating Instructions before using the machine.
DO NOT use a machine that is malfunctioning. If any function does not perform as described, tag the
machine and remove for repair by a qualified service technician. After repairs are completed, a Pre-
Start Inspection and Functions Test must be performed before using the machine.
Section 6 - Function Tests and Operating Instructions
Functions Test

Page 14 3084ES Speed LevelTM - Operator’s Manual
August 2020Section 6 - Function Tests and Operating Instructions
Operating Instructions
DO NOT operate this machine until you have read and understood the Safety section of this
manual, have performed the Pre-Start Inspection, Routine Maintenance, and Functions Test,
have inspected the jobsite for hazards, and have learned the operating procedures for this
machine.
This section provides instructions for each function of machine operation. Follow all safety rules and
instructions.
This machine may be operated by trained and authorized personnel only. If multiple operators use
this machine, all must be qualified and authorized to use it. New operators must perform a Pre-Start
Inspection (see page 25) and Functions Test prior to operating the machine.
Operators must comply with employer, job site and governmental rules regarding the use of personal
protective equipment – see “Fall Protection” on page 3.

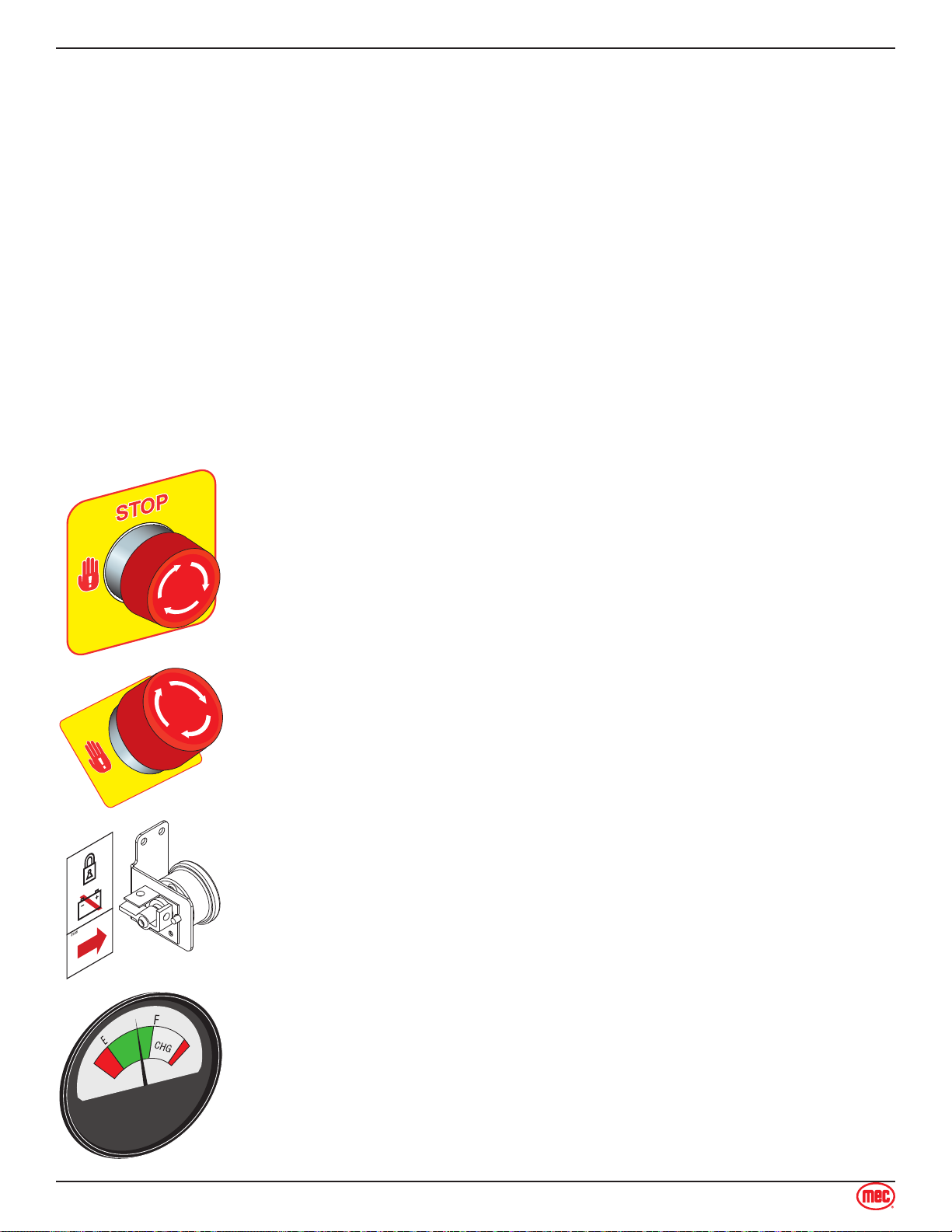

Prestart
ART_2506 R2
Perform Pre-Start Inspection (see page 25).
Check base control EMERGENCY STOP switch – turn clockwise to reset.
ART_2507 R2
Check platform control EMERGENCY STOP switch – turn clockwise to reset.
ART_2356
Check Battery Disconnect switch in control module next to lower control box.
Must be in ON position.
ART_2755 R1
Check Charge Indicator on base control panel. Battery pack should be fully
charged.
Note: If machine fails to operate, check the Diagnostic LED on the motor
control processor inside the control module – see “Component
Locations” on page 36.

Page 15 3084ES Speed LevelTM - Operator’s Manual
August 2020Section 6 - Function Tests and Operating Instructions
Base Controls Operation and Test
IMPORTANT: Be sure the area above the machine is clear of obstructions to allow full elevation of
platform.
ART_3250
Select BASE Operation
Turn the selector switch to BASE.
ART_2506 R2
Emergency Stop
Press the EMERGENCY STOP switch at any time to stop all machine
functions.
Turn switch clockwise to reset.
ART_2519
Platform Overload Indicator
The Platform Overload Indicator will light and the platform will not lift when the
sensor detects too much weight on the platform. Refer to the platform capacity
labels and adjust the platform load accordingly.
Do not elevate the platform if the machine is not on a firm level surface.
ART_3251
Elevate Platform
Press and hold the RAISE button on the base control panel to elevate the
platform.
Test Operation
Elevate to maximum height.
Releasing the button will stop elevation.
Pressing the EMERGENCY STOP switch will stop elevation.
Lower Platform
Press the LOWER button. Release when the desired platform height is
reached.
Test Operation
Lower the platform to the stowed position.
Releasing the button will stop descent.
Pressing the EMERGENCY STOP switch will stop descent.
•
•
•
•
•
•
•
•

Page 16 3084ES Speed LevelTM - Operator’s Manual
August 2020Section 6 - Function Tests and Operating Instructions
Platform Control Operation and Test
IMPORTANT: Check that the route of travel to be taken is clear of persons, obstructions, debris,
holes, and drop-offs, and is capable of supporting the machine.

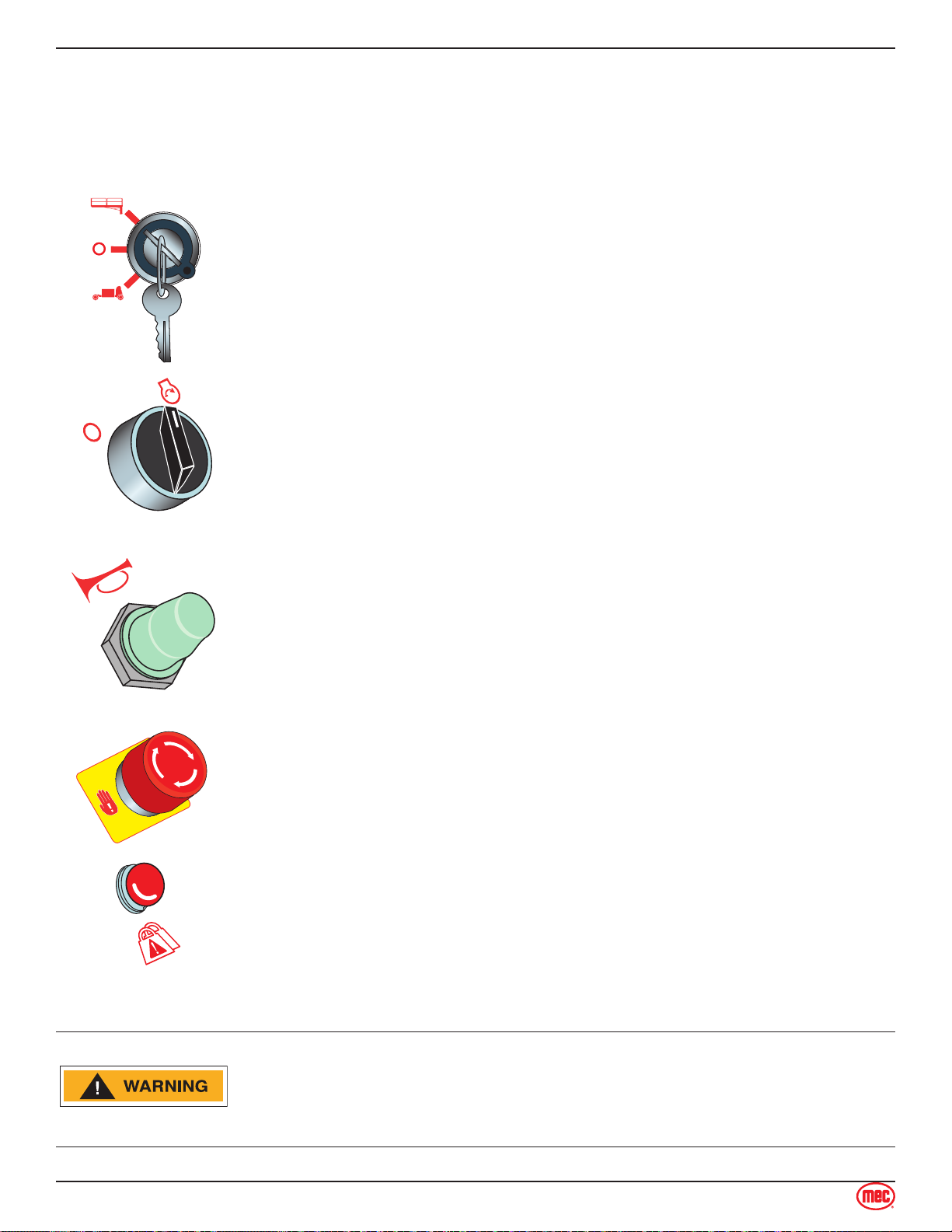

Select PLATFORM Operation
ART_3254
Lower Control Box
Turn the selector switch to PLATFORM.
ART_3255
Operate from Platform
Enter the platform and secure the entry.
Turn the platform selector switch to the ON position.
ART_2361 R1
Press the horn button to verify proper operation (optional).
ART_2507 R2
Emergency Stop
Press the EMERGENCY STOP switch at any time to stop all machine
functions.
Turn switch clockwise to reset.
ART_2519
Platform Overload Indicator
The Platform Overload Indicator will light and the platform will not lift when the
sensor detects too much weight on the platform. Refer to the platform capacity
labels and adjust the platform load accordingly.
Activation of the EMERGENCY STOP switch will apply brakes
immediately. This may cause unexpected platform movement as the
machine comes to a sudden stop. Brace yourself and secure objects on
the platform during operation of machine.
