HEPA Filter

Deodorizing Filter

Back Panel

NOTE

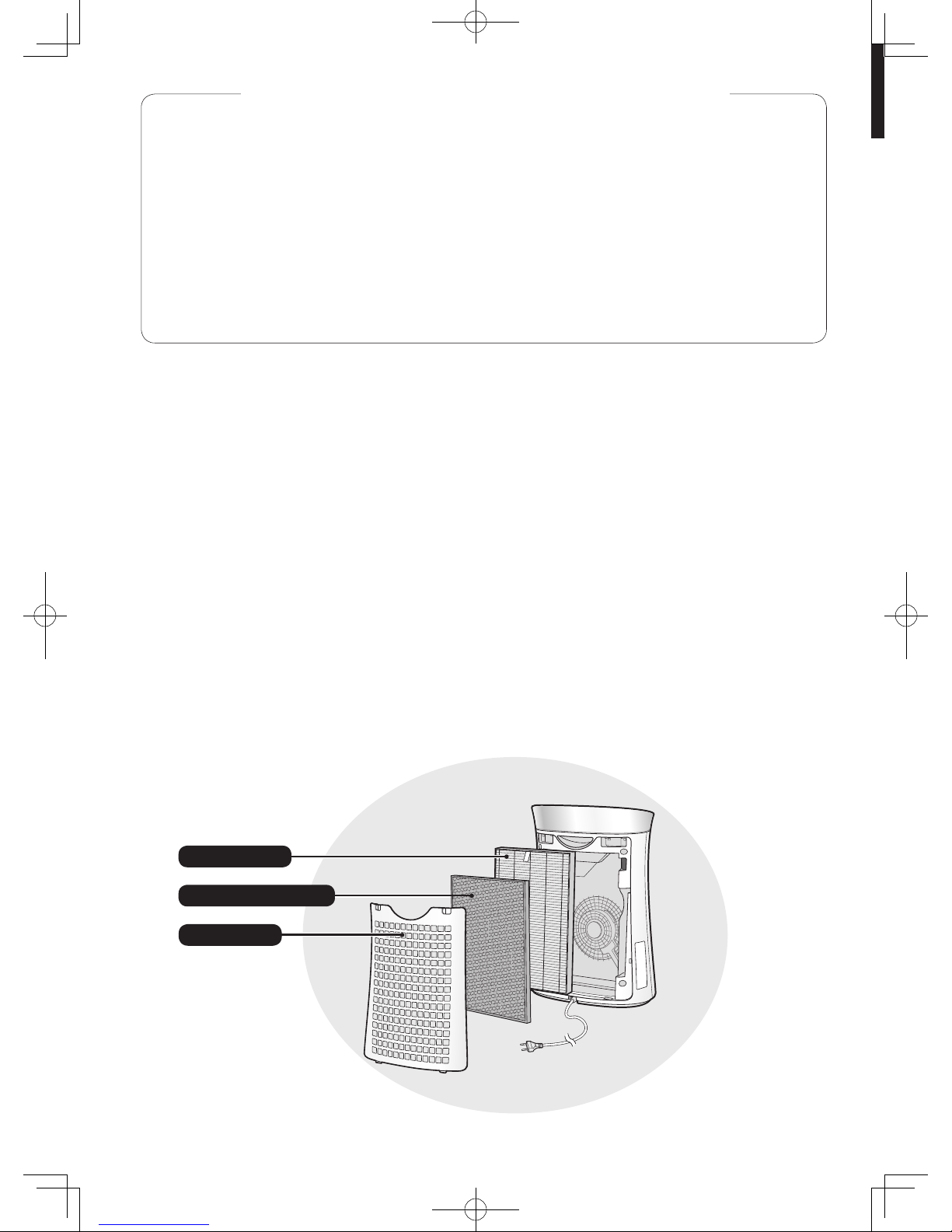

The air purier draws in room air from the air intake, passes the air through a Back

Panel, a Deodorizing Filter and a HEPA Filter inside of the unit, then discharges the air

through the air outlet. The HEPA Filter can remove 99.97% of dust particles as small

as 0.3 microns that pass through the lter and also helps absorb odors.

The Deodorizing Filter gradually absorbs odors as they pass through the lter.

Some odors absorbed by the lters may break down over time, resulting in additional

odor. Depending on the usage environment, especially when the product is used in

extreme environments (significantly more severe than normal household use), this

odor may become strong in a shorter period than expected. If the odor persists, the

lters should be replaced.

• The air purier is designed to remove air-suspended dust and odor, but not harmful gases (for ex-

ample, carbon monoxide contained in cigarette smoke). If the source of the odor still exists, the air

purier may not completely remove the odor.

Please read before operating your new Air Purier

OM_FP-G50J_EN.indd 2 2017/01/10 16:47:15

E-1

ENGLISH

Thank you for purchasing the SHARP

Air Purier. Please read this manual carefully.

Before using this product, be sure to read the

section: “Important Safety Instructions.”

After reading this manual, keep it in a

convenient location for future reference.

For your reference, we recommend to keep

this manual in the place where you can read

at any time.

IMPORTANT SAFETY INSTRUCTIONS

..... E-2

PART NAMES...............................................E-4

FILTER INSTALLATION ............................. E-5

OPERATION .................................................E-6

CARE AND MAINTENANCE .....................E-8

TROUBLESHOOTING ..............................E-10

SPECIFICATIONS...................................... E-11

FOR CUSTOMER ASSISTANCE ............E-12

CONTENTS

FEATURES

Unique Combination of Air Treatment

Technologies

Triple Filtration System + Plasmacluster

TRAPS DUST*

Pre-filter traps dust and other large

airborne particles.

DECREASES ODORS

Deodorizing filter absorbs many common

household odors.

REDUCES POLLEN & MOLD*

HEPA filter traps 99.97% of particles as

small as 0.3 microns.

FRESHENS

Plasmacluster treats the air similar to the

way nature cleans the environment by

emitting a balance of positive and negative

ions.

*When air is drawn through the lter

system.

Sensor Technology continuously monitors

air quality, and automatically adjusting

operation based on detected air purity.

OM_FP-G50J_EN.indd 1 2017/01/10 16:47:15

E-2

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should be followed, in-

cluding the following:

WARNING - To reduce the risk of electrical shock, re or injury to persons:

• Read all instructions before using the unit.

• Use only a 220-240 volt outlet.

• Do not use the unit if the power cord or plug is damaged or the connection to the

wall outlet is loosened.

• Periodically remove dust from the power plug.

• Do not insert ngers or foreign objects into the intake or air outlet.

• When removing the power plug, always hold the plug and never pull the cord.

Electrical shock and/or re from short circuit may occur as a result.

• Be careful not to damage the power cord, it may cause electric shock, excess heat or

res.

• Do not remove the plug when your hands are wet.

• Do not use this unit near gas appliances or replaces.

• Remove the power plug from the wall outlet before cleaning the unit and when not

using the unit.

Electrical shock from bad insulation and/or re from short circuit may occur as a result.

•When cleaning the unit, or when the unit is not in use, be sure to unplug the unit. Electrical

shock and/or re from a short circuit may result.

• If the power cord is damaged, it must be replaced by the manufacturer, its service

agent, Sharp Approved Service Centre or similarly qualified person in order to

avoid a hazard.

• Do not operate when using aerosol insecticides or in rooms where there is oily residue,

incense, sparks from lit cigarettes, chemical fumes in the air or in very high humidity con-

ditions, such as a bathroom.

• Be cautious when cleaning the unit. Corrosive cleansers may damage the exterior.

• Only a Sharp Authorized Service Centre should service this air purier. Contact the near-

est Service Centre for any problems, adjustments, or repairs.

• This appliance can be used by children aged from 8 years and above and persons with

reduced physical, sensory or mental capabilities or lack of experience and knowledge if

they have been given supervision or instruction concerning use of the appliance in a safe

way and understand the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

NOTE - Radio or TV Interference

If this air purier should cause interference to radio or television reception, try to correct the

interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the unit and radio/TV receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

OM_FP-G50J_EN.indd 2 2017/01/10 16:47:15

E-3

CAUTIONS CONCERNING OPERATION

• Do not block the intake and/or air outlet.

• Do not use the unit near or on hot objects, such as stoves or heaters or where it may

come into contact with steam.

• Do not lay the unit down when using.

• Always hold the handle on the back of the unit when moving it.

• Do not use without the lters inside the unit.

• Do not wash and reuse the HEPA lter and the deodorizing lter.

Not only does it not improve lter performance, it may cause electric shock or malfunction.

INSTALLATION GUIDELINES

•When using the unit, place it away from equipment utilizing electric waves such as

televisions or radios to avoid electrical interference.

• Avoid use in locations where furniture, fabrics or other items may come in contact

with and restrict the air intake and/or air outlet.

• Avoid use in locations where the unit is exposed to condensation or drastic

temperature changes. Appropriate conditions are when room temperature is

between 0 – 35 ºC.

• Place on a stable surface with sufcient air circulation.

When placing the unit on a heavily carpeted area, the unit may vibrate slightly.

• Avoid locations where grease or oily smoke is generated.

The unit surface may crack as a result.

•Place the unit about 30 cm(1 ft) away from the wall in order to ensure proper

airow.

The dust collecting performance will be the same even if using the unit 3cm away from

the wall, but place it as far as possible(30cm away recommended) because it may dirty

the wall or oor around.

FILTER GUIDELINES

• Follow the instructions in this manual for correct care and maintenance of the lter.

OM_FP-G50J_EN.indd 3 2017/01/10 16:47:15

E-4

PART NAMES

1Main Unit 10 Handle

2Air Outlet 11 Dust Sensor /

Dust Sensor Filter

3OFF TIMER Button / OFF TIMER indicator Light (green)

LIGHT ON/OFF Button (Press 3 sec.) 12 HEPA Filter

4MODE Button / MODE Indicator Light (green)

Plasmacluster Ion ON/OFF Button(Press 3 sec.)

13 Deodorizing Filter

14 Upper Tabs

5CLEAN ION SHOWER Button /

CLEAN ION SHOWER indicator Light (green) 15 Back Panel (Pre-Filter)

6POWER ON/OFF Button 16 Bottom Tabs

7ODOR sensor 17 Power Cord

8DUST AND ODOR SIGN 18 Plug

9PLASMACLUSTER SIGN 19 Date Label

FRONT

BACK

PLASMACLUSTER SIGN

blue Plasmacluster ON

off Plasmacluster OFF

Clean

Impure

Red

Orange

Green

3 4 5 6

DUST AND ODOR SIGN

Indicates the air purity of the room

in 3 levels with color changes.

(Shape of plug depends on country.)

OM_FP-G50J_EN.indd 4 2017/01/10 16:47:18

E-5

FILTER INSTALLATION

To maintain the quality of the lter, it is installed in the main unit and packed in plastic

bag. Be sure to remove the lter from the plastic bag before using the unit.

• Do not operate the unit without the lter.

Date Label

Be sure to remove the power plug

from the wall outlet.

Remove the Back Panel.

2 Remove the lter from the plas-

tic bag.

Place the Filter within the main

unit.

Do not install the lter backwards or the

unit will not operate properly.

Upper Tabs

Pull

HEPA Filter

Deodorizing Filter

Starting date of use

. .

. .. .

FZ-F50HFE

HEPA Filter

Deodorizing Filter

FZ-F50DFE

. .. .

MODEL

Push

4 Replace the Back Panel to the

main unit.

5Fill in the usage start date on the

Date Label.

Use the date as a guide for the lter re-

placement schedule.

Bottom Tabs

OM_FP-G50J_EN.indd 5 2017/01/10 16:47:21

E-6

OPERATION

AUTO SLEEP MED MAX

CLEAN AIR

START

• Select the desired fan speed.

• Unless the power cord has been unplugged,

the operation starts in the previous mode it

was operated in.

STOP

FAN SPEED

SLEEP

• The unit will operate very quietly, and the fan speed

is automatically switched depending on the amount of

impurities in the air.

DUST AND ODOR/PLASMACLUSTER SIGN go off

automatically.

Even though the indicator is off, Plasmacluster Ion is

dispersed into air unless Plasmacluster Ion is turned off by

NOTE

AUTO

• The fan speed is automatically switched depending on the

amount of impurities in the air. The sensors detect impurities

for efcient air purcation.

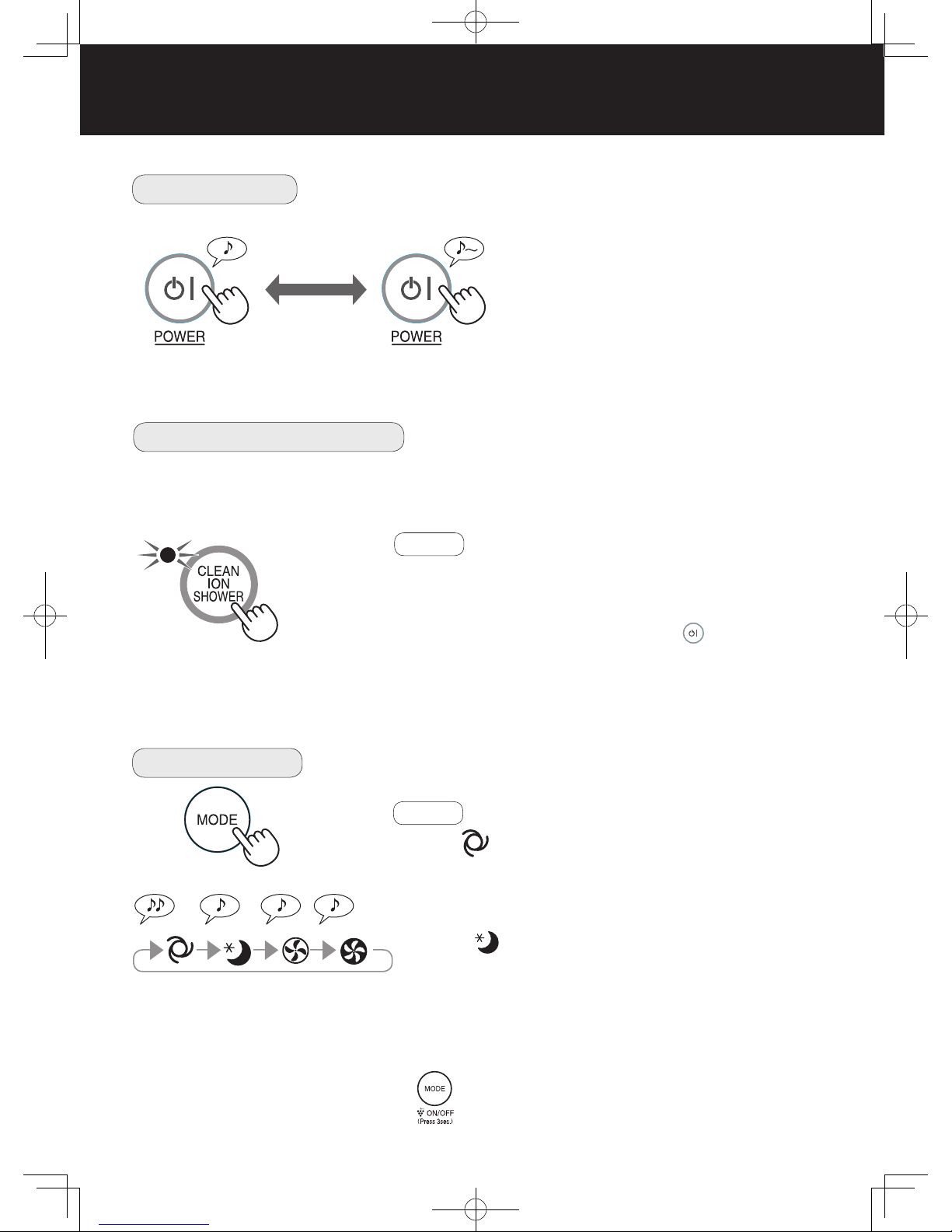

Releases high-density Plasmacluster ions and discharges strong air  ow for 60 minutes.

CLEAN ION SHOWER

START

• If Plasmacluster Ion is OFF, Plasmacluster Ion will not be

released.

• When the operation  nishes, the unit will return to the prior

operation mode.

It is able to change the other mode and during this

mode.

NOTE

OM_FP-G50J_EN.indd 6 2017/01/10 16:47:26

E-7

Light Control

Plasmacluster Ion ON/OFF

You can set the DUST AND ODOR/PLASMACLUSTER SIGN to OFF when their SIGN is bright.

more than 3 sec.

OFF

• When the unit restarts its

operation, Light Control

resumes its setting set before

turning off.

• At Sleep Mode, Light Control

is available.

NOTE

When Plasmacluster Ion is ON, the PLASMACLUSTER SIGN will turn on. (blue)

(In operation)

ON OFF

ADJUSTMENT OF SENSOR DETECTION SENSITIVITY

Set to “Low” if the DUST AND ODOR SIGN is constantly red to reduce sensitivity, and set to “High” if

the DUST AND ODOR SIGN is constantly green to increase sensitivity.

OFF TIMER

Select the length of time you want, with the unit on. The unit automatically stops once the selected

time is reached.

CANCELLATION

• If the power ON/OFF Button is

not pushed within 8 seconds of

adjusting sensor sensitivity, the

setting will be saved automatically.

• The sensor sensitivity setting

will be saved even if the unit is

unplugged.

NOTE

(with the unit OFF)

High

Standard

Low

more than 3 sec.

more than 3 sec. more than 3 sec.

more than 3 sec.

OM_FP-G50J_EN.indd 7 2017/01/10 16:47:34

E-8

CARE AND MAINTENANCE

Gently remove dust from the back panel, using a vacuum

cleaner attachment or similar tool.

BACK PANEL (Pre-lter)

To maintain optimum performance of this air purier, please clean the unit including the lter

periodically.

Be sure to disconnect the power cord from the wall outlet before performing any maintenance.

Back Panel

CAUTION

Back Panel

Do not apply excessive pressure, when scrubbing the back

panel.

NOTE How to clean hard to remove dirt

1. Add a small amount of kitchen detergent to water and soak

for about 10 minutes.

2. Rinse off the kitchen detergent with clean water.

3. Completely dry the lter in a well-ventilated area.

FILTERS

Tag

HEPA Filter

Deodorizing Filter

CAUTION

Gently remove dust from HEPA Filter and Deodorizing Filter with a vacuum

cleaner attachment or similar tool.

Do not WASH in water and DRY in the sun.

The lters are fragile, be careful not to apply too much force.

• HEPA Filter

Apply the maintenance only on the side with the tag.

Do not clean the opposite side; otherwise, the lter will be

damaged.

• Deodorizing Filter

The maintenance can be applied to the both sides.

UNIT

Wipe with a dry, soft cloth

For stubborn stains or dirt, use a soft cloth dampened with warm water.

•Do not use volatile uids

Benzine, paint thinner, polishing powder, etc., may damage the surface.

•Do not use detergents

Detergent ingredients may damage the unit.

CAUTION

OM_FP-G50J_EN.indd 8 2017/01/10 16:47:37

E-9

REPLACING THE FILTER

Replacement Filter

• Please consult your dealer for purchase of replacement lter.

• Use only lter designed for this product.

Be sure to remove the power plug from the wall outlet.

SENSORS

1. Remove the Back Panel.

2. Remove the Dust Sensor Filter.

3. If it is very dirty, wash it with water and dry

it thoroughly.

FILTER REPLACEMENT GUIDELINES

Do not wash and reuse the lter

The lter life and replacement period are based on the condition of smoking 5 cigarettes per

day and the Dust and odor collection power is reduced by half compared with that of new lter.

Filter life varies depending on the room environment, usage, and location of the unit.

We recommend to replace the lter more frequently if the product is used in a condition signif-

icantly severer than normal household use.

Disposal of Filter

Please dispose of the replaced lter according to the local disposal laws and regulations.

See page E-5 for directions on how to

install the lter when replacing.

Replacement timing About 2 years after operating

Date Label

Model:FZ-F50HFE Model:FZ-F50DFE

• HEPA Filter : 1 unit • Deodorizing Filter : 1 unit

HEPA Filter materials :

•Filter : Polypropylene

•Frame : Polyester

Deodorizing Filter materials :

•Polypropylene, Polyester, Activated charcoal

Gently remove dust from the odor sensor,

using a vacuum cleaner attachment or similar

tool.

Odor sensor

Dust sensor

lter

Odor sensor

OM_FP-G50J_EN.indd 9 2017/01/10 16:47:39

E-10

TROUBLESHOOTING

SYMPTOM REMEDY (not a malfunction)

Odors and smoke are not removed. • Replace the lters if they appear to be heavily soiled.

(Ref. E-9)

The DUST AND ODOR SIGN

illuminates green even when the

air is impure.

• The air could be impure at the time the unit was plugged in.

Unplug the unit, wait one minute, and plug the unit in again.

The DUST AND ODOR SIGN illu-

minates orange or red even when

the air is clean.

• Sensor operation is affected if the Dust and odor sensor

openings are dirty or clogged. Gently clean the Dust and odor

sensor openings.

(Ref. E-9).

A clicking or ticking sound is heard

from the unit.

• Clicking or ticking sounds may be audible when the unit is

generating ions.

The discharged air has an odor. • Check to see if the lters are heavily soiled.

• Clean or replace the lters.

• Plasmacluster Air Puriers emit small traces of ozone which

may produce an odor.

The unit does not operate properly

when cigarette smoke is in the air.

• Is the unit installed in a location that is difcult for the sensor to

detect cigarette smoke?

• Is the dust and odor sensor opening blocked or clogged?

(In this case, clean the opening.) (Ref. E-9)

The

DUST AND ODOR SIGN

turned off.

• Check to see if the Lights OFF Mode selected.

Press for 3 seconds to light On. (Ref. E-7)

• Check to see if the SLEEP mode is selected.

The DUST AND ODOR/PLASMACLUSTER SIGN are turned off

automatically after the SLEEP mode is selected.

The DUST AND ODOR SIGN lights

change colour frequently.

• The DUST AND ODOR SIGN lights automatically change

colours as impurities are detected by the Dust and odor sensor.

Before calling for service, please review the Troubleshooting chart below, since the problem may not

be a unit malfunction.

OM_FP-G50J_EN.indd 10 2017/01/10 16:47:40

E-11

Power supply 220-240V 50-60Hz

Fan

Speed

Operation

Fan Speed Adjustment MAX MED SLEEP*1

Rated Power 47W 16W 4.0~5.5W

Fan Speed 306m3/hour 186m3/hour 48~90m3/hour

Recommended Room Size ~40m2*2

High density Plasmacluster ion recommended room size

~23m2*3

Cord Length 2.0m

Dimensions 383mm(W)x209mm(D)x540mm(H)

Weight 5.1kg

*1 The fan speed is automatically switched depending on the amount of impurities in the air.

*2 Size of a room which is appropriate for operating the unit at maximum fan speed.

• It indicates the space where a certain amount of dust particles can be removed in 30 minutes

(JEM1467).

*3 Size of a room in which approximately 7000 ions can be measured per cubic centimeter in the

center of the room (at a height of approximately 1.2 meters from the oor) when the product is

placed next to a wall and run at the MED operation position.

Standby Power In order to operate the electrical circuits while the power plug is inserted in the

wall outlet, this product consumes about 1.0W of standby power.

For energy saving, unplug the power cord when the unit is not in use.

SYMPTOM REMEDY (not a malfunction)

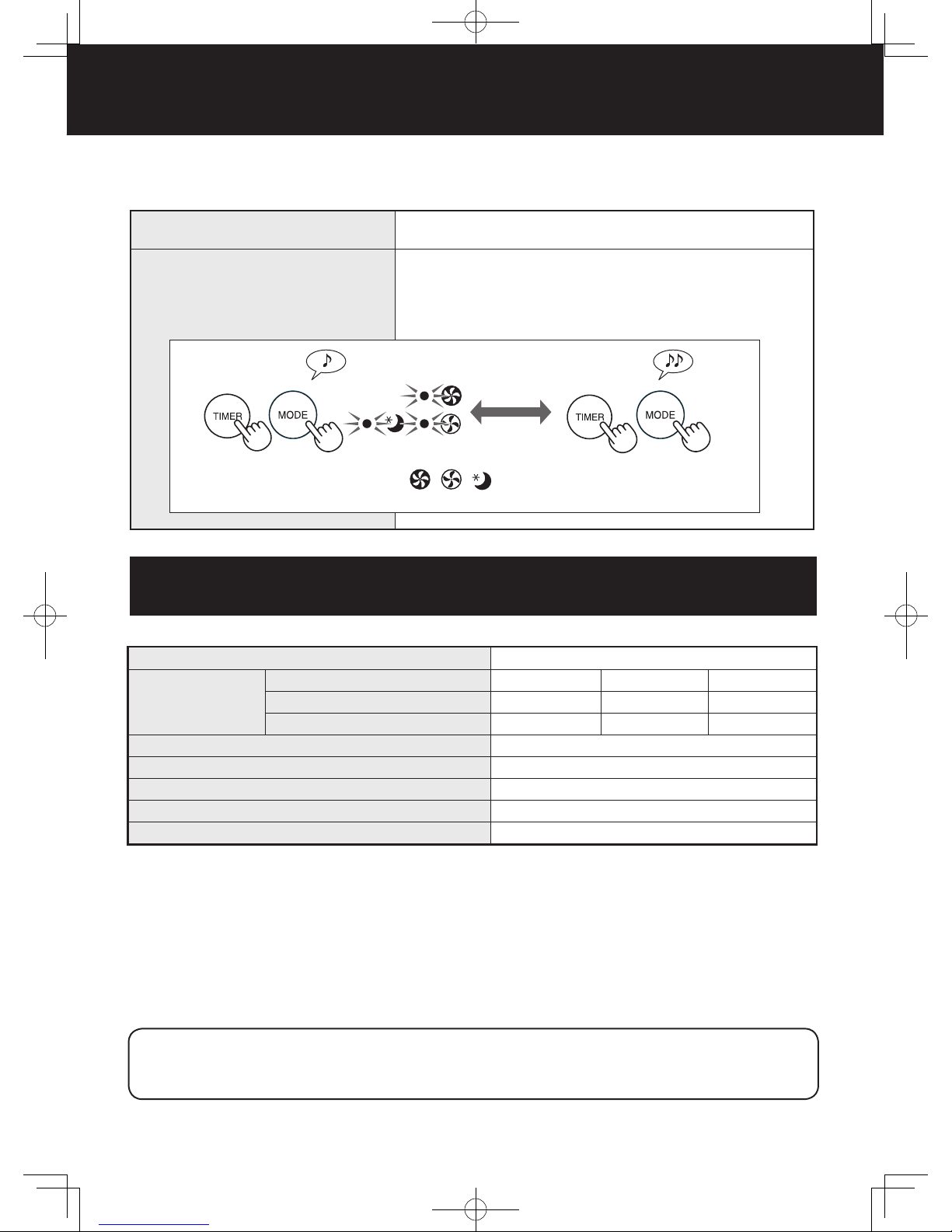

AUTO RESTART

After a power failure, automatically

resume the operation when the

power recovers.

Auto Restart can be set.

• Even when the plug is unplugged or the breaker is thrown

during the operation, the operation resumes at the previous

operation mode and settings if the power recovers.

SPECIFICATIONS

ON OFF

(with the unit OFF) (with the unit OFF)

If the , , lamp Lights up

for 10 seconds, the setting is completed.

(simultaneously for more than 3 sec.) (simultaneously for more than 3 sec.)

OM_FP-G50J_EN.indd 11 2017/01/10 16:47:43

E-12

FOR CUSTOMER ASSISTANCE

Congratulations on Your Purchase!

This Sharp product is warranted against faults in material and manufacture for the

period as stated in the table below.

If service is required during the warranty period, please contact your nearest Sharp

Approved Service Centre. These repairs would be carried out at no charge to the

owner, subject to the conditions specified herein.

This warranty does not extend to defects or injuries caused by or resulting from causes

not attributable to faulty parts or the manufacture of the product, including but not

limited to, defect or injury caused by or resulting from misuse, abuse, neglect, lack of

maintenance, accidental damage, improper voltage, liquid spillage, vermin infestation,

software, or any alterations made to the product which are not authorised by Sharp.

Please retain your sales documentation, as this should be produced to validate a

warranty claim. This warranty is in addition to and in no way limits, varies or excludes

any implied rights and remedies under any relevant legislation in the country of sale.

WARRANTY PERIODS

Home Theatre Projector 12 months

Audio/Home Theatre 12 months

Microwave Oven 12 months

Steam Oven 12 months

Refrigerator 24 months

DVD/Blu-ray 12 months

Air Conditioner 60 months

Portable Air Conditioner 12 months

LCD Television 36 months

Air Purifier 12 months

IMPORTANT NOTICE: This warranty applies only to products sold in Australia&New Zealand

SHARP CORPORATION OF

AUSTRALIA PTY. LIMITED

ABN 40 003 039 405

2 Julius Avenue

North Ryde NSW 2113

SHARP CORPORATION OF

NEW ZEALAND LIMITED

59 Hugo Johnston Drive

Penrose, Auckland

WARRANTY

Consumer Electronic Products

SPform 040 (AUGUST 2011)

Australian customers: Our goods come with guarantees that cannot be excluded

under the Australian Consumer Law. You are entitled to a replacement or refund

for a major failure and for compensation for any other reasonably foreseeable

loss or damage. You are also entitled to have the goods repaired or replaced

if the goods fail to be of acceptable quality and the failure does not amount

to a major failure. The criteria of a major failure is defined in the Australian

Consumer Law. Should you require any assistance with a major failure please

contact Sharp Customer Care.

This warranty does not cover transportation to and from the Sharp Approved Service

Centre. Goods presented for repair may be replaced by refurbished goods of the same

type rather than being repaired. Refurbished parts may be used to repair the goods.

The repair of your goods may result in the loss of user generated data, please ensure

that you have saved this data elsewhere prior to repair.

(excluding lamps and air filters)

FOR CUSTOMER ASSISTANCE

FOR LOCATION ENQUIRIESWITHIN

NEW ZEALAND

REGARDING YOUR LOCAL

SHARP CORPORATION OF NEW ZEALAND LIMITED

VISIT OUR WEBSITE AT

SHARP CUSTOMER SERVICES

TELEPHONE: 09 573 0111

FACSIMILE: 09 573 0113

SPform019(AUGUST 2011)

SHARP APPROVED SERVICE CENTRE

www.sharp.net.nz

CONTACT YOUR SELLING DEALER/RETAILER

OR CALL

FOR LOCATION ENQUIRIES WITHIN

AUSTRALIA

REGARDING YOUR LOCAL

SHARP APPROVED SERVICE CENTRE

VISIT OUR WEBSITE AT

www.sharp.net.au

OR CALL SHARP CUSTOMER CARE

1300 135 022

SHARP CORPORATION OF AUSTRALIA PTY LTD

(LOCAL CALL COSTS APPLY WITHIN AUSTRALIA)

OM_FP-G50J_EN.indd 12 2017/01/10 16:47:44

E-13
