Sharp FO-2150CM User manual

SETUP GUIDE
SHARP COLOR MFP
MODEL
FO-2150CM

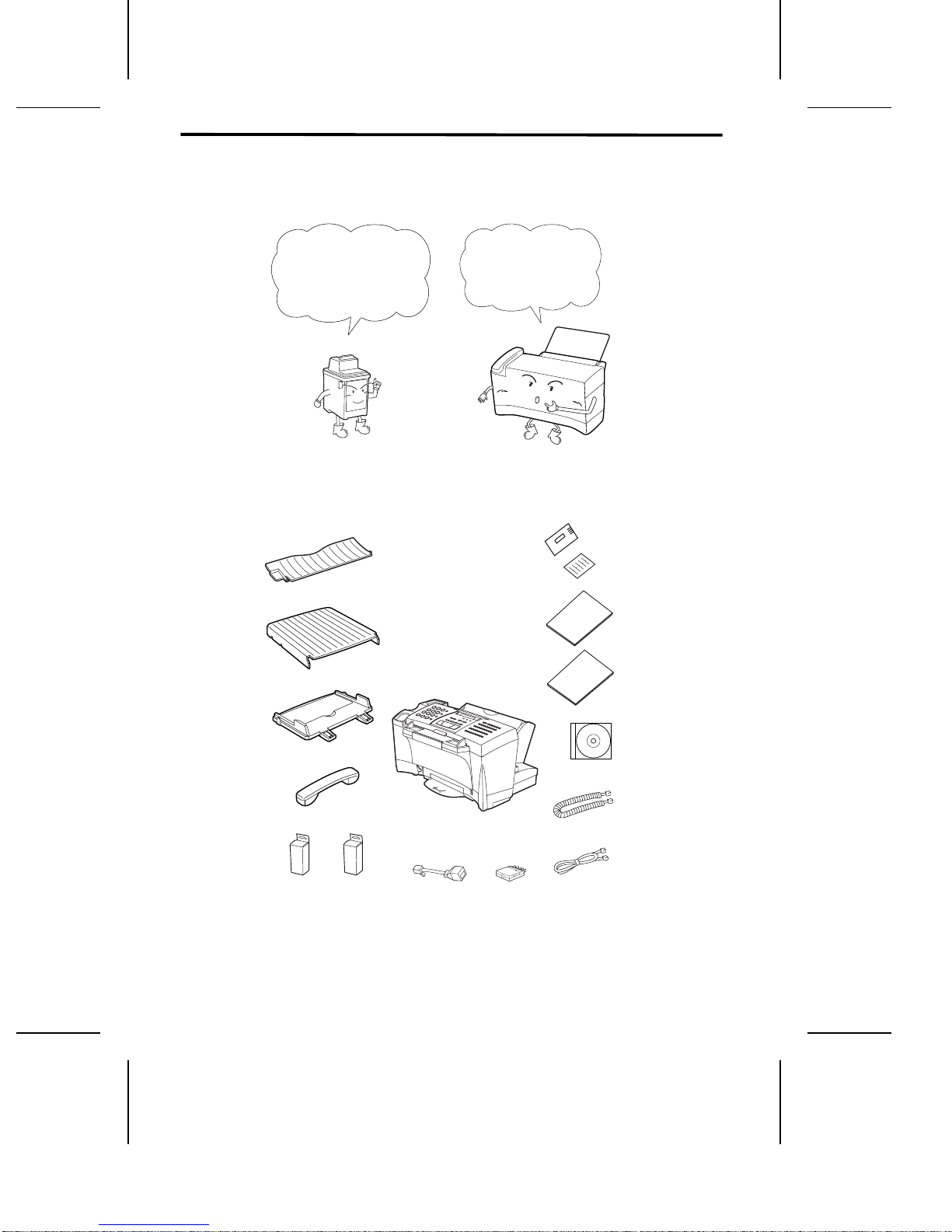

1. Unpacking Checklist
Before setting up,
make sure you
have all of the
following items.
If any are
missing, contact
your dealer or
retailer.
Handset Handset
lead
Telephone
line cord
Rapid key
labels
Setup Guide
Paper
cover
Paper tray
Color and black
print cartridges
(one each)
Quick
Reference
Guide
Sharp Color
MFP CD-ROM
Document
tray
Adapter
(for Australia)
Adapter
(for New Zealand)
Business
products dealer
installation
report
1

2. Trays

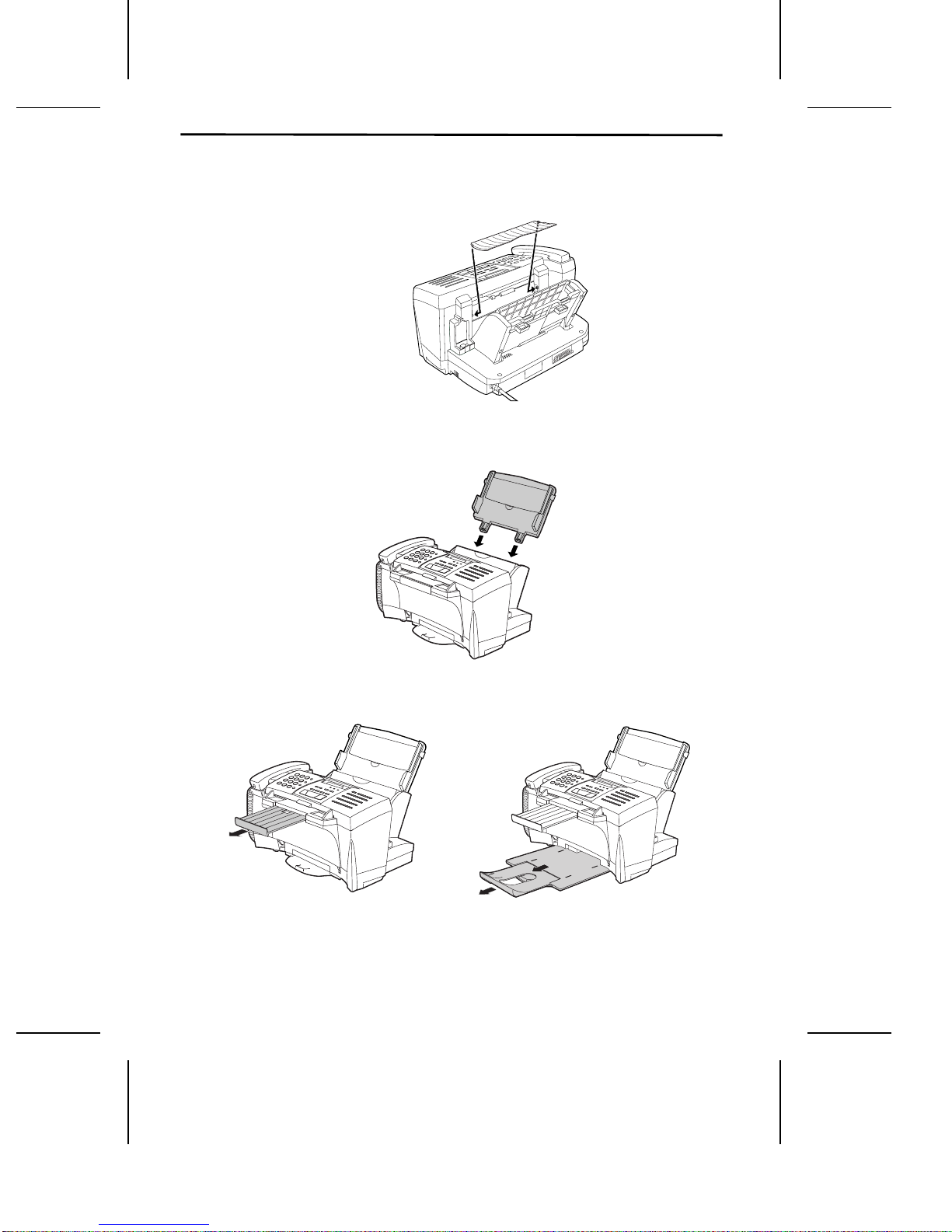

Attach the document tray.
Insert the paper tray into the back of the machine as shown.
Pull out the original document support and the output tray.
Note: When receiving faxes, copying or printing, do not
letalargenumberofpagesaccumulateintheoutputtray.
This may obstruct the outlet and cause paper jams.
2

3. Connections
Handset
Connect the handset as shown and place it on the handset rest.
♦The ends of the handset lead are identical, so they will go into
either socket.
Make sure the
handset cord goes
into the unmarked
socket on the side
of the machine!
Use the handset to
make ordinary phone
calls, or to transmit
and receive
documents manually.
3

Parallel cable
Connect the Sharp Color MFP to your computer with a parallel cable.
♦If you do not have a parallel cable, you can purchase one from
your dealer or any computer store.
♦Make sure the cable is IEEE 1284-compliant. We recommend a
shielded cable no longer than 2 meters.
1 Make sure your computer is turned off
and the Sharp Color MFP is
unplugged.
2 Connect one end of the cable to the
port on the Sharp Color MFP. Snap
the clips on each side of the port onto
the cable connector to secure it.
3 Connect the other end of the cable to
the parallel port on the back of your
computer.
Note: The parallel port mode of your computer must be set to Nibble mode
or an equivalent mode such as Compatible, PS/2, Standard, Normal or Tra-
ditional mode. Note that ECP, EPP, Byte, and Bidirectional modes may not
allow correct operation. To check or change the parallel port mode, run
your computer’s setup (BIOS) program after powering on your computer.
(Refer to your computer documentation for more information).
Connections
4

Power lead
Plug the power lead into a 230-240 V, 50 Hz, earthed (3-prong) AC
outlet.
♦Caution: When disconnecting the fax, unplug the telephone line
cord before unplugging the power lead.
♦Caution: The mains outlet (socket outlet) should be installed near
the equipment and be easily accessable.
The machine does not
have a power on/off switch,
so the power is turned on
and off by simply plugging
or unplugging the power
lead.
Note: If your area experiences a high incidence of lightning or
power surges, we recommend that you install surge protectors for the
power and telephone lines. Surge protectors can be purchased at
most telephone specialty stores.
Moving your fax and reconnecting
Should it be necessary to move your fax to a new location, first
disconnect the telephone line cord before disconnecting the power
lead. When reconnecting, it is necessary to connect the power lead
before connecting the telephone line cord.
Connections
5

Telephone line cord

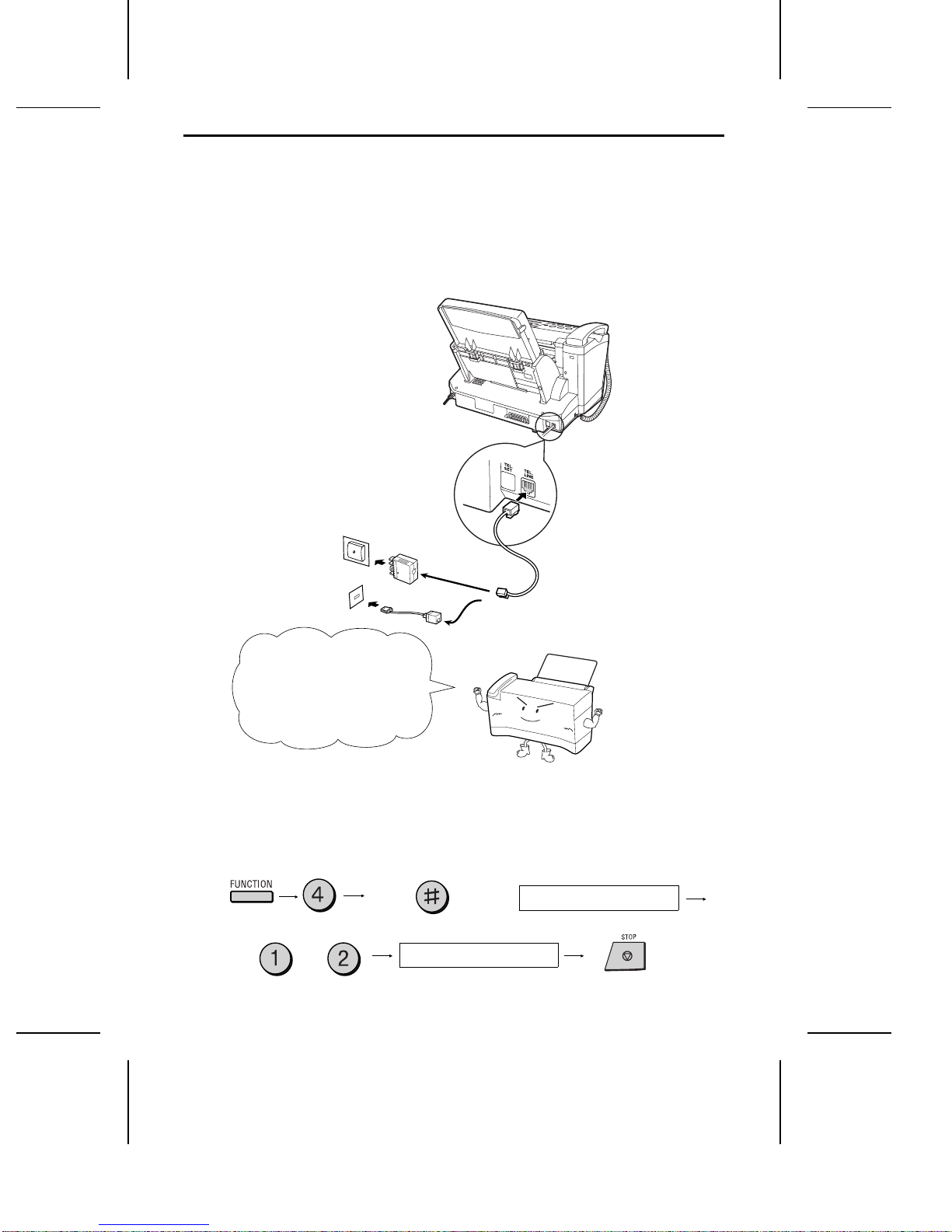

Insert one end of the telephone line cord into the adapter. Insert the
other end of the line cord into the socket on the back of the fax marked
TEL. LINE. Plug the adapter into the telephone socket on the wall.
For Australia
For New Zealand
Be sure to insert the
telephone line cord into
the TEL. LINE socket.
Do not insert it into
the TEL. SET socket.
Note: The Sharp MFP is set for tone dialling. If you are on a pulse
dial line, you must set the Sharp MFP for pulse dialling. Press the
following keys on the operation panel:
Press until
display
shows: DIAL MODE
TONE PULSE
or PSEUDO RING DUR.
Connections
6

Extension phone (optional)
If desired, you can connect an extension phone to the TEL. SET
socket on the fax.
♦To connect an answering machine to the Sharp Color MFP, see
Answering Machine Connection in Chapter 7 of your online
Operation Guide.

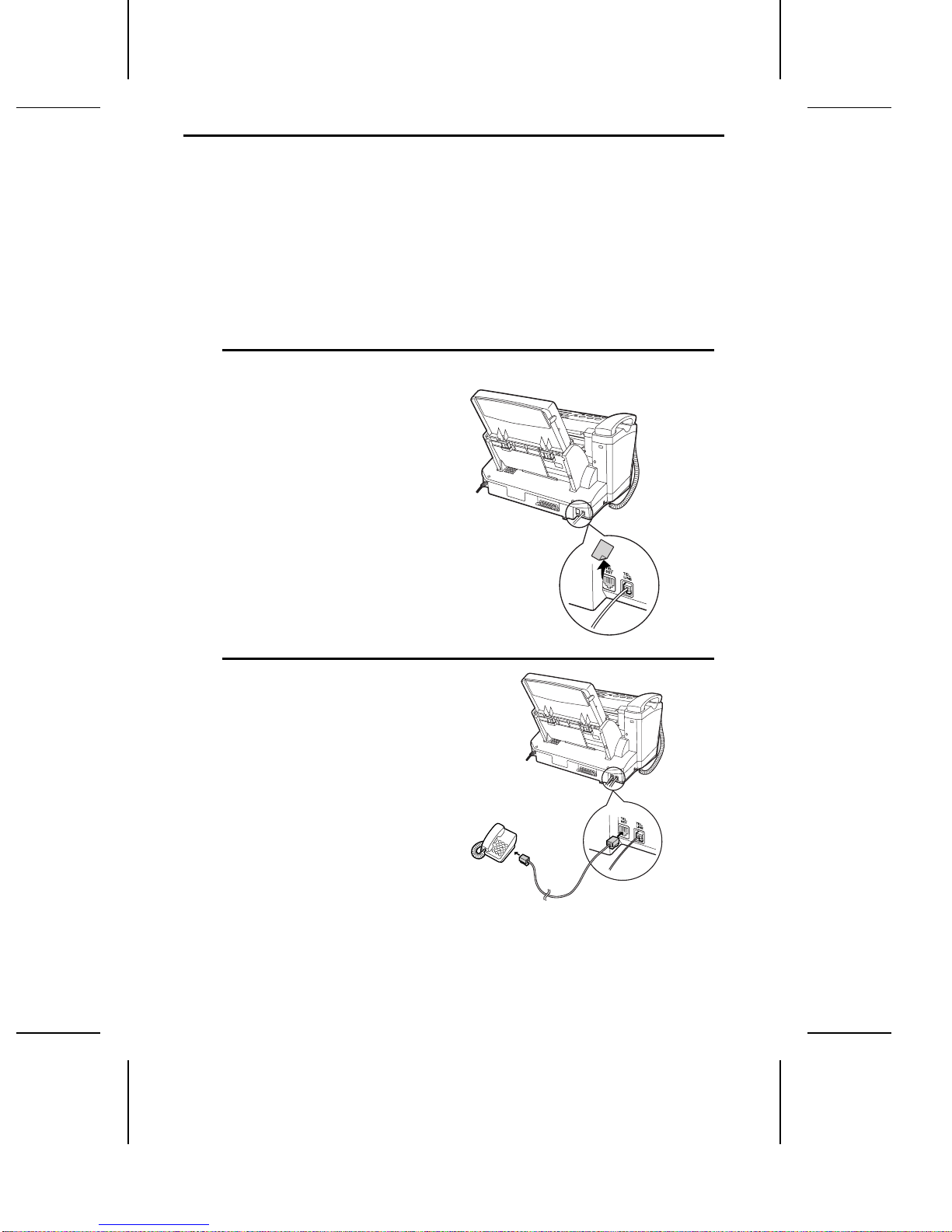

1 Remove the seal covering the TEL.
SET socket.
2 Connect the extension phone line to
the TEL. SET socket .
Important: In New Zealand, not all standard telephones and
answering machines will respond to incoming ringing when connected
to the extension socket of the equipment.
Connections
7

4. Installing a Print Cartridge
Your Sharp Color MFP
uses either a FO-25CC
color print cartridge or a
FO-21BC black print
cartridge.
We recommend that you
keep a black cartridge
installed for normal use,
and change to a color
cartridge only when you
need to print a color job.
Note:If you receive a fax when a color print cartridge is installed,
the fax will be held in memory and printed out when a black
cartridge is installed.
CARTRIDGE key
1 Press the CARTRIDGE key.
•• The cartridge carrier will move to the centre of the print
compartment.
8

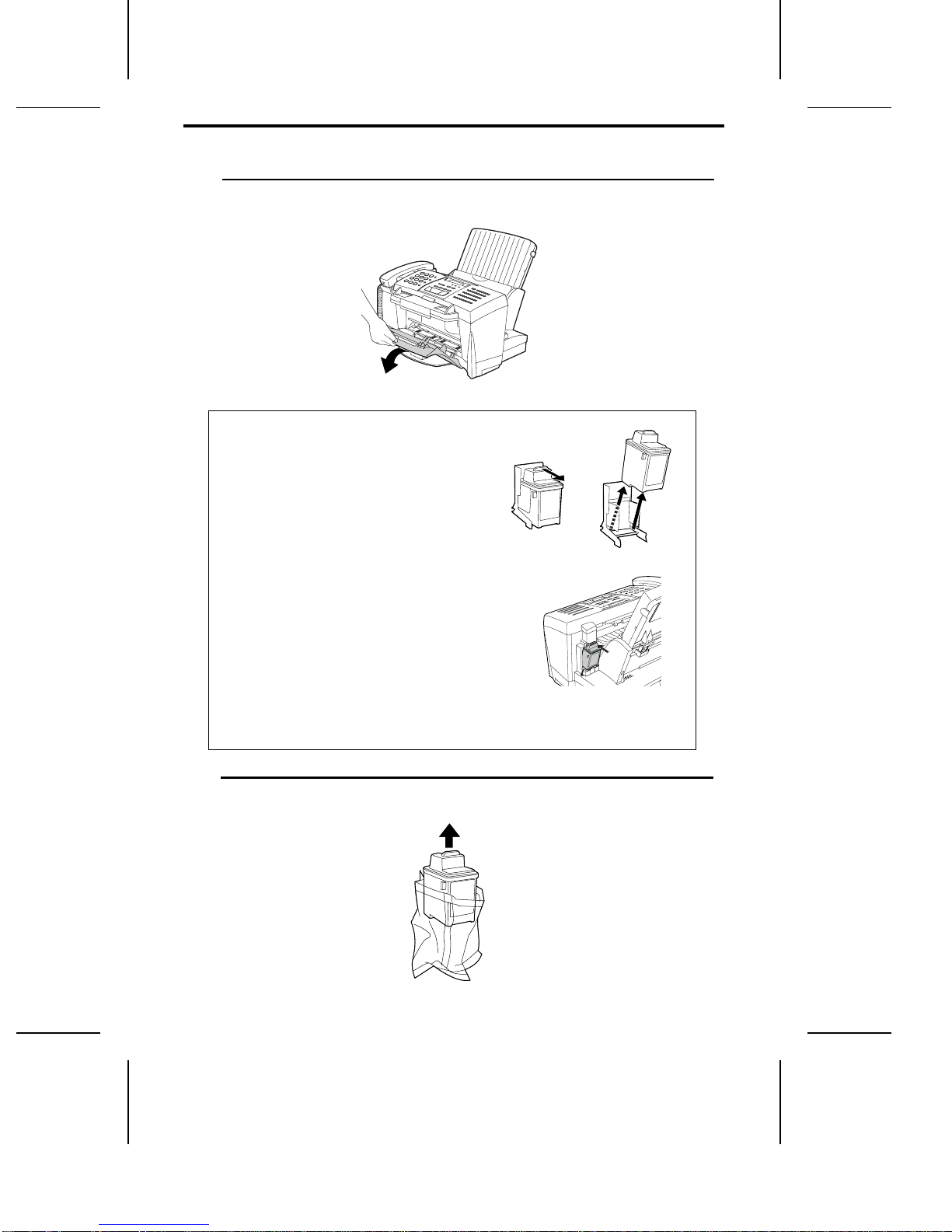

2 Open the front cover of the Sharp Color MFP.
Note on changing cartridges:
When you need to change a print
cartridge, remove the currently
installed cartridge after Step 2 above.
Remove the cartridge by pulling the
knob on the cartridge toward you until
you hear a click.
If the cartridge is still useable, insert it
into the cartridge holder on the back of
the machine. Push back on the
cartridge until it snaps into place.
•• To prevent the used print cartridge
from drying out, be sure to store it
in the cartridge holder.
3 Remove the new print cartridge from its packaging.
Installing a Print Cartridge
9

4 Gently remove the sticker and transparent tape covering the copper
printhead.
Do not touch the
copper-colored area!
5 Insert the print cartridge into the cartridge carrier. Push back on the
cartridge until it snaps into place.
Note: If the print cartridge moves loosely in the carrier, it is not locked
into place. Repeat this step.
6 Close the front cover.
Installing a Print Cartridge
10

7 Press the 3key if you installed a new black cartridge, or the 4key if
you installed a new color cartridge.
(When installing a previously used cartridge, press the 1key for a
used black cartridge or the 2key for a used color cartridge.)
•• The cartridge will return to its home position. If you pressed 3or 4
for a new cartridge, the Sharp MFP will print a test page for
printhead alignment.
8 If you installed a new print cartridge, look at the test page and locate
the line that comes closest to forming a perfectly straight line.
In this example, line 13
comes closest to
forming a straight line.
NEW BLACK CART. NEW COLOR CART.
or
Installing a Print Cartridge
11

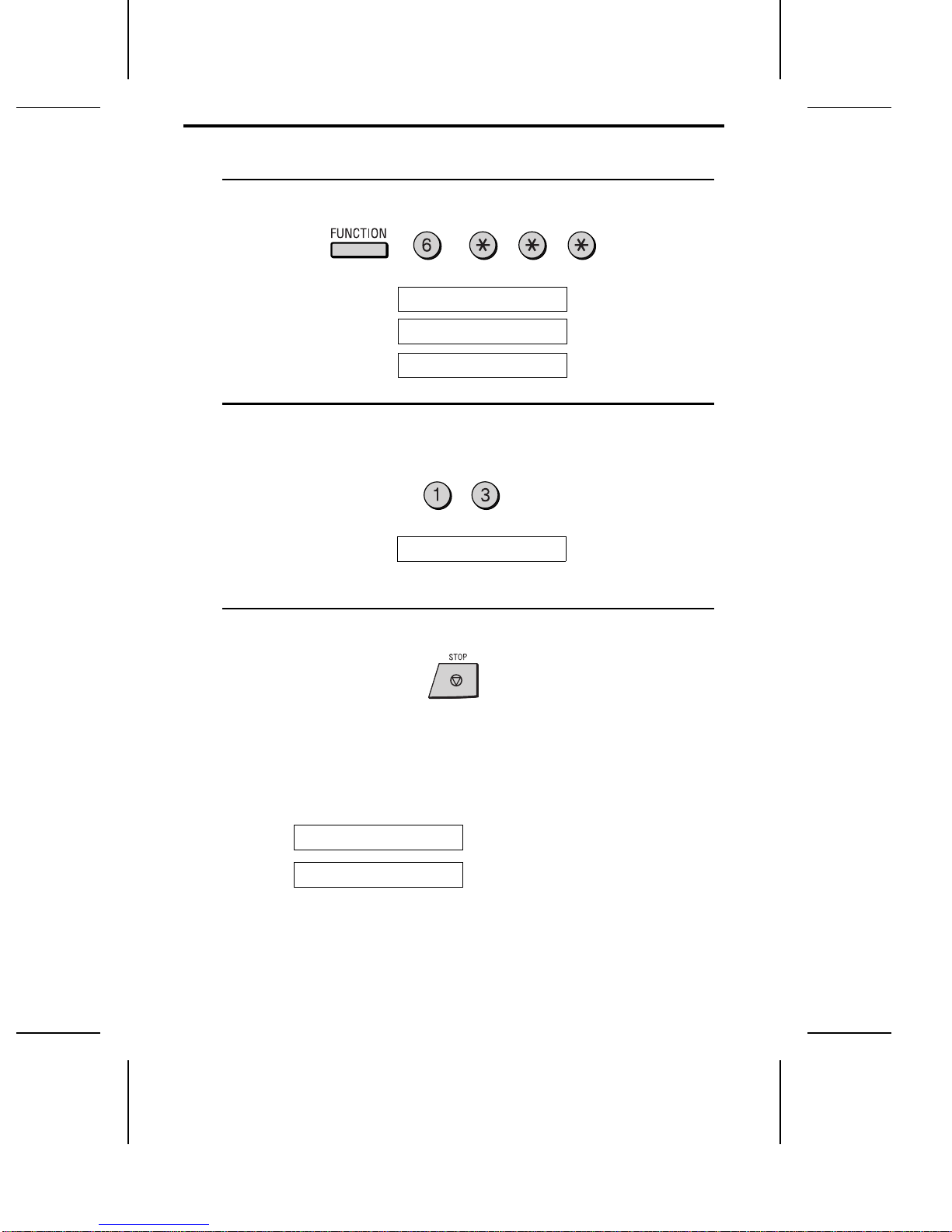

9 Press these keys on the Sharp MFP:
The display will show: ALIGN CARTRIDGE
ENTER (00-30) 15
START: PRINT
10 Enter the two-digit number of the straightest line on the test page. (If
the number is less than 10, enter a 0 before the number.)
Example: Line 13
The display will show: CLEAN NOZZLES
11 Press the STOP key to return to the time and date display.
Note:If you have installed a color cartridge, the display will show
the following alternating messages:
COLOR CARTRIDGE!
USE BLACK FOR RX
Installing a Print Cartridge
12

5. Loading Printing Paper
You can load A4 size paper in the paper tray. The maximum number
of sheets is:
♦200 for paper from 60 to 80 g/m2
♦150 for paper from 80 to 90 g/m2(such as coated paper)

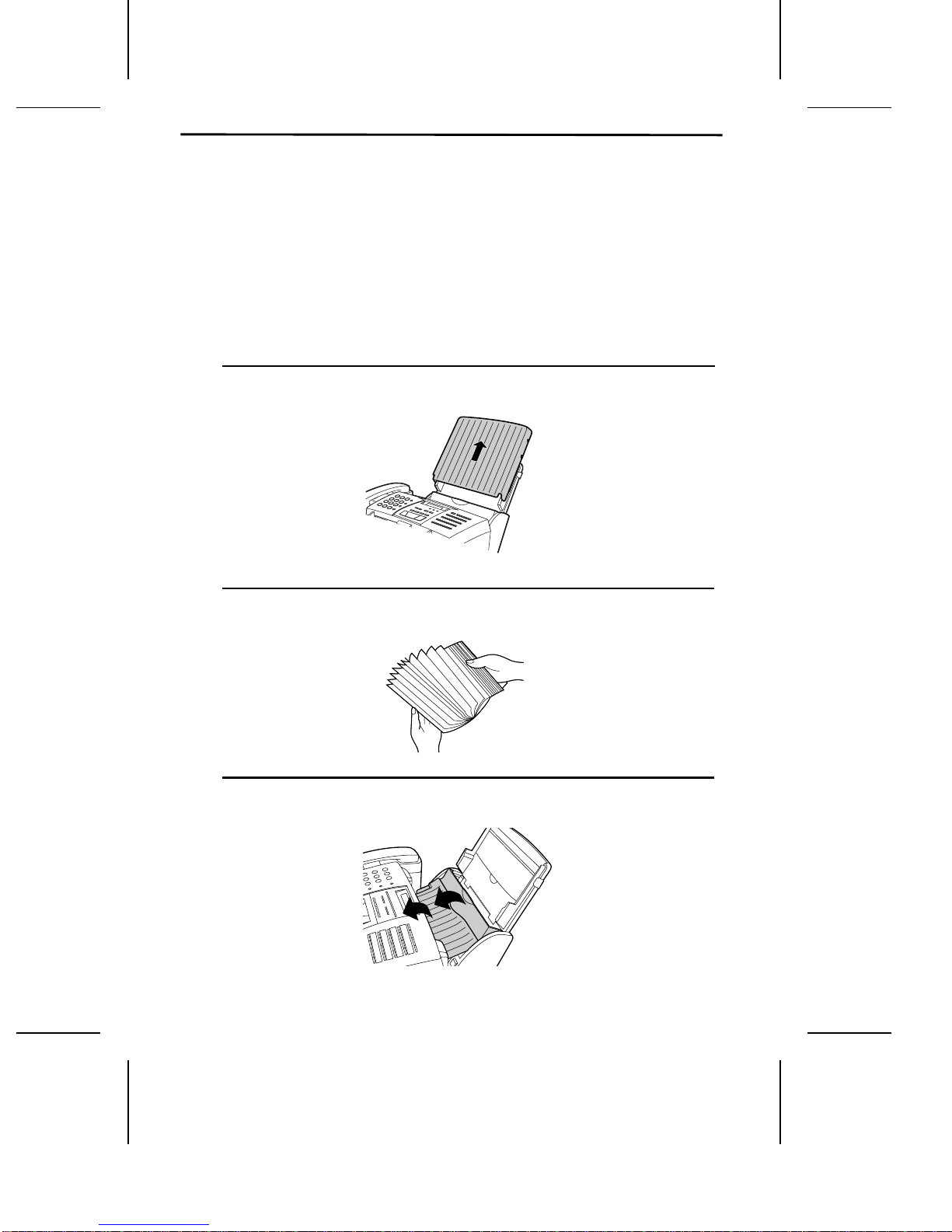

1 Remove the paper cover if it is on the paper tray.
2 Fan the paper, and then tap the edge against a flat surface to even the
stack.
3 Pull the paper release plate toward you.
13

4 Insert the stack of paper into the tray, print side up.
•• If paper remains in the tray, take it out and combine it into a single
stack with the new paper before adding the new paper.
5 Replace the paper cover on the paper tray.
6 Push the paper release plate back down.
•• Important: Be sure to replace the paper cover before you push the
paper release plate down.
Loading Printing Paper
14

7 The Sharp Color MFP has been set at the factory to scale the size of
received faxes to A4 size paper. If you need to change the paper size
setting, press these keys:
The display will show: PAPER SIZE
Press 1to select LETTER, 2to select LEGAL, or 3to select A4.
A4:
Press the STOP key to return to the date and time display.
or
LETTER:
LEGAL:
PLAIN COATED
Note: This setting is only for received faxes. To set the paper size
for printing from your computer, see your online Operation Guide.
8 The Sharp Color MFP has been set at the factory to print on plain
paper. If you have loaded coated paper, you must change the media
type setting to COATED. Press these keys:
The display will show: MEDIA TYPE
Press 1to select PLAIN or 2to select COATED.
Press the STOP key to return to the date and time display.
Loading Printing Paper
15

6. Entering Your Name and Fax Number
To send faxes directly from
the Sharp Color MFP, you
must enter your name and
fax (telephone) number.
You must also set the date
and time.
Once you enter this
information, it will
automatically appear
at the top of each fax
page you send.

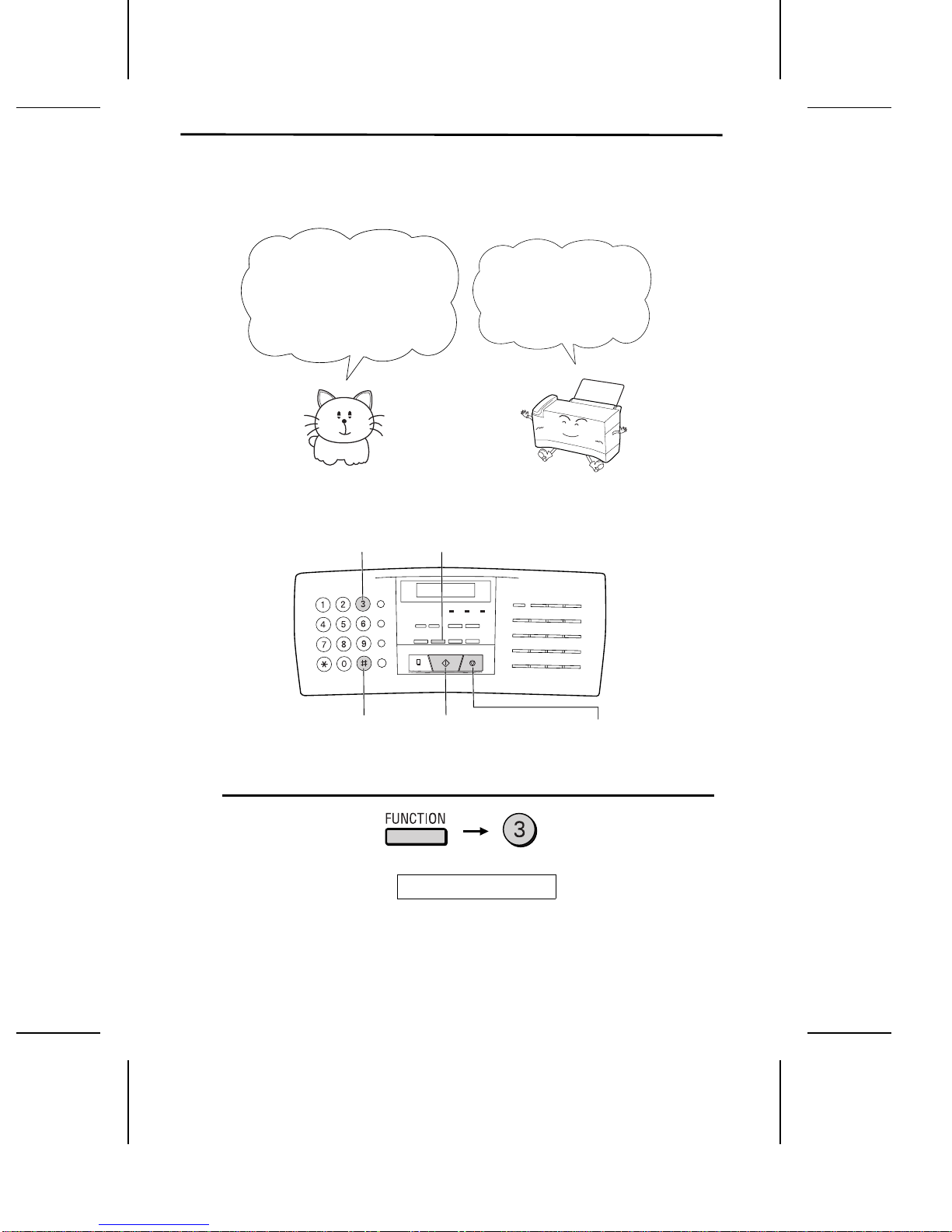

3 key FUNCTION key
STOP key
START key
# key

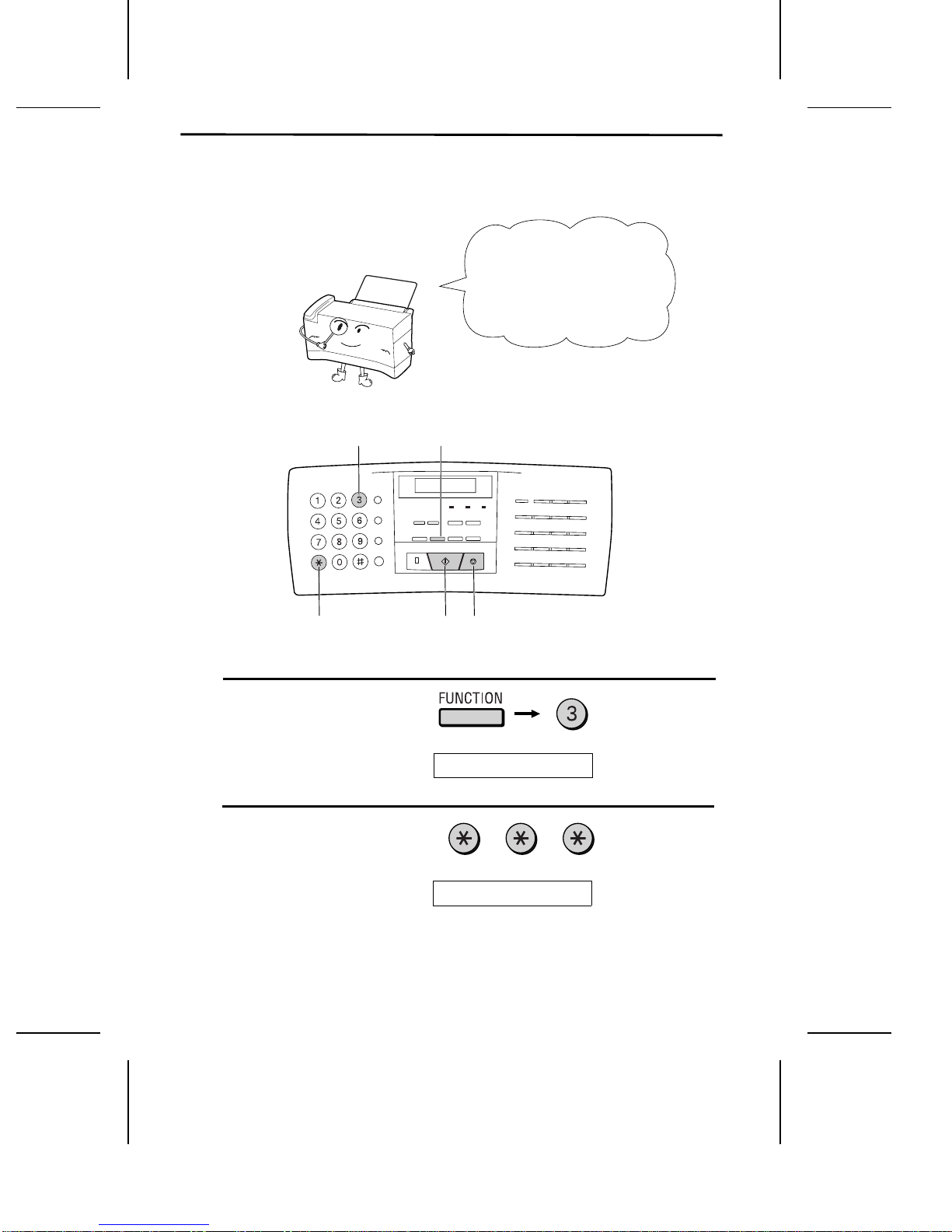

1 Press these keys:
The display will show: ENTRY MODE
16

2 Press the #key twice:
The display will show: OWN NUMBER SET
3 Press the START key.
The display will show: ENTER FAX #
4 Enter your fax number by pressing the number keys. Up to 20 digits
can be entered.
•• To insert a space between digits, press the #key. To insert a "+",
press the *key.
•• If you make a mistake, press the HOLD/SEARCH key to move
the cursor back to the mistake and then enter the correct number.
The new number will replace the old number.
5 Press START to enter the fax number in memory.
Example:
The display will show: ENTER YOUR NAME
Cursor: A dark square mark in the display that indicates where a
number or letter will be entered.
Entering Your Name and Number
17

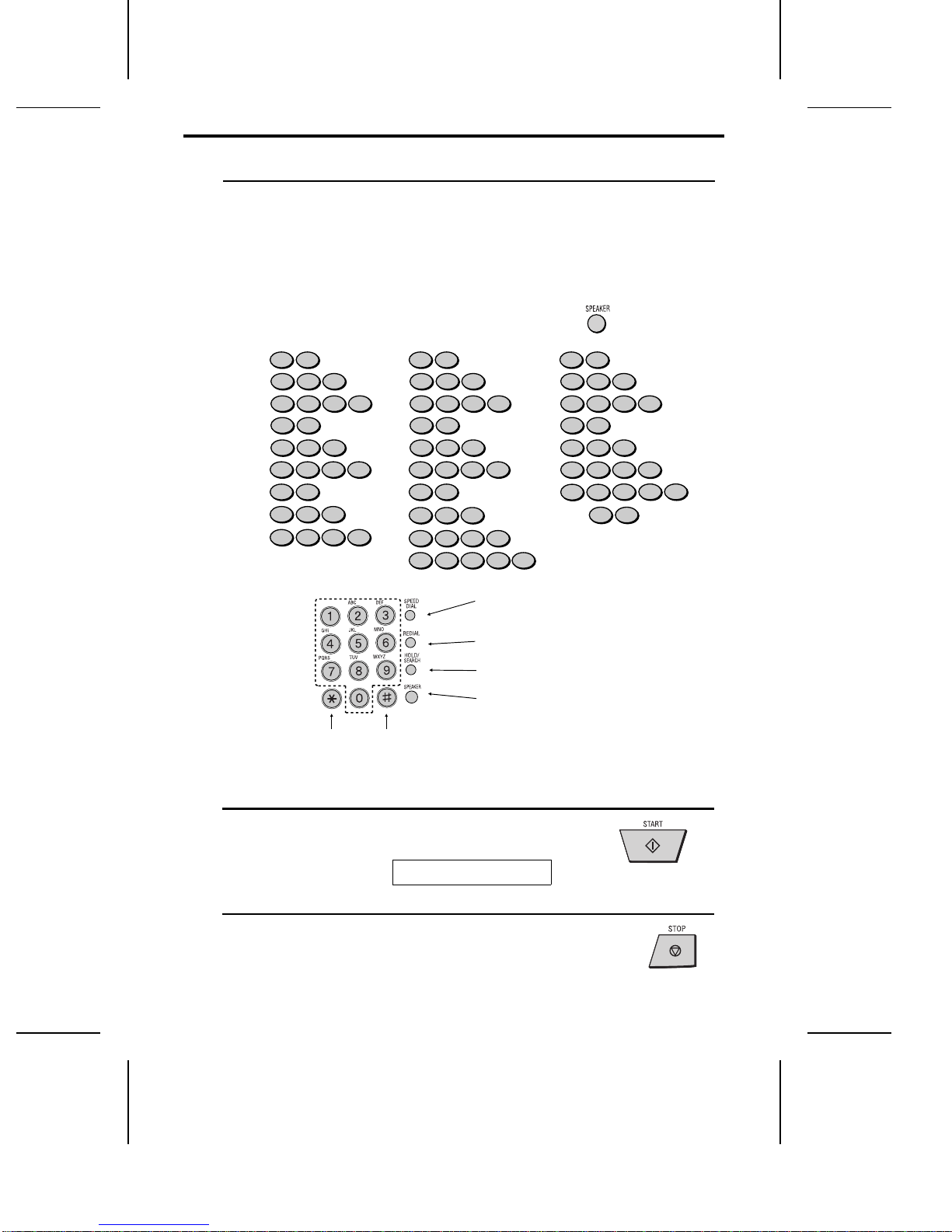

6 Enter your name by pressing the number keys as shown in the chart
below. Up to 24 characters can be entered.
•• To enter two letters in succession that require the same key, press
the SPEAKER key after entering the first letter to advance the
cursor.
Example: SHARP = 7 7 7 7 7 4 4 4 2 2 7 7 7 7 7 7
Press this key to delete the
letter highlighted by the cursor.
Press this key to move the
cursor to the left.
Press this key to change case.
Press this key to move the
cursor to the right.
A =
22
22 2
22 2 2
33
33 3
33 3 3
44
44 4
44 4 4
55
55 5
55 5 5
66
66 6
66 6 6
77
77 7
77 7 7
88
88 8
88 8 8
99
99 9
99 9 9
99
11
99 9
B =
C =
D =
E =
F =
G =
H =
I =
J =
K =
L =
M =
N =
O =
P =
Q =
R =
T =
U =
V =
W =
X =
Y =
Z =
SPACE =
77 7 7 7
S =
Press either key repeatedly to select
one of the following symbols:
./!"#$%&’()++,-:;<=>?@[]^_p{|}
7 Press the START key to save your name in memory.
The display will show: SECURITY SELECT
8 Press the STOP key to return to the date and time display.
Entering Your Name and Fax Number
18

7. Setting the Date and Time
The date and time appear
in the display and reports,
and are printed at the top
of every page you transmit.
3 key FUNCTION key
STOP key
START key* key
1 Press these keys:
The display will show: ENTRY MODE
2 Press the *key two times.
The display will show: DATE & TIME SET
Note: The Sharp Color MFP is Year 2000 compliant.
19
