Sharp MX-7500N Installation guide

Distributed by:
*1: 6,491 mm when finisher tray is extended
*2: 812 mm when keyboard is pulled out
*3: Base unit
*4: Including status indicator

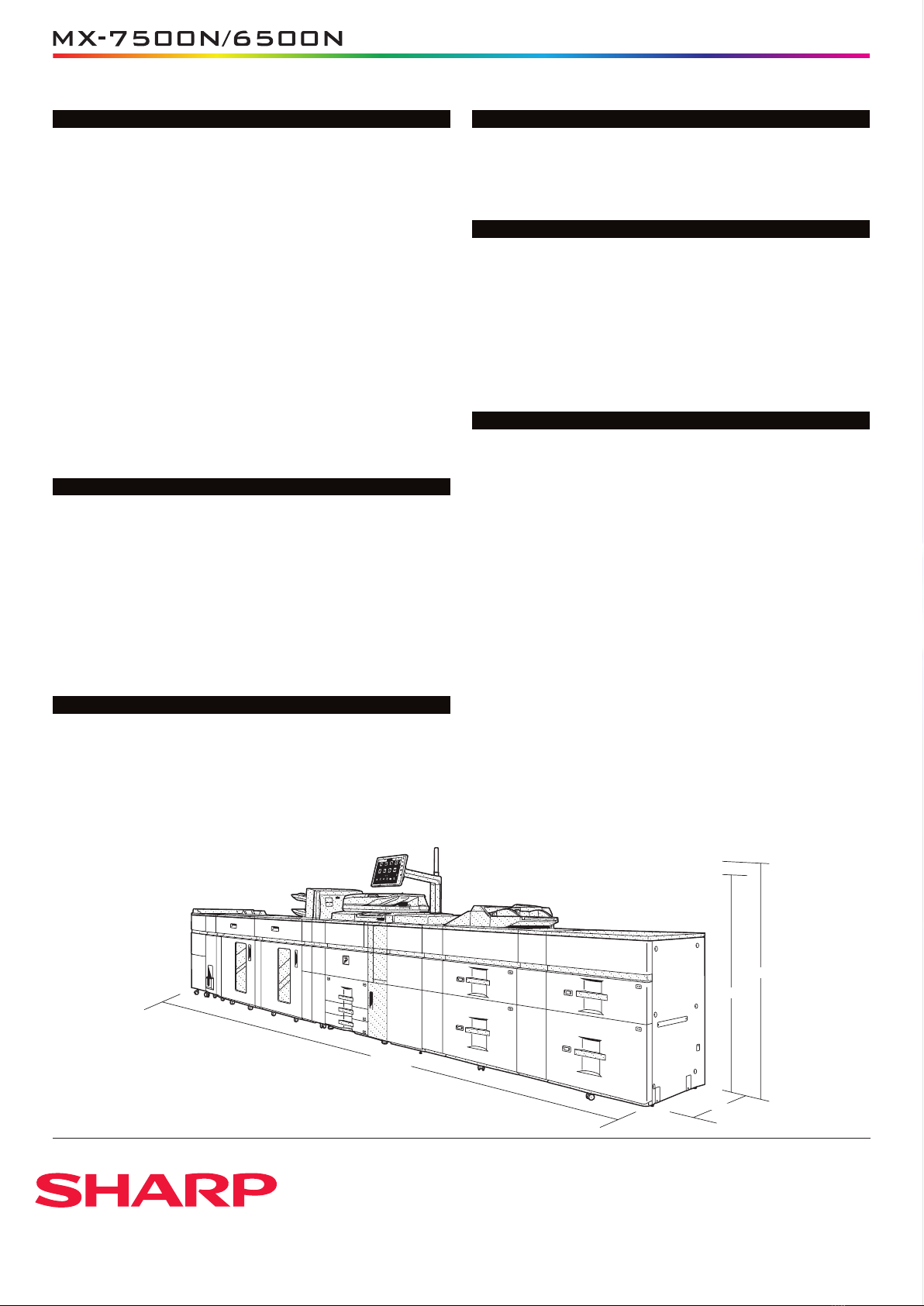

768 mm*
2
6,364 mm*1
Shown with options.
1,642 mm*4
1,530 mm*3
Digital Full Colour Multifunctional System
Console
Max. 75/65 cpm/ppm (A4, 8
1
/
2
" x 11", long-edge feeding)
Max. 42/38 cpm/ppm (A3, 11" x 17")
Max. 40/36 cpm/ppm (SRA3)
Max. SRA3/A3 wide (13" x 19"), min. A5 (5
1
/
2
" x 8
1
/
2
")*
1
Standard: 3,100 sheets (1,200-, 800-, 2 x 500-sheet trays
and 100-sheet multi-bypass tray)
Maximum: 13,500 sheets
Trays 1&2: 60 g/m
2
to 105 g/m
2
(16 lbs bond to 28 lbs bond)
Trays 3&4: 60 g/m
2
to 220 g/m
2
(16 lbs bond to 80 lbs cover)
Multi-bypass tray (MX-MF10):
55 g/m
2
to 300 g/m
2
(16 lbs bond to 170 lbs index)
Multi-bypass tray (MX-MF11):
55 g/m
2
to 220 g/m
2
(16 lbs bond to 80 lbs cover)
Large capacity tray (MX-LC12, MX-LCX3 N):
60 g/m
2
to 220 g/m
2
(16 lbs bond to 80 lbs cover)
Large capacity trays (MX-LC13):
55 g/m
2
to 300 g/m
2
(13 lbs bond to 110 lbs cover)
90 sec.
Copy/print (shared): 5GB 1TB HDD*
3
220V to 240V, 8A, 50/60 Hz (10A plug x 2)
3.84 kW (220 to 240V)
982 x 768 x 1,530 mm (38
21
/ 32 " x 30
15
/ 64 " x 60
15
/ 64 ")
228.1 kg (502.9 lbs)
Type
Engine speed
(colour & B/W)
Paper size
Paper capacity
(80 g/m
2
)
Paper weight
Warm-up time*
2
Memory
Power requirements
Power consumption (max.)
Dimensions (W x D x H)
Weight (approx.)
Resolution
Interface
Supported OS
Network protocols
Printing protocols
PDL
Available fonts
1,200 x 1,200 dpi; 600 x 600 dpi; 9,600 (equivalent) x 600 dpi
USB 2.0, 10Base-T/100Base-TX/1000Base-T
Windows Server
®
2003, Windows Server
®
2008, Windows Server
®
2012, Windows
®
XP, Windows Vista
®
, Windows
®
7, Windows
®
8,
Mac OS X10.4, X10.5, X10.6, X10.7, X10.8
TCP/IP (IPv4, IPv6), IPX/SPX (NetWare), EtherTalk (AppleTalk)
LPR, Raw TCP (Port 9100), POP3 (e-mail printing), HTTP,
FTP for downloading print files, EtherTalk printing, IPP
Standard: PCL 6 emulation, Adobe
®
PostScript
®
3
™
Option*
8
: XPS
80 fonts for PCL, 139 fonts for Adobe
PostScript 3
Document filing capacity*
7
Stored jobs
Storage folders
Confidential storage
Main and custom folders: 35,000 pages or 5,000 files
Quick file folder: 10,000 pages or 1,000 files
Copy, print, scan
Quick file folder, main folder, custom folder (max. 1,000 folders)
Password protection (for main and custom folders)
(tentative)
SPECIFICATIONS
General
Original paper size
First copy time*
4
Continuous copy
Resolution
Gradation
Zoom range
Preset copy ratios
Max. A3 (11" x 17")
[MX-7500N] Full colour: 5.1 sec. B/W: 3.7 sec.
[MX-6500N] Full colour: 5.6 sec. B/W: 4.0 sec.
Max. 9,999 copies
Scan (colour): 600 x 600 dpi
Scan (B/W): 600 x 600 dpi, 600 x 400 dpi
Print (colour): 600 x 600 dpi; 9,600 (equivalent) x 600 dpi
(depending on print mode)
Print (B/W): 1,200 x 1,200 dpi; 600 x 600 dpi;
9,600 (equivalent) x 600 dpi (depending on print mode)
Equivalent to 256 levels
25 to 400% (25 to 200% using DSPF) in 1% increments
Metric: 10 ratios (5R/5E), inch: 8 ratios (4R/4E)
Scan method
Resolution
File formats
Scan destinations
Push scan (via control panel)
Pull scan (TWAIN-compliant application)
Push scan: 100, 150, 200, 300, 400, 600 dpi
Pull scan: 75, 100, 150, 200, 300, 400, 600 dpi
50 to 9,600 dpi via user setting
TIFF, PDF, PDF/A, encrypted PDF, compact PDF*
5
, JPEG*
6
, XPS
Scan to e-mail/FTP server/network folder (SMB)/USB memory
Copier
Network Scanner
Network Printer
Document Filing
Type
System software
Operating system
CPU
Memory
Resolution
Supported OS
Network protocols
Interface
Printing protocols
PDL
Available fonts
Power requirements
Power consumption (max.)
Dimensions (W x D x H)
Weight (approx.)
External server
Fiery FS100 Pro
Windows
®
7 Professional for Embedded Systems x32/x64,
Intel
®
Core
®
i5-2400, 3.1 GHz
4GB RAM 1TB HDD
1,200 x 1,200 dpi; 600 x 600 dpi (PS, PCL)
Windows Server
®
2003, Windows Server
®
2008, Windows
®
XP,
Windows Vista
®
, Windows
®
7, Mac OS X10.5, X10.6, X10.7
TCP/IP IPX iPrint, LDAP
Gigabit Ethernet
LPD, PServer, RPRINT, PAP, SMB, Port 9100, IPP 1.1,
e-mail print (PS, PDF), Mac Bonjour, AppleTalk
Adobe
®
PostScript
®
3
™
138 fonts for Adobe PostScript 3
100V to 240V, 50/60 Hz
0.35 kW
212.3 x 482.6 x 488.4 mm (8
23
/ 64 " x 19" x 19
7
/ 32 ")
19.6 kg (43.2 lbs)
Fiery®Print Server (optional MX-PE10, MX-KB16, and MX-PX10 required)
*1: Only short-edge feeding can be used with A5 (5 1/2" x 8 1/2") paper. *2: At rated voltage, 23°C (73.4°F).
May vary depending on operating conditions and environment. *3: HDD capacity depends on procurement and
sourcing status. *4: Long-edge feeding of A4 (8 1/2" x 11") sheets from 2nd paper tray, using document glass,
without Auto Colour Selection and Auto Colour mode, MFP in fully ready condition. May vary depending on
operating conditions and environment. *5: Optional MX-EB11 required. *6: Colour only. *7: Storage capacity
will vary depending on the type of document and the scan settings. *8: Optional MX-PUX1 required.
• Design and specifications are subject to change without prior notice. • Windows, Windows Server, Windows Vista, and
Excel are registered trademarks of Microsoft Corporation in the United States and/or other countries. Adobe and
PostScript 3 are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or
other countries. All other brand names and product names may be trademarks or registered trademarks of their
respective owners. • The ENERGY STAR logo is a certification mark and may only be used to certify products that have
been determined to meet the ENERGY STAR programme requirements. ENERGY STAR is a US registered mark. The
ENERGY STAR guidelines apply to products only in the US, the EU, Japan, Canada, Australia, New Zealand, and Taiwan.
Digital Full Colour Multifunctional System
Precise. Productive. Professional.
A True Colour-on-Demand Powerhouse
© SHARP CORPORATION (NOV. 2013)

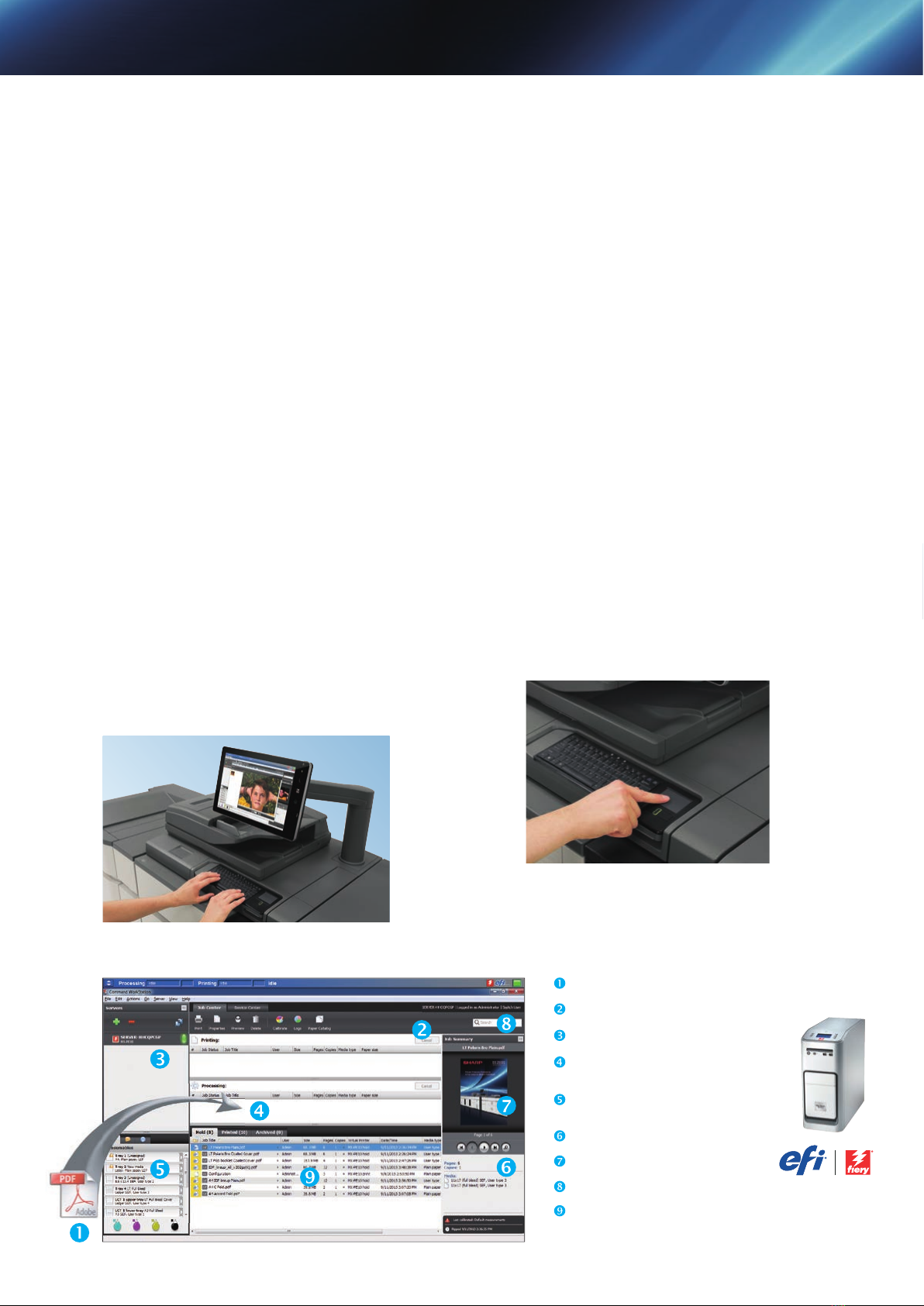

A High-Speed Colour MFP with Full-Fledged
Functionality to Meet Various Light Production Needs
Sharp’s flagship MX-7500N/6500N is a colour print-on-demand powerhouse built for full-scale light
production of professional documents. A variety of automatic adjustment functions enable this MFP to
maintain exceptional print quality on a par with commercial printing. A powerful external Fiery®Colour Print
Server with Command WorkStation®software is available for colour-critical environments that require precise
management of print jobs. The software can be operated intuitively through the MFP’s user-friendly
15.4-inch colour LCD touchscreen panel—a unique Sharp specialty.
The ultra-versatile MX-7500N/6500N not only offers a full suite of paper-feed and finishing options, it
also handles a variety of paper types and paper thicknesses up to 300 g/m2. With selected options, total
paper capacity can be boosted all the way to 13,500 sheets. On top of that, users can take advantage of
flexible document system configurations that cater precisely to their varying needs. Powerful, fast, and
highly configurable, this is one MFP that delivers quality on demand.
1
2

A High-Speed Colour MFP with Full-Fledged
Functionality to Meet Various Light Production Needs
Sharp’s flagship MX-7500N/6500N is a colour print-on-demand powerhouse built for full-scale light
production of professional documents. A variety of automatic adjustment functions enable this MFP to
maintain exceptional print quality on a par with commercial printing. A powerful external Fiery®Colour Print
Server with Command WorkStation®software is available for colour-critical environments that require precise
management of print jobs. The software can be operated intuitively through the MFP’s user-friendly
15.4-inch colour LCD touchscreen panel—a unique Sharp specialty.
The ultra-versatile MX-7500N/6500N not only offers a full suite of paper-feed and finishing options, it
also handles a variety of paper types and paper thicknesses up to 300 g/m2. With selected options, total
paper capacity can be boosted all the way to 13,500 sheets. On top of that, users can take advantage of
flexible document system configurations that cater precisely to their varying needs. Powerful, fast, and
highly configurable, this is one MFP that delivers quality on demand.
1
2

Red
Green
(Image)
A3 size
13" x 19"
3
4
A Heavy-Duty Productivity Booster
While the MX-7500N/6500N holds 3,100 sheets of paper, this standard
capacity can be expanded to meet the needs of high-volume jobs.
Adding an optional 500-sheet Multi-Bypass Tray and two 5,000-sheet
(2,500 × 2) Large Capacity Trays boosts capacity to 13,500 sheets and
enables a maximum 9-way automatic paper feed. And when a tray runs
out of paper, the Auto Tray Switching function automatically switches
to another tray with the same-sized paper.
Large Paper Capacity
The MX-7500N/6500N accommodates a wide variety of sizes, weights, and types of paper, expanding the range of possible printing applications.
Versatile Paper Handling
The MX-7500N/6500N’s Paper Setting Registration function allows
instant recall of pre-registered media profiles. It stores up to 1,000
media profiles that include front-to-back registration settings (see page
5), data on fusing temperature, and data on the type, size, and weight
of paper used. This allows identical, frequently executed jobs to be
performed without the need to set the MFP each time, thereby helping
to save time and ensure consistency from job to job.
Paper Setting Registration
The MX-7500N/6500N can scan both pages of two-sided B/W and colour
documents up to A3 size in one efficient pass. Capable of scanning
one-sided A4-size (8 1/2" × 11") documents at 75 opm* and two-sided
A4 documents at 150 opm*, the 150-sheet DSPF (duplex single pass
feeder) minimises paper misfeeds and brings fast, reliable operation.
* Originals per minute (when feeding A4-size documents at 200-dpi resolution)
High-Efficiency Scanning
Built to meet the rigorous, high-volume demands of offices, copy rooms,
CRD, and corporate data centres, the MX-7500N/6500N delivers copying
and printing at an impressive speed of 75/65 cpm/ppm for A4 paper
and 42/38 cpm/ppm for A3 paper. Advanced technology, integrated
network scanning, and flexible configurations expedite job processing
and streamline document workflow like never before. And to bring
productivity and reliability where it’s needed most, this high-volume
workhorse boasts a 1TB hard disk and 5GB of standard memory.
A Winning Combination of Speed and Power
With an optional High Capacity Stacker,
the MX-7500N/6500N can
accommodate up to 5,000 sheets,
expandable to 10,000 sheets when two
stackers are connected in tandem. Each
stacker comes with a roll-out Paper
Cart for effortless and efficient
transport.
High Capacity Stacker
The optional Status Indicator provides
diagnostics via green and red LED lights
that are clearly visible from a distance.
The green light remains lit while a job is
being executed and blinks while
document data is being read. The red
light blinks or lights up to indicate an
error that may or may not prevent normal operation.
Status Indicator
To boost information sharing and distribution, processed job data can be
saved in designated folders on the MX-7500N/6500N’s built-in hard disk
for instant recall, printing, or sending at a later time. Data for frequently
used template documents can also be saved on the hard disk, enabling
quick and easy output for enhanced productivity. The MX-7500N/6500N
can also store PostScript print data, so that users get consistent results
every time they reprint a selected data file.
Document Management on the Hard Disk
The MX-7500N/6500N’s hard disk enables files created with applications
such as Word and Excel®to be saved in their original file format and
shared across the office network.
Note: Sharp recommends using the optional Mirroring Kit to back up data saved to
the MFP’s hard disk.
Easy Sharing of Application Files
Printing continues during toner cartridge replacement
Limitless Operation
There’s no need to stop the MX-7500N/6500N during large-volume
copy/print jobs when the toner cartridge needs changing or when a
paper tray needs replenishing. This means minimum downtime for the
MFP during busy workloads. The MX-7500N/6500N can use toner from
the large intermediate toner hopper to continue printing while the
empty toner cartridge is replaced with a new one. Paper trays not
currently in use can also be replenished without stopping the machine.
Cover Inner page
• Fold Variations
C-fold*2 Z-fold*1Double
fold*2
Half-fold*3
Accordion
fold*2
• Stapling Positions
Front cornerRear corner 2-point side
• Punching Positions
2-hole
punching
3-hole
punching
4-hole
punching
4-hole wide
punching
Flexibility in Paper Handling and Finishing Options
With a maximum output capacity of 4,250 sheets,
handy Finishers provide three stapling positions—
front corner, rear corner, and two-point side—for
up to 100 sheets per set. Two-to-four-hole
punching is available as an option.
Stapling and Punching
• Paper Sizes: The MX-7500N/6500N supports an extensive range of standard paper sizes from A5 to
SRA3/A3W (5 1/2" × 8 1/2" to 13" × 19"), along with custom paper sizes up to 330 × 488 mm (13" ×
19.2"). Thanks to its printable area of 319 × 480 mm, this MFP enables full-bleed printing of an A3
image with crop marks or two A4 images with crop marks.
• Paper Weights: The MX-7500N/6500N handles paper as thin as 55 g/m2and as thick as 300 g/m2.
Duplexing is possible for paper ranging from 60 g/m2to 300 g/m2.
• Paper Types: In addition to plain paper, the MX-7500N/6500N accommodates a number of other
paper types—including coated, textured, or embossed paper—as well as envelopes. This gives
users the flexibility to fulfil diverse printing needs.
The MX-7500N/6500N’s edge-to-edge printing feature ensures
printing to the top and bottom edges of the page, so that only the
void areas of the lead and trail edges need to be trimmed for a
full-bleed effect. This feature allows production of full-bleed A4-size
booklets up to 80 pages in length. Using this function with the Saddle
Stitch Finisher and Trimming Module enables users to automatically
create high-quality, professional-looking booklets in-line, helping to
reduce both outsourcing costs and production times.
Full-Bleed Booklet Making
For truly professional results, the Inserter can add pre-printed covers
and insert paper up to 220 g/m2to documents before final finishing.
Two input trays, each with a capacity of 200 sheets, make it possible to
feed in two different types of paper.
Insertion
The MX-LT10 Long Paper Feeding Tray accommodates extra-long
paper up to 1,200 mm—expanding the range of print products to
include panoramic pictures, large display-window ads, banner
signs, and more.
* Contact a Sharp customer representative for details on using this function.
Long-Paper (Banner) Printing*
The MX-FD10 Folding Unit automates various types of folding,
such as z-folding and c-folding, for efficient production of
direct mail, brochures, and more.
A Variety of Folds
*1: For A3- and A4R-size paper
*2: For A4R-size paper
*3: For A4R-size paper (also for SRA3 and A3 paper with MX-FN22 option)
Saddle stitching
Professional-Quality In-Line Finishing Options
The MX-FN22 Saddle Stitch Finisher
staples and folds sets of documents
up to 20 sheets in length.
The MX-TM10 Trimming
Module trims the lead and
trail edges of a saddle-
stitched document to give it
a beautifully consistent finish.
Trimming
Max. 1,200 mm long
Max.
305 mm
wide

Red
Green
(Image)
A3 size
13" x 19"
3
4
A Heavy-Duty Productivity Booster
While the MX-7500N/6500N holds 3,100 sheets of paper, this standard
capacity can be expanded to meet the needs of high-volume jobs.
Adding an optional 500-sheet Multi-Bypass Tray and two 5,000-sheet
(2,500 × 2) Large Capacity Trays boosts capacity to 13,500 sheets and
enables a maximum 9-way automatic paper feed. And when a tray runs
out of paper, the Auto Tray Switching function automatically switches
to another tray with the same-sized paper.
Large Paper Capacity
The MX-7500N/6500N accommodates a wide variety of sizes, weights, and types of paper, expanding the range of possible printing applications.
Versatile Paper Handling
The MX-7500N/6500N’s Paper Setting Registration function allows
instant recall of pre-registered media profiles. It stores up to 1,000
media profiles that include front-to-back registration settings (see page
5), data on fusing temperature, and data on the type, size, and weight
of paper used. This allows identical, frequently executed jobs to be
performed without the need to set the MFP each time, thereby helping
to save time and ensure consistency from job to job.
Paper Setting Registration
The MX-7500N/6500N can scan both pages of two-sided B/W and colour
documents up to A3 size in one efficient pass. Capable of scanning
one-sided A4-size (8 1/2" × 11") documents at 75 opm* and two-sided
A4 documents at 150 opm*, the 150-sheet DSPF (duplex single pass
feeder) minimises paper misfeeds and brings fast, reliable operation.
* Originals per minute (when feeding A4-size documents at 200-dpi resolution)
High-Efficiency Scanning
Built to meet the rigorous, high-volume demands of offices, copy rooms,
CRD, and corporate data centres, the MX-7500N/6500N delivers copying
and printing at an impressive speed of 75/65 cpm/ppm for A4 paper
and 42/38 cpm/ppm for A3 paper. Advanced technology, integrated
network scanning, and flexible configurations expedite job processing
and streamline document workflow like never before. And to bring
productivity and reliability where it’s needed most, this high-volume
workhorse boasts a 1TB hard disk and 5GB of standard memory.
A Winning Combination of Speed and Power
With an optional High Capacity Stacker,
the MX-7500N/6500N can
accommodate up to 5,000 sheets,
expandable to 10,000 sheets when two
stackers are connected in tandem. Each
stacker comes with a roll-out Paper
Cart for effortless and efficient
transport.
High Capacity Stacker
The optional Status Indicator provides
diagnostics via green and red LED lights
that are clearly visible from a distance.
The green light remains lit while a job is
being executed and blinks while
document data is being read. The red
light blinks or lights up to indicate an
error that may or may not prevent normal operation.
Status Indicator
To boost information sharing and distribution, processed job data can be
saved in designated folders on the MX-7500N/6500N’s built-in hard disk
for instant recall, printing, or sending at a later time. Data for frequently
used template documents can also be saved on the hard disk, enabling
quick and easy output for enhanced productivity. The MX-7500N/6500N
can also store PostScript print data, so that users get consistent results
every time they reprint a selected data file.
Document Management on the Hard Disk
The MX-7500N/6500N’s hard disk enables files created with applications
such as Word and Excel®to be saved in their original file format and
shared across the office network.
Note: Sharp recommends using the optional Mirroring Kit to back up data saved to
the MFP’s hard disk.
Easy Sharing of Application Files
Printing continues during toner cartridge replacement
Limitless Operation
There’s no need to stop the MX-7500N/6500N during large-volume
copy/print jobs when the toner cartridge needs changing or when a
paper tray needs replenishing. This means minimum downtime for the
MFP during busy workloads. The MX-7500N/6500N can use toner from
the large intermediate toner hopper to continue printing while the
empty toner cartridge is replaced with a new one. Paper trays not
currently in use can also be replenished without stopping the machine.
Cover Inner page
• Fold Variations
C-fold*2 Z-fold*1Double
fold*2
Half-fold*3
Accordion
fold*2
• Stapling Positions
Front cornerRear corner 2-point side
• Punching Positions
2-hole
punching
3-hole
punching
4-hole
punching
4-hole wide
punching
Flexibility in Paper Handling and Finishing Options
With a maximum output capacity of 4,250 sheets,
handy Finishers provide three stapling positions—
front corner, rear corner, and two-point side—for
up to 100 sheets per set. Two-to-four-hole
punching is available as an option.
Stapling and Punching
• Paper Sizes: The MX-7500N/6500N supports an extensive range of standard paper sizes from A5 to
SRA3/A3W (5 1/2" × 8 1/2" to 13" × 19"), along with custom paper sizes up to 330 × 488 mm (13" ×
19.2"). Thanks to its printable area of 319 × 480 mm, this MFP enables full-bleed printing of an A3
image with crop marks or two A4 images with crop marks.
• Paper Weights: The MX-7500N/6500N handles paper as thin as 55 g/m2and as thick as 300 g/m2.
Duplexing is possible for paper ranging from 60 g/m2to 300 g/m2.
• Paper Types: In addition to plain paper, the MX-7500N/6500N accommodates a number of other
paper types—including coated, textured, or embossed paper—as well as envelopes. This gives
users the flexibility to fulfil diverse printing needs.
The MX-7500N/6500N’s edge-to-edge printing feature ensures
printing to the top and bottom edges of the page, so that only the
void areas of the lead and trail edges need to be trimmed for a
full-bleed effect. This feature allows production of full-bleed A4-size
booklets up to 80 pages in length. Using this function with the Saddle
Stitch Finisher and Trimming Module enables users to automatically
create high-quality, professional-looking booklets in-line, helping to
reduce both outsourcing costs and production times.
Full-Bleed Booklet Making
For truly professional results, the Inserter can add pre-printed covers
and insert paper up to 220 g/m2to documents before final finishing.
Two input trays, each with a capacity of 200 sheets, make it possible to
feed in two different types of paper.
Insertion
The MX-LT10 Long Paper Feeding Tray accommodates extra-long
paper up to 1,200 mm—expanding the range of print products to
include panoramic pictures, large display-window ads, banner
signs, and more.
* Contact a Sharp customer representative for details on using this function.
Long-Paper (Banner) Printing*
The MX-FD10 Folding Unit automates various types of folding,
such as z-folding and c-folding, for efficient production of
direct mail, brochures, and more.
A Variety of Folds
*1: For A3- and A4R-size paper
*2: For A4R-size paper
*3: For A4R-size paper (also for SRA3 and A3 paper with MX-FN22 option)
Saddle stitching
Professional-Quality In-Line Finishing Options
The MX-FN22 Saddle Stitch Finisher
staples and folds sets of documents
up to 20 sheets in length.
The MX-TM10 Trimming
Module trims the lead and
trail edges of a saddle-
stitched document to give it
a beautifully consistent finish.
Trimming
Max. 1,200 mm long
Max.
305 mm
wide

Sensor
(Conceptual image)
Toner cartridge
Discharged
Toner (magenta)
(Conceptual image)
Carrier
Sheet separation
Assist air
Suction
(Conceptual image)
Pressure
Convex curl Concave curl
Pressure
Yellow
Green
Blue
Red
Magenta
Cyan
b*
a*
0

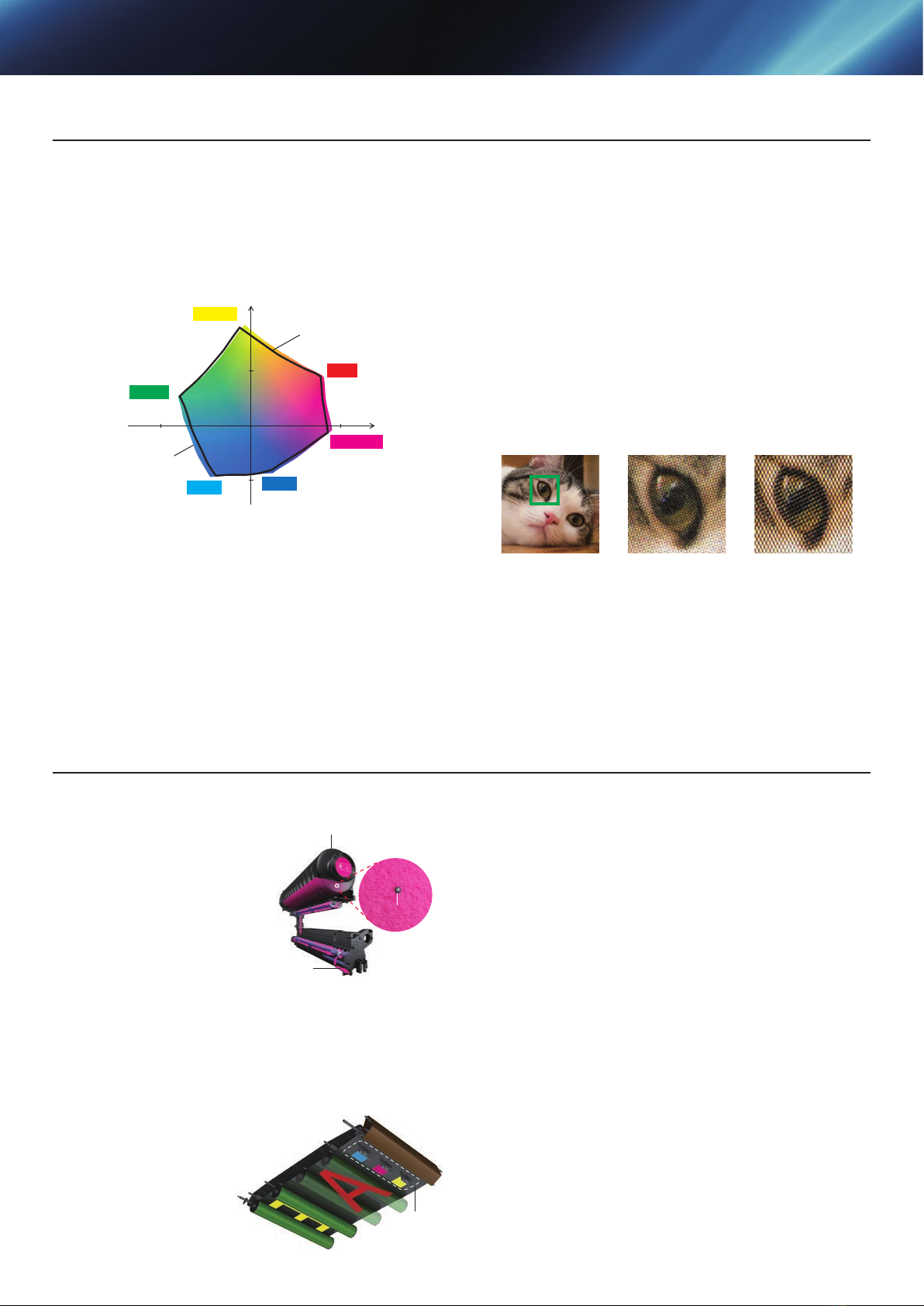

Colour Gamut Chart
a*: Colour channel from Green to Magenta
b*: Colour channel from Blue to Yellow
Typical offset prints
MX-7500N/6500N
Paper delivery direction
A4 paper
Rear edge detection
(finely arrayed contact
image sensors)
Leading edge
detection sensor
Adjusted position
of printed image
Dot screen (high) Line screenImage
6
5
Reliability Builders
Superb, Stable Image Quality
A precision-engineered Multi-Feed Detection System employs ultrasonic
technology and separation rollers for double-fed paper to detect and
prevent misfeeds from the paper feed section for maximum uptime.
Multi-Feed Detection System
The MX-7500N/6500N was developed to provide high image quality
approaching that of commercial offset printers. With Sharp having
reinforced all elements related to image processing—including the toner
and colour profiles—the MX-7500N/6500N boasts a colour gamut that is
almost identical to that of offset printers.
Wide Colour Gamut
Third-generation Mycrostoner-HG3 (High Grade) expands the colour
reproducibility range for a more natural rendering of clear blue skies,
emerald green oceans, and other colour images. And the smaller particle
size of the toner and the carrier allows for reduced graininess and clear
reproduction of fine lines, fine text, and halftone colours.
Mycrostoner-HG3
The MX-7500N/6500N employs 8-bit image processing to deliver
razor-sharp 1,200 x 1,200 dpi printing—without sacrificing output
speed. Digital smoothing technology enhances the print and copy
resolution to the equivalent of 9,600 x 600 dpi for smooth reproduction
of fine lines. Fine-grained photographs, detailed illustrations and graphs,
and small text come out crisp and clear.
High-Resolution Output
In addition to conventional line screening, the MX-7500N/6500N
employs the dot screening technique—typically found on offset
printers—for colour and greyscale printing. Thanks to dot screening, the
MX-7500N/6500N can emulate the high-quality printing of commercial
offset printers, even when performing on-demand printing.
Dot Screening Technique
To meet the demands for high image quality, accurate colour
registration, and stable output, the MX-7500N/6500N employs functions
that automatically make the right adjustments at the right time without
sacrificing print speed. These functions enable the MFP to deliver highly
precise printing and stable colour quality, so that a consistently high level
of print quality and productivity is maintained over the long run, from
first page to last.
• When printing large numbers of multi-page documents, the
MX-7500N/6500N automatically adjusts the print position so that each
of the CMYK colours is printed at the correct registration.
• The MX-7500N/6500N’s registration sensors precisely detect the
position of registration patches printed on the transfer belt. These
measurements are then used to make minute adjustments—when
necessary—of the print position for each CMYK colour.
• The temperature inside the machine is measured by sensors in key
areas of the MFP, such as the LSU (laser scanning unit) and
paper-transfer section. The MFP uses this information to make
automatic adjustments before print quality can be affected by
temperature changes.
• For even greater precision, a sensor detects any skewing of the laser
beam that goes from the LSU to the photosensitive drum, so that the
MFP can make automatic adjustments to eliminate such skewing.
Precise Colour Registration
The MX-7500N/6500N supports genuine Adobe PostScript 3 for better
graphics handling. Complex colour graphics can be printed out in a short
time with minimal error, and multiple colour spaces such as RGB, CMYK,
and Lab can be used.
Adobe®PostScript®3™
Based on feedback from two paper-position sensors located in the paper
path, the MX-7500N/6500N employs an image shift function to
automatically adjust the position of printed images with respect to the
edges of a page. This precise front-to-back registration ensures exact
correspondence of the printed material, so that consistently high levels
of quality can be achieved when producing leaflets, brochures, and other
documents—including those with two-sided double-page spreads or
those that are to be saddle stitched and trimmed. Users can also
manually adjust vertical/horizontal ratio* and position settings to achieve
even more precise front-to-back registration.
* Available only for Sharp printer driver.
Front-to-Back Registration
For reliable output of two-sided copies and prints, the MX-7500N/6500N
provides built-in curl correction to uncurl paper just after transfer. And
for added stability, the optional Curl Correction Unit uses top and
bottom rollers to apply pressure to convex and concave curls, preventing
paper from warping before it goes to the finisher.
Curl Correction
In order to achieve consistent image
quality from first page to last, Sharp
developed the Developer Refresh
System. In this system, toner and
carrier are delivered to the developing
unit at the same time. By discharging
old developer little by little and
continuously replacing it with new
developer, this system prevents
developer deterioration, ensuring
stable print quality over the long term.
Developer Refresh System
A highly rigid support frame isolates
and protects critical machine
components in the MX-7500N/6500N,
ensuring increased durability and
reliability. The unit can withstand heavy
use in locations where rapid,
high-volume output is demanded.
Highly Rigid Main Frame
The Triple Air-Feed System on the optional 5,000-sheet MX-LC13 Large
Capacity Trays reliably separates and feeds in paper to facilitate jam-free
operation and minimise downtime. Capable of supporting a wide range of
paper types, this system employs air-feed technology and three precisely
directed air flows for maximum reliability and proper paper handling.
Triple Air-Feed System
Particularly convenient during toner cartridge replacement, an unlikely
paper jam, and other operations, full front access to all key machine
components ensures easy maintenance—and maximum uptime.
Full Front Access
To maintain a consistently high image quality during large-volume print
jobs, the MX-7500N/6500N employs an enhanced periodic colour
calibration system. Image density sensors monitor
image consistency to minimise colour variance
between pages. As an added advantage,
the MFP makes the necessary colour
adjustments without stopping
the print job, ensuring
time-efficient printing.
Auto Process Control
Breathtaking Image Quality
Advanced Technologies to Maintain High Image Quality
The MX-7500N/6500N has a machine adjustment menu to enable MFP
administrators (i.e., trained print room managers) to access and
configure machine set-up for a total of 50 items in three areas: image
quality, image position/ratio/
area, and peripherals. As there
is no need to call for outside
service staff when making MFP
adjustments, machine
downtime is reduced and
productivity boosted.
Administrator Machine Adjustments

Sensor
(Conceptual image)
Toner cartridge
Discharged
Toner (magenta)
(Conceptual image)
Carrier
Sheet separation
Assist air
Suction
(Conceptual image)
Pressure
Convex curl Concave curl
Pressure
Yellow
Green
Blue
Red
Magenta
Cyan
b*
a*
0
Colour Gamut Chart
a*: Colour channel from Green to Magenta
b*: Colour channel from Blue to Yellow
Typical offset prints
MX-7500N/6500N
Paper delivery direction
A4 paper
Rear edge detection
(finely arrayed contact
image sensors)
Leading edge
detection sensor
Adjusted position
of printed image
Dot screen (high) Line screenImage
6
5
Reliability Builders
Superb, Stable Image Quality
A precision-engineered Multi-Feed Detection System employs ultrasonic
technology and separation rollers for double-fed paper to detect and
prevent misfeeds from the paper feed section for maximum uptime.
Multi-Feed Detection System
The MX-7500N/6500N was developed to provide high image quality
approaching that of commercial offset printers. With Sharp having
reinforced all elements related to image processing—including the toner
and colour profiles—the MX-7500N/6500N boasts a colour gamut that is
almost identical to that of offset printers.
Wide Colour Gamut
Third-generation Mycrostoner-HG3 (High Grade) expands the colour
reproducibility range for a more natural rendering of clear blue skies,
emerald green oceans, and other colour images. And the smaller particle
size of the toner and the carrier allows for reduced graininess and clear
reproduction of fine lines, fine text, and halftone colours.
Mycrostoner-HG3
The MX-7500N/6500N employs 8-bit image processing to deliver
razor-sharp 1,200 x 1,200 dpi printing—without sacrificing output
speed. Digital smoothing technology enhances the print and copy
resolution to the equivalent of 9,600 x 600 dpi for smooth reproduction
of fine lines. Fine-grained photographs, detailed illustrations and graphs,
and small text come out crisp and clear.
High-Resolution Output
In addition to conventional line screening, the MX-7500N/6500N
employs the dot screening technique—typically found on offset
printers—for colour and greyscale printing. Thanks to dot screening, the
MX-7500N/6500N can emulate the high-quality printing of commercial
offset printers, even when performing on-demand printing.
Dot Screening Technique
To meet the demands for high image quality, accurate colour
registration, and stable output, the MX-7500N/6500N employs functions
that automatically make the right adjustments at the right time without
sacrificing print speed. These functions enable the MFP to deliver highly
precise printing and stable colour quality, so that a consistently high level
of print quality and productivity is maintained over the long run, from
first page to last.
• When printing large numbers of multi-page documents, the
MX-7500N/6500N automatically adjusts the print position so that each
of the CMYK colours is printed at the correct registration.
• The MX-7500N/6500N’s registration sensors precisely detect the
position of registration patches printed on the transfer belt. These
measurements are then used to make minute adjustments—when
necessary—of the print position for each CMYK colour.
• The temperature inside the machine is measured by sensors in key
areas of the MFP, such as the LSU (laser scanning unit) and
paper-transfer section. The MFP uses this information to make
automatic adjustments before print quality can be affected by
temperature changes.
• For even greater precision, a sensor detects any skewing of the laser
beam that goes from the LSU to the photosensitive drum, so that the
MFP can make automatic adjustments to eliminate such skewing.
Precise Colour Registration
The MX-7500N/6500N supports genuine Adobe PostScript 3 for better
graphics handling. Complex colour graphics can be printed out in a short
time with minimal error, and multiple colour spaces such as RGB, CMYK,
and Lab can be used.
Adobe®PostScript®3™
Based on feedback from two paper-position sensors located in the paper
path, the MX-7500N/6500N employs an image shift function to
automatically adjust the position of printed images with respect to the
edges of a page. This precise front-to-back registration ensures exact
correspondence of the printed material, so that consistently high levels
of quality can be achieved when producing leaflets, brochures, and other
documents—including those with two-sided double-page spreads or
those that are to be saddle stitched and trimmed. Users can also
manually adjust vertical/horizontal ratio* and position settings to achieve
even more precise front-to-back registration.
* Available only for Sharp printer driver.
Front-to-Back Registration
For reliable output of two-sided copies and prints, the MX-7500N/6500N
provides built-in curl correction to uncurl paper just after transfer. And
for added stability, the optional Curl Correction Unit uses top and
bottom rollers to apply pressure to convex and concave curls, preventing
paper from warping before it goes to the finisher.
Curl Correction
In order to achieve consistent image
quality from first page to last, Sharp
developed the Developer Refresh
System. In this system, toner and
carrier are delivered to the developing
unit at the same time. By discharging
old developer little by little and
continuously replacing it with new
developer, this system prevents
developer deterioration, ensuring
stable print quality over the long term.
Developer Refresh System
A highly rigid support frame isolates
and protects critical machine
components in the MX-7500N/6500N,
ensuring increased durability and
reliability. The unit can withstand heavy
use in locations where rapid,
high-volume output is demanded.
Highly Rigid Main Frame
The Triple Air-Feed System on the optional 5,000-sheet MX-LC13 Large
Capacity Trays reliably separates and feeds in paper to facilitate jam-free
operation and minimise downtime. Capable of supporting a wide range of
paper types, this system employs air-feed technology and three precisely
directed air flows for maximum reliability and proper paper handling.
Triple Air-Feed System
Particularly convenient during toner cartridge replacement, an unlikely
paper jam, and other operations, full front access to all key machine
components ensures easy maintenance—and maximum uptime.
Full Front Access
To maintain a consistently high image quality during large-volume print
jobs, the MX-7500N/6500N employs an enhanced periodic colour
calibration system. Image density sensors monitor
image consistency to minimise colour variance
between pages. As an added advantage,
the MFP makes the necessary colour
adjustments without stopping
the print job, ensuring
time-efficient printing.
Auto Process Control
Breathtaking Image Quality
Advanced Technologies to Maintain High Image Quality
The MX-7500N/6500N has a machine adjustment menu to enable MFP
administrators (i.e., trained print room managers) to access and
configure machine set-up for a total of 50 items in three areas: image
quality, image position/ratio/
area, and peripherals. As there
is no need to call for outside
service staff when making MFP
adjustments, machine
downtime is reduced and
productivity boosted.
Administrator Machine Adjustments

Edit mode (rotate)
Preview mode (1-page) Preview mode (3D)
Communication
beyond the firewall
Internet
Command WorkStation is fully integrated at the Sharp control panel
Drag & drop capabilities for fewer clicks
Customisable tool bar
Instant status of all Fiery servers
Job grouping for efficient job management
and visibility of job status
Instant information on engine,
consumables, and media
Instant information on job requirements
Integrated job preview
Integrated job search across all Fiery servers
Inline editing of number of copies,
job name, and workflow
The Job Center is the operator’s main interface for all job management and set-up controls for Fiery servers
An optional keyboard allows easy data and text entry, and
an optional touch pad (part of the MX-PX10 Fiery Interface
Kit) allows you to control an on-screen mouse
8
7
Fiery®Print Server for Outstanding Colour Output
Working with Applications
As an innovative development platform, Sharp OSA allows you to interact
with critical business and network applications—or access an external
accounting module—right from the touchscreen LCD control panel,
bringing a whole new realm of control and convenience. And since Sharp
OSA utilises industry-standard network protocols, the MX-7500N/6500N
can easily integrate with document management systems, software for
enterprise resource planning, workflow applications, and more. The latest
version of Sharp OSA can reach beyond the firewall, enabling extensive
system construction and services over the Internet. Other benefits of
bringing Sharp OSA on board include the reduction of costs associated
with system implementation and management and the ability to share
data across company branch offices or subsidiaries.
* Requires optional MX-AMX2 and/or MX-AMX3.
Sharp OSA* (External Applications)
MFP operation has never been so intuitive, so easy. The control panel on
the MX-7500N/6500N features a clear, wide WSVGA touchscreen LCD,
ensuring that simple hand gestures applied to the screen bring effortless
control of every document, function, and setting. With its user-friendly
operation and easy customisation, this high-resolution touchscreen
boosts productivity to the next level. For easy viewing, the control panel
can be tilted from front to back and from side to side, and the arm, to
which the control panel is attached, can be freely rotated from side to
side to the user’s desired angle.
15.4-Inch Colour Touchscreen LCD
The MX-7500N/6500N features a Job Management screen that allows
users to oversee their print jobs and have complete control of them.
From here, users can easily view the status of individual jobs, change the
order of jobs in the print queue, and quickly retrieve files from the MFP’s
hard disk. The Job Management screen also shows the scheduled start
time of jobs later in the print queue, so that users can know how long
the current job will take. This helps users prioritise their workload and
ensures maximum productivity.
Job Management
A full-size retractable QWERTY keyboard slides out from beneath the
control panel to make text input fast and easy: convenient for typing
things like e-mail addresses and messages, as well as passwords for user
authentication.
Retractable Keyboard (option)
The Advanced Preview function saves you time and effort by showing
scanned images on the LCD as thumbnail displays for easy confirmation
and editing. Page layout, stapling, and other aspects of document
finishing can be checked before documents are printed out. Pages can
be previewed in 3D, rotated, put in a different order, or deleted via
touch-and-drag editing on the LCD. You can even erase specific pages
and insert blank pages.
Advanced Preview
Device Management (Internal Applications)
MFP features and settings, including address book control and document
filing management, can be configured either through web-based device
management or from the MX-7500N/6500N’s control panel.
Simplified System Settings
Sharp Remote Device Manager* (SRDM) gives administrators centralised
control of their networked MFPs through a standard web browser,
making device cloning and other operations easier and more accessible.
* Contact a Sharp customer representative for details on using this function.
Network Utility Software
The Remote Operation function lets you display the MFP’s main control
panel on your PC screen, allowing you to operate every major function
directly from your desktop.* This function also enables the administrator
to remotely guide an MFP user through necessary procedures.
* Requires VNC application.
Remote Operation
Exceptional Ease of Use
• Easily manage jobs with Fiery®Command WorkStation®fully integrated at the MX-7500N/6500N’s touchscreen for unmatched control and ease of use.
• Deliver high-impact documents with vibrant colour fidelity that maintains consistent results page after page.
• Process large, complex jobs at speeds of 75/65 ppm that will exceed your expectations.
Paired with the MX-PE10, an industry-leading EFI Fiery external print server, the Sharp MX-7500N/6500N becomes a powerful integrated solution for
managing professional in-plant and busy on-demand printing environments. This winning combination offers the following benefits, to name just a few:
MX-7500N/6500N and Fiery®Print Server—A Winning Combination
The powerful architecture of the MX-PE10 Fiery Server shortens
turnaround times, while helping companies produce
professional-looking finished jobs that win them new business and get
their customers noticed.
Better Productivity with Higher Performance
In demanding environments, achieving accurate colour every time is
critical. The integrated Fiery colour management tools provide superior
colour control out of the box. Customers, who routinely use
transparencies and other effects such as drop shadows, can rest assured
that their designs will be printed correctly.
Outstanding Colour across Applications
The MX-PE10 Fiery Server offers a centralised solution that features
the award-winning Command WorkStation®with a de facto
industry-standard print job management user interface. Its interactive
WYSIWYG interface enables operators to monitor, control, and
troubleshoot production from multiple desktops or locally at the Fiery
Server directly from the MX-7500N/6500N’s touchscreen.
Centralised Control and Automated
Management
The MX-PE10 Fiery Server offers optional make-ready tools and
driver-based imposition with the optional saddle stitch finisher to
efficiently handle many production processes. The MX-PE10 Fiery Server
enables customers to produce short-run jobs profitably by
automating manual tasks, and increases workflow flexibility by
supporting industry-leading variable data printing (VDP) formats
including PPML and the new PDF/VT-1 and 2 formats.
Industry-Leading Production Print and
Variable Data Tools
The MX-PE10 Fiery Server uses the Adobe PDF Print Engine (APPE) v2.5
rendering technology to offer a native end-to-end PDF workflow. The
Fiery open platform also supports industry standards and seamlessly
integrates with existing MIS environments, third-party vendors, and
other EFI MIS solutions.
Integration with Third Party and Other
EFI Solutions

Edit mode (rotate)
Preview mode (1-page) Preview mode (3D)
Communication
beyond the firewall
Internet
Command WorkStation is fully integrated at the Sharp control panel
Drag & drop capabilities for fewer clicks
Customisable tool bar
Instant status of all Fiery servers
Job grouping for efficient job management
and visibility of job status
Instant information on engine,
consumables, and media
Instant information on job requirements
Integrated job preview
Integrated job search across all Fiery servers
Inline editing of number of copies,
job name, and workflow
The Job Center is the operator’s main interface for all job management and set-up controls for Fiery servers
An optional keyboard allows easy data and text entry, and
an optional touch pad (part of the MX-PX10 Fiery Interface
Kit) allows you to control an on-screen mouse
8
7
Fiery®Print Server for Outstanding Colour Output
Working with Applications
As an innovative development platform, Sharp OSA allows you to interact
with critical business and network applications—or access an external
accounting module—right from the touchscreen LCD control panel,
bringing a whole new realm of control and convenience. And since Sharp
OSA utilises industry-standard network protocols, the MX-7500N/6500N
can easily integrate with document management systems, software for
enterprise resource planning, workflow applications, and more. The latest
version of Sharp OSA can reach beyond the firewall, enabling extensive
system construction and services over the Internet. Other benefits of
bringing Sharp OSA on board include the reduction of costs associated
with system implementation and management and the ability to share
data across company branch offices or subsidiaries.
* Requires optional MX-AMX2 and/or MX-AMX3.
Sharp OSA* (External Applications)
MFP operation has never been so intuitive, so easy. The control panel on
the MX-7500N/6500N features a clear, wide WSVGA touchscreen LCD,
ensuring that simple hand gestures applied to the screen bring effortless
control of every document, function, and setting. With its user-friendly
operation and easy customisation, this high-resolution touchscreen
boosts productivity to the next level. For easy viewing, the control panel
can be tilted from front to back and from side to side, and the arm, to
which the control panel is attached, can be freely rotated from side to
side to the user’s desired angle.
15.4-Inch Colour Touchscreen LCD
The MX-7500N/6500N features a Job Management screen that allows
users to oversee their print jobs and have complete control of them.
From here, users can easily view the status of individual jobs, change the
order of jobs in the print queue, and quickly retrieve files from the MFP’s
hard disk. The Job Management screen also shows the scheduled start
time of jobs later in the print queue, so that users can know how long
the current job will take. This helps users prioritise their workload and
ensures maximum productivity.
Job Management
A full-size retractable QWERTY keyboard slides out from beneath the
control panel to make text input fast and easy: convenient for typing
things like e-mail addresses and messages, as well as passwords for user
authentication.
Retractable Keyboard (option)
The Advanced Preview function saves you time and effort by showing
scanned images on the LCD as thumbnail displays for easy confirmation
and editing. Page layout, stapling, and other aspects of document
finishing can be checked before documents are printed out. Pages can
be previewed in 3D, rotated, put in a different order, or deleted via
touch-and-drag editing on the LCD. You can even erase specific pages
and insert blank pages.
Advanced Preview
Device Management (Internal Applications)
MFP features and settings, including address book control and document
filing management, can be configured either through web-based device
management or from the MX-7500N/6500N’s control panel.
Simplified System Settings
Sharp Remote Device Manager* (SRDM) gives administrators centralised
control of their networked MFPs through a standard web browser,
making device cloning and other operations easier and more accessible.
* Contact a Sharp customer representative for details on using this function.
Network Utility Software
The Remote Operation function lets you display the MFP’s main control
panel on your PC screen, allowing you to operate every major function
directly from your desktop.* This function also enables the administrator
to remotely guide an MFP user through necessary procedures.
* Requires VNC application.
Remote Operation
Exceptional Ease of Use
• Easily manage jobs with Fiery®Command WorkStation®fully integrated at the MX-7500N/6500N’s touchscreen for unmatched control and ease of use.
• Deliver high-impact documents with vibrant colour fidelity that maintains consistent results page after page.
• Process large, complex jobs at speeds of 75/65 ppm that will exceed your expectations.
Paired with the MX-PE10, an industry-leading EFI Fiery external print server, the Sharp MX-7500N/6500N becomes a powerful integrated solution for
managing professional in-plant and busy on-demand printing environments. This winning combination offers the following benefits, to name just a few:
MX-7500N/6500N and Fiery®Print Server—A Winning Combination
The powerful architecture of the MX-PE10 Fiery Server shortens
turnaround times, while helping companies produce
professional-looking finished jobs that win them new business and get
their customers noticed.
Better Productivity with Higher Performance
In demanding environments, achieving accurate colour every time is
critical. The integrated Fiery colour management tools provide superior
colour control out of the box. Customers, who routinely use
transparencies and other effects such as drop shadows, can rest assured
that their designs will be printed correctly.
Outstanding Colour across Applications
The MX-PE10 Fiery Server offers a centralised solution that features
the award-winning Command WorkStation®with a de facto
industry-standard print job management user interface. Its interactive
WYSIWYG interface enables operators to monitor, control, and
troubleshoot production from multiple desktops or locally at the Fiery
Server directly from the MX-7500N/6500N’s touchscreen.
Centralised Control and Automated
Management
The MX-PE10 Fiery Server offers optional make-ready tools and
driver-based imposition with the optional saddle stitch finisher to
efficiently handle many production processes. The MX-PE10 Fiery Server
enables customers to produce short-run jobs profitably by
automating manual tasks, and increases workflow flexibility by
supporting industry-leading variable data printing (VDP) formats
including PPML and the new PDF/VT-1 and 2 formats.
Industry-Leading Production Print and
Variable Data Tools
The MX-PE10 Fiery Server uses the Adobe PDF Print Engine (APPE) v2.5
rendering technology to offer a native end-to-end PDF workflow. The
Fiery open platform also supports industry standards and seamlessly
integrates with existing MIS environments, third-party vendors, and
other EFI MIS solutions.
Integration with Third Party and Other
EFI Solutions

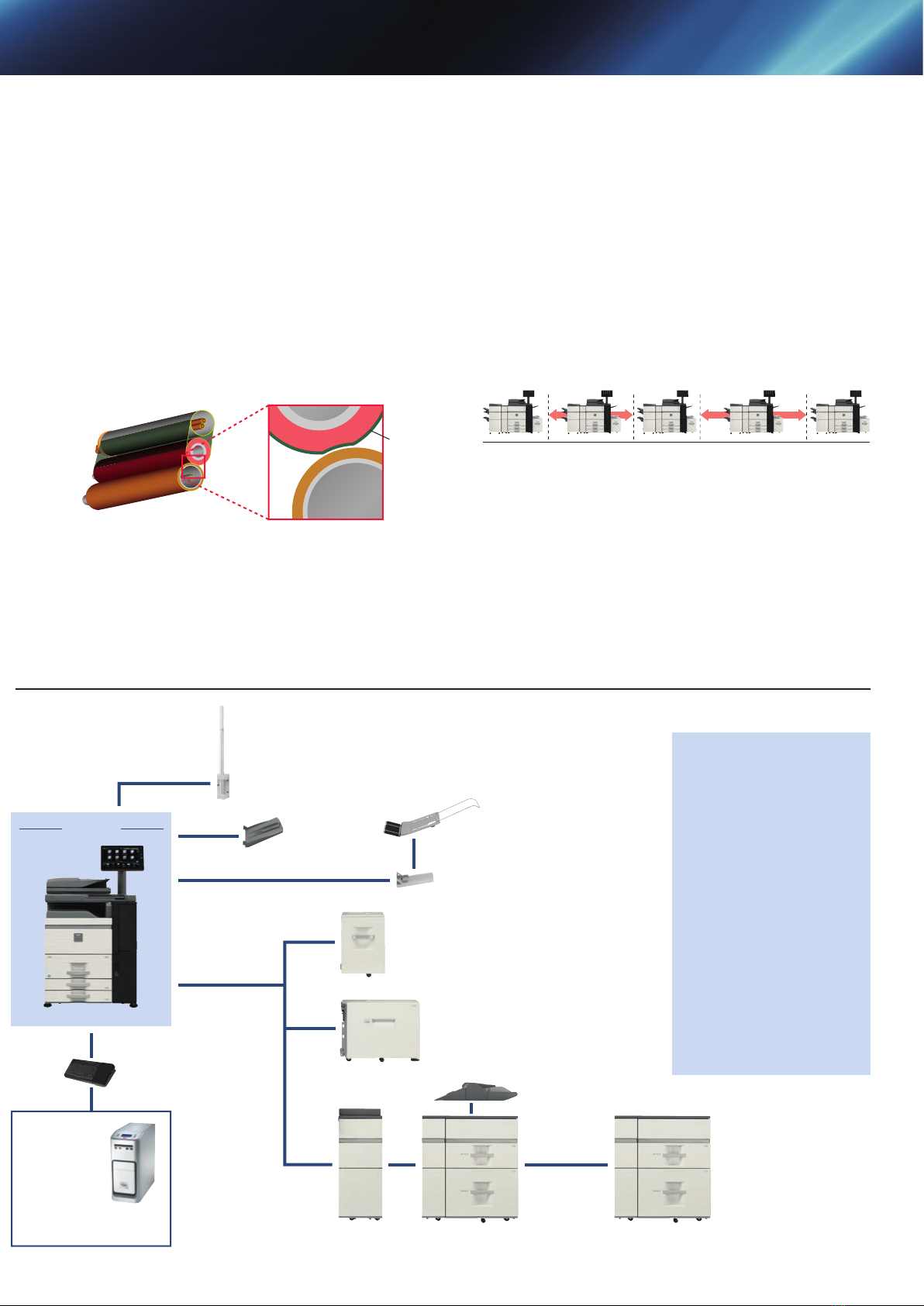

Prevention of
Data Leaks
Data Security SystemAddress Filtering
Unknown IP or MAC
addresses will be
denied access.
NO!
OK Copy Data Print Data
Scan Data Fax Data
Data Encryption Data Erasure
Data generated for
each job is
automatically erased
once that job is
finished.
TOP SECRET
d0bN%
=5!”//?
hj5&4
mk9#¥
Start of day
9:00 12:00 13:00 17:00
Lunch break End of day
Power offOff OffPower on On
Sharp’s belt fusing system
Fusing roller
Fusing roller
Fusing belt
10
9
Eco-Friendly Advances
Multi-Layered Security
Digital copier/printers and MFPs retain large amounts of data generated
from copy/print/scan/fax jobs in internal storage. To safeguard
confidential data from unauthorised access, standard-equipped security
features on the MX-7500N/6500N automatically encrypt job data prior
to saving it to internal storage. Once a job is finished, that encrypted
data is erased via up to seven automatic overwrites. Protection of
administrator/file/ folder passwords brings further peace of mind.
Data Encryption and Overwriting
Based on usage patterns established over a four-week period, Enhanced
Auto Power Shut-Off mode automatically determines the optimal length
of time to let elapse before turning the power off. To accommodate
intensive use of the MFP on a specific day or time, users can manually set
the elapse time to suit their specific usage patterns.
Enhanced Auto Power Shut-Off Mode
The technologies described here dramatically reduce power consumption
and give the MX-7500N/6500N a smaller environmental footprint than
previous models. And because of its reduced power consumption, the
MX-7500N/6500N boasts lower TEC values* than the maximum
allowable values determined by ENERGY STAR®. A shorter warm-up time
brings additional convenience.
* Typical amount of energy consumed in a hypothetical week measured as
stipulated under the ENERGY STAR®programme.
Reduced Power Consumption
Sharp’s belt fusing system reduces energy consumption and as a result,
shortens the MX-7500N/6500N’s warm-up time to 90 seconds.
Belt Fusing System
Energy-efficient LED lamps employed in the scan unit (instead of
conventional xenon lamps) provide further energy savings.
LED Lamps
The Power ON/OFF Schedule function automatically turns the
MX-7500N/6500N on or off according to time schedules set by the
administrator.
Power ON/OFF Scheduling
Eco Scan function saves energy by turning off power to the fusing
system during jobs that don’t require any printing, such as Image
Sending and Document Filing.
Eco Scan
The MX-7500N/6500N prevents unauthorised use by requiring passwords
for machine access. This safeguarded solution can register up to 1,000
users in three access levels as Administrator, User, or Guest and can
designate to which function user authentication applies. And the
MX-7500N/6500N works with an external Active Directory server to
extend user authentication to multiple MFPs and a greater number of users.
User Authentication
With this function, a watermark, such as “Confidential” or “Not for
Copy,” can be embedded onto a document. If that document is copied,
the watermark will appear, alerting the user not to distribute it.
Hidden Pattern Copy/Print
This function prints the MFP user’s name, the date, the MFP’s serial
number, the job ID, and other specifics on printouts, making it possible
to track documents and prevent data theft.
Tracking Information Print
• Mirroring Kit (option) provides backup for the MFP’s hard disk
• Supports the IEEE 802.1X standard for port-based network access control
and the IEEE 2600 standard for hardcopy device and system security
• IP/MAC address filtering restricts unauthorised access
• SSL and IPsec enable data encryption for secure network
communications
• Retained data can be initialised when it’s time to replace the MFP
• Encrypted PDF secures a document by scanning it into a password-
protected PDF for transmission over the network in encrypted format
Other Key Features
Document Control prevents unauthorised copying, scanning, faxing, and
filing of confidential documents by embedding copy prevention data onto
a document. When that data is detected, any unauthorised attempts to
copy will be cancelled or will result in only blank-page output.
Note: Requires optional Data Security Kit. May not work for certain types of
documents or paper.
Document Control Function (option)
Note: Contact a Sharp customer representative for details on activating
these security functions.
System Configuration
MX-FN21
100-Sheet Finisher
MX-FN22
100-Sheet
Saddle Stitch Finisher
MX-FD10
Folding Unit
MX-RB13
Relay Unit
MX-CF11
Inserter
MX-ST10*3
High Capacity Stacker
MX-RB15
Curl Correction Unit
MX-CA10
Paper Cart
MX-ST10*3
High Capacity Stacker
MX-CA10
Paper Cart
MX-RB12
Paper Pass Unit
MX-TU14*1
Exit Tray Cabinet
MX-KB16
Keyboard
MX-PX10
Interface Kit
MX-PE10
Fiery Server
MX-SL10 N
Status Indicator
MX-LC13
Large Capacity Trays
MX-MF11
Multi-Bypass Tray
MX-LC13
Large Capacity Trays
MX-RB17
Connection
Module
MX-LC12
Large Capacity
Tray (A4)
MX-LCX3 N
Large Capacity
Tray (A3)
MX-RB14
Paper Pass Unit
MX-LT10*2
Long Paper Feeding Tray
MX-TR14*2
Exit Tray Unit
MX-MF10*1*2
Multi-Bypass Tray
BASE UNIT
MX-PN13A/B/C/D
Punch Module (for MX-FN21/22)
MX-TM10
Trimming Module (for MX-FN22)
MX-PUX1
XPS Expansion Kit
MX-PF10
Barcode Font Kit
MX-AM10
Web Browsing Expansion Kit
AR-SU1
Stamp Unit
MX-AMX1
Application Integration Module
MX-AMX2
Application Communication Module
MX-AMX3
External Account Module
MX-EB11
Enhanced Compression Kit
MX-EB15
Mirroring Kit
MX-FR43U
Data Security Kit
*1: Required for minimum configuration.
*2: Cannot be used with MX-RB14, MX-LC13, or MX-MF11.
*3: Up to two Stackers can be connected for use together. MX-ST10 comes standard with one MX-CA10.
+

Prevention of
Data Leaks
Data Security SystemAddress Filtering
Unknown IP or MAC
addresses will be
denied access.
NO!
OK Copy Data Print Data
Scan Data Fax Data
Data Encryption Data Erasure
Data generated for
each job is
automatically erased
once that job is
finished.
TOP SECRET
d0bN%
=5!”//?
hj5&4
mk9#¥
Start of day
9:00 12:00 13:00 17:00
Lunch break End of day
Power offOff OffPower on On
Sharp’s belt fusing system
Fusing roller
Fusing roller
Fusing belt
10
9
Eco-Friendly Advances
Multi-Layered Security
Digital copier/printers and MFPs retain large amounts of data generated
from copy/print/scan/fax jobs in internal storage. To safeguard
confidential data from unauthorised access, standard-equipped security
features on the MX-7500N/6500N automatically encrypt job data prior
to saving it to internal storage. Once a job is finished, that encrypted
data is erased via up to seven automatic overwrites. Protection of
administrator/file/ folder passwords brings further peace of mind.
Data Encryption and Overwriting
Based on usage patterns established over a four-week period, Enhanced
Auto Power Shut-Off mode automatically determines the optimal length
of time to let elapse before turning the power off. To accommodate
intensive use of the MFP on a specific day or time, users can manually set
the elapse time to suit their specific usage patterns.
Enhanced Auto Power Shut-Off Mode
The technologies described here dramatically reduce power consumption
and give the MX-7500N/6500N a smaller environmental footprint than
previous models. And because of its reduced power consumption, the
MX-7500N/6500N boasts lower TEC values* than the maximum
allowable values determined by ENERGY STAR®. A shorter warm-up time
brings additional convenience.
* Typical amount of energy consumed in a hypothetical week measured as
stipulated under the ENERGY STAR®programme.
Reduced Power Consumption
Sharp’s belt fusing system reduces energy consumption and as a result,
shortens the MX-7500N/6500N’s warm-up time to 90 seconds.
Belt Fusing System
Energy-efficient LED lamps employed in the scan unit (instead of
conventional xenon lamps) provide further energy savings.
LED Lamps
The Power ON/OFF Schedule function automatically turns the
MX-7500N/6500N on or off according to time schedules set by the
administrator.
Power ON/OFF Scheduling
Eco Scan function saves energy by turning off power to the fusing
system during jobs that don’t require any printing, such as Image
Sending and Document Filing.
Eco Scan
The MX-7500N/6500N prevents unauthorised use by requiring passwords
for machine access. This safeguarded solution can register up to 1,000
users in three access levels as Administrator, User, or Guest and can
designate to which function user authentication applies. And the
MX-7500N/6500N works with an external Active Directory server to
extend user authentication to multiple MFPs and a greater number of users.
User Authentication
With this function, a watermark, such as “Confidential” or “Not for
Copy,” can be embedded onto a document. If that document is copied,
the watermark will appear, alerting the user not to distribute it.
Hidden Pattern Copy/Print
This function prints the MFP user’s name, the date, the MFP’s serial
number, the job ID, and other specifics on printouts, making it possible
to track documents and prevent data theft.
Tracking Information Print
• Mirroring Kit (option) provides backup for the MFP’s hard disk
• Supports the IEEE 802.1X standard for port-based network access control
and the IEEE 2600 standard for hardcopy device and system security
• IP/MAC address filtering restricts unauthorised access
• SSL and IPsec enable data encryption for secure network
communications
• Retained data can be initialised when it’s time to replace the MFP
• Encrypted PDF secures a document by scanning it into a password-
protected PDF for transmission over the network in encrypted format
Other Key Features
Document Control prevents unauthorised copying, scanning, faxing, and
filing of confidential documents by embedding copy prevention data onto
a document. When that data is detected, any unauthorised attempts to
copy will be cancelled or will result in only blank-page output.
Note: Requires optional Data Security Kit. May not work for certain types of
documents or paper.
Document Control Function (option)
Note: Contact a Sharp customer representative for details on activating
these security functions.
System Configuration
MX-FN21
100-Sheet Finisher
MX-FN22
100-Sheet
Saddle Stitch Finisher
MX-FD10
Folding Unit
MX-RB13
Relay Unit
MX-CF11
Inserter
MX-ST10*3
High Capacity Stacker
MX-RB15
Curl Correction Unit
MX-CA10
Paper Cart
MX-ST10*3
High Capacity Stacker
MX-CA10
Paper Cart
MX-RB12
Paper Pass Unit
MX-TU14*1
Exit Tray Cabinet
MX-KB16
Keyboard
MX-PX10
Interface Kit
MX-PE10
Fiery Server
MX-SL10 N
Status Indicator
MX-LC13
Large Capacity Trays
MX-MF11
Multi-Bypass Tray
MX-LC13
Large Capacity Trays
MX-RB17
Connection
Module
MX-LC12
Large Capacity
Tray (A4)
MX-LCX3 N
Large Capacity
Tray (A3)
MX-RB14
Paper Pass Unit
MX-LT10*2
Long Paper Feeding Tray
MX-TR14*2
Exit Tray Unit
MX-MF10*1*2
Multi-Bypass Tray
BASE UNIT
MX-PN13A/B/C/D
Punch Module (for MX-FN21/22)
MX-TM10
Trimming Module (for MX-FN22)
MX-PUX1
XPS Expansion Kit
MX-PF10
Barcode Font Kit
MX-AM10
Web Browsing Expansion Kit
AR-SU1
Stamp Unit
MX-AMX1
Application Integration Module
MX-AMX2
Application Communication Module
MX-AMX3
External Account Module
MX-EB11
Enhanced Compression Kit
MX-EB15
Mirroring Kit
MX-FR43U
Data Security Kit
*1: Required for minimum configuration.
*2: Cannot be used with MX-RB14, MX-LC13, or MX-MF11.
*3: Up to two Stackers can be connected for use together. MX-ST10 comes standard with one MX-CA10.
+

Distributed by:
*1: 6,491 mm when finisher tray is extended
*2: 812 mm when keyboard is pulled out
*3: Base unit
*4: Including status indicator
768 mm*
2
6,364 mm*1
Shown with options.
1,642 mm*4
1,530 mm*3
Digital Full Colour Multifunctional System
Console
Max. 75/65 cpm/ppm (A4, 8
1
/
2
" x 11", long-edge feeding)
Max. 42/38 cpm/ppm (A3, 11" x 17")
Max. 40/36 cpm/ppm (SRA3)
Max. SRA3/A3 wide (13" x 19"), min. A5 (5
1
/
2
" x 8
1
/
2
")*
1
Standard: 3,100 sheets (1,200-, 800-, 2 x 500-sheet trays
and 100-sheet multi-bypass tray)
Maximum: 13,500 sheets
Trays 1&2: 60 g/m
2
to 105 g/m
2
(16 lbs bond to 28 lbs bond)
Trays 3&4: 60 g/m
2
to 220 g/m
2
(16 lbs bond to 80 lbs cover)
Multi-bypass tray (MX-MF10):
55 g/m
2
to 300 g/m
2
(16 lbs bond to 170 lbs index)
Multi-bypass tray (MX-MF11):
55 g/m
2
to 220 g/m
2
(16 lbs bond to 80 lbs cover)
Large capacity tray (MX-LC12, MX-LCX3 N):
60 g/m
2
to 220 g/m
2
(16 lbs bond to 80 lbs cover)
Large capacity trays (MX-LC13):
55 g/m
2
to 300 g/m
2
(13 lbs bond to 110 lbs cover)
90 sec.
Copy/print (shared): 5GB 1TB HDD*
3
220V to 240V, 8A, 50/60 Hz (10A plug x 2)
3.84 kW (220 to 240V)
982 x 768 x 1,530 mm (38
21
/ 32 " x 30
15
/ 64 " x 60
15
/ 64 ")
228.1 kg (502.9 lbs)
Type
Engine speed
(colour & B/W)
Paper size
Paper capacity
(80 g/m
2
)
Paper weight
Warm-up time*
2
Memory
Power requirements
Power consumption (max.)
Dimensions (W x D x H)
Weight (approx.)
Resolution
Interface
Supported OS
Network protocols
Printing protocols
PDL
Available fonts
1,200 x 1,200 dpi; 600 x 600 dpi; 9,600 (equivalent) x 600 dpi
USB 2.0, 10Base-T/100Base-TX/1000Base-T
Windows Server
®
2003, Windows Server
®
2008, Windows Server
®
2012, Windows
®
XP, Windows Vista
®
, Windows
®
7, Windows
®
8,
Mac OS X10.4, X10.5, X10.6, X10.7, X10.8
TCP/IP (IPv4, IPv6), IPX/SPX (NetWare), EtherTalk (AppleTalk)
LPR, Raw TCP (Port 9100), POP3 (e-mail printing), HTTP,
FTP for downloading print files, EtherTalk printing, IPP
Standard: PCL 6 emulation, Adobe
®
PostScript
®
3
™
Option*
8
: XPS
80 fonts for PCL, 139 fonts for Adobe
PostScript 3
Document filing capacity*
7
Stored jobs
Storage folders
Confidential storage
Main and custom folders: 35,000 pages or 5,000 files
Quick file folder: 10,000 pages or 1,000 files
Copy, print, scan
Quick file folder, main folder, custom folder (max. 1,000 folders)
Password protection (for main and custom folders)
(tentative)
SPECIFICATIONS
General
Original paper size
First copy time*
4
Continuous copy
Resolution
Gradation
Zoom range
Preset copy ratios
Max. A3 (11" x 17")
[MX-7500N] Full colour: 5.1 sec. B/W: 3.7 sec.
[MX-6500N] Full colour: 5.6 sec. B/W: 4.0 sec.
Max. 9,999 copies
Scan (colour): 600 x 600 dpi
Scan (B/W): 600 x 600 dpi, 600 x 400 dpi
Print (colour): 600 x 600 dpi; 9,600 (equivalent) x 600 dpi
(depending on print mode)
Print (B/W): 1,200 x 1,200 dpi; 600 x 600 dpi;
9,600 (equivalent) x 600 dpi (depending on print mode)
Equivalent to 256 levels
25 to 400% (25 to 200% using DSPF) in 1% increments
Metric: 10 ratios (5R/5E), inch: 8 ratios (4R/4E)
Scan method
Resolution
File formats
Scan destinations
Push scan (via control panel)
Pull scan (TWAIN-compliant application)
Push scan: 100, 150, 200, 300, 400, 600 dpi
Pull scan: 75, 100, 150, 200, 300, 400, 600 dpi
50 to 9,600 dpi via user setting
TIFF, PDF, PDF/A, encrypted PDF, compact PDF*
5
, JPEG*
6
, XPS
Scan to e-mail/FTP server/network folder (SMB)/USB memory
Copier
Network Scanner
Network Printer
Document Filing
Type
System software
Operating system
CPU
Memory
Resolution
Supported OS
Network protocols
Interface
Printing protocols
PDL
Available fonts
Power requirements
Power consumption (max.)
Dimensions (W x D x H)
Weight (approx.)
External server
Fiery FS100 Pro
Windows
®
7 Professional for Embedded Systems x32/x64,
Intel
®
Core
®
i5-2400, 3.1 GHz
4GB RAM 1TB HDD
1,200 x 1,200 dpi; 600 x 600 dpi (PS, PCL)
Windows Server
®
2003, Windows Server
®
2008, Windows
®
XP,
Windows Vista
®
, Windows
®
7, Mac OS X10.5, X10.6, X10.7
TCP/IP IPX iPrint, LDAP
Gigabit Ethernet
LPD, PServer, RPRINT, PAP, SMB, Port 9100, IPP 1.1,
e-mail print (PS, PDF), Mac Bonjour, AppleTalk
Adobe
®
PostScript
®
3
™
138 fonts for Adobe PostScript 3
100V to 240V, 50/60 Hz
0.35 kW
212.3 x 482.6 x 488.4 mm (8
23
/ 64 " x 19" x 19
7
/ 32 ")
19.6 kg (43.2 lbs)
Fiery®Print Server (optional MX-PE10, MX-KB16, and MX-PX10 required)
*1: Only short-edge feeding can be used with A5 (5 1/2" x 8 1/2") paper. *2: At rated voltage, 23°C (73.4°F).
May vary depending on operating conditions and environment. *3: HDD capacity depends on procurement and
sourcing status. *4: Long-edge feeding of A4 (8 1/2" x 11") sheets from 2nd paper tray, using document glass,
without Auto Colour Selection and Auto Colour mode, MFP in fully ready condition. May vary depending on
operating conditions and environment. *5: Optional MX-EB11 required. *6: Colour only. *7: Storage capacity
will vary depending on the type of document and the scan settings. *8: Optional MX-PUX1 required.
• Design and specifications are subject to change without prior notice. • Windows, Windows Server, Windows Vista, and
Excel are registered trademarks of Microsoft Corporation in the United States and/or other countries. Adobe and
PostScript 3 are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or
other countries. All other brand names and product names may be trademarks or registered trademarks of their
respective owners. • The ENERGY STAR logo is a certification mark and may only be used to certify products that have
been determined to meet the ENERGY STAR programme requirements. ENERGY STAR is a US registered mark. The
ENERGY STAR guidelines apply to products only in the US, the EU, Japan, Canada, Australia, New Zealand, and Taiwan.
Digital Full Colour Multifunctional System
Precise. Productive. Professional.
A True Colour-on-Demand Powerhouse
© SHARP CORPORATION (NOV. 2013)
