Sharp MX-3070N User manual

1/12/2015
MX-3070N
MX-3570N
MX-4070N
Technical Handy Guide
DECEMBER 2015
CONTENT
Product Specification
2
Updated
OCR Dictionary Update
44
NEW
Peripheral Specification
5
Updated
EEPROM Handling Procedure
46
Product Options
7
Updated
HDD Replacement Procedure
47
Consumables
9
Firmware & Print Driver Revision
49
Updated
Initial Setup
11
Updated
Test Simulation
50
Updated
Colour Calibration
14
Updated
Trouble Codes
59
Updated
Maintenance
16
Updated
Image Send Comm. Error Codes
63
Updated
Operating System Support
21
Updated
SCN-MFP PWB Troubleshooting
66
NEW
IC Card Reader Installation
22
NEW
PCU PWB Replacement Procedure
67
NEW
Wireless LAN Setup
25
Sensor Location
68
Sharp Print Release
31
NEW
Jam Cause Codes
70
Updated
Firmware Upgrade
34
Repair Hints
74
Updated
Firmware Recovery
38
Document Reference
75
E-Manual Update
40
Notes
76
Watermark Update
42

PRODUCT SPECIFICATION
SHARP
2
MX-3070N
MX-3570N
MX-4070N
GENERAL SPECIFICATION:
Type:
Desktop
Original paper size:
Max. A3
Printed Paper Size:
Tray : SRA3-A5R, Bypass : SRA3-A5R, Long Paper (Max. 1200mm x 320mm)
Standard Paper Capacity:
650 (550-sheet x 1 + 100-sheet Multi bypass)
Maximum Paper Capacity:
6,300 (100-sheet Multi bypass + 550-sheet x 1)
+ Tandem Desk (550-sheet x 1, 1200 + 900 tandem) + LCC (3000 sheet)
Paper Weight:
Tray : 60g/m2-300g/m2 Bypass : 55g/m2-300g/m2
Output Capacity:
Opt: MXTU16 350-sheet centre tray, Opt: MXTR19 100-sheet right tray
Warm-up Time:
10sec or less
Operation Panel:
10.1” Colour WVGA
Resolution:
9,600 (equivalent) x 600 dpi (Colour Copy), 1200x1200dpi (B/W Copy)
1200x1200dpi (Printer)
Memory:
5 GB (STD & Max)
HDD Capacity:
500GB
Duplex:
STD (60g/m2-256g/m2)
Dimensions (WDH):
616 x 660 x 838 mm
Weight:
Approx. 87 kg
Machine Life:
1,200K
Max. Monthly Volume:
Colour 60k, B/W 140k
Colour 60k, B/W 140k
Colour 75k, B/W 175k
ENVIRONMENTAL:
Power Consumption:
Max. 1.84kW
TEC Value (Measured):
1.8kWh
2.0kWh
2.2kWh
Sound Power Level (Noise):
Standby 35dB
Operating 70dB
(measurement with MX-FN28/RB25/DE27)
Standby 36dB
Operating 70dB
(measurement with MX-FN28/RB25/DE27)
Standby 33dB
Operating 71dB
(measurement with MX-FN28/RB25/DE27)
COPIER SPECIFICATION:
Copy Speed (Max.):
30 ppm (A4),
16 ppm (A3)
35 ppm (A4),
18 ppm (A3)
40 ppm (A4),
20 ppm (A3)
E-Sort / SOPM:
Yes / Yes (Colour and B/W)
First Copy Time (OC):
B/W: 4.7sec, Col 6.7sec,
First Copy Time (DSPF):
B/W: 7.3sec, Col 10sec,
Continuous Copy:
Max 9,999
Scan Resolution:
Colour: 600 x 600 dpi, B/W: 600 x 300 dpi (DSPF only),
600 x 400 dpi / 600 x 600 dpi
Zoom Range:
25 - 400% (DSPF 25 - 200%)
Tandem Copy:
Supported (with MX-3070/3570/4070N series only).
DOCUMENT FEEDER:
Type:
STD: DSPF
Original capacity:
Max 150 sheets (80 g/m2)
Scan Speed (COPY):
(1 sided): 100 ipm (B/W), 53 ipm (Colour)
(2 sided): 200 ipm (B/W), 106 ipm (Colour)
Scan Speed (IMAGE SEND):
(1 sided): 100 ipm (B/W & Colour); (2 sided): 200 ipm (B/W & Colour)
Scan Speed (FAX):
(1 sided): 100 ipm, (2 sided): 200 ipm (B/W only)

SHARP
PRODUCT SPECIFICATION
3
MX-3070N
MX-3570N
MX-4070N
DOCUMENT FILING:
Capacity:
10GB (Quick Folder) + 100GB (Main/Custom Folder)
Quick/Main Folder:
Quick Folder: Max: 10,000 pages or 1000 files
Main/Custom: Max. 20,000 pages or 3,000 files
User Registrations:
1000
Preview Thumbnails:
Supported (includes Advanced Edit Mode)
PRINTER SPECIFICATION:
Print Speed (Max.):
30 ppm (A4),
16 ppm (A3)
35 ppm (A4),
18 ppm (A3)
40 ppm (A4),
20 ppm (A3)
PDL (Emulation):
STD: PCL6, Adobe® PostScript®3.
Interface:
USB2.0, 10Base-T / 100Base-TX / 1000BaseT
Protocol:
TCP/IP (IPv4, IPv6),
Supported OS:
Windows® Vista*, Windows® 7*, Windows® 8* / 8.1*, Windows® 10*.
Windows® Server 2008* / 2008R2 / 2012 / 2012R2 (*32/64bit).
Mac OSX 10.4.x, 10.5.x, 10.6.x, 10.7.x, 10.8.x, 10.9.x, 10.10.x,
Bundled Utility Software
Status Monitor
USB Direct Print (Pull):
STD: JPEG, TIFF, PRN, PCL, PDF, PDF/A, Encrypted PDF, PS,
DOCX, PPTX, XLSX & PNG.
Tandem Print:
Supported (with MX-3070/3570/4070N series only)
MOBILE DEVICE:
Airprint Support:
Q3/2016
Google Cloud Print:
Q1/2016
Mopria:
Q1/2016
Sharp Plug-in for Android:
Q1/2016
Sharpdesk Mobile:
Q1/2016
SCANNER [IMAGE SEND]:
Requirement:
STD
Resolution:
100, 150, 200, 300, 400, 600 dpi
Format:
Mono: TIFF, XPS, PDF, PDF/A-1a, PDF/A-1b, Encrypted PDF, Searchable PDF,
Office Format (docx, xlsx, pptx), TXT, RTF & UTF-8.
Colour: TIFF, XPS, JPEG, PDF, PDF/A-1a, PDF/A-1b, Encrypted PDF, Searchable
PDF, Compact PDF, Office Format (docx, xlsx, pptx), TXT, RTF & UTF-8.
Destination:
Desktop (Sharpdesk), FTP, E-Mail, SMB Folder, USB, HDD,
TWAIN / WIA compliant, I-Fax (SMTP)
User Registrations:
Max 500 (one touch), 500 (group)
Bundled Utility Software:
Network Scan Tool, Sharpdesk v3.5 (1 license)
CLOUD CONNECTORS (SCAN/PRINT):
Microsoft One Drive:
Supported
Microsoft Office 365:
Supported
SharePoint (Online):
Supported
Google Drive:
Supported

PRODUCT SPECIFICATION
SHARP
4
MX-3070N
MX-3570N
MX-4070N
FACSIMILE:
Requirement:
Opt : MX-FX15
Communication Formula:
Super G3
Transmission Speed:
2sec.range(Super G3/JBIG) 6sec.range(G3/ECM)
Communication Line:
PSTN
Dial Registration:
Max 2000
Document Size:
A3 - A5,
Compression:
MH, MR, MMR, JBIG
Inbound Routing:
Yes (PDF, Single TIFF, Multi TIFF, XPS)
to E-mail, FTP, SMB, Desktop, Fax & I-Fax.
PC Fax:
Yes (For Windows only)
WIRELESS LAN:
Requirement:
STD
Compliant Regulation:
IEEE802.11n/g/b
Transmission Method:
IEEE802.11n/g: OFDM; IEEE802.11b: DSSS
Access Mode:
Infrastructure mode, Software AP mode
Security:
WEP, WPA/WPA2-mixed PSK, WPA/WPA2-mixed EAP*,WPA2 PSA,WPA2 EAP*
* Not applicable to Software AP mode
Center Frequency/ Channel:
IEEE802.11 n/g/b: 2.4 GHz / 1-13ch
Transmission Rate:
IEEE802.11n max 150M bps
IEEE802.11g max. 54M bps
IEEE802.11b max 11 M bps
Max Number of
Connections:
Software AP mode: 5 concurrent connections.
Infrastructure Mode: As defined by the Access Point/Router

SHARP
PERIPHERAL SPECIFICATION
5
MXFN27 –INNER FINISHER
Paper size:-
Non offset
Staple
SRA3 to A5
A3 to B5
Output capacity (80 g/m2):
500 sheets or 30 bundles or 52mm or less (A4, 8.5x11).
250 sheets or 30 bundles or 26mm or less (A3, 11x17).
Stapling capacity (90 g/m2):
50 sheets (A4, 8.5x11), 30 sheets (A3, 11x17 & mixed).
Max: 300 g/m2(2 sheets) + 90 g/m2(48 sheets)
Staple position:
3 locations (Front slant, Rear slant & 2 staples).
Staple less staple:
Supported - Maximum 5 sheets (A3, A4, B4, B5):-
Recommended: Up to 5 sheets (64 g/m2), Up to 4 sheets
(64-81 g/m2), Up to 3 sheets (81 to 105 g/m2).
Manual staple:
Supported (Rear slant only).
Punch Unit:
Opt: MX-PN14B/C/D
Power requirements:
Supplied by main unit
MX-FN28 –1K FINISHER
Paper size:-
Non offset
Staple
SRA3 to A5R
A3W to B5R
Output capacity (80 g/m2):
Offset Tray
1,000 sheets or 100 bundles or 149mm or less (A4, 8.5x11).
500 sheets or 50 bundles or 74.5mm or less (A3W, A3, 11x17)
Stapling capacity (90 g/m2):
50 sheets (up to A4), 30 sheets (up to A3 & mixed).
Max: 300 g/m2(2 sheets) + 90 g/m2(48 sheets)
Staple position:
3 locations (Front flat, Rear flat & 2 staples).
Staple less staple:
Not supported
Manual staple:
Not supported
Punch Unit:
Opt: MX-PN15B/C/D
Power requirements:
From Main Engine
MX-FN29 –1K SADDLE FINISHER
Paper size:-
Non offset
Staple
Saddle
SRA3 to A5R
A3W to B5R
A3W, A3, A4R, B4, B5R
Output capacity (80 g/m2):
Offset Tray
Saddle Tray
1,000 sheets or 100 bundles or 149mm or less (A4, 8.5x11).
500 sheets or 50 bundles or 74.5mm or less (A3W, A3, 11x17)
1–5 sheets: 20 sets, 6–10 sheets: 10 sets,
11–15 sheets: 7 sets.
Stapling capacity
(90 g/m2):
Offset Tray
Saddle Stitch
50 sheets (up to A4), 30 sheets (up to A3 & mixed).
Max: 300 g/m2(2 sheets) + 90 g/m2(48 sheets)
15 sheets - (Booklet Front cover up to 220 g/m2)
Staple position:
3 locations (Front flat, Rear flat & 2 staples).
Staple less staple:
Not supported
Manual staple:
Not supported
Punch Unit:
Opt: MX-PN15B/C/D
Power requirements:
From Main Engine

PERIPHERAL SPECIFICATION
SHARP
6
MX-FN30 –3K FINISHER
Paper size:-
Non offset
Staple
SRA3 to A5R
A3 to B5
Output capacity (80 g/m2):
3,000 sheets or 200 bundles or 423mm or less (A4, 8.5x11).
1,500 sheets or 100 bundles or 216mm or less (A3W, 11x17).
Stapling capacity (90 g/m2):
65 sheets (up to A4), 30 sheets (up to A3 & mixed).
Max: 300 g/m2(2 sheets) + 90 g/m2(63 sheets)
Staple position:
3 locations (Front slant, Rear slant & 2 staples).
Staple less staple:
Supported - Maximum 5 sheets (A3, A4):-
Recommended: Up to 5 sheets (64 g/m2), Up to 4 sheets
(64-81 g/m2), Up to 3 sheets (81 to 105 g/m2).
Manual staple:
Supported (Rear slant only).
Punch Unit:
Opt: MX-PN16B/C/D
Power requirements:
From Main Engine
MX-FN31 –3K SADDLE FINISHER
Paper size:-
Non offset
Staple
Saddle
SRA3 to A5R
A3 to B5
A3W, A3, A4R, B4.
Output capacity (80 g/m2):
Offset Tray
Saddle Tray
3,000 sheets or 200 bundles or 423mm or less (A4, 8.5x11).
1,500 sheets or 100 bundles or 216mm or less (A3W, 11x17).
1–5 sheets: 25 sets, 6–10 sheets: 15 sets,
11–20 sheets: 10 sets
Stapling capacity
(90 g/m2):
Offset Tray
Saddle Stitch
65 sheets (up to A4), 30 sheets (up to A3 & mixed).
Max: 300 g/m2(2 sheets) + 90 g/m2(63 sheets)
20 sheets - (Booklet Front cover up to 256 g/m2)
Staple position:
3 locations (Front slant, Rear slant & 2 staples).
Staple less staple:
Supported - Maximum 5 sheets (A3, A4):-
Recommended: Up to 5 sheets (64 g/m2), Up to 4 sheets
(64-81 g/m2), Up to 3 sheets (81 to 105 g/m2).
Manual staple:
Supported (Rear slant only).
Punch Unit:
Opt: MX-PN16B/C/D
Power requirements:
From Main Engine
MX-TR20 –JOB SEPARATOR TRAY
Output capacity (80 g/m2):
Upper Tray
Centre Tray
100 sheets
250 sheets
Paper size:
Offset
Output only
A3 to A5R
SRA3 to A5R (including envelope & custom size paper)
Paper weight:
Upper Tray
Centre Tray
55 g/m2to 256 g/m2
55 g/m2to 300 g/m2
Note: The above specification details are for guidance only -Please refer to the Peripheral Service Manual
for detailed paper type and weight specifications.

SHARP

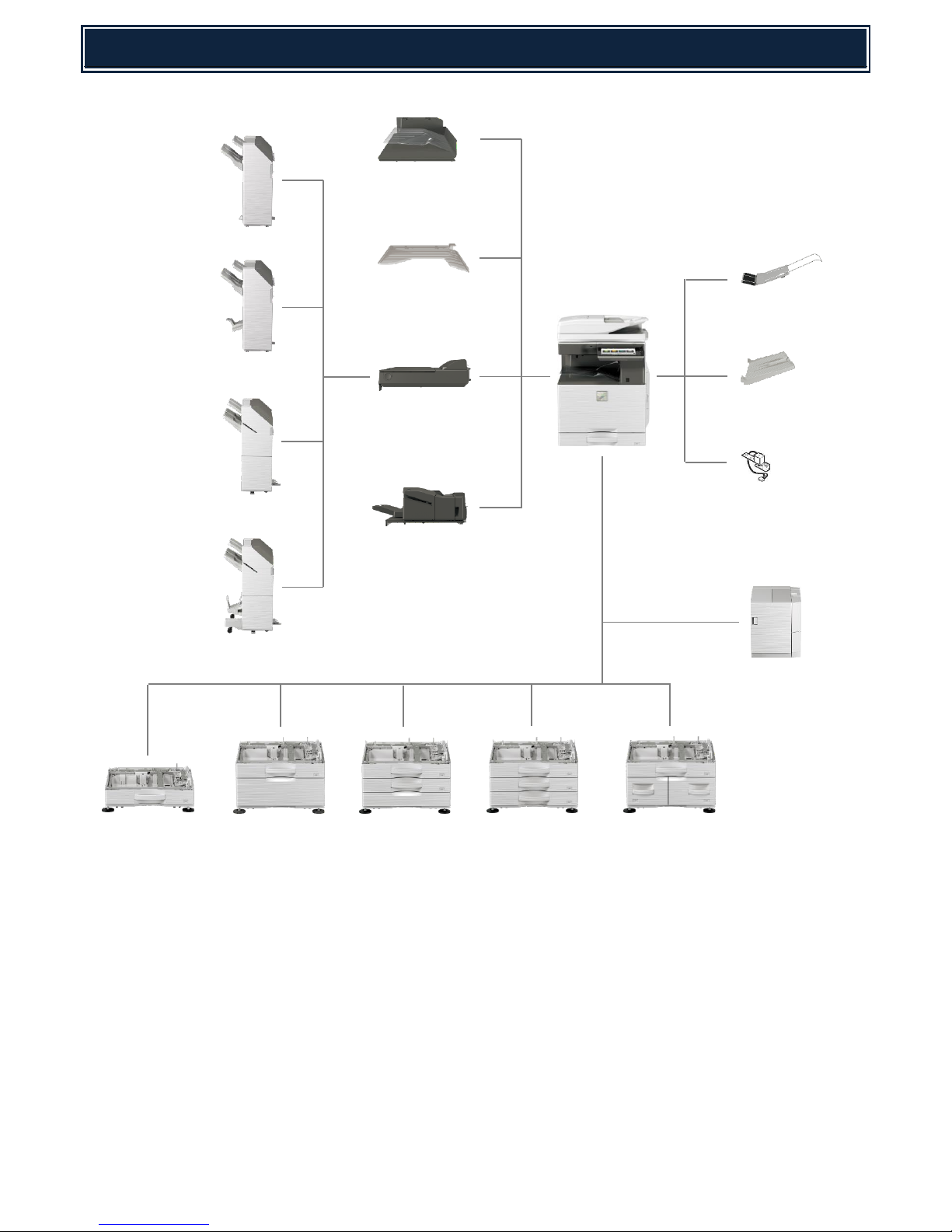

PRODUCT OPTIONS
7
MX-RB25
Paper Pass Unit
MX-FN27
Inner Finisher
MX-PN14 B/C/D
Hole Punch
MX-TR20
Job Separator
MX-TU16
Centre Tray Unit
MX-FN28
1K Finisher
MX-PN15 B/C/D
Hole Punch
MX-FN29
1K Saddle Finisher
MX-PN15 B/C/D
Hole Punch
MX-FN30
3K Finisher
MX-PN16 B/C/D
Hole Punch
Q2/2016
MX-FN31
3K Saddle Finisher
MX-PN16 B/C/D
Hole Punch
Q2/2016
MX-DE25
Stand/550 x1
Drawer
MX-DE26
Stand/550 x2
Drawers
MX-DE27
Stand/550 x3
Drawers
MX-DE28
Stand/Tandem
Drawer
MX-LC17
A4 LCC (3000)
Q2/2016
MX-DE29
Paper Tray 550
Q3/2016
AR-SU1
Stamp Unit
MX-TR19
Right Tray Unit
MX-LT10
Long Paper Tray

PRODUCT OPTIONS
SHARP
8
MACHINE OPTIONS
Model
Description
Comment
MX-DE25
Stand/550 x1 sheet paper drawer
Cannot install with
MX-DE26/27/28
MX-DE26
Stand/550 x2 sheet paper drawer
Cannot install with
MX-DE25/27/28
MX-DE27
Stand/550 x3 sheet paper drawer
Cannot install with
MX-DE25/26/28
MX-DE28
Stand/2,100 sheet tandem paper drawer
Cannot install with
MX-DE25/26/27
MX-DE29
Paper Tray 550 x1
Available Q3/2016
MX-LC17
3,000 sheets large capacity tray A4
Available Q2/2016
MX-LT10
Long paper feeding tray
For Bypass Tray only
MX-TR19
Exit tray unit
MX-TU16
Centre exit tray cabinet unit
MX-TR20
Job separator
MX-TU16 is required
MX-FN27
Inner finisher
Cannot install with
MX-RB25/TR20/TU16
MX-PN14
Punch module (B: 2/3 hole, C: 2/4 hole, D: 4 wide hole)
For MX-FN27 only
MX-RB25
Paper pass unit
For MX-FN28/29/30/31
MX-FN28
1K Finisher
MXRB25 is required
MX-FN29
1K Saddle Finisher
MX-PN15
Punch module (B: 2/3 hole, C: 2/4 hole, D: 4 wide hole)
For MX-FN28/FN29 only
MX-FN30
3K Finisher
MXRB25 is required
Available Q2/2016
MX-FN31
3K Saddle Finisher
MX-PN16
Punch module (B: 2/3 hole, C: 2/4 hole, D: 4 wide hole)
For MX-FN30/FN31 only
Available Q2/2016
MX-PF10
Barcode font kit
MX-FX15
Facsimile expansion kit
MX-FWX1
Internet-Fax expansion kit
AR-SU1
Stamp unit
MX-FR52U
Data security kit (Commercial version)
Available Q4/2016
MX-AMX1
Application integration module
Application communication module [MX-AMX2]
Installed as Standard
External account module [MX-AMX3]
Installed as Standard
MX-USX1
Sharpdesk Additional license kit (1 license)
MX-USX5
Sharpdesk Additional license kit (5 licenses)
MX-US10
Sharpdesk Additional license kit (10 licenses)
MX-US50
Sharpdesk Additional license kit (50 licenses)
MX-USA0
Sharpdesk Additional license kit (100 licenses)

SHARP
CONSUMABLES
9
CONSUMABLES
MX-3070N
MX-3570N
MX-4070N
Product Code
Description
Approx. Life
MX-60GTBA
Black Toner Cartridge
(A4 @ 5%)
40k
MX-60GTCA
Cyan Toner Cartridge
(A4 @ 5%)
24k
MX-60GTMA
Magenta Toner Cartridge
(A4 @ 5%)
24k
MX-60GTYA
Yellow Toner Cartridge
(A4 @ 5%)
24k
PROCESS UNIT:
MX-60GVBA
Black Developer
400k*
400k*
500k*
MX-60GVSA
Colour Developer Kit (CMY)
300k*
300k*
400k*
MX-40GUSA
Drum Unit (Complete):-
BK:200k*
CL: 150k*
BK:200k*
CL: 150k*
BK:250k*
CL: 200k*
MX-60GRSA
OPC Drum
MX-407MK
Main Charge Kit:-
Main charge unit.
Cleaning blade.
Cleaning gum.
MX-607CU
PTC Kit:-
PTC unit.
250k
300k
300k
MX-607HB
Waste Toner Collector:-
Includes LSU cleaner x 2
50k
50k
50k
MX-607FL
Ozone Filter Kit
Ozone filter.
300k
300k
300k
FUSING UNIT:
MX-607FB
Fusing Belt Kit:-
Fusing belt unit.
250k
300k
300k
MX-607LH
Pressure Roller Kit:-
Pressure roller.
250k
300k
300k
TRANSFER UNIT:
MX-607B1
Primary Transfer Belt Kit
250k
300k
300k
MX-607TL
Primary Transfer Blade Kit:-
Primary Transfer Blade.
Cleaning Roller
250k
300k
300k
MX-607U2
Secondary Transfer Roller Kit
250k
300k
300k
*The consumable life is specified by 2,700K (Developer) or 1,350K (OPC Drum) rotations therefore, the
page count life indicated above is for approximate guidance only.

CONSUMABLES
SHARP
10
PERIPHERALS:
MX-3070N
MX-3570N
MX-4070N
Product Code
Description
Approx. Life
MX-SCX1
Staple Cartridge (for MX-FN27/FN28 Finisher)
5000 staples (x 3)
MX-SC11
Staple Cartridge (for MX-FN30/FN31 Finisher)
5000 staples (x 3)
MX-SC12
Saddle Staple Cartridge (for MX-FN31 Finisher)
2000 staples (x 4)
AR-SC2
Saddle/Staple Cartridge (for MX-FN29 Finisher)
5000 staples (x 3)
AR-SV1
Stamp Cartridge (for AR-SU1 Stamp Unit)
2 cartridges
SERVICE ROTATION:
MX-607U1
Primary Transfer Belt Unit
For Service Rotation
MX-407FU
Fusing Unit 230V
Note:
Consumable life may vary depending on the document density, temperature, humidity and machine
operation.

SHARP
INITIAL SETUP
11
DEVELOPER SETUP:
Sim 25-02 Auto Developer Adjustment - Select CMYK.
*1 set of CMYK Developer is provided with each machine*.
ALL TONER CARTRIDGES must be removed before executing Automatic
Developer Adjustment.
For optimum image quality and performance, it is recommended to setup
and install Developer at the customer site (environment).
Clean LSU Dust Proof Glass.
TONER INSTALLATION & REPLENISHMENT:
Install CMYK Toner Cartridges:
Caution:
DO NOT open any Exterior Cover, Power OFF/ON or enter Simulation
Mode during Initial Toner Replenishment.
PRODUCT ACTIVATION & FIRMWARE UPGRADE:
Activation of Optional Products:
System Settings –Common Settings –Product Key.
Sim 22-05 Check Firmware Version(s): Upgrade to latest version.
INITIAL SETUP:
Sim 26-01 Right Exit Tray Installation: Yes/No.
Sim 26-02 LCC Installation (Paper Size): A4/Letter.
Sim 26-06 Machine Destination check.
Sim 26-35 Set Multi Error Counter: Set to 1 (Multi Count).
Sim 26-50 Long Paper Support (up to 1200mm): 0 = Disable, 1 = Enable.
Sim 26-52 Non Printed Paper Counter Set-up.
Sim 55-03 Process Mixed Size Pages (orientation) when Printing in Duplex:
SSW 3-6, 0 = Disable, 1 = Enable.
Sim 55-03 PDF/PS Preview Thumbnail for Direct Print Function:
SSW 35-1, 0 = Disable, 1 = Enable.
Toner Remaining Status Display [Home Screen]:
System Settings –Home Screen Settings –Display Toner Quantity (enable)
Adjust Date/Time (Inc. Daylight Saving setting):
System Settings –Common Settings –Clock Adjust.
Keyboard Language Setting:
System Settings –Common Settings –Default Keyboard Setting.
Paper Size & Type Settings:
System Settings –Common Settings –Paper Tray Settings.
Set cassette size by adjusting the guides in the cassette.

INITIAL SETUP
SHARP
12
PRINT IMAGE POSITION & BK MAGNIFICATION:
Check Print Image Off Centre & Lead Edge position - Use Sim 50-10:-
Inside dimension of the printed halftone must be 240±0.5mm.
Lead edge void area 4.0 ± 1.0mm.
Rear edge void area 2.0mm - 5.0mm.
Front & Rear Void areas 2.0 ± 2.0mm.
If NG, perform the following adjustments as required:-
Manual Adjustment:
Sim 50-10 BK MAG / Image Off Centre Adjustment (All Trays).
Sim 50-05 Printer Lead Edge & Void Adjust.
Automatic Adjustment:
Sim 50-28 BK MAG ADJ (Main Scan Mag).
SETUP/PRINT ADJ (Lead, Offset or All).
IMAGE SKEW & COLOUR REGISTRATION
Sim 50-22 Colour Registration/Skew & OPC Drum Phase Adjustment:
Check/Adjust SKEW (CMY) so value is Close to 0 as possible (Result=OK).
HALF TONE F/R EVENNESS & COLOUR CALIBRATION
Sim 61-13 F/R Evenness Correction Data Clear.
Sim 61-11 F/R Evenness Correction Adjustment.
Sim 46-74 Engine & Printer Colour Calibration: Select FACTORY Mode.
IMAGE QUALITY CHECK [COPY & PRINT]
Check Image Quality (Copy Mode) –Density, Magnification, Lead Edge & Void.
If NG, perform the following adjustments as required:-
Sim 46-01 Copy Density Adjust. (Colour).
Sim 46-02 Copy Density Adjust. (B/W).
Sim 46-09 SPF Copy Density Adjust.
Manual Adjustment (Magnification, Lead Edge, Void, Off Centre etc):
Sim 48-01 Magnification Adjustment (OC & SPF).
Sim 50-01 Lead/Rear Edge, Loss & Void Adjust.
Sim 50-12 OC & SPF Off Centre Adjust.
Automatic Adjustment:
Sim 50-28 OC ADJUST (Lead, Offset & Mag).
SPF ADJ:(Lead, Offset & Sub scan).
Check Print Image Quality:
Sim 64-05 PCL Density Test Page
Sim 64-06 PS Density Test Page

SHARP
INITIAL SETUP
13
PERIPHERAL / OPTION CONFIGURATION
FAX OPTION –MX-FX15
Sim 66-02 Fax SW Setting (Destination).
Sim 66-10 Fax Memory Clear.
Sim 66-39 Fax Destination Setting.
FINISHER OPTION –MX-FN27/28/29/30/31
Sim 03-10 Saddle Fold/Staple Position Adjustment [MX-FN29/31 only]
Sim 26-65 Finisher Alarm Mode:-
Limit number of Copies in staple mode (ON/OFF).
Limit the number of sets loaded in the saddle staple (ON/OFF).
**Limit load of folded paper on paper exit and limit load on 50-sheet
Staple saddle finisher are set in SADDLE COPIES.
EXTERNAL ACCOUNTING MODULE –MX-AMX3
Sim 55-03 Auto clear function before Copy job execution:-
SSW 1-5 0 = Disable, 1 = Enable.
Sim 55-03 Continuous print mode (job queuing for OSA):-
SSW 24-7 0 = Disable, 1 = Enable.
MFP DATA BACKUP
Sim 22-06 Data Simulation Print
Device Clone & Storage Backup
Sim 56-01 Backup EEPROM Data to HDD

COLOUR BALANCE ADJUSTMENT
SHARP
14
Automatic Colour Calibration –FACTORY MODE:
Note:
When adjusting colour balance before or after routine maintenance, always use the recommended paper
(Mondi 90gsm or equivalent) for optimum image quality.
DEFAULT COLOUR BALANCE SETTING:
Sim 63-11 For ENGINE:
Sim 67-26 For PRINTER:
Def 1 Standard Colour Balance setting (Default).
Def 2 Colour balance with slightly strong cyan.
Def 3 Colour balance with the emphasis on Cyan
COLOUR BALANCE ADJUSTMENT:
Sim 46-74 Half tone colour balance adjustment for COPY & PRINTER –select FACTORY.
PRINTER DENSITY CHECK:
Sim 64-05 Printer Self-Print Test (PCL)
Sim 64-06 Printer Self-Print Test (PS)
Manual Colour Calibration –SERVICE MODE:
HIGH DENSITY PROCESS CONTROL:
Sim 44-06 Execute High Density Process Control
COLOUR BALANCE ADJUSTMENT:
Sim 46-74 Half Tone Colour Balance Adjustment for COPY & PRINTER –select SERVICE.
MANUAL COLOUR BALANCE ADJUSTMENT:
Sim 46-21 Engine
Sim 64-06 Printer Self-Print Test (PS)
PRINTER DENSITY CHECK:
Sim 64-05 Printer Self-Print Test (PCL)
Sim 64-06 Printer Self-Print Test (PS)
SERVICE COLOUR TARGET SETTING:
Sim 64-05 Printer Self-Print Test (PCL)
Sim 64-06 Printer Self-Print Test (PS)
Return to Default Setting –SERVICE MODE:
STANDARD SERVICE TARGET SETTING:
Sim 63-08 Reset Standard Service Target for COPY.
Sim 67-28 Reset Standard Service Target for PRINTER.
COLOUR BALANCE ADJUSTMENT:
Sim 46-74 Half Tone Colour Balance Adjustment for COPY & PRINTER –select SERVICE.

SHARP
COLOUR BALANCE ADJUSTMENT
15
Troubleshooting - Standard Colour Calibration procedure when experiencing colour image quality issues:
Sim 22-06 Print and check consumable life, trouble & jam history.
Remove all Process Units, DV Units & MC Units and perform a thorough clean.
Clean the LSU Slit Glass
Clean the optical section.
Clean the ID sensors.
Sim 22-05 Check firmware version and update to the latest version.
Sim 44-27 Clear Half Tone Process Correction.
This simulation clears the previous high voltage compensation applied to DV&GB bias in order
to maintain a good image density level.
Sim 61-04 LSU Skew Adjustment.
Tolerance is approx. 1.5mm when measuring two diagonals.
Sim 50-28 Magnification & Image Position Adjustment.
Always execute the adjustment in the following order: 1. BK MAG -> 2. Print -> 3. OC -> 4. SPF
Sim 61-13 Laser F/R Evenness Correction Data Clear.
Sim 61-11 Laser F/R Evenness Correction Adjustment.
Use auto adjustment first. If the result is not satisfying, repeat before performing manual
adjustment.
Sim 50-22 Drum Phase & Colour Registration Adjustment.
This simulation must be executed when the drums are replaced. Check for any F2-50/51/52/53
(Drum Phase) trouble before proceeding.
Sim 8-01 Check DV Bias.
Use a calibrated multimeter to check the Monitor Voltage
Sim 8-02 Check GRID Bias.
Use a calibrated multimeter to check the Monitor Voltage
Sim 63-03 CCD Calibration - use Adjustment Chart UKOG-0356FCZZ.
To ensure the machine can read correct values from the print patterns produced during colour
calibration.
Sim 63-11 Default Engine Colour Balance Setting.
Sim 63-26 Default Printer Colour Balance Setting.
Sim 63-08 Reset Service & User Colour Balance for COPY mode
Clears the previous Service & Customer colour balance settings.
Sim 67-28 Reset Service & User Colour Balance for PRINTER mode.
Clears the previous Service & Customer colour balance settings.
Sim 46-74 Colour Calibration for COPY & PRINT modes.
Always select Factory mode unless Service colour balance is registered for customising colour
output.
Settings (Admin) -> Image Quality Adjustment -> Copy Image Quality -> Auto Colour Calibration.
Settings (Admin) -> Image Quality Adjustment -> Print Image Quality -> Auto Colour Calibration
To reproduce colour consistently, the end user may need to conduct user calibration on a regular basis. For
clients who produce large volume prints, it is recommended to perform user calibration before the long run.
Check colour output for both Copy & Print modes.

MAINTENANCE
SHARP
16
Maintenance Indications:
DK
Black Drum Counter has reached the specified life.
Replace Black Drum &
Main Charge Kit
Process
Section
(Drum)
DC
Cyan Drum Counter has reached the specified life.
Replace Cyan Drum &
Main Charge Kit
DM
Magenta Drum Counter has reached the specified life.
Replace Cyan Drum &
Main Charge Kit
DY
Yellow Drum Counter has reached the specified life.
Replace Cyan Drum &
Main Charge Kit
VK
Black Developer Counter has reached the specified life.
Replace Black Developer
Process
Section
(Developer)
VC
Cyan Developer Counter has reached the specified life.
Replace Colour
Developer Kit (CMY)
VM
Magenta Developer Counter has reached the specified life.
VY
Yellow Developer Counter has reached the specified life.
FK1
Fusing Belt Print Counter has reached the specified limit.
Replace the Fusing Belt Kit
Fuser
Section
FK2
Fuser Pressure Roller Print Counter has reached the
specified limit.
Replace the Pressure
Roller Kit
FK3
Fuser Web Cleaner (Counter) has reached the specified
limit - (Pop Up FK3 Error –Web End Detected)
Replace the Web Cleaning
Kit
TK1
Primary Transfer Unit Counter has reached the
specified limit.
Replace the Primary
Transfer Belt & Blade Kits
Transfer
Section
TK2
Secondary Transfer Unit Counter has reached the
specified limit.
Replace the Secondary
Transfer Roller Kit
TK3
PTC Unit Counter has reached the specified limit.
Replace the PTC Unit
Starting Powder:
The following starting powder should be applied to the relevant consumable item during maintenance:-
Starting Powder
OPC Drum
Primary Transfer Belt
MX-3070N
MX-3570N
MX-4070N
UKOG-0312FCZZ
[Stearic Acid]
CKOG-0345DS51
[Yellow Toner]
CAUTION:
Do not apply Stearic Acid (UKOG-0312FCZZ), Strontium Titanium (UKOG-0316FCZZ) or Titanium Hydroxide
(UKOG-0322FCZZ) starting powder to the Primary Transfer Belt.

SHARP
MAINTENANCE
17
MX-3070N
MX-3570N
MX-4070N
Every
150K
Every
300K
Every
200K
Every
400K
PROCESS SECTION –COLOUR:
(When Colour maintenance counter has reached the specified life).
Replace Cyan, Magenta & Yellow OPC Drum: (MX-60GRSA x 3)
Replace Cyan, Magenta & Yellow Main Charge Kits:-
Main Charge Unit & Cleaning Blade (MX-407MK x 3)
x
x
Replace C, M, Y Developer (MX-60GVSA).
Clean LSU Dust Proof Glass (CMYK)
Sim 24-04 Clear Drum CTRG C, M, Y (Colour) Counters.
Clear Main Charger C, M, Y (Colour) Counters.
Clear Drum Blade C, M, Y (Colour) Counters.
Clear Maintenance [Colour] Counter.
Sim 24-05 Clear Developer C, M, Y (Colour) Counters.
x
x
Sim 25-02 Toner Concentration Auto Adjustment - Select C, M, Y.
Notes:
If ALL developer is replaced at the same time, select CMYK.
When Sim 25-02 is executed, the Developer Counter
(Sim 24-05) is also cleared automatically.
x
x
Caution:
Ensure ALL toner cartridges are removed, prior to executing
Sim 25-02.
x
x
Sim 44-27 Clear Half Tone Process Correction.
Every
200K
Every
400K
Every
250K
Every
500K
PROCESS SECTION -MONOCHROME:
(When Total / K maintenance counter has reached the specified life).
Replace Black OPC Drum (MX-60GRSA).
Replace Black Main Charge Kit:-
Main Charge Unit & Cleaning Blade (MX-407MK).
x
x
Replace Black Developer (MX-60GVBA).
Clean LSU Dust Proof Glass (CMYK)
Sim 24-04 Clear Drum CTRG K (Black) Counter.
Clear Main Charger K (Black) Counter.
Note: MC Cleaner Counter [K] is also cleared automatically.
Clear Drum Blade K (Black) Counter.
Clear Maintenance [ALL] Counter.
Sim 24-05 Clear Developer K (Black) Counter.
x
x
Sim 25-02 Toner Concentration Auto Adjustment - Select K.
Notes:
If ALL developer is replaced at the same time, select CMYK.
When Sim 25-02 is executed, the Developer Counter
(Sim 24-05) is also cleared automatically.
x
x
Caution:
Ensure ALL toner cartridges are removed, prior to executing
Sim 25-02.

MAINTENANCE
SHARP
18
MX-3070N
MX-3570N
MX-4070N
IMAGE QUALITY ADJUSTMENTS (After Replacement Described Above):
Sim 44-02 Image Density & Registration Sensor Adjustment.
Sim 44-06 Process Control execution.
Sim 44-26 Half tone process control execution.
Sim 50-22 Drum Position & Registration Adjustment - select ALL.
Sim 61-13 Clear laser F/R density correction data.
Sim 61-11 Laser F/R density variation correction execution.
Sim 46-74 Automatic Colour Balance Adjustment (Copy & Printer).
Sim 46-01 Adjust Copy Exposure Density (Colour).
Sim 46-02 Adjust Copy Exposure Density (B/W).
SCANNER SECTION:
Clean Platen Glass, Mirrors, CCD, and white reference plate.
Clean DSPF Scanning Glass.
PAPER FEED & TRANSPORT SECTION:
Check/Clean ALL Paper Path Sensors (including Duplex unit).
Check/Clean ALL PF Transport Rollers.
Check/Clean ALL TRAY PF Rollers (check tray counter using Sim 22-09) –
replace every 100k (individual tray) or after 1 year.
Sim 24-02 Clear Individual Tray Counter (only after PF roller replacement)
DSPF:
Check/Clean SPF Pick-Up, Paper Feed & Separation Rollers (check SPF
counter using Sim 22-08) –replace every 100k or after 1 year.
x
x
Check/Clean SPF Paper Feed Torque Limiter –replace every 800k.
Check/Clean ALL Transport Rollers.
Check/Clean Second Scan Section Scanning Glass.
Check/Clean Lamp Section & Reflector.
MX-3070N
MX-3570N
MX-4070N
Every
250K
Every
300K
PROCESS SECTION:
In addition to Total / K schedule (and/or colour schedule if indicated):-
Replace PTC unit (MX-607CU).
Check Waste Toner Container & Replace LSU Cleaning Base (MX-607HB).
Sim 24-04 Clear PTC Counters.
FUSING SECTION:
Replace Fusing Belt Kit (MX-607FB):-
Fusing Belt Unit
Replace Pressure Roller Kit (MX-607LH):-
Pressure Roller
Apply UKOG-0235FCZZ grease to the shaft section of the Pressure Roller.
Check/Clean both Upper and Lower Thermistors.

SHARP
MAINTENANCE
19
MX-3070N
MX-3570N
MX-4070N
Every
250K
Every
300K
FUSER SECTION (CONT’D):
Sim 24-04 Clear Fusing Belt Counters.
Clear Fusing Roller Counters.
Clear Press Roller Counters.
Clear Separation Pawl Counters.
Clear Separation Plate Counters.
Clear Fusing Unit Counter.
TRANSFER SECTION:
Replace Primary (Image) Transfer Belt Kit (MX-607B1):-
Primary Transfer Belt
Replace Primary Transfer Cleaning Blade Kit (MX-607TL):-
Primary Transfer Blade.
Cleaning Roller
Apply Yellow Toner [CKOG-0345DS51] to Primary Transfer Belt
Replace Secondary Transfer Roller Kit (MX-607B2):-
Secondary Transfer Roller Unit.
Clean ID & Registration Sensors.
Sim 24-04 Clear TC1 Belt Counters.
Clear Trans Blade Counters.
Clear TC1 Belt Unit Counter.
Clear TC2 Roller Counters.
Clear TC2 Roller Unit Counter.
Sim 50-22 Drum Position & Registration Adjustment - select ALL.
Every
300K
Every
300K
FILTER SECTION:
Replace Ozone Filter Kit (MX-607FL):-
Ozone Filter
Sim 24-04 Clear Ozone Filter Counter.
INNER FINISHER [MX-FN27]
Clean inlet paper transport rollers.
Clean paper exit paddle.
Clean paper guides and tray.
Replace Staple Unit every 200K staples [0CW4H560160//]
Replace Staple Less Staple Unit assembly every 20K staples
[0CW4M511130//]

MAINTENANCE
SHARP
20
Every
300K
Every
300K
1K FINISHER [MX-FN28/FN29]:
Clean paper transport rollers.
Clean all sensors.
Replace Staple Unit every 500K staples [0JEAJ011030//]
Replace Saddle Staple Unit 200K staples [0JEAJ011031//]
