Sharp CD-E650E User manual

Thank you for purchasing this SHARP product.
To obtain the best performance from this product, please
read this manual carefully. It will guide you in operating
your SHARP product.
CD-E650E Mini Component System consisting of
CD-E650E (main unit), CP-E650E (front speakers) and
GBOXS0125AWM1 (surround speakers).
MINI COMPONENT SYSTEM
MODEL
CD-E650E
OPERATION MANUAL
CDE650E_FRONT 03.1.28, 11:34 AM1

03/1/28 CD-E650E(A)1.fm
2
CD-E650E
Important Instruction
Special notes
Warning:
!When the ON/STAND-BY button is set at STAND-BY position,
mains voltage is still present inside the unit. When the ON/
STAND-BY button is set at STAND-BY position, the unit may be
brought into operation by the timer mode or remote control.
!This unit contains no user serviceable parts. Never remove cov-
ers unless qualified to do so. This unit contains dangerous volt-
ages, always remove mains plug from the socket before any
service operation and when not in use for a long period.
!To prevent fire or shock hazard, do not expose this appliance to
dripping or splashing. No objects filled with liquids, such as
vases, should be placed on the apparatus.
Note for users in Australia:
Copyright may exist in material you wish to record. Copying or
broadcasting such material without permission of the relevant lic-
ensees or owners of the copyright is prohibited by law. SHARP is
not in a position to authorise the copying or broadcasting of copy-
right materials and nothing in this OPERATION MANUAL should be
implied as giving that authority.
For other countries:
Audio-visual material may consist of copyrighted works which must
not be recorded without the authority of the owner of the copyright.
Please refer to the relevant laws in your country.

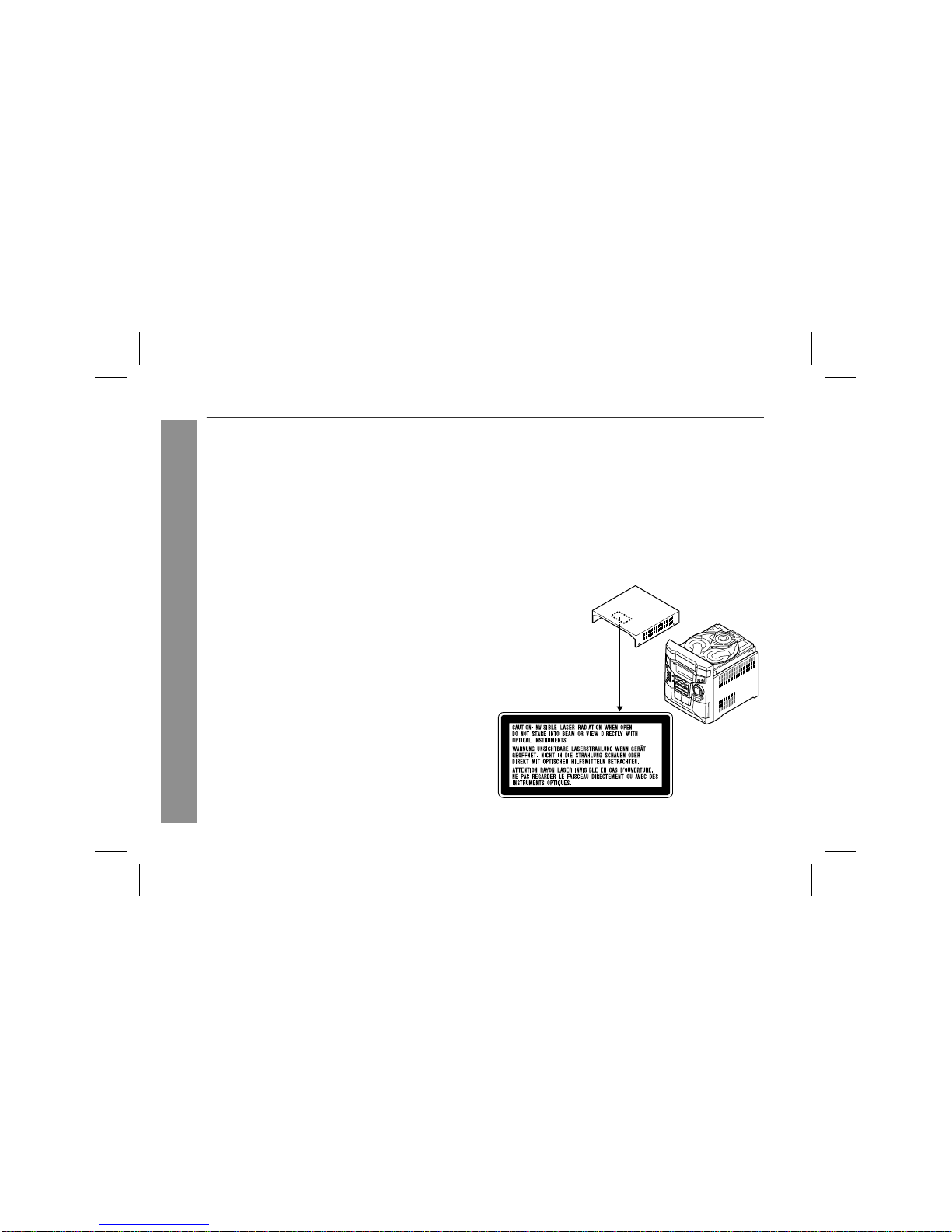

CAUTION
!This product is classified as a CLASS 1 LASER product.
!Use of controls, adjustments or performance of procedures other
than those specified herein may result in hazardous radiation ex-
posure.
As the laser beam used in this compact disc player is harmful to
the eyes, do not attempt to disassemble the cabinet. Refer servic-
ing to qualified personnel only.
Laser Diode Properties
Material: GaAIAs
Wavelength: 780 nm
Emission Duration: continuous
Laser Output: max. 0.6 mW

03/1/28 CD-E650E(A)1.fm
3
CD-E650E
General Information
Accessories
Please confirm that the following accessories are included.
Note:
Only the above accessories are included.
Contents
Page
"General Information
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Controls and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 - 8
"Preparation for Use

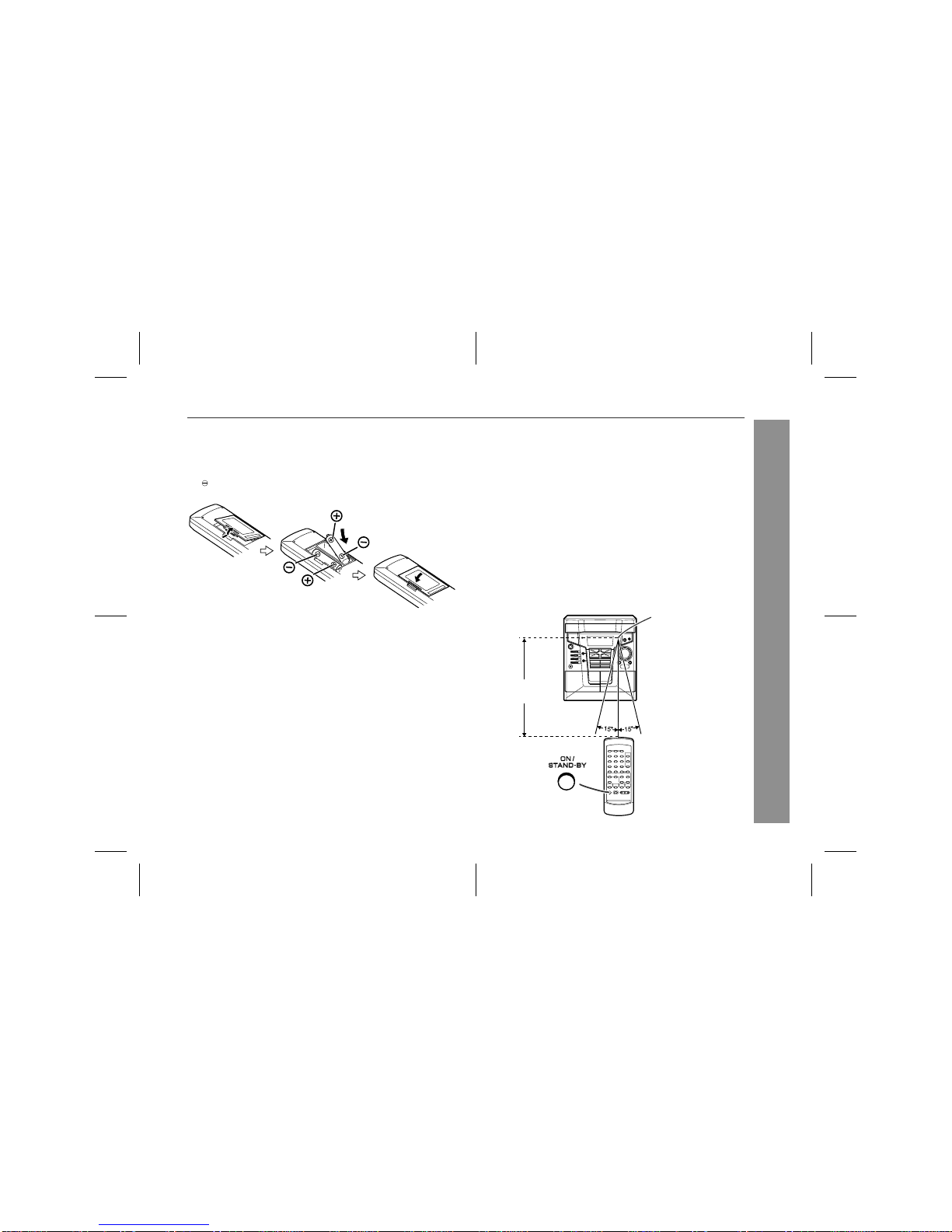

Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
System connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 - 13
"Basic Operation
Sound control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

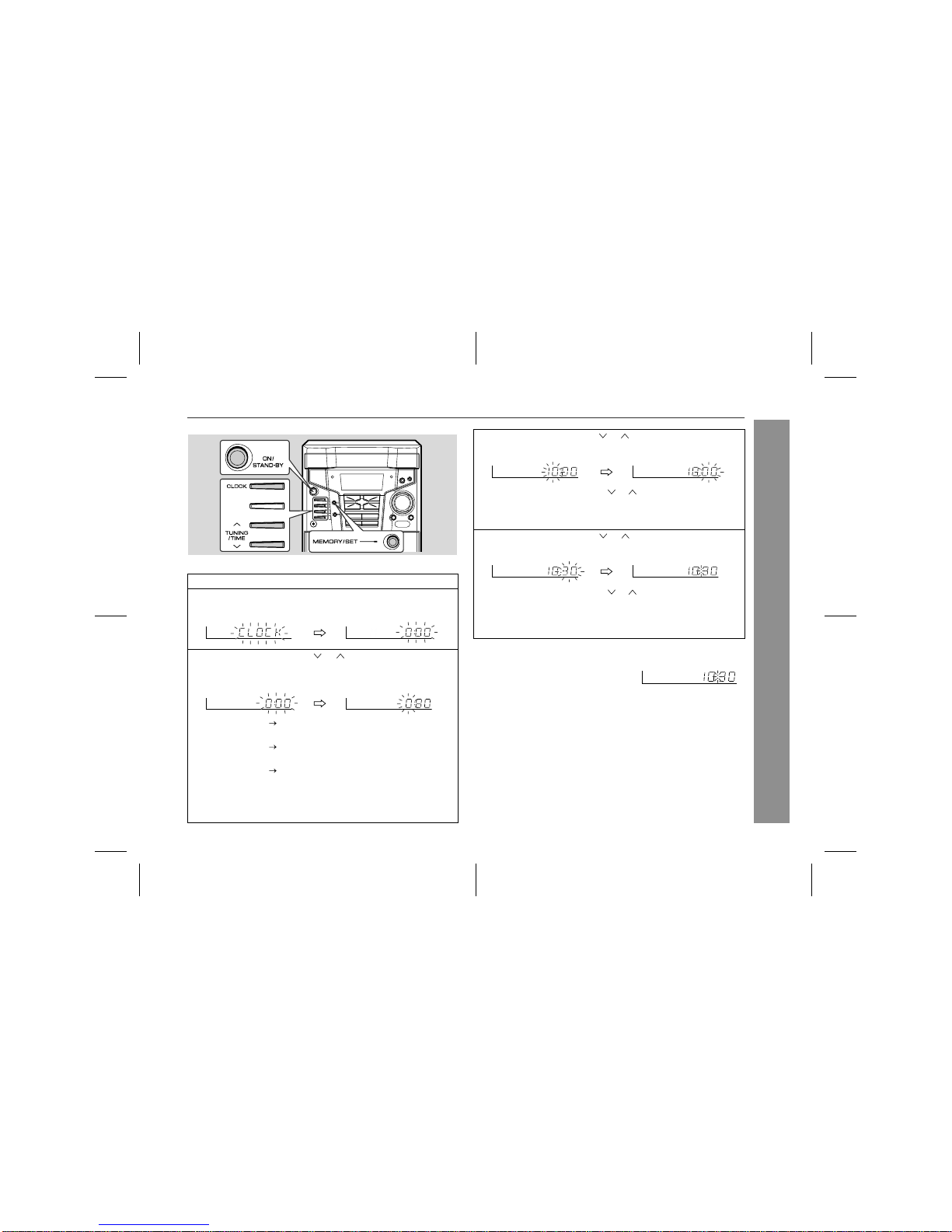

Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
"CD Playback
Listening to a CD (CDs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16, 17
Advanced CD playback . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 - 20
"Radio
Listening to the radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21, 22
"Tape Playback
Listening to a cassette tape (TAPE 1 or TAPE 2) . . . . . . . . . . 23
"Tape Recording
Recording to a cassette tape . . . . . . . . . . . . . . . . . . . . . . .24 - 26
"Advanced Features
Timer and sleep operation . . . . . . . . . . . . . . . . . . . . . . . . .26 - 28
Enhancing your system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
"References
Troubleshooting chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30, 31
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32, 33
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . .End of the manual
Remote control 1 "AA" size battery (UM/SUM-3,
R6, HP-7 or similar) 2
AM loop aerial 1 FM aerial 1

03/1/28 CD-E650E(A)1.fm
4
CD-E650E
General Information
Precautions
"General
!Please ensure that the equipment is positioned in a well venti-
lated area and ensure that there is at least 10 cm (4") of free
space along the sides, top and back of the equipment.
!Do not place anything on top of the unit.
!Do not expose the unit to moisture, to temperatures higher than
60°C (140°F) or to extremely low temperatures.
!If your system does not work properly, disconnect the AC power
lead from the wall socket. Plug the AC power lead back in, and
then turn on your system.
!No naked flame sources, such as lighted candles, should be
placed on the apparatus.
!Attention should be drawn to the environmental aspects of bat-
tery disposal.
!This unit should only be used within the range of 5°C - 35°C
(41°F - 95°F).
Warning:
The voltage used must be the same as that specified on this unit.
Using this product with a higher voltage other than that which is
specified is dangerous and may result in a fire or other type of acci-
dent causing damage. SHARP will not be held responsible for any
damage resulting from use of this unit with a voltage other than that
which is specified.
"Volume control
The sound level at a given volume setting depends on speaker effi-
ciency, location, and various other factors. It is advisable to avoid
exposure to high volume levels. Do not turn the volume on to full at
switch on and listen to music at moderate levels.
!Use the unit on a firm, level surface free from
vibration.
!Keep the unit away from direct sunlight,
strong magnetic fields, excessive dust,
humidity and electronic/electrical equip-
ment (home computers, facsimiles, etc.)
which generate electrical noise.
!In case of an electrical storm, unplug the
unit for safety.
10 cm (4") 10 cm (4") 10 cm (4")
10 cm (4")
!Hold the AC power plug by the head when
removing it from the wall socket, as pulling
the lead can damage internal wires.
!Do not remove the outer cover, as this
may result in electric shock. Refer inter-
nal service to your local SHARP service
facility.
!The ventilation should not be impeded by
covering the ventilation openings with
items, such as newspapers, tablecloths,
curtains, etc.

03/1/28 CD-E650E(A)1.fm
5
CD-E650E
General Information
Controls and indicators
"Front panel Reference page
1.Disc Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.Timer Set Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
3.Memory/Set Button . . . . . . . . . . . . . . . . . . . . . . . . . 15, 20, 22
4.On/Stand-by Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5.Clock Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15, 26, 27
6.Timer/Sleep Button . . . . . . . . . . . . . . . . . . . . . . . . . 26, 27, 28
7.Tuning and Time Up Button . . . . . . . . . . . . . . . . . . . . . 15, 21
8.Tuning and Time Down Button . . . . . . . . . . . . . . . . . . . 15, 21
9.Headphone Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
10.Tape 2 Record Pause Button . . . . . . . . . . . . . . . . . 24, 25, 26
11.Tape 1 Cassette Compartment . . . . . . . . . . . . . . . . . . . . . . 23
12.Equaliser Mode Select Button . . . . . . . . . . . . . . . . . . . . . . 14
13.Extra Bass/Demo Mode Button . . . . . . . . . . . . . . . . . . 13, 14
14.Volume Up and Down Buttons . . . . . . . . . . . . . . . . . . . . . . 14
15.Disc Tray Open/Close Button . . . . . . . . . . . . . . . . . . . . . . . 16
16.Disc Skip Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
17.Tape 2 Cassette Compartment . . . . . . . . . . . . . . . . . . . . . . 23
18.CD Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
19.Tape (1 2) Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
20.CD or Tape Stop Button . . . . . . . . . . . . . . . . . . . . . . . . 17, 23
21.CD Track Down or Fast Reverse, Tape 2 Rewind,
Tuner Preset Down Button . . . . . . . . . . . . . . . . . . . 17, 22, 23
22.Tuner (Band) Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
23.Video/Auxiliary Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
24.CD Play or Repeat, Tape Play Button . . . . . . . . . . 16, 19, 23
25.CD Track Up or Fast Forward, Tape 2 Fast Forward,
Tuner Preset Up Button . . . . . . . . . . . . . . . . . . . . . . 17, 22, 23
3
4
5
2
1
6
11
7
8
9
10
12
16
14
15
17
13
22
23
24
25
18
19
20
21

03/1/28 CD-E650E(A)1.fm
6
CD-E650E
General Information
Controls and indicators (continued)
!Display
1.Disc Number Indicators
2.CD Play Indicator
3.Tape Play Indicator
4.FM Stereo Mode Indicator
5.FM Stereo Receiving Indicator
6.Memory Indicator
7.Extra Bass Indicator
8.Timer Recording Indicator
9.Timer Play Indicator
10.CD Pause Indicator
11.CD Repeat Play Indicator
12.Tape 2 Record Indicator
13.Sleep Indicator
!Rear panel Reference page
1.Cooling Fan
2.AC Power Lead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10, 13
3.FM 75 Ohms Aerial Socket . . . . . . . . . . . . . . . . . . . . . . 10, 11
4.AM Loop Aerial Socket . . . . . . . . . . . . . . . . . . . . . . . . . 10, 11
5.Video/Auxiliary (Audio Signal) Input Sockets . . . . . . . . . . 29
6.Surround Speaker Terminals . . . . . . . . . . . . . . . . . . . . 10, 11
7.Front Speaker Terminals . . . . . . . . . . . . . . . . . . . . . . . . 10, 11
Note:
This product is equipped with a cooling fan inside, which begins to
run at a specified volume level for better heat radiation.
2145367
8
9
131210 11
2
15
4
3
6
7

03/1/28 CD-E650E(A)1.fm
7
CD-E650E
General Information

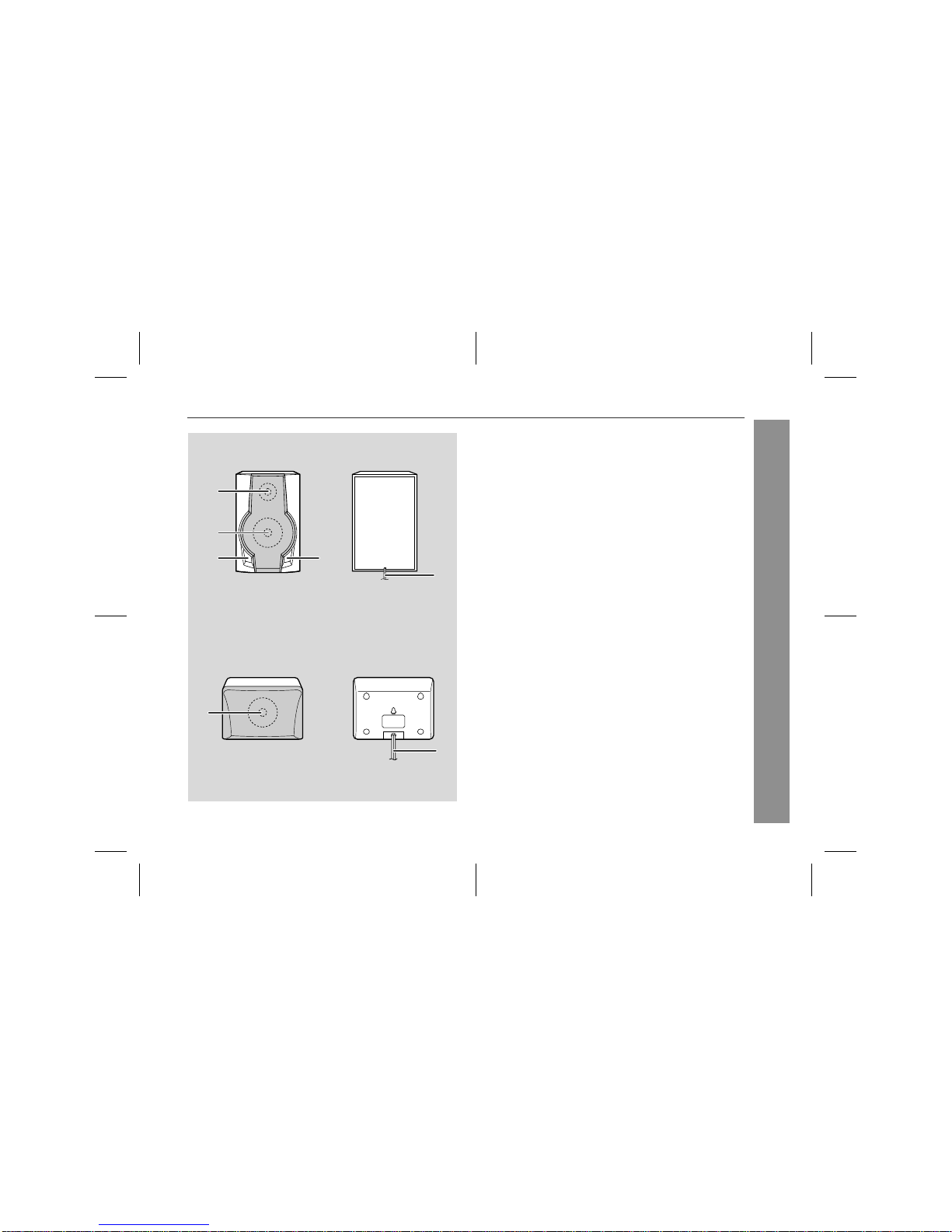

!Front speaker
1.Tweeter
2.Woofer
3.Bass Reflex Ducts
4.Speaker Wire
!Surround speaker
1. Full-Range Speaker
2.Speaker Wire
Note:
The speaker grilles on the front and surround speakers are not
removable.
4
1
2
33
1
2

03/1/28 CD-E650E(A)1.fm
8
CD-E650E
General Information
Controls and indicators (continued)
!Remote control Reference page
1.Remote Control Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.Disc Number Select Buttons . . . . . . . . . . . . . . . . . . 16, 20, 24
3.Direct Search Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.Tape 2 Record Pause Button . . . . . . . . . . . . . . . . . . . 24, 25, 26
5.CD Track Down or Fast Reverse,
Tape 2 Rewind Button . . . . . . . . . . . . . . . . . . . . . . . . . . . 17, 23
6.Equaliser Mode Select Button . . . . . . . . . . . . . . . . . . . . . . . . 14
7.Tuner (Band) Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
8.CD Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
9.On/Stand-by Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
10.Extra Bass Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
11.CD Random Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
12.CD Memory Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
13.Programme Clear Button . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
14.Tuner Preset Up and Down Buttons . . . . . . . . . . . . . . . . . . . . 22
15.CD Pause Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
16.CD Track Up or Fast Forward,
Tape 2 Fast Forward Button . . . . . . . . . . . . . . . . . . . . . . . 17, 23
17.CD or Tape Stop Button . . . . . . . . . . . . . . . . . . . . . . . . . . 17, 23
18.CD Play or Repeat, Tape Play Button . . . . . . . . . . . . 16, 19, 23
19.Video/Auxiliary Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
20.Tape (1 2) Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
21.Volume Up and Down Buttons . . . . . . . . . . . . . . . . . . . . . . . . 14
Buttons with " " mark in the illustration or highlighted in bold on the
right can be operated on the remote control only.
1
2
3
4
5
6
7
8
9
10
11
14
15
16
17
18
12
13
19
20
21

03/1/28 CD-E650E(A)1.fm
9
CD-E650E
Preparation for Use
Remote control
!Battery installation
Precautions for battery use:
"Replace all old batteries with new ones at the same time.
"Do not mix old and new batteries.
"Remove the batteries if the unit is not to be used for long periods
of time. This will prevent potential damage due to battery leak-
age.
Caution:
"Do not use rechargeable batteries (nickel-cadmium battery, etc.).
"Installing the batteries incorrectly may cause the unit to malfunc-
tion.
Notes concerning use:
"Replace the batteries if the operating distance is reduced or if the
operation becomes erratic. Purchase 2 "AA" size batteries (UM/
SUM-3, R6, HP-7 or similar).
"Periodically clean the transmitter on the remote control and the
sensor on the unit with a soft cloth.
"Exposing the sensor on the unit to strong light may interfere with
operation. Change the lighting or the direction of the unit.
"Keep the remote control away from moisture, heat, shock, and
vibrations.
!Test of the remote control
Check the remote control after checking all the connections (see
pages 10 - 13).
Point the remote control directly at the remote sensor on the unit.
The remote control can be used within the range shown below:
Press the ON/STAND-BY button. Does the power turn on? Now,
you can enjoy music.
1 Remove the battery cover.
2 Insert the batteries according to the direction indicated in
the battery compartment.
When inserting or removing the batteries, push them towards the
battery terminals.
3 Replace the cover.
0.2 m - 6 m
(8" - 20')
Remote sensor

03/1/28 CD-E650E(A)1.fm
10
CD-E650E
Preparation for Use
System connections
FM aerial
Wall socket
(AC 230 - 240V, 50 Hz)
Black
Red
AM loop aerial
Front speaker
(right) Front speaker (left)
Grey
Surround speaker
(left)
Surround speaker
(right)
