Sharp HT-SB107 User manual

User manual
HT-SB107
2.0 Compact Soundbar
EN DE
PL RUFR NL
ITES

Trademarks:
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth
SIG,. Inc.
The terms HDMI, HDMI High-Denition Multimedia Interface, and the HDMI Logo are
trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

4
Important safety instructions
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Please, read these safety instructions and respect the
following warnings before the appliance is operated:
The lightning ash with arrowhead symbol, within an equilateral triangle,
is intended to alert the user to the presence of uninsulated“dangerous
voltage”within the product’s enclosure that may be of sucient
magnitude as to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to
alert the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
Only use the power supply stated in the user manual.
This symbol means that the product should be disposed of in an
environmentally friendly manner and not with general household waste.
AC voltage
DC voltage
Class II equipment
Polarity of d.c. power connector
In order to prevent re always
keep candles and other open
ames away from this product.
Warning:
• Always follow basic safety precautions when using this appliance, especially when
children are present.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not damage the power cord, do not place any heavy objects on it, do not strech
it or bend it. Do not attach extension cables. Damage to the power cord may occur
re or electric shock.
• Ensure that the unit is plugged into an AC 100-240V 50/60Hz power outlet. Using
higher voltage may cause the unit to malfunction or even catch re.

EN
• If the power plug does not t into the socket, do not force it.
• Turn o the unit before unplugging it from power source to completely switch it o.
• Do not disconnect or connect the power cord with wet hands. It may cause an
electric shock.
• Disconnect the power cord if it is not used for a long time.
• Ensure that the mains plug is always easily accessible.
• This product does not contain any parts that are serviceable by the user. In case
of a fault, contact the manufacturer or authorised service department. Exposing
the internal parts inside the device may endanger your life. The manufacturers
guarantee does not extend to faults caused by repairs carried out by unauthorised
third parties.
• Do not use this product immediately after unpacking. Wait until it warms up to
room temperature before using it.
• Ensure this product is used in moderate climates only (not in tropical/subtropical
climates).
• Place product on a at, stable surface that is not subject to vibrations.
• Ensure the product and its parts is not overhanging the edge of the supporting
furniture.
• To reduce the risk of fire, electric shock or damage to this product, do not expose it
to direct sunlight, dust, rain and moisture. Never expose it to dripping or splashing
and do not place objects filled with liquids on or near the product.
• Do not place objects lled with liquids, such as vases, on the apparatus.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including ampliers) that produce heat.
• Do not place the product where the humidity is high and ventilation is poor.
• Ensure a minimum distance of 5 cm around the apparatus for sucient ventilation.
Do not block any ventilation openings of this product. Always ensure that the
ventilation openings are not covered with items such as newspapers, table-cloths,
curtains, etc.
• NEVER let anyone, especially children, push anything into holes, slots or any other
openings in the unit’s casing as this could result in a fatal electric shock.
• Storms are dangerous for all electric appliances. If the mains or aerial wiring is struck
by lightning, the appliance might get damaged, even if it is turned o. You should
disconnect all the cables and connectors of the appliance before a storm.
Maintenance
• Unplug the power cable from the power source before cleaning the appliance.
• Use a soft and clean rag to clean the outside of the unit. Never clean it with chemi-
cals or detergent.
Power Adapter
• To disconnect the unit from the mains supply, unplug the lead from the mains
socket.
• Only use the supplied mains adaptor as failure to do this may result in a safety risk
and/or damage to the unit.

6
Batteries
• Observe the correct polarity when inserting the batteries.
• Do not expose batteries to high temperatures and do not
place them on locations where the temperature might increase
quickly, e.g. near the re or on the direct sunshine.
• Do not expose batteries to excessive radiant heat, do not throw
them into the re, do not disassemble them and do not try to
recharge un-rechargeable batteries. They could leak or explode.
• Never use dierent batteries together or mix new and old ones.
• When the Remote Control is not to be used for a long time
(more than a month), remove the battery from the Remote Control to prevent it
from leaking.
• If the batteries leak, wipe away the leakage inside the battery compartment and
replace the batteries with new ones.
• Do not use any batteries other than those specied.
Do not ingest battery, chemical burn hazard
• If the battery is swallowed, it can cause severe internal burns in just 2 hours and
lead to death. Keep new and used batteries away from children. If the battery
compartment does not close securely, stop using the product and keep it away from
children. If you think batteries might have been swallowed or placed inside any part
of the body, seek immediate medical attention.
Disposal of this equipment and Batteries
• Do not dispose of this product or its batteries as unsorted municipal
waste. Return it to a designated collection point for the recycling
of WEEE in accordance with local law. By doing so, you will help to
conserve resources and protect the environment.
• Most of the EU countries regulate the disposal of batteries by law.
Contact your retailer or local authorities for more information.
• The shown above appears on electrical and electronivcal equipment
and batteries (or the packaging) to remind users of this. If "Hg" or 'Pb'
appears below the symbol, this mean that the battery cantains traces
of mercury (Hg) or lead (Pb), respectively.
• Users are requested to use existing return facilities for used equipment
and batteries.
CE and UKCA statement:
• Hereby, Sharp Consumer Electronics Poland sp. z o.o. declares that this audio device
is in compliance with the essential requirements and other relevant provisions of
RED Directive 2014/53/EU and UK Radio Equipment Regulations 2017.
• The full text of the EU declaration of conformity is available by following the link
www.sharpconsumer.com and then entering download section of your model and
choosing“CE Statements”.
Cd

EN
Accessories
• 1x User guide
• 1x Warranty leaet
• 1x Remote control
• 2x AAA battery
• 1x Power adapter
• 1x AC plug for power adapter
• 4x Silicone feet
• 1x Wall mount xings

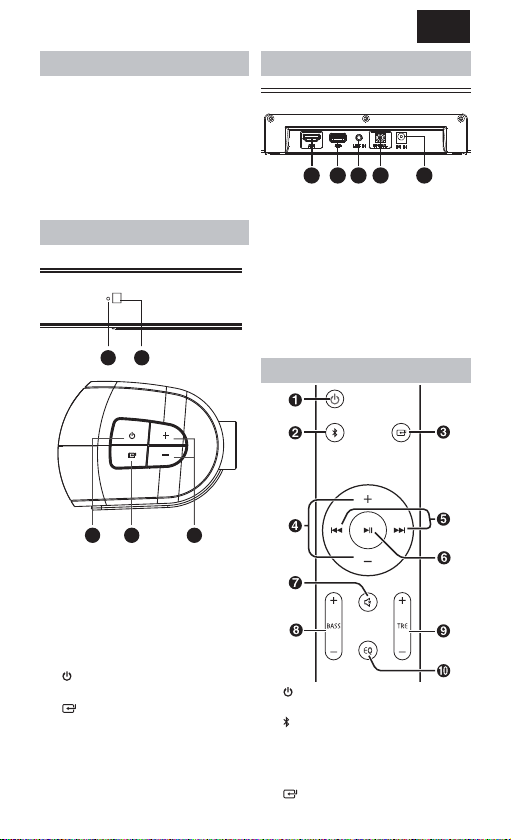

Controls
1 2
345
1. Indicator light
• Red: In STANDBY mode.
• Blue: In Bluetooth mode.
• Green: In LINE IN mode.
• Yellow: In Optical mode.
• Cyan: In HDMI ARC mode.
• Purple: In USB mode.
2. Remote sensor
3. Standby – Switch the unit be-
tween ON and STANDBY mode.
4. Source – Select the play function.
5. Volume +/- – Increase/decrease the
volume level.
Inputs/Outputs
34 125
1. ARC Socket – Connect to a TV via
HDMI cable.
2. USB Socket – Used to connect with
the USB ash disk.
3. LINE IN Socket – Connect to an
external audio device.
4. OPTICAL Socket – Opticial input
jack.
5. DC IN Socket – Socket for connect-
ing power adapter (DC 18V/2,0A).
Remote control
1. – Switch the unit between ON and
STANDBY mode.
2. – Select the Bluetooth mode.
Press and hold to activate the
pairing function in Bluetooth mode
or disconnect the existing paired
Bluetooth device.
3. – Select the play function.

8
4. VOL +/- – Increase/decrease the
volume level.
5. / – Skip to previous/next track
in Bluetooth/USB mode.
6. – Play/pause/resume playback in
Bluetooth/USB mode.
7. – (MUTE) Mute or resume the
sound.
8. BASS +/- – Adjust bass level.
9. TRE +/- – Adjust treble level.
10. EQ – Select a preset sound mode.
RC OPERATIONS
The provided Remote Control allows the
unit to be operated from a distance.
• Even if the Remote Control is operated
within the eective range of 6m, remo-
te control operation may be impossible
if there are any obstacles between the
unit and the remote control.
• If the Remote Control is operated near
other products which generate infrared
rays, or if other remote control devices
using infra-red rays are used near the
unit, it may operate incorrectly. Conver-
sely, the other products may operate
incorrectly.
BATTERY INSTALLATION
1. Press and slide the back cover to
open the battery compartment of the
remote control.
2. Insert two AAA size batteries
(included). Make sure the (+) and (–)
ends of the batteries match the (+)
and (–) ends indicated in the battery
compartment.
3. Close the battery compartment cover.
First time installation
Placement and Mounting
A B
A1
A: Normal Placement (A1 - Attach
the silicone feet to the bottom of the
soundbar.
Place Soundbar on leveled surface in
front of TV.)
B: Wall Mounting
Wall Mounting
NOTE:
 Installation must be carried out by
qualied personnel only. Incorrect
assembly can result in severe personal
injury and property damage (if you
intend to install this product yourself,
you must check for installations such
as electrical wiring and plumbing that
may be buried inside the wall). It is the
installer’s responsibility to verify that
the wall will safely support the total
load of the unit and wall brackets.
 Additional tools (not included) are
required for the installation.
 Do not overtighten screws.
 Keep this instruction manual for future
reference.
 Use an electronic stud nder to check
the wall type before drilling and
mounting.

EN
500 mm
1
(4mm)
2
500 mm
1. Drill 2 parallel holes (Ø 6mm) in the
wall. The distance between the holes
should be 500 mm.
 Firmly x one plug into each hole
in the wall and then insert screws
into them.
2. Leave a 4mm gap between the wall
and the screw’s head. Lift the unit‘s
integrated wall brackets over the
heads of the screws and slot into
place.
Connections
OPTICAL DC INLINE INUSBARC
HDMI ARC input
The ARC (Audio Return Channel) function
allows you to send audio from your ARC-
compliant TV to your sound bar through a
single HDMI connection. To enjoy the ARC
function, please ensure your TV is both
HDMI-CEC and ARC compliant and set up
accordingly. When correctly set up, you
can use your TV remote control to adjust
the volume output (VOL +/- and MUTE) of
the sound bar.
 Connect the HDMI cable (not included)
from unit‘s HDMI (ARC) socket to the
HDMI (ARC) socket on your ARC com-
pliant TV. Then press the remote control
to select HDMI ARC.
TIPS:
• Your TV must support the HDMI-CEC
and ARC function. HDMI-CEC and ARC
must be set to On.
• The setting method of HDMI-CEC and
ARC may dier depending on the TV.
For details about ARC function, please
refer to your TV owner’s manual.
• Only HDMI cables of version 1.4 or
higher can support the ARC function.
• While in HDMI ARC mode, if there’s no
sound output from the unit, you may
need to activate PCM signal output
on your source device (eg. TV, DVD or
Blu-ray player).
OPTICAL DC INLINE INUSBARC
OPTICAL input
• Use the optical cable to connect the
optical input of this soundbar to the
optical output of VCD, CD, VCR, DVD
player.
TIPS:
• While in OPTICAL mode, if there’s no
sound output from the unit, you may
need to activate PCM signal output
on your source device (eg. TV, DVD or
Blu-ray player).

10
OPTICAL DC INLINE INUSB
ARC
LINE IN
A. Use a RCA to 3.5mm audio cable (not
included) to connect the TV’s audio
output sockets to the LINE IN socket
on the unit.
B. Use a 3.5mm to 3.5mm audio cable
(not included) to connect the TV’s
or external audio device headphone
socket to the LINE IN socket on the
unit.
TIP:
When you use the headphone output on
the TV set, you will be able to adjust the
volume level directly using the TV remote
control.
ARC OPTICAL DC INLINE INUSB
EU
UK
DC IN
Connect to Power
• Before connecting the power adapter,
ensure you have completed all other
connections.
• Risk of product damage! Only use the
supplied mains adaptor as failure to do
this may result in a safety risk and/or
damage to the unit.
• Connect the power adapter to the DC
IN socket of the unit and then into a
mains socket.
Basic Operation
Standby/ON
• When you rst connect the unit to the
main socket, the unit will be in STAND-
BY mode.
• Press the button on the remote cont-
rol to switch the main unit ON or OFF.
• Disconnect the main plug from the
main socket if you want to switch the
unit o completely.
 When the unit has no input signal for
over 15 minutes, it will automatically
switch to Standby mode.
Select Modes
Press the button on the unit
repeatedly or press the buttons on
the remote control to select the desired
mode.
Adjust the Volume
 Press the + / - buttons on the unit or
on the remote control to adjust the
volume.
 If you wish to turn the sound o, press
the button on the remote control.
Press the button again or press the
+/- buttons on the unit or on the remo-
te control to resume normal listening.
Select Equaliser (EQ) Effect
While playing, press the EQ button on the
remote control to select between preset
equalisers.
Each time the button is pressed it will
move between the EQ functions as below:
Music (recommended for listening to
all types of music) - white light ashes 2
seconds.
Movie (recommended for use with
