CD-ES600V
– 0 –
SERVICE MANUAL
NTSC/PAL
No. S64448CDES600V
SHARP CORPORATION
CONTENTS
Parts marked with " " are important for maintaining the safety of the set. Be sure to replace these parts with specified ones for
maintaining the safety and performance of the set.
This document has been published to be used
for after sales service only.
The contents are subject to change without notice.
CHAPTER 1. GENERAL DESCRIPTION
[1] Specifications ................................................. 1-1
[2] Names of parts............................................... 1-2
CHAPTER 2. ADJUSTMENTS
[1] Mechanism section ........................................ 2-1
[2] Tuner section ................................................. 2-1
[3] TEST MODE .................................................. 2-2
[4] CD SECTION ................................................. 2-4
[5] CD section...................................................... 2-4
[6] Standard Specification of Stereo System
Error Message Display Contents ................... 2-4
[7] CD Changer mechanism section ................... 2-5
CHAPTER 3. MECHANISM BLOCKS
[1] Caution on diassembly................................... 3-1
[2] Removing and reinstalling the main parts........ 3-4
CHAPTER 4. DIAGRAMS
[1] Block diagrams............................................... 4-1
CHAPTER 5. CIRCUIT DESCRIPTION
[1] Notes on schematic diagram .........................5-1
[2] Types of transistor and LED ..........................5-1
[3] Waveforms of CD circuit ................................5-2
[4] Voltage...........................................................5-3
CHAPTER 6. CIRCUIT SCHEMATICS AND PARTS
LAYOUT
[1] Schematic diagram........................................6-1
[2] Wiring side of PWB......................................6-14
CHAPTER 7. FLOWCHART
[1] Troubleshooting .............................................7-1
CHAPTER 8. OTHERS
[1] Function table of IC .......................................8-1
[2] FL Display.................................................... 8-11
Parts Guide
In the interests of user-safety the set should be restored to its
original condition and only parts identical to those specified be
used.
VIDEO CD MINI SYSTEM
CD-ES600V
MODEL
CD-ES600V Video CD Mini System consisting of CD-ES600V (main unit)
and CP-ES600V (speaker system).

CD-ES600V
– i –
SAFETY PRECAUTION FOR SERVICE MANUAL
WARNINGS
THE AEL (ACCESSIBLE EMISSION LEVEL) OF THE LASER POWER OUTPUT IS LESS THAN CLASS 1 BUT THE LASER
COMPONENT IS CAPABLE OF EMITTING RADIATION EXCEEDING THE LIMIT FOR CLASS 1. THEREFORE IT IS
IMPORTANT THAT THE FOLLOWING PRECAUTIONS ARE OBSERVED DURING SERVICING TO PROTECT YOUR EYES
AGAINST EXPOSURE TO THE LASER BEAM.
1-WHEN THE CABINET IS REMOVED, THE POWER IS TURNED ON WITHOUT A COMPACT DISC IN POSITION AND THE
PICKUP IS ON THE OUTER EDGE THE LASER WILL LIGHT FOR SEVERAL SECONDS TO DETECT A DISC. DO NOT
LOOK INTO THE PICKUP LENS.
2-THE LASER POWER OUTPUT OF THE PICKUP UNIT AND REPLACEMENT SERVICE PARTS ARE ALL FACTORY
PRESET BEFORE SHIPMENT.
DO NOT ATTEMPT TO READJUST THE LASER PICKUP UNIT DURING REPLACEMENT OR SERVICING.
3-UNDER NO CIRCUMSTANCES STARE INTO THE PICKUP LENS AT ANY TIME.
4-CAUTION-USE OF CONTROLS OR ADJUSTMENTS, OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
AC POWER SUPPLY CORD AND AC PLUG ADAPTOR
VOLTAGE SELECTION
Before operating the unit on mains, check the preset voltage. If the voltage is different from your local voltage, adjust the voltage
as follows.
Turn the selector with a screwdriver until the appropriate voltage number appears in the window (110 V, 127 V, 220 V or 230 V - 240 V AC).
QACCE0015AW00

CD-ES600V
– ii –
1. Employing lead-free solder
"VCD PWB" of this model employs lead-free solder. The LF symbol indicates lead-free solder, and is attached on the PWB and
service manuals. The alphabetical character following LF shows the type of lead-free solder.
Example:
Indicates lead-free solder of tin, silver and copper.
2. Using lead-free wire solder
When fixing the PWB soldered with the lead-free solder, apply lead-free wire solder. Repairing with conventional lead wire solder
may cause damage or accident due to cracks.
As the melting point of lead-free solder (Sn-Ag-Cu) is higher than the lead wire solder by 40 C, we recommend you to use a
dedicated soldering bit, if you are not familiar with how to obtain lead-free wire solder or soldering bit, contact our service station
or service branch in your area.
3. Soldering
As the melting point of lead-free solder (Sn-Ag-Cu) is about 220 C which is higher than the conventional lead solder by 40 C,
and as it has poor solder wettability, you may be apt to keep the soldering bit in contact with the PWB for extended period of
time. However, Since the land may be peeled off or the maximum heat-resistance temperature of parts may be exceeded,
remove the bit from the PWB as soon as you confirm the steady soldering condition.
Lead-free solder contains more tin, and the end of the soldering bit may be easily corrected. Make sure to turn on and off the
power of the bit as required.
If a different type of solder stays on the tip of the soldering bit, it is alloyed with lead-free solder. Clean the bit after every use
of it.
When the tip of the soldering bit is blackened during use, file it with steel wool or fine sandpaper.
Be careful when replacing parts with polarity indication on the PWB silk.
Lead-free wire solder for servicing
Ref No. DescriptionParts No.
PWB-C 92LPWB5619VCDS CD Servo

CD-ES600V
1 – 1
AudioCD-ES600VService ManualCD-ES600VMarketE
CHAPTER 1. GENERAL DESCRIPTION
[1] Specifications
General
Amplifier
Video CD
Tuner
Cassette deck
Power source AC 110/127/220/230 - 240 V, 50/60 Hz
Power
consumption
120 W
Dimensions Width: 260 mm (10-1/4")
Height: 330 mm (13")
Depth: 326 mm (12-7/8")
Weight 8.7 kg (19.2 lbs.)
Output power MPO: 450 W (225 W + 225 W) (10 % T.H.D.)
RMS: 240 W (120 W + 120 W) (10 % T.H.D.)
RMS: 180 W (90 W + 90 W) (0.9 % T.H.D.)
Output terminals Speakers: 6 ohms
Headphones: 16 - 50 ohms
(recommended: 32 ohms)
Video out: 1 Vp-p (75 ohms)
Input terminals Game/ Auxiliary (audio signal):
500 mV/ 47 k ohms
Game/Video: 1 Vp-p
Microphone 1/2: 1 mV/600 ohms
Video output
format
PAL/NTSC
Frequency range FM: 88.0 - 108.0 MHz
AM: 531 - 1,602 kHz
Frequency
response
50 - 14,000 Hz (normal tape)
Signal/noise ratio 55 dB (TAPE 1, playback)
50 dB (TAPE 2, recording/playback)
Wow and flutter 0.3 % (WRMS)
Type 2-way type speaker system with passive
radiator
5 cm (2") tweeter
13 cm (5-1/8") woofer
10 cm (4") passive radiator
Maximum input
power
240 W
Rated input power 120 W
Impedance 6 ohms
Dimensions Width: 252 mm (9-7/8")
Height: 330 mm (13")
Depth: 249 mm (9-13/16")
Weight 3.6 kg (7.9 lbs.)/each
CD-ES600V
CP-ES600V
CD player
Type 5-disc multi-play compact disc player
Signal readout Non-contact, 3-beam semiconductor laser
pickup
D/A converter 1-bit D/A converter
Frequency
response
20 - 20,000 Hz
Dynamic range 90 dB (1 kHz)
Specifications for this model are subject to change without
prior notice.
FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER
TO THE OPERATION MANUAL.

CD-ES600V
1 – 2
[2] Names of parts
Front panel
1. Disc Trays
2. Timer Indicator
3. Video CD Playback Control Button
4. Video CD On Screen Display On/Off Button
5. On/Stand-by Button
6. Video CD Digest/Time Search Button
7. Video CD Skip or Next, CD/MP3 Disc Track Up or
Fast Forward, Tape 2 Fast Wind, Tuner Preset Up,
Time Up Button
8. Clock/Timer Button
9. Tuning Up Button
10. Tuning Down Button
11. Tape 2 Reverse Mode Select Button
12. Video CD Skip or Previous, CD/MP3 Disc Track Down
Fast Reverse, Tape 2 Fast Wind, Tuner Preset Down,
Time Down Button
13. Equalizer Mode Select Button
14. Tape 1 Cassette Compartment
15. Game/Video Input Sockets
16. Headphone Socket
17. Disc Number Select Buttons
18. Disc Direct Play Button
19. Disc Tray Open/Close Button
20. Video CD Play or Repeat or Select or Resume,
CD/MP3 Disc Play or Repeat, Tape 1 Play,
Tape 2 Forward Play Button
21. Memory/Set Button
22. Tape 2 Record Pause Button
23. Tape 2 Reverse Play Button
24. Video CD Stop or Return,
CD/MP3 Disc/Tape Stop Button
25. Extra Bass/Demo Mode Button
26. Volume Control
27. Tape 2 Cassette Compartment
28. Tuner (Band) Button
29. Video CD/CD/MP3 Disc Button
30. Tape (1 2) Button
31. Game/Video Button
32. Microphone Socket 1
33. Microphone Socket 2
34. Microphone Level Control
17
19
26
21
25
2
8
9
5
3
1
24
27
18
22
16
15
14
11
10
12
13
29 30 3128
20
23
4
6
7
32 33 34
Display
1. Disc Number Indicators
2. Disc Play Indicator
3. Disc Pause Indicator
4. Memory Indicator
5. Disc Repeat Play Indicator
6. Video CD Indicator
7. CD Indicator
8. MP3 Disc Indicator
9. Extra Bass Indicator
10. Sleep Indicator
11. Tape 2 Record Indicator
12. Timer Play Indicator
13. Timer Recording Indicator
14. Tape 2 Reverse Play Indicator
15. Tape 1 Play or Tape 2 Forward Play Indicator
16. Tape Reverse Mode Indicator
17. Karaoke Mode Indicator
18. FM Stereo Mode Indicator
19. Daily Timer Indicator
20. FM Stereo Receiving Indicator
976 8321 4 5 12 13
1110
1614 15
1918 2017
Rear panel
1. Cooling Fan
2. AC Voltage Selector
3. AC Power Lead
4. FM 75 Ohm Aerial Terminal
5. FM Aerial Earth Terminal
6. AM Loop Aerial Socket
7. Span Selector Switch
8. Video Output Socket
9. Speaker Terminals
16
5
4
9
3
2
7
8
CD-ES600V

CD-ES600V
1 – 3
Remote control
1. Remote Control Transmitter
2. Disc Number Select Buttons
3. Echo Level Up and Down Buttons
4. Karaoke Mode Button
5. Video CD Auto/On Button
6. Video CD Playback Control Auto/Off Button
7. Video CD On Screen Display On/Off Button
8. Disc Clear/Dimmer Button
9. Video CD Digest/Time Search Button
10. Video CD Bookmark Button
11. PAL/NTSC Select Button
12. Tape 2 Record Pause Button
13. Video CD/CD/MP3 Disc Button
14. Tuner (Band) Button
15. Tape (1 2) Button
16. Game/Video Button
17. On/Stand-by Button
18. Clock/Timer Button
19. MP3 Disc Display Button
20. Disc Direct Search Buttons
21. Memory/Set Button
22. Disc Random Button
23. Video CD Skip or Previous, CD/MP3 Disc Track Down or
Fast Reverse, Tape 2 Fast Wind, Tuner Preset Down,
Time Down Button
24. Disc Pause Button
25. Video CD Skip or Next, CD/MP3 Disc Track Up or
Fast Forward, Tape 2 Fast Wind, Tuner Preset Up,
Time Up Button
26. Tape 2 Reverse Play Button
27. Video CD Stop or Return,
CD/MP3 Disc/Tape Stop Button
28. Video CD Play or Repeat or Select or Resume,
CD/MP3 Disc Play or Repeat, Tape 1 Play,
Tape 2 Forward Play Button
29. Equalizer Mode Select Button
30. Extra Bass Button
31. Volume Up and Down Buttons
1
219
20
18
17
3
4
5
6
7
8
9
10
11
15
14
13
16
12
21
22
27 28
24 2523
26
31
29 30
1. Tweeter
2. Passive Radiator
3. Woofer
4. Speaker Wire
4
1
2
3
CD-ES600V
CP-ES600V

CD-ES600V
2 – 1
AudioCD-ES600VService ManualCD-ES600VMarketE
CHAPTER 2. ADJUSTMENTS
[1] Mechanism section
• Driving Force Check
• Torque Check
• Tape Speed
Figure 1
[2] Tuner section
fL: Low-range frequency
fH: High-range frequency
• AM IF/RF
Signal generator: 400 Hz, 30%, AM modulated
•FMRF
Signal generator: 1 kHz, 40 kHz dev., FM modulated
•FMIF
Signal generator: 10.7 MHz, FM modulated
Figure 2 Adjustment Points
Torque Meter Specified Value
Play: TW-2111 Tape 1: Over 80 g
Tape 2: Over 80 g
Torque Meter Specified Value
Tape 1 Tape 2
Play: TW-2111 30 to 80 g.cm 30 to 80 g.cm
Fast forward: TW-2231 — 70 to 180 g.cm
— 70 to 180 g.cm
Test Tape Adjust-
ing Point
Specified
Value
Instrument
Connection
Normal
speed
MTT-111 Variable
Resistor in
motor.
3,000 ±30 Hz
Speaker
Speaker Ter-
minal (Load
resistance: 6
ohms)
Test Stage Frequency Frequency
Display
Setting/
Adjusting
Parts
Instrument
Connection
AM IF 450 kHz 1,602 kHz T351 *1
AM Band
Coverage
— 531 kHz (fL): T306
1.1 ±0.1 V
*2
AM
Tracking
990 kHz 990 kHz (fL): T303 *1
*1. Input: Antenna Output: TP302
*2. Input: Antenna Output: TP301
TAPE MECHANISM
Tape
Motor
Variable Resistor in motor
Test
Stage
Frequency Frequency
Display
Setting/
Adjusting
Point
Instrument
Connection
FM Band
Coverage
— 87.50 MHz T301 (fL):
1.3 V ±0.1 V
*1
FM RF 98.00 MHz
(10-30 dB)
98.00 MHz L312 *2
*1. Input: Antenna Output: TP301
*2. Input: Antenna Output: Speaker terminal
Test
Stage
Frequency Frequency
Display
Setting/Adjust-
ing Point
Instrument
Connection
IF 10.7 MHz 98 MHz T302 (Turn the
core of trans-
former T302
fully counter
clockwise)
*1
AM IF
FM RF
TP301
TP302
FM IF
T301
T302
R356
R381
T303
T306
IC301
L312
T351
CNP301
AM/FM LOOP ANTENNA
FM BAND
COVERAGE fL
AM BAND
COVERAGE fL
AM TRACKING
fL
MAIN PWB
1

CD-ES600V
2 – 2
[3] TEST MODE
•Setting the test mode
During stand-by mode, press ON/STAND-BY button while pressing
down the button and X-BASS/DEMO button. then, press the CD
button to enter the test mode.
IL isn’t done
OPEN/CLOSE operation is using manual. IL isn’t done
<< >>,<< >>buttons make pick's slide possible. IL isn’t done
to page 2-3
<<PLAY>> key input.
C D T E S T
A
Do TOC IL. Do normal play.
When these following key is input into PLAY key, track num-
ber can be appoint directly.
<<MEMORY>>
key input.
<< 1>> key: Track 4
<< 2>> key: Track 9
<< 3>> key: Track 15
Adjustment result automatically will
display as below for each 2 sec:
a) "FOF_XXXX"
b) "TOF_XXXX"
c) "TBAL_XX"
d) "TGAN_XX"
f) "FGAN_XX"
g) "RFLS_XX"
––––––––
<<STOP>> key input.
STOP
explanation:
a) Focus off set = "FOF_XXXX"
b)Tracking off set = "TOF_XXXX"
c)Tracking balance = "TBAL_XX"
d)Tracking Gain = "TGAN_XX"
f) Focus Gain = "FGAN_XX"
g) RF level shift = "RFLS_XX"
VOL — Last memory
P.GEQ — FLAT
X-BASS — OFF
To cancel : Power OFF

CD-ES600V
2 – 3
Sliding the PICKUP with<< >>, << >> button must only be
in STOP mode.
<<MEMORY>> key input.
Laser ON.
<<MEMORY>> key input.
Tracking OFF play at that specific point.
<<MEMORY>> key input.
Tracking ON play from that specific point.
<<MEMORY>> key input.
Adjustment result automatically will display as below for each 2 sec :
a) "FOF_XXXX"
b) "TOF_XXXX"
c) "TBAL_XX"
d) "TGAN_XX"
f) "FGAN_XX"
g) "RFLS_XX"
<<STOP>> key input.
STOP
explanation:
a) Focus off set = "FOF_XXXX"
b)Tracking off set = "TOF_XXXX"
c)Tracking balance = "TBAL_XX"
d)Tracking Gain = "TGAN_XX"
f) Focus Gain = "FGAN_XX"
g) RF level shift = "RFLS_XX"
VOL — Last memory
P.GEQ — FLAT
X-BASS — OFF
To cancel : Power OFF
A

CD-ES600V
2 – 4
[4] CD SECTION
• Adjustment
Since this CD system incorporates the following automatic adjust-
ment functions, readjustment is not needed when replacing the
pickup. Therefore, different PWBs and pickups can be combined
freely.
Each time a disc is changed, these adjustments are performed
automatically. Therefore, playback of each disc can be performed
under optimum conditions.
Items adjusted automatically
1) Offset adjustment (The offset voltage between the head amplifier
output and the VREF reference voltage is compensated inside the
IC.)
* Focus offset adjustment
* Tracking offset adjustment
2) Tracking balance adjustment
3) Gain adjustment (The gain is compensated inside the IC so that the
loop gain at the gain crossover frequency will be 0 dB.)
* Focus gain adjustment
* Tracking gain adjustment
[5] CD section
CD Error code description
* 'CHECKING'
If Error is detected, 'CHECKING' will be displayed instead of 'ER-
CD**'. 'ER-CD**' display will only be displayed when error had been
detected for the 5th times.
[6] Standard Specification of Stereo System Error Message Display Contents
(*) CHECKING:
If CD changer mechanism error is detected, 'CHECKING' will be dis-
play instead of 'ER-CD**'. 'ER-CD**' display will only be display when
error had been detected for the 5 th times.
Speaker abnormal detection and +B PROTECTION display
In case speaker abnormal detection or +B PROTECTION had
occurred, it can be check by pressing 'POWER', ' ' and 'X-BASS'
button. MicroComputer version number will displayed as "XV******".
Press ‘GAME/VIDEO’ button during version number display and then
press ‘POWER’, ‘MEMORY/SET’ and ‘GAME/VIDEO’ button. Display
will show "S** B**". S is referring to speaker abnormal detection and B
is referring to +B PROTECTION. ** is in hex valve.
+B PROTECTION is condition when irregular process occur on power
supply line.
BEFORE TRANSPORTING THE UNIT
The following process need to be taken after set tapering/parts
replacement.
1. Press the ON/STAND-BY button to enter stand-by mode.
2. While pressing down the button and the X-BASS/DEMO but-
ton, press the ON/STAND-BY button. The Micro Computer version
number will be displayed as "XV******".
3. Press OPEN/CLOSE button until "WAIT"→"FINISHED" appears.
4. Unplug the AC cord and the unit is ready for transporting.
Error Explanation
01 When Pickup set inner position, inner switch cannot detect
'ON' level for 10 secs.
10* CAM error. Can't detect CAM switch when CAM is moving.
11* When it detect cam operation error during initialize pro-
cess.
20* TRAY error. Can't detect TRAY switch when TRAY is mov-
ing.
21* When it detect TRAY operation error during initialize pro-
cess.
31 When it change to CD function, DSP cannot read initial
data.
Error Contents Display Notes
CD Pickup Mechanism Error. 'ER-CD01' PU-IN SW Detection NG.
CD Changer Mechanism Error. 'ER-CD**' (*) 10: CAM SW Detection NG during normal operation
11: CAM SW Detection NG during initialize process
20:TRAY SW Detection NG during normal operation
21:TRAY SW Detection NG during initialize process
CD DSP Communication Error. 'ER-CD31' DSP COMMUNICATION ERROR.
Focus Not Match/IL Time Over. 'NO DISC'
TUNER PLL Unlock. PLL Unlock.
87.50

CD-ES600V
2 – 5
[7] CD Changer mechanism section
• A number in the drawing sheet is the number of the parts guide
(CHANGER MECHANISM PARTS).

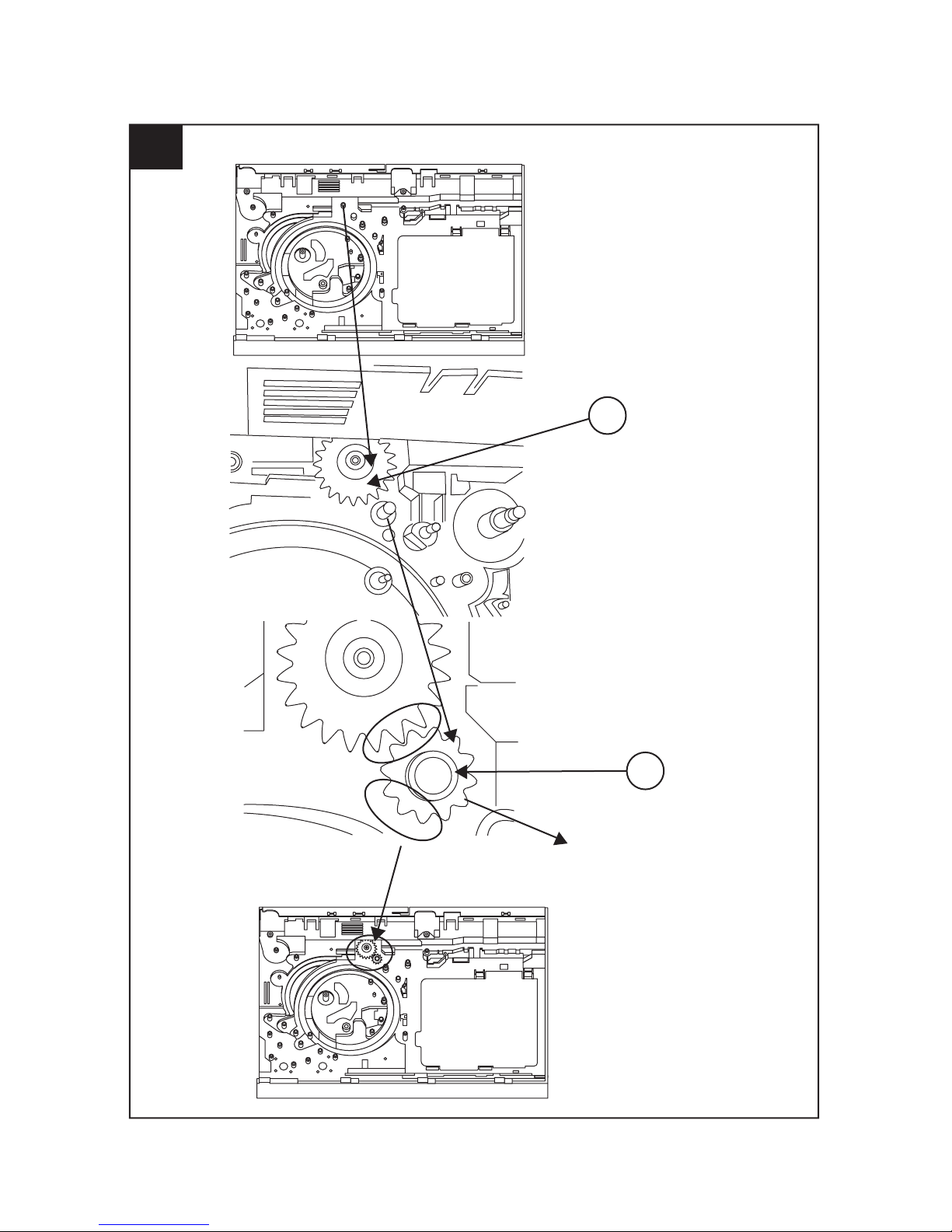

140
141
HALF GEAR
MUST ARRANGE AS SHOWN
1

CD-ES600V
2 – 6
139
2
APPLY SANKOL BEFORE FIX
FIX ITEM 1 ACCORDING TO THE
SHOWN PICTURE ABOVE
ROTATE MODE BIG GEAR UNTIL REACH AS SHOWN IN PICTURE

CD-ES600V
2 – 7
APPLY GREASE
PULL THE LEVER UNITIL
REACH THE ARROW MARK
143
112
3

CD-ES600V
2 – 8

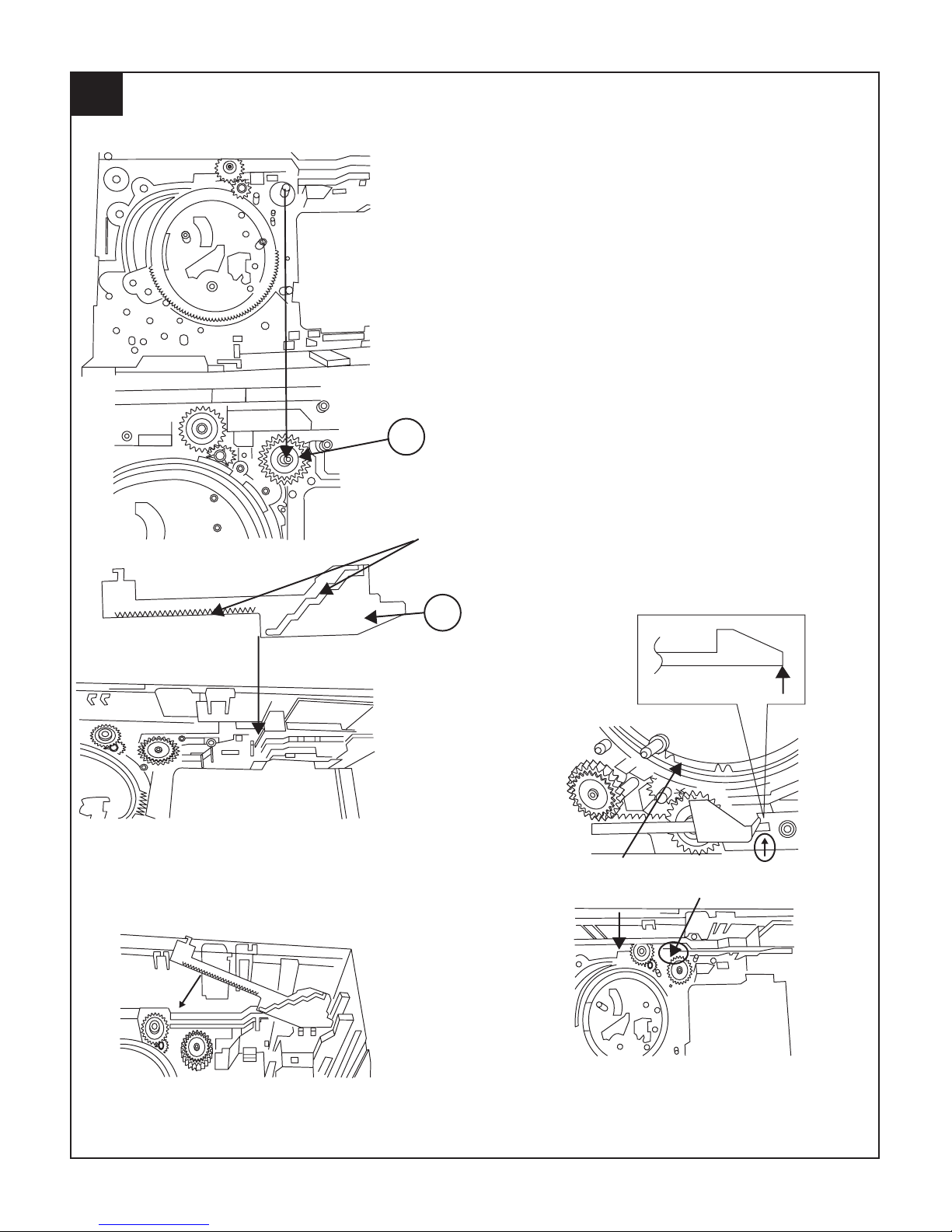

FIGURE 1
FIGURE 2
APPLY GREASE SLOT CLAMP SW ARM INSIDE BASE SLOT
152
142
118
4

CD-ES600V
2 – 9

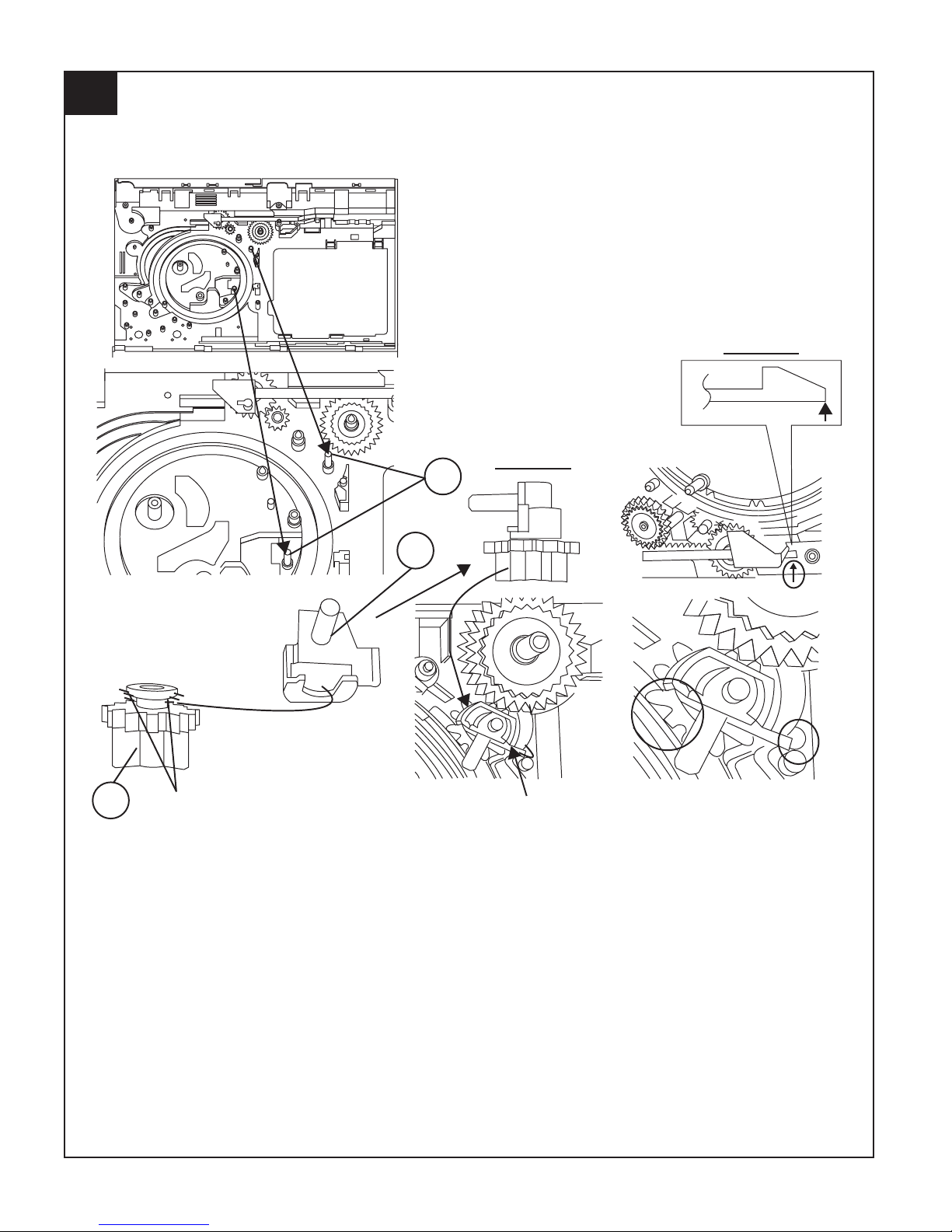

127
128
5
APPLY GREASE AT BOTTOM SIDE
OF GEAR FOLLOW MARKING
NO NEED APPLY GREASE AT BOTTOM
SIDE
O.K
BLACK MARK
FIGURE 1
N.G
OTHER THAN FIGURE 1 DIRECTION ALL N.G
APPLY GREASE AT
TOP SIDE OF GEAR
FOLLOW MARKING

CD-ES600V
2 – 10

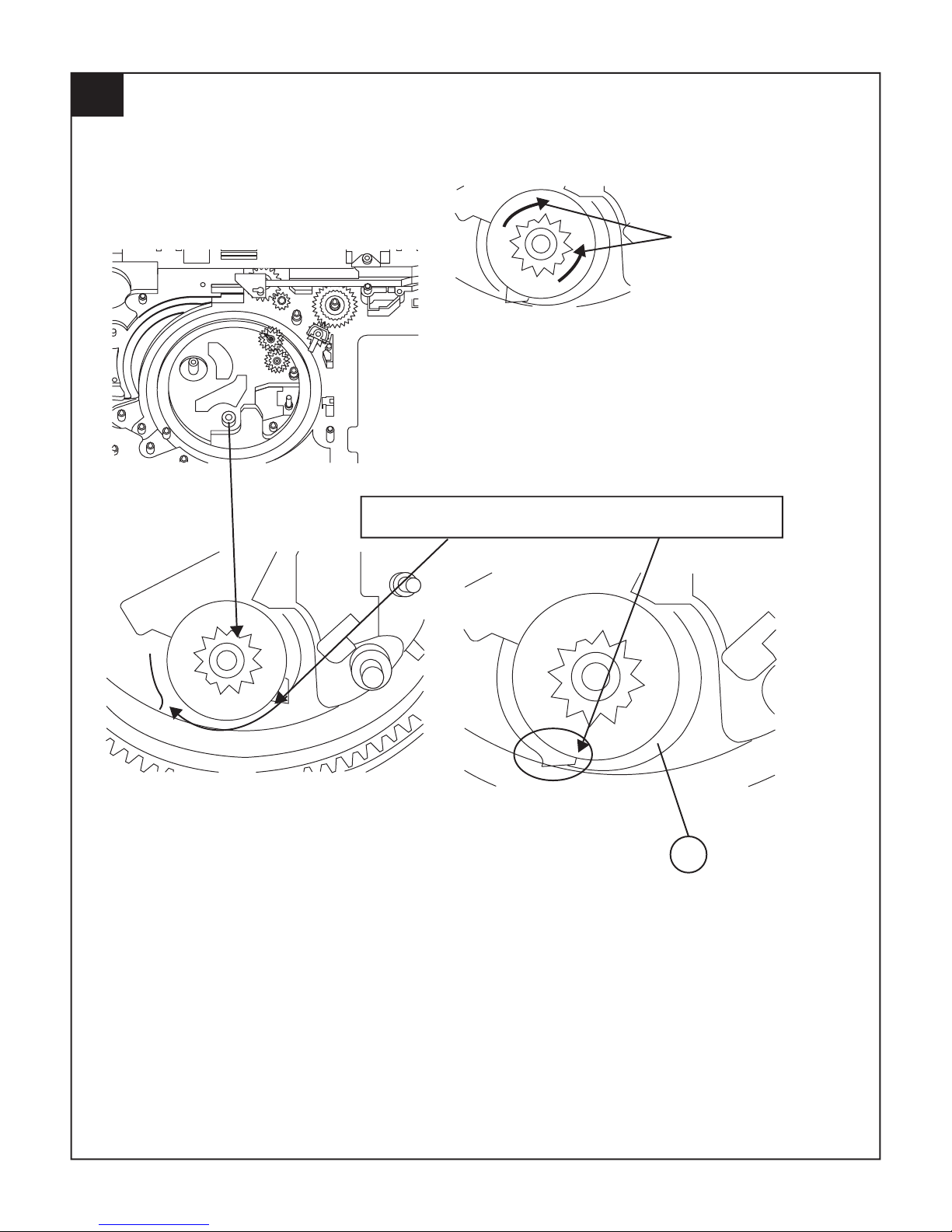

APPLY GREASE AT
HALF GEAR AREA
ROTATE CLOCKWISE UNTIL REACH HERE (MAXIMUM)
6
129

CD-ES600V
2 – 11
CHANGE COLOR TO BLACK
150151148
7

CD-ES600V
2 – 12
124
131
TRAY BIG GEAR
CHANGE COLOR
TO BLACK
TRAY BIG GEAR
CHANGE COLOR
TO BLACK
GREASE APPLICATION LENGTH
GREASE APPLICATION PORTION
MUST FREE FROM GREASE THE SHOWN AREA
O.K
N.G
SHOWN HOLE MUST FACING ARROW DIRECTION
8

CD-ES600V
2 – 13
TR-RE JOINT GEAR C
APPLY GREASE AT
BOTTOM SIDE ONLY
APPLY GREASE ONLY AT TOP SIDE GEAR
MUST FIX ACCORDING TO THE HOLE'S
138 126 125
9

CD-ES600V
2 – 14
10
148 147 146 145
