– 9 –
CD-BA1500H
1 Top Cabinet 1. Screw ..................... (A1) x4 9-1
2 Side Panel 1. Screw ..................... (B1) x8 9-1
(Left/right)
3 CD Player Unit/ 1. Turn on the power supply, 9-2
CD Tray Cover
open the disc tray, take out the
CD cover, and close.
(Note 1)
2. Screw ..................... (C1) x1
3. Hook....................... (C2) x3
4. Hook....................... (C3) x2
5. Socket .................... (C4) x3
4 Rear Panel 1. Screw ..................... (D1) x6 9-2
5 Main PWB 1. Screw ..................... (E1) x5 9-2
2. Socket .................... (E2) x6 10-2
3. Flat Cable............... (E3) x1
4. Lug Wire................. (E4) x1
5. Flat Wire................. (E5) x1
6 RDS PWB 1. Socket .................... (F2) x1 10-2
7 Power PWB 1. Socket .................... (G1) x1 10-2
2. Flat Wire................. (G2) x1
3. Screw ..................... (G3) x2
8 Front Panel 1. Screw ..................... (H1) x2 10-2
9 Display PWB 1. Screw .....................
(J1) x15
10-3
2. Flat Cable............... (J2) x1
10 Tape Mechanism 1. Open the cassette holder. 10-3
2. Screw...................... (K1) x6
11
Headphones PWB
1. Screw ..................... (L1) x1 10-3
12 Turntable 1. Hook....................... (M1) x2 10-4
2. Cover ..................... (M2) x1
13 Disc Tray 1.
Turn fully the lock lever in the
9-3
arrow direction.
2.
While holding the lock lever,rotate
10-1
the cam gear until the cam gear
rib engages with the clamp lever.
3.
Push the slide holder backward to
10-5
engage the claw with the groove
and remove it in the direction
of the arrow. ..............
(N1) x6
14 CD Servo PWB 1. Screw ..................... (P1) x1 10-6
(Note 2) 2. Hook....................... (P2) x3
3. Socket .................... (P3) x4
15 CD Mechanism 1. Hook....................... (R1) x2 11-1
2. Hook....................... (R2) x3
DISASSEMBLY
Caution on Disassembly
Follow the below-mentioned notes when disassembling
the unit and reassembling it, to keep it safe and ensure
excellent performance:
1. Take cassette tape and compact disc out of the unit.
2. Be sure to remove the power supply plug from the wall
outlet before starting to disassemble the unit.
3.Takeoffnylon bandsor wireholders wherethey needto
beremovedwhendisassemblingtheunit.Afterservicing
theunit, besure torearrange theleads wherethey were
before disassembling.
4. Take sufficient care on static electricity of integrated
circuits and other circuits when servicing.
Figure 9-2
Figure 9-3
CD-BA1500H
STEP REMOVAL PROCEDURE FIGURE
Note 1:
How to open the changer manually. (Fig. 9-3)
1. In this state, turn fully the lock lever in the arrow direction
through the hole on the loading chassis bottom.
2.
While holding the lock lever, rotate the cam gear anticlockwise
until the cam gear rib engages with the clamp lever.

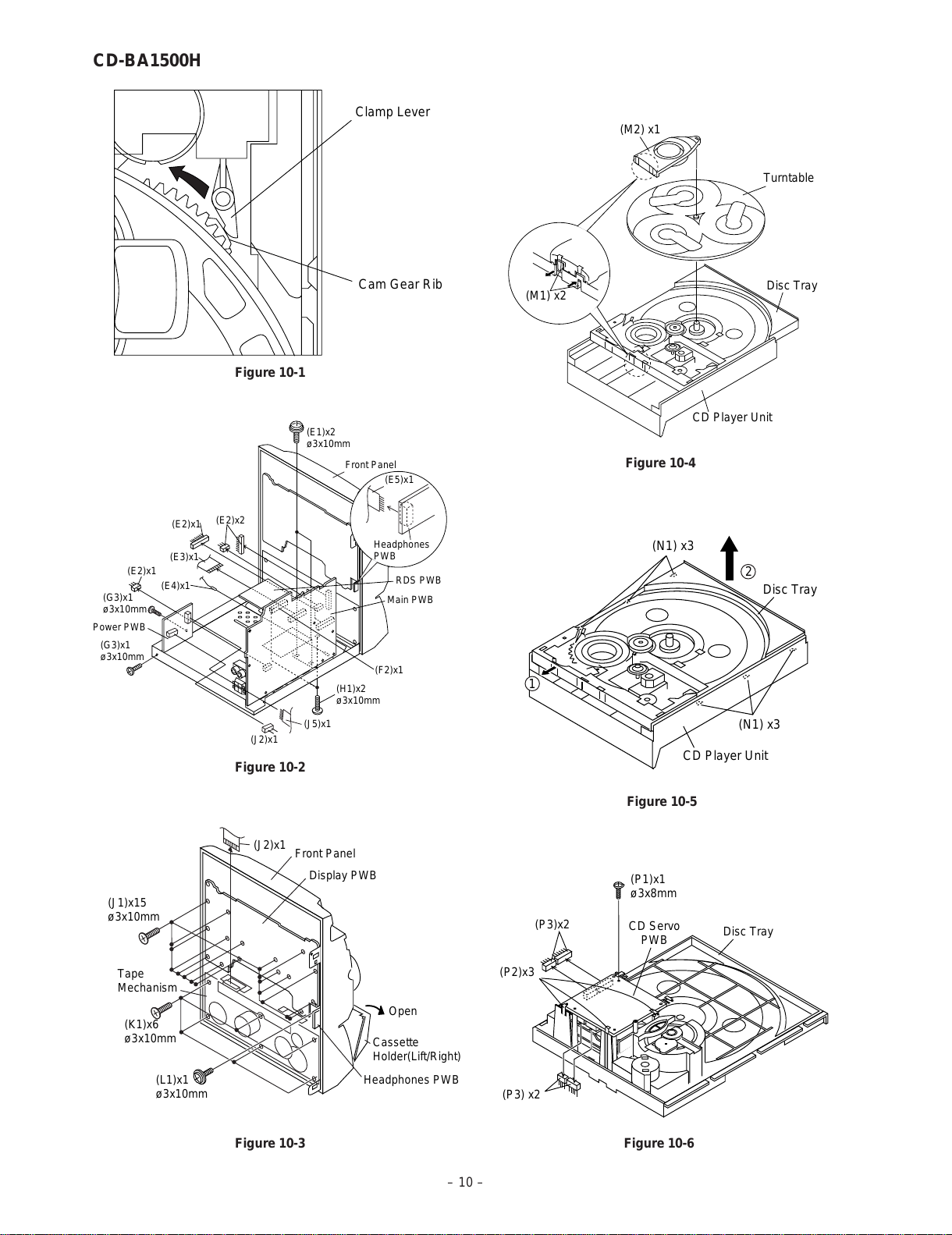

(Fig. 10-1)
3. After that, push forward the CD slide holder.
Figure 9-1
CD-BA1500H
Note 2:
1.Afterremoving theconnectorfor theopticalpickup fromthe
connector, wrap the conductive aluminium foil around the
frontend of the connector to protect the optical pickup from
electrostatic damage.
Note 3:
1. Be careful not to break the claw of the CD mechanism.
2.When fining backthe cam gearassembly, let itlock byfront
movement.
