Sharp CD-MPS600W User manual

04/1/13 CD-MPS800W(Z)_FR.fm TINSZA063AWZZ
MINI COMPONENT SYSTEM
MINI-CHAÎNE
SISTEMA MINI
MODEL
MODÈLE
MODELO
CD-MPS600W
OPERATION MANUAL
MODE D’EMPLOI
MANUAL DE MANEJO
CD-MPS600W
CD-MPS700W
CD-MPS800W
Please refer to pages i and E-1 to E-44.
Se reporter aux pages i et F-1 àF-44.
Consulte las páginas i y S-1 a S-44.
ENGLISH
FRANÇAIS
ESPAÑOL
CD-MPS700W
CD-MPS800W
SHARP CORPORATION

i
04/2/9 CD-MPS800W(Z)_com.fm TINSZA063AWZZ
CD-MPS600W
CD-MPS700W
CD-MPS800W
CD-MPS600W
CD-MPS700W
CD-MPS800W
(For users in the U.S.A.)
CD-MPS600W Mini Component System consisting of
CD-MPS600W (main unit) and CP-MPS600 (speaker system).
Mini-chaîne CD-MPS600W composée de CD-MPS600W (appareil
principal) et de CP-MPS600 (enceinte acoustique).
Sistema mini CD-MPS600W que consta de CD-MPS600W (apara-
to principal) y CP-MPS600 (sistema de altavoces).
CD-MPS700W Mini Component System consisting of
CD-MPS700W (main unit) and CP-MPS700 (speaker system).
Mini-chaîne CD-MPS700W composée de CD-MPS700W (appareil
principal) et de CP-MPS700 (enceinte acoustique).
Sistema mini CD-MPS700W que consta de CD-MPS700W (apara-
to principal) y CP-MPS700 (sistema de altavoces).
CD-MPS800W Mini Component System consisting of
CD-MPS800W (main unit) and CP-MPS800 (speaker system).
Mini-chaîne CD-MPS800W composée de CD-MPS800W (appareil
principal) et de CP-MPS800 (enceinte acoustique).
Sistema mini CD-MPS800W que consta de CD-MPS800W (apara-
to principal) y CP-MPS800 (sistema de altavoces).
NOTE
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful in-
terference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to ra-
dio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be deter-
mined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
WARNING
FCC Regulations state that any unauthorized changes or modifications
tothisequipmentnotexpresslyapprovedbythemanufacturercouldvoid
the user's authority to operate this equipment. 0402
CD-MPS600W CD-MPS600W
CP-MPS600
CD-MPS700W CD-MPS700W
CP-MPS700
CD-MPS800W CD-MPS800W
CP-MPS800

E-1
04/2/9 CD-MPS800W(Z)E1.fm
ENGLISH
TINSZA063AWZZ
CD-MPS600W
CD-MPS700W
CD-MPS800W
4
ENGLISH
Important Instruction
Introduction
Thank you for purchasing this SHARP product. To obtain the best
performance from this product, please read this manual carefully. It
will guide you in operating your SHARP product.
Special notes
Warning:
!When the ON/STAND-BY button is set at STAND-BY position,
mains voltage is still present inside the unit. When the ON/
STAND-BY button is set at STAND-BY position, the unit may be
brought into operation by the timer mode or remote control.
!This unit contains no user serviceable parts. Never remove cov-
ers unless qualified to do so. This unit contains dangerous volt-
ages, always remove mains plug from the socket before any
service operation and when not in use for a long period.
!To prevent fire or shock hazard, do not expose this appliance to
dripping or splashing. No objects filled with liquids, such as
vases, shall be placed on the apparatus.
Note:
Audio-visual material may consist of copyrighted works which must
not be recorded without the authority of the owner of the copyright.
Please refer to the relevant laws in your country.
CAUTION
!This product is classified as a CLASS 1 LASER product.
!This product contains a low power laser device. To ensure con-
tinued safety do not remove any cover or attempt to gain access
to the inside of the product. Refer all servicing to qualified per-
sonnel.
Note:

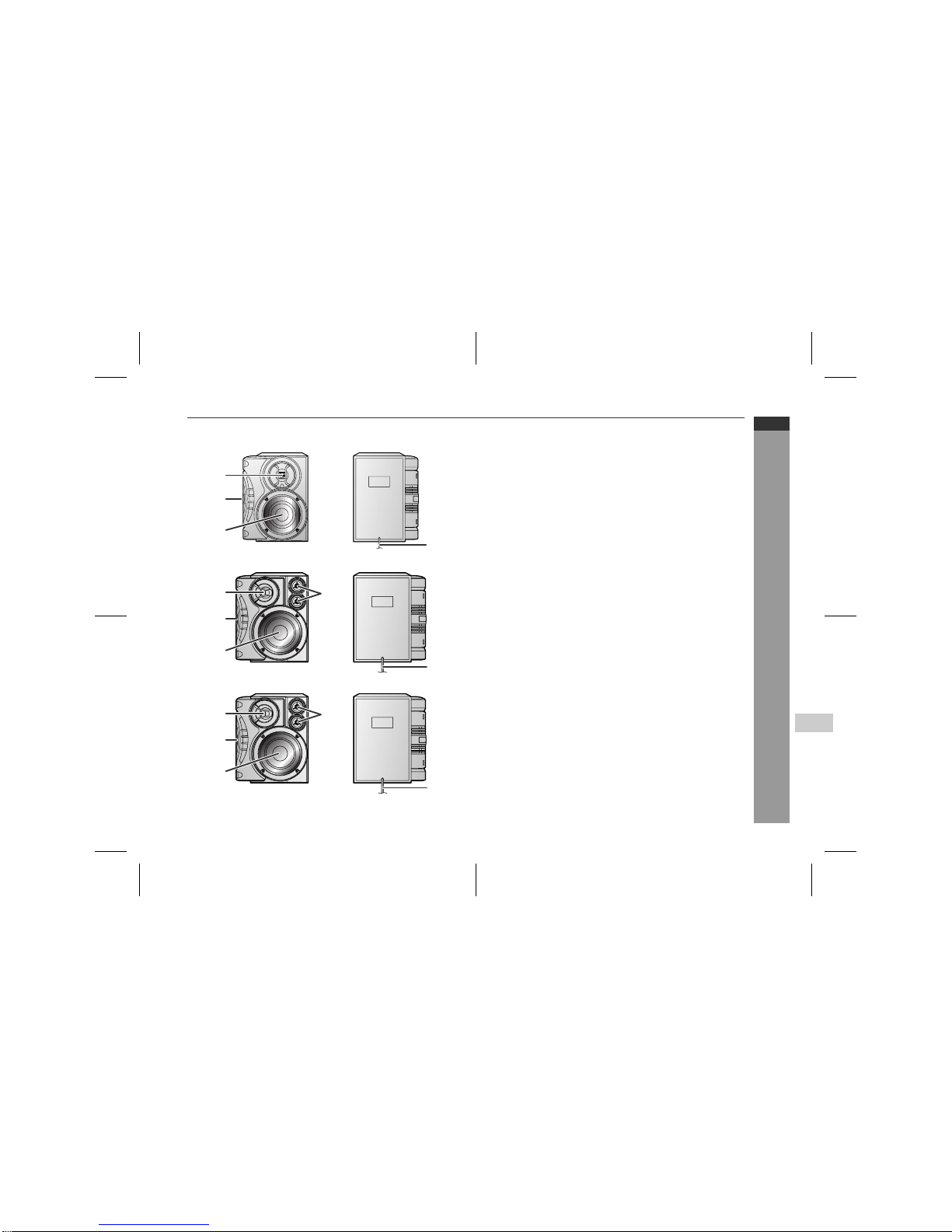

The illustrations of the speaker system in this operation manual are
for the model CD-MPS800W.
1
SHARP TINSZA063AWZZ (Z)

04/2/9 CD-MPS800W(Z)E1.fm
E-2
ENGLISH
TINSZA063AWZZ
CD-MPS600W
CD-MPS700W
CD-MPS800W
General Information
Accessories
Please confirm that the following accessories are included.
Note:
Only the above accessories are included.
Contents
Page
"General Information
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Controls and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 8
"Preparation for Use
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
System connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 13
"Basic Operation
General control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
"CD or MP3 disc Playback
Listening to a CD or MP3 disc . . . . . . . . . . . . . . . . . . . . . 16 - 18
Advanced CD or MP3 disc playback . . . . . . . . . . . . . . . . 19 - 21
MP3 navigation (only for MP3 files) . . . . . . . . . . . . . . . . . 22 - 25
"Radio
Listening to the radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26, 27
"Tape Playback
Listening to a cassette tape (TAPE 1 or TAPE 2) . . . . . . . 28, 29
"Karaoke
Playing karaoke . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30, 31
"Tape Recording
Recording on a cassette tape . . . . . . . . . . . . . . . . . . . . . . 32 - 34
"Advanced Features
Timer and sleep operation . . . . . . . . . . . . . . . . . . . . . . . . 35 - 38
Enhancing your system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39, 40
"References
Troubleshooting chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 - 42
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43, 44
Remote control 1 "AA" size battery (UM/SUM-3,
R6, HP-7 or similar) 2
AM loop aerial 1 FM aerial 1

04/2/9 CD-MPS800W(Z)E1.fm
E-3
ENGLISH
TINSZA063AWZZ
CD-MPS600W
CD-MPS700W
CD-MPS800W
4
General Information
Precautions
"General
!Please ensure that the equipment is positioned in a well venti-
lated area and ensure that there is at least 10 cm (4") of free
space along the sides, top and back of the equipment.
!Use the unit on a firm, level surface free from vibration.
!Keep the unit away from direct sunlight, strong magnetic fields,
excessive dust, humidity and electronic/electrical equipment
(home computers, facsimiles, etc.) which generate electrical
noise.
!Do not place anything on top of the unit.
!Do not expose the unit to moisture, to temperatures higher than
60°C (140°F) or to extremely low temperatures.
!If your system does not work properly, disconnect the AC power
lead from the wall socket. Plug the AC power lead back in, and
then turn on your system.
!In case of an electrical storm, unplug the unit for safety.
!Hold the AC power plug by the head when removing it from the
wall socket, as pulling the lead can damage internal wires.
!Do not remove the outer cover, as this may result in electric
shock. Refer internal service to your local SHARP service
facility.
!The ventilation should not be impeded by covering the ventilation
openings with items, such as newspapers, tablecloths, curtains,
etc.
!No naked flame sources, such as lighted candles, should be
placed on the apparatus.
!Attention should be drawn to the environmental aspects of bat-
tery disposal.
!This unit should only be used within the range of 5°C - 35°C
(41°F - 95°F).
Warning:
The voltage used must be the same as that specified on this unit.
Using this product with a higher voltage other than that which is
specified is dangerous and may result in a fire or other type of acci-
dent causing damage. SHARP will not be held responsible for any
damage resulting from use of this unit with a voltage other than that
which is specified.
"Volume control
The sound level at a given volume setting depends on speaker effi-
ciency, location, and various other factors. It is advisable to avoid
exposure to high volume levels. Do not turn the volume on to full at
switch on and listen to music at moderate levels.
"Care of compact discs
Compact discs are fairly resistant to damage, however mistracking
can occur due to an accumulation of dirt on the disc surface. Follow
the guidelines below for maximum enjoyment from your CD collec-
tion and player.
!Do not write on either side of the disc, particularly the non-label
side from which signals are read. Do not mark this surface.
!Keep your discs away from direct sunlight, heat, and excessive
moisture.
!Always hold the CDs by the edges. Fingerprints, dirt, or water on
the CDs can cause noise or mistracking. If a CD is dirty or does
not play properly, clean it with a soft, dry cloth, wiping straight out
from the centre, along the radius.
10 cm (4")
10 cm (4") 10 cm (4") 10 cm (4")
NO YES
Correct

04/2/9 CD-MPS800W(Z)E1.fm
E-4
ENGLISH
TINSZA063AWZZ
CD-MPS600W
CD-MPS700W
CD-MPS800W
General Information
Controls and indicators

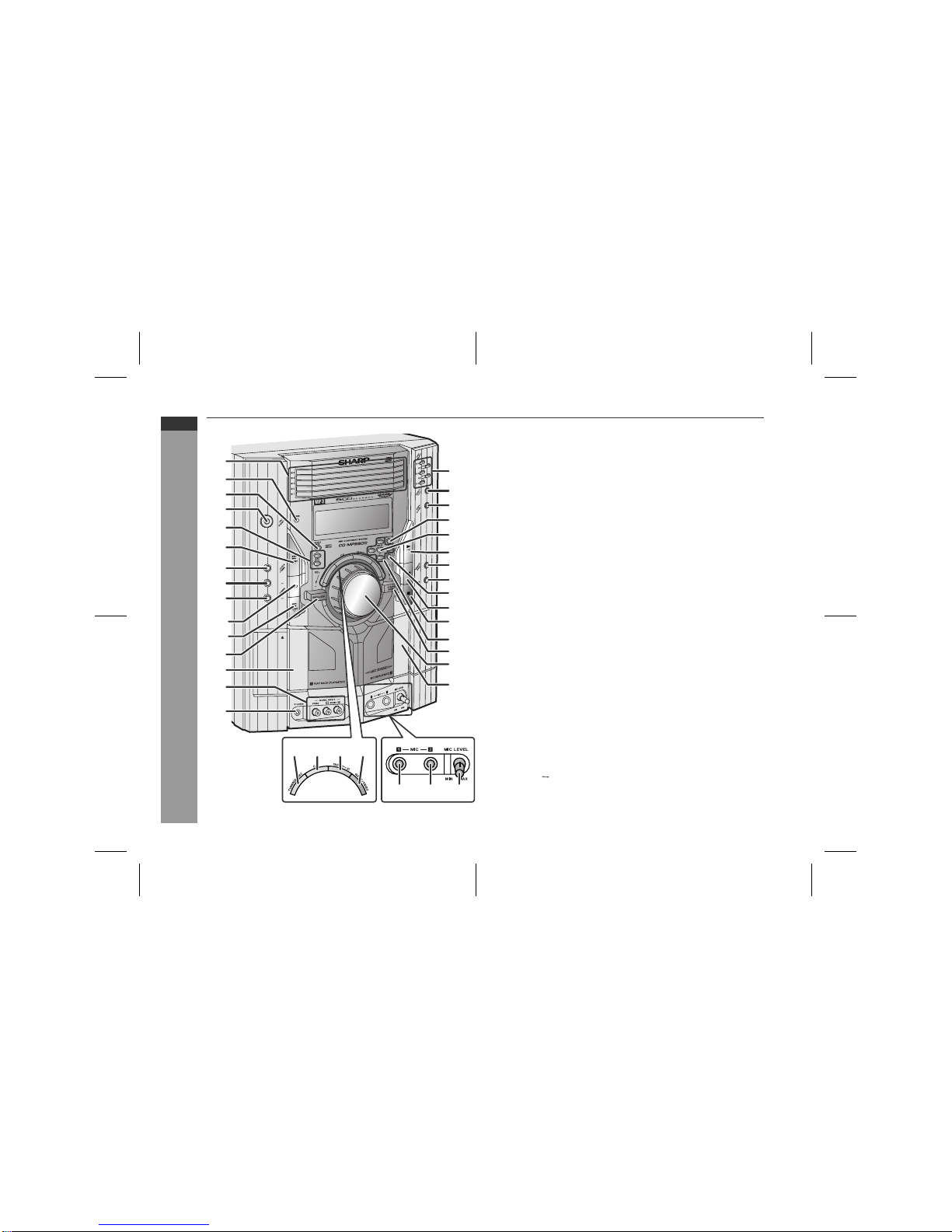

"Front panel Reference page
1.Disc Trays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2.Timer Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
3.Karaoke Mode Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
4.On/Stand-by Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5.Echo Level Up and Down Buttons . . . . . . . . . . . . . . . . . . . 30
6.Disc Track Up or Fast Forward, Tape 2 Fast Wind,
Tuner Preset Up, Time Up Button . . . . . . . . . . . 15, 18, 27, 29
7.Clock/Timer Button . . . . . . . . . . . . . . . . . . . . . . . . . 15, 35, 38
8.Tuning Up Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
9.Tuning Down Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
10.Tape 2 Reverse Mode Select Button . . . . . . . . . . . . . . . . . 29
11.Disc Track Down or Fast Reverse, Tape 2 Fast Wind,
Tuner Preset Down, Time Down Button . . . . . . 15, 18, 27, 29
12.Equaliser Mode Select Button . . . . . . . . . . . . . . . . . . . . . . . 14
13.Tape 1 Cassette Compartment . . . . . . . . . . . . . . . . . . . . . . 28
14.Game/Video Input Sockets . . . . . . . . . . . . . . . . . . . . . . . . . 39
15.Headphone Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
16.Disc Number Select Buttons . . . . . . . . . . . . . . . . . . . . . . . . 17
17.Disc Direct Play Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
18.Disc Tray Open/Close Button . . . . . . . . . . . . . . . . . . . . . . . 17
19.Character Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
20.Enter Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
21.Disc Play or Repeat, Tape 1 Play,
Tape 2 Forward Play Button . . . . . . . . . . . . . . . 17, 20, 28, 29
22.Memory/Set Button . . . . . . . . . . . . . . . . 15, 21, 25, 27, 35, 38
23.Tape 2 Record Pause Button . . . . . . . . . . . . . . . . . . . . 33, 34
24.MP3 Disc Navigation Mode Select Button . . . . . . . . . . . . . 23
25.Tape 2 Reverse Play Button . . . . . . . . . . . . . . . . . . . . . . . . 29
26.Disc or Tape Stop Button . . . . . . . . . . . . . . . . . . . . . . . 18, 29
27.Cursor Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
28.Extra Bass/Demo Mode Button . . . . . . . . . . . . . . . . . . . 13, 14
29.Volume Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
30.Tape 2 Cassette Compartment . . . . . . . . . . . . . . . . . . . . . . 29
31.Tuner (Band) Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
32.CD Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
33.Tape (1 2) Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28, 29
34.Game/Video Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
35.Microphone Socket 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
36.Microphone Socket 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
37.Microphone Level Control . . . . . . . . . . . . . . . . . . . . . . . . . . 30
16
18
29
20
22
27
28
2
7
8
4
3
1
19
26
24
30
17
23
15
14
13
9
10
11
12
32 33 3431
21
25
5
6
35 36 37

04/2/9 CD-MPS800W(Z)E1.fm
E-5
ENGLISH
TINSZA063AWZZ
CD-MPS600W
CD-MPS700W
CD-MPS800W
4
General Information
"Display Reference page
1.Disc Number Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2.MP3 Folder Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
3.MP3 Title Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4.MP3 Total Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.Sleep Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
6.Timer Play Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
7.Timer Recording Indicator . . . . . . . . . . . . . . . . . . . . . . . . . 36
8.Tape 2 Record Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
9.Daily Timer Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
10.FM Stereo Mode Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . 26
11.FM Stereo Receiving Indicator . . . . . . . . . . . . . . . . . . . . . . 26
12.Memory Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21, 25
13.Tape 2 Reverse Play Indicator . . . . . . . . . . . . . . . . . . . . . . 29
14.Tape 1 Play or Tape 2 Forward Play Indicator . . . . . . 28, 29
15.Tape Reverse Mode Indicator . . . . . . . . . . . . . . . . . . . . . . . 29
16.MP3 Disc Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
17.Extra Bass Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
18.Disc Repeat Play Indicator . . . . . . . . . . . . . . . . . . . . . . . . . 20
19.Disc Pause Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
20.Disc Play Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4 532167 8
16 17 18
12
19 20
9
14
1110
13 15

04/2/9 CD-MPS800W(Z)E1.fm
E-6
ENGLISH
TINSZA063AWZZ
CD-MPS600W
CD-MPS700W
CD-MPS800W
General Information
Controls and indicators (continued)
"Rear panel Reference page

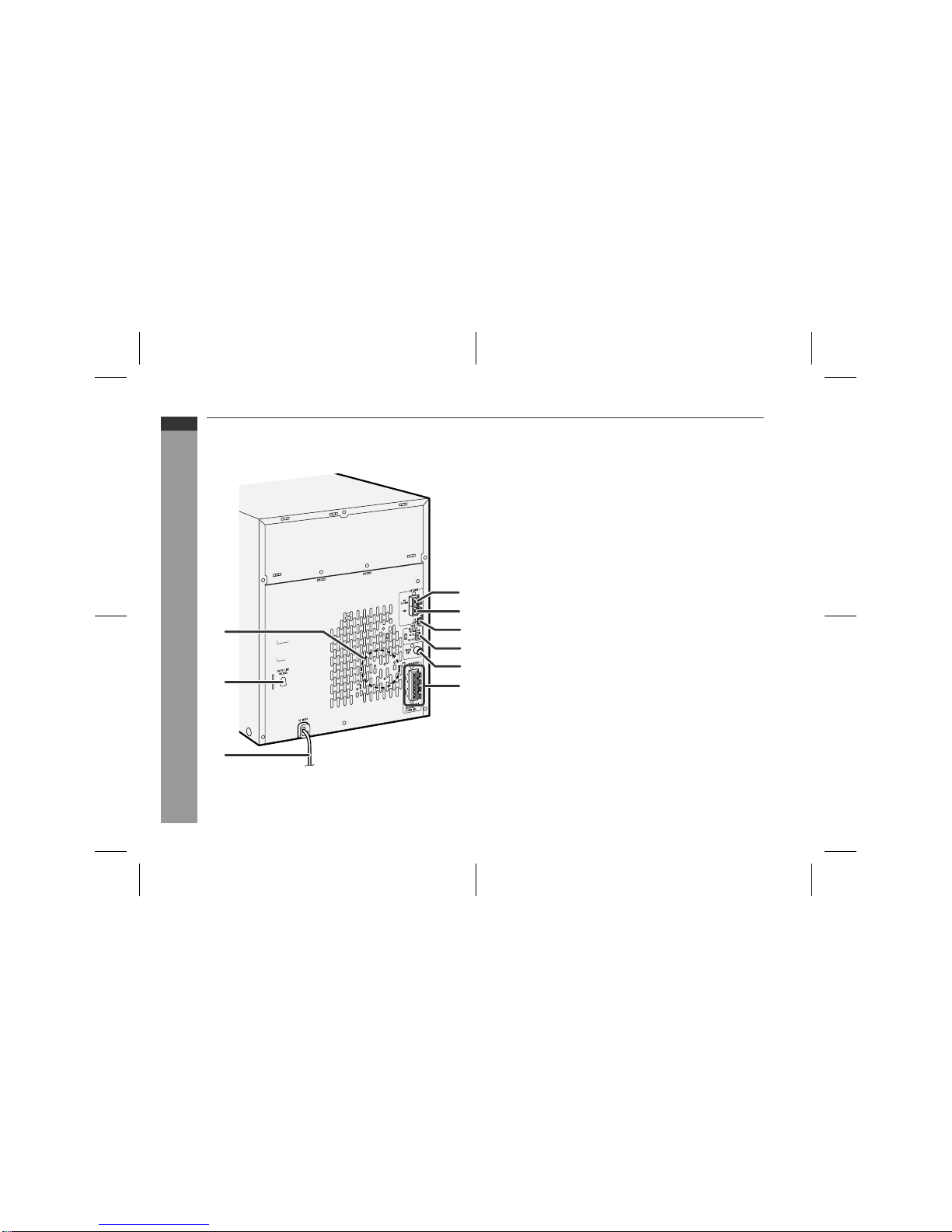

1.Cooling Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.AC Voltage Selector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.AC Power Lead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.FM 75 Ohms Aerial Terminal . . . . . . . . . . . . . . . . . . . . . . . . 11
5.FM Aerial Earth Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
6.AM Loop Aerial Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
7.Span Selector Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
8.Video Output Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
9.Speaker Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
16
5
4
9
3
2
7
8

04/2/9 CD-MPS800W(Z)E1.fm
E-7
ENGLISH
TINSZA063AWZZ
CD-MPS600W
CD-MPS700W
CD-MPS800W
4
General Information
"Speaker system
CP-MPS600
1.Tweeter
2.Passive Radiator
3.Woofer
4.Speaker Wire
CP-MPS700
1.Tweeter
2.Passive Radiator
3.Woofer
4.Super Tweeters
5.Speaker Wire
CP-MPS800
1.Tweeter
2.Passive Radiator
3.Woofer
4.Super Tweeters
5.Speaker Wire
4
1
CP-MPS800
CP-MPS600
2
3
1
2
3
5
4
1
CP-MPS700
2
35
4

04/2/9 CD-MPS800W(Z)E1.fm
E-8
ENGLISH
TINSZA063AWZZ
CD-MPS600W
CD-MPS700W
CD-MPS800W
General Information
Controls and indicators (continued)
"Remote control Reference page
1.Remote Control Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.Disc Number Select Buttons . . . . . . . . . . . . . . . . . . . . . . . . 17
3.Clock/Timer Button . . . . . . . . . . . . . . . . . . . . . . . . . 15, 35, 38
4.Character Input/Disc Direct Search Buttons . . . . . . . . 19, 24
5.MP3 Disc Navigation Mode Select Button . . . . . . . . . . . . . 23
6.Enter Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
7.Memory/Set Button . . . . . . . . . . . . . . . . 15, 21, 25, 27, 35, 38
8.Disc Track Down or Fast Reverse, Tape 2 Fast Wind,
Tuner Preset Down, Time Down Button . . . . . . 15, 18, 27, 29
9.Tape 2 Record Pause Button . . . . . . . . . . . . . . . . . . . . 33, 34
10.Tape 2 Reverse Play Button . . . . . . . . . . . . . . . . . . . . . . . . 29
11.Disc or Tape Stop Button . . . . . . . . . . . . . . . . . . . . . . . 18, 29
12.CD Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
13.Tuner (Band) Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
14.Equaliser Mode Select Button . . . . . . . . . . . . . . . . . . . . . . . 14
15.Extra Bass Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
16.On/Stand-by Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
17.Disc Random Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
18.Character Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
19.Cursor Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
20.Disc Clear/Dimmer Button . . . . . . . . . . . . . . . . . . . . . . . 14, 21
21.Disc Pause Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
22.Disc Track Up or Fast Forward, Tape 2 Fast Wind,
Tuner Preset Up, Time Up Button . . . . . . . . . . . 15, 18, 27, 29
23.Disc Play or Repeat, Tape 1 Play,
Tape 2 Forward Play Button . . . . . . . . . . . . . . . 17, 20, 28, 29
24.Tape (1 2) Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28, 29
25.Game/Video Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
26.MP3 Disc Display Button . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
27.Volume Up and Down Buttons . . . . . . . . . . . . . . . . . . . . . . 14
1
2
3
4
5
7
9
10
16
17
18
19
20
25
26
27
13
14
11
22
23
24
21
15
6
8
12

04/2/9 CD-MPS800W(Z)E1.fm
E-9
ENGLISH
TINSZA063AWZZ
CD-MPS600W
CD-MPS700W
CD-MPS800W
4
Preparation for Use
Remote control
"Battery installation
Precautions for battery use:
!Replace all old batteries with new ones at the same time.
!Do not mix old and new batteries.
!Remove the batteries if the unit is not to be used for long periods
of time. This will prevent potential damage due to battery leak-
age.
Caution:
!Do not use rechargeable batteries (nickel-cadmium battery, etc.).
!Installing the batteries incorrectly may cause the unit to malfunc-
tion.
Notes concerning use:
!Replace the batteries if the operating distance is reduced or if the
operation becomes erratic. Purchase 2 "AA" size batteries (UM/
SUM-3, R6, HP-7 or similar).
!Periodically clean the transmitter on the remote control and the
sensor on the unit with a soft cloth.
!Exposing the sensor on the unit to strong light may interfere with
operation. Change the lighting or the direction of the unit.
!Keep the remote control away from moisture, heat, shock, and
vibrations.
"Test of the remote control
Check the remote control after checking all the connections (see
pages 10 - 12).
Point the remote control directly at the remote sensor on the unit.
The remote control can be used within the range shown below:
Press the ON/STAND-BY button. Does the power turn on? Now,
you can enjoy music.

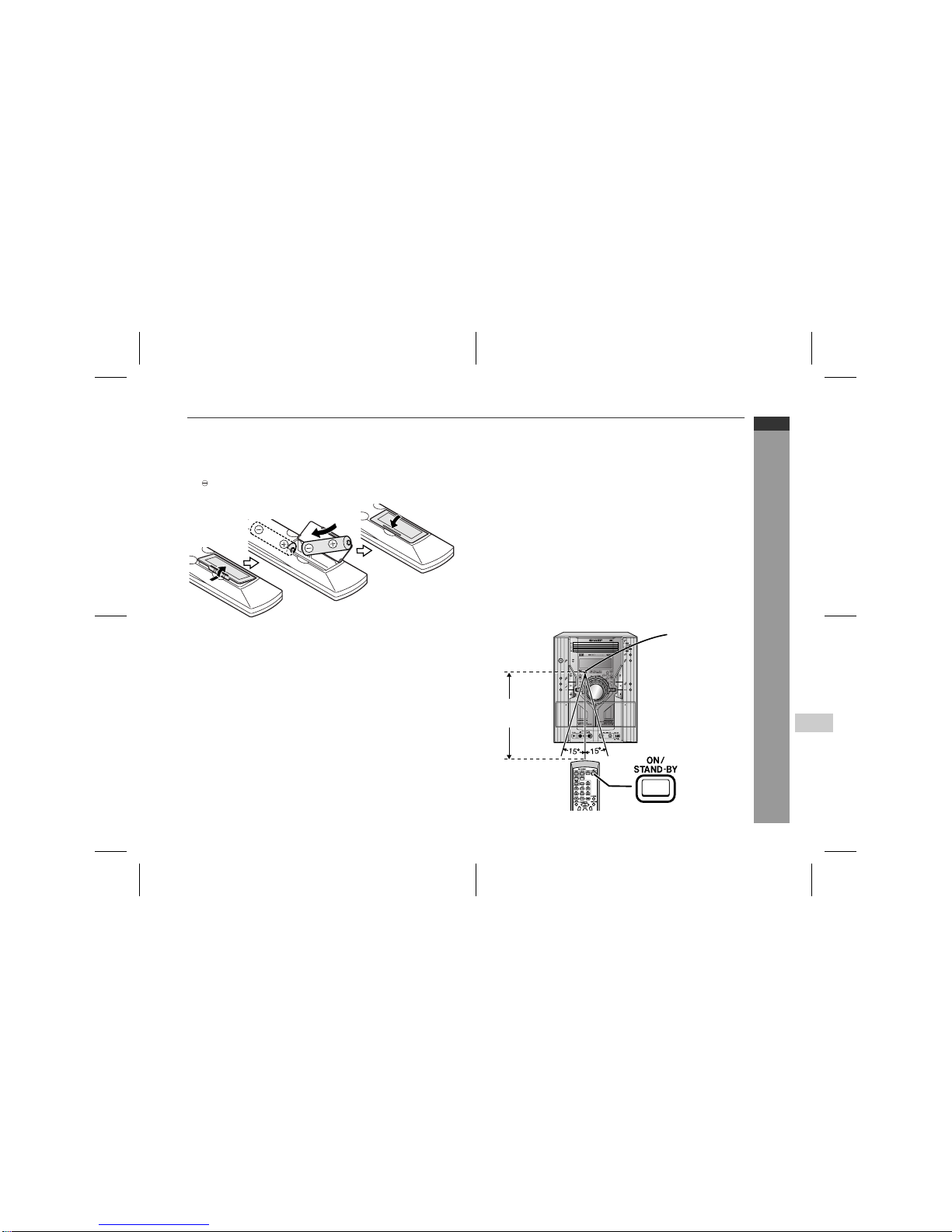

1 Open the battery cover.
2 Insert the supplied batteries according to the direction indi-
cated in the battery compartment.
When inserting or removing the batteries, push them towards the
battery terminals.
3 Close the battery cover.
0.2 m - 6 m
(8" - 20')
Remote sensor

04/2/9 CD-MPS800W(Z)E1.fm
E-10
ENGLISH
TINSZA063AWZZ
CD-MPS600W
CD-MPS700W
CD-MPS800W
Preparation for Use
System connections

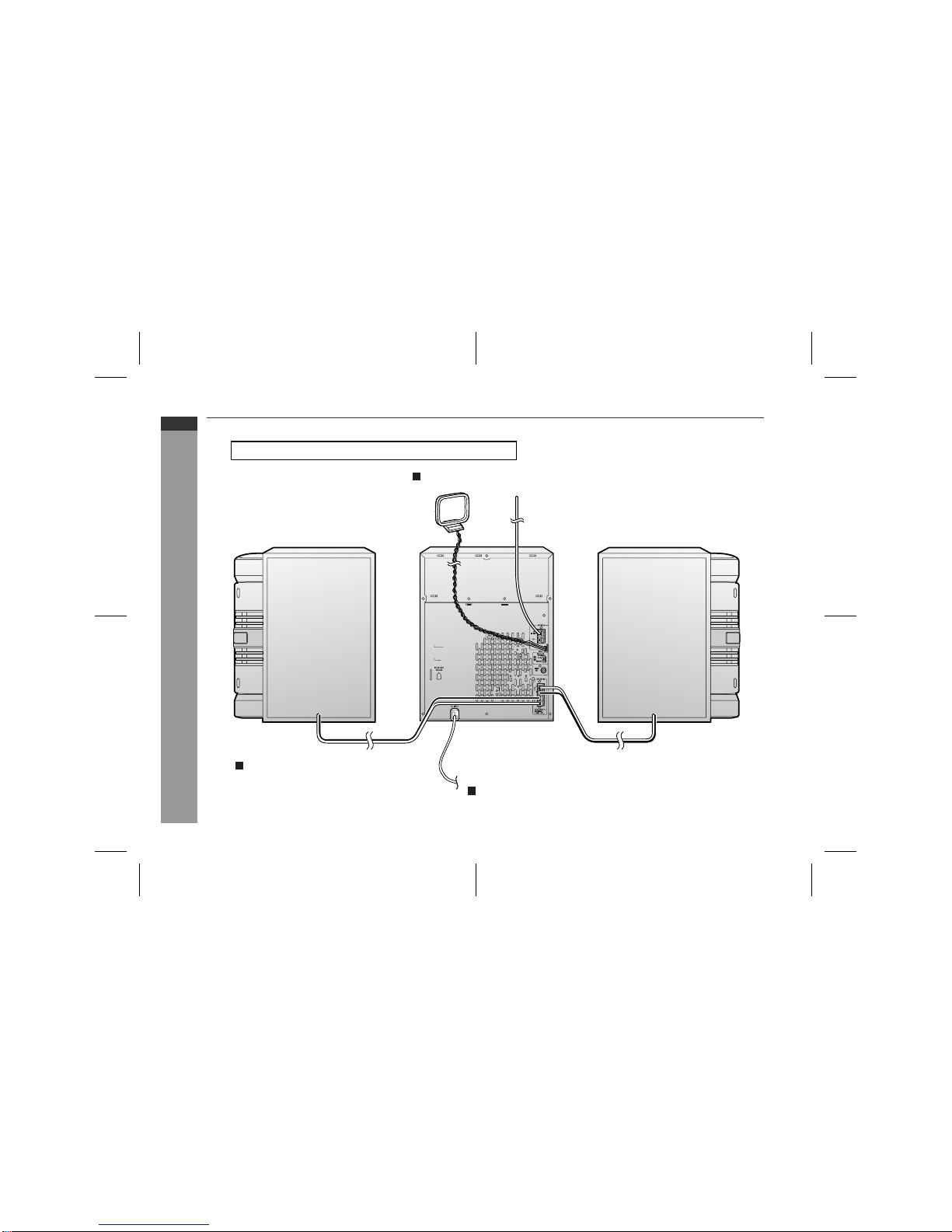

Left speaker
Right speaker
Speaker connection (see page 11)
Aerial connection (see page 11)
AC power connection (see page 12)
To a wall socket
Make sure to unplug the AC power lead before any connections.
AM loop aerial FM aerial

04/2/9 CD-MPS800W(Z)E2.fm
E-11
ENGLISH
TINSZA063AWZZ
CD-MPS600W
CD-MPS700W
CD-MPS800W
4
Preparation for Use
!Aerial connection
Supplied FM aerial:
Connect the FM aerial wire to the FM 75 OHMS terminal and posi-
tion the FM aerial wire in the direction where the strongest signal
can be received.
Supplied AM loop aerial:
Connect the AM loop aerial to the AM LOOP socket. Position the
AM loop aerial for optimum reception. Place the AM loop aerial on a
shelf, etc., or attach it to a stand or a wall with screws (not supplied).
Note:
Placing the aerial on the unit or near the AC power lead may cause
noise pickup. Place the aerial away from the unit for better recep-
tion.
Installing the AM loop aerial:
!Speaker connection
Connect the black wire to the minus (-) terminal, and the red wire to
the plus (+) terminal.
Caution:

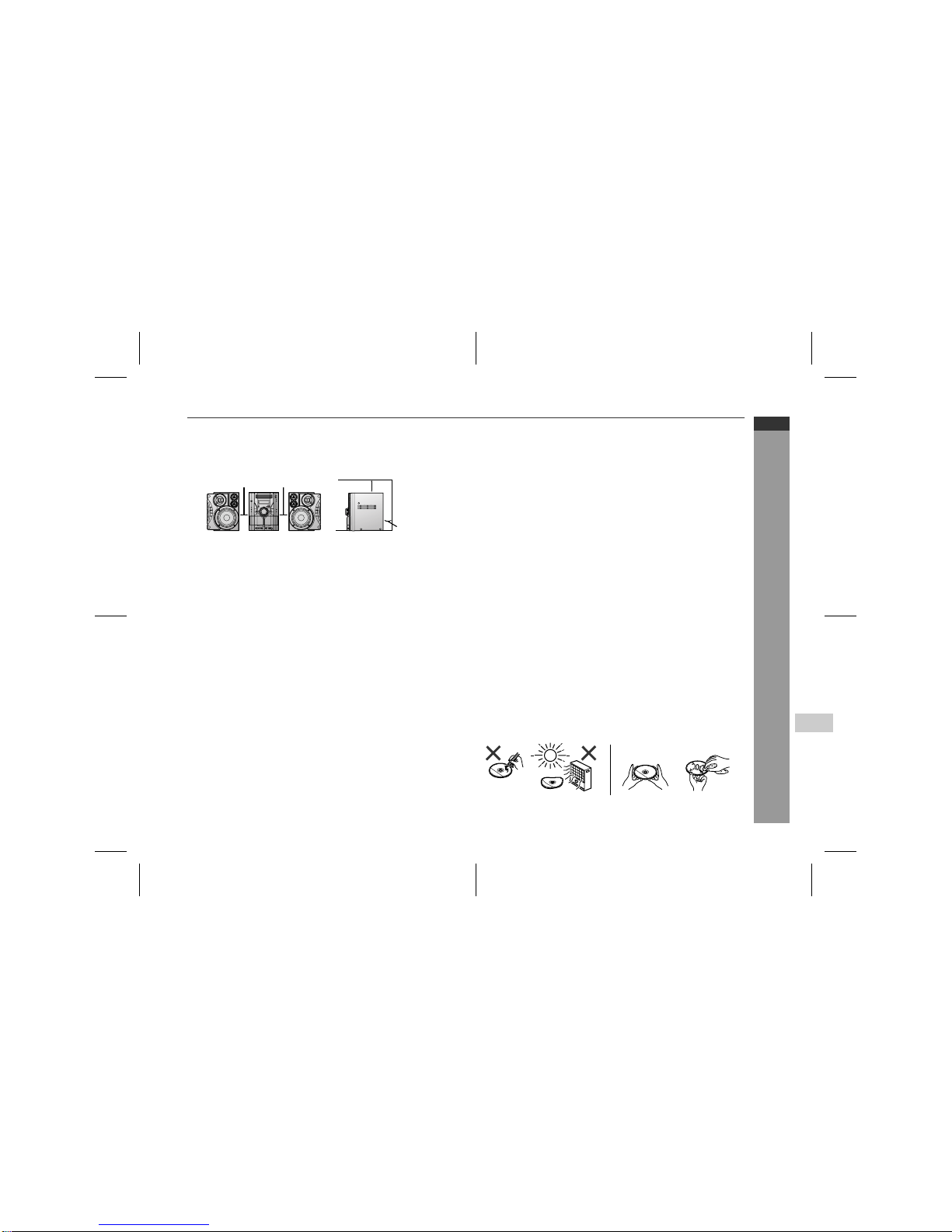

!Placing the speaker system
The left and right speakers have individual shapes. For best perfor-
mance, place the speakers according to the diagram below.
Note:
The speaker grilles are not removable.
< Assembling > < Attaching to the wall >
Wall Screws (not supplied)
"Use speakers with an impedance of 6 ohms or more, as lower im-
pedance speakers can damage the unit.
"Do not mistake the right and the left chan-
nels.Therightspeaker istheoneon the right
side when you face the unit.
"Do not let the bare speaker wires touch
each other.
"Donotstand or sit on thespeakers. Youmay
be injured.
Incorrect
Left speaker Right speaker
Black
Red

04/2/9 CD-MPS800W(Z)E2.fm
E-12
ENGLISH
TINSZA063AWZZ
CD-MPS600W
CD-MPS700W
CD-MPS800W
Preparation for Use
System connections (continued)

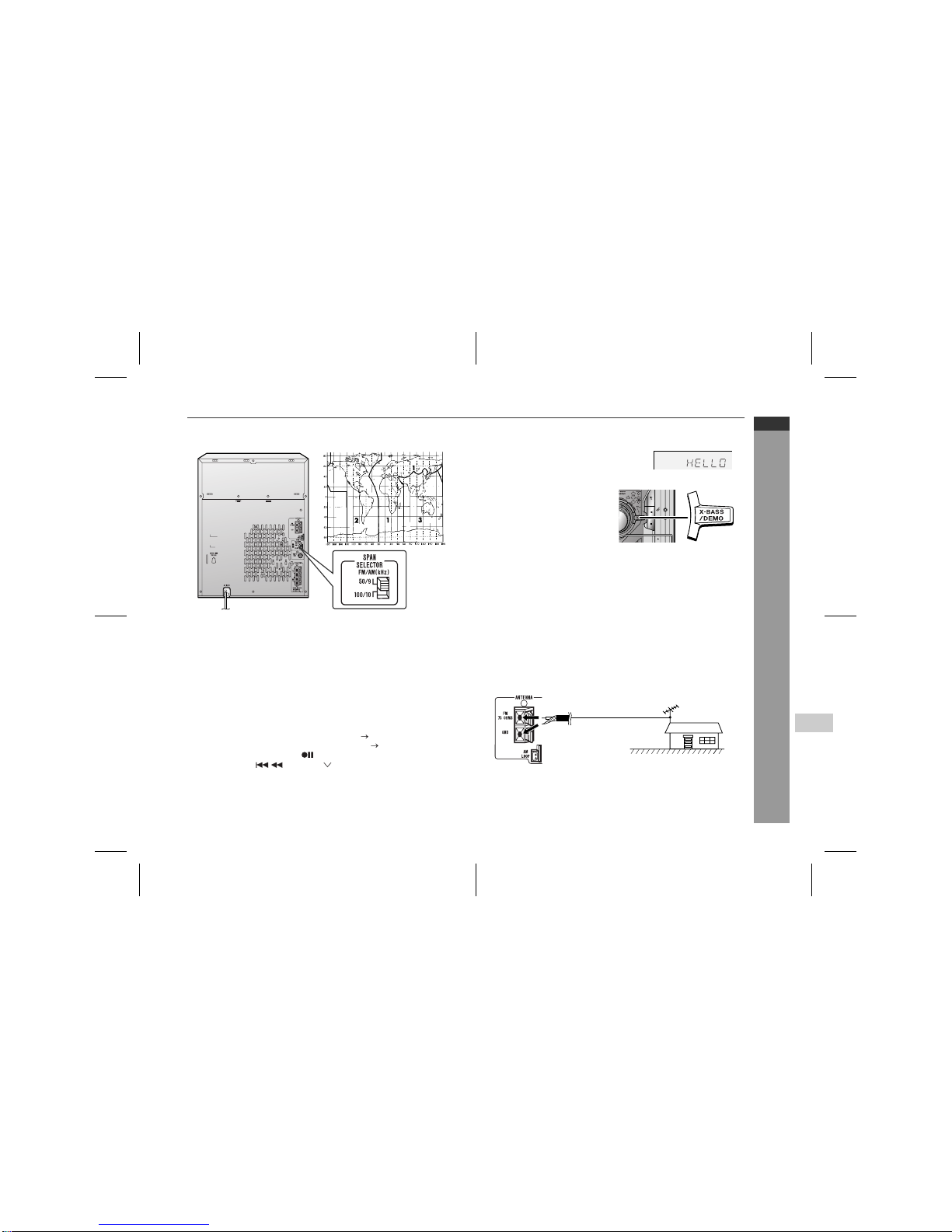

!Setting the AC voltage selector
Check the setting of the AC voltage selector located on the rear
panel before plugging the unit into a wall socket. If necessary, adjust
the selector to correspond to the AC power voltage used in your
area.
Turn the selector with a screwdriver until the appropriate volt-
age number appears in the window (110 V, 127 V, 220 V or 230
V - 240 V AC).
!AC power connection
After checking all the connections have been made correctly, plug
the AC power lead of this unit into the wall socket. If you plug in the
unit first, the unit will enter the demonstration mode.
Notes:
"The unit will start the tape initialisation when plugged in to the AC
socket. During this process, initialising sound will be heard and
the unit cannot be turned on. Wait until the process is finished.
"Unplug the AC power lead from the wall socket if the unit will not
be in use for a prolonged period of time.
AC Plug Adaptor
In areas (or countries) where a wall socket as shown in illustration
is used, connect the unit using the AC plug adaptor supplied with
the unit, as illustrated. The AC plug adaptor is not included in areas
where the wall socket and AC power plug can be directly connected
(see illustration ).
1
2
Cooling fan:
A cooling fan is built into this unit for better heat radiation. Do not
cover the opening in this section with any obstacles to avoid dam-
age to the unit.

04/2/9 CD-MPS800W(Z)E2.fm
E-13
ENGLISH
TINSZA063AWZZ
CD-MPS600W
CD-MPS700W
CD-MPS800W
4
Preparation for Use
!Setting the FM/AM span selector
The International Telecommunication Union (ITU) has established
that member countries should maintain either a 100 kHz or a 50 kHz
interval between broadcasting frequencies of FM stations and 10
kHz or 9 kHz for AM station. The illustration shows the 50/9 kHz
zones (regions 1 and 3), and the 100/10 kHz zone (region 2).
Before using the unit, set the SPAN SELECTOR switch (on the rear
panel) to the interval (span) of your area.
To change the tuning zone:
Caution:
This operation will erase all data stored in memory including clock,
timer settings, tuner preset, and CD programme.
!Demonstration mode
!External FM aerial
Use an external FM aerial if you require better reception.
Consult your dealer.
Note:
When an external FM aerial is used, disconnect the supplied FM
aerial wire.
1 Press the ON/STAND-BY button to enter the stand-by mode.
2 Set the SPAN SELECTOR switch (on the rear panel) as follows.
"For 50 kHz FM interval (9 kHz in AM) 50/9
"For 100 kHz FM interval (10 kHz in AM) 100/10
3 Whilst pressing down the button and the X-BASS/DEMO but-
ton, press the PRESET button until "CLEAR ALL" ap-
pears.
The first time the unit is plugged in, the
unit will enter the demonstration mode.
You will see words scroll.
To cancel the demonstration
mode:
When the unit is in the power stand-
by mode (demonstration mode),
press the X-BASS/DEMO button.
The demonstration mode will be
cancelled and the display will disap-
pear.
To return to the demonstration mode:
When the unit is in the power stand-by mode, press the X-BASS/
DEMO button again.
Note:
When the power is on, the X-BASS/DEMO button can be used to se-
lect the extra bass mode.
External
FM aerial
75 ohm
coaxial cable

04/2/9 CD-MPS800W(Z)E2.fm
E-14
ENGLISH
TINSZA063AWZZ
CD-MPS600W
CD-MPS700W
CD-MPS800W
Basic Operation
General control
!To turn the power on
Press the ON/STAND-BY button to turn the power on.
!Illumination light control
When the power is turned on, light illuminates around the display.
To turn on/off the light, hold down the CLEAR/DIMMER button on
the remote control for 2 seconds or more.
!Volume control
!Bass control (X-BASS)
!Equaliser
When the EQUALIZER (EQUALIZER MODE) button is pressed, the
current mode setting will be displayed. To change to a different
mode, press the EQUALIZER (EQUALIZER MODE) button repeat-
edly until the desired sound mode appears.
After use:
Press the ON/STAND-BY button to enter the power stand-by
mode.
Main unit operation:
When the VOLUME control is turned
clockwise, the volume will increase.
When it is turned anti-clockwise, the vol-
ume will decrease.
Remote control operation:
Press the VOLUME (+ or -) button to in-
crease or decrease the volume.
When the power is first turned on, the
unit will enter the extra bass mode which
emphasises the bass frequencies, and
"X-BASS" will appear. To cancel the ex-
trabassmode,presstheX-BASS/DEMO
(X-BASS) button.
In CD/TUNER/TAPE mode In GAME/VIDEO mode
30 MAXIMUM0 .....
Bass and treble are
emphasised.
Bass and treble are
slightly emphasised.
The sound is not
modified.
Treble is cut a little.
Treble is slightly
emphasised.
FLAT
ROCK
CLASSIC
POPS
VOCAL
JAZZ
Vocals (midrange
tones) are emphasised.
Bass and treble are
emphasised more.
Vocals and treble
are emphasised.
Bass is empha-
sised.
The sound is not
modified.
ACTION
SPORTS
RACING
Bass and treble
are emphasised.
Treble is cut a
little.
FLAT
ROCK
CLASSIC

04/2/9 CD-MPS800W(Z)E2.fm
E-15
ENGLISH
TINSZA063AWZZ
CD-MPS600W
CD-MPS700W
CD-MPS800W
4
Basic Operation
Setting the clock
In this example, the clock is set for the 24-hour (0:00) display.
To confirm the time display:
[When the unit is in the stand-by mode]
Press the CLOCK/TIMER button.
The time display will appear for about 10 seconds.
[When the power is on]
Press the CLOCK/TIMER button.
Within 10 seconds, press the or button to display the time.
The time display will appear for about 10 seconds.
Note:
The "CLOCK" will appear or time will flash to confirm the time dis-
play when the AC power supply is restored after a power failure or
unplugging the unit. If incorrect, readjust the clock as follows.
To readjust the clock:
Perform "Setting the clock" from step 1. If the "CLOCK" does not
appear in step 3, step 4 (for selecting the 24-hour or 12-hour dis-
play) will be skipped.
To change the 24-hour or 12-hour display:
Note:
The clock can also be set with the remote control.
1Press the ON/STAND-BY button to turn the power on.
2Press the CLOCK/TIMER button.
3Within 10 seconds, press the or button to se-
lect "CLOCK", and press the MEMORY/SET button.
4Press the or button to select 24-hour or 12-
hour display and then press the MEMORY/SET button.
"0:00" The 24-hour display will appear.
(0:00 - 23:59)
"AM 12:00" The 12-hour display will appear.
(AM 12:00 - PM 11:59)
"AM 0:00" The 12-hour display will appear.
(AM 0:00 - PM 11:59)
5Press the or button to adjust the hour and
then press the MEMORY/SET button.
Press the or button once to advance the time by
1 hour. Hold it down to advance continuously.
6Press the or button to adjust the minutes and
then press the MEMORY/SET button.
Press the or button once to advance the time by
1 minute. Hold it down to change the time in 5-minute intervals.
1 Clear all the programmed contents. [Refer to "Clearing all the
memory (reset)" on page 42 for details.]
2 Perform "Setting the clock" from step 1.

04/2/9 CD-MPS800W(Z)E2.fm
E-16
ENGLISH
TINSZA063AWZZ
CD-MPS600W
CD-MPS700W
CD-MPS800W
CD or MP3 disc Playback
Listening to a CD or MP3 disc
This system can also play audio CD-R and CD-RW discs, but can-
not record.
Some audio CD-R and CD-RW discs may not be playable due to the
state of the disc or the equipment used for recording.
MP3 is a form of compression. It is an acronym which stands
for MPEG Audio Layer 3.
MP3 is a type of audio code which is processed by significant
compression from the original audio source with very little loss
in sound quality.
Notes:
"" " indicator will light up after the unit reads information on an
MP3 disc.
"This system supports MPEG 1 Layer 3, MPEG 2 Layer 3, and
VBR files.
"During VBR file playback, time counter in the display may differ
from its actual playback time.
Auto power on function:
When you press any of the following buttons, the unit turns on.
"CD button (main unit and remote control): The unit turns on and
the "CD" function is activated.
"/ button (main unit and remote control): The unit turns on
and playback of the last function starts (CD/TAPE/TUNER/
GAME).
1
SHARP TINSZA063AWZZ (Z)

04/2/9 CD-MPS800W(Z)E2.fm
E-17
ENGLISH
TINSZA063AWZZ
CD-MPS600W
CD-MPS700W
CD-MPS800W
4
CD or MP3 disc Playback
"Playback will begin from track 1 on the disc 1. After that disc fin-
ishes playing, the next disc will automatically play.
"After the last track on the fifth disc is played, the unit will stop
automatically.
"When there is no disc in one of the disc trays (1 - 5), the empty
tray will be skipped to the next tray with a disc.
To exchange other discs whilst playing a disc:
Press one of the 1 - 5 buttons for the stopped disc and within 5
seconds, press the OPEN/CLOSE button and exchange discs.
To remove the discs:
In the stop mode, press the 1 - 5 button and within 5 seconds,
press the OPEN/CLOSE button.
Caution:
"Do not place two discs in one disc tray.
"Do not play discs with special shapes (heart- or octagon-shaped)
as it may cause malfunctions.
"Do not push the disc tray whilst it is moving.
"If the power fails whilst the tray is open, wait until the power is
restored.
"If the disc tray is stopped with force, "ER-CD20" will appear on
the display for 3 seconds and the unit will not function. If this
occurs, press the ON/STAND-BY button to enter the power
stand-by mode and then turn the power on again.
"If TV or radio interference occurs during CD operation, move the
unit away from the TV or radio.
"If a disc is damaged, dirty, or loaded upside down, the disc will
skip or not play.
1Press the ON/STAND-BY button to turn the power on.
2Press the CD button.
3Press the 1 button and within 5 seconds, press the
OPEN/CLOSE button to open the disc tray 1.
4Place the disc on the disc tray 1, label side up.
Be sure to place 8 cm (3") disc in the middle of the disc trays.
5Press the OPEN/CLOSE button to close the disc tray 1.
"Due to the structure of its disc information, it takes longer to
read an MP3 disc than a normal CD (approximately 20 to 90
seconds).
6You can place discs on the trays 2 - 5 by following steps 3
- 5.
7Press the / button to start playback.
12 cm (5") 8 cm (3")
[CD]
Total number of
tracks on the disc
whose number
is flashing
Total playing
time of the disc
whose number
is flashing
Total number
of folders Total number of files
MP3 disc indicator
[MP3]
Disc play indicator
2
SHARP TINSZA063AWZZ (Z)

04/2/9 CD-MPS800W(Z)E2.fm
E-18
ENGLISH
TINSZA063AWZZ
CD-MPS600W
CD-MPS700W
CD-MPS800W
CD or MP3 disc Playback
Listening to a CD or MP3 disc (continued)
!Various disc functions Notes:
"Track up/track down is possible only within individual discs.
"The sound is heard during fast forward/fast reverse with a CD,
but not with an MP3 disc. For fast forward or fast reverse of an
MP3 disc, refer to playback time on the display.
Notes for CD:
Notes for MP3 discs:
"Fast forward/fast reverse is possible only within individual tracks.
"When the end of the track is reached during fast forward, the next
track will be played. Playback of the track will begin when its
beginning is reached during fast reverse.
!To change the display (MP3 discs only)
Function Main unit Remote
control Operation
Play Press in the stop
mode.
Stop Press in the playback
mode.
Pause Press in the playback
mode. Press the /
button to resume play-
back from the paused
point.
Track up/
Track down Press in the playback or stop mode.
If you press the button
in the stop mode,
press the / button
to start the desired
track.
Fast for-
ward/Fast
reverse
Press and hold down
in the playback mode.
Release the button to
resume playback.
"Fast forward/fast reverse is possible only within individual discs.
"When the end of the last track is reached during fast forward, "
END" will appear on the display and CD operation will be paused.
When the beginning of the first track is reached during fast re-
verse, the unit will enter the playback mode.
( : Last track number)
Whilst a disc is playing, press the MP3 DIS-
PLAY button.
Each time the button is pressed, the display
will change as follows.
Folder name
File name
Track number Elapsed
playback time
