Sharp 27SF560 User manual

ON
Products that have earned the ENERGY STAR¢>are designed to protect the
environment through superior energy efficiency.
PAGE
,IMPORTANT INFORMATION/IMPORTANT
SAFEGUARDS .................................................... 2-4
Trademarks ............................................................... 5
Supplied Accessories ............................................... 5
Before Operating Your Television .............................. 5
Antenna Connections ........................................... 6-7
Quick Reference Control Operation ..................... 6-9
EZ SETUP during First Use ............................. 10-11
Antenna Setup DIGITAL ................................... 11-12
Accessing the MAIN MENU screen without
Remote Control ...................................................... 12
Channel Call ........................................................... 12
Changing Viewing Channel .................................... 13
Language ............................................................... 14
Sleep Timer ............................................................ 14
Video Adjust ........................................................... 15
Audio Select ..................................................... 16-17
MTS (Multichannel TV Sound) ............................ 16
SPEAKER (Internal Speaker Switch) ................. 16
FAO (Fixed Audio Output) ................................... 16
AUDIO ADJUST ................................................. 17
Digital Audio ........................................................... 18
This operation manual includes basic operating
instructions in Spanish and French.
SPANISH is on page 53-58.
FRENCH is on page 59-64.
PAGE
. Closed Caption ................................................. 19-20
. Parent Control .................................................. 21-31
V-CHIP Operation ......................................... 21-28
VIEW TIMER ................................................ 29-31
. Energy Save ........................................................... 32
. Set Up .............................................................. 33-40
EZ Setup ....................................................... 33-34
Channel Setting ............................................ 34-36
Blue Screen ........................................................ 37
Personal Preference ..................................... 38-39
Universal Plus Function ................................ 39-40
Auto Input ............................................................... 40
CH/Input ID ....................................................... 41-42
Screen Format ........................................................ 43
Using the Video and Audio Input Terminals ...... 44-45
Using the Audio Output Terminals .......................... 46
Operation of Universal Remote Control ........... 47-50
Before Calling for Service ....................................... 51
Calling for Service .................................................. 51
Warning message for Digital broadcasting ............. 52
Specifications ......................................................... 52
Limited Warranty .................................................... 65
°
DiGiTAL STANOA_.DEHNm0NTELEVlSION

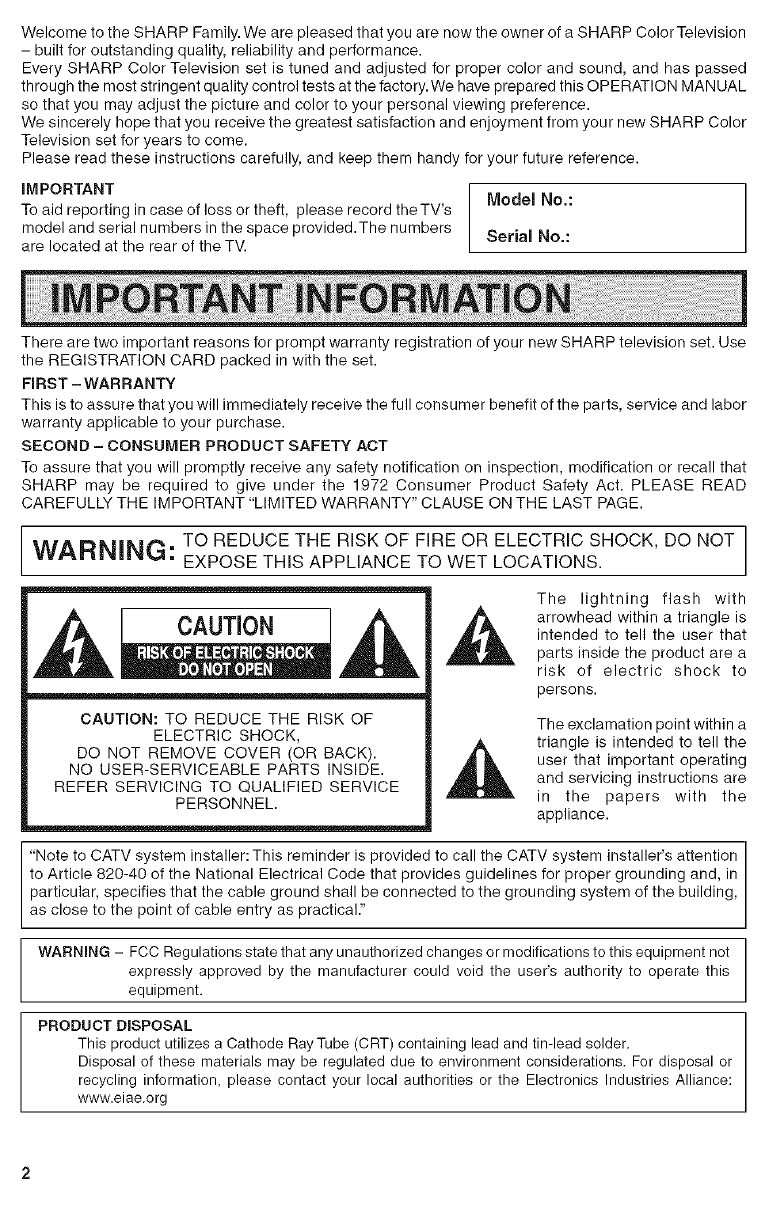

Welcome to the SHARP Family. We are pleased that you are now the owner of a SHARP Color Television
- built for outstanding quality, reliability and performance.
Every SHARP Color Television set is tuned and adjusted for proper color and sound, and has passed
through the most stringent quality control tests at the factory.We have prepared this OPERATION MANUAL
so that you may adjust the picture and color to your personal viewing preference.
We sincerely hope that you receive the greatest satisfaction and enjoyment from your new SHARP Color
Television set for years to come.
Please read these instructions carefully, and keep them handy for your future reference.
iMPORTANT
To aid reporting in case of loss or theft, please record theTV's
model and serial numbers in the space provided.The numbers
are located at the rear of the TV.
Model No.:
Serial No.:
There are two important reasons for prompt warranty registration of your new SHARP television set. Use
the REGISTRATION CARD packed in with the set.
FIRST - WARRANTY
This is to assure that you will immediately receive the full consumer benefit of the parts, service and labor
warranty applicable to your purchase.
SECOND - CONSUMER PRODUCT SAFETY ACT
To assure that you will promptly receive any safety notification on inspection, modification or recall that
SHARP may be required to give under the 1972 Consumer Product Safety Act. PLEASE READ
CAREFULLY THE IMPORTANT "LIMITED WARRANTY" CLAUSE ON THE LAST PAGE.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO WET LOCATIONS.
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lightning flash with
arrowhead within a triangle is
intended to tell the user that
parts inside the product are a
risk of electric shock to
persons.
The exclamation point within a
triangle is intended to tell the
user that important operating
and servicing instructions are
in the papers with the
appliance.
"Note to CATV system installer: This reminder is provided to call the CATV system instalier's attention
to Article 820-40 of the National Electrical Code that provides guidelines for proper grounding and, in
particular, specifies that the cable ground shall be connected to the grounding system of the building,
as close to the point of cable entry as practical."
WARNING - FCC Regulations state that any unauthorized changes or modifications to this equipment not
expressly approved by the manufacturer could void the user's authority to operate this
equipment.
PRODUCT DISPOSAL
This product utilizes a Cathode Ray Tube (CRT) containing lead and tin-lead solder.
Disposal of these materials may be regulated due to environment considerations. For disposal or
recycling information, please contact your local authorities or the Electronics Industries Alliance:
www.eiae.org

CAUTION:
• DonotplacetheACpowercordundertheTVsetorotherheavyitems.
Topreventfire,neverplaceanytypeofcandleornakedflamesonthetoporneartheTVset.
• Topreventfireorshockhazard,denotexposethisproductstodrippingorsplashing.Noobjectsfilled
withliquids,suchasvases,shouldbeplacedontheproduct.
CAUTION: P eaaore0aa,oftheeeinetructionebeforoyooopersteyoorto evieionandeavo
these instructions for later use.
Electrical energy can perform many useful functions.This unit has been engineered and manufactured to assure
your personal safety. BUT IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE
HAZARDS. In order not to defeat the safeguards incorporated in this equipment, observe the following basic
rules for its installation, use and servicing.
1. Unplug this television equipment from the wall outlet before cleaning.
2. Do net use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
3. Do net use attachments not recommended by the television equipment manufacturer as they may cause
hazards.
4. Do not use this television equipment near water-- for example, near a bath tub, washbowl, kitchen sink or
laundry tub, in a wet basement, or near a swimming pool, etc.
5. Do not place this equipment on an unstable cart, stand, or table.The television equipment may fall, causing
serious injury to a child or an adult, and serious damage to the equipment. Use only with a cart or stand
recommended by the manufacturer or sold with the television equipment.
6. Television equipment and cart combination should be moved with care. Quick stops,
excessive force, and uneven surfaces may cause the equipment and cart combination to
overturn.
7. Wall or shelf mounting should follow the manufacturer's instructions, and should use a
mounting kit approved by the manufacturer.
8. Slots and openings in the cabinet and the back or bottom are provided for ventilation. To
insure reliable operation of the television equipment and to protect it from overheating, these openings must
not be blocked or covered. This television equipment should not be placed in a built-in insulation such as a
bookcase unless proper ventilation is provided.
9. The openings should never be covered with a cloth or other material, and the bottom openings should not
be blocked by placing the television equipment on a bed, sofa, rug, or other similar surface. This television
equipment should never be placed near or over a radiator or heat register.
10. This television equipment should be operated only from the type of power source indicated on the marking
label. If you are not sure of the type of power supplied to your home, consult your television dealer or local
power company.
For television equipment designed to operate from battery power, refer to the operating instructions.
11. As a safety feature, television equipment is equipped with a 2-wire polarized plug (one plug blade bigger
than the other). The 2-wire polarized plug will fit only one way into the power outlet.
If the plug does not fit, ask your electrician to replace your obsolete outlet. Do not modify the plug and defeat
this safety feature.
12. Do not allow anything to rest on the power cord. Do not locate this television equipment where the cord will
be abused by persons walking on it.

13.Followallwarningsandinstructionsmarkedonthetelevisionequipment.
14.Ifanoutsideantennaisconnectedtothetelevisionequipment,besuretheantennasystemisgrounded
soastoprovidesomeprotectionagainstvoltagesurgesandbuilt-upstaticcharges.Section810ofthe
NationalElectricalCodeprovidesinformationwithrespecttopropergroundingofthemastand
supportingstructure,groundingofthelead-inwiretoanantennadischargeunit,sizeofgrounding
conductors,locationofantenna-dischargeunit,connectiontogroundingelectrodes,andrequirements
forthegroundingelectrode.
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
_ NTENNA
LEAD IN
WIRE
GROUND
CLAMP ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
G OUNDING CONDUCTORS
EC SECTION 810-21)
-- GROUNDCLAMPS
-'€'._ POWERSERVICE GROUNDING
ELECTRODE SYSTEM
NEC NATIONALELECTRICAL CODE (NEC ART250, PARTH)
15. For added protection for this television equipment during a lightning storm, or when it is left unattended and
unused for long periods of time, unplug it from the wall outlet and disconnect the antenna.This will prevent
damage to the equipment due to lightning and power-line surges.
16. An outside antenna system should not be located in the vicinity of overhead power lines or other electric
light or power circuits, or where it can fall into such power lines or circuits. When installing an outside
antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact
with them might be fatal.
17. Do not overload wall outlets and extension cords as this can result in fire or electric shock.
18. Never push objects of any kind into this television equipment through cabinet slots as they may touch
dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid
of any kind on the television equipment.
19. Do not attempt to service this television equipment yourself as opening or removing covers may expose you
to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
20. Unplug this television equipment from the wall outlet and refer servicing to qualified service personnel
under the following conditions:
A. When the power cord or plug is damaged or frayed.
B. If liquid has been spilled into the television equipment.
C. If the television equipment has been exposed to rain or water.
D. If the television equipment does not operate normally by following the operating instructions. Adjust
only those controls that are covered by the operating instructions as improper adjustment of other
controls may result in damage and will often require extensive work by a qualified technician to
restore the television equipment to normal operation.
E. If the television equipment has been dropped or the cabinet has been damaged.
R When the television equipment exhibits a distinct change in performance -- this indicates a need for
service.
21. Upon completion of any service or repairs to this television equipment, ask the service technician to
perform routine safety checks to determine that the television is in safe operating condition.
22. When replacement parts are required, be sure the service technician has used replacement parts
specified by the manufacturer that have the same characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock, or other hazards.

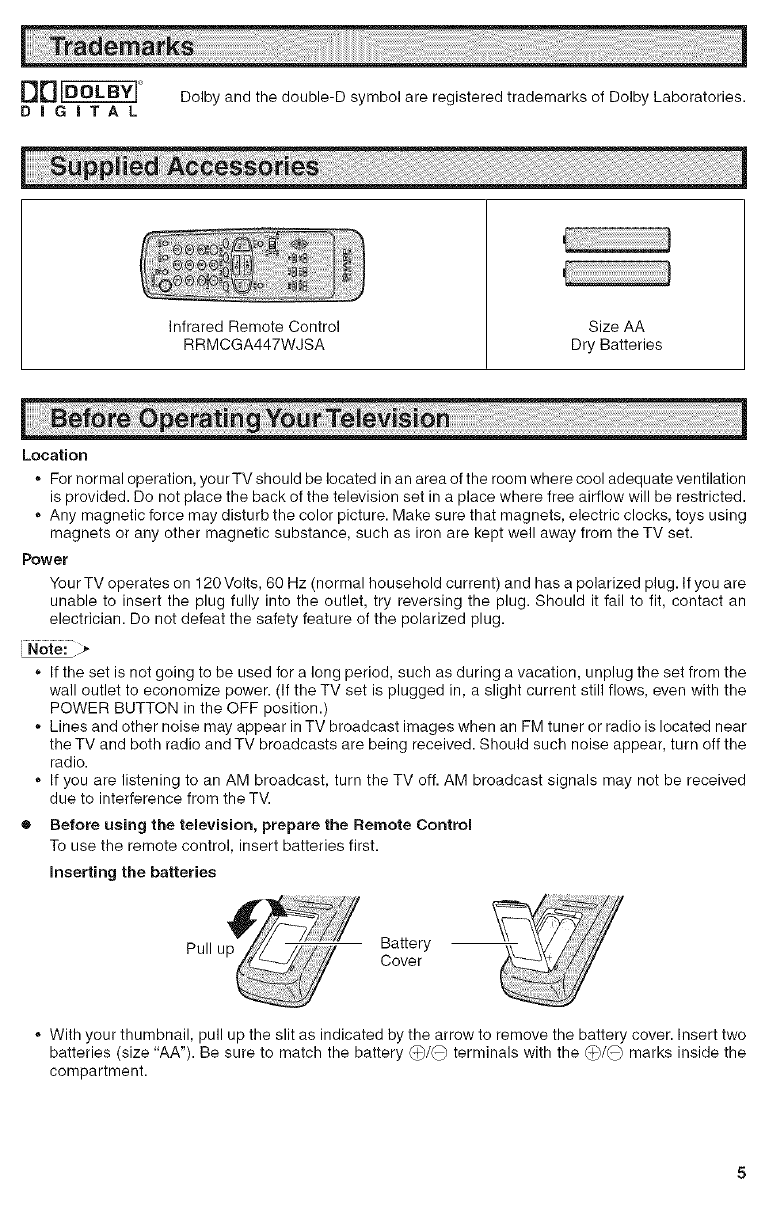

Ir_V'lUU_1_L_ T I_ Dolby and the double-D symbol are registered trademarks of Dolby Laboratories.
DiGiTAL
Infrared Remote Control
RRMCGA447WJSA Size AA
Dry Batteries
Location
• For normal operation, yourTV should be located in an area of the room where cool adequate ventilation
is provided. Do not place the back of the television set in a place where free airflow will be restricted.
• Any magnetic force may disturb the color picture. Make sure that magnets, electric clocks, toys using
magnets or any other magnetic substance, such as iron are kept well away from the TV set.
Power
Your TV operates on 120 Volts, 60 Hz (normal household current) and has a polarized plug. If you are
unable to insert the plug fully into the outlet, try reversing the plug. Should it fail to fit, contact an
electrician. Do not defeat the safety feature of the polarized plug.
!Note: >
• If the set is not going to be used for a long period, such as during a vacation, unplug the set from the
wall outlet to economize power. (If the TV set is plugged in, a slight current still flows, even with the
POWER BUTTON in the OFF position.)
• Lines and other noise may appear in TV broadcast images when an FM tuner or radio is located near
the TV and both radio and TV broadcasts are being received. Should such noise appear, turn off the
radio.
• If you are listening to an AM broadcast, turn the TV off. AM broadcast signals may not be received
due to interference from the TV.
®Before using the television, prepare the Remote Control
To use the remote control, insert batteries first.
inserting the batteries
u
Pull
Battery
Cover
• With your thumbnail, pull up the slit as indicated by the arrow to remove the battery cover. Insert two
batteries (size "AA"). Be sure to match the battery _/(_ terminals with the _/(_ marks inside the
compartment.

Antennas
The antenna requirements for good color television reception are more important than those for black
&white television reception. For this reason, a good quality outdoor antenna is strongly recommended.
The following is a brief explanation of the type of connections that are provided with the various
antenna systems:
1. A 75-ohm system is generally a round cable with
F-type connector that can easily be attached to
a terminal without tools (not supplied).
2. A 300-ohm system is a fiat"twin-lead" cable that
can be attached to a 75-ohm terminal through a
300/75-0hm ADAPTOR (not supplied).
F-typeconnector
75-ohm coaxial cable (round)
300-ohm twin-lead cable (flat)
Refer to one of the following two diagrams when connecting to an outdoor antenna.
A: Using a VHP/UHP combination outdoor antenna.
B: Using separate VHP and/or UHF outdoor antenna.
Connect an outdoor antenna cable lead-in to the ANT/CABLE terminal on the rear of theTV set.
fA. Combination VHF/UHF Antennas
VHFIUHF ANTENNA
300/75-ohm
VHF/UHF ADAPTOR
ANTENNA (Not supplied) 300-ohm
twin-lead
REAR OF TV
J
ANTENNA ANTENNA
300-ohm
twin-lead
r 75-ohm coaxial
cable

F-type connector
75-ohm coaxial cable
F-type connector should be finger-tightened only.
When connecting the RF cable to theTV set, do not
tighten F-type connector with tools.
If tools are used, it may cause damage to your TV
set.
(The breaking of internal circuit, etc.)
A 75 ohm coaxial cable connector is built into the set for easy hookup. When connecting the 75 ohm
coaxial cable to the set, screw the 75 ohm cable to the COAXIAL CABLE CONNECTOR.
• Some cable TV companies offer "premium pay channels". Since the signals of these premium pay
channels are scrambled, a cable TV converter/descrambler is generally provided to the subscriber by
the cable TV company. This converter/descrambler is necessary for normal viewing of the scrambled
channels. (Set your TV on channel 3 or 4. Typically one of these channels is used. If this is unknown,
consult your cable TV company.) For more specific instructions on installing cable TV, consult your
cable TV company. One possible method of utilizing the converter/descrambler provided by your
cable TV company is explained below.
Please note: RF switch equipped with position A/B (not provided) is required.
"A" position on the RF switch (net supplied) : You can view all unscrambled channels using the TV's
channel keys.
"B" position on the RF switch (not supplied) : You can view the scrambled channels via the converter/
descrambler using the converter's channel keys.
RF switch (not supplied)
Cable TV Line
Note:
• Consult your SHARP Dealer or Service Center for the type of splitter, RF switch or combiner that
might be required.

oPart Names
POWER
Press -_ On.
Press again -_ Off.
REMOTE CONTROL
SENSOR
MENU
Press -e Accesses MAIN MENU.
Press again -_ Exits MAIN MENU. VOLUME UP/DOWN (+) Increases sound.
(-) Decreases sound.
LNSIDE DOOR
TERMINALS
I
CHANNEL UP/DOWN
(A) Selects next higher channel.
(T) Selects next lowerchannel.
To open the doer
Using the projection located under the "PULL-OPEN" indication,
pull and lift the door open.
To close the door
Using the projection, lower the door until closed.
Caution:
• When opening or closing the door, do not insert your fingers into
the gap between the door and front panel. This may result in an
injury.
ANTENNA/CABLE INPUT
TERMINAL
IN 1 S-VIDEO TERMINAL
LINE OUT (AUDIO) TERMINALS
(VIDEO) TERMINALS
-- IN 3 (VIDEO/AUDIO) TERMINALS
IN 1 (VIDEO/AUDIO) TERMINALS
! Note:_ ,_
*The TV set and remote control illustrations and the on-screen displays in this manual may differ from
their actual appearance.
8

_. = = • - • • •
POWER
Press _ On.
Press again --_ Off.
REMOTE KEYPAD (0 - 9) --
Sets the channel.
FLASHBACK
Returns to previous channel.
• (DOT)
Sets the channel.
PERSONAL PREFERENCE
With the Personal Preference buttons, \
you can program your favorite \
programs by using the 4 categories A,
B C and D. The channels can be
accessed quickly by using these
buttons. (See page 38, 39.)
VOLUME UP/DOWN
(+) Increases sound.
(-) Decreases sound.
* Changes or selects the TV
adjustments on On-Screen Display.
MENU
Press -_ Accesses MAIN MENU.
Press again -_ Exits MAIN MENU.
CATWDVD-TWVCR MODE
SELECT SWITCH
In TV/VCR position, signals sent will
be for TV and VCR control.
In CATWDVD position signals sent
will be for cable TV converter and
DVD control.
DVD/VCRCONTROL
See page 47.
Infrared Transmitter Window
DISPLAY
Press -_ Displays receiving channel
for 4 seconds.
Press again -_ Removes display.
*Temporarily displays receiving
channel when in Closed Caption
mode.
iNPUT
Press _ Switches to external video
INPUT 1 mode.
Press twice _ Switches to external
video INPUT 2 mode.
Press 3 times -_ Switches to external
video INPUT 3 mode or
COMPONENT mode.
Press 4 times _ Switches back to
the original TV mode. See page 45.
ENTER
*Used to confirm the channel
selection and Personal Preference
channel.
*Used in some instances where a
Cable Converter Box requires an
"enter" command after selecting
channels, when using the REMOTE
KEYPAD button. See page 47.
CHANNEL UP/DOWN
(_) Selects next higher channel.
(v) Selects next lower channel.
*See pages 34-36 for Channel
Setting.
*Moves the "O " mark on the MENU
screens.
MUTE
Press -_ Mutes sound.
Press again -_ Restores sound.
*When sound is muted, CLOSED
CAPTION appears if available.
The above shaded buttons on the Remote Control glow in the dark. To use the glow-in-the-dark
display on the remote control, place it under a fluorescent light or other lighting.
•The phosphorescent material contains no radioactive or toxic material, so it is safe to use.
The degree of illumination will vary depending on the strength of lighting used.
•The degree of illumination will decrease with time and depending on the temperature.
The time needed to charge the phosphorescent display will vary depending on the surrounding lighting.
Sunlight and fluorescent lighting are the most effective when charging the display.
•TheTV set and remote control illustrations and the on-screen displays in this manual may differ from
their actual appearance.

When you turn on the TV for the first time, it wiil automatically
memorize the broadcasting channels.
Please pe#orm the following instructions before pressing the
POWER button.
(1) insert the batteries into the remote control. (See page 5)
(2) Connect the antenna cable to theTV set. (See pages 6, 7)
(3) Plug in the AC POWER cord to the wail outlet.
@®®
®®®
®®®
_0 _0 o0 _0
VOLUME
(+)/(-)
CHANNEL
UP (,_)/
DOWN(T)
Press the POWER button on the TV set or on the Remote Control
to turn on the TV. The SELECT LANGUAGE screen will be
displayed. (On the Set) (On the Remote Control)
POWER
_OWER _ TV
SELECT LANGUAGE
OENGLISN
ESPANOL
FRAMCAIS
SELECT:OH A/V
SET :VOL+/
SELECTLANGUAGEscreen)
2 Press CH A/'T to select "ENGLISH", "ESPAItOL (SPANISH)" or
"FRANCAIS (FRENCH)". SELECT LANGUAGE
OENGLISH
ESPA_OL
FRANCAIS
SELECT:ON A/v
SET :VOL+/
3Press VOL +/- to access the EZ SETUP screen.
Vo;;;'_
/
CONNECT ANTENNA OR CABLE
START EZ SETUP?
OSTOP START
(EZ SETUP screen)
4 PressVOL +.
The tuner will automatically search for the
broadcasting or cable TV channels for ANALOG.
(The CH No. will automatically increase when it
appears.)
Once tuning for analog broadcasting channel is
finished, tuning for digital channel will start.
If you want to stop the EZ SETUP process once it
has started, press VOL - and it will be canceled.
If you stop the EZ SETUP process before it finish
tunning analog channels, the tunning for digital
channels will started to process.
If you want to SET UP again, please refer to page
33, 34 on SET UR
To cancel EZ SETUP
Press VOL -.
(START)
(STOP)
(Analog channel tunning)
PLEASE WAIT
AUTO PROGRAMMING
69
STOP QSTART
4.
(Digital channel tunning)
PLEASE WAIT
AUTO PROGRAMMING
DIGITAL 69
STOP QSTART
10

5 OnceEZSETUPis complete,thelowestchannelnumber I 21
memorized will be displayed. (e.g. Channel 2) I I
• If EZ SETUP does not memorize all the channels in your region, please refer to pages 34-36 for
more information on manually memorizing the channels using CHANNEL SETTING.
,, It may be difficult to PRESET when the broadcast signals are weak, the channel cycle frequency is
incorrect or frequency jamming is occurring around the area. Please refer to pages 34-36 for more
information on manually memorizing the channels using CHANNEL SETTING.
ein order to receive digital air broadcasts, you need a digital broadcast antenna.You can set
the antenna configuration through the Antenna Setup Digital screen.
1 Press MENU to access the MAIN MENU screen.
2 Press OH ,_/T to move the "O" mark to "SET UP".
3
MENU
MENU
[_$LEEP TIMER
B;_MIDEO ADJUST
B_]AUDIO SELECT
_DIGITAL AUDIO
_¢LOSED CAPTION
_PARENT CONTROL
_9_ENERGYSAME
e_SET UP
(MAIN MENU screen)
Press VOL +/- to access the SET UP screen, then press
CH ,_/T to move the "O" mark to "CH SETTING".
_;;;i%iilii!!i¸
4 Press VOL +/- to access the CH SETTING screen, then press
CH _,/T to move the "_" mark to select "ANTENNA SETUP
DIGITAl".
4!1 _ili_
• Antenna Setup Digital can only be select _/
during Digital Channel.
5 Press VOL +/- to access ANTENNA SETUP DIGITAL
screen.
_SET UP
BLUE SCREEN
PERSONAL PREF
UNIVE£SAL PLUS
LANGUAGE
oDm SETTING
AUTO INPUT
CHiINPUT ID
SDREEN FORMAT
(SET UP screen)
OH SETTING
EZ SETUP
AIR'ANALOG CABLE
ANALOG CH SEARCH
DIGITAL CH SEARCH
CH MEMORY
eANTENNA SETUP DIGITAL
(CH SETTING screen)
SIGNAL STRENGTH
I
[] SIGNAL STRENGTH
(i) Press CH A/T to select "SIGNAL STRENGTH".
(ii) Adjust the direction of the antenna to obtain the signal
strength level 60 or higher.
(ANTENNASETUP DIGITAL screen)
SIGNAL STRENGTH
11

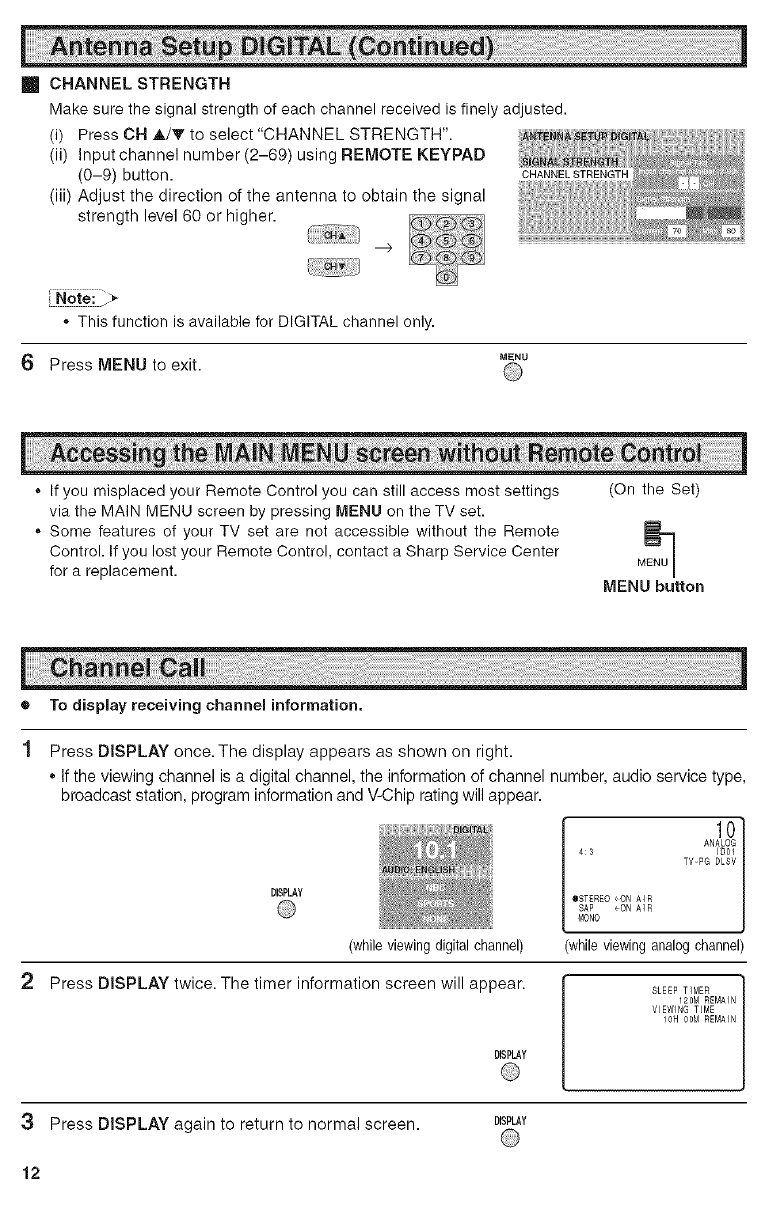

[] CHANNELSTRENGTH
Makesurethesignalstrengthofeachchannelreceivedisfinelyadjusted.
(i) PressCHA/Ttoselect"CHANNELSTRENGTH".
(ii)Inputchannelnumber(2-69)usingREMOTEKEYPAD
(0-9)button. CHANNELSTRENGTH
(iii)Adjustthedirectionoftheantennatoobtainthesignal
strengthlevel60orhigher.
*ThisfunctionisavailableforDIGITALchannelonly.
6 PressMENUtoexit. MENU
* If you misplaced your Remote Control you can still access most settings
via the MAIN MENU screen by pressing MENU on the TV set.
,, Some features of your TV set are not accessible without the Remote
Control. If you lost your Remote Control, contact a Sharp Service Center
for a replacement.
eTo display receiving channel information.
(On the Set)
MENU button
Press DISPLAY once. The display appears as shown on right.
oIf the viewing channel is a digital channel, the information of channel number, audio service type,
broadcast station, program information and V-Chip rating will appear.
ANALOG
4:3 1001
TV-PG DLSV
DISPLAY OSTEREO _ON AI R
SAP cON AIR
MONO
(whileviewing digitalchannel) (whileviewing analog channel)
2 Press DISPLAY twice. The timer information screen will appear.
DISPLAY SLEEP TIMER i
120M REMAIN
VIEWING TIME
10H 00M REMAIN
3 Press DISPLAY again to return to normal screen. DISPLAY
12

Pleasenote: your new Television is capable of receiving the fuji
range of AIR-TV channels available today, from the most advanced
digital channels, to the more traditional analog channels. As the
transition toward rub digital TV continues, some AIR-TV systems
in the USA will have amixture of analog and digital channels in
their lineups.
mYou can change channels in several ways.
Method 1
Using CH ,A/T on the remote
control unit or on the TV set.
(On the Set)
MENU
button (whileviewing
digitalchannel) 1°I
ANALOG
4:3 1001
TV-PG DLSV
OSTEREO _ON AI£
SAP ÷ON AIR
MONO
(whileviewing analogchannel)
Method 2
(i) Press FLASHBACK to switch to the previously tuned channel.
(ii) Press FLASHBACK again to switch back to the currently tuned channel.
Note: _-
,, FLASHBACK will not work if no channel has been changed after TV is turned on.
FLASHBACK
Method 3
Using REMOTE KEYPAD buttons (0-9 and ENTER) to select up to 125 channels for VHF/UHF/
CATV.
To select a 1 or 2-digit analog channel number (e. g., Channel 5):
Press 5 -_ ENTER
Note: _"
• When selecting a 1-digit channel number, it is not necessary to press 0 before the number.
,, When you enter 0-9 only, channel selection will be made if there is no operation for a few seconds.
To select a 3-digit analog channel number (e. g,, Channel 115):
Press 1 -_ 1 -_ 5 -_ ENTER
:Note:>
• When you enter 0-9 only, channel selection will be made if there is no operation for a few seconds.
• If you push "0" by itself, nothing will happen.
To select a digital channel number (e. g. Channel 10.1):
1] 101 101 1011
Press 1 -_ O -_ ', (DOT) -_ 1 -_ ENTER
• Complete the above steps within a few seconds.
• When you enter 0-9 and • (DOT), channel selection will be made if there is no operation for a few
seconds.
13

eThe language for the ON SCREEN DISPLAY can be set to ENGLISH, SPANISH or FRENCH.
Press MENU to access the MAIN MENU screen.
2 Press CH A/T to move the "O" mark to "SET UP".
l MENU /
OB:_SL£EP TIMER
_;;UVI DEO ADJUST
_AUDIO SELECT
_DIGITAL AUDIO
_CLOSEO CAPTION
_PAR_NT CONTROL
MENU _ENETfG¥SAW
_SET UP
(MAIN MENU screen)
3 Press VOL +/- to access the SET UP screen, then press CH A/_ _SET U£
to move the "0" mark to "LANGUAGE".
L.'
4
5
Press VOL +/- to access the LANGUAGE select screen.
(SET UP screen)
LANGUAGE 1
e_NGLISH
(LANGUAGEselectscreen)
Press CH _,/v' to select "ENGLISH", "ESPANOL (SPANISH)" or
"FRANCAIS (FRENCH)".
IDIO/vlA
_ENGLISH
OESPA_OL
_FRANOAIS
Press MENU to exit. MENU
e You can preset your television to turn off automatically in increments of 30, 60, 90 or 120 minutes.
1
2Press MENU to access the MAIN MENU screen.
Press VOL +/- to access the SLEEP TIMER screen.
ME.U _
___
Press VOL +/- to set a sleep time of 30, 60, 90 or 120 minutes. ]
SLEEP TIMER
4 Press MENU to exit. /:-,_/ _"_ ,............ 1
VOW;; MENU
To turn off the SLEEP TIMER, repeat the above SLEEP TIMER steps and
select "- - - M REMAIN" during step 3. SLEEP TIMER screen)
• While SLEEP TIMER is active, the time remaining will be briefly displayed on-screen at regular
intervals or when the Remote's DISPLAY key is pressed twice. 5 minutes before the SLEEP TIMER
turns off the TV, the screen prompts the time remaining for 4 seconds. The SLEEP TIMER shows a
similar display for each remaining minute and a 10-second display right before shutting off the TV.
•If you turn the POWER OFF, the SLEEP TIMER will automatically reset.
14

o
Selected item
TINT
COLOR
BRIGHT
SHARP
COLOR TEMP.
RESET
Description of Adjustment items
VOL + button
To increase contrast
To make skin tones greenish
To increase color intensity
To increase brightness
To increase sharpness
VOL - button
To decrease contrast
To make skin tones purplish
To decrease color intensity
To decrease brightness
To decrease sharpness
To choose a LOW, ML, MHor HIGHcolor tone.
To return al adjustmentsto factory preset levels.
"1 Press MENU to access the MAIN MENU screen.
2Press CH ,_/T to move the "0" mark to "VIDEO ADJUST".
MENU
MENU
g:_SLEEP TIMER
O_V]DEO ADJUST
gg]AUDIO SELECT
_DIGITAL AUDIO
_¢LOSED CAPTION
_PARENT CONTROL
_9_ENERGYSAVE
_SET UP
3
(MAIN MENU screen)
Press VOL +/- to access the PICTURE adjust screen.
- The word "DIGITAL:' will appear to show viewing channel is a
digital channel.
Iiiiilii£!
_;iiI DIGITAL 1
PICTURE 50
IIMMIMMIMMIIMMIMIII
PICTURE adjust screen)
4Press OH A/T to select the desired adjustment item. (Refer to the diagram below.)
_ t
......[ oo,o=TE=P.].....
_:CHA ......:CHY
5 Press VOL +/- to adjust the setting.
DIGITAL 1
PICTURE 50
MIMMIMMIMIIIMMIMM
yOL + /
increases contrast
-- VOL -
decreases contrast
6 Repeat steps 4 to 5 to adjust other settings.
7Press MENU to exit. _E,U
i Note:
" VIDEO ADJUST setting, once set, is shared among AIR/CABLE, INPUT 1, INPUT 2, and INPUT 3
modes.
,, VIDEO ADJUST setting for INPUT 3 when used as COMPONENT can be set independently.
,, VIDEO ADJUST setting for Digital Channel can be set independently. 15

m SPEAKER(Internal Speaker Switch)
This function turns the TV's internal speakers "ON" or "OFF" when listening to sound from
external speakers by using the AUDIO OUTPUT Terminals. (See page 46).
m FAO (Fixed Audio Output)
This function turns the TV's internal speakers "OFF" and allows fixed audio output from the
AUDIO OUTPUT Terminals. (See page 46). With FAO, the TV's volume control is disabled.
1 Press MENU to access the MAIN MENU screen.
2 Press CH ,L/T to move the "0" mark to "AUDIO SELECT".
MENU
MENU
B_SLEEP TIMER
_V]DEO ADJUST
e[_AUDIO SELECT
_DIG]TAL AUDIO
_CLOSED CAPTION
_PARENT CONTROL
_9_ENERGYSAVE
_SET UP
(MAIN MENU screen)
3Press VOL +/- to access the AUDIO SELECT screen.
4 Press CH A/T to move the "O" mark to "MTS", "SPEAKER", "FAD"
or "AUDIO ADJUST".
• If the viewing channel is a digital _ -_'
channel, MTS cannot be selected.
_AUD]O SELECT
eMTS :STEREO
SPEAKER :ON
FAO :OFF
AUDIO ADJUST
(AUDIO SELECT screen)
5 Press VOL +/- to select"STEREO", "SAP"or"MONO"when the
"_" mark is at "MTS" position.
SPEAKER FAO
t I t1
r_Ycq r_Ycq
J_AUDIO SELECT
@MTS :STEREO
_SANERiS_F
AUDIO ADJUST
(AUDIO SELECT screen)
16

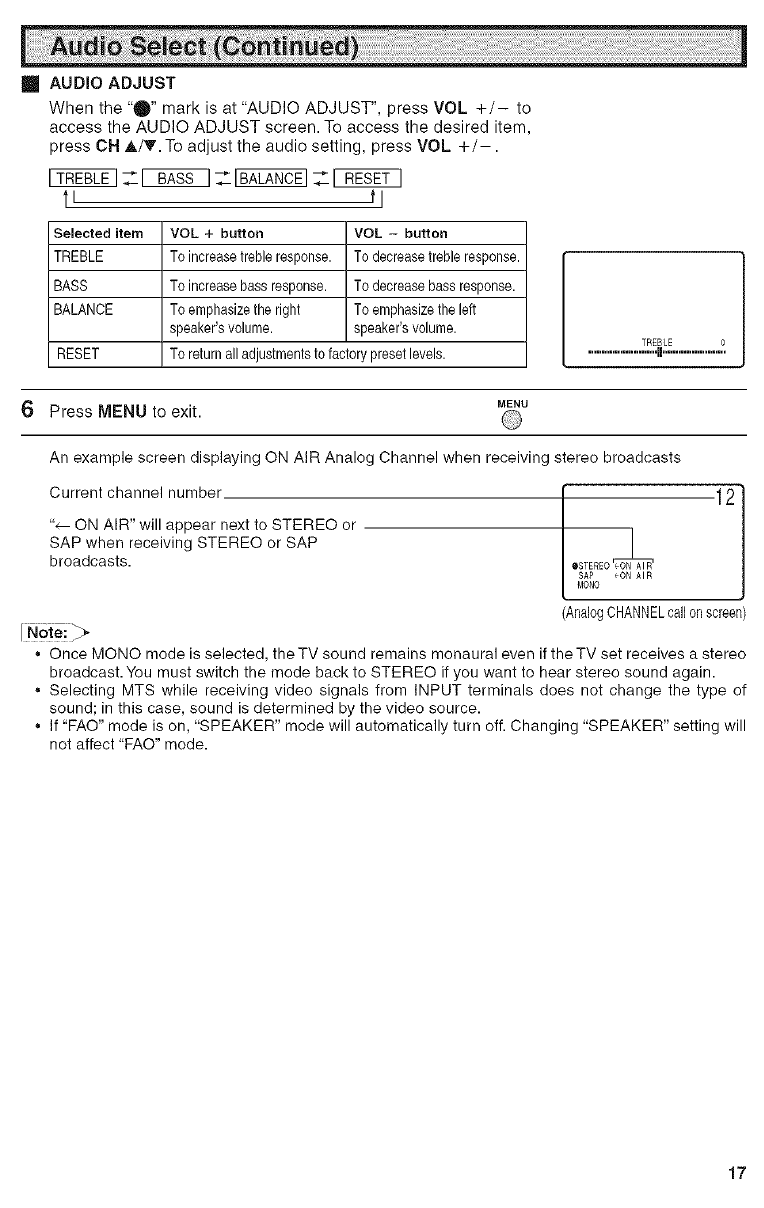

[] AUDIO ADJUST
When the "0" mark is at "AUDIO ADJUST", press VOL +/- to
access the AUDIO ADJUST screen. To access the desired item,
press CH A/T. To adjust the audio setting, press VOL +/-.
Selected item VOL +button VOL - button
TREBLE To increasetrebleresponse. Todecreasetrebleresponse.
BASS To increasebassresponse. Todecreasebassresponse.
BALANCE To emphasizetheright Toemphasizetheleft
speaker'svolume, speaker'svolume.
RESET To returnalladjustmentstofactorypresetlevels. ...................._ ..................
6 Press MENU to exit. MENU
An example screen displaying ON AIR Analog Channel when receiving stereo broadcasts
Current channel number 12I
I
"_, ON AIR" will appear next to STEREO or /
SAP when receiving STEREO or SAP |
broadcasts. OSTEREO
SAP <ON AIR
MONO
(AnalogCHANNELcallonscreen)
[Note: _-
,, Once MONO mode is selected, the TV sound remains monaural even if the TV set receives a stereo
broadcast. You must switch the mode back to STEREO ifyou want to hear stereo sound again.
,, Selecting MTS while receiving video signals from INPUT terminals does not change the type of
sound; in this case, sound is determined by the video source.
,, If "FAO" mode is on, "SPEAKER" mode will automatically turn off. Changing "SPEAKER" setting will
not affect "FAO" mode.
17

® This feature allows you to select the Primary and Secondary language and as well the type of
audio transmitted in adigital broadcast, if the viewing channel is an analog channel, Digital
Audio cannot be selected,
1 Press MENU to access MAIN MENU screen.
2Press CH A/T to move the "O" mark to "DIGITAL AUDIO".
3
4
MENU
MENU
g_ISLEEP TIMER
_VIDEO ADJUST
B_AUDIO SELECT
_I_]DiGITAL AUDIO
_CLOSED CAPT]ON
_PARENT CONTROL
[E_ENENGY SAVE
_$ET UP
(MAIN MENU screen)
Press VOL +/- to access the DIGITAL AUDIO screen.
Press CH A/V to select "Audio Preference" or "Audio
Service", then press VOL +/- to access to the selected
mode.
AUDIO PREFERENCE
(DIGITAL AUDIO screen)
[] AUDIO PREFERENCE
(i) Press OH ,A/T to select "PRIMARY LANGUAGE" or
"SECONDARY LANGUAGE". PRIMARYLANGUAGE :ENGLISH
(ii) Press VOL +/- to change the setting.
PRIMARY LANGUAGE
SECONDARY LANGUAGE
• The language which is selected in Primary Language will not appear in Secondary Language selection
mode.
[] AUDIO SERVICE
(i) Press CH A,/T to select the AUDIO SERVICE. Six kinds
of audio service are available to be selected. However,
selectable service are depands on the programs contains.
The services are toggles as shown on below:
AUDIO SERVICE 1
If a program has three services, audio service toggles
like below:
,, AUDIO SERVICE:The type of audio transmitted in a digital broadcast signal.
,, In additional, it is possible for multiple audio tracks to accompany a signal video track.
5 Press MENU to exit. MENU
18

e HowtosetCLOSEDCAPTION
• YourTVisequippedwithaninternalClosedCaptiondecoder."Closed
Caption"isasystemwhichallowsconversations,narration,andsound
effectsinTVprogramsandhomevideostoappearascaptionsonthe
TVscreen(seetheillustration).
• Notalltheprogramsandvideoswillofferclosedcaptioning.Please
lookforthe"_" symboltoensure that captions will be shown.
• Closed Caption broadcast for Analog Channel can be viewed in two
modes: CAPTION and TEXT. For each mode, two channels are
available, CH1 and CH2.
Closed Caption broadcast for Digital Channel can be viewed in 10
modes (maximum).
The CAPTION mode shows subscripts of dialogs and commentaries
of TV dramas and news programs while allowing clear view of the
picture.
The TEXT mode displays over the picture other various information
(such as TV program schedule, weather forecast, etc.) that is
independent of the TV programs.
VOLUME
(+y(-)
CHANNEL
UP(,_)/
DOWN(T)
MENU
I During viewing analog channel
1 Press MENU to access the MAIN MENU screen.
2 Press CH A/T to move the "0" mark to "CLOSED CAPTION".
MENU
MENU
B_SLEEP TIMER
_VIDSO ADJUST
B_]AUDIO SELECT
_DIGITAL AUDIO
O_]CLOSED CAPTION
_PARENT CONTROL
_9_ENERGYSAVE
_SET UP
(MAIN MENU screen)
3 Press VOL +/- to access the CLOSED CAPTION setting screen.
iiii!iiii_
l _CLOSED CAPTION
OMDDS :CAPTION
DATA :DH 1
(CLOSEDCAPTIONsettingscreen)
4 Press CH A/T to move the "O" mark to either"MODE" or"DATA". _CLOSED CAPTION
NODE :CAPTION
ODATA :CH 1
5 Press VOL +/- to change the CLOSED CAPTION setting.
MODE: [_F_ DATA:
_CLOSED CAPTION
• MODS :CAPTION
DATA :OH 1
Press MENU to exit. MENU
19

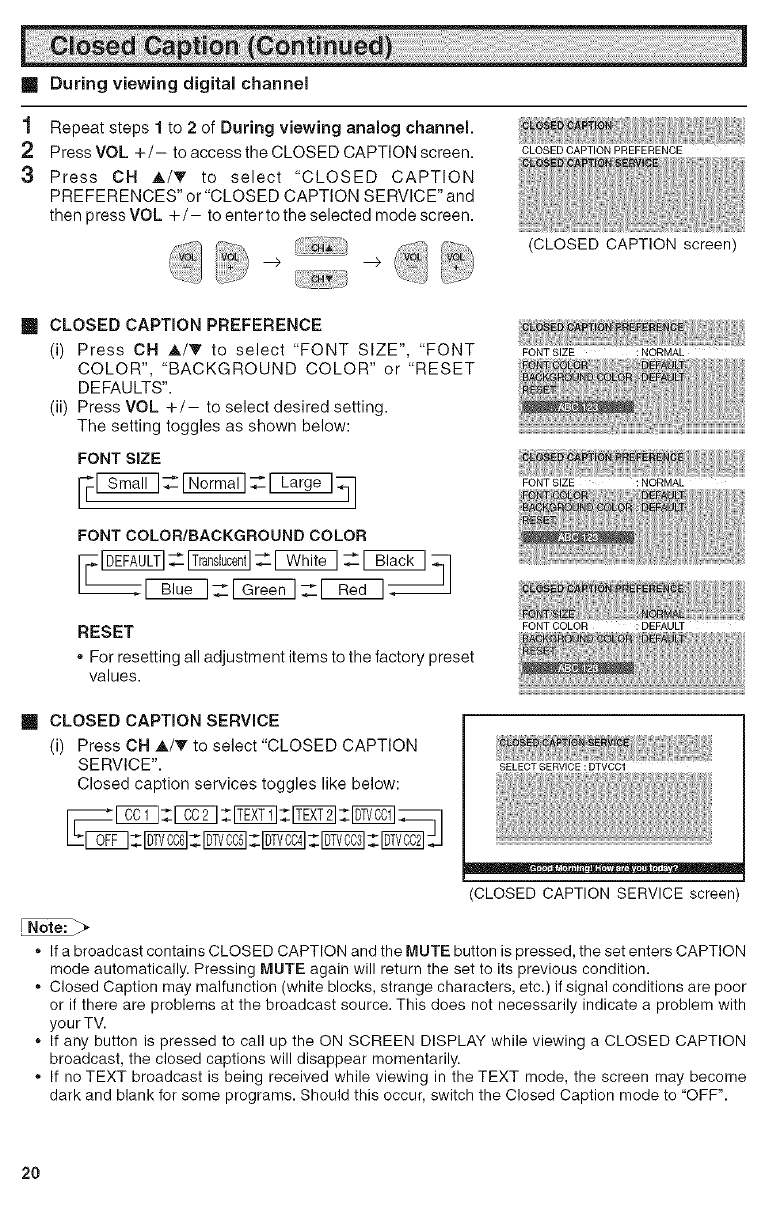

IDuring viewing digital channel
1
2
3
Repeat steps 1 to 2 of During viewing analog channel.
Press VOL +/- to access the CLOSED CAPTION screen.
Press CH _,/T to select "CLOSED CAPTION
PREFERENCES" or "CLOSED CAPTION SERVICE" and
then press VOL +/- to enter to the selected mode screen.
voL_
..... --> --> .......
CLOSED CAPTION PREFERENCE
CLOSED CAPTION PREFERENCE
(i) Press CH A/T to select "FONT SIZE", "FONT
COLOR", "BACKGROUND COLOR" or "RESET
DEFAULTS".
(ii) Press VOL +/- to select desired setting.
The setting toggles as shown below:
FONT SIZE
FONT COLOR/BACKGROUND COLOR
RESET
" For resetting all adjustment items to the factory preset
values.
(CLOSED CAPTION screen)
FONT SIZE : NORMAL
m CLOSED CAPTION SERVICE
(i) Press CH ,_,/T to select "CLOSED CAPTION
SERVICE".
Closed caption services toggles like below:
FONT COLOR : DEFAULT
SELECT SERVICE : DTVCCI
(CLOSED CAPTION SERVICE screen'
If a broadcast contains CLOSED CAPTION and the MUTE button is pressed, the set enters CAPTION
mode automatically. Pressing MUTE again will return the set to its previous condition.
Closed Caption may malfunction (white blocks, strange characters, etc.) if signal conditions are poor
or if there are problems at the broadcast source. This does not necessarily indicate a problem with
your TV.
If ally button is pressed to call up the ON SCREEN DISPLAY while viewing a CLOSED CAPTION
broadcast, the closed captions will disappear momentarily.
If no TEXT broadcast is being received while viewing in the TEXT mode, the screen may become
dark and blank for some programs. Should this occur, switch the Closed Caption mode to "OFF".
2O
