Sharp 28JS-74SS User manual

1
28JS-74S
MODEL 28JS-74SS
PAL / SECAM BG SYSTEM COLOUR TELEVISION
SE0028JS74S00
SERVICE MANUAL
Issued :30th July 2002
This document has been published to
be used for after sales service only.
GA-200 CHASSIS
In the interests of user safety (required by safety
regulations in some countries) the set should restored
to its original condition and only parts identical to
those specified should be used.
CONTENTS
ELECTRICAL SPECIFICATIONS ................... 3
IMPORTANT SERVICING NOTES ................. 4
CONTROLS & TERMINALS ........................... 5
ADJUSTMENT PROCEDURES ...................... 7
LED FLASHING CODES ............................... 12
PRINTED WIRING BOARDS ........................ 13
COMPONENT LOCATION TABLES ............... 19
CHASSIS LAYOUT ......................................... 24
SCHEMATIC DIAGRAMS ............................... 26
BLOCK DIAGRAM ....................................... 38
TROUBLESHOOTING TABLES ..................... 39
ICs ADDITIONAL INFORMATION .................. 44
PARTS LISTING ............................................. 66
SERVICING NOTES.................................... 74
SOURCE OF DOCUMENTATION .................. 78
SHARP CORPORATION

2
28JS-74S
Use this page to keep any special servicing information as Technical Report (Bulletin), Technical Information, etc.
If only part number changes are required, just change part number directly the part number in the Parts Listing Section.
If you need more information, please refer to the Technical Report (Bulletin).
SERVICE MANUAL UPDATE LOG SHEET
Part No.
Technical Report No.
Technical Bulletin No. Cause / Solution Page No. Application
Data /Serial No.

3
28JS-74S
ELECTRICAL SPECIFICATIONS
•Focus ....................... High Bi-Potential Electrostatic
•Sweep Deflection ..................................... Magnetic
•Picture Intermediate Frequency................... 38.9MHz
•Sound Carrier Trap................................... 33.4MHz
•Adjacent Sound Carrier Trap ................... 40.4MHz
•Adjacent Picture Carrier Trap.................. 31.9MHz
.
•Aerial Input Impedance
VHF/UHF ...................... 75 ohm Unbalanced
•Tuning Ranges........... 48.25 MHz thru 855.25 MHz
VHF: E2-E12 CH / S1 - S41 CH (Hiperband)
UHF: E21 - E69 CH
CATV Special Channels
•White Level
Set brightness control to get total picture tube cathode current of 600 µA under no signal condition.
Maximum necessary correction of each picture tube cathode current to get 8550 degrees K+1 MPCD
screen temperature should not exceed 15% of its original value.
X=0.290 ± 0.015 Y=0.300 ± 0.015
WARNING
The chassis in this receiver is partially hot. Use an isolation transformer between the line cord plug
and power receptacle, when servicing this chassis.
To prevent electric shock, do not remove cover. No user-serviceable parts inside. Refer servicing to
qualified service personnel.
Specifications are subject to change without prior notice.
•Power Input .................... 220V-240 Volts AC 50Hz
•Power Consumption
Normal Operation (Method IEC60107) ............ 84W
Stand-by Operation ..........................................1.5W
•Audio Power Output Rating (MPO) / Impedance
Internal Left Speaker ................................. 10W, 7Ω
Internal Right Speaker ............................... 10W, 7Ω
•Speakers
Left / Right ................................................. 12 x 6cm
•Convergence (Maximum Misconvergence)
Static (Centre) between any two colours ... 0.08 cm
Dynamic after static equals zero
Within 10cm (4”) circle ....................... 0.12 cm
10-25cm (4-10” ) circle ...................... 0.20 cm
Everywhere else ................................ 0.28 cm
MODEL DIFFERENCES:
28JS-74S: Base model.
28JS-74SS: Silver Cabinet.

4
28JS-74S
IMPORTANT SERVICING NOTES
Only qualified service personnel are allowed to carry out maintenance and repair of this receiver.
Servicing of High Voltage System and CRT
It is important that the static charge is removed from the high voltage system when carrying out work on the
receiver. This can be achieved by connecting a 10K resistor (with a suitably insulated lead) from the CRT
cavity connector to the CRT ground tag. This must be carried out with the AC supply disconnected from the
receiver.
Note the following:
•The CRT in this receiver employs Integral Implosion Protection.
•If the CRT has to be changed it MUST be replaced with the correct type for continued safe working.
•DO NOT lift the CRT by its neck.
•When handing the CRT, ensure that shatterproof goggles are worn.
•Ensure that the CRT is discharge before handling.
X-Ray
This receiver is designed to keep any x-ray emission to an absolute minimum. Some fault conditions and
servicing procedures may produce potentially hazardous x-ray radiation levels. This is a problem when in
close proximity to the receiver for long periods of time. To reduce any risks associated with this, please
observe the following precautions:
1. When undertaking any servicing on this chassis, DO NOT increase the EHT to more than 30 KV, (at a
instantaneous beam current of 1500µA).
2. Ensure that during normal operation the EHT does not exceed 30KV (at a beam current of 1000µA). This
level has been preset in the factory. Always check that this level has not been exceeded after carrying out
any repair on the receiver.
3. DO NOT replace the CRT with any other type than that specified in the parts listing as this may cause
excessive x-ray radiation.
Before returning the receiver to the customer
In addition to the above checks, the following should also be carried out before returning the receiver to the
customer.
1. Inspect all the leads to ensure that they are dressed correctly and that they are not obstructed or pinched
by any other parts.
2. Ensure that all protective devices are in good condition. These will include nonmetallic control knobs,
insulating fish papers, cabinets backs, compartment covers or shields, mechanical insulators, etc.

5
28JS-74S
CONTROLS & TERMINALS
)521779
0DLQ3RZHU2Q2II6ZLWFK
3RZHU,QGLFDWRU
3URJUDP6HOHFWRU
83'2:1
9ROXPH XWWRQV83'2:1
5HPRWH&RQWURO6HQVRU
6RXQG,QGLFDWRU
5HPRWH&RQWURO,QGLFDWRU
'225
+2:7223 17+ '225
3UHVVWKHWRSRIWKHGRRURSHQLQJLWVOLJKWO\
+RRN\RXUILQJHULQVLGHDQGSXOORSHQ
23&
%HKLQGWKHGRRU
+HDGSKRQH6RFNHW
PPaȍ
5 $579
5),QSXW
$QWHQQDWHUPLQDO
SLQ,Q2XW
SLQ(XUR6&$575*
SLQ$XGLR9LGHR$9
:LWK69LGHR,QSXW
&+
,,,
23&
$9 5*
$97(50,1$/
6&$57
3(5,7(/(9,6,21

6
28JS-74S
REMOTE CONTROL
79 6WDQGE\212))VZLWFK79
9LGHR 3RZHU212))VZLWFK9&5
79 'LJLWEXWWRQV∼
)ODVKEDFNEXWWRQ
7HOHWH[W &RORXUEXWWRQJUHHQ
&RORXUEXWWRQUHG
79 9ROXPH'RZQ&XUVRUFRQWURO/HIW
0HQXEXWWRQ
7HOHWH[W 5HYHDOEXWWRQ
/LVWVHOHFWRU
6WRUHEXWWRQ
&DQFHOEXWWRQ
7RS RWWRP)XOOEXWWRQ
5HVHWEXWWRQ
9LGHR 5HZLQGSLFWXUHVHDUFKUHYHUVH
3OD\EXWWRQ
3DXVH6WLOOEXWWRQ
6WRSEXWWRQ
79 799,'(2VHOHFWRU
+])DVW0HQXEXWWRQ
6LQJOH'RXEOHHQWU\
7HOHWH[W &RORXUEXWWRQ\HOORZ
&RORXUEXWWRQEOXH
79 &KDQQHO8S&XUVRUFRQWURO8S
9ROXPH8S&XUVRUFRQWURO5LJKW
&KDQQHO'RZQ&XUVRUFRQWURO'RZQ
79EXWWRQ
797HOHWH[W 7LPHEXWWRQ
79 6RXQGPRGHVHOHFWRU
7HOHWH[W +ROGEXWWRQ
79 6RXQG0XWHEXWWRQ
7HOHWH[W 7H[W0L[EXWWRQ
,QGH[EXWWRQ
9LGHR &KDQQHO8SVHOHFWRU
)DVWIRUZDUGSLFWXUHVHDUFKIRUZDUG
&KDQQHO'RZQVHOHFWRU
5HFRUGEXWWRQ
"
,
i
/,67
;
799&57(;75(027(&21752/
*6$
799,'(2
0 18
&+
9&5
6
,,,,,,
79 9&5
79
&+
&+

7
28JS-74S
ADJUSTMENT PROCEDURES
All adjustments to this chassis, except for focus, are carried out in the Service Mode.
••
••
•SERVICE MODE
The Service Mode is provided to enable the engineer to correctly set up the receiver to the CRT fitted in the set.
Note that these adjustments may vary from one receiver to another.
To enter the Service Mode, carry out the following procedure.
1. Connect a test pattern to the antenna terminal.
2. Tune the receiver to this signal.
3. Turn the receiver off using the mains switch.

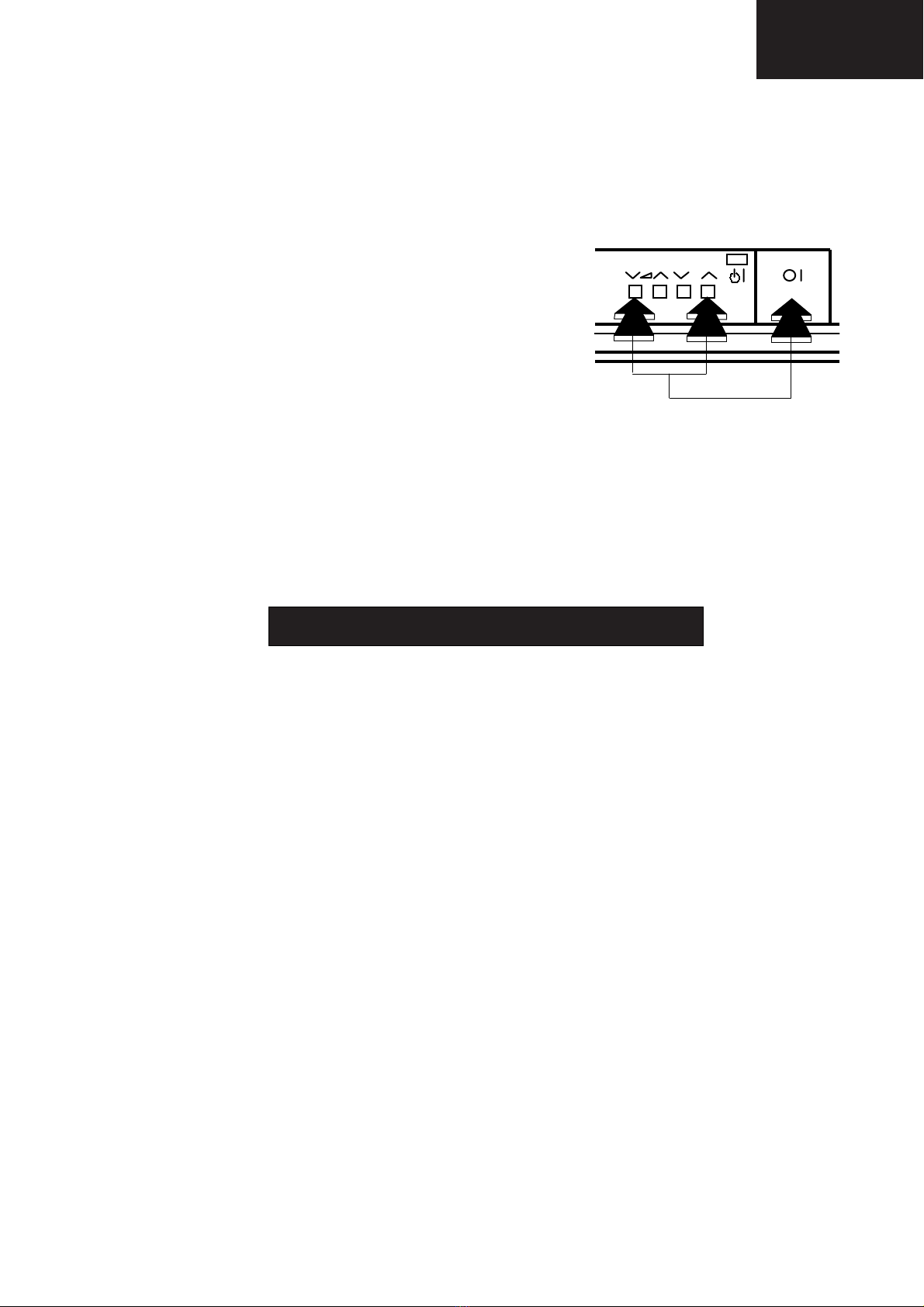

4. Press volume down and channel up buttons on the
front of the receiver at the same time.
5. Keeping these buttons pressed, turn the mains on.
6. When the set starts up it will be in Service Mode.
7. Release the two buttons.
••
••
•Use the channel up and down buttons to move between the options.
••
••
•Use the volume control buttons to change the data.
••
••
•To store the data, use the stand-by button on the remote control.
••
••
•To exit the Service Mode, turn the receiver off using the mains switch.
When the Service Mode is entered the following On Screen Display appears:
SERVICE SOFTWARE version ∗∗.∗∗
SW on: XXXX SW off: XXXX Hours ON: XXXX
The figures displayed in the “XXXX” locations are hexadecimal representations of the number of times that particular
function has been executed. For example if the hexadecimal number displayed after “SW ON” was “0E4A”, this would
correspond to the receiver being turned on 3658 times.
Adjustment menu:
The following adjustments can be carried out in the Service Mode.
•Horizontal Shift
• East West Width
• Pin Phase
• Pin Amp
• Upper corner correction
• Lower corner correction
• Extreme Corner Correction
• Vertical Linearity
• Vertical angle
• Vertical bow
• Vertical Amplitude
• S Correction
• Vertical Shift
• Red Cut Off
• Green Cut Off
• Blue Cut Off
• Alter NVM Pag (Page)
• Alter NVM Pos (Position)
• Alter NVM Val (Value)
• Teletext Mix Mode Contrast
• Teletext Contrast
• OSD Contrast
• DVCO Adjustment (Only PAL)
• DVCO Adjustment (Only NTSC)
• AGC Adjustment
• Auto Installation On/Off
Figure 1
CH
4
5

8
28JS-74S
The following geometry adjustments can be carried out. Detailed instructions on how to execute these are given on the
following pages:
Horizontal
• Horizontal Shift
• East West Width
• Pin Phase
• Pin Amp
• Vertical angle
• Vertical bow
• Upper Corner Amplitude
• Lower Corner Symmetry
• Extreme Corner Symmetry
Vertical
• Vertical Amplitude
• S Correction
• Vertical Shift
• Vertical Linearity
Just in case the TV set requires a full geometry adjustment, please proceed first with Verti-
cal according to the above order, and after that, adjust Horizontal according to the above
order.
Horizontal Shift
Adjust the horizontal shift so that the picture is centred.

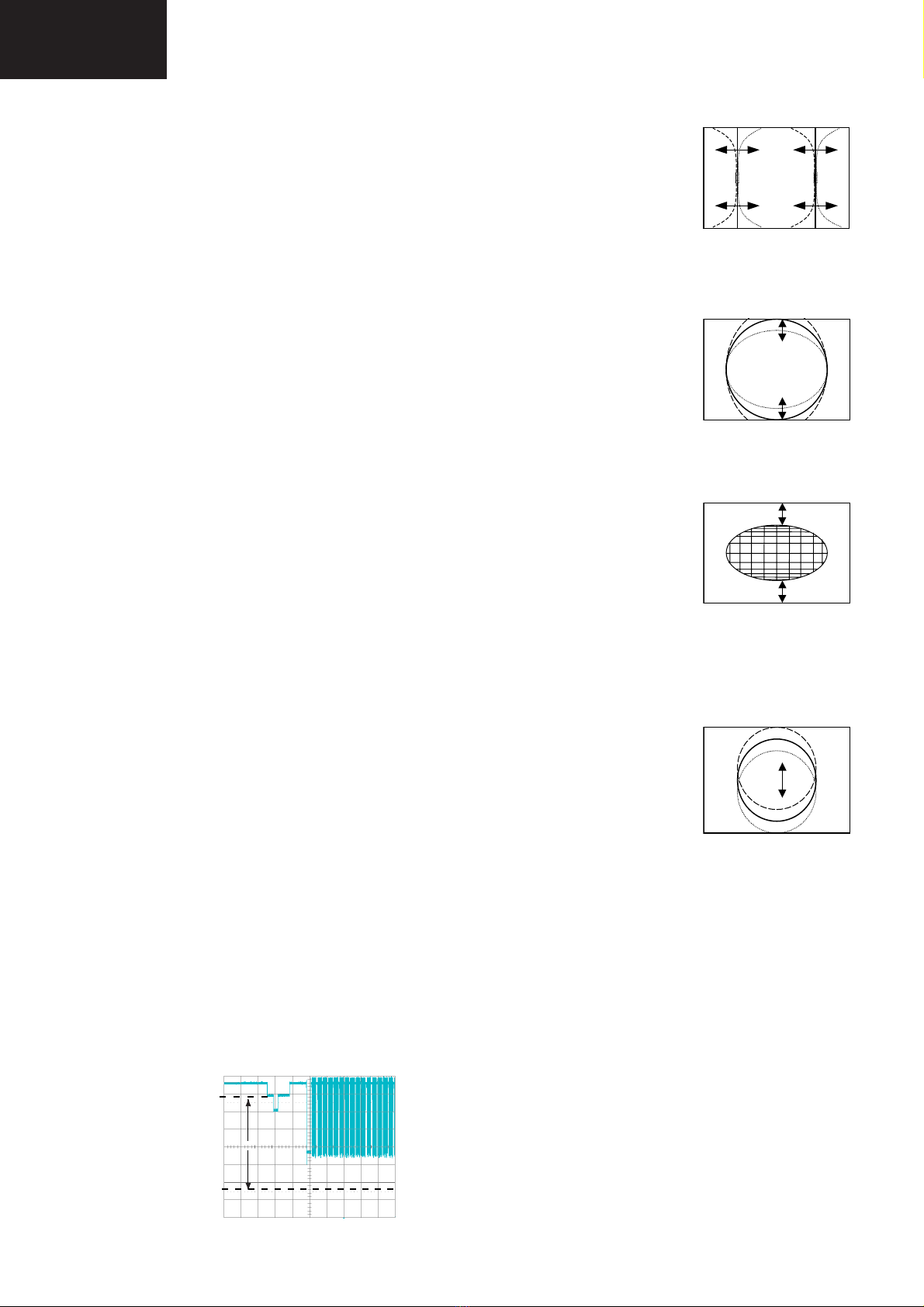

The effect of this adjustment is shown in figure 2.
•When the volume up button is pressed, the picture moves to the left.
•When the volume down button is pressed, the picture moves to the right.
•Press the stand-by button on the remote control to store.
East West Width
Adjust the East West Width so that 8% over-scan is achieved.
The effect of this adjustment is shown in figure 3.
•When the volume up button is pressed, horizontal scanning increases.
•When the volume down button is pressed, horizontal scanning decreases.
•Press the stand-by button on the remote control to store.
Pin Phase
Adjust the Pin Phase so that the picture is symmetrical top and bottom.
The effect of this adjustment is shown in figure 4.
•When the volume up button is pressed, side pincushion changes.
•When the volume down button is pressed, side pincushion changes.
•Press the stand-by button on the remote control to store.
Pin Amp
Adjust the Pin Amplitude so that the picture is centred.
The effect of this adjustment is shown in figure 5.
•When the volume up button is pressed, side pincushion changes from pincushion to
barrel shape.
•When the volume down button is pressed, side pincushion changes from barrel
shape to pincushion.
•Press the stand-by button on the remote control to store.
Figure 2
Figure 3
Figure 4
Figure 5

9
28JS-74S
Upper Corner Correction
Adjust the Upper Corner Correction so that the picture is centred.
The effect of this adjustment is shown in figure 6.
• When the volume up button is pressed, side pincushion changes from pincushion to
barrel shape.
•When the volume down button is pressed, side pincushion changes from barrel shape to
pincushion.
•Press the stand-by button on the remote control to store.
Lower Corner Correction
Adjust the Lower Corner Correction so that the picture is centred.
The effect of this adjustment is shown in figure 7.
• When the volume up button is pressed, side pincushion changes from pincushion to
barrel shape.
• When the volume down button is pressed, side pincushion changes from barrel shape to
pincushion.
• Press the stand-by button on the remote control to store.
Extreme Corner Correction
Adjust the Extreme Corner Correction so that the picture is centred.
The effect of this adjustment is shown in figure 8.
• When the volume up button is pressed, side pincushion changes from pincushion to
barrel shape.
•When the volume down button is pressed, side pincushion changes from barrel shape to
pincushion.
•Press the stand-by button on the remote control to store.
Vertical Linearity
Adjust the Vertical Linearity so that the upper and lower parts of the picture are symmetrical.
The effect of this adjustment is shown in figure 9.
• When the volume up button is pressed, the upper picture scanning decreases and the
lower picture scanning increases.
• When the volume down button is pressed, the upper picture scanning increases and the
lower picture scanning decreases.
• Press the stand-by button on the remote control to store.
Vertical Angle
Adjust the Vertical Angle so that the picture is centred.
The effect of this adjustment is shown in figure 10.
• When the volume up button is pressed, the vertical angle changes to right.
• When the volume down button is pressed, the vertical angle changes to left.
• Press the stand-by button on the remote control to store.
Figure 9
Figure 7
Figure 10
Figure 6
Figure 8

10
28JS-74S
Colour Adjustments
The following adjustments should only be carried out when the CRT or IC801 are replaced.
G2, Cut Off and Gain Adjustments
1. Follow the procedure below to set the G2
1.1 Tune the set to the output of a signal generator (cross hatch pattern).
1.2 In the user menu, set contrast to 80/100 and brightness to 40/100.
1.3 Connect the oscilloscope to the TP1801 and adjust G2 to read 135V on the sensor pulse as in the drawing:
Vertical Bow
Adjust the Vertical Bow so that the picture is centred.
The effect of this adjustment is shown in figure 11.
• When the volume up button is pressed, the vertical bow changes to left.
• When the volume down button is pressed, the vertical bow changes to right.
• Press the stand-by button on the remote control to store.
Vertical Amplitude
Adjust the Vertical Amplitude so that 8% over-scan is achieved.
The effect of this adjustment is shown in figure 12.
• When the volume up button is pressed, the vertical size of the picture increases.
• When the volume down button is pressed, the vertical size of the picture decreases.
• Press the stand-by button on the remote control to store.
S Correction
Adjust the S Correction so that the picture symmetrical between the top, centre and bottom.
The effect of this adjustment is shown in figure 13.
• When the volume up button is pressed, the top and bottom scanning decreases and the
centre scanning increases.
• When the volume down button is pressed the top and bottom scanning increases and the
centre scanning decreases.
• Press the stand-by button on the remote control to store.
Vertical Shift
Adjust the Vertical Shift so that the picture is centred.
The effect of this adjustment is shown in figure 14.
• When the volume up button is pressed, the picture moves up.
• When the volume down button is pressed, the picture moves down.
• Press the stand-by button on the remote control to store.
135 V
CH1 gnd
Figure 14
Figure 11
Figure 12
Figure 13

11
28JS-74S
NOTE:
Oscilloscope should be adjusted for vertical TV field trigger and synchronized with video signal.
2. Follow the procedure below to set the Cut Off.
2.1 Adjust G2.
2.2 Tune a white pattern.
2.3 Adjust colour to minimum.
2.4 Position colorimeter in the centre of screen.
2.5 Adjust brightness and contrast to obtain a luminance of ≈20 NITS.
2.6 Operate in Service Mode and select location RED CUT OFF, GREEN CUT OFF and BLUE CUT OFF, to
obtain colour coordinates:
X=0.290 ± 0.015 Y=0.300 ± 0.015
To increase press volume-up button and to decrease press volume down button.
RED CUT OFF alter «X» coordinate.
GREEN CUT OFF alter «Y» coordinate.
BLUE CUT OFF alter «X» and «Y» coordinate.
They will be stored automatically.
Changing NVM Data
To change the data contained within the Non Volatile Memory, it is necessary to first select the page the data is stored in,
then the position and finally to change the data itself. The procedure below outlines this process.
1. While on ALTER NVM PAGE, use the volume up/down buttons to change this data (data is shown in hexadecimal
format).
2. Press the channel up button and ALTER NVM POSITION appears, use the volume up/down buttons to change this
data (data is shown in hexadecimal format).
3. Press the channel up button and ALTER NVM VALUE appears, use the volume up/down buttons to change this data
(data is shown in hexadecimal format).
4. Once this data has been set, press the stand-by button to store.
5. If another NVM value has to be changed, use the channel down button to select the page or position and repeat as
necessary.
Note:
DO NOT change any NVM data, unless you have been advised to do so by a Sharp representative. If data is incorrectly
changed, serious damage may occur to the receiver.
Contrast Adjustments
Three types of contrast levels can be varied as listed below:
• TELETEXT MIX MODE CONTRAST
• TELETEXT CONTRAST
• OSD CONTRAST
Use the volume up/down buttons to adjust to a suitable level, they will be stored automatically.
DVCO Adjustment (PAL)
Carry out the DVCO Adjustment (PAL) as shown below:
1. Receive a color pattern signal (PAL).
2. While in the DVCO ADJUSTMENT (PAL) menu, press the stand-by button.
3. The adjustment will be carried out automatically and stored.

12
28JS-74S
DVCO Adjustment (NTSC)
Carry out the DVCO Adjustment (NTSC) as shown below:
1. Receive a color pattern signal (NTSC 3.58).
2. While in the DVCO ADJUSTMENT (NTSC) menu, press the stand-by button.
3. The adjustment will be carried out automatically and stored.
AGC Adjustment
To correctly align the Automatic Gain Control, follow the procedure outlined below:
1. Tune the set into a pattern generator on CH10.
2. Adjust the signal strength of the pattern generator to 57dB/µV
3. Enter the Service Mode.
4. Enter the AGC Adjustment menu.
5. Press the stand-by button on the remote control.
6. The adjustment will be carried out and stored automatically.
Auto Installation On/Off
To return the receiver to the original Auto Installation mode, using the volume up or down button, set the Auto Installation
On/Off to On. This setting is automatically stored and when the receiver is turned on the next time it will start up in Auto
Installation mode.
LED FLASHING CODES
If the TV set does not work and the power indicator is flashing, follow the sequence according to the information below, as
a guide to fault finding.
1. Unable to read or write into NVM: 66% ON, 33% OFF twice and OFF for a second.
2. MSP failure: 66% ON, 33% OFF for three times and OFF for a second.
3. SDA 9380 failure: 66% ON, 33% OFF for four times and OFF for a second.
4. SDA 9402 failure: 66% ON, 33% OFF for five times and OFF for a second.
On Off
On Off
On Off
On Off

13
28JS-74S

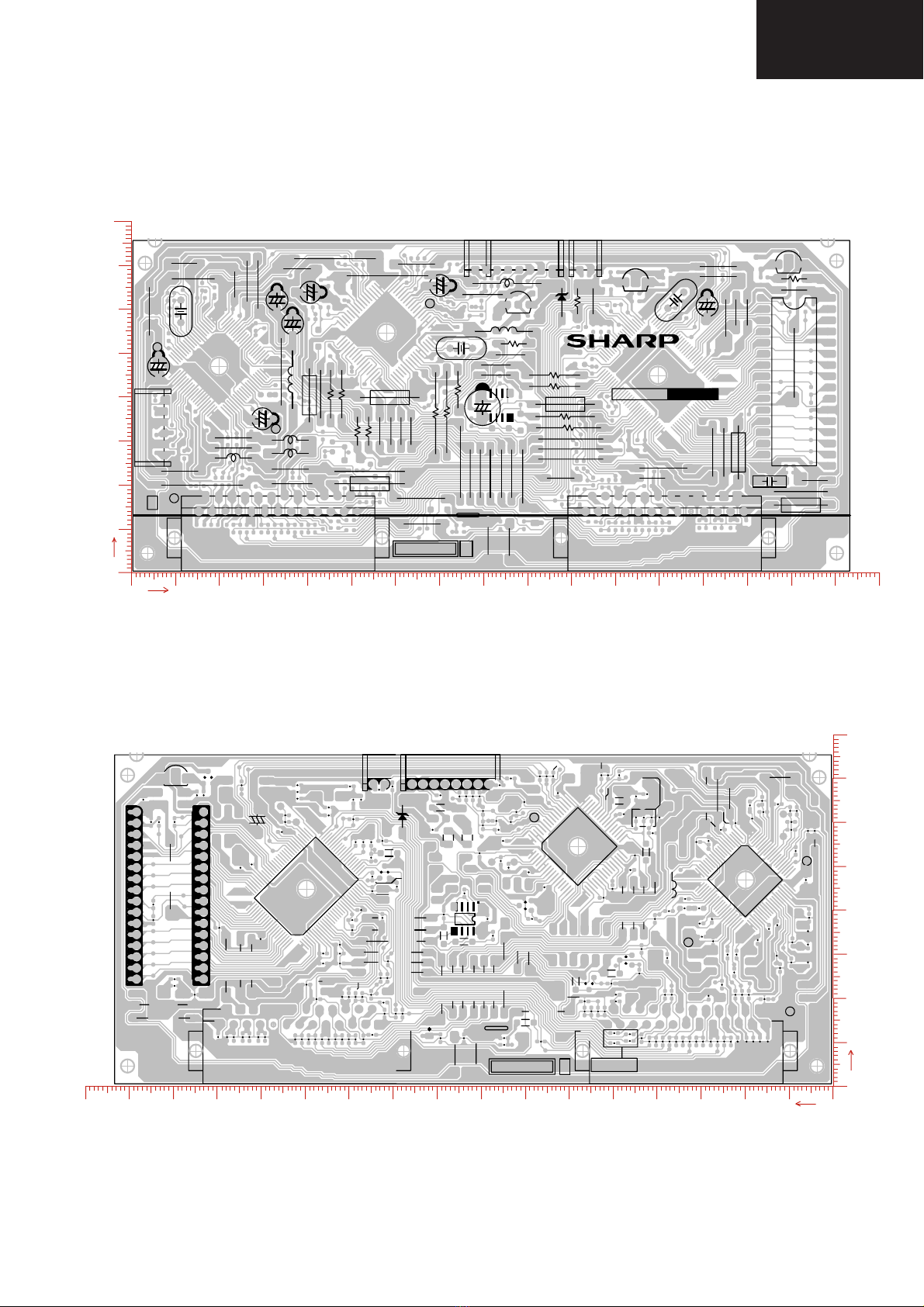

F7353N0D Digital Module Unit PWB
Component side
R6063
R6061
+
C6037
JL1.
JF6012
JF6013
C6035
+
J1
C6143 J74
JL2
JL1
L6001
L6005
L6002
R6046
X6003
J9
R6004
FB6045
J24
R6024
R6026
D6012
J41
J35
J84
J83
J82
D
J54
L6006
L6004
K7353BM
J61
J56
R6005
J52
FB6002
J15
J42
J58
J53
R6014
J57
1
IC6005
ESPA¥A
J75
FB6001
R6043
C
Q6006 E
J73
J60
J69
J67
FB6003
J59
(YA) (YB)
IC6002
(RT)
2
1
1
(K)
J92
J13
C6043
+
X6001
J65
J37
J8
L6003
J11
J10
(VI)
6
1
C6001
+
J19 J21
J34
J33
J32
R6038
R6039
R6021
R6020
J48
FB6047
FB6046
R6019
F7353BMN0
J64
J85
J40
X6002
J86
J36
J96
E
Q6005
C
J39
+
C6025
J25
J2
J70
J90
J91
+
C6014
J93
J3
C6041
+
J14
J16
JL2.
J20
+
C6052
1
2
3
4
5
6
7
Y
X
010 11 12 13 14 15 16 171 23456 789
8
F7353N0D Digital Module Unit PWB
Copper side
R6062
R6064
R6063
R6061
J104
JF6014
C6057
+
FB6038
FB6037
FB6036
R6057
JF6012
JF6013
C6035
+
C6059
J95 J1
C6005
C6004
R6007
J74
R6018
D6005
K
C6033
J102
J101
C6138
L6005
C6141
L6002 R6046
R6023
J27
X6003
C6061
R6041
C6058
C6060
C6063
C6062
J9
J4
R6003
R6001
R6004
R6015
D6010
K
C6031
R6029
FB6045
Q6002
K
D6004
J24
R6024
R6026
FB6039
D6012
R6051
R6016
C6065
C6030
C6101
J63
R6050
J41
J35
J84
J83
J82
FB6022 FB6023
FB6024
C6120
FB6025
C6121
FB6048
C6054
IC6003
J54
L6006
L6004
FB6026
J7
1
20
80
60
40
64
32
16
1
50
D
J61
J56
R6005
J52
FB6002 J15
J42
J22
J58
D6003
K
JF6002
JF6004
J53
R6014
J57
R6048
R6049
JF6010
JF6009
C6010
JF6008
R6047
JF6007
IC6005
JF6005
J75
C6018
FB6001
C6017
R6044
R6045
R6043
Q6006
C6015
C6016
J73
C6012
C6011
C6009
R6013
R6010
R6011
J60
C6042
J17
J69
J67
FB6003
C6022
C6021 C6020
Q6007
C6040
C6039
R6036
R6037
IC6006
IC6007
J59
1
80
81
100
IC6001
(YA)
(YB)
32
17 16
IC6002
(RT) 1
(K)
R6035
J92
C6055
J13
C6043
+
C6045
X6001
J65
R6012
Q6001
JF6006
R6002
J37
J8
C6006
R6008
D6002
K
R6009
L6003
J11
J10
C6053
(VI)
JF6003
C6008
C6007
J23
C6001
J19
J21
J34
J33
J32
R6038
R6039
R6021
R6020
D6001
K
C6064
C6106
FB6008
C6107
FB6009
FB6010
C6108
FB6011
C6109
FB6012
C6110
C6111
FB6013
C6112
FB6014
C6116
FB6006
C6104
FB6005
C6103
FB6004
C6102
C6056
FB6035
C6051
FB6029
C6123
C6124
FB6030
C6125
FB6031
FB6020
C6118
J48
FB6019
C6117
FB6021
C6119
J79
FB6034
C6132
C6131
C6130
C6129
C6128
R6032
R6034
R6033
R6031
C6036
J12
FB6043
FB6042
FB6041
FB6040
C6137
FB6044
C6136
FB6047 FB6046
R6019
Q6004
R6017
D6014
K
Q6003
J77
R6040
F7353BMN0
C6105
J64 J85
FB6007
C6115
FB6017
FB6016
FB6018
C6038
R6052
C6034
J26
C6050
C6049
C6127
FB6033
FB6032
C6126
FB6027
J40 C6029
C6028
C6026
C6027
J49
C6114
J100
J86
J103
D6015
K
J80
J36
R6056
C6068
J96
R6055
R6054
R6042
D6011
K
+
C6024
J106
J107
C6140
C6139
R6053
J25
C6023
C6066
C6067
R6059
R6060
J2
R6058
J70
C6003
J94 R6006
J68
J90
J91
+
C6014
J93
C6122
J3
C6041
+
J14
J16
C6013
FB6028
C6048
C6046
J20
+
C6052
C6047
C6044
FB6050
FB6049
Y
X
1
2
3
4
5
6
7
0
10 9876 54 3 2117 16 15 14 13 12 11
8

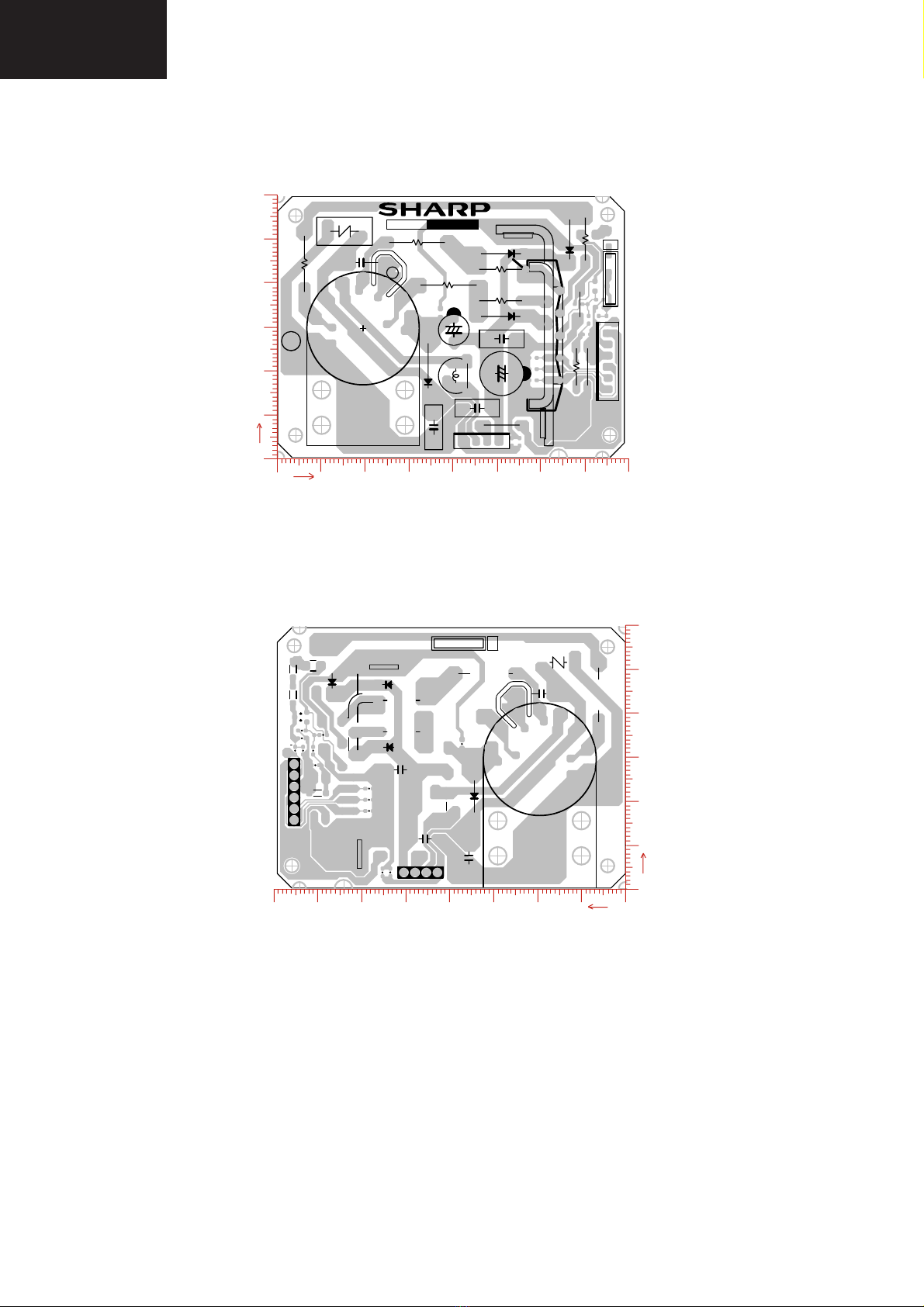

PRINTED WIRING BOARDS

14
28JS-74S
R668
C639
D903
JF902
C903
+
C902
+
+
C634
5
(H)
R617
R650
J202
J203
C640
+
C520
+
C710
R778
D717
R722
D734
D735
D736
R723
R787
T702
R711
VR701
C713
+
+
C712
D701
D702
D704
R730
D712
C730
R798
C796
J42
C705
C725 J35
R749
J17
L701
R441
R666
1
(MO)
4
J134
C601
C619
R651
L609
COLD
HOT
R21
J94
J93
J84
J83
J59
J58
D607
C603
R215
J172
J133
J132
J121
J97
R1009
J171
D627
D611
R660
R603
R609
J96
D609
D718
+
C623
R614
(L2)
IC703
R718
D737
R758
R728
R779
J47
Q703
R721
Q702
(M)
1
2
3
F701
13
12
11
10
9
8
7
65
4
3
2
1
B
C
E
K
A
PRDAR1563BM
D638
Q601
J3
D617
D619
J5
J4
J1
QPW
D610
D606
D618
20
21
21
20
(RC)
(SW1)
13 (AA)
S701
LP701
M1000
S705S704
D1001 D1002
S703
S702
K7351BM
R1036
T3.15AH
3
(ST)
11
(OPC)
3
D1017
Q602
D620
R612
7
PRDARA027WJ
DIP
(L7)
1
(VIB)
4
R770
R774
C701
T701
C706
C721
R725
+
C748
D752
C738
R790
D711
R757
D710
R756
D746
+
C734
D612
FB603 L602
L606
R530
E
Q605
B
(F)
15
R618
J82
C613
C620
+
L601
J56
J57
D510
4
(SWRC)
1
C622
PRDARA027WJ
PRDAR5531BM
PRDAR5531BM
PRDAR5531BM
1
FB601
C703
1
2
3
4
C799
R747
R746
(AV1)
R663
C1022
+
E
Q706
C
+
C626
C625
Q612 J122
C624
C617
C628
R657
C630
C636
R667
C753
J194
C637
C621
D613
D605
(L5)
C746
D703
J196
R714
C702
(G) 2
1
POR701
J41
+
C707
J32
J33
J34
C711
Q701
FB703
R606
C602
D729
R719
C704
+
C709 C717
C798
R755
TP601TP602
R799
L605
+
C609
C627 JL1
JL1.
R627
T601
22
23
24
25
17
18
19
20
21
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
Y
X
010 11 12 13 14 15 16 17
1234 56789
Page 15

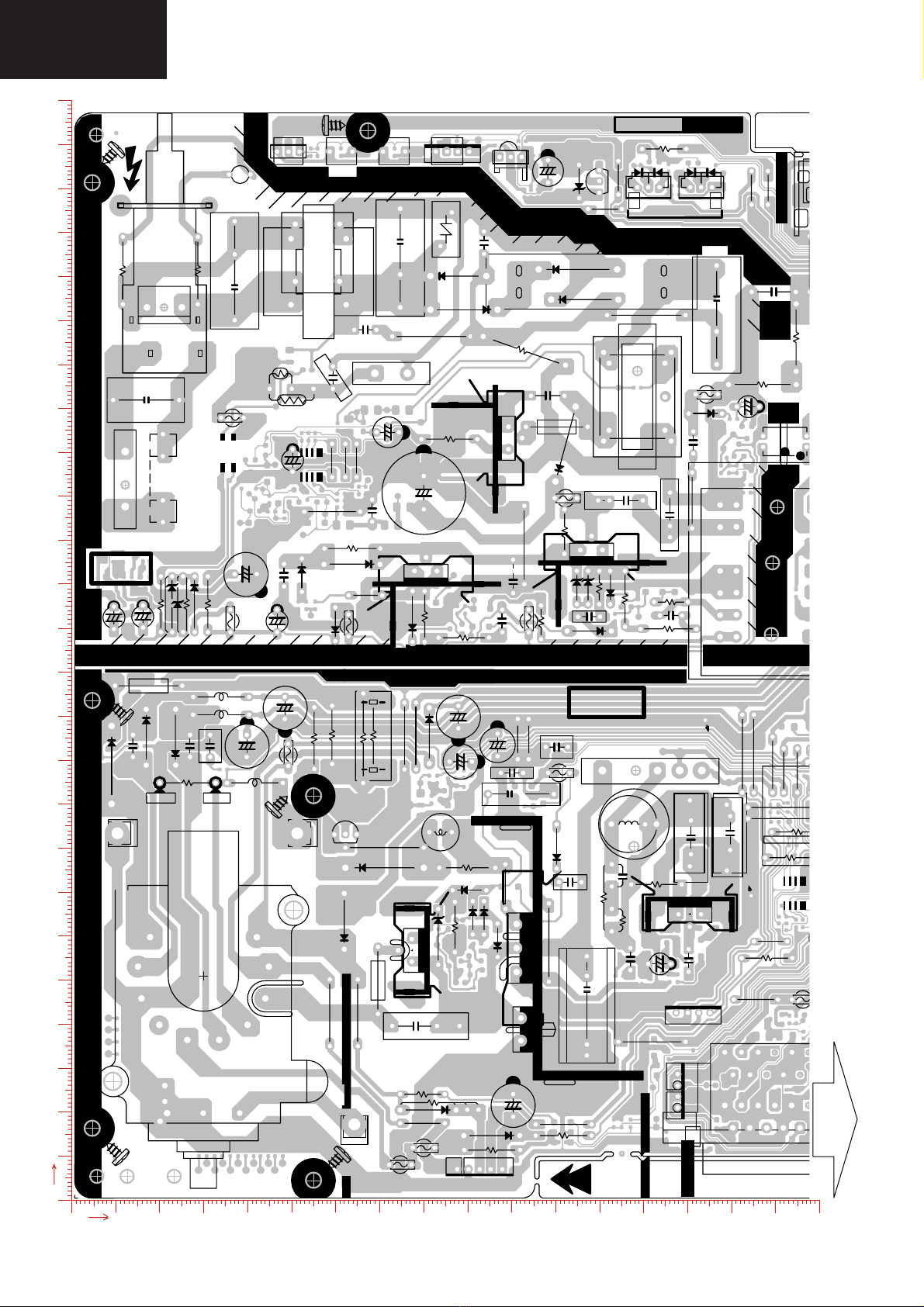

F7351N1A Mother Unit PWB. Component side.

15
28JS-74S
J164
J24
R797
QPWBF7351BMN1
C720
+
L705
+
C729
R733
IC702
R553
J197
J179
C526
+
J205
R555
J204
R414
R417
R416
R415
J198
J131
R702
R704
+
C742
BLUE
C535
+
J61
J60 R505
D508
D745
J37
D720
D753
D721
J195
D727
FB701
J27
F702
R441
FB301
666
J193
J18
D719
J44
C752
+
J182
L318
L319
C735
+
J51
C1047
+
IC704
J189
J188
J190
J191
J95
C511
+
J175 J177
C504
L501
J72
J73
J74
J76
J77
J78
J81
J80
J90
J91
J92
FB501
CN2
1
J180
J98
J99 J181
J102
R654
J103
J129
+
C618
R223
L202
J169
J168
J21
J22
R387
R214
J94
J93
J85
Q502
J84
J83
R423
(VS)
+
C727
L303
J28
J125
A
J166
R413
J105
C801
C312
CN3
J162
(RGB)
IC304
1
8
L351
L350
(HD)
C1052
L316
J20
L315
1
(FV)
1
(SS)
3
C372
+
C362
+
A
IC302
10
11
(FRONT)
PWBF7351BMN1
IC301
1
10
20
(PHONE)
4
2
6
5
317
+
C363
L352
+
C351
C352
+
C378
+
C365
C388
J25
(SB)
16
C221
+
C222
J112
C212
+
J174
J163
J108
(SA) 12
1
X201
J130
J151
J152
J149
SF201
1
5
J148
+
C330
L203
C422
+
J161
FB303
FB302
J153
C204
+
1
2
2
1
(AV)
TH201
AGC
TU
AS
CL
DA
B+
33V
IF1
IF2
C201
SF202
15
J147
J140
C319
J104
C302
+
C215
+
C205
R208
J167
J107
(YB)
1
2
25
24
(YA)
1
2
25
24
(S)
+
C1031
C356
R355
D306
L302
J19
L702
J14
R337
J13
IC202
R203
R202
R220
R219
D204
D205
J170
J142
J141
J139
J154
R303
R304
CN1
1
R302
R301
J158
J159
J160
+
+
C311
C309
+
C301
+
C317
J155
C318
J143
J144
J145
C316
C320
+
X301
+
C308
C304
+
+
C303
J106
10
16
ESPA¥A
C361
R358
C370
D309
C376
R359
J16
C377
+
J23
L353
J156
J157
J173
(VIA)
T701
J128
J126
J127
J124
J11
R795
J29
R717
J79
MOD.DIGITAL
J101
IC501
20
J109
J110
IC706
C728
+
J38
J39
J30
J31
D728
R776
J40 IC708
R734
R796
R1046
J46
R1045
D1010
J49
J50
R780
D608
J52
J53
J71
J70
J69
J68
J67
J66
J65
J64
IC305
JF23
J54
J55
R509
C524
PRDAR5531BM
PRDAR5531BM
1
2
C799
R747
3
(YC)
1
D798
+
C726
F704
J48
D740
C389
R640
J100
D637
C636
+
J137
J136
+
C417
+
C637
R601
R738
R611
J62
R518
R503
J63
JF61
JF60
L301
J88
J89
J187
J186
J185
J184
Q797
R1024
JF59
(CR)
1
TP701
J113
J114
J199 J200
J115
R213 J116
J117
J118
J119
J120
3V3 STBY
5V
1.8V
3V3
J86
J87 J201
+16V
-16V
8V MSP
D754 C733
+
J206
J208
D722
J207
J183
J176
R501
R772
C732
+
IC705
C737
+
C751
+
R759
F7351N1A Mother Unit PWB. Component side.
Page 14
29 30 31 32 3320 21 22 23 24 25 26 27 2817 18 19
Y
X
22
23
24
25
17
18
19
20
21
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
16

16
28JS-74S
24
13
12
1
J24
R797
C720
+
L705
+
C729
R733
R771
R735
IC702
R553
C733
C728
K
2
1
3
2
31
2
3
1
G
D
S
G
S
G
SD
9
87
6
5
4
3
2
1
40
41
64
65
80
C510
J197
J179
C526
+
J205
R555
J204
1.8V
5V
3V3
STBY
3V3
+1.8V +5V +3V3 3V3 STBY
JF62
R414
R417
R416
R415
J198 J131
R702
R704
+
C742
K
D431
C395
C344
R323
K
D511
C535
+
J61
J60
R505
D508
D745
J37
D720
D753
D721
J195
D727
FB701
J27
F702
R441
FB301
R639
C
R
R554
R531
R638
R605
R320 C340
C342
C522
C502
C503
R510
C507
J193
J18
D719
R420
C506
J44
C752
+
J182
L318
L319
C735
+
R761
R777
Q710
R794
J51
C1047
+
C743
R1025
R1026
C741
IC704
R1047
Q1011
J189
J188
J190
J191
J95
C511
+
J175
J177
R516
C504
IC502
L501
R545
R535
R548
R549
R512
R537
R536
R502
C525
R515
R544
R513
R534
Q1010
IC503
R526
R514
J72
J73
J74
J76
J77
J78
J81
J80
J90
J91
J92
C534
FB501
C505
C508
R511
CN2
J180
J98 J99
J181
J102
R654
J103
J129
+
C618
KD615
R656
R223
L202
J169
J168
R380
J21
J22
R387
R506
R504
Q505
R214
J94
J93
J85
J84
R423
(VS)
C727
L303
J12
D308 K
J28
J125
IC70
D422
K
R411
R410
D423K
J166
R413
C213
JF6
JF7
JF5 R204
J105
C356
C311
D305
C327
C326
R322
1
CN3
J162
R333
C383
R335
C387
R336
C384
R334
R332
IC304
8
C1044
L351
L350
(HD)
R330
R328
R329
C1052 C381
R353
C360
D307 K
JF29
JF28
L316
J20
L315
1
(FV)
(SS)
1
3
C372
+
R374
C371
C374
C366
R356
C367
C369
C368
C373
C379
R338
C390
C391
J7
J9
C416
C357
R375
+
C362
C358
C354
C364
C350
R352
IC302 1120
(FRONT)
IC301 11
20
QWBF7351BMN1
+
C363
L352
C351
+
C352
+
C378
+
C365
C388
JF4
J25
JF11
(SB)
C1046
C1045
C323 C324
C325
C322
C321
C313
C328
C329
C315
C314
K
D421
R407
R305
R306
KD425
C338
R321
C341
C221
+
C222
J112
C347
C219
C206
R206
R217
C214
JF9
C211
C212
+
J174
R212
R210
C209
R201
C207
R207
Q403
R422
J146
J108
(SA)12 1
X201
R230
C203
C202
C208
JF10
J130
J151
J152
K D203
K D202
K D201
J149
J148
+
C330
L203
C422
+
J161
FB303
FB302
J153
C204
+
L205
IF2
IF1
B+
DA
CL
AS
TU
TH201
IC201
SF202
J147
IC303
24
J140
C319
Q201
J104
D411K
C302
+
C215
+
C205
R209
R211
C801
C210
R208
R225
JF8
R231
R324
R326
C348
R327
R325
J167
C343
K
D426
C337 R409
R408
J107
(YA)
25
24
1
2
(YB)
1
2
25
24
C375
R357
(S)
C353 C359
J15
C385
Q305
+
C1031
R382
R351
J2
C1043
C382 C380
R355
D306
R350
R331
L302
J19
L702
J14
R337
J13
Q202
J164
IC202
R240
R203
R202
R220
R219
D204
D205 J170
J142
J141
J139
J154
R303
R304
CN1
R205
R307
Q306
R385
R362
R384
R302
R301
J158
J159
J160
+
C312
+
C309
+
C310
D723
K
C306
D303
K
C3313
C305
C301
+
K
D302
C317
R421
K D410
K
D406D409K
J155
C318
J143
J144
J145
C316
R310
R313
R312
R311
C320
+
X301
+
C308
C307
K D408
R419
KD407
R418
KD304
C304
+
K
+
C303
R309
R370
J106
10
16
C361
R358
C370
D309
C376
R359
J16
C377
+
R360 J23
L353
R452
K
D405
R412
C433
J156
J157
J173
(VIA)
JF54
KD
J163
J128
J126
J127
J124
J11
R795
R739
C386
J29
R717 R740
D748
K
J79
MOD.DIGITAL
MOD.DIGITAL
R308
R369
Q606
R622
J101
IC501
1
J109
J110
IC706
C731
J38
J39
J30
J31
D728
R776
J40
IC708
R734
R796
R1046
J46
R1045
D1011
K
D1010
R1044
Q1004
R1051 J49
J50
R780 D608
J52
J53
C736
J71
J70
J69
J68
J67
J66
J65
J64
IC305
JF23
J54
J55
R509
C524
C749
C708
R1039
J6
J8
Q502
R747
C406
(YC)
D798
C726
R436
F704
J48
D740
R339
C389
J111
J192
R659
R655
R634
C633
R640
+
R641
C629
R633
Q611
KD636
D633KD631
K
C540
R644
J137
J136
+
C417
R43
R440
Q407
+
C637
R601
R738
R611
J62
R518
D507 K
R503
J63
JF61
JF60
J88
J89
J187
J186
J185
J184
Q797
R775
Q796
C218
R736 C739
R1024
JF59
R428
(CR)
R438
R437
R
C345
D432
K
C392
D433
K
R316
C334
K
D429
C336
C331
K
D430
KD434
R319
C393
R343
K
D435
C394
R341
D436
K
K
D437
K
D424
C346
K
D438
C339
R318
R314
C333
R427
D439
K
C1023 R424
J113
J114
J199 J200
J115
R213
J116
J117
J118
J119
J120
R221
R222
2
1
GND
J86
Q503
J87
J201
D754
+
J206
J208 D722
C740
J207
J183
J176
R501
R772
D750
K
R742
C732
R737
R741
IC705
R745
R744
C722
R766
C737
R764
C751
+
R765
D747
K
Q708
Q709
R767
R759
R743
150V
22
23
24
25
17
18
19
20
21
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
Y
F7351N1A Mother Unit PWB. Copper side.
Page 17
19 18 17 1629 28 27 26 25 24 23 22 21 20
33 32 31 30
X

17
28JS-74S
C714
(AV1)
R908
K
D902
JF63
R608
R610
C639R668
R616
C608
R620
C612
R903
R904
Q901
JF901
R902
R901
JF902
K
D901
C903
+
R906
C902
+
R905
C901
Q902
+
C634
(H)
KD1018
D639
K
R617
R650
R661
R706
G
S
S
D
G
S
G
D
GS
D
G
S
D
D
S
G
J202
J203
C640
+
C520
400V
25V
-13V
13V
R787
R723
C723
R731
C710
Q723
R778
D717
R722
D734
D735
D736
D725
K
D708
K
K
D733
C610
T702
R711
Q707
VR701
C713
+
+
C712
D701
D702
D704
R730
D712
C730
K
D743
R798
J42
C705
C725
J35
R749
J17
12
34
D642
K
R665
41
R639
R666
C632
R635
R760
54
R643
C541
31
638
05
D1021
K
R1050
(MO)
J134
J150
D1019
KD1020K
R1010
C1049
R1049
C601
F7351BMN1
R631
JF1014
JF1013
JF1015
JF1016
JF1012
JF1011
JF1010
JF1009
R651
K
D625
L609
Q613
214
J84
J83
J59
J58
D607
C603
R215
J172
J133
J132
K
D604
J121
J97
K
D640
R1009
J171
D627
D611
R660
R609 J96
D609
D718
C623
+
R614
D634
K
R653
D635
K
R700
C724
C719
IC703
R718
D737
C716
R727
R781
R758
R729
R728
R779
J47
Q703
R721
Q702
3
2
1
(M)
F701
A
13 12 11
10
9
87
654
3
2
1
C412
C432
J165
R453
R405
R451
D638
K
A
E
C
B
Q601
R1032
D617
D619
J5
J4
J3
J1
D610
..
D606
D618
K
1
C403
R407
R425
D427
K
(AV)
KD40411
D403
K
408
(RC)
(SW1)
(AA)
31
S701
LP701
A
M1000
S705 S704
D1001
D1002
S703
S702
Q1002
(ST) (OPC)
Q1003
JF151
R1037
R1015
R1014
R1013
D1017
R1019
R1099
R1017
JF153
Q602
D620
Q603
R607
R612
Q604
Q608
R1031
R1030
R1053
JF56
7
K
D402
JF24
(VIB)
K D420
R770
R774
C701
C706
C721 R725
K D731D730K
+
C748
D752
C738
R790
D711
R757 D710
R756
J36
Q714
D746
R791
R793
R768
Q713
+
R792
D612
FB603
L602
L606
R530
C605
Q605
C604
(F)
1
2
R618
J11
J82
C631
D616
K
D624
K
R645
C613
C620
+
C622
L601
C641
J56
J57
D510
D512
K
JF1008
JF1007
JF1006
JF1005
JF1004
JF1003
JF1002
JF1001
C708
(SWRC)
JF55
R1042 R1055
1
C796
HOT
COLD
R732
C715
Q724
C718
R726
R629
R628
FB601
C703
C799
R747
R663
C1022
+
JF58
E
C
Q706
R707
D713
K
KD732
R630
Q614
R664
+
D623 K
R626
Q609
D622
K
Q612
K
D641
C624
C617
C628
R657
C630
R658
IC601
C635
R637
R632
J192
R659
R667
C753
J194
Q406
R439
R440
D613
C746
D703
J196
R714
C702
21
(G)
POR701
KD714
Q704 R752
D707
K
R748
R701
K
D741
Q705
R754
R703
R786
Q712
J41
R716
+
IC701
R788
R785
R789
J32
J33
J34
Q721
R750
R705
R712
R783
R710
R709
C711
C755
R715
R782
R751
C754
R773
C756
R708
R784
K
D715
Q701
FB703
R606
R426 C602
R662
K
D643
D729
R719
KD716
R753
Q720
64
31
IC709
C704
+
R713
C798
R438
7
R406
R799
L605
+
C609
C627
R621
23
41
503
R627
R907
C905
C904
C606
K
D644
R623
Q607
R669
C607
R604
R670
G
T1 T2
T601
F7351N1A Mother Unit PWB. Copper side.
Page 16
22
23
24
25
17
18
19
20
21
11
12
13
14
15
16
2
3
4
5
6
7
8
9
10
1
Y
X
0
10 9876 54 3 2117 16 15 14 13 12 11

18
28JS-74S
F7352N1A CRT Unit PWB
Component side
F7352N1A CRT Unit PWB
Copper side
A
(K).
J1
J2
R1844
J3
R1836
VR1801
(L3)
D1814
R1833
R1834 R1831
C1814
(G2)
L1801
ESPA¥A
TRC
GND
12
11
10
987
6
5
C1826
(H).
IC1801
9
1
R1832
C1824
C1811
+
JF1801
C1825
D1809
D1813
D1815
R1835
K7352BM
F7352BMN1
C1812
+
1
2
3
4
5
6
Y
X
01234 56 78
A
D1811
K
L1802
D1812
K
(K).
C1806
R1843
R1830
R1842
R1841
Q1801
C1815
J1
K
D1805
J2
R1844
1
1
J3
R1836
VR1801
D1814
R1833
R1834
R1831
C1814
L1801
TRC
12
11
10
9
8
7
6
5
GND
C1826
(H).
1
9
IC1801
R1832
C1824
+
C1811
R1811
R1806
R1816
JF1801
C1825
C1813
R1839
D1809
D1813
D1815
R1835
C1812
+
R1837
F7352BMN1
TP1801
C1827
Y
X
1
2
3
4
5
6
0
876 543 21

19
28JS-74S
5HI1R ;XP <XP
.
57
9,
<$
<
&
&
&
&
&
&
&
&
&
'
)
)
)
)
)
)
,&
,&
,&
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
5HI1R ;XP <XP
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-)
-)
-/
-/
-/
-/
/
/
/
/
/
/
4
4
5
5
5
5
5
5
5
5
5HI1R ;XP <XP
5
5
5
5
5
5
5()
5()
;
;
;
5HI1R ;XP <XP
& (
& (
& (
&
& (
& (
& (
& (
& (
& (
& (
& (
& (
& (
& (
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
5HI1R ;XP <XP
&
&
&
&
&
&
&
& (
& (
& (
& (
& (
& (
& (
& (
& (
& (
& (
& (
& (
& (
& (
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
& (
&
&
&
&
& (
'
'
' (
'
'
'
5HI1R ;XP <XP
'
'
'
) (
) (
) (
) (
) (
) (
) (
) (
) (
) (
) (
)
) (
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
,&
,&
,&
- (
COMPONENT LOCATION TABLES
F7353N0D Digital Module Unit PWB
Component side Copper side

20
28JS-74S
F7351N1A Mother Unit PWB
Component side
5HI1R ;XP <XP
$$
$9
&5
)
)5217
)9
*
+
+'
/
/
/
0
02
23&
3+21(
5&
5*
6
6$
6
66
67
6:
6:5&
9,$
9,
96
<&
/,1
/,1
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
5HI1R ;XP <XP
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&$
&
&
&
&
&
&
&
&$
&
&
&
&
&
&
&
&
&
5HI1R ;XP <XP
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&1
&1
&1
'
'
'
'
'
'
'
'
'
5HI1R ;XP <XP
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'$
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'$
'2 /(B
)
)
)
)
)
5HI1R ;XP <XP
)
)
)
)
)
)
)
,&
,&
,&
,&
,&
,&
,&
,&
,&
,&
,&
,&
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
5HI1R ;XP <XP
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Table of contents
Other Sharp TV manuals

Sharp
Sharp LC-26D44 Installation guide

Sharp
Sharp 21E-FG1S User manual

Sharp
Sharp 14LK11 User manual

Sharp
Sharp CX51N3 User manual

Sharp
Sharp 29L-MP1SM User manual

Sharp
Sharp 54GT-25 User manual

Sharp
Sharp Aquos LC-24LE150M User manual

Sharp
Sharp 25R S100 User manual

Sharp
Sharp 21YF30 User manual

Sharp
Sharp 32K-X2000 User manual

Sharp
Sharp LC-32CHG6021E User manual

Sharp
Sharp Aquos LC-65UB30U User manual

Sharp
Sharp LC-65D93U User manual

Sharp
Sharp Aquos LC-24DC50M User manual

Sharp
Sharp LC-20B2EA User manual

Sharp
Sharp LC-70LE632U User manual

Sharp
Sharp LC-55P6000U User manual

Sharp
Sharp 27K-S100 User manual

Sharp
Sharp 32JF-74E User manual

Sharp
Sharp 21E-FG1F User manual
