Sharp 36U-S610 User manual

36U-S610
SERVICE MANUAL
In the interests of user-safety (Required by safety regulations in some countries ) the set should be restored to its
original condition and only parts identical to those specified should be used.
MODEL
36U-S610
COLORTELEVISION
Chassis No. GB-1
SHARP CORPORATION This document has been published to be used for after
sales service only.
The contents are subject to change without notice.
Page
»ELECTRICAL SPECIFICATIONS .........................................................................................................1
»IMPORTANT SERVICE SAFETY PRECAUTION .................................................................................2
»LOCATION OF USER'S CONTROL .....................................................................................................4
»INSTALLATION AND SERVICE INSTRUCTIONS ................................................................................5
»SERVICE ADJUSTMENT .....................................................................................................................9
»CHASSIS LAYOUT .............................................................................................................................12
»BLOCK DIAGRAM ..............................................................................................................................13
»SCHEMATIC DIAGRAMS ...................................................................................................................15
»PRINTED WIRING BOARD ASSEMBLIES ........................................................................................25
»REPLACEMENT PARTS LIST ............................................................................................................32
»PACKING OF THE SET ......................................................................................................................42
CONTENTS
SPEAKER
SIZE ........................................................ 12 x 6 cm oval (2 pcs.)
VOICE COIL IMPEDANCE............................... 8 ohm at 400 Hz
ANTENNA INPUT IMPEDANCE
VHF/UHF.....................................................75 ohm Unbalanced
TUNING RANGES
VHF-Channels...............................................................2 thru 13
UHF-Channels ............................................................14 thru 69
CATV Channels ...........................................................1 thru 125
(EIA, Channel Plan U.S.A.)
POWER INPUT..................................................... 120V AC 60 Hz
POWER RATING .................................................................. 167W
PICTURE SIZE ........................................... 3,905cm2 (605sq inch)
CONVERGENCE ............................................................. Magnetic
SWEEP DEFLECTION .................................................... Magnetic
FOCUS ............................................... Hi-Bi-Potential Electrostatic
INTERMEDIATE FREQUENCIES
Picture IF Carrier Frequency ..................................... 45.75 MHz
Sound IF Carrier Frequency...................................... 41.25 MHz
Color Sub-Carrier Frequency .................................... 42.17 MHz
(Nominal)
AUDIO POWER
OUTPUT RATING ..............3.0W + 3.0W (at 10% distortion and
Dual CH Operate)
Specifications are subject to change without
prior notice.
ELECTRICAL SPECIFICATIONS

36U-S610
2
IMPORTANT SERVICE SAFETY PRECAUTION
ËService work should be performed only by qualified service technicians who are thoroughly
familiar with all safety checks and the servicing guidelines which follow:
WARNING
1. For continued safety, no modification of any circuit
should be attempted.
2. Disconnect AC power before servicing.
3. Semiconductor heatsinks arepotential shock hazards
when the chassis is operating.
4. The chassis in this receiver has two ground systems
which are separated by insulating material.The non-
isolated (hot) ground system is for the B+ voltage
regulator circuit.The isolated ground system is for
the low B+ DC voltages and the secondary circuit of
the high voltage transformer.
To prevent electrical shock use an isolation
transformer between the line cord and power
receptacle, when servicing this chassis.
CAUTION: FOR CONTINUED
PROTECTION AGAINST A
RISK OF FIRE, REPLACE
ONLY WITH SAME TYPE 4A-
125V FUSE.
4A 125V
SERVICING OF HIGH VOLTAGE SYSTEM
AND PICTURETUBE
When servicing the high voltage system,
remove the static charge by connecting a
10k ohm resistor in series with an insulated
wire (such as a test probe) between the pic-
ture tube ground and the anode lead. (AC
line cord should be disconnected from AC
outlet.)
1. Picture tube in this receiveremploys integralimplosion
protection.
2. Replace with tube of the same type number for
continued safety.
3. Do not lift picture tube by the neck.
4. Handle the picture tube only when wearing
shatterproof goggles and after discharging the high
voltage anode completely.
X-RADIATION AND HIGHVOLTAGE LIMITS
1. Be sure all service personnel are aware of the
procedures and instructions covering X-radiation.The
only potential source of X-ray in current solid state
TV receivers is the picture tube. However, the picture
tube does not emit measurable X-Ray radiation, if
the high voltage is as specified in the "HighVoltage
Check" instructions.
It is only when high voltage is excessive that X-
radiation is capable of penetrating the shell of the
picture tube including the lead in the glass material.
The important precaution is to keep the high voltage
below the maximum level specified.
2. It is essential that servicemen have available at all
times an accurate high voltage meter.
The calibration of this meter should be checked
periodically.
3. High voltage should always be kept at the rated value
−no higher. Operation at higher voltages may cause
a failure of the picture tube or high voltage circuitry
and;also, under certain conditions, may produce
radiation in exceeding of desirable levels.
4. When the high voltage regulator is operating properly
there is no possibility of an X-radiation problem.Every
time a color chassis is serviced, the brightness should
be tested while monitoring the high voltage with a
meter to be certain that the high voltage does not
exceed the specified value and that it is regulating
correctly.
5. Do not use a picture tube other than that specified or
make unrecommended circuit modifications to the
high voltage circuitry.
6. When trouble shooting and taking test measurements
on a receiver with excessive high voltage, avoid being
unnecessarily close to the receiver.
Do not operate the receiver longer than is necessary
to locate the cause of excessive voltage.

36U-S610
3
IMPORTANT SERVICE SAFETY PRECAUTION
(Continued)
BEFORE RETURNINGTHE RECEIVER
(Fire & Shock Hazard)
Before returning the receiver to the user, perform
the following safety checks.
1. Inspect all lead dress to make certain that leads are
not pinched or that hardware is not lodged between
the chassis and other metal parts in the receiver.
2. Inspect all protective devices such as non-metallic
control knobs, insulating materials, cabinet backs,
adjustment and compartment covers or shields,
isolation resistor-capacity networks, mechanical
insulators, etc.
3. To be sure that no shock hazard exists, check for
leakage current in the following manner.
•Plug the AC cord directly into a 120 volt AC outlet,
(Do not use an isolation transformer for this test).
•Using two clip leads, connect a 1.5k ohm, 10 watt
resistor paralleled by a 0.15µF capacitor in series with
all exposed metal cabinet parts and a known earth
ground, such as electrical conduit or electrical ground
connected to earth ground.
•Use an AC voltmeter having with 5000 ohm per volt,
or higher, sensitivity to measure the AC voltage drop
across the resistor.
•Connect the resistor connection to all exposed metal
parts having a return to the chassis (antenna, metal
cabinet, screw heads, knobs and control shafts,
escutcheon, etc.) and measure the AC voltage drop
across the resistor.
AII checks must be repeated with the AC line cord
plug connection reversed. (If necessary, a non-
polarized adapter plug must be used only for the
purpose of completing these check.)
Any current measured must not exceed 0.5 milliamp.
Any measurements not within the limits outlined
above indicate of a potential shock hazard and
corrective action must be taken before returning the
instrument to the customer.
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
1
234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
2
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
1
234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
2
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
SAFETY NOTICE
Many electrical and mechanical parts in television
receivers have special safety-related characteristics.
These characteristics are often not evident from visual
inspection, nor can protection afforded by them be
necessarily increased by using replacement components
rated for higher voltage, wattage, etc.
Replacement parts which have these special safety
characteristics are identified in this manual; electrical
components having such features are identified by "å"
and shaded areas in the Replacement Parts Lists and
Schematic Diagrams.
For continued protection, replacement parts must be
identical to those used in the original circuit.The use of
substitute replacement parts which do not have the same
safety characteristics as the factory recommended
replacement parts shown in this service manual, may
create shock, fire, X-radiation or other hazards.
1.5k ohm
10W
0.15µF
TEST PROBE
TO EXPOSED
METAL PARTS CONNECT TO
KNOWN EARTH
GROUND

36U-S610
4
LOCATION OF USER'S CONTROL
Front Panel
POWER
Press On.
Press again Off.
Note:
• The above shaded buttons on the Remote Control glow in the dark. To use the glow-in-the-dark display on the remote
control, place it under a fluorescent light or other lighting.
• The phosphorescent material contains no radioactive or toxic material, so it is safe to use.
• The degree of illumination will vary depending on the strength of lighting used.
• The degree of illumination will decrease with time and depending on the temperature.
• The time needed to charge the phosphorescent display will vary depending on the surrounding lighting.
• Sunlight and fluorescent lighting are the most effective when charging the display.
CHANNEL UP/DOWN
(
|
|
) Selects next higher
channel.
( ) Selects next lower
channel.
•Press both at the same
time to access the MAIN
MENU screen.
SENSOR AREA FOR
REMOTE CONTROL
VOLUME UP/DOWN
(+) Increases sound.
(–) Decreases sound.
MENU
Press Accesses MAIN MENU.
Press again Exits MAIN MENU.
IN 2
VIDEO L-AUDIO-R
(INSIDE DOOR)
→→
→
→
123
456
789
0
100
POWER
TV
MENU MUTE
PAUSE
PIP
FLASHBACK
DISPLAY
INPUT
TV • CATV • VCR • DVD
STOP REC
REW PLAY FF
CH/SKIP
SWAP FREEZE MOVE SELECT
VOL
—
CH
CH
VOL
+
ENTER
ABCD
PERSONAL PREFERENCE
DVD
VCR
CATV TV
DVD VCR
Infrared Transmitter Window
DISPLAY
Press →Displays receiving channel for
four seconds.
Press again →Removes display.
• Temporarily displays receiving
channel when in Closed Caption
mode.
INPUT
Press →Switch to external video
INPUT 1 mode.
Press2times →Switchtoexternalvideo
INPUT 2 mode.
Press3times →Switchtoexternalvideo
INPUT3modeorCOMPONENT mode.
Press 4 times →Switch back to the
original TV mode.
ENTER
Usedin someinstances where a Cable
Converter Box requires an “enter”
command after selecting channels,
when using the REMOTE KEYPAD
button.
CHANNEL UP/DOWN
•Moves the “ ” mark of the MENU
screens.
MUTE
Press →Mutes sound.
Press again →Restores sound.
• CLOSED CAPTION appears when
sound is muted.
PIP FUNCTION
With the VIDEO inputs, you can watch
two pictures at the same time.
POWER
Press →On.
Press again →Off.
REMOTE KEYPAD
Accesses any channel from keypad.
FLASHBACK
Returns to previous channel.
PERSONAL PREFERENCE
With the Personal Preference buttons,
you can program your favorite
programs by using the 4 categories A,
B, C and D. The channels can be
accessed quickly by using these
buttons.
VOLUME UP/DOWN
(+) Increases sound.
(–) Decreases sound.
• In menu mode, changes or selects
the TV adjustments.
MENU
Press →Accesses MAIN MENU.
Press again →Exits MAIN MENU.
CATV/DVD-TV/VCR MODE
SELECT SWITCH
In TV/VCR position, sends power and
channel select commands (Channel
up/downandRandom Access buttons)
to the TV and VCR control.
In CATV/DVD position, sends power
and channel select commands to a
cableTV converter and DVD control.
DVD/VCR CONTROL
Basic Remote Control Functions
(') Selects next higher channel.
(") Selects next lower channel.
»

36U-S610
5
CIRCUIT PROTECTION
The receiver is protected by a 4.0A fuse (F701),
mounted on PWB-A, wired into one side of the AC
line input.
X-RADIATION PROTECTOR CIRCUITTEST
After service has been performed on the horizontal
deflection system, high voltage system, B+ system,
test the X-Radiation protection circuit to ascertain
proper operation as follows:
1. Apply 120V ACusing a variac transformerforaccurate
input voltage.
2. Allow for warm up and adjust all customer controls
for normal picture and sound.
3. Receive a good local channel.
4. Connect a digital voltmeter toTP651 and make sure
that the voltmeter reads 13.2 ±0.7V.
5. Apply external 16.3V DC at TP651 by using an
external DC supply, TV must be shut off.
6. To reset the protector, unplug the AC cord and plug
the AC cord power on. Now make sure that normal
picture appears on the screen.
7. If the operation of the horizontal oscillator does not
stop in step 5, the circuit must be repaired before the
set is returned to the customer.
HIGHVOLTAGE CHECK
High voltage is not adjustable but must be checked
to verify that the receiver is operating within safe
and efficient design limitations as specified checks
should be as follows:
1. Connect an accurate high voltage meter between
ground and anode of picture tube.
2. Operate receiver for at least 15 minutes at 120V AC
line voltage, with a strong air signal or a properly tuned
in test signal.
3. Enter the service mode and select the service
adjustment "V18" and Bus data "01" (Y-mute on, CRT
Cut Off).
4. The voltage should be approximately 33.0kV (at zero
beam).
If a correct reading cannot be obtained, check circuitry
for malfunctioning components. After the voltage test,
makeY-mute off to the normal mode.
INSTALLATION AND SERVICE INSTRUCTIONS
Note: (1)When performing any adjustments to resistor controls and transformers use non-metallic
screwdrivers or TV alignment tools.
(2)Before performing adjustments, the TV set must be on at least 15 minutes.

36U-S610
6
For adjustments of this model, the bus data is converted to various analog signals by the D/A converter
circuit.
Note: There are still a few analog adjustments in this series such as focus and master screen voltage.
Follow the steps below whenever the service adjustment is required. See "Table-B" to determine, if serv-
ice adjustments are required.
1. Service mode
Before putting unit into the service mode, check that
customer adjustments are in the normal mode. Use
the reset function in the video adjustment menu to
ensure customer controls are in their proper (reset)
position.
2. Service number selection
Once in the service mode, press the Ch-up or Ch-
down button on the remote controller or at the set.
The service adjustment number will vary in
increments of one, from "V01" to "P08". Select the
item you wish to adjust.
3. Data number selection
Press theVol-up orVol-down button to adjust the data
number.
To enter the service mode and exit serv-
ice mode.
To enter the service mode manually just press and hold
the Vol-down and Ch-up buttons at the same time, plug
the AC cord into a wall socket.
Now the TV set is switched on and enters the service
mode.
To exit the service mode, turn the television off by
pressing the power button.
V01 02
CHANNEL
SERVICE ADJUSTMENT NUMBER
DATA NUMBER
55(085)

36U-S610
7
SERVICE
NUMBER DATA
ADJUSTMENT ITEM
INITIAL VALUE
RANGE
V01 PICTURE 03 0-15(00h-0Fh)
V02 TINT 3E 0-127(00h-7Fh)
V03 COLOR 2D 0-127(00h-7Fh)
V04 SUB-COLOR 10 0-31(00h-1Fh) Must be set to "10"
V05 BRIGHT 4D 0-127(00h-7Fh)
V06 R CUT-OFF 40 64-255(40h-FFh)
V07 G CUT-OFF 40 64-255(40h-FFh)
V08 B CUT-OFF 40 64-255(40h-FFh)
V09 G DRIVE 40 0-127(00h-7Fh)
V10 B DRIVE 40 0-127(00h-7Fh)
V11 SHARP 14 0-63(00h-3Fh) Must be set to "1E"
V12 N PHASE 01 0-3(00h-03h) Must be set to "01"
V13 DC RESTORATION 00 0-3(00h-03h) Must be set to "03"
V14 BLACK STRETCH 03 0-3(00h-03h) Must be set to "03"
V15 ABL START POINT 03 0-3(00h-03h) Must be set to "03"
V16 ABL GAIN 02 0-3(00h-03h) Must be set to "02"
V17 γ POINT 00 0-3(00h-03h) Must be set to "02"
V18 Y-MUTE/V-STOP 00 0-2 "00"=Normal, "01"=No-Y, "02"=No-Y & No-Vertical
V19 ENERGY SAVE 28 0-63(00h-3Fh) Must be set to "28"
V20 RTONE-G F6 0-255(00h-FFh) Must be set to "F6"
V21 RTONE-B F6 0-255(00h-FFh) Must be set to "F6"
V22 BTONE-G 00 0-255(00h-FFh) Must be set to "00"
V23 BTONE-B 0A 0-255(00h-FFh) Must be set to "0A"
V24 LOW-G F7 0-255(00h-FFh) Must be set to "F7"
V25 LOW-B E8 0-255(00h-FFh) Must be set to "E8"
V26 ML-G 00 0-255(00h-FFh) Must be set to "00"
V27 ML-B F9 0-255(00h-FFh) Must be set to "F9"
V28 HIGH-G 03 0-255(00h-FFh) Must be set to "03"
V29 HIGH-B 06 0-255(00h-FFh) Must be set to "06"
V30 WPS 01 0-1 Must be set to "01"
V31 RGB CONTRAST 20 0-63(00h-3Fh) Must be set to "2A"
V32 Y-DL 02 0-7(00h-07h) Must be set to "02"
V33 Y-DL-INPUT 01 0-7(00h-07h) Must be set to "01"
V34 VSM GAIN 07 0-7(00h-07h) Must be set to "07"
V35 N COMB 01 0-1 Must be set to "01"
V36 BPF/TOF-INPUT 00 0-1 Must be set to "01"
V37 CORING 00 0-1 Must be set to "00"
V38 VSM PHASE 00 0-1 Must be set to "00"
V39 COLOR γ00 0-1 Must be set to "01"
V40 SHARP-INPUT 14 0-63(00h-3Fh) Must be set to "1E"
V41 TINT-INPUT 3E 0-127(00h-7Fh)
V42 PICTURE-COMPONENT 03 0-15(00h-0Fh)
V43 TINT-COMPONENT 10 0-31(00h-1Fh) Must be set to "10"
V44 COLOR-COMPONENT 30 0-127(00h-7Fh) Must be set to "44"
V45 BRIGHT-COMPONENT 4A 0-127(00h-7Fh)
V46 R CUT OFF-COMPONENT 40 64-255(40h-FFh)
V47 G CUT OFF-COMPONENT 40 64-255(40h-FFh)
V48 B CUT OFF-COMPONENT 40 64-255(40h-FFh)
V49 G DRIVE-COMPONENT 40 0-127(00h-7Fh)
V50 B DRIVR-COMPONENT 40 0-127(00h-7Fh)
V51 SHARP COMPONENT 14 0-63(00h-3Fh) Must be set to "1E"
V52 N PHASE-COMPONENT 01 0-3(00h-03h) Must be set to "01"
V53 C-TRAP 00 0-1 Must be set to "00"
R01 RF-AGC 24 0-63(00h-3Fh)
R02 PIF VCO coil – —
R03 RF-AGC REF 5C 0-255(00h-FFh) Must be set to "5C"
D01 V POSITION 00 0-7(00h-07h)
D02 H POSITION 10 0-31(00h-1Fh)
D03 V SIZE 12 0-63(00h-3Fh)
D04 H SIZE 1F 0-63(00h-3Fh) Must be set to "1E"
D05 V-LINEARITY 07 0-15(00h-0Fh)
D06 V-S CORRECTION 08 0-15(00h-0Fh) Must be set to "09"
D07 EW PARABOLA 21 0-63(00h-3Fh) Must be set to "27"
D08 EW TRAPEZIUM 0E 0-31(00h-1Fh) Must be set to "0B"
D09 EW CORNER 0C 0-15(00h-0Fh) Must be set to "08"
D10 AFC GAIN 02 0-3(00h-03h) Must be set to "02"
ADJUSTMENT CONTENTS
Table - A

36U-S610
8
D11 V EHT 07 0-7(00h-07h) Must be set to "04"
D12 H EHT 03 0-7(00h-07h) Must be set to "03"
EX1 FAOVOLUME 24 0-50(00h-32h) Must be set to "24"
EX2 CC-POSITION 21 0-127(00h-7Fh)
EX3 INT 7A 0-255(00h-FFh) Must be set to "7A"
EX4 A-ATT 5A 0-127
EX5 TUNER data 00 0-3(00h-03h) Must be to "00"
EX6 SYNC SLICE LEVEL 36 0-255(00h-FFh) Must be to "36"
OP1 OPTION1 F7 0-255(00h-FFh) Must be set to "F7"
OP2 OPTION2 F9 0-7(00h-07h) Must be set to "10"
OP3 OPTION3 0F 0-255(00h-FFh) Must be set to "0C"
M01 INPUT LEVEL 09 0-15(00h-0Fh) Must be set to "09"
M02 MTS VCO 24 0-63(00h-3Fh)
M03 FILTER 1F 0-63(00h-3Fh)
M04 WIDEBAND 18 0-63(00h-3Fh)
M05 SPECTRAL 10 0-63(00h-3Fh)
P01 CONTRAST-PIP 32 0-127(00h-7Fh)
P02 TINT-PIP 29 0-63(00h-3Fh) Must be set to "29"
P03 COLOR-SAT-PIP 32 0-127(00h-7Fh)
P04 Y-OFFSET-PIP 09 0-31(00h-1Fh) Must be set to "09"
P05 HXA-PIP 0A 0-255(00h-FFh) Must be set to "0A"
P06 HADJ-PIP 00 0-15(00h-0Fh) Must be set to "00"
P07 FREE RUN-PIP 0B 0-15(00h-0Fh) Must be set to "0B"
P08 TINT-PIP-INPUT 24 0-63(00h-3Fh) Must be set to "24"
SERVICE
NUMBER DATA
ADJUSTMENT ITEM
INITIAL VALUE
RANGE ADJUSTMENT CONTENTS
Table - A
NECESSARY UNNECESSARY
ADJUSTMENT
PART REPLACED
IC2001
IC201
XData is stored in IC2102.
The adjustment is needed to compensate for characteristics of parts
including IC201 and MTS level (M01).
Holding down both the VOL-up and CH-up buttons on the TV set at service mode for more than 2 seconds will
automatically write the above initial values into IC2102.
NOTES
X
IC2102
IC3001
CRT
IC1801
Holding down both the VOL-up and CH-up buttons on the TV set in
the service mode for more than 2 seconds will automatically write the
above initial values into IC2102.Then perform a complete adjustment.
Adjust items related to picture tube only.
Adjust items related to MTS only (M01~M05).
Adjust items related to P-IN-P only (P01~P08).
Table - B
X
X
X
X

36U-S610
9
SERVICE ADJUSTMENT
RF AGC Adjustment
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustment "R01".
3. Set the data value to point where no noise or beat
appears.
4. Select another channel to confirm that no noise or
beat appears.
Note 1 : You will have to come out of the service
mode to select another channel.
Note 2 : Setting the data to "00" will produce a black
raster.
Screen Adjustment
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustment "V03" and set the data value to "00" to
set the color level to minimum. (Record original data
code under adjustment "V03" before changing)You
may skip this step, if you selected a B/W picture or
monoscope pattern.
3. Select the service adjustment "V18" and adjust the
data value to "01", this turn off the luminance signal
(Y-mute).
4. Adjust the master screen control until the raster
darkens to the point where raster is barely seen.
5. Adjust the service adjustments "V06" red, "V07" green
and"V08"blueto obtain a good greyscale with normal
whites at low brightness level.
6. Select the service adjustment "V18" and reset data
to "00".Select the service adjustment "V03" and reset
data to obtain normal color level.
7. For component input, the data value of "V46" red,
"V47" green and "V48" blue is adjusted to follow the
data value of "V06", "V07" and "V08" respectively.
8. Reset the master screen control to obtain normal
brightness range.
White Balance Adjustment
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustment "V03" and set to "00" (minimum
color)(Record original data code under adjustment
"V03" before changing). "V03" does not have to be
adjusted, if you selected a B/W picture or monoscope
pattern.
3. Alternately adjust the service adjustment data of
"V09" and "V10" until a good grey scale with normal
whites is obtained. (RF Input)
4. For component input, the data value of "V49" and
"V50" is adjusted to follow the data value of "V09"
and "V10" respectively.
5. Select the service adjustment "V03" and reset data
to obtain normal color level.
Picture Adjustment
1. Receive a good local channel.
2. Make sure the customer picture control is set to
maximum.
3. Enter the service mode and select the service
adjustment "V01".
4. Adjust the data value to achieve normal contrast
range.
5. For component input, enter the service mode and
select the service adjustment "V42".
6. Adjust "V42"data value to obtain normal contrast
range.
Tint Adjustment
1. Receive a good local channel.
2. Set customer tint control to center of it's range.
3. Enter the service mode and select the service
adjustment "V02".
4. Adjust "V02" data value to obtain normal flesh tones.
5. Input same data to "V41".
Sub-Color Adjustment
1. Receive a good local channel.
2. Make sure the customer color control is set to center
position .
3. Enter the service mode and select service adjustment
"V03".
4. Adjust "V03" data value to obtain normal color level.
Brightness Adjustment
1. Receive a good local channel.
2. Make sure the customer brightness control is set to
center position.
3. Enter the service mode and select the service
adjustment "V05".
4. Adjust "V05" data value to obtain normal brightness
level.
5. For component input, enter the service mode and
select the service adjustment "V45".
6. Adjust "V45"data value to obtain normal contrast
range.

36U-S610
10
Vertical-Size and Linearity Adjustments
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustment "D03" for V-size.
3. Adjust the "D03" bus data to get the proper V-size.
4. ForV-linearity adjustment, select data bus "D05" and
adjust to get the proper vertical linearity.
Note: Aging for 10 min before adjustment.After the
adjustment of V-center and V-size, re-
adjustment for this V-line.
Vertical Phase Adjustment
1. Enter the service mode and select the service
adjustment "D01".
2. Adjust "D01" data value so that picture is centered.
Horizontal Position Adjustment
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustment "D02".
3. Adjust "D02" data value so that picture is centered.
Caption Position Adjustment (Horizontal)
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustment "EX2".
3. A black text box appears on the screen.(see Figure
B. below)
4. Adjust "EX2" data value so that text box is positioned
in the center of the screen.
Horizontal-Size Adjustment
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustment "D04" for H-size.
3. Adjust the "D04" bus data to get the proper H-size.
EW-Parabola
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustment "D07" for EW parabola.
3. Adjust the "D07" bus data to get the proper vertical
straight line for both left and right side.
EW-Trapezium
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustment "D08" for EW-Trapezium.
3. Adjust the "D08" bus data to get the best position
display.
EW-Corner
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustment "D09" for EW-Corner.
3. Adjust the "D09" bus data to get the best linearity for
4 corner points.
Other Adjustments
1. Enter the service mode.
2. Adjust the following data values as listed below.
SERVICE ADJUST DATA(Hex)
POSITION ITEM
OP1 OPTION1 F7
OP2 OPTION2 10
OP3 OPTION3 0C

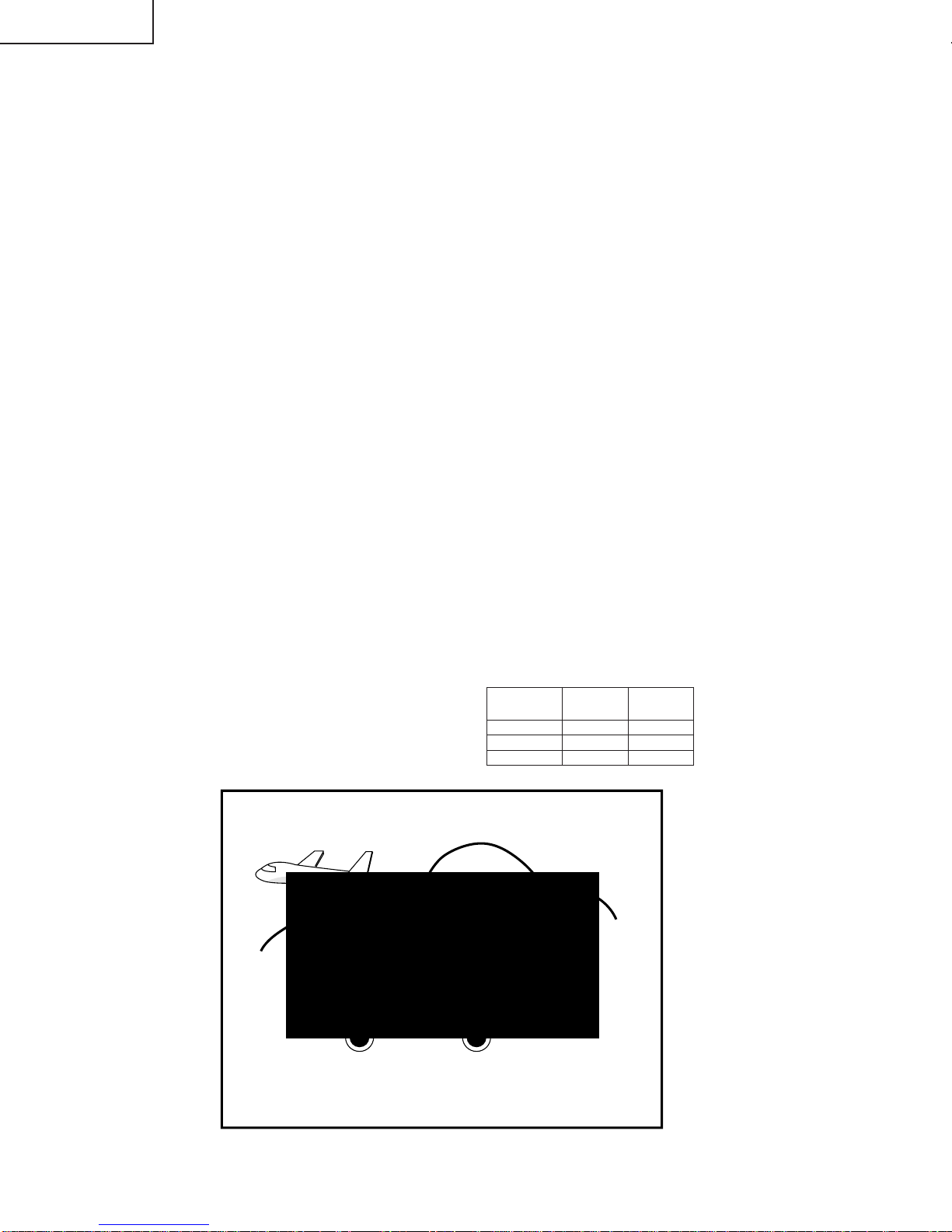

Figure B.

36U-S610
11
ËP-IN-P ADJUSTMENT
P-IN-PY-LEVEL Adjustment
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustment "P01".
3. Adjust "P01" data value to obtain normal contrast
level.
P-IN-PTINT Adjustment
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustment "P02".
3. Adjust data value to "29".
P-IN-P COLOR Adjustment
1. Receive a good local channel.
2. Make sure the customer color control is set to center
position.
3. Enter the service mode and select the service
adjustment "P03".
4. Adjust "P03" data value to obtain normal color level.
P-IN-PY-OFF SET Adjustment
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustment "P04".
3. Adjust data value to "09".
P-IN-P H-POSITION Adjustment
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustment "P05".
3. Adjust data value to "0A".
P-IN-P BURST GATE PULSE (for MAIN)
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustment "P06".
3. Adjust data value to "00".
P-IN-P FREERUN
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustment "P07".
3. Adjust data value to "0B".
P-IN-PTINT-INPUT Adjustment
1. Receive the composite signal.
2. Enter the service mode and select the service
adjustment "P08".
3. Adjust data value to "24".
ËMTS ADJUSTMENT
MTS Level Adjustment
1. Receive the following composite signal.
Monaural signal: 400Hz, 100% modulation
2. Connect the rms voltmeter to pin (39) of IC3001.
3. Enter the service mode and select the service
adjustment "M01" and set to "09".
4. Enter the service mode and select the service
adjustment "EX4".
5. Adjust the data so that the rms voltmeter reads 490
±10 mVrms.
MTS VCO Adjustment
1. Keep the unit in no-signal state.
2. Connect the frequency counter to pin (39) of IC3001.
3. Connect a capacitor (100µF, 50V) in between
positive(+) side of C3005 and ground.
4. Enter the service mode and select the service
adjustment "M02"
5. Adjust the data so that the frequency counter reads
62.94 ±0.75kHz.
Filter Adjustment
1. Feed the following stereo pilot signal to pin (14) of
IC3001 .
Stereo pilot signal: 9.4kHz, 600mVrms.
2. Enter the service mode and select the service
adjustment "M03".
3. Adjust the data until "OK" appears in position on the
screen. Make sure the "OK" is displayed almost at
the center of the data range.
Separation Adjustment
1. Connect the rms voltmeter to pin (39) of IC3001.
2. Receive the following composite stereo signal 1.
Composite stereo signal: 30% modulation, left
channel only, noise reduction on, 300Hz
3. Enter the service mode and select the service
adjustment "M04".
4. Adjust the data until the AC voltage reading of the
RMS voltmeter is minimum.
5. Receive the following composite stereo signal 2.
Stereo signal: 30% modulation, left channel only,
noise reduction on, 3kHz
6. Enter the service mode and select the service
adjustment "M05".
7. Adjust the data until the AC voltage reading of the
rms voltmeter is minimum.
8. Take the above steps 1 thru 7 again for fine
adjustment.

36U-S610
654321
A
B
C
D
E
F
G
H
12

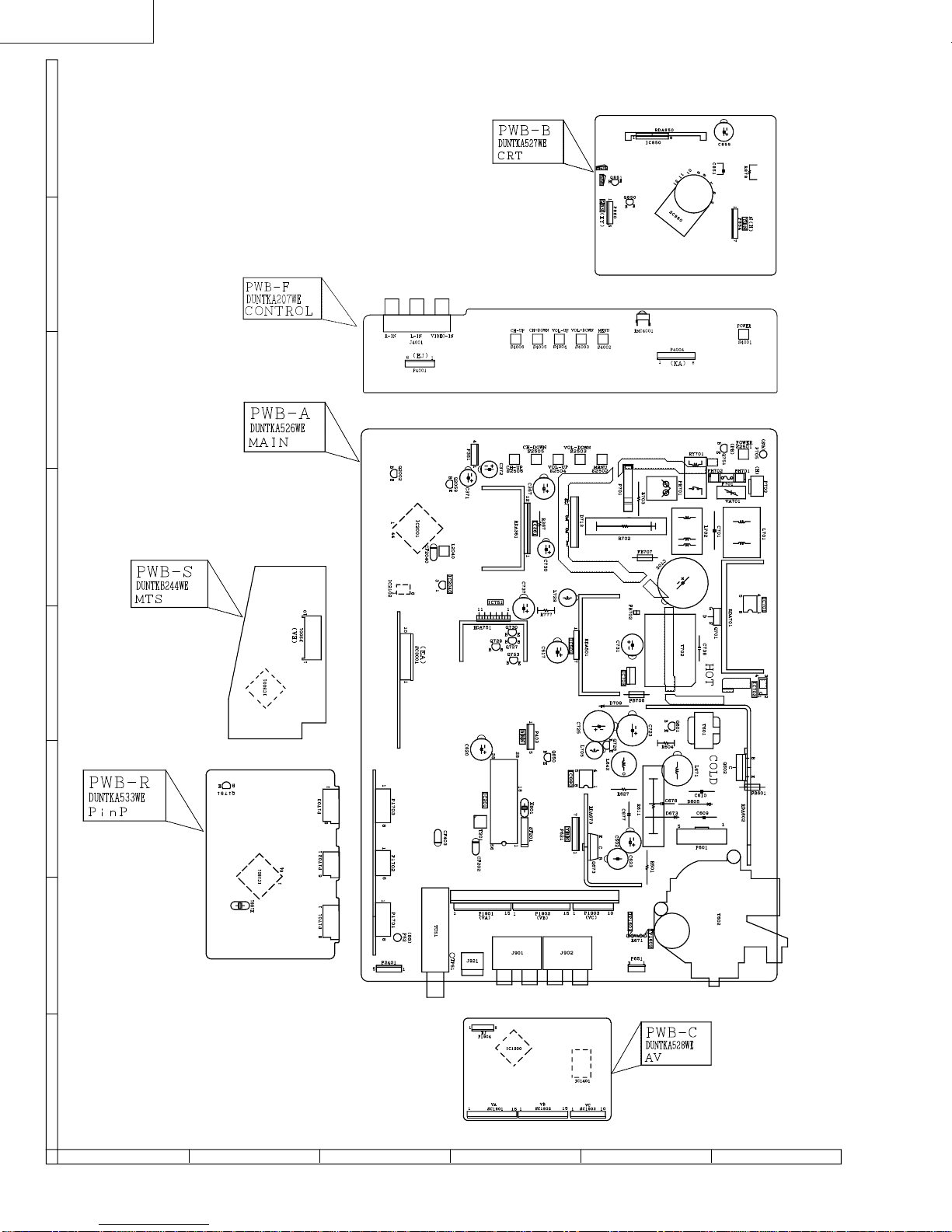

CHASSIS LAYOUT

36U-S610
654321
A
B
C
D
E
F
G
H
13

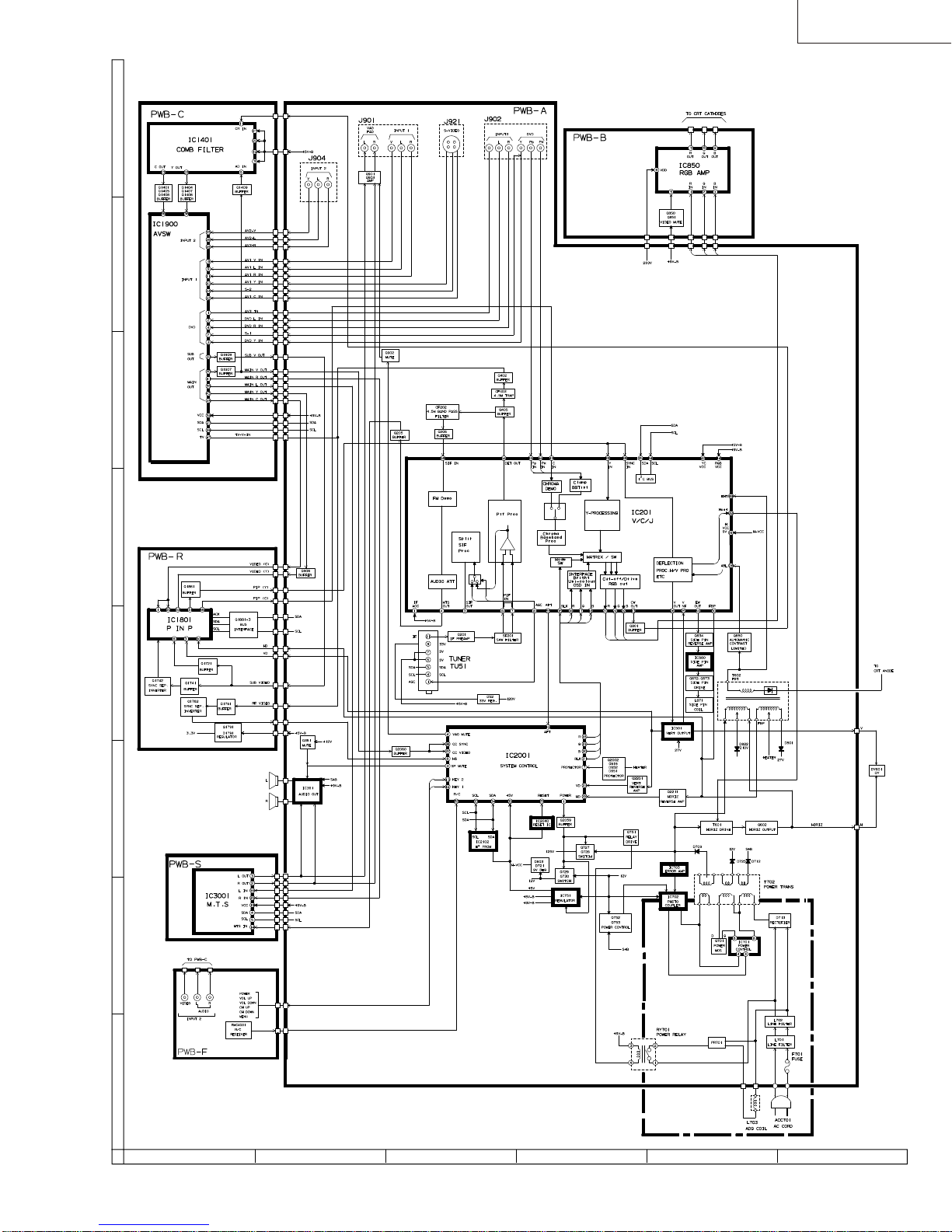

BLOCK DIAGRAM

36U-S610
14
DESCRIPTION OF SCHEMATIC DIAGRAM
NOTES:
1. The unit of resistance "ohm" is omitted.
(K=k Ω =1000 Ω , M=M Ω )
2. All resistors are 1/8 watt, unless otherwise noted.
3. All capacitors are µ F, unless otherwise noted.
(P=pF=µµF)
4. (G) indicates ±2% tolerance may be used.
5. indicates line isolated ground.
VOLTAGE MEASUREMENT CONDITIONS:
1. All DC voltages are measured with DVM connected
between points indicated and chassis ground, line
voltage set at 120V AC and all controls set for normal
picture unless otherwise indicated.
2. All voltages measured with 1000µ V B & W or Color
signal.
WAVEFORM MEASUREMENT CONDITIONS:
1. Photographs taken on a standard gated color bar
signal, the tint setting adjusted for proper color.The
wave shapes at the red, green and blue cathodes of
the picture tube depend on the tint, color level and
picture control.
2. indicates waveform check points (See chart,
waveforms are measured from point indicated to
chassis ground.)
å AND SHADED ( ) COMPONENTS
= SAFETY RELATED PARTS.
ç MARK= X-RAY RELATED PARTS.
DRGANNESMARQUES
å
ETHACHRES( ):
PIECES RELATIVES A LA SECURITE.
MARQUE ç : PIECS RELATIVE AUX RAYONS X.
This circuit diagram is a standard one, printed circuits
may be subject to change for product improvement
without prior notice.
234561
890qw7
rtyui
e
pasdf o
250Vp-p 30.0Vp-p
1200Vp-p
1.2Vp-p
Horizontal Rate
Horizontal Rate
Horizontal Rate
1.1Vp-p
225Vp-p
3Vp-p
Horizontal Rate
3Vp-p
Horizontal Rate
3Vp-p
Horizontal Rate
160Vp-p
Horizontal Rate
150Vp-p
Horizontal Rate
150Vp-p
Horizontal Rate Horizontal Rate Horizontal Rate Horizontal Rate Horizontal Rate
15Vp-p 440Vp-p
Vertical Rate
2.4Vp-p
Vertical Rate
30Vp-p
Vertical Rate
53Vp-p
Vertical Rate
5.4Vp-p
Vertical Rate
0.8Vp-p
Horizontal Rate
Horizontal Rate Horizontal Rate Horizontal Rate Horizontal Rate Vertical Rate
2.3Vp-p 1Vp-p 0.5Vp-p 5Vp-p 5Vp-p
WAVEFORMS

36U-S610
1615
121110987654321
A
B
C
D
E
F
G
H
SCHEMATIC DIAGRAM: MAIN-1 Unit

121110987654321
A
B
C
D
E
F
G
H
SCHEMATIC DIAGRAM: MAIN-2 Unit 36U-S610
1817

654321
A
B
C
D
E
F
G
H
19
SCHEMATIC DIAGRAM: CRT Unit

36U-S610
2120
121110987654321
A
B
C
D
E
F
G
H

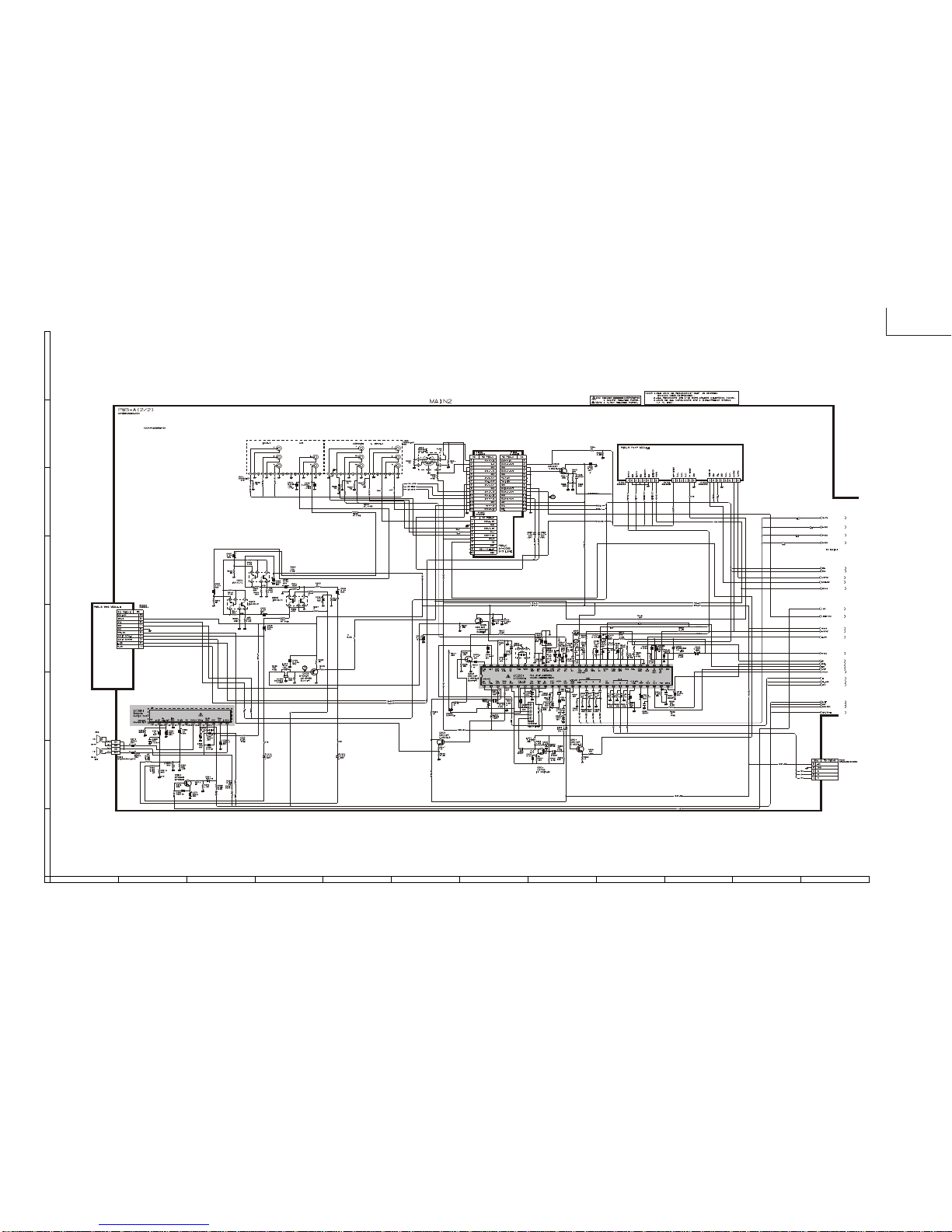

SCHEMATIC DIAGRAM: AV Unit

36U-S600
2322
121110987654321
A
B
C
D
E
F
G
H

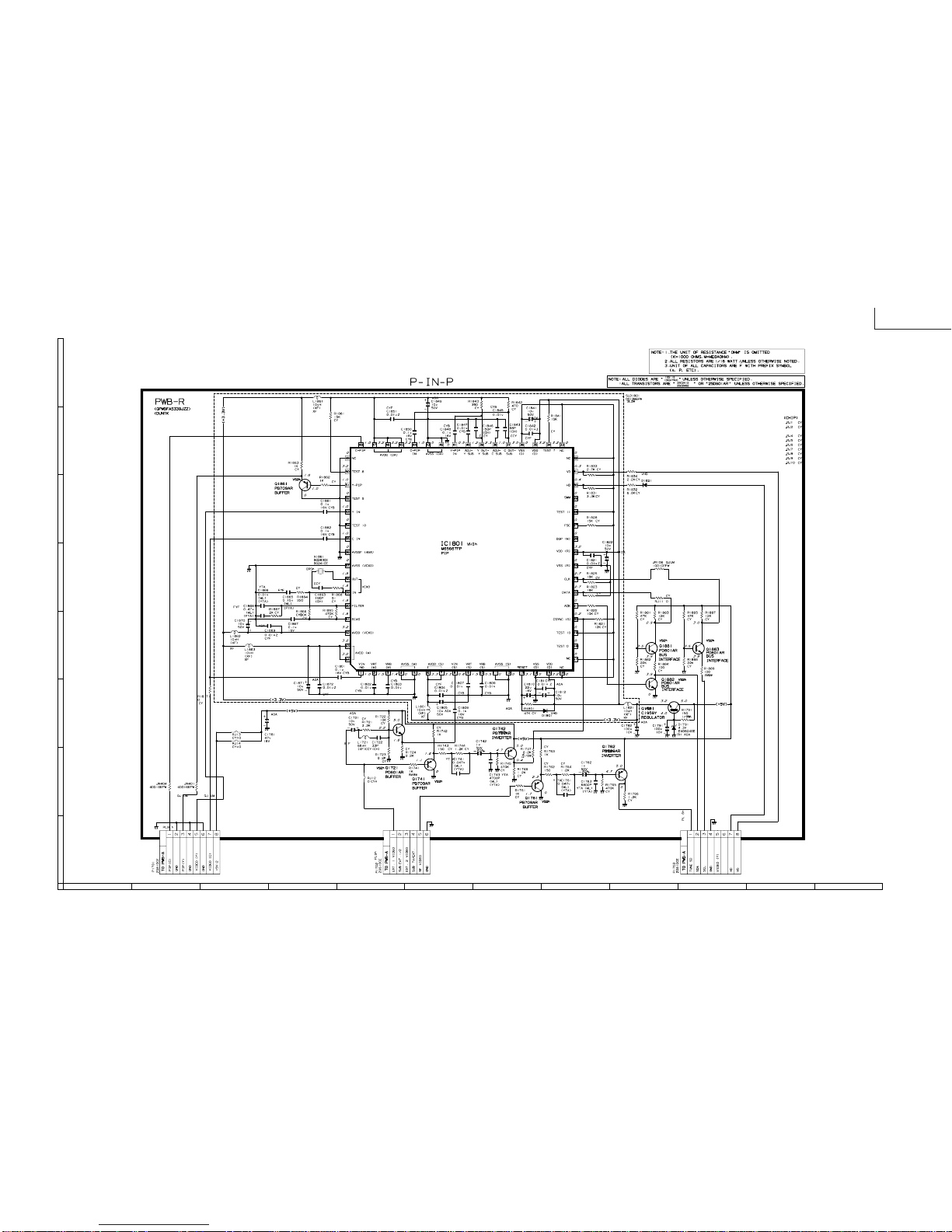

SCHEMATIC DIAGRAM: P-IN-P Unit

36U-S600
654321
A
B
C
D
E
F
G
H
24

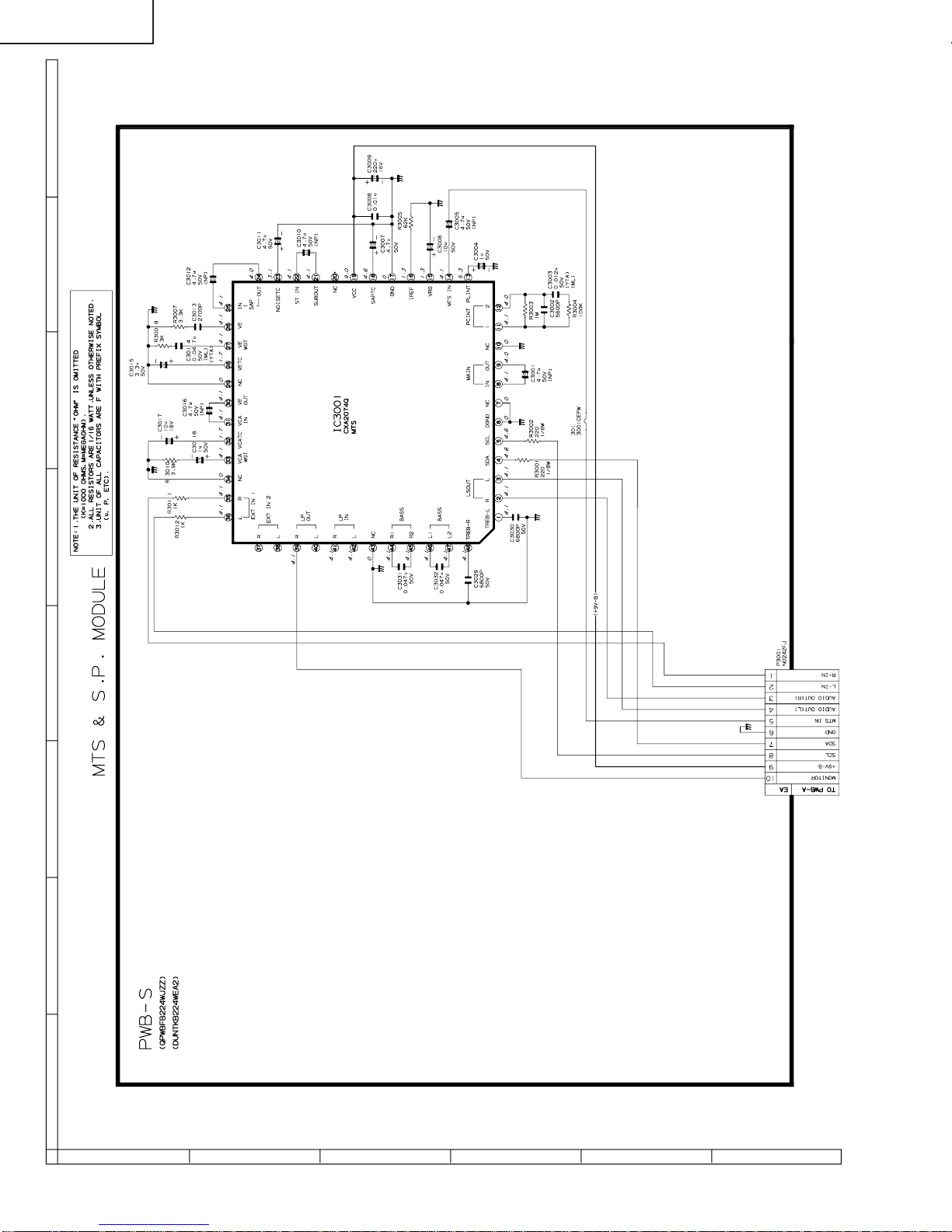

SCHEMATIC DIAGRAM: MTS MODULE Unit
