Sharp C-2890EES User manual

1
C-2890EES
SERVICE MANUAL
This document has been published to
be used for after sales service only.
AK-45 CHASSIS
In the interests of user safety (required by safety
regulations in some countries) the set should be re-
stored to its original condition and only parts identi-
cal to those specified should be used.
CONTENTS
ELECTRICAL SPECIFICATIONS ........................................................................................ 3
IMPORTANT SERVICING NOTES ...................................................................................... 4
CONTROLS & TERMINALS ................................................................................................ 5
PRINTED WIRING BOARD LAYOUT ................................................................................. 7
PARTS LISTING ................................................................................................................... 8
HOW TO UPDATE THE TECHNICAL INFORMATION ...................................................... 15
SHARP CORPORATION
MODEL C-2890EES
SE00C2890EE00
Issued: 28th April 2004
PAL B/G, I / SECAM L/L’, B/G, D/K SYSTEM COLOUR TELEVISION
In order to service the model C-2890EES, refer to
the AK-45 Chassis Service Manual
(SE00AK45CHA00).

2
C-2890EES
Use this page to keep any special servicing information as Technical Report (Bulletin), Technical Information, etc.
If only part number changes are required, just change part number directly the part number in the Parts Listing Section.
If you need more information, please refer to the Technical Report (Bulletin).
SERVICE MANUAL UPDATE LOG SHEET
Part No.
Technical Report No.
Technical Bulletin No. Cause / Solution Page No. Application
Data /Serial No.

3
C-2890EES
ELECTRICAL SPECIFICATIONS
WARNING
The chassis in this receiver is partially hot. Use an isolation transformer between the line cord plug
and power receptacle, when servicing this chassis.
To prevent electric shock, do not remove cover. No user-serviceable parts inside. Refer servicing to
qualified service personnel.
Specifications are subject to change without prior notice.
•Picture Intermediate frequency
L’ ................................................ 33.9MHz
L, B/G, D/K,I .............................. 38.9MHz
•Sound Carrier Trap
L’ ................................................ 40.4MHz
L, D/K ......................................... 32.4MHz
B/G ............................................ 33.4MHz
I .................................................. 32.9MHz
•Adjacent Sound Carrier Trap
L’ ................................................ 32.4MHz
L, D/K, B/G ................................ 40.4MHz
I .................................................. 40.9MHz
•Adjacent Picture Carrier Trap
L’ ................................................ 41.9MHz
L, D/K, I ...................................... 30.9MHz
B/G ............................................ 31.9MHz
•Aerial Input Impedance
VHF/UHF ................. 75 ohm Unbalanced
•Tuning Ranges ..... 45.75MHz thru 855.25 MHz
VHF: IR A - J / S1 - S41 CH (Hiperband)
E2 - E12 / F2 - F10
UHF: I21 - I69 CH / E21 - E69
AREA 28”/29”
A0.4
BC 1.0
DE 1.0
FGHJ 1.5
KLMN 1.3
F’G’H’J’ 1.3
STUV 1.0
mm
•Power Input .................... 220V-240 Volts AC 50 Hz
•Power Consumption
Normal Operation (Method IEC60107) ............... 70 W
Stand-by Operation .......................................... < 4 W
•Audio Power Output Rating (MPO) / Impedance
Internal Left Speaker ................................. 10 W, 8 Ω
Internal Right Speaker ............................... 10 W, 8 Ω
•Speakers
2 ways speaker elliptic (2 pcs) ............ 42 x 180 mm

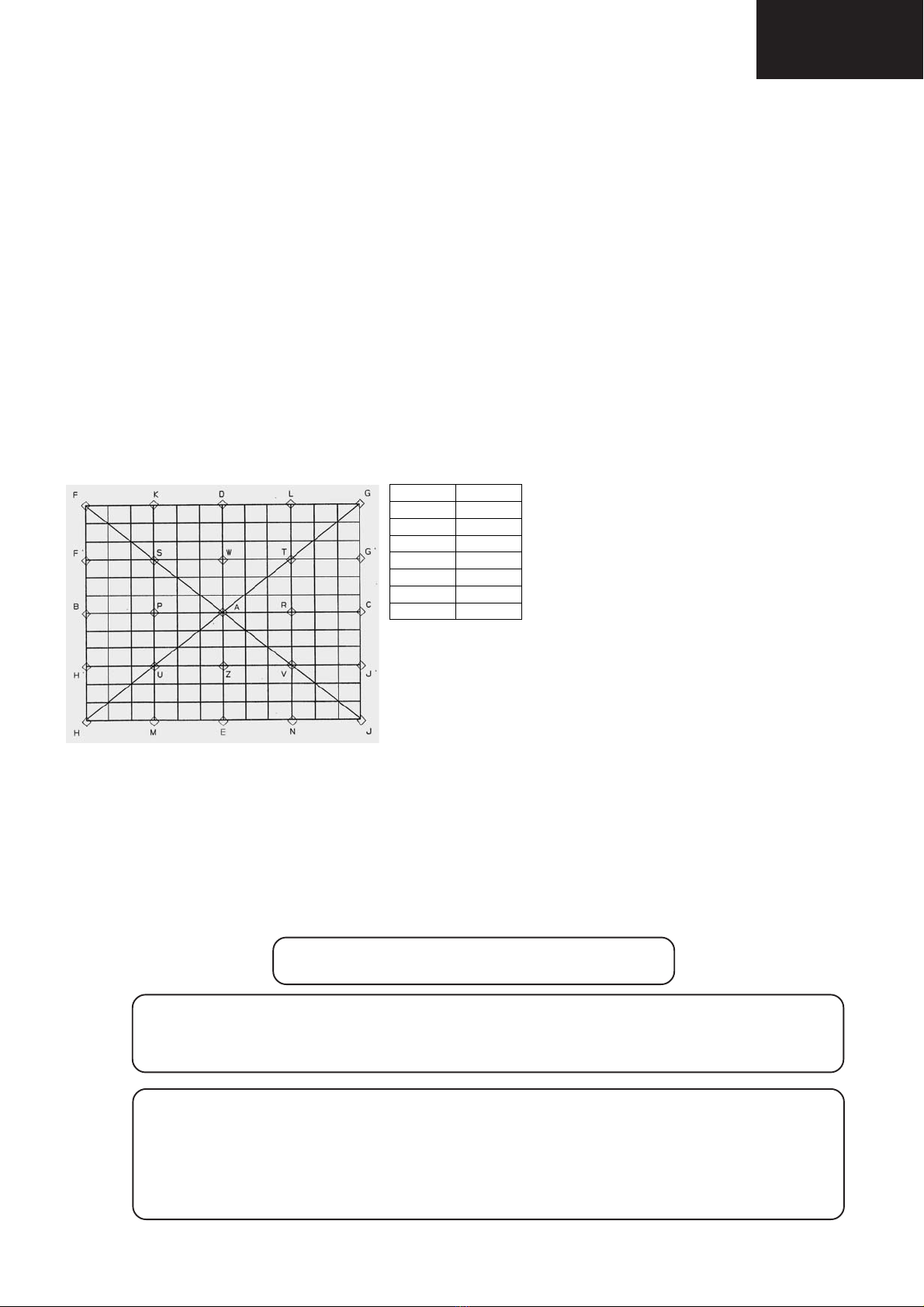

•Convergence (Maximum Misconvergence)
•White Level
Apply the rated voltage at the rated frequency to the TV set, while it is receiving full white pattern RF signal of 60
dB/µV from its RF input via the pattern generator.
Turn all picture controls to maximum value. Measure the colour temperatures at the center of the screen by
using the colour analyzer.
X=0.290 ± 0.015 Y=0.300 ± 0.015
MODEL DESTINATION (Operation Manual Languages)
C-28L90EES: Español, Português.

4
C-2890EES
IMPORTANT SERVICING NOTES
Only qualified service personnel are allowed to carry out maintenance and repair of this receiver.
Servicing of High Voltage System and CRT
It is important that the static charge is removed from the high voltage system when carrying out work on the
receiver. This can be achieved by connecting a 10K resistor (with a suitably insulated lead) from the CRT
cavity connector to the CRT ground tag. This must be carried out with the AC supply disconnected from the
receiver.
Note the following:
•The CRT in this receiver employs Integral Implosion Protection.
•If the CRT has to be changed it MUST be replaced with the correct type for continued safe working.
•DO NOT lift the CRT by its neck.
•When handing the CRT, ensure that shatterproof goggles are worn.
•Ensure that the CRT is discharge before handling.
X-Ray
This receiver is designed to keep any x-ray emission to an absolute minimum. Some fault conditions and
servicing procedures may produce potentially hazardous x-ray radiation levels. This is a problem when in
close proximity to the receiver for long periods of time. To reduce any risks associated with this, please
observe the following precautions:
1. When undertaking any servicing on this chassis, DO NOT increase the EHT to more than 29.9 KV, (at a
instantaneous beam current of 1000 µA).
2. Ensure that during normal operation the EHT does not exceed 26.5 KV (at a beam current of 1145 µA).
This level has been preset in the factory. Always check that this level has not been exceeded after
carrying out any repair on the receiver.
3. DO NOT replace the CRT with any other type than that specified in the parts listing as this may cause
excessive x-ray radiation.
Before returning the receiver to the customer
In addition to the above checks, the following should also be carried out before returning the receiver to the
customer.
1. Inspect all the leads to ensure that they are dressed correctly and that they are not obstructed or pinched
by any other parts.
2. Ensure that all protective devices are in good condition. These will include nonmetallic control knobs,
insulating fish papers, cabinets backs, compartment covers or shields, mechanical insulators, etc.

5
C-2890EES
CONTROLS & TERMINALS
32:(5 

92/

3&K
0(18
FRONT PANEL
$17 (; 7
(;7
REAR PANEL
Speakers (left + right)
POWER = Power On / Off
- VOL + = Volume -/+
- P/Ch + = Program -/+
MENU = Menu
ANT = Antenna ( 5 W)
EXT.1 = Scart Socket 1 (with RGB)
EXT.2 = Scart Socket 2 (with SVHS)
Power Cable

6
C-2890EES

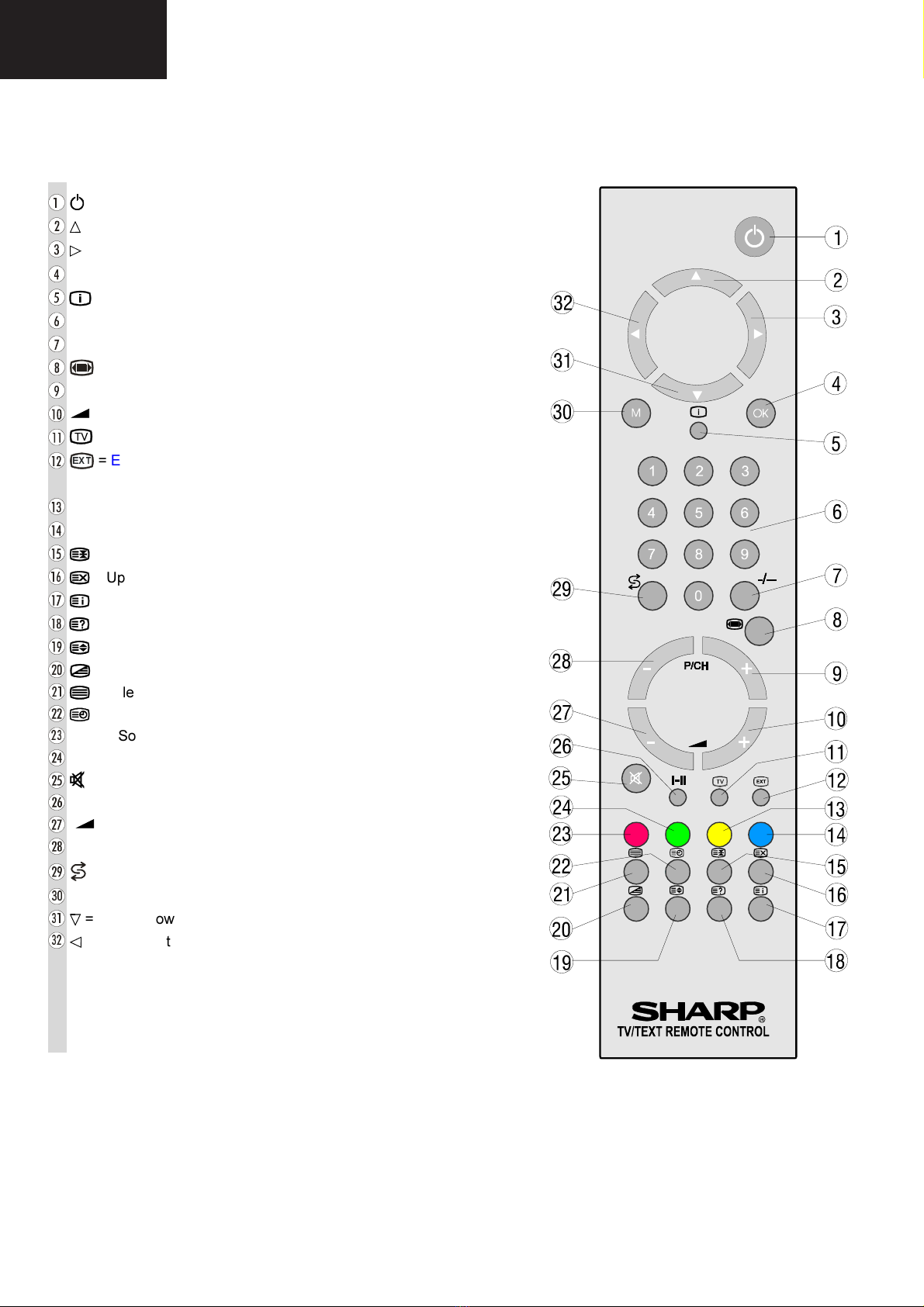

REMOTE CONTROL

= Stand By
= Cursor Up
= Cursor Right
OK = OK
= Info (Program Menu)
0 - 9 = Direct Program
-/-- = Double Digit
= Wide mode button
P/CH+ = Program +
+ = Volume +
= TV / Quit Menu
(;7
= EXT button
(EXT-1, RG , EXT-2, EXT-2S)
Yellow = Feature Menu
lue = Installation Menu
= Hold
 
= Update
= Index Page
= Reveal
= Expand
= Mix

= Teletext
= Time

Red = Sound Menu
Green = Picture Menu
= Mute
I-II = Mono/Stereo - Dual I-II
- = - Volume
- P/CH = -Program
= Flash back button

M = Menu

= Cursor Down

= Cursor Left

7
C-2890EES

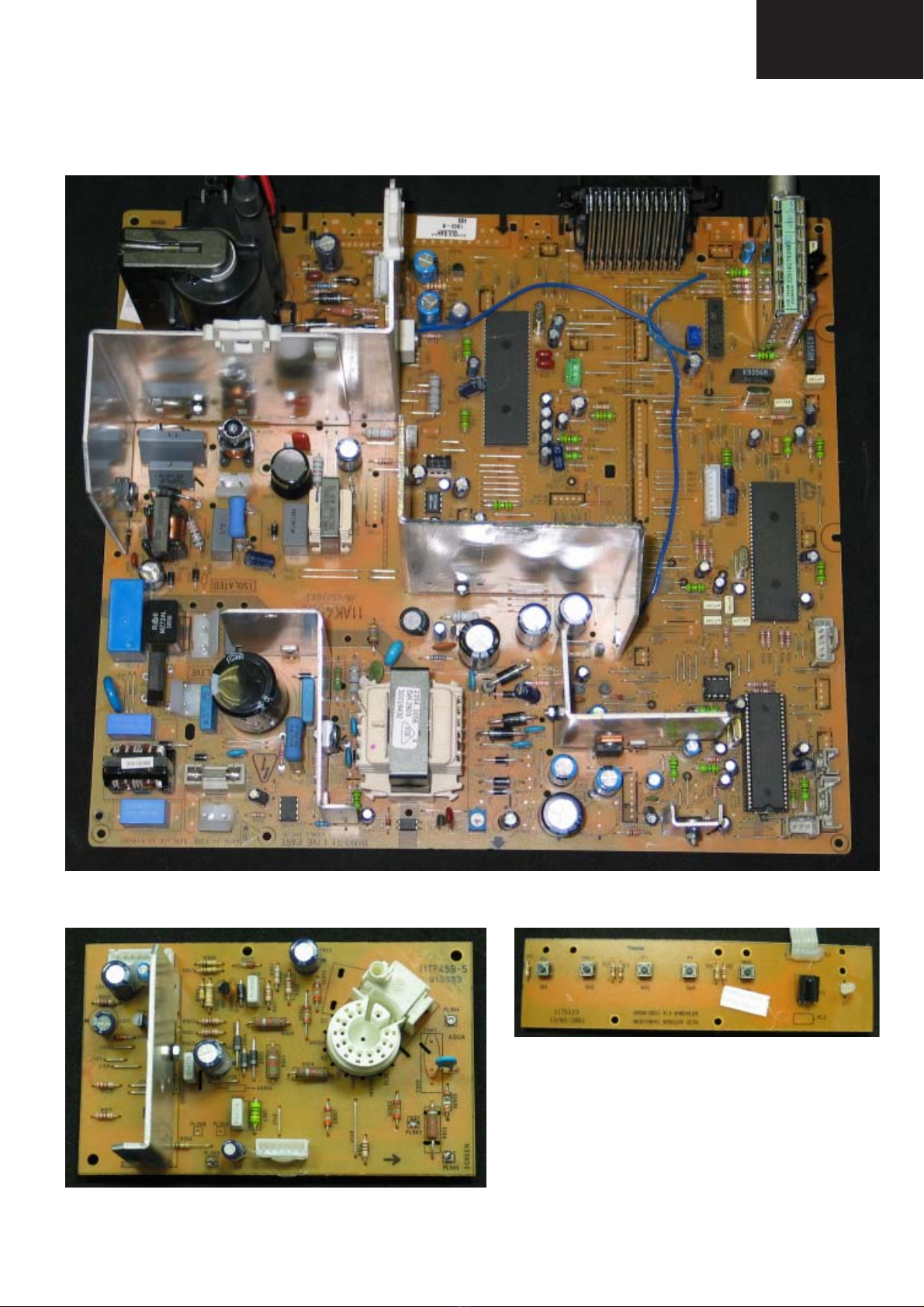

CHASSIS LAYOUT
Mother Unit
CRT Unit Control Panel Unit

8
C-2890EES
PARTS LISTING
REPLACEMENT PARTS
Replacement parts which have special safety characteristics are identified in
this manual. Electrical components having such features are identified by
in the Replacement Parts Listing.
The use of a substitute replacement part which does not have the same safety
characteristics as the factory recommended is not permitted.
Replacement parts not shown in this service manual may create shock fire, or
other hazards.
HOW TO ORDER REPLACEMENT PARTS
To have your order completed promptly and correctly please supply the follow-
ing information.
1. MODEL NUMBER 2. REF. NO.
3. PART NO. (*) 4. DESCRIPTION
5. CODE 6. QUANTITY
(*) When ordering any part, a “V” should be added before the Part No.
(*)
REF No. PARTS DESCRIPTION SN CODE EX CODE
. 30002751 28" CPT TUBE SAFE 50 HZ FLAT IRON CD CX
. 30028443 28 DEG COIL&EARTH CB. SAFE WO/UL FTZ S AK AW
TUNER
TU200 30009637 TUNER WSP (PLL) CTF5510A AR BC
INTEGRATED CIRCUITS
IC1 30001669 PREAMPLIFIER TFMS1380 AD AM
IC100 30015087 IC SAFE OPTOCOUPLER TCET1102G AA AE
IC101 30001622 IC 7805 (1A) AB AF
IC101 30018063 IC HT48RA0A OTP AF AR
IC102 30001668 IC LM317T AC AH
IC103 30001668 IC LM317T AC AH
IC104 30001500 IC LM7808 AC AH
IC106 30011968 IC SMPS MC44608 DIP8 AF AQ
IC116 30001506 IC TL431 AC AH
IC200 30019492 IC VDP3134Y AP BA
IC201 30001619 IC VIDEO SWITCH TEA6415C DIP20 AM AY
IC206 30021083 IC TDA9886T/V3-SO24 AL AX
IC301 30016113 IC AAMP TDA7269A 2*14W MULTIWATT11 AH AV
IC500 20152368 PR.IC.45-SHARP 1.2.77-L.1 AS BD
IC502 20140957 IC 24C16 V042L3324A00040100112 AB AG
IC600 30007793 IC STV9379FA AK AW
IC601 30001506 IC TL431 AC AH
IC700 30013658 IC MSP3410G SDIP64 AS BD
IC900 30018768 IC TDA6109 AK AW
IC901 30014346 IC 78L05 TO-92 (100mA) AA AE
IC902 30014346 IC 78L05 TO-92 (100mA) AA AE
TRANSISTORS
Q100 30001453 TR BC337 AA AC
Q102 30001386 TR MTP6N60E (PLASTIC) AE AP
Q103 30001454 TR BC548B AA AC
Q106 30001454 TR BC548B AA AC
Q107 30001428 TR BF423 AA AC
Q108 30001457 TR BC848B SMD AA AC
Q109 30001457 TR BC848B SMD AA AC
Q110 30001384 TR MCR22-6 AB AG
Q112 30001458 TR BC858B SMD AA AB
Q113 30001457 TR BC848B SMD AA AC
Q114 30001457 TR BC848B SMD AA AC
Q200 30001457 TR BC848B SMD AA AC
Q201 30001457 TR BC848B SMD AA AC
PICTURE TUBE
!
!
!
REF No. PARTS DESCRIPTION SN CODE EX CODE
Q202 30001457 TR BC848B SMD AA AC
Q203 30001457 TR BC848B SMD AA AC
Q208 30001457 TR BC848B SMD AA AC
Q216 30001457 TR BC848B SMD AA AC
Q218 30001458 TR BC858B SMD AA AB
Q220 30001457 TR BC848B SMD AA AC
Q221 30001457 TR BC848B SMD AA AC
Q222 30001457 TR BC848B SMD AA AC
Q223 30001457 TR BC848B SMD AA AC
Q500 30001457 TR BC848B SMD AA AC
Q501 30001457 TR BC848B SMD AA AC
Q502 30001457 TR BC848B SMD AA AC
Q503 30001457 TR BC848B SMD AA AC
Q504 30001457 TR BC848B SMD AA AC
Q505 30001458 TR BC858B SMD AA AB
Q508 30001457 TR BC848B SMD AA AC
Q511 30001457 TR BC848B SMD AA AC
Q513 30001458 TR BC858B SMD AA AB
Q600 30001429 TR BUK444-200A AD AM
Q601 30001435 TR NBJT BC639 1A/100V TO92 AA AB
Q602 30001441 TR BU2508AF AE AP
Q603 30001458 TR BC858B SMD AA AB
Q605 30001458 TR BC858B SMD AA AB
Q606 30001458 TR BC858B SMD AA AB
Q700 30001458 TR BC858B SMD AA AB
Q703 30001458 TR BC858B SMD AA AB
Q704 30001457 TR BC848B SMD AA AC
Q900 30001427 TR BF422 AA AE
Q901 30001458 TR BC858B SMD AA AB
Q902 30001458 TR BC858B SMD AA AB
Q903 30001458 TR BC858B SMD AA AB
Q904 30001458 TR BC858B SMD AA AB
Q905 30001458 TR BC858B SMD AA AB
Q906 30001452 TR BC327 AA AC
DIODES
D1 30001279 LED RED/GREEN LTL293SJ AC AH
D100 30001329 DIODE 1N4007 1A/1000V 30A AA AB
D100 30002733 LED INFRARED IR333 AA AC
D101 20108354 DIODE BRIDGE GBU4M 4A/1000V 150A(FORMLU) AB AE
D103 30001318 DIODE BA159 1A/800V 20A AA AB
D104 30001318 DIODE BA159 1A/800V 20A AA AB
D105 30001318 DIODE BA159 1A/800V 20A AA AB
D106 30001344 DIODE ZENER 6.2V 1/2W AA AB
D108 30001315 DIODE BYD33D 1A/200V 20A AA AE
D110 30001288 DIODE BYV27-200 2A/200V 50A AA AD
D111 30001323 DIODE BY299 2A/800V 70A AA AD
D112 30025773 DIODE ZENER SMD BZT55B5V1 AA AA
D113 30003720 DIODE ZENER BZT55C5V6 5.6V SMD AA AB
D114 30001285 DIODE 1N4148 SMD AA AB
D118 30009366 DIODE UF5402 3A/200V 150A AB AF
D119 30009366 DIODE UF5402 3A/200V 150A AB AF
D121 20092405 CN.ASY.37-DIODE UF5407+FERRITE BAR 5*8 AB AE
D125 30001285 DIODE 1N4148 SMD AA AB
D127 30001315 DIODE BYD33D 1A/200V 20A AA AE
D129 30001285 DIODE 1N4148 SMD AA AB
D130 30001329 DIODE 1N4007 1A/1000V 30A AA AB
D131 30001318 DIODE BA159 1A/800V 20A AA AB
D132 30001285 DIODE 1N4148 SMD AA AB

9
C-2890EES
REF No. PARTS DESCRIPTION SN CODE EX CODE
D133 30003722 DIODE ZENER ZPD15V AA AA
D134 30001285 DIODE 1N4148 SMD AA AB
D200 30001285 DIODE 1N4148 SMD AA AB
D204 30001285 DIODE 1N4148 SMD AA AB
D205 30025773 DIODE ZENER SMD BZT55B5V1 AA AA
D206 30018735 DIODE ZENER BZT55C15 15V SMD AA AB
D207 30018735 DIODE ZENER BZT55C15 15V SMD AA AB
D208 30018735 DIODE ZENER BZT55C15 15V SMD AA AB
D209 30018735 DIODE ZENER BZT55C15 15V SMD AA AB
D212 30001285 DIODE 1N4148 SMD AA AB
D213 30012411 DIODE BA782 SMD AA AD
D214 30025773 DIODE ZENER SMD BZT55B5V1 AA AA
D215 30025773 DIODE ZENER SMD BZT55B5V1 AA AA
D216 30025773 DIODE ZENER SMD BZT55B5V1 AA AA
D217 30025773 DIODE ZENER SMD BZT55B5V1 AA AA
D218 30025773 DIODE ZENER SMD BZT55B5V1 AA AA
D219 30025773 DIODE ZENER SMD BZT55B5V1 AA AA
D220 30025773 DIODE ZENER SMD BZT55B5V1 AA AA
D221Y 30025773 DIODE ZENER SMD BZT55B5V1 AA AA
D222Y 30025773 DIODE ZENER SMD BZT55B5V1 AA AA
D506 30012412 DIODE ZENER 2.4V SMD AA AB
D601 30001377 DIODE ZENER 33V UZT 33B AB AF
D602 30001318 DIODE BA159 1A/800V 20A AA AB
D603 30001299 DIODE UF5404 3A/400V 150A AA AD
D604 30001299 DIODE UF5404 3A/400V 150A AA AD
D609 30001318 DIODE BA159 1A/800V 20A AA AB
D610 30001318 DIODE BA159 1A/800V 20A AA AB
D611 30007681 DIODE UF5407 3A/800V 150A AB AF
D612 30001285 DIODE 1N4148 SMD AA AB
D613 30001291 DIODE HER107 1A/800V 30A AA AB
D614 30025773 DIODE ZENER SMD BZT55B5V1 AA AA
D615 30001318 DIODE BA159 1A/800V 20A AA AB
D617 30025773 DIODE ZENER SMD BZT55B5V1 AA AA
D622 30001285 DIODE 1N4148 SMD AA AB
D623 30001285 DIODE 1N4148 SMD AA AB
D624 30001285 DIODE 1N4148 SMD AA AB
D625 30001320 DIODE GUC BY228 AB AF
D627 30001284 DIODE 1N4148 0.15A/100V 0.5A AA AB
D628 30001285 DIODE 1N4148 SMD AA AB
D701 30007761 DIODE ZENER SMD BZT55C3V6 AA AB
D702 30001285 DIODE 1N4148 SMD AA AB
D706 30001285 DIODE 1N4148 SMD AA AB
D902 30001318 DIODE BA159 1A/800V 20A AA AB
D903 30001284 DIODE 1N4148 0.15A/100V 0.5A AA AB
D904 30001318 DIODE BA159 1A/800V 20A AA AB
D905 30001318 DIODE BA159 1A/800V 20A AA AB
D907 30001318 DIODE BA159 1A/800V 20A AA AB
D908 30014353 DIODE BAT85 AA AC
D909 30001285 DIODE 1N4148 SMD AA AB
D910 30001285 DIODE 1N4148 SMD AA AB
PACKAGED CIRCUITS
X100 30002852 XTAL REZ 455KHZ AA AD
X200 30002851 XTAL 4MHZ L.C=30PF AC AH
X201 30008778 XTAL 20.25MHZ AB AF
X500 30006662 XTAL 6MHZ AC AH
X700 30001756 XTAL 18.432MHZ AE AP
COILS
REF No. PARTS DESCRIPTION SN CODE EX CODE
L101 30018866 LINE FILTER SAFE 2X22MH 10mmX12.5mm AC AH
L102 30001971 FERRITE BEAT (805) BLM21A601S AA AD
L103 30001992 FIXED COIL 10UH Q65 K-A AA AB
L107(NOT2) 30007308 CAP CER 220PF 1KV K (PULSE) AA AD
L203 30001996 FIXED COIL 22UH Q40 K AA AB
L206 30001979 FIXED COIL 1UH Q45 M-A AA AB
L207 30001979 FIXED COIL 1UH Q45 M-A AA AB
L212 30001971 FERRITE BEAT (805) BLM21A601S AA AD
L213 30001971 FERRITE BEAT (805) BLM21A601S AA AD
L214 30001971 FERRITE BEAT (805) BLM21A601S AA AD
L215 30001971 FERRITE BEAT (805) BLM21A601S AA AD
L216 30001971 FERRITE BEAT (805) BLM21A601S AA AD
L217 30001971 FERRITE BEAT (805) BLM21A601S AA AD
L218 30001971 FERRITE BEAT (805) BLM21A601S AA AD
L220 30001971 FERRITE BEAT (805) BLM21A601S AA AD
L227 30001971 FERRITE BEAT (805) BLM21A601S AA AD
L232 30001971 FERRITE BEAT (805) BLM21A601S AA AD
L236 30001971 FERRITE BEAT (805) BLM21A601S AA AD
L239 30001971 FERRITE BEAT (805) BLM21A601S AA AD
L247 30001971 FERRITE BEAT (805) BLM21A601S AA AD
L251 30001971 FERRITE BEAT (805) BLM21A601S AA AD
L252 30001971 FERRITE BEAT (805) BLM21A601S AA AD
L263 30001979 FIXED COIL 1UH Q45 M-A AA AB
L264 30001979 FIXED COIL 1UH Q45 M-A AA AB
L265 30001979 FIXED COIL 1UH Q45 M-A AA AB
L266 30001987 FIXED COIL 4.7UH Q70 K-A AA AB
L500 30001992 FIXED COIL 10UH Q65 K-A AA AB
L501 30001992 FIXED COIL 10UH Q65 K-A AA AB
L502 30001992 FIXED COIL 10UH Q65 K-A AA AB
L503 30001992 FIXED COIL 10UH Q65 K-A AA AB
L504 30001992 FIXED COIL 10UH Q65 K-A AA AB
L505 30001992 FIXED COIL 10UH Q65 K-A AA AB
L506 30006770 FIXED COIL 0.22UH AA AB
L601 30002031 FIXED COIL INJECTION 15MH AD AL
L602 30002156 LINEARITY COIL 30UH 110' (AK19) AD AL
L603 30002829 FIXED COIL BRIDGE 1.5MH AD AL
L700 30001996 FIXED COIL 22UH Q40 K AA AB
L701 30001996 FIXED COIL 22UH Q40 K AA AB
L702 30001996 FIXED COIL 22UH Q40 K AA AB
L703 30001996 FIXED COIL 22UH Q40 K AA AB
L711 30001996 FIXED COIL 22UH Q40 K AA AB
L717 30001979 FIXED COIL 1UH Q45 M-A AA AB
L719 30001968 FERRITE BEAD (0805) BLM21B201S AA AE
CERAMIC FILTERS
Z200 30014261 FILTER SAW K3958M AF AR
Z201 30012545 FILTER SAW K9656M AG AR
TRANSFORMERS
TR100 30019432 TRF SMPS SAFE AK45 110° (170-270V) AG AS
TR600 30021290 TRF FBT SAFE 110° 50HZ LAYER AS BC
TR601 30002090 LINE DRIVER NEW TYPE AD AM
. 30015614 TRF PFC SAFE 0,9A 42 MH EP AL AX
CAPACITORS
C100 30000352 CAP EL 100UF 16V M AA AB
C101 30012560 CAP SMD 100PF 50V J (0603) AA AB
C102 30000084 CAP MKT SAFE 150NF 275V M AC P=15 AC AG
C102 30012560 CAP SMD 100PF 50V J (0603) AA AB
!
!
!
!
!

10
C-2890EES
REF No. PARTS DESCRIPTION SN CODE EX CODE
C103 30000094 CAP MKT SAFE 220NF 275V M AC AA AB
C103 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C104 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C105 30012603 CAP SMD 100NF 25V K R (0603) AA AB
C106 30000371 CAP EL 22UF 50V M AA AB
C107 30000420 CAP EL 150UF 400V M AF AQ
C108 30000161 CAP MKP SAFE 47NF 630V J AB AE
C111 30007308 CAP CER 220PF 1KV K (PULSE) AA AD
C113 30006940 CAP CER 2.7NF 1KV K B AA AB
C114 30007308 CAP CER 220PF 1KV K (PULSE) AA AD
C115 30000440 CAP CER SAFE 2.2NF 4KV M AA AC
C118 30007308 CAP CER 220PF 1KV K (PULSE) AA AD
C119 30000090 CAP MKT 22NF 100V J AA AB
C120 30007308 CAP CER 220PF 1KV K (PULSE) AA AD
C121 30012560 CAP SMD 100PF 50V J (0603) AA AB
C122 30007308 CAP CER 220PF 1KV K (PULSE) AA AD
C124 30000376 CAP EL 220UF 25V M AA AB
C125 30028072 CAP EL 100UF 200V M (HR) AE AQ
C126 30012603 CAP SMD 100NF 25V K R (0603) AA AB
C127 30012603 CAP SMD 100NF 25V K R (0603) AA AB
C129 30012603 CAP SMD 100NF 25V K R (0603) AA AB
C130 30000436 CAP CER 10NF 1KV ZE AA AC
C133 30018259 CAP EL 4700UF 25V M AC AG
C134 30018259 CAP EL 4700UF 25V M AC AG
C135 30018259 CAP EL 4700UF 25V M AC AG
C137 30000367 CAP EL 1UF 250V M AA AB
C138 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C140 30000393 CAP EL 3.3UF 50V M AA AB
C141 30000359 CAP EL 1000UF 16V M AA AC
C142 30000387 CAP EL 33UF 50V M AA AB
C145 30000375 CAP EL 220UF 16V M AA AB
C146 30012603 CAP SMD 100NF 25V K R (0603) AA AB
C147 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C148 30000360 CAP EL 1000UF 25V M AA AE
C149 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C150 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C152 30000375 CAP EL 220UF 16V M AA AB
C154 30000375 CAP EL 220UF 16V M AA AB
C155 30000375 CAP EL 220UF 16V M AA AB
C156 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C157 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C160 30000076 CAP MKT SAFE 100NF 275V M AC AB AE
C161 30000440 CAP CER SAFE 2.2NF 4KV M AA AC
C162 30007708 CAP CER 1NF 1KV K (PULSE) AA AD
C164 30000362 CAP EL 1UF 50V M AA AB
C165 30000362 CAP EL 1UF 50V M AA AB
C166 30000225 CAP CER 220PF 50V J SL AA AB
C168 30000161 CAP MKP SAFE 47NF 630V J AB AE
C170 30012566 CAP SMD 22PF 50V J (0603) AA AB
C171 30012590 CAP SMD 47NF 50V K (0603) AA AA
C172 30000313 CAP CER 22NF 50V Z F AA AB
C173 30012603 CAP SMD 100NF 25V K R (0603) AA AB
C174 30012603 CAP SMD 100NF 25V K R (0603) AA AB
C175 30012603 CAP SMD 100NF 25V K R (0603) AA AB
C176 30012603 CAP SMD 100NF 25V K R (0603) AA AB
C202 30012643 RES SMD 1/16W 120R J (0603) AA AA
C208 30016126 CAP SMD 220NF 16V K R (0603) AA AB
C209 30016126 CAP SMD 220NF 16V K R (0603) AA AB
!
!
!
!
!
REF No. PARTS DESCRIPTION SN CODE EX CODE
C210 30016126 CAP SMD 220NF 16V K R (0603) AA AB
C212 30000352 CAP EL 100UF 16V M AA AB
C213 30012609 CAP SMD 68NF 50V K (0603) AA AB
C214 30016126 CAP SMD 220NF 16V K R (0603) AA AB
C215 30016126 CAP SMD 220NF 16V K R (0603) AA AB
C217 30016126 CAP SMD 220NF 16V K R (0603) AA AB
C218 30012610 CAP SMD 10NF 50V J (0603) AA AB
C222 30016126 CAP SMD 220NF 16V K R (0603) AA AB
C225 30000109 CAP MKT 470NF 63V J AA AD
C226 30000352 CAP EL 100UF 16V M AA AB
C227 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C229 30000345 CAP EL 10UF 50V M AA AB
C231 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C233 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C234 30016126 CAP SMD 220NF 16V K R (0603) AA AB
C235 30012610 CAP SMD 10NF 50V J (0603) AA AB
C237 30012583 CAP SMD 1.5NF 50V K (0603) AA AA
C238 30012610 CAP SMD 10NF 50V J (0603) AA AB
C240 30012559 CAP SMD 10PF 50V D COG (0603) AA AA
C242 30012560 CAP SMD 100PF 50V J (0603) AA AB
C246 30012586 CAP SMD 22NF 50V K (0603) AA AB
C248 30012586 CAP SMD 22NF 50V K (0603) AA AB
C249 30012610 CAP SMD 10NF 50V J (0603) AA AB
C252 30000387 CAP EL 33UF 50V M AA AB
C253 30000345 CAP EL 10UF 50V M AA AB
C255 30016126 CAP SMD 220NF 16V K R (0603) AA AB
C258 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C259 30000345 CAP EL 10UF 50V M AA AB
C260 30012585 CAP SMD 2.2NF 50V K R (0603) AA AB
C261 30012588 CAP SMD 33NF 50V K (0603) AA AA
C262 30012610 CAP SMD 10NF 50V J (0603) AA AB
C263 30012588 CAP SMD 33NF 50V K (0603) AA AA
C264 30012603 CAP SMD 100NF 25V K R (0603) AA AB
C265 30000109 CAP MKT 470NF 63V J AA AD
C266 30000109 CAP MKT 470NF 63V J AA AD
C267 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C268 30012590 CAP SMD 47NF 50V K (0603) AA AA
C269 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C270 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C271 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C273 30012590 CAP SMD 47NF 50V K (0603) AA AA
C274 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C275 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C276 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C277 30000345 CAP EL 10UF 50V M AA AB
C278 30012559 CAP SMD 10PF 50V D COG (0603) AA AA
C279 30012559 CAP SMD 10PF 50V D COG (0603) AA AA
C280 30000345 CAP EL 10UF 50V M AA AB
C282 30012585 CAP SMD 2.2NF 50V K R (0603) AA AB
C283 30000345 CAP EL 10UF 50V M AA AB
C284 30012585 CAP SMD 2.2NF 50V K R (0603) AA AB
C286 30000345 CAP EL 10UF 50V M AA AB
C287 30012607 CAP SMD 150PF 50V J (0603) AA AA
C288 30012589 CAP SMD 4.7NF 50V K (0603) AA AB
C289 30012589 CAP SMD 4.7NF 50V K (0603) AA AB
C290 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C292 30012589 CAP SMD 4.7NF 50V K (0603) AA AB
C293 30012607 CAP SMD 150PF 50V J (0603) AA AA
