Sharp 21F-PA18 User manual

21F-PD250 / 21F-PT220 / 21F-PA18 / 21F-PA18(B)
SERVICE MANUAL
COLOUR TELEVISION
Chassis No.GA-7
Blue Back Function
Aperture Control Circuit
Auto Fine Tuning
NTSC Colour Comb Filter
High Contrast Picture ( Black Stretch Circuit)
FEATURES
PAL-B/G, D/K
Frequency Synthesizer Tuner
Full Auto System
100-CH Program Memory
CATV (Hyper Band Ready)
Hotel Mode
White Temperature Select
Off Timer
Multi Languages OSD (English/Thai)
Rear AV IN / OUT Terminals
Child Lock
In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its original condition and
only parts identical to those specified should be used.
CONTENTS
The chassis in this receiver is partially hot. Use an isolation transformer between the line cord plug and power receptacle, when servicing
this chassis. To prevent electric shock, do not remove cover. No user-serviceable parts inside. Refer servicing to qualified service personnel.
WARNING
CHAPTER 1. SPECIFICATIONS
[1] SPECIFICATIONS ......................................... 1-1
CHAPTER 2. IMPORTANT SERVICE NOTES
[1] IMPORTANT SERVICE NOTES .................... 2-1
CHAPTER 3. ADJUSTMENT PRECAUTIONS
[1] ADJUSTMENT PRECAUTIONS .................... 3-1
[2] ADJUSTMENT ............................................. 3-14
CHAPTER 5. TROUBLE SHOOTING FLOWCHART
[1] TROUBLE SHOOTING FLOWCHART .......... 5-1
CHAPTER 6. SOLID STATE DEVICE BASE DIAGRAM
[1] SOLID STATE DEVICE BASE DIAGRAM..... 6-1
CHAPTER 7. CHASSIS LAYOUT
[1] CHASSIS LAYOUT ....................................... 7-1
CHAPTER 9. DESCRIPTION OF SCHEMATIC DIA-
GRAM
[1] DESCRIPTION OF SCHEMATIC DIAGRAM... 9-1
CHAPTER 10. WAVEFORMS
[1] WAVEFORMS ............................................... 10-1
CHAPTER 11. SCHEMATIC DIAGRAM
[1] SCHEMATIC DIAGRAM : CRT UNIT ............ 11-1
[2] SCHEMATIC DIAGRAM : MAIN UNIT .......... 11-2
CHAPTER 12. PRINTED WIRING BOARD ASSEM-
BLIES
[1] PWB-A : MAIN UNIT ..................................... 12-1
[2] PWB-B : CRT UNIT....................................... 12-3
Parts Guide
CHAPTER 4. MEMORY MAP
[1] MEMORY MAP...................................................
Front AV-IN Terminal (Model 21F-PT220)
4-1
CHAPTER 8. BLOCK DIAGRAM
[1] BLOCK DIAGRAM : MAIN UNIT................... 8-1
[2] BLOCK DIAGRAM : CRT UNIT...................... 8-9
SHARP MANUFACTURING (THAILAND) CO.,LTD.
21F-PT220 21F-PA18
21F-PA18(B)
21F-PD250
1st Edition
21F-PA18
21F-PA18(B)
21F-PD250
21F-PT220

21F-PD250 / 21F-PT220 / 21F-PA18 / 21F-PA18(B)
1 – 1
CHAPTER 1. SPECIFICATIONS
[1] SPECIFICATIONS
Convergence ................................................................................................................ Self Convergence System
Focus
............................................................................................................................... UNI-BI Focusing
Sweep Deflection ..................................................................................................................................... Magnetic
Intermediate Frequencies
Picture IF Carrier ................................................................................................................................. 38.9MHz
Colour Sub-Carrier Frequency ........................................................................................................... 34.47MHz
Cabinet material ..................................................................................................................................... All Plastics
Specifications are subject to change without prior notice
Aerial Input Impedance
VHF/UHF .......................................................................................................................... 75 ohms Unbalanced
Receiving System ............................................................................... PAL-B/G, PAL - D/K, NTSC 3.58 MHz-B/G
Receiving Channel
VHF-Channels ......................................................................................... E2(48.25MHz) thru E12(224.25MHz)
S1(105.25MHz) thru S41(463.25HMz)
UHF-Channels ..................................................................................... E21(471.25MHz) thru E69(855.25MHz)
.
Power Input ..................................................................................................................... 110 ~ 240V AC 50/60 Hz
Power Consumption........................................................................................................................................
Audio Power Output Rating ....................................................................... 21F-PA18 & 21F-PA18(B) : 3W (rms)
..............................................................................................
Speaker
Size
Dimensions ....................................................................................... 21F-PA18 & 21F-PA18(B) : Width: 502 mm
Height: 485 mm
Depth: 485 mm
Weight(approx): 22.5 kg
83W
21F-PD250 & 21F-PT220 : 5W (rms)
21F-PA18 & 21F-PA18(B) : 5 x 9 cm (1 pc)
21F-PD250 & 21F-PT220 : 5 x 9 cm (2 pcs)
.............................................................................................................. 16 ohms at 400 HzVoice Coil Impedance
21F-PD250 : Width: 625 mm
Height: 470 mm
Depth: 495.5 mm
Weight(approx): 22 kg
21F-PT220 : Width: 577 mm
Height: 465.5 mm
Depth: 480 mm
Weight(approx): 21.5 kg
Sound IF Carrier Frequency
............................................................................................................................................32.4MHz6.5MHz
............................................................................................................................................32.9MHz6.0MHz
............................................................................................................................................33.4MHz5.5MHz

21F-PD250 / 21F-PT220 / 21F-PA18 / 21F-PA18(B)
2 – 1
TVE
CHAPTER 2. IMPORTANT SERVICE NOTES
[1] IMPORTANT SERVICE NOTES
Maintenance and repair of this receiver should be done by qualified service personnel only.
1. SERVICE OF HIGH VOLTAGE SYSTEM AND PICTURE TUBE
When servicing the high voltage system, remove static charge from it by connecting a 10K ohm resistor in series with an insulated wire (such as a test
probe) between picture tube dag and 2nd anode lead. (AC line cord should be disconnected from AC outlet.)
1) Picture tube in this receiver employs integral implosion protection.
2) Replace with the same type number of picture tube for continued safety.
3) Do not lift picture tube by the neck.
4) Handle the picture tube only when wearing shatterproof goggles and after discharging the high voltage completely.
2. X-RAY
This receiver is designed so that any X-Ray radiation is kept to an absolute minimum. Since certain malfunctions or servicing may produce potentially
hazardous radiation with prolonged exposure at close range, the following precautions should be observed:
1) When repairing the circuit, please make sure do not increase the high voltage of the set to more than 30.0kV (at beam 0µA).
2) To keep the set in a normal operation, please make sure it’s function at 26.5kV ± 1.0kV (at beam 1,100µA). The set has been factory - adjusted to
the above-mentioned high voltage.
*If there is a possibility that the high voltage fluctuates as a result of the repairs, never forget to check for such high voltage after the work.
3) Do not substitute a picture tube with unauthorizerd types and/or brands which may cause excessive X-ray radiation.
3. BEFORE RETURNING THE RECEIVER
Before returning the receiver to the user, perform the following safety checks.
1) Inspect all lead dress to make certain that leads are not pinched or that hardware is not lodged between the chassis and other metal parts in the
receiver.
2) Inspect all protective devices such as non-metal control knobs, insulating materials, cabinet backs, adjustment and compartment covers or
shields, isolation resistor-capacity networks, mechanical insulators etc.

21F-PD250 / 21F-PT220 / 21F-PA18 / 21F-PA18(B)
3 – 1
CHAPTER 3. ADJUSTMENT PRECAUTIONS
[1] ADJUSTMENT PRECAUTIONS
ADJUSTMENT PRECAUTIONS
This model's setting are adjusted in two different ways: through the I2C bus control and in
the conventional analog manner. The adjustments via the I2C bus control include preset-only
items and variable data.
CAUTION : MAKE SURE TV SET IN "NORMAL CONDITION" BEFORE SWITCH TO SERVICE MODE
FOR ADJUSTMENT.
1. Setting the service mode by the microprocessor.
(1) Press SERVICE key on the remote controller to set the TV set to SERVICE mode position,
and the microprocessor is in input mode. (Adjustment through the I2C bus control).
Service Mode also can be reached by by connecting MCU Pin 5 to ground.
(JA483 connect to JA484)
(2) Press the MENU key on the remote controller to get ready to select the mode
(Adjustment mode, Setting mode, Check mode and Option mode) one by one.
(3) Press the CH DOWN / UP key on the remote controller to select the item in Adjustment
mode, Setting mode or Option mode.
(4) Using the VOLUME UP/ DOWN key on the remote controller, the data can be modified.
Please wait approximately 200 msec for data storage in EEPROM before select to
another mode.
(5) In Check mode the data cannot be changed.
(
6
)
Press the SERVICE ke
y
a
g
ain
,
it will switch to the NORMAL mode
p
osition
,
and th
e
microprocessor is out of the SERVICE mode.
2. Factory Presetting.
(1) During POWER OFF (AC OFF), switch on service key (by connecting MCU Pin 5 to ground )
then follow by AC ON. Initial values are automatically preset only when a new EEPROM is used.
(Judge with the first 4 bytes ).
(2) The initial data are preset as listed in page 3-6 to 3-11.
(3) Make sure the data need modification or not (Initial data).
Precaution: If haven't done this initialization, it may possibly generate excessive Beam current.
3. For reference please check with memory map RH-IXC129WJZZQ. (See Page 4-1 ~ 4-32).

21F-PD250 / 21F-PT220 / 21F-PA18 / 21F-PA18(B)
3 – 2
1. ADJUSTMENT ITEM
***Below are the adjustment items that should be done, PLS FOLLOW THE PROCEDURE. Otherwise some adjustment items will
not be accurate.
NO *** ADJUSTMENT ITEM EFFECTIVE MODEL REVISION
1 BUS SET UP
ALL MODELS
2 OPTION SET UP
3H-VCO
4VIF-VCO
5S-TRAPfo
6RF-AGC

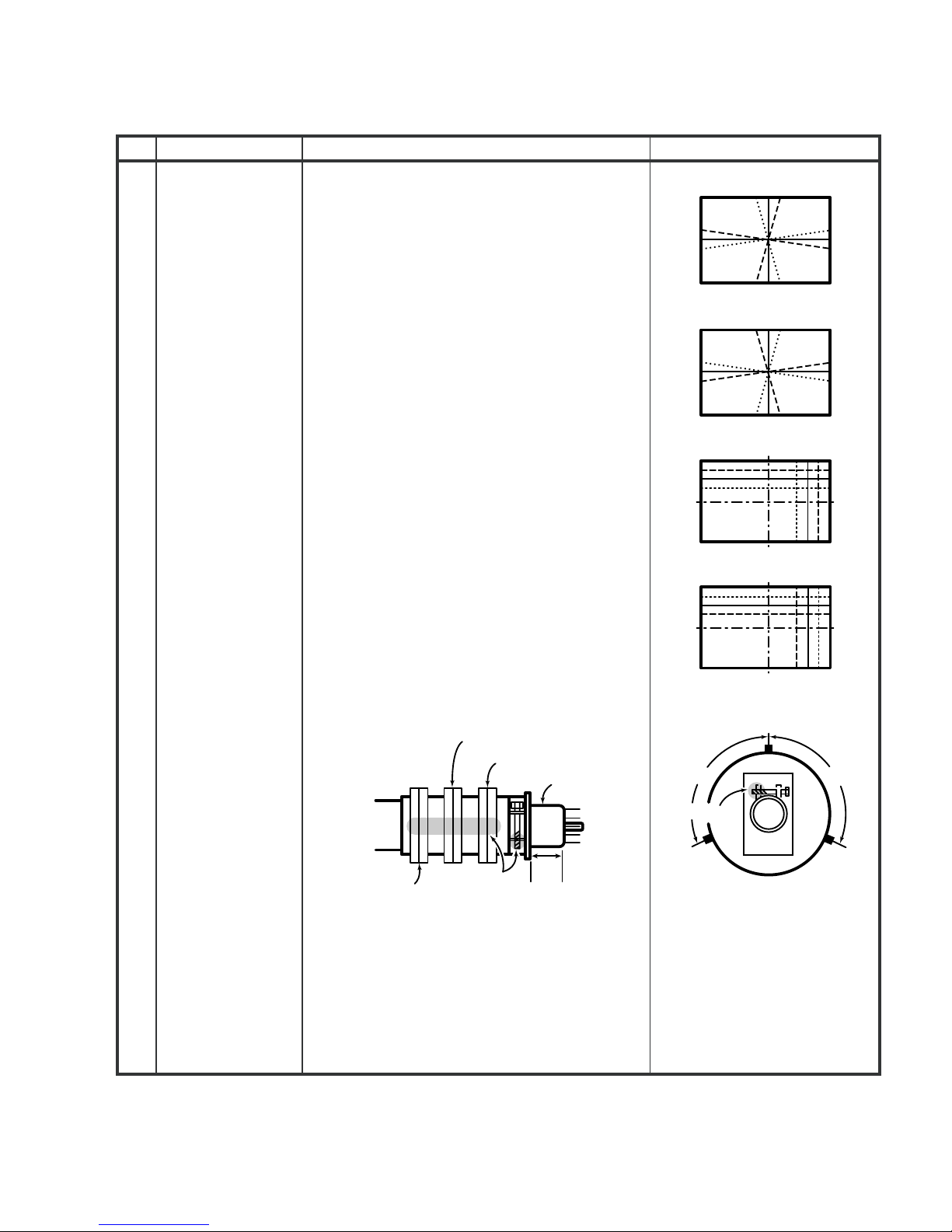

7 PURITY ADJ
8 CONVERGENCE ADJ
9 FOCUS ADJ
10 V-SHIFT (50 Hz)
11 H-SHIFT (50 Hz)
12 V-SIZE (50 Hz)
13 SCREEN
14 WHITE BALANCE
15 SUB-BRIGHTNESS
16 SUB-CONTRAST
17 SUB-COLOR
18 SUB-TINT
19 BEAM CURRENT CHECK
20 BEAM PROTECTOR CHECK
21 HV PROTECTOR CHECK
22 OTHER PROTECTOR CHECK
23 AV OUT CHECK
24 AV IN CHECK
25 CONTRAST CONTROL CHECK
26 COLOR CONTROL CHECK
27 BRIGHTNESS CONTROL CHECK
28 TINT CONTROL CHECK
29 SHARPNESS CONTROL CHECK
30 CH DISPLAY COLOR CHECK
31 NORMAL DISPLAY CHECK
32 WHITE TEMP CONTROL CHECK
33 COLOR SYSTEM CHECK
34 SOUND SYSTEM CHECK
35 NOISE MUTE CHECK
36 OSD LANGUAGE QUANTITY CHECK
37 SHOCK TEST CHECK

21F-PD250 / 21F-PT220 / 21F-PA18 / 21F-PA18(B)
3 – 3
2. USER DATA IN SERVICE MODE
1) While SERVICE mode ON, EEPROM DATA will switch to the service data. Also, once SERVICE mode OFF, EEPROM will switch back to previous
USER DATA.
2) In the service mode, the user data establish as below,
*1: For each CH, data is same as before switch to Service mode.
The flow of Mode list as following,
* Direct Key-in Mode for Service Items in Service Mode
USER DATA
CONTRAST MAX (60)
COLOUR CENT (0)
BRIGHTNESS CENT (0)
TINT CENT (0)
SHARPNESS CENT (0)
WHITE TEMP STANDARD
S-VOLUME MIN
BLUE BACK OFF
C SYSTEM AUTO
S SYSTEM *1
RC CODE (HEX) R/C KEY NAME SERVICE-ITEM
80 POS 1 R-C UP (IN SERVICE MODE V00)
40 POS 2 G-C UP (IN SERVICE MODE V00)
C0 POS 3 B-C UP (IN SERVICE MODE V00)
20 POS 4 R-C DOWN (IN SERVICE MODE V00)
A0 POS 5 G-C DOWN (IN SERVICE MODE V00)
60 POS 6 B-C DOWN (IN SERVICE MODE V00)
E0 POS 7 R-D UP (IN SERVICE MODE V00)
10 POS 8 B-D UP (IN SERVICE MODE V00)
50 POS 0 B-D DOWN (IN SERVICE MODE V00)
E4 FLASHBACK R-D DOWN (IN SERVICE MODE V00)
E4 FLASHBACK Y-MUTE (BESIDES OF SERVICE MODE V00)
75 WHITE TEMP UP RF-AGC (V01)
F5 WHITE TEMP DOWN VIF-VC0 (V02)
C2 TUNE DOWN H-VCO (V03)
8D SHARPNESS DOWN SUB-CON (V04)
D6 BALANCE LEFT SUB-COL (V05)
0D SHARPNESS UP SUB-BRIGHT (V06)
36 BALANCE RIGHT SUB-TINT (V07)
46 TREBLE UP SUB-SHP (V08)
C6 TREBLE DOWN SUB-COL-YUV (V09)
26 BASS UP SUB-TINT-YUV (V10)
24 COLOUR UP V-SIZE (V11), V-SIZE60 (V17)
54 BRIGHTNESS DOWN V-SHIFT (V12), V-SHIFT60 (V18)
74 TINT DOWN H-SHIFT (V13), H-SHIFT60 (V19)
66 SURROUND UP SCM-BR (V14)
E6 SURROUND DOWN SCM-BB (V15)
C4 CONTRAST DOWN SUB-VOL (V16)
4C PICTURE S-TRAP-BG (V20)
CC HOLD S-TRAP-I (V21)
2C TEXT S-TRAP-DK (V22)
AC CANCEL S-TRAP-M (V23)
EC SIZE S-TRAP-574 (V24)
80 POS 1 R-C UP YUV (IN SERVICE MODE V25)
40 POS 2 G-C UP YUV (IN SERVICE MODE V25)
C0 POS 3 B-C UP YUV (IN SERVICE MODE V25)
20 POS 4 R-C DOWN YUV (IN SERVICE MODE V25)
A0 POS 5 G-C DOWN YUV (IN SERVICE MODE V25)
60 POS 6 B-C DOWN YUV (IN SERVICE MODE V25)
E0 POS 7 R-D UP YUV (IN SERVICE MODE V25)
10 POS 8 B-D UP YUV (IN SERVICE MODE V25)
50 POS 0 B-D DOWN YUV (IN SERVICE MODE V25)
E4 FLASHBACK R-D DOWN YUV (IN SERVICE MODE V25)
C1 AUTO ADJ FOR V01, V02, V03, V20, V21, V22, V23, V24
CA T-SET
81 SERVICE MODE

21F-PD250 / 21F-PT220 / 21F-PA18 / 21F-PA18(B)
3 – 4
2) After set the MCL, please set the INITIAL SETTING to INITIAL 9.
INITIAL 9 : For Thai ( All Channel Sound System are set to B/G )
1) Please set the MCL to MCL4 as below :
MCL4 (HEX AB)
CH-NO Fv
(
MHz
)
SOUND SYS CH-NO Fv
(
MHz)
041
1 55.25 B/G 42
2 175.25 B/G 43
3 189.25 B/G 44
4 203.25 B/G 45
5 217.25 B/G 46
6 535.25 B/G 47
748
849
950
10 51
11 48.25 B/G 52
12 62.25 B/G 53
13 196.25 B/G 54
14 210.25 B/G 55
15 224.25 B/G 56
16 471.25 B/G 57
17 855.25 B/G 58
18 59
19 60
20 61
21 223.95 B/G 62
22 224.55 B/G 63
23 223.85 B/G 64
24 224.65 B/G 65
25 223.75 B/G 66
26 224.75 B/G 67
27 68
28 69
29 70
30
31 91.25 M
32 103.25 M
33 171.25 M
34 183.25 M
35 193.25 M
36 205.25 M
37 217.25 M
38 621.25 M
39
40
*NOTE: PLL DATA OF ABOVE FREQ SHOULD TAKE THE ACCOUNT OF PIF SETTING IN SERVICE
OPTION O04 (VIF) BEFORE STORING INTO EEPROM
MCL4(HEX AB)
SOUND SYS

21F-PD250 / 21F-PT220 / 21F-PA18 / 21F-PA18(B)
3 – 5
SHIPPING SETTING & CHECKING
(1) The following default data has been factory-set for the E2PROM follow by INITIAL DATA selected.
ITEMS DATA SETTING MODEL
LAST POWER ON
LAST TV/AV MODE TV MODE
LAST POSITION CH 1
FLASHBACK CHANNEL CH 1
1/2 DIGITENTR 2 DIGIT ENTRY
VOLUME 0 (Min)
BLUE BACK OFF
CHILD LOCK OFF
OFF TIMER --:--
PASSWORD 0000
AFT ALL CH ON
COLOR SYSTEM ALL CH AUTO
SKIP ALL CH OFF
CONTRAST 60
COLOR +6
BRIGHTNESS 0
TINT 0(CENTER)
SHARPNESS +6
WHITE TEMP 0
INITIAL LANGUAGE SOUND SYSTEM
9 (HEX EE) THAI B/G
FACTORY SETTING BY MODEL
(Reference: Geomagnetism Adjustment)
MODEL MAGNETIC FIELD(V, H) nT BACKGROUND LANG. S-SYS LANG QTY
THAI 20,000 40,000 12300°K THAI B/G 2
2: ENGLISH / THAI
*NOTE FOR OSD TYPE:
**This magnetic filed is in ITC CRT specification.
ALL MODELS
SOUND SYSTEM B/G

21F-PD250 / 21F-PT220 / 21F-PA18 / 21F-PA18(B)
3 – 6
**AFTER INITIALIZED THE EEPROM (REFER TO FACTORY PRESETTING), READ DATA FROM
EEPROM ADDRESS 00H ~ 03H,AND COMPARE TO THE LIST BELOW, IF DIFFERENT,
INITIALIZE THE EEPROM.
ADDRESS DATA ADDRESS DATA
00H: 7CH 02H: 78H
01H: 70H 03H: 70H
*** There are four stages of service mode data. First stage data from V00~V32 (Adjustment Mode).
To go into second stage of service mode data, press MENU key.Second stage data from F01~F185(Setting Mode).
To go into third stage of service mode data, press MENU key.Third stage data is Check Mode.
To go into fourth stage of service mode data, press MENU key.Fourth stage data from O01~O37(Option Mode).
EEPROM ITEMS OSD DATA LENGTH INITIAL DATA FIX/ADJ/AUTO REMARK
R-DRIVE
V00 0~127 63 ADJ
PLS REFER TO
B-DRIVE
V00 0~127 63 ADJ
ADJ ITEM FOR
R-CUT
V00 0~255 127 ADJ
SCREEN AND
G-CUT
V00 0~255 127 ADJ
WHITE BALANCE
B-CUT
V00 0~255 127 ADJ
RF-AGC
V01 0~127 50 AUTO
VIF-VCO
V02 0~63 31 AUTO
H-VCO
V03 0~7 3 AUTO
SUB-CON
V04 0~127 100 ADJ
SUB-COLOR
V05 0~127 63 ADJ
SUB-BRIGHT
V06 0~255 127 ADJ
SUB-TINT
V07 0~127 63 ADJ
SUB-SHP PRE
V08 0~63 43 *FIX BUS SETUP
SUB-COLOR-YUV
V09 0~127 90 *FIX
SUB-TINT-YUV
V10 0~127 63 FIX
V-SIZE
V11 0~63 38 ADJ
V-SHIFT
V12 0~7 3 ADJ
H-SHIFT
V13 0~31 9 ADJ
SCM-BR
V14 0~63 37 FIX
SCM-BB
V15 0~63 22 FIX
SUB-VOL
V16 0~60 60 FIX
V-SIZE60
V17 -31~0~+31 0 *FIX BUS SETUP
V-SHIFT60
V18 -7~0~+7 -1 *FIX BUS SETUP
H-SHIFT60
V19 -15~0~+15 +2 FIX
IF NECESSARY, ADJ
S-TRAP(BG)
V20 0~127 64 AUTO
S-TRAP(I)
V21 0~127 64 AUTO
S-TRAP(DK)
V22 0~127 64 AUTO
S-TRAP(M)
V23 0~127 64 AUTO
S-TRAP(574)
V24 0~127 64 AUTO
CUTOFF/BKGD YUV
V25
R-DRI YUV
V25
0…127 63
FIX
B-DRI YUV
V25
0…127 63
FIX
R-CUT YUV
V25
0…255 127
FIX NO FUNCTON
G-CUT YUV
V25
0…255 127
FIX NO FUNCTON
B-CUT YUV
V25
0…255 127
FIX NO FUNCTON
SUB-CON YUV
V26 0~127 100 FIX
SUB-BRIGHT YUV
V27 0~255 127 FIX
VS-CORRECT V28 0~63 32 *FIX BUS SETUP
VS-CORRECT_OFFSET V29 -13~+13 0 *FIX BUS SETUP
VLINEARITY V30 0~63 32 *FIX BUS SETUP
V LINEARITY_OFFSET V31 -13~+13 0 *FIX BUS SETUP
SUB-SHP OV V32 0~63 43 *FIX BUS SETUP
ADJUSTMENT MODE
(
FIRST STAGE
)
To go into fifth stage of service mode data, press MENU key.Fifth stage data is NVM Edit Mode.
BUS SETUP

21F-PD250 / 21F-PT220 / 21F-PA18 / 21F-PA18(B)
3 – 7
SETTING MODE (SECOND STAGE)
EEPROM ITEMS FUNCTION OSD DATA LENGTH INITIAL DATA FIX/ADJ/AUTO REMARK
C.CLIP-LVL CLIP LEVEL CONTRAST
CONTROL OF RGB INPUT
F01 0(20H)/1(40H) 0*FIX
BUS SETUP
RGB-CLIP CLIPPING OF RGB CONTRAST
CONTROL
F02 0 (enable)/
1
(
disable
)
0FIX
BS BLACK STRETCH F03 0 (enable)/
1
(
disable
)
0FIX
ABCL ABCL PROCESSING (ACL
PROCESSING)
F04 0 (ACL)/ 1(ABCL) 0FIX
ABCL-GAIN ABCL PROCESSING GAIN F05 0
(
Lo
)
/1
(
Hi
)
0FIX
S-OUT-LVL-NOT USED AUDIO OUTPUT GAIN CONTROL F06 0…127 95 FIX NO FUNCTION
VIF-G P-IF DETECTION GAIN OUTPUT F07 0…7 4*FIX
BUS SETUP
SHPG SHARPNESS GAIN F08 0 (soft)/ 1(sharp) 0FIX
SHPG-P SHARPNESS GAIN PAL F09 0 (soft)/ 1(sharp) 0FIX
SHPG-S SHARPNESS GAIN SECAM F10 0 (soft)/ 1(sharp) 0FIX
SHPG-N4 SHARPNESS GAIN N443 F11 0 (soft)/ 1(sharp) 0FIX
SHPG-N3 SHARPNESS GAIN N358 F12 0 (soft)/ 1(sharp) 1FIX
YDL Y SIGNAL DELAY F13 0…7 5FIX
YDL-P Y SIGNAL DELAY PAL F14 0…7 5FIX
YDL-S Y SIGNAL DELAY SECAM F15 0…7 7FIX
YDL-N4 Y SIGNAL DELAY N443 F16 0…7 5FIX
YDL-N3 Y SIGNAL DELAY N358 F17 0…7 5FIX
YDL-AV Y SIGNAL DELAY AV F18 0…7 6FIX
YDL-AV-P Y SIGNAL DELAY PAL (AV) F19 0…7 6FIX
YDL-AV-S Y SIGNAL DELAY SECAM (AV) F20 0…7 7FIX
YDL-AV-N4 Y SIGNAL DELAY N443 (AV) F21 0…7 6FIX
YDL-AV-N3 Y SIGNAL DELAY N358 (AV) F22 0…7 6*FIX
BUS SETUP
YDL-YUV Y SIGNAL DELAY YUV F23 0…7 6*FIX
COL-AV (OFFSET) COLOUR OFFSET AV F24 -31…0…+31 +10 *FIX BUS SETUP
COL-P (OFFSET) COLOUR OFFSET PAL F25 -31…0…+31 0*FIX
COL-S (OFFSET) COLOUR OFFSET SECAM F26 -31…0…+31 +9 FIX
COL-N4 (OFFSET) COLOUR OFFSET N443 F27 -31…0…+31 -8 FIX
COL-N3 (OFFSET) COLOUR OFFSET N358 F28 -31…0…+31 -7 *FIX
COL-ADJ (OFFSET) COLOUR OFFSET ADJUST F29 -31…0…+31 0*FIX
BUS SETUP
SHP-PRE-AV (OFFSET) SHARPNESS PRE OFFSET -AV F30 -31…0…+31 +5 *FIX BUS SETUP
SHP-PRE-YUV (OFFSET) SHARPNESS PRE OFFSET -YUV F31 -31…0…+31 -5 *FIX
SHP-PRE-P (OFFSET) SHARPNESS PRE OFFSET -PAL F32 -31…0…+31 -10 *FIX BUS SETUP
SHP-PRE-S (OFFSET) SHARPNESS PRE OFFSET -
SECAM
F33 -31…0…+31 -15 *FIX BUS SETUP
SHP-PRE-N4 (OFFSET) SHARPNESS PRE OFFSET -N443 F34 -31…0…+31 -10 *FIX BUS SETUP
SHP-PRE-N3 (OFFSET) SHARPNESS PRE OFFSET -N358 F35 -31…0…+31 -10 *FIX BUS SETUP
SHP-OV-AV (OFFSET) SHARPNESS OV OFFSET -AV F36 -31…0…+31 +5 *FIX BUS SETUP
SHP-OV-YUV (OFFSET) SHARPNESS OV OFFSET - YUV F37 -31…0…+31 +5 FIX
SHP-OV-P (OFFSET) SHARPNESS OV OFFSET -PAL F38 -31…0…+31 0*FIX BUS SETUP
SHP-OV-S (OFFSET)
SHARPNESS OV OFFSET -
SECAM
F39
-31…0…+31 -5 *FIX BUS SETUP
SHP-OV-N4 (OFFSET)
SHARPNESS OV OFFSET-N443 F40
-31…0…+31 0*FIX BUS SETUP
SHP-OV-N3 (OFFSET)
SHARPNESS OV OFFSET -N358 F41
-31…0…+31 0*FIX BUS SETUP
TINT-AV (OFFSET) TINT OFFSET AV F42 -63…0…+63 0*FIX
BUS SETUP
TINT-ADJ (OFFSET) TINT OFFSET ADJUST F43 -63…0…+63 0*FIX
BUS SETUP
TINT-YUV-ADJ (OFFSET) TINT YUV OFFSET ADJUST F44 -63…0…+63 0FIX
R-R (OFFSET) R-DRIVE OFFSET WHEN WHITE
TEMP IS RED
F45 -63…0…+63 +8 *FIX BUS SETUP
B-R (OFFSET) B-DRIVE OFFSET WHEN WHITE
TEMP IS RED
F46 -63…0…+63 -10 *FIX BUS SETUP
R-B (OFFSET) R-DRIVE OFFSET WHEN WHITE
TEMP IS BLUE
F47 -63…0…+63 -3 *FIX BUS SETUP
B-B (OFFSET) B-DRIVE OFFSET WHEN WHITE
TEMP IS BLUE
F48 -63…0…+63 +13 *FIX BUS SETUP
CTRAP-ADJ CENTER VALUE OF CHROMA
TRAP
F49 0…3 2FIX
CTRAP-ADJ-P CENTER VALUE OF CHROMA
TRAP PAL
F50 0…3 2FIX
CTRAP-ADJ-S CENTER VALUE OF CHROMA
TRAP SECAM
F51 0…3 2FIX
CTRAP-ADJ-N4 CENTER VALUE OF CHROMA
TRAP N443
F52 0…3 2FIX
CTRAP-ADJ-N3 CENTER VALUE OF CHROMA
TRAP N358
F53 0…3 2FIX
BUS SETUP
BUS SETUP
BUS SETUP
BUS SETUP

21F-PD250 / 21F-PT220 / 21F-PA18 / 21F-PA18(B)
3 – 8
SETTING MODE (SECOND STAGE)
EEPROM ITEMS FUNCTION OSD DATA LENGTH INITIAL DATA FIX/ADJ/AUTO REMARK
1W-TV VERT SYNC DETECTION MODE
FORAV(1WINDOW/2WINDOW)
F54
0(2W)/1(1W)
0FIX
1W-AV VERT SYNC DETECTION MODE
FOR TV (1 WINDOW/2 WINDOW)
F55
0(2W)/1(1W)
1FIX
V-FREE (NO SYNC) SET VERTICAL TO FORCED
FREE RUN MODE
F56
0(NORMAL) /
1(FREERUN)
0*FIX
BUS SETUP
AFC2 (NO SYNC) HORIZONTAL AFC2 GAIN
F57
0(NORMAL) /
1(DOWN)
0FIX
GAMMA GAMMA CORRECTION QTY
F58
0…3 0
*FIX BUS SETUP
BS-D/C BLACK STRETCH CONTROL
LEVEL
F59
0…15 10
FIX
BS-GAIN BLACK STRETCH LEVEL
F60
0/1 0
FIX
OM-DET OVER MODULATION DETECT
F61
0(disable)/
1
(
enable
)
0
FIX
SL-TV SLICE LEVEL OF SYNC
DETECTION TV
F62
0…7 2
FIX
SL-AV SLICE LEVEL OF SYNC
DETECTION AV
F63
0…7 4
*FIX BUS SETUP
SL-YUV SLICE LEVEL OF SYNC
DETECTION YUV
F64
0…7 4
FIX
AS/FBP-TV AS-TV/AV/YUV SWITCH & CH
CHANGE, FBP-FLYBACK PULSE
SLICE LEVEL (TV)
F65
0…3 2
*FIX
AS/FBP-AV AS-TV/AV/YUV SWITCH & CH
CHANGE, FBP-FLYBACK PULSE
SLICE LEVEL (AV)
F66
0…3 2
AS/FBP-YUV AS-TV/AV/YUV SWITCH & CH
CHANGE, FBP-FLYBACK PULSE
SLICE LEVEL (YUV)
F67
0…3 2
VDL COLOUR DIFF. INPUT PHASE
ADJ
F68
0…3 0
FIX
UDL COLOUR DIFF. INPUT PHASE
ADJ
F69
0…3 0
FIX
AUTO-SCM-KIL-TV SECAM COLOUR KILLER
SENSITIVITY (TV)
F70
0…3 1
FIX
SECAM-BGP INTERNAL SECAM BGP TIMING
F71
0…3 0
FIX
N45 INHIBIT 50Hz NTSC 4.43
F72
0 (enable)/
1
(
disable
)
0
FIX
OSD-POS-V50 OSD VERTICAL POSITION (50Hz)
F73
1…55 36
FIX
OSD-POS-V60 OSD VERTICAL POSITION (60Hz)
F74
1…50 31
FIX
OSD-POS-H OSD HORIZONTAL POSITION
F75
0…127 9
FIX
CP CHARGE PUMP
F76
0/1 1
*FIX
AVL LEVEL AUTO VOLUME LIMIT LEVEL
F77
0 : 600mVrms
1 : 450mVrms 0
FIX
AUTO-SCM-KIL-AV-YUV SECAM COLOUR KILLER
SENSITIVITY (AV/YUV)
F78
0…3 1
FIX
AFC1-GAIN-TV MSB OF HORIZONTAL AFC
GAIN1 (TV)
F79
0…3 0
FIX
AFC1-GAIN-AV MSB OF HORIZONTAL AFC
GAIN1 (AV)
F80
0…3 3
FIX
AFC1-GAIN-YUV MSB OF HORIZONTAL AFC
GAIN1 (YUV)
F81
0…3 3
FIX
OSD LEVEL OSD LEVEL
F82
0:10%
1:30%
2:50%
3:70%
4:90%
3*FIX
BUS SETUP
TAKE-OFF-TV TAKEOFF/BPF OF CHROMA BPF
PROCESSING TV
F83
0(BPF) /
1(TAKEOFF)
1FIX
TAKE-OFF-AV TAKEOFF/BPF OF CHROMA BPF
PROCESSING AV
F84
0(BPF) /
1(TAKEOFF)
0FIX
TAKE-OFF-YUV TAKEOFF/BPF OF CHROMA BPF
PROCESSING YUV
F85
0(BPF) /
1(TAKEOFF)
0FIX
C-ANGLE (103 DEG/ 95 DEG) CHROMA MODULATION ANGLE
F86
0(103DEG) /
1(95DEG)
1*FIX
BUS SETUP
AC-FAIL-WO-BRIGHT PICTURE BLACK LEVEL
(BRIGHT) CONTROL - AC
FAILURE
F87
0…255
255 FIX
FORCED-SCM-KIL-TV FORCED SECAM COLOUR
KILLER SENSITIVITY (TV)
F88
0…3
2FIX
FORCED-SCM-KIL-AV-YUV FORCED SECAM COLOUR
KILLER SENSITIVITY (AV/YUV)
F89
0…3
2FIX
CTI ADJ. COLOUR EDGE IMPROVEMENT
F90
0 (normal)/
1
(
im
p
rove
)
1FIX
V-DEMUTE-DELAY VIDEO DEMUTE DELAY
F91
0~255
0*FIX
BUS SETUP
S-DEMUTE-DELAY SOUND DEMUTE DELAY
F92
0~255
0*FIX
BUS SETUP
BUS SETUP
*FIX BUS SETUP
*FIX BUS SETUP
BUS SETUP

21F-PD250 / 21F-PT220 / 21F-PA18 / 21F-PA18(B)
3 – 9
SETTING MODE (SECOND STAGE)
EEPROM ITEMS FUNCTION OSD DATA LENGTH INITIAL DATA FIX/ADJ/AUTO REMARK
MER S-BOOSTER FREQ.
CHARACTERISTIC CONTROL
F93 0~255 70 FIX
MEL1 S-BOOSTER LEVEL1 F94 0~255 150 FIX
MEL2 S-BOOSTER LEVEL2 F95 0~255 156 FIX
MEL3 S-BOOSTER LEVEL3 F96 0~255 163 FIX
MEL4 S-BOOSTER LEVEL4 F97 0~255 165 FIX
MEL5 S-BOOSTER LEVEL5 F98 0~255 170 FIX
MEL6 S-BOOSTER LEVEL6 F99 0~255 180 FIX
S-ST-POINT S-BOOSTER START POINT F100 0~60 21 FIX
S-SP-POINT S-BOOSTER STOP POINT F101 0~60 60 FIX
S-STEP S-BOOSTER STEP F102 0~60 7FIX
POW-STORAGE CONTRAST/BRIGHTNESS
INCREASE GRADUALLY
F103 0(DISABLE) /
1(ENABLE)
1FIX
S-B-BASS S-BOOSTER BASS LIMITER
(WHEN S-BOOSTER ON)
F104 0…+10 +10 FIX
S-B-TREB S-BOOSTER TREBLE LIMITER
(WHEN S-BOOSTER ON)
F105 0…+10 +10 FIX
S-BASS S-BOOSTER BASS LIMITER
(WHEN S-BOOSTER OFF)
F106 0…+10 +10 FIX
S-TREB S-BOOSTER TREBLE LIMITER
(WHEN S-BOOSTER OFF)
F107 0…+10 +10 FIX
V-STD-TV VERTICAL STANDARD SIGNAL
DETECTOR SWITCH
(
TV
)
F108 0(DISABLE) /
1(ENABLE)
0FIX
V-STD-AV VERTICAL STANDARD SIGNAL
DETECTOR SWITCH
(
AV
)
F109 0(DISABLE) /
1(ENABLE)
0FIX
V-STD-YUV VERTICAL STANDARD SIGNAL
DETECTOR SWITCH
(
YUV
)
F110 0(DISABLE) /
1(ENABLE)
0FIX
HVCO-FREERUN-SHIFT HVCO-FREERUN-SHIFT F111 0/1 0FIX
HVCO-PULLDOWN HVCO PULLDOWN F112 0/1 0FIX
HVCO-PULLUP HVCO PULLUP F113 0/1 0FIX
HVCO-PULLIN-UP HVCO PULLIN UP F114 0/1 0FIX
PEAK-ACL PEAK ACL F115 0/1 0FIX
APER-FREQ APER FREQ F116 0/1 0FIX
R-DRI YUV OFFSET RGB OUTPUT RED GAIN OFFSET
(YUV)
F117 -63…0…+63 0FIX
B-DRI YUV OFFSET RGB OUTPUT BLUE GAIN
OFFSET (YUV)
F118 -63…0…+63 0FIX
R-CUT YUV OFFSET RGB OUTPUT-RED BIAS LEVEL
OFFSET (YUV)
F119 -63…0…+63 0FIX
G-CUT YUV OFFSET RGB OUTPUT-GREEN BIAS
LEVEL OFFSET (YUV)
F120 -63…0…+63 0FIX
B-CUT YUV OFFSET RGB OUTPUT-BLUE BIAS LEVEL
OFFSET (YUV)
F121 -63…0…+63 0FIX
CON YUV OFFSET SUB-CONTRAS OFFSET (YUV) F122 -63…0…+63 0FIX
BRT YUV OFFSET SUB-BRIGHT OFFSET (YUV) F123 -63…0…+63 0FIX
SHP ANT-ONII OFFSET SHARP ANT-ON II OFFSET FOR
VIDEO TONE
F124 -31…0…+31 0FIX
WAIT MD TIME SETTING CYCLE PROCESS TIME
AT LOW POWER
F125 0..2 2FIX
Contrast OFFSET CONTRAST (PICTURE LEVEL)
OFFSET
F126 -63…0…+63 0FIX
Bright OFFSET PICTURE BLACK LEVEL
(BRIGHT) OFFSET
F127 -63…0…+63 0FIX
CR-PEDESTEL-ADJ
Cr SIGNAL LEVEL ADJUSTMENT
F128 0…15 8*FIX
CB-PEDESTEL-ADJ
Cb SIGNAL LEVEL ADJUSTMENT
F129 0…15 8*FIX
SIF-PAL SOUND S/N SWITCH FOR PAL F130 0/1 0FIX
AV2 BRIGHTNESS OFFSET AV2 BRIGHT OFFSET F131 -15…0…+15 +7 FIX
BASS OFFSET BASS OFFSET F132 -4…0…+4 0*FIX BUS SETUP
TREBLE OFFSET TREBLE OFFSET F133 -4…0…+4 0*FIX BUS SETUP
AS-SPEED-DN AUTO SLICE SPEED SWITCH
(DOWN)
F134 0(DISABLE) /
1(ENABLE)
0FIX
AS-SPEED-UP AUTO SLICE SPEED SWITCH
(
UP
)
F135 0(DISABLE) /
1(ENABLE)
0FIX
SIF-BPF-WIDE SIF BPF BANDWIDTH SELECTOR F136 0...3 0FIX
SIF-BPF-WIDE-574 SIF BPF BANDWIDTH SELECTOR F137 0...3 0*FIX
ACC-AMP-ON INCREASE CHROMA ACC AMP
GAIN
F138 0(NORMAL) /
1(GAIN UP)
0FIX
TEST PATTERN TEST PATTERN F139 0…15 0FIX
FSC-FREE FSC-FREE F140 0(NORMAL) /
1(FREE RUN) 1FIX
MCUVOUT MCUVOUT F141 0/1 0 FIX
HALF-H KILLER HALF-H KILLER F142 0/1 1 FIX
V-AGC V-AGC F143 0/1 0 FIX
CONT NEWS CONTRAST SETTING- NEWS F144 0..60 30 *FIX BUS SETUP
CONT MUSIC CONTRAST SETTING- MUSIC F145 0..60 50 *FIX BUS SETUP
CONT MOVIE CONTRAST SETTING- MOVIE F146 0..60 60 FIX
BRIGHT NEWS BRIGHTNESS SETTING- NEWS F147 -30..0..+30 0 FIX
BRIGHT MUSIC BRIGHTNESS SETTING- MUSIC F148 -30..0..+30 0 FIX
BUS SETUP
BUS SETUP
BUS SETUP

21F-PD250 / 21F-PT220 / 21F-PA18 / 21F-PA18(B)
3 – 10
SETTING MODE (SECOND STAGE)
EEPROM ITEMS FUNCTION OSD
DATA LENGTH
INITIAL DATA FIX/ADJ/AUTO REMARK
BRIGHT MOVIE BRIGHTNESS SETTING- MOVIE
F149
-30..0..+30 0
FIX
COL NEWS COLOUR SETTING- NEWS
F150
-30..0..+30 0
*FIX
BUS SETUP
COL MUSIC COLOUR SETTING- MUSIC
F151
-30..0..+30 0
FIX
COL MOVIE COLOUR SETTING- MOVIE
F152
-30..0..+30 +10
*FIX
BUS SETUP
SHARP NEWS SHARPNESS SETTING- NEWS
F153
-30..0..+30 -10
*FIX
BUS SETUP
SHARP MUSIC SHARPNESS SETTING- MUSIC
F154
-30..0..+30 0
FIX
SHARP MOVIE SHARPNESS SETTING- MOVIE
F155
-30..0..+30 +5
*FIX
BUS SETUP
SURR NEWS SURROUND SETTING- NEWS
F156
0(OFF) / 1(ONI) /
2
(
ONII
)
0
FIX
SURR MUSIC SURROUND SETTING- MUSIC
F157
0(OFF) / 1(ONI) /
2
(
ONII
)
0
FIX
SURR MOVIE SURROUND SETTING- MOVIE
F158
0(OFF) / 1(ONI) /
2
(
ONII
)
0
FIX
TREBLE NEWS TREBLE SETTING- NEWS
F159
-10..0..+10 -10
*FIX
BUS SETUP
TREBLE MUSIC TREBLE SETTING- MUSIC
F160
-10..0..+10 0
*FIX
BUS SETUP
TREBLE MOVIE TREBLE SETTING- MOVIE
F161
-10..0..+10 +5
*FIX
BUS SETUP
BASS NEWS BASS SETTING- NEWS
F162
-10..0..+10 -5
*FIX
BUS SETUP
BASS MUSIC BASS SETTING- MUSIC
F163
-10..0..+10 0
*FIX
BUS SETUP
BASS MOVIE BASS SETTING- MOVIE
F164
-10..0..+10 +10
*FIX
BUS SETUP
S-BOOST NEWS S-BOOSTER SETTING- NEWS
F165
0
(
OFF
)
/1
(
ON
)
0
FIX
S-BOOST MUSIC S-BOOSTER SETTING- MUSIC
F166
0
(
OFF
)
/1
(
ON
)
1
FIX
S-BOOST MOVIE S-BOOSTER SETTING- MOVIE
F167
0
(
OFF
)
/1
(
ON
)
1
FIX
R-R-C R-GAIN OFFSET WHEN WHITE
TEMP IS RED CENTER TONE
F168
-63…0…+63 +4
FIX
B-R-C B -GAIN OFFSET WHEN WHITE
TEMP IS RED CENTER TONE
F169
-63…0…+63 -5
FIX
R-B-C R-GAIN OFFSET WHEN WHITE
TEMP IS BLUE CENTER TONE
F170
-63…0…+63 -1
FIX
B-B-C B-GAIN OFFSET WHEN WHITE
TEMP IS BLUE CENTER TONE
F171
-63…0…+63 +6
FIX
TRE OFFSET SUR ONII TREBLE OFFSET WHEN
SURROUND ONII
F172
-7... 0 ...+7 +1
*FIX
VFREE2 V-FREE WHEN H LOCKED OUT
F173
0(OFF) / 1(ON) 0
FIX
VD3 / VD2 / VD1-TV
VD2 & VD1-VERT SYNC DETECT
MIN WIDTH MSB & LSB
RESPECTIVELY (TV)
F174
0…7 1
FIX
VD3 / VD2 / VD1-AV
VD2 & VD1-VERT SYNC DETECT
MIN WIDTH MSB & LSB
RESPECTIVELY (AV)
F175
0…7 3
FIX
VD3 / VD2 / VD1-YUV
VD2 & VD1-VERT SYNC DETECT
MIN WIDTH MSB & LSB
RESPECTIVELY (YUV)
F176
0…7 3
FIX
SL-TV (WEAK) SL-TV (WEAK)
F177
0…7 7
FIX
VIF-AGC THRESHOLD VIF AGC THRESHOLD
F178
0…127 127
FIX
AFT OFFSET AFT OFFSET
F179
0(OFF)
1(-50kHz)
2 (-100kHz)
3 (-150kHz)
4 (-200kHz)
0
*FIX BUS SETUP
VOL-START VOLUME START POINT
F180
0…60 60
*FIX
VOL-STEP VOLUME STEP
F181
0…60 0
*FIX
BASS-LIMIT1 BASS-LIMIT1
F182
0(0000)
1 (1001)
2(1010)
3(1011)
4(1100)
5(1101)
6(1110)
7(1111)
7
*FIX
BASS-LIMIT2 BASS-LIMIT2
F183
0(0000)
1 (1001)
2(1010)
3(1011)
4(1100)
5(1101)
6(1110)
7(1111)
7
*FIX
BASS-LIMIT3 BASS-LIMIT3
F184
0(0000)
1 (1001)
2(1010)
3(1011)
4(1100)
5(1101)
6(1110)
7(1111)
7
*FIX
BASS-LIMIT4 BASS-LIMIT4
F185
0(0000)
1 (1001)
2(1010)
3(1011)
4(1100)
5(1101)
6(1110)
7(1111)
7*FIX
BUS SETUP
BUS SETUP
BUS SETUP
BUS SETUP
BUS SETUP
BUS SETUP
BUS SETUP

21F-PD250 / 21F-PT220 / 21F-PA18 / 21F-PA18(B)
3 – 11
OPTION MODE (FOURTH STAGE)
EEPROM ITEMS OSD DATA LENGTH INITIAL DATA REMARK
***HOTEL MODE O01 0
(
0FF
)
/1
(
0N
)
0OPTION SET UP
***HTL-POS O02 0~99
,
-- -- OPTION SET UP
***HTL-VOL O03 0~60
,
-- -- OPTION SET UP
VIF-NOT-USE
O04 0 (38.0) / 1 (38.9) 1OPTION SET UP
SECAM
O05 0 (DISABLE) / 1 (ENABLE) 1OPTION SET UP
N443(RF)
O06 0 (DISABLE) / 1 (ENABLE) 1OPTION SET UP
N358(RF)
O07 0 (DISABLE) / 1 (ENABLE) 1OPTION SET UP
Force-Col
O08 0 (DISABLE) / 1 (ENABLE) 0OPTION SET UP
S-SYS
O09 1(BG ONLY)~15(ALL) 15 OPTION SET UP
AV
O10 0 (DISABLE) / 1 (ENABLE) 1OPTION SET UP
AV2
O11 0 (DISABLE) / 1 (ENABLE) 1OPTION SET UP
YUV
O12 0 (DISABLE) / 1 (ENABLE) 1OPTION SET UP
S-CTRL
O13 0 (DISABLE) / 1 (ENABLE) 1OPTION SET UP
NICAM-NOT-USE
O14 0 (DISABLE) / 1 (ENABLE) 0OPTION SET UP
A2-NOT-USE
O15 0 (DISABLE) / 1 (ENABLE) 0OPTION SET UP
TEXT-NOT-USE
O16 0 (DISABLE) / 1 (ENABLE) 0OPTION SET UP
BIL
O17 0 (DISABLE) / 1 (ENABLE) 0OPTION SET UP
LANG
O18 1~255 63 OPTION SET UP
SERCH-SP
O19
1(350)~2(450)~3(550)~4(650)~5(750)
3OPTION SET UP
R/C-MENU
O20 0 (ENABLE) / 1 (DISABLE) 0OPTION SET UP
LED-CONT
O21 0(ONELED)/1(TWOLED) 0OPTION SET UP
S-BOOSTER
O22 0
(
DISABLE
)
/1
(
ENABLE
)
0OPTION SET UP
SHARP-LOGO
O23 0 (DISABLE) / 1 (ENABLE) 0OPTION SET UP
TUNER BAND
O24 0/1 0OPTION SET UP
WHITE BACK
O25 0 (DISABLE) / 1 (ENABLE) 1OPTION SET UP
BOOSTER
O26 0 (DISABLE) / 1 (ENABLE) 0OPTION SET UP
250 CHANNEL
O27
0 : 100 channels (8k
EEPROM)
1 : 250 channels (16k
EEPROM
)
0OPTION SET UP
AVL
O28
0:fixto0
1:fixto1
2 : AVL in SOUND MENU
2OPTION SET UP
**LNA TUNER
O29 0(Alps) / 1(Matsushita) 0
OPTION SET UP
(ONLY FUNCTION IF
ANTENNA BOOSTER
O26
=1)
CHILD LOCK
O30 0
(
DISABLE
)
/1
(
ENABLE
)
1OPTION SET UP
NORMAL KEY
O31
Set items to default for
0 : Picture and Sound
1 : Picture onl
y
0OPTION SET UP
AV MODE
O32 0
(
DISABLE
)
/1
(
ENABLE
)
1OPTION SET UP
S-CTRL LIMIT
O33 0
(
DISABLE
)
/1
(
ENABLE
)
0OPTION SET UP
MP-IN
O34 0
(
DISABLE
)
/1
(
ENABLE
)
1OPTION SET UP
VIRGIN-MODE
O35 0
(
DISABLE
)
/1
(
ENABLE
)
0OPTION SET UP
WHITE-TEMP
O36
0 : 3 modes
1 : 5 modes
0OPTION SET UP
LK MENU
O37 0 (DISABLE) / 1 (ENABLE) 0OPTION SET UP
*** HOTEL MODE
OPERATION OF HOTEL MODE:
WHEN CHANGE SERVICE DATA O01 TO 1, HOTEL MODE IS ON
WHEN HOTEL MODE IS ON,
1. Max volume data is determined by option setting HTL-VOL (O03)
2. Channel position after POWER ON is determined by option setting HOTEL-POS (O02) (if option setting
HOTEL-POS is not set, processing is according to last position data).
3. User data updates of EEPROM regarding the video and audio control is not allowed.
4. Preset mode is disable.
5. CH SETTING menu is not available.
** TUNER BAND
P-Freq
41.10MHz ~ 122.10MHz
122.15MHz ~ 143.10MHz
143.15MHz ~ 362.10MHz
362.15MHz ~ 426.10MHz
426.15MHz ~ 871.10MHz
VHF-H (0010)
UHF (1000)
BAND
TUNER BAND = 1TUNER BAND = 0 (same as GA6)
VHF-L (0001)VHF-L (0001)
VHF-H (0010)
UHF (1000)

21F-PD250 / 21F-PT220 / 21F-PA18 / 21F-PA18(B)
3 – 12
ADJ ITEM: BUS SET UP (1 ST & 2ND STAGE SERVICE DATA)
REMARK
V08 SUB-SHP PRE
V17 V-SIZE60
V18 V-SHIFT60
V28 VS-CORRECT ADJUST IF NECESSARY
V29 VC-CORRECT OFFSET TO IMPROVE
V30 V LINEARITY
V31 V LINEARITY OFFSET
V32 SUB-SHP 0V
F01 C.CLIP-LVL
F07 VIF-G
F22 YDL-AV-N3
F24 COL-AV
F25 COL-P
F28 COL-N3
F29 COL-ADJ
F30 SHP-PRE-AV
F32 SHP-PRE-P (OFFSET)
F33 SHP-PRE-S (OFFSET)
F34 SHP-PRE-N4 (OFFSET)
F35 SHP-PRE-N3 (OFFSET)
F36 SHP-OV-AV (OFFSET)
F38 SHP-OV-P (OFFSET)
F39 SHP-OV-S (OFFSET)
F40 SHP-OV-N4 (OFFSET)
F41 SHP-OV-N3 (OFFSET)
F42 TINT-AV
F43 TINT-ADJ
F45 R-R (OFFSET)
F46 B-R (OFFSET)
F47 R-B (OFFSET)
F48 B-B (OFFSET)
F56 V-FREE (NO SYNC)
F58 GAMMA
F63 SL-AV
F65 AS/FBP-TV
F66 AS/FBP-AV
F67 AS/FBP-YUV
F82 OSD LEVEL
F86 C-ANGLE (103 DEG/ 95 DEG)
F91 V-DEMUTE-DELAY
F92 S-DEMUTE-DELAY
F132 BASS OFFSET
F133 TREBLE OFFSET
F144 CONT NEWS
F145 CONT MUSIC
F150 COL NEWS
F152 COL MOVIE
F153 SHARP NEWS
F155 SHARP MOVIE
F159 TREBLE NEWS
F160 TREBLE MUSIC
F161 TREBLE MOVIE
F162 BASS NEWS
F163 BASS MUSIC
F164 BASS MOVIE
F179 AFT OFFSET
F180 VOL-START
F181 VOL-STEP
F182 BASS-LIMIT1
F183 BASS-LIMIT2
F184 BASS-LIMIT3
F185 BASS-LIMIT4
SERVICE ITEMS
V09 SUB-COLOR-YUV
V10 SUB-TINT-YUV
F23 YDL-YUV
F76 CP
F124 SHP-ANT-ONII OFFSET
F128 CR-PEDESTEL-ADJ
F129 CB-PEDESTEL-ADJ
F136 SIF-BPF-WIDE
F172 TRE OFFSET SUR ONII
38
90
63
+4
-2
44
-9
36
+3
38
1
7
5
6
+4
+12
+8
+14
+1
+7
+2
+7
+7
+1
+7
+2
+7
+7
+7
+2
0
-9
-6
+8
1
1
2
3
3
3
0
4
0
25
40
0
8
8
0
0
0
50
60
-5
+6
-6
+6
-10
0
+5
-5
0
+10
+1
2
60
0
7
7
7
7
ALL MODELS

21F-PD250 / 21F-PT220 / 21F-PA18 / 21F-PA18(B)
3 – 13
ADJ ITEM: OPTION SET UP (4TH STAGE SERVICE DATA)
21F-PA18
21F-PA18(B)
21F-PD250
O01
O02
O03
O04
O05
O06
O07
O08
O09
O10
O11
O12
O13
O14
O15
O16
O17
O18
O19
O20
O21
O22 S-BOOSTER
0 (DISABLE) / 1 (ENABLE)
O23 SHARP-LOGO
0 (DISABLE) / 1 (ENABLE)
O24 TUNER BAND
0/1
O25 WHITE BACK
0
(
DISABLE
)
/1
(
ENABLE
)
O26 BOOSTER
0 (DISABLE) / 1 (ENABLE)
O27 250 CHANNEL
0(100 channels) /1(250 channels)
O28 AVL
0(fixto0)~1(fixto1)~2(AVLin
SOUND MENU)
O29 LNA TUNER
O30 CHILD LOCK
0
(
DISABLE
)
/1
(
ENABLE
)
O31 NORMAL KEY
0 (PICTURE & SOUND) /1 (PICTURE
ONLY)
O32 AV MODE
0
(
DISABLE
)
/1
(
ENABLE
)
O33 S-CTRL LIMIT
0
(
DISABLE
)
/1
(
ENABLE
)
O34 MP-IN
0
(
DISABLE
)
/1
(
ENABLE
)
O35 VIRGIN-MODE
0
(
DISABLE
)
/1
(
ENABLE
)
O36 WHITE-TEMP
0
(
3MODES
)
/1
(
5MODES
)
O37 LK MENU
0 (DISABLE) / 1 (ENABLE)
SERVICE ITEMS
HSYNC-JUDGE
0 (DISABLE) / 1 (ENABLE)
SECAM
0 (DISABLE) / 1 (ENABLE)
N443
(
RF
)
0 (DISABLE) / 1 (ENABLE)
HTL MODE
HTL-POS
HTL-VOL
N358
(
RF
)
0 (DISABLE) / 1 (ENABLE)
FORCE-COL
0 (DISABLE) / 1 (ENABLE)
S-SYS
1(BG ONLY)~15(ALL)
AV
0 (DISABLE) / 1 (ENABLE)
AV2
0 (DISABLE) / 1 (ENABLE)
YUV
0 (DISABLE) / 1 (ENABLE)
S-CTRL
0 (DISABLE) / 1 (ENABLE)
NICAM-NOT-USE
0 (DISABLE) / 1 (ENABLE)
SEARCH-SP
R/C MENU
0 (ENABLE) / 1 (DISABLE)
LED-CONT
0(ONELED)/1(TWOLED)
A2-NOT-USE
0 (DISABLE) / 1 (ENABLE)
TEXT-NOT-USE
0 (DISABLE) / 1 (ENABLE)
BIL
0 (DISABLE) / 1 (ENABLE)
LANG 1~255
0(0FF)/1(0N)
0~99,--
0~60,--
1(350)~2(450)~3(550)~4(650)~5(750)
0 (Alps) / 1 (Matsushita)
21F-PT220
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
--
--
0
0
0
1
0
5
1
0
0
0
0
0
0
1
5
1
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
--
--
0
0
0
1
0
5
1
1
0
0
0
0
0
1
5
1
0
0

21F-PD250 / 21F-PT220 / 21F-PA18 / 21F-PA18(B)
3 – 14
[2] ADJUSTMENT
ADJUSTMENT PRECAUTION: Makesure TV Set is in “Normal Condition” before switch to Service Mode for Adjustment.
1. PIF ADJUSTMENT
No. Adjustment point Adjustment procedure/conditions Waveform and others
Tuner IFT
( PRESET )
11. Get the tuner ready to receive the CH. E - 9
signal,but with no signal input.
Adjust the PLL data.
2. Connect the sweep generator's output cable to
the tuner antenna. ( RF SWEEP )
3. Adjust the sweep generator's to 80dBµV.
4. Connect the response lead ( use LOW IMPED-
ANCE probe with wave detector ; see Fig.1 ) to
the tuner's IF output terminal. ( This terminal must
have the probe alone connected ).
5. Set the RF AGC to 0 - 6 V with no saturation with
the waveform.
6. Adjust the tuner IF coil to obtain the waveform as
shown in Fig. 2.
Note: Be sure to keep the tuner cover in posi-
tion during this adjustment.
RF-AGC
TAKE OVER
POINT AD-
JUSTMENT
(I
2
CBUS
CONTROL)
(AUTO &
MANUAL ADJ)
* for Auto ADJ
1)Receive “PAL COLOUR BAR”
signal.
signal strength: 56 ±1dBµV(75
ohm open)**
1)Go to service mode.
2)Go to service data V01, press
R/C to operate auto key (Hex
C1) and confirm the ‘OK’
display on the screen.
3)If appear NG, increase data
some step and pls repeat step
2.
4)Proceed step 4 & 5 in manual
mode.
2
Bias box: About 4.5 V
Oscilloscope
0.1V
TV Set
Bias box
TP201
+
+
Fig. 3-1
E-9 CH
PC
10k
100k
1n60
75ohm
IF OUT
-1.5+/-0.8dB
1000p
1000p
Oscilloscope
Fig.1
Fig.2
-
-

21F-PD250 / 21F-PT220 / 21F-PA18 / 21F-PA18(B)
3 – 15
2. PURITY ADJUSTMENT
No. Adjustment point Adjustment procedure/conditions Waveform and others
1. Receive the GREEN-ONLY signal. Adjust the
beam current to ~700 µA .
2. Degauss the CRT enough with the degausing coil.
Note: Follow the Job Instruction Sheet to adjust
the magnetic field.
(Reference: page 3-5)
3. Maintain the purity magnet at the zero magnetic
field and keep the static convergence roughly
adjusted.
4. Observe the points a, b,as shown in Fig. 1-1
through the microscope. Adjust the landings to A
rank requirement.
5. Orient the raster rotation to 0 eastward.
6. Tighten up the deflection coil screws.
Tightening torque: 108 ± 20 N (11kgf ± 2 kgf)
7. Make sure the CRT corners landing meet the A
rank requirements. If not, stick the magnet sheet
to correct it.
Note: This adjustment must be done after
warming up the unit for 30 minutes or
longer with a beam current over 700
µ A.
Note:
* For the following colours press R/C RGB(Hex 7E)
key to change.
PURITY ADJ.
(No need if used
ITC CRT)
1
ab
A
B
A
30mm 30mm
B
A=B
A=B
Rank "A"
(on the right of the CRT)
Rank "A"
(on the left of the CRT)
Fig. 1-1
Fig. 1-2
Fig. 1-3
* Press R/C RGB key for 1 sec-
ond in NORMAL MODE, the
colour will change to RGB
mono colour mode.
Signal-colour
screen cleared
GREEN
ONLY
BLUE
ONLY
RED
ONLY
Set to service mode by remote con-
troller then press factory process R/C
RGB key to change to RGB mono col-
our mode.

21F-PD250 / 21F-PT220 / 21F-PA18 / 21F-PA18(B)
3 – 16
3. CONVERGENCE ADJUSTMENT
No. Adjustment point Adjustment procedure/conditions Waveform and others
CONVERGENCE
ADJ.
(Tobedone
after the purity
adjustment.)
(No need if used
ITC CRT)
1. Receive the "Crosshatch Pattern" signal.
2. Using the remote controller, call NORMAL mode.
Static convergence
1. Turn the 4-pole magnet to a proper opening an-
gle in order to superpose the blue and red col-
ours.
2. Turn the 6-pole magnet to a proper opening an-
gle in order to superpose the green colour over
the blue and red colours.
Dynamic convergence
1. Adjust the convergence on the fringes of the
screen in the following steps.
a) Fig. a: Drive the wedge at point "a" and swing
the deflection coil upward.
b) Fig. b: Drive the wedge at point "b" and "c" and
swing the deflection coil downward.
c) Fig. c: Drive the "c" wedge deeper and swing
the deflection coil rightward.
d) Fig. d: Drive the "b" wedge deeper and swing
the deflection coil leftward.
2. Fix all the wedges on the CRT and apply glass
tape over them.
3. Apply lacquer to the deflection yoke lock screw,
magnet unit (purity, 4-pole, 6-pole magnets) and
magnet unit lock screw.
Finally received the Red-only and Blue-only sig-
nals to make sure there is no other colours on the
screen.
1
RGB
BGR
R
G
B
R
G
B
B
G
R
B
G
R
RGB
BGR
Lacquer
Wedge "a"
Wedge
"b"
Wedge
"c"
About
100Deg
About
100Deg
Fig. a
Fig. b
Fig. c
Fig. d
4-pole magnet
6-pole magnet
CRT neck
20mm
Lacquer
Purity magnet

21F-PD250 / 21F-PT220 / 21F-PA18 / 21F-PA18(B)
3 – 17
4. H-VCO, VIF-VCO & S-TRAP fo ADJUSTMENT
No. Adjustment point Adjustment procedure/conditions Waveform and others
H-VCO ADJ
(I
2
CBUS
CONTROL)
(AUTO &
MANUAL ADJ)
(MANUAL ADJ)
1) In No signal (RASTER) condition.
2) Go to service mode, choose service data V03.
3) Connect oscilloscope to IC801 pin13 (H-OUT),
adj V03 until freq become 15.625 ±0.15 KHz
(Auto Adj)
1) In No signal (RASTER) condition.
2) Go to service mode.
3) Choose service data V03, by pressing R/C Auto
(Hex C1) key, OSD will appear “OK” at screen.
4) If appear “NG” pls repeat step 3.
(Manual ADJ)
1) In No signal (RASTER) condition.
2) Go to service mode, choose service data V02.
3) Connect oscilloscope to IC801 pin7 (AFT),
adj V02 until voltage become 2.5 ±1V .
(Auto Adj)
1) In No signal (RASTER) condition.
2) Go to service mode, choose service data V02.
3) Press the R/C Auto (Hex C1) key, OSD will appear
“OK” at screen.
4) If appear “NG” pls repeat step 3.
(Manual ADJ)
1) In No signal (RASTER) condition.
2) Go to service mode, choose service data V21.
3) Connect oscilloscope to TP 801, adj V21 until
voltage become Min (below 5 V).
4) After that pls adj service data V20 same as
“V21”, V22 to “V21+1”, V23 to “V21-2”.
(Auto Adj)
1) In No signal (RASTER) condition.
2) Go to service mode, choose service data
(S-TRAP I).
V21.
3) Press the R/C Auto (Hex C1) key, OSD will appear
“OK” at screen.
4) If appear “NG” pls repeat step 3.
5) Adjust V24 (S-TRAP 574) by repeating step 3 &
4 at final line after aging TV set to get accurate
data.
1
VIF-VCO ADJ
(I
2
CBUS
CONTROL)
(AUTO &
MANUAL ADJ)
2
S-TRAP fo
ADJ
(I
2
CBUS
CONTROL)
(AUTO &
MANUAL ADJ)
3
This adjustment must be done
after aging at least 3 minutes.
*CAUTION :
Make sure to adjust V24 at final
line after aging the TV set.
