Sharp LC-37D40U User manual

LC-37D40U
LC-45D40U
SERVICE MANUAL
MODELS
LC-37D40U
LC-45D40U
LCD COLOR TELEVISION
In the interests of user-safety (Required by safety regulations in some countries) the set should be re-
stored to its original condition and only parts identical to those specified should be used.
CONTENTS
Page
»IMPORTANT SERVICE SAFETY PRECAUTION ......................................................................................2
»SPECIFICATIONS ......................................................................................................................................5
»OPERATION MANUAL ...............................................................................................................................6
»DIMENSIONS .............................................................................................................................................9
»REMOVING OF MAJOR PARTS ..............................................................................................................10
»ADJUSTMENT PROCEDURE..................................................................................................................18
»TROUBLESHOOTING TABLE .................................................................................................................35
»MAJOR IC INFORMATIONS ....................................................................................................................44
»OVERALL WIRING DIAGRAM .................................................................................................................46
»SYSTEM BLOCK DIAGRAM ....................................................................................................................50
»PRINTED WIRING BOARD ASSEMBLIES ..............................................................................................52
»PARTS LIST ..............................................................................................................................................64
»PACKING OF THE SET ............................................................................................................................86
»SCHEMATIC DIAGRAM ...........................................................................................................................88
This document has been published to be used for
after sales service only.
The contents are subject to change without notice.
S66U2LC45D40U

2
LC-37D40U
LC-45D40U
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
1
234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
2
1
234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
2
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
1
234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
2
1
234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
2
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
SAFETY NOTICE
Many electrical and mechanical parts in LCD color
television have special safety-related characteristics.
These characteristics are often not evident from visual
inspection, nor can protection afforded by them be
necessarily increased by using replacement components
rated for higher voltage, wattage, etc.
Replacement parts which have these special safety
characteristics are identified in this manual; electrical
components having such features are identified by "
å" and shaded areas in the Replacement Parts List
and Schematic Diagrams .
For continued protection, replacement parts must be
identical to those used in the original circuit.
The use of a substitute replacement parts which do not
have the same safety characteristics as the factory
recommended replacement parts shown in this service
manual, may create shock, fire or other hazards.
CAUTION: FOR CONTINUED PROTECTION
AGAINST A RISK OF FIRE REPLACE ONLY WITH
SAME TYPE FUSE.
LC-37D40U: F701 (8A, 125V)
F4701, F5701 (3A~, 250V, 115°C)
LC-45D40U: F7801 (8A, 250V)
F702, F703 (5A, 125V)
F4701, F4703, F5701 (3A~, 250V, 115°C)
WARNING
1. For continued safety, no modification of any circuit
should be attempted.
2. Disconnect AC power before servicing.
BEFORE RETURNING THE RECEIVER
(Fire & Shock Hazard)
Before returning the receiver to the user, perform
the following safety checks:
1. Inspect all lead dress to make certain that leads are
not pinched, and check that hardware is not lodged
between the chassis and other metal parts in the
receiver.
2. Inspect all protective devices such as non-metallic
control knobs, insulation materials, cabinet backs,
adjustment and compartment covers or shields,
isolation resistor-capacitor networks, mechanical
insulators, etc.
3. To be sure that no shock hazard exists, check for
leakage current in the following manner.
»Plug the AC cord directly into a 120 volt AC outlet.
»Using two clip leads, connect a 1.5k ohm, 10 watt
resistor paralleled by a 0.15µF capacitor in series
with all exposed metal cabinet parts and a known
earth ground, such as electrical conduit or electrical
ground connected to an earth ground.
»Use an AC voltmeter having with 5000 ohm per volt,
or higher, sensitivity or measure the AC voltage drop
across the resistor.
»Connect the resistor connection to all exposed metal
parts having a return to the chassis (antenna, metal
cabinet, screw heads, knobs and control shafts,
escutcheon, etc.) and measure the AC voltage drop
across the resistor.
All checks must be repeated with the AC cord plug
connection reversed. (If necessary, a nonpolarized
adaptor plug must be used only for the purpose of
completing these checks.)
Any reading of 0.75 Vrms (this corresponds to 0.5
mA rms AC.) or more is excessive and indicates a
potential shock hazard which must be corrected
before returning the monitor to the owner.
IMPORTANT SERVICE SAFETY PRECAUTION
ËService work should be performed only by qualified service technicians who are thor-
oughly familiar with all safety checks and the servicing guidelines which follow:
DVM
AC SCALE
1.5k ohm
10W
TO EXPOSED
METAL PARTS
CONNECT TO
KNOWN EARTH
GROUND
0.15 µF
TEST PROBE

3
LC-37D40U
LC-45D40U
PRECAUTION: POUR LA PROTECTION CONTINUE
CONTRE LES RISQUES D'INCENDIE,
REMPLACER LE FUSIBLE
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
1
234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
2
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
1
234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
2
1
234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
2
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
AVIS POUR LA SECURITE
De nombreuses pièces, électriques et mécaniques,
dans les téléviseur ACL présentent des caractéristiques
spéciales relatives à la sécurité, qui ne sont souvent
pas évidentes à vue. Le degré de protection ne peut
pas être nécessairement augmentée en utilisant des
pièces de remplacement étalonnées pour haute tension,
puissance, etc.
Les pièces de remplacement qui présentent ces
caractéristiques sont identifiées dans ce manuel; les
pièces électriques qui présentent ces particularités sont
PRECAUTIONS A PRENDRE LORS DE LA REPARATION
ËNe peut effectuer la réparation qu' un technicien spécialisé qui s'est parfaitement
accoutumé à toute vérification de sécurité et aux conseils suivants.
identifiées par la marque " å" et hachurées dans la
liste des pièces de remplacement et les diagrammes
schématiques .
Pour assurer la protection, ces pièces doivent être
identiques à celles utilisées dans le circuit d'origine.
L'utilisation de pièces qui n'ont pas les mêmes
caractéristiques que les pièces recommandées par
l'usine, indiquées dans ce manuel, peut provoquer des
électrocutions, incendies, radiations X ou autres
accidents.
AVERTISSEMENT
1. N'entreprendre aucune modification de tout circuit.
C'est dangereux.
2. Débrancher le récepteur avant toute réparation.
VERIFICATIONS CONTRE L'INCEN-DIE ET
LE CHOC ELECTRIQUE
Avant de rendre le récepteur à l'utilisateur, effectuer
les vérifications suivantes.
1. Inspecter tous les faisceaux de câbles pour s'assurer
que les fils ne soient pas pincés ou qu'un outil ne soit
pas placé entre le châssis et les autres pièces
métalliques du récepteur.
2. Inspecter tous les dispositifs de protection comme les
boutons de commande non-métalliques, les isolants,
le dos du coffret, les couvercles ou blindages de réglage
et de compartiment, les réseaux de résistance-
capacité, les isolateurs mécaniques, etc.
3. S'assurer qu'il n'y ait pas de danger d'électrocution en
vérifiant la fuite de courant, de la facon suivante:
•Brancher le cordon d'alimentation directem-ent à une
prise de courant de 120V. (Ne pas utiliser de
transformateur d'isolation pour cet essai).
•A l'aide de deux fils à pinces, brancher une résistance
de 1.5 kΩ10 watts en parallèle avec un condensateur
de 0.15µF en série avec toutes les pièces métalliques
exposées du coffret et une terre connue comme une
conduite électrique ou une prise de terre branchée à
la terre.
•Utiliser un voltmètre CA d'une sensibilité d'au moins
5000Ω/V pour mesurer la chute de tension en travers
de la résistance.
•Toucher avec la sonde d'essai les pièces métalliques
exposées qui présentent une voie de retour au châssis
(antenne, coffret métallique, tête des vis, arbres de
commande et des boutons, écusson, etc.) et mesurer
la chute de tension CA en-travers de la résistance.
Toutes les vérifications doivent être refaites après avoir
inversé la fiche du cordon d'alimentation. (Si
nécessaire, une prise d'adpatation non polarisée peut
être utilisée dans le but de terminer ces vérifications.)
Tous les courants mesurés ne doivent pas dépasser
0.5 mA.
Dans le cas contraire, il y a une possibilité de choc
électrique qui doit être supprimée avant de rendre le
récepteur au client.
DVM
ECHELLE CA
1.5k ohm
10W
0.15 µF
SONDE D'ESSAI
AUX PIECES
METALLIQUES
EXPOSEES
BRANCHER A UNE
TERRE CONNUE
LC-37D40U: F701 (8A, 125V)
F4701, F5701 (3A~, 250V, 115°C)
LC-45D40U: F7801 (8A, 250V)
F702, F703 (5A, 125V)
F4701, F4703, F5701 (3A~, 250V, 115°C)

4
LC-37D40U
LC-45D40U
Precautions for using lead-free solder
1Employing lead-free solder
"PWBs" of this model employs lead-free solder. The LF symbol indicates lead-free solder, and is attached on the
PWBs and service manuals. The alphabetical character following LF shows the type of lead-free solder.
Example:
2Using lead-free wire solder
When fixing the PWB soldered with the lead-free solder, apply lead-free wire solder. Repairing with conventional
lead wire solder may cause damage or accident due to cracks.
As the melting point of lead-free solder (Sn-Ag-Cu) is higher than the lead wire solder by 40°C, we recommend
you to use a dedicated soldering bit, if you are not familiar with how to obtain lead-free wire solder or soldering bit,
contact our service station or service branch in your area.
3Soldering
As the melting point of lead-free solder (Sn-Ag-Cu) is about 220°C which is higher than the conventional lead
solder by 40°C, and as it has poor solder wettability, you may be apt to keep the soldering bit in contact with the
PWB for extended period of time. However, Since the land may be peeled off or the maximum heat-resistance
temperature of parts may be exceeded, remove the bit from the PWB as soon as you confirm the steady soldering
condition.
Lead-free solder contains more tin, and the end of the soldering bit may be easily corroded. Make sure to turn on
and off the power of the bit as required.
If a different type of solder stays on the tip of the soldering bit, it is alloyed with lead-free solder. Clean the bit after
every use of it.
When the tip of the soldering bit is blackened during use, file it with steel wool or fine sandpaper.
Be careful when replacing parts with polarity indication on the PWB silk.
Indicates lead-free solder of tin, silver and copper.
Lead-free wire solder for servicing
Part No, ★Description Code
ZHNDAi123250E J φ0.3mm 250g(1roll) BL
ZHNDAi126500E J φ0.6mm 500g(1roll) BK
ZHNDAi12801KE J φ1.0mm 1kg(1roll) BM
Indicates lead-free solder of tin, silver and copper.
LFa
LF a/a

5
LC-37D40U
LC-45D40U
Specifications
•
*Emergency alert messages via Cable are unreceivable.
•
As part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product
improvement without prior notice. The performance specification figures indicated are nominal values of production units.
There may be some deviations from these values in individual units.
LCD panel
Number of dots
TV
Function
TV-standard (CCIR)
Receiving
Channel
VHF/UHF
CATV
Digital Terrestrial
Broadcast (8VSB)
Audio multiplex
Brightness
Viewing angles
Audio out
Terminals Rear INPUT 1
INPUT 2
INPUT 3
INPUT 4
INPUT 5
ANTENNA
DIGITAL AUDIO OUTPUT
OSD language
Power Requirement
Power Consumption
Weight
Dimension
(W x H x D)
Accessories
Operating temperature
3,147,264 dots (1366 x 768 x 3 dots)
American TV Standard ATSC/NTSC System
VHF 2-13ch, UHF 14-69ch
1-135ch* (non-scrambled channel only.)
2-69ch
BTSC System
450cd/m
2
H : 176˚ V : 176˚
10W x 2
AV in, COMPONENT in
AV in, COMPONENT in
S-VIDEO in, AV in
Audio in, HDMI in with HDCP
HDMI in with HDCP
OUTPUT Audio out
75 2 Unbalance, F Type x 1 for Analog (VHF/UHF/CATV) and Digital (AIR/CABLE)
Optical Digital audio output x 1 (PCM/Dolby Digital)
English/French/Spanish
AC 120 V, 60 Hz
Remote control unit (x1), AC cord (x1), “AAA” size battery (x2), Cable clamp (x1),
Cable tie (x1), Stand unit (x1), Operation manual (x1)
+32˚F to +104˚F (0˚C to +40˚C)
    
37" Advanced Super View & BLACK TFT
LCD
45"Advanced Super View & BLACK TFT
LCD
with stand
w/o stand
w/o stand
with stand
186 W 270 W
48.5 lbs./22.0 kg
53.8 lbs./24.4 kg
37
1
/
4
x26
15
/
64
x4
5
/
8
inch
37
1
/
4
x28
35
/
64
x12
1
/
64
inch
63.3 lbs./28.7 kg
68.8 lbs./31.2 kg
43
53
/
64
x29
57
/
64
x4
31
/
32
inch
43
53
/
64
x31
63
/
64
x12
1
/
64
inch

6
LC-37D40U
LC-45D40U
Operation Manual
Part names

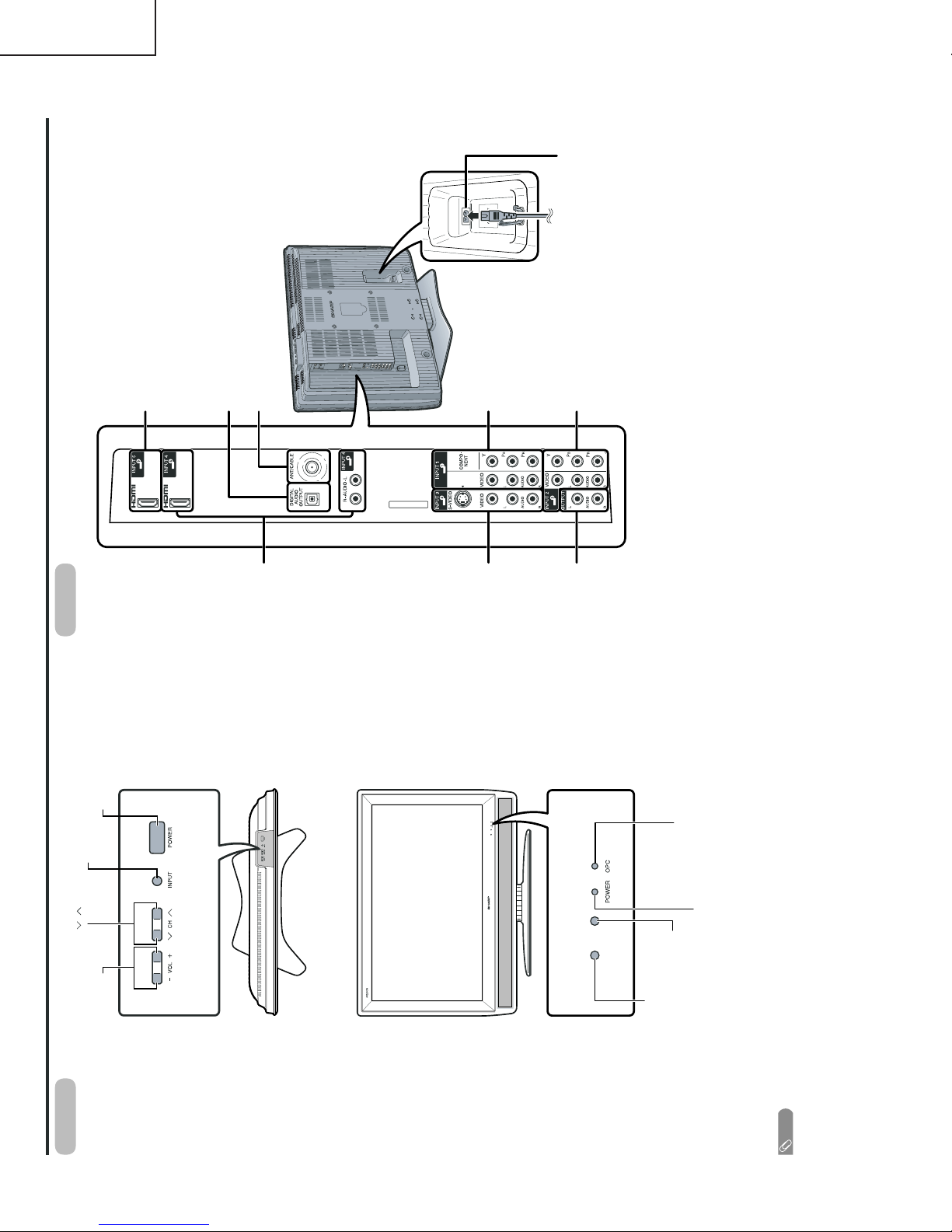

POWER button
TV (Front) Channel buttons
(CH /)
Volume buttons(VOL– / + )
INPUT button
OPC indicator*
POWER
indicator**
OPC sensor*
Remote control sensor
NOTE
*OPC: Optical Picture Control. **for TV status indicator.
INPUT 4
terminals
INPUT 3
terminals
AUDIO OUTPUT
terminals
INPUT 5 terminal DIGITAL AUDIO OUTPUT terminal Antenna/Cable in INPUT 1 terminals INPUT 2 terminals
AC INPUT terminal
Part names
TV (Rear)

7
LC-37D40U
LC-45D40U
3 2
114
5 6 4 8
17 15
16 18 19
7
20
10
9
21
11 23
24 25
12 13 27
22 26
Part names
1TV POWER: Switch the TV power on or enters standby
mode.
2 DISPLAY: Display the channel information. 3 SOURCE POWER: Turns the power of the external
equipment on and off.
4 External equipment operational buttons: Operate the
external equipment.
5 0 – 9: Set the channel. 6 • (DOT): 7 INPUT:Select a TV input source. (TV, INPUT 1, INPUT 2,
INPUT 3, INPUT 4, INPUT 5)
8 VOL + / –: Set the volume. 9 SURROUND: Select Surround settings. 10 FREEZE: Set the still image. Press again to return to
normal screen.
11 EXIT: Turn off the menu screen. 12 SLEEP: Set the sleep timer. 13 AUDIO: Selects the MTS/SAP or the audio mode during
multi-channel audio broadcasts.
14 FUNCTION: Switches the remote control for TV, CBL/
SAT, VCR, DVD and AUDIO operation. Indicator lights up for the current mode.
* To enter the code registration mode, you need to press
FUNCTION and DISPLAY at the same time.
15 LIGHT :When pressed all buttons on the remote
control unit will light. The lighting will turn off if no operations are performed within about 5 seconds. This button is used for performing operations in low-light situations.
16 VIEW MODE: Select the screen size. 17 ENT: Jumps to a channel after selecting with the 0–9
buttons.
18 FLASHBACK:Return to the previous channel or input
external mode.
19 CH / : Select the channel. 20 MUTE: Mute the sound. 21 MENU: Display the menu screen. 22 ////ENTER:Select a desired item on the
screen.
23 RETURN: Return to the previous menu screen. 24 FAVORITE CH
A, B, C, D: Select four preset favorite channels in four different categories.
While watching, you can toggle the selected channels by
pressing A, B, C andD
25 FAVORITE: Register favorite channel. 26 CC: Display captions during closed-caption source. 27 AV MODE: Select an audio or video setting. (STANDARD,
MOVIE, GAME, USER, DYNAMIC (Fixed), DYNAMIC.)
Remote control unit
NOTE
• When using the remote control unit, point it at the TV.
1. Conrm the 8 screws supplied with the TV.
NOTE
•To detach the stand, perform the steps in reverseorder.
2. Attach the two parts of the stand unit to each other using
the 4 short screws and the hex key (suppliedwith the
product) as shown.
3.
1Insert the stand into the opening on the bottom of the
TV.
2Insert and tighten the 4 long screws into the 4 holes on
the rear of the TV.

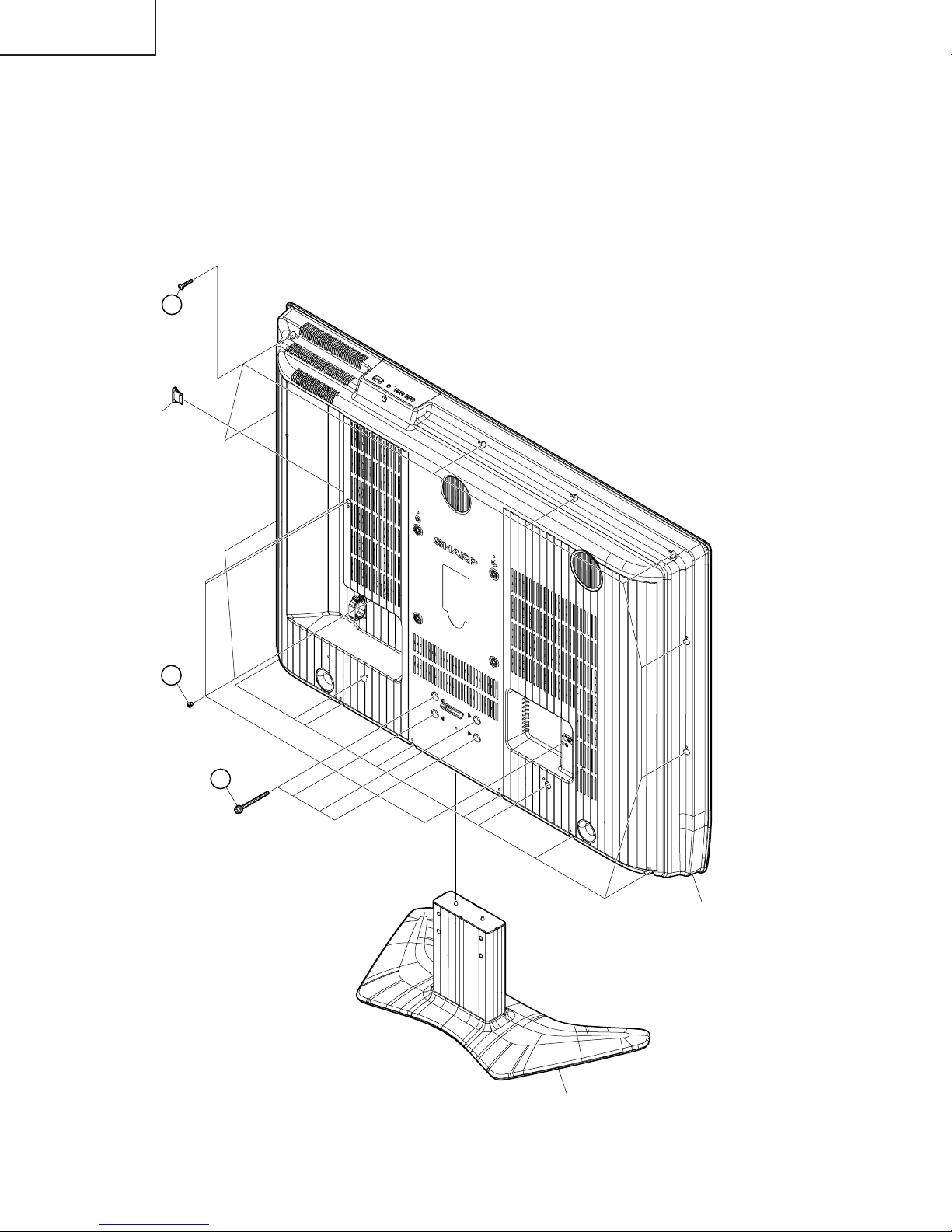

Attaching the stand
•
Before attaching (or detaching)stand, unplug the AC cord from the AC INPUTterminal.
•
Before performing work spread cushioning over the base area to lay the TV on.
This will prevent it from being damaged.
Short screws (x4)
(used in step 2)
Long screws (x4)
(used in step 3)
QUICK REFERENCE
Hex key
Hex key
Short screw Soft cushion
Long screw
CAUTION
•Attach the stand in the correct direction.
•The ìREARî label should be visible from the back of the TV. Refer to
the gure.
•Incorrect installation of the stand may result in the TV falling over.
•Be sure to follow the instructions.
REAR
This side faces therear .
1
2

8
LC-37D40U
LC-45D40U
Setup Audio
Option
Power Control
Digital Setup
Menu items
List of menu items to help you with operations
OPC Backlight Contrast Brightness Color Tint Sharpness Advanced
Color Temp. Black 3D-Y/C Monochrome Film Mode Range of OPC
EZ Setup CH Setup Antenna Setup-DIGITAL Input Skip Input Label Parental CTRL Position Picture Flip Standby Mode Language Reset Treble Bass Balance Surround
Audio Only Digital Noise Reduction Input Select HDMI Setup Output Select Quick Shoot Color System Caption Setup Program Title Display Favorite CH
No Signal Off No Operation Off
Audio Setup

9
LC-37D40U
LC-45D40U
Dimensions
Unit: inch/(mm)
Unit: inch/(mm)
LC-37D40U
LC-45D40U
24
3
/
32
(612)
43
53
/
64
(1113) 4
31
/
32
(126)
38
61
/
64
(989.1)
31
63
/
64
(812)
29
57
/
64
(759)2
3
/
32
(53)
18
43
/
64
(474)
21
59
/
64
(556.7)
12
1
/
64
(305)
4
3
/
32
(104)
7
7
/
8
(200)
3
61
/
64
(100)
7
7
/
8
(200)
24
3
/
32
(612)
12
1
/
64
(305)
4
45
/
64
(119)
37
1
/
4
(946)
32
25
/
64
(822.6)
28
35
/
64
(725)
26
15
/
64
(666)
17
3
/
32
(434)
2
21
/
64
(59)
4
5
/
8
(117)
7
7
/
8
(200)
3
25
/
32
(96)
7
7
/
8
(200)
18
17
/
64
(463.8)

10
LC-37D40U
LC-45D40U
REMOVING OF MAJOR PARTS
(LC-37D40U)
1. Remove the SD Card Cover .
2. Remove the 4 lock screws 1and detach the Stand Base Ass'y.
3. Remove the 9 lock screws 2, 5 lock screws 3 and detach the Rear Cabinet.
SD-Card
Cover
Rear
Cabinet
Stand Base Ass'y
2
3
1

11
LC-37D40U
LC-45D40U
4. Remove the 3 lock screws 4and detach the Stand Cover.
5. Remove the 6 lock screws 5and detach the Center Angle-L and R.
6. Remove the 2 lock screws 6and detach the Stand Assist Angle.
7. Remove the 4 lock screws 7and detach the Stand Fix Angle.
Center Angle-R
Center Angle-L
Stand Fix Angle
Stand Cover
Stand Assist Angle
55
7
6
4

12
LC-37D40U
LC-45D40U

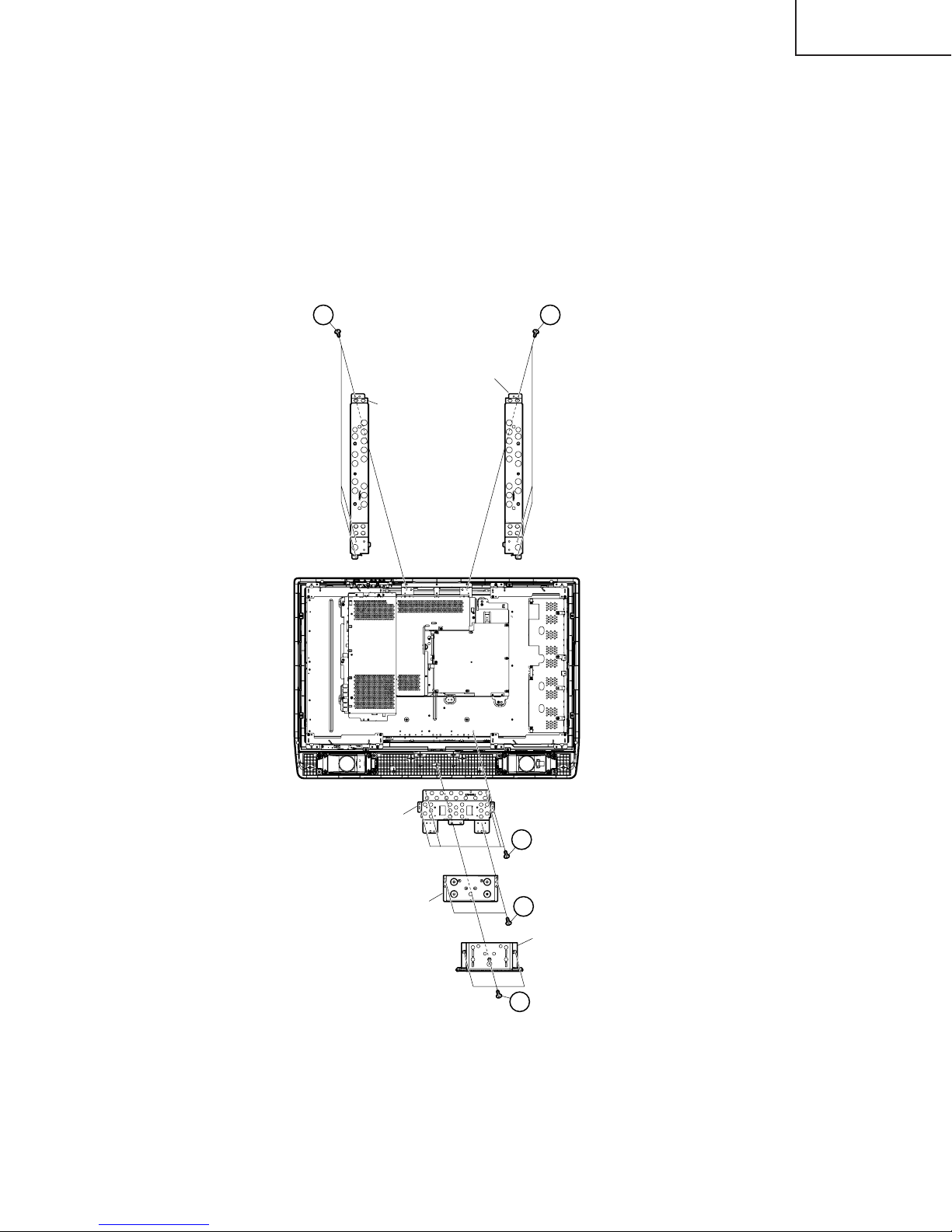

8Disconnect the connectors 8and 9, and detach the Speaker L and R.
9. Disconnect the connector CN7502.
10. Remove the 5 lock screws 0and detach the MAIN Shield.
11. Disconnect the connectors, (P2002, P2601, P2602, P2603, P9701, P9702, SC1102, SC1101, SC1301, CN1,
CN2, P2703, P502, CN5701, CN5702, CN5703) and Remover the Coaxial Cable.
12. Remove the 2 lock screws qand detach the LED Unit.
13. Remove the KEY Unit and Remove the 3 lock screws wfrom the Top Cover Ass'y
Main Shield
Speaker L
10
8
Speaker R
9
CN7502
Top Cover Ass`y
Key Unit
12
LED Unit
11
P2002
CN1 CN2
P2601
P2602
P2603
P9701
P9702
P2704
SC502
SC501
SC1301
SC1102
CN5701 CN5703
CN5702
P2703
Coaxial
Cable SC1101
P502

13
LC-37D40U
LC-45D40U

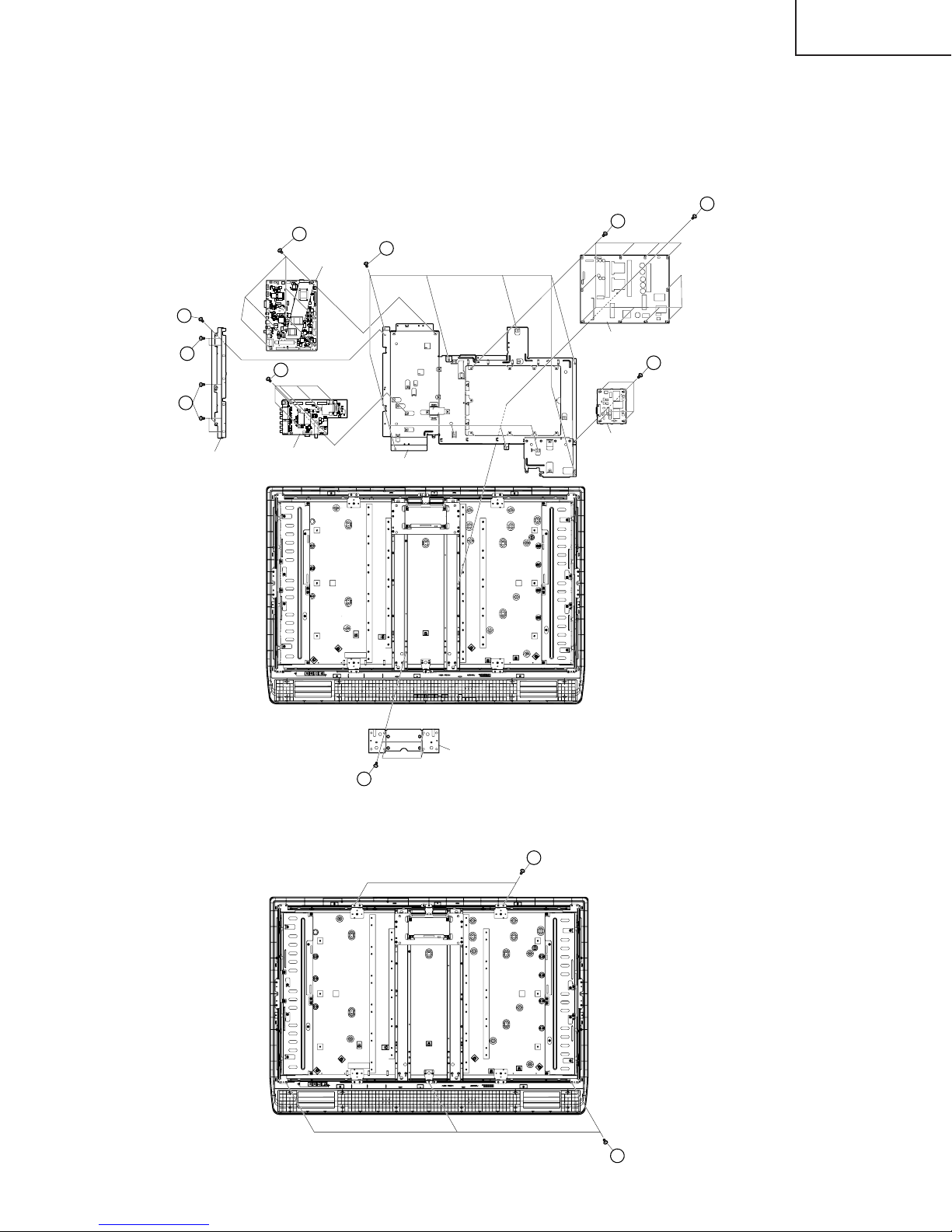

14. Remove the 4 lock screws eand detach the PWB Ass'y.
15. Remove the 5 lock screws rand detach the Jack Angle Long.
16. Remove the 4 lock screws tand detach the IF Unit.
17. Remove the 6 lock screws yand detach the POWER SUPPLY Unit.
18. Remove the 4 lock screws uand detach the MAIN Unit.
Jack Angle
Long
IF Unit
Tray Chasis
LCHSMA286WJFW
POWER SUPPLY Unit
Main Unit
13
15
14
14
17
16
Rug Angle
Center Assist Angle
19 19 1918 18
19 1918 18
19. Remove the 4 lock screws iand Remove the 10 lock screws oand detach the Center Assist Angle and Rug
Angles and LCD Panel Module.

14
LC-37D40U
LC-45D40U
(LC-45D40U)
1. Remove the SD Card Cover .
2. Remove the 4 lock screws 1and detach the Stand Base Ass'y.
3. Remove the 16 lock screws 2, 4 lock screws 3 and detach the Rear Cabinet.
SD-Card
Cover
Rear
Cabinet
Stand Base Ass'y
2
3
1

15
LC-37D40U
LC-45D40U

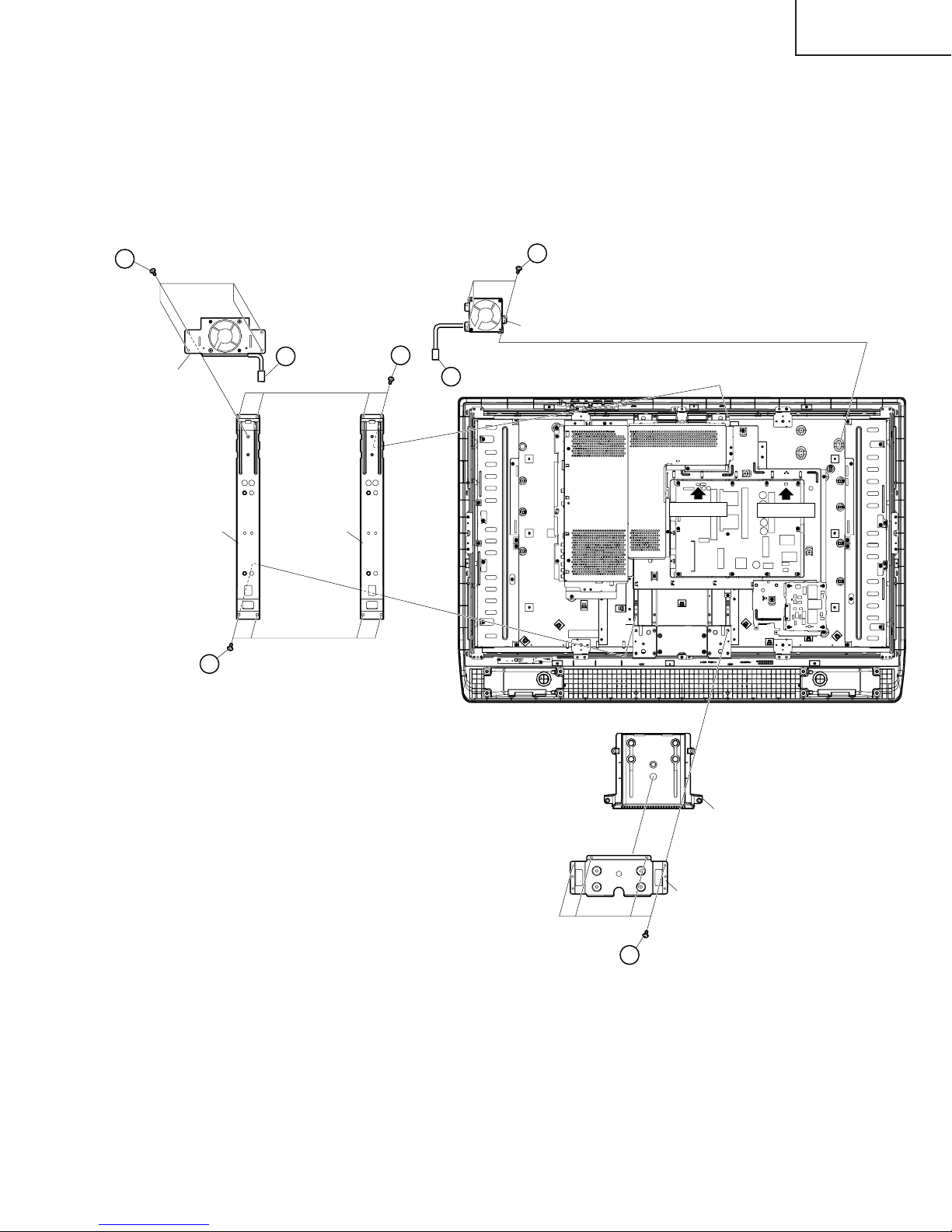

4. Remove the 4 lock screws 4and detach the Stand Sub Angle and Stand Bottom Cover.
5. Disconnect the Connectors 5and 6and Remove the 7 lock screws 7and detach the 2 Fans.
6. Remove the 8 lock screws 8and detach the Center Angle-L and R.
4
Center Angle-R Center Angle-L
Fan
Fan
Stand Bottom Cover
Stand Sub Angle
7
8
5
7
8
6
CN5706
CN5707

16
LC-37D40U
LC-45D40U

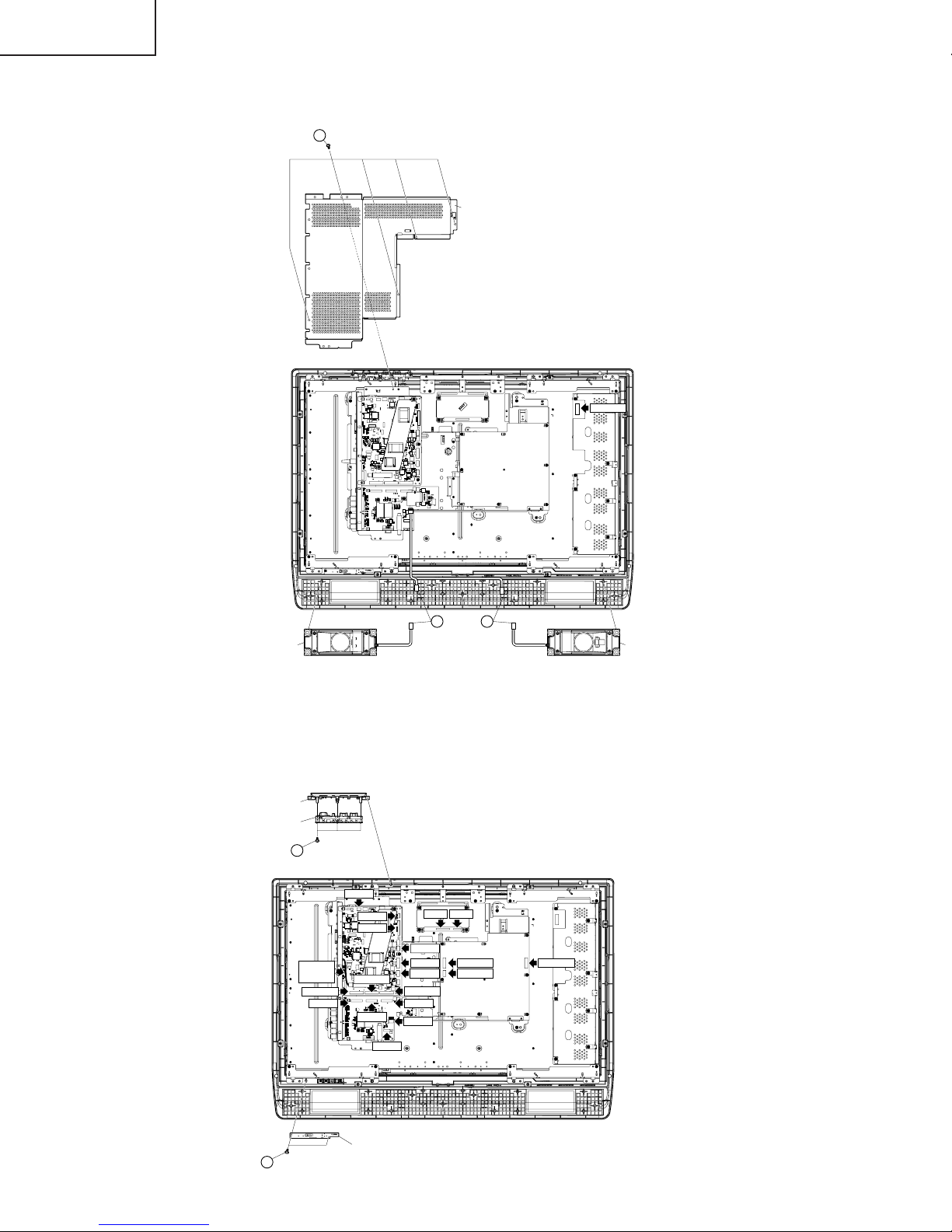

7. Disconnect the connectors 9and 0, and datach the Speaker L and R.
8. Remove the 6 lock screws qand detach the MAIN Shield.
Main Shield
11
Speaker L
9
Speaker R
10
Top Cover Ass`y
Key Unit
13
LED Unit
12
CN7502A
CN7501A
Coaxial
Cable
P2002
P2601
P9002
P2603
P2602
P9701 P9702
SC1301
SC1102
SC1101
P2703
P7802
P502
CN1 CN2
CN5701
CN5703
CN7502C
CN7510C
CN7501C
CN5702
CN701
9. Disconnect the connector (CN7502A, CN7051A, P2002, P2601, P2602, P2603, P9002, P9701, P9702, SC1101,
SC1102, SC1301, P2703, P502, CN1, CN2, CN5703, CN5701, CN5702, CN701, P7802,CN7501C, CN7502C,
CN7510C) and Remove the Coaxial Cable.
10 Remove the 2 lock screws wand detach the LED Unit.
11. Remove the KEY Unit and Remove the 3 lock screws efrom the Top Cover Ass'y

17
LC-37D40U
LC-45D40U
12. Remove the 4 lock screws rand detach the Stand Fix Angle.
13. Remove the 10 lock screws tand detach the PWB Ass'y.
14. Remove the 7 lock screws yand uand detach the Jack Angle Long.
15. Remove the 10 lock screws iand detach the POWER SUPPLY Unit.
16. Remove the 4 lock screws oand detach the AC INLET Unit.
17. Remove the 6 lock screws pand detach the IF Unit.
18. Remove the 5 lock screws aand detach the MAIN Unit.
Jack Angle
Long
IF Unit
Main Unit
20
17
16
16
Stand Fix Angle
14
21
AC INLET Unit
POWER SUPPLY Unit
19
18
15
Tray Chasis
Ass'y
15
22
22
19. Remove the 5 lock screws sand detach the LCD Panel Unit.

18
LC-37D40U
LC-45D40U
ADJUSTMENT PROCEDURE
The adjustment values are set to the optimum conditions at the factory before shipping. If a value should
become improper or an adjustment is required due to part replacement, make an adjustment according to the
following procedure.
1. After replacement of any PWB unit and/or IC for repair, please note the following.
When replacing the following units, make sure to prepare the new units loaded with updated software.
MAIN Unit: DUNTKD640FM06 (LC-37D40U) / DUNTKD640FM07 (LC-45D40U)
IF Unit: DUNTKD643FM06 (LC-37D40U) / DUNTKD643FM07 (LC-45D40U)
2.Upgrading of each microprocessor software
Caution: Never "POWER OFF" the unit when software upgrade is ongoing.
Otherwise the system may be damaged beyond recovery.
2-1. Software version upgrade
The model employs the following software.
»Main software
»Monitor microprocessor software
The main software and the monitor microprocessor software can be upgraded by using a general-purpose SD
memory card.
The followings are the procedures for upgrading, explained separately for each of the main software, the
monitor microprocessor software.
2-2 Main software version upgrade
Get ready before you start
»SD memory card of 32MB or higher capacity
»PC running on Windows 98/98SE/ME/2000/XP operating system
»SD memory card reader/writer with USB connectivity.
»SD memory card formatting software
(Downloadable at http://panasonic.jp/support/audio/sd/download/sd_formatter_e.html)

19
LC-37D40U
LC-45D40U
Preparations
To upgrade the main software, it is necessary to get ready the SD card for version upgrade before you start.
Follow the steps below and create the SD card for version upgrade.
1Insert the SD card into the SD card reader/writer. Start the SD card formatting software. Click [Format].
(When you have the drive options, select the drive where the SD card is inserted before you proceed.)
2When the formatting is over, the following window appears. Click [OK].
3Click [Exit] to finish the formatting.
Note: When you are done, take out the SD card once to make sure it is finished, and then insert it again.
4Copy the binary image file M150Axxx.SDC (named temporarily) for version updade to the root directory
(folder) of the SD card drive.
Note: In the SD card drive, do not store other folders or unrelated files, or more than one binary image files for
version upgrade.
Now the SD card for version upgrade is ready.

20
LC-37D40U
LC-45D40U
How to upgrade the software
1Shut off the AC power (i.e. unplug the AC cord).
2Insert the SD card for version upgrade (prepared as above) into the service socket located lower side from
center at terminals, above S-VIDEO terminal in the rear of the unit, in a way that the cut corner of the SD
card comes at the upper side.
Note: If the SD card is inserted in a wrong way, the card will go deep inside the unit beyond retrieval. Take
due care to insert the SD card correctly.
3Turn on the AC power (i.e. plug in the AC cord).
4After the unit startup, the system upgrade screen as shown below appears within 20-40 seconds.
5Even a single failure in the process will trigger the upgrade failure screen as shown below. The word
"NG" changes to red for the item failed.
Note: In the event of a failure, repeat the upgrading process. If the process repeatedly fails, it is likely that the
hardware is troubled.
6Upon completion of the whole process, the upgrade success screen as shown below appears. You can
check the new software version on this screen. The version information appears after the upgrade is
complete.
SYSTEM UPGRADE
Program
EEPROM
12%
Part Init
U0601051OLD Version
NEW Version U0601241
M150
UPGRADE FAILURE
Program
EEPROM
NG
NG
24%
Part Init
U0601051OLD Version
NEW Version U0601241
UPGRADE SUCCESS
Program
EEPROM
NG
NG
100%
Part Init
U0601241Main Version
