Shehds SHE-SBMH0425D User manual

1
-Maintenance
1.Please keep the light in dryness and avoiding use in wet place.
2.Using intermittenlly can be extended the life.
3.Attention to clean the fan and lens usually in order to get the ventilating effects and
lighting effects better.
4.Please do not wipe the crust using organic menstruum for avoid to damaged the
product.
-Statement
The product has well capability and intact packing when leave factory,All of the user
should comply with above warning item and manual ,any misuse cause of the damages are
not included in our guarantee,and also can’t be responsible for any malfunction &
problem owing to ignore the manual.
Please forgive that we will not be notice for technical change
-Attention Item
1.For guarantee the life of product,please do not put it on the wet place and not use it
the place over 40 degree.
LED Super Beam 4x25W RGBW Moving Head

2
2.Please don’t lay the product on the un-fixable or shakable place.
3.Ask for the professional to maintain the product in order to avoid the danger of get an
electric shock.
4.Power supply should not be changed over +&-10% while the light is using,it will be
decreased the life of lamp if the power is too high,but it will be influenced the luminosity
if the power is too low.
5.After power off,if it is need used again,please cool down over 20 minuter.
6.Please look round the manual for ensure the product can be used normally.

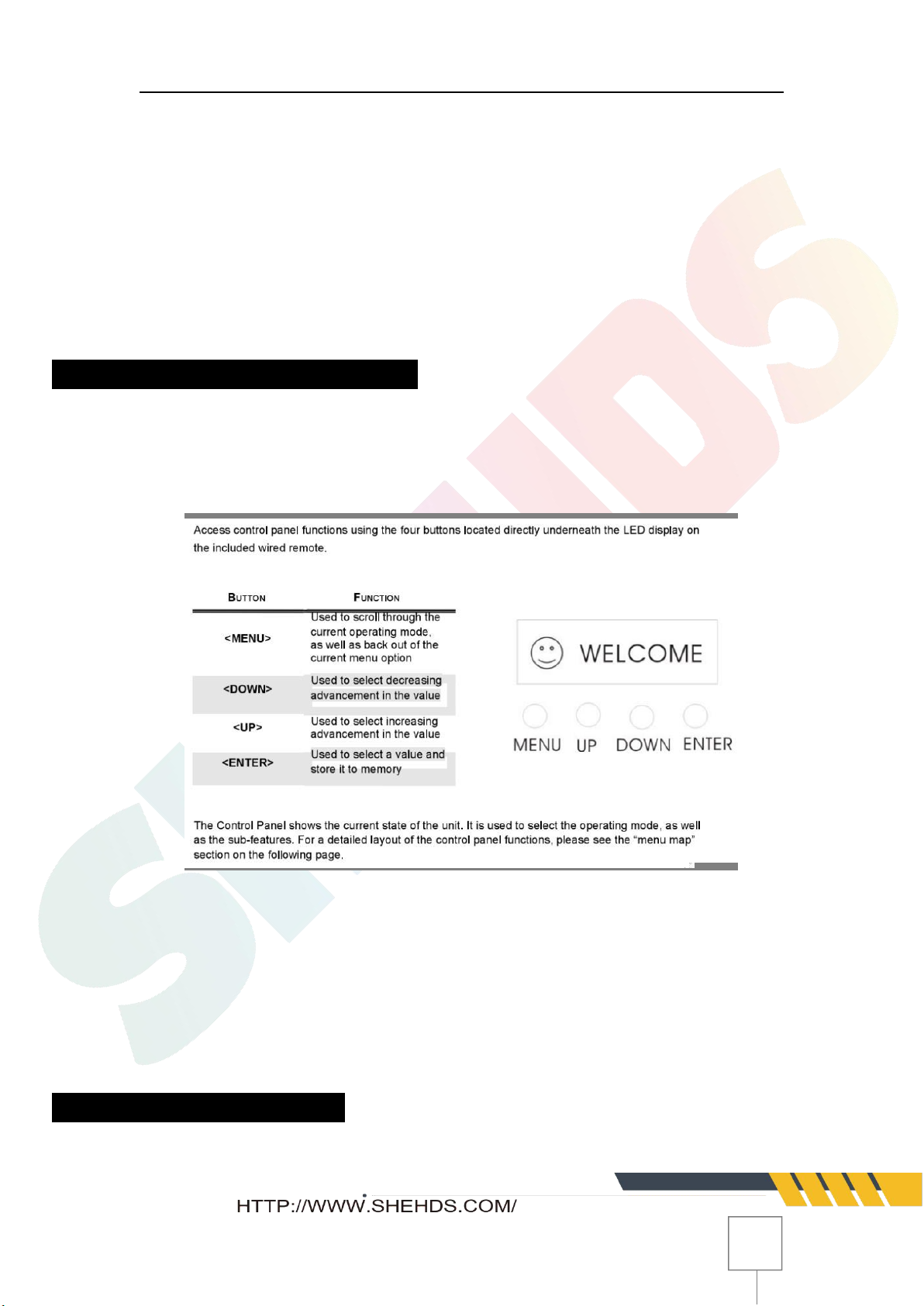

-Display Control Instruction
Welcome to use our light.The light uses energy-saving LED,long Product
life,shockproof,dustproof, DMX receiver and self-running feature, which can produce a
variety of vivid lighting effects,easy to operate, suitable for all types of entertainment
decoration,architectural lighting industry.
Instructions:Press the function key A cycled out the eight different function effects,digital
tube first two digits on behalf of which the current function(see menu).The last two digits
represent the functions in which the address code or speed parameters.Press the B or C
key to modify the parameter values.Press the D key to confirm.
-Product Introduction

3
* Power Supply:AC90--275V,50--60HZ
* Power consumption:100W
* Fixing lamp:LED 100W
* DMX-Control-channels:16/14 DMX Channels
* Shuttle:Flash rate:0--10HZ
* Dimmer:0-100% mechanic dimmer
* Long Lifespan LEDs(more than 60,000 hours)
-DMX Channel Summary-16 Channels Mode
Channel
Function
Value
Function
CH1
X axis
0-255
Pan X axis
CH2
X axis
0-255
Pan X axis Fine tuning
CH3
Y axis
0-255
Tilt Y axis
CH4
Y axis
0-255
Tilt Y axis Fine tuning
CH5
Pan and Tilt
Pan and Tilt Speed adjustment
CH6
Dimming
0-255
Total dimming
CH7
Strobe
0-255
Strobe
CH8
Light 1
0-255
Light 1 dimming
CH9
Light 2
0-255
Light 2 dimming
CH10
Light 3
0-255
Light 3 dimming
CH11
Light 4
0-255
Light 4 dimming
CH12
Color
001-127
128-191
Color selection
Color wheel rotation （Clockwise Slow to Fast）
Color wheel rotation（Anti-clockwise Slow to Fast）

4
192-255
CH13
lens
041-127
128-127
128-255
lens tuning
Lens （Clockwise Slow to Fast）
Lens（Anti-clockwise Slow to Fast）
CH14
Auto
016-044
045-074
075-104
105-128
129-157
158-255
Auto run mode 1
Auto run mode 2
Auto run mode 3
Auto run mode 4
Sound control mode
Sound control mode
CH15
sensitivity
0-255
Voice sensitivity adjustment
CH16
Reset
250-255
Reset
-DMX Channel Summary-14 Channels Mode
Channel
Function
Value
Function
CH1
X axis
0-255
Pan X axis
CH2
X axis
0-255
Pan X axis Fine tuning
CH3
Y axis
0-255
Tilt Y axis
CH4
Y axis
0-255
Tilt Y axis Fine tuning
CH5
Pan and Tilt
0-255
Pan and Tilt Speed adjustment
CH6
Dimming
0-255
Total dimming
CH7
Strobe
0-255
Strobe

5
CH8
Light 1
0-255
Light 1 dimming
CH9
Light 2
0-255
Light 2 dimming
CH10
Light 3
0-255
Light 3 dimming
CH11
Light 4
0-255
Light 4 dimming
CH12
Color
001-127
128-191
192-255
Color selection
Color wheel rotation （Clockwise Slow to Fast）
Color wheel rotation（Anti-clockwise Slow to Fast）
CH13
lens
041-127
128-127
128-255
lens tuning
Lens （Clockwise Slow to Fast）
Lens（Anti-clockwise Slow to Fast）
CH14
Reset
250-255
Reset
-Display Control Instruction
Display
Function
DMXSet
Address
001-512
Channel address code
Channel
Set
14/16
16/14 Channel control mode
Mode
Set
Slve 1
Slve2
Auto
Sound
Set Part activity
Show
Mode
Show0-3
Select light control mode
Sound
Sense
000-100
Voice sensitivity
NoDMX
Set
Blac
Auto
Sound
Run this action when there is no DMX signal access

6
Hole
Pan
Inverse
On/Off
Set PAN original position.
Tilt
Inverse
On/Off
Set TILT original position.
Fixture
Reset
Yes/No
Reset system value
