Installation of the brake lever
BR-3300
SERVICE INSTRUCTIONS
Before use‚ read these instructions carefully‚ and follow them for
correct use.
In order to realize the best performance, we recommend that
the folowing combination be used.
Brake lever
Caliper Brake
Brake cable
BR-3300
Series SORA
Caliper Brake
It is important to completely understand the
operation of your bicycle's brake system.
Improper use of your bicycle's brake system may
result in a loss of control or an accident, which
could lead to severe injury. Because each bicycle
may handle differently, be sure to learn the
proper braking technique (including brake lever
pressure and bicycle control characteristics) and
operation of your bicycle. This can be done by
consulting your professional bicycle dealer and
the bicycle's owners manual, and by practicing
your riding and braking technique.
Securely tighten the caliper brake mounting nuts
to the specified tightening torque.
Use lock nuts with nylon inserts (self-locking
nuts) for nut-type brakes.
For sunken nut type brakes, use sunken nuts of
the appropriate length which can be turned six
times or more; when re-installing, apply sealant
(locking adhesive) to the nut threads.
If the nuts become loose and the brakes fall off,
they may get caught up in the bicycle and the
bicycle may fall over. Particularly if this happens
with the front wheel, the bicycle may be thrown
forward and serious injury could result.
Obtain, read and carefully service instructions
when installing parts. A loose, worn, or damaged
parts may cause injury to the rider.
We strongly recommend that only genuine
Shimano replacement parts be used.
ST-3300 / BL-R400
SI-8BZ0A
WARNING
1
2
5 mm Allen key
Outer casing
Outer casing
Installation bolt
Inner cable end
Cable hook
Cable hook
Inner cable end
Tightening torque:
6 – 8 Nm
{52 – 69 in. lbs.}
Check to be sure
that the outer
casing has been
completely and
correctly
inserted.
Checking the
outer casing
t

1.
2.
3.
4.

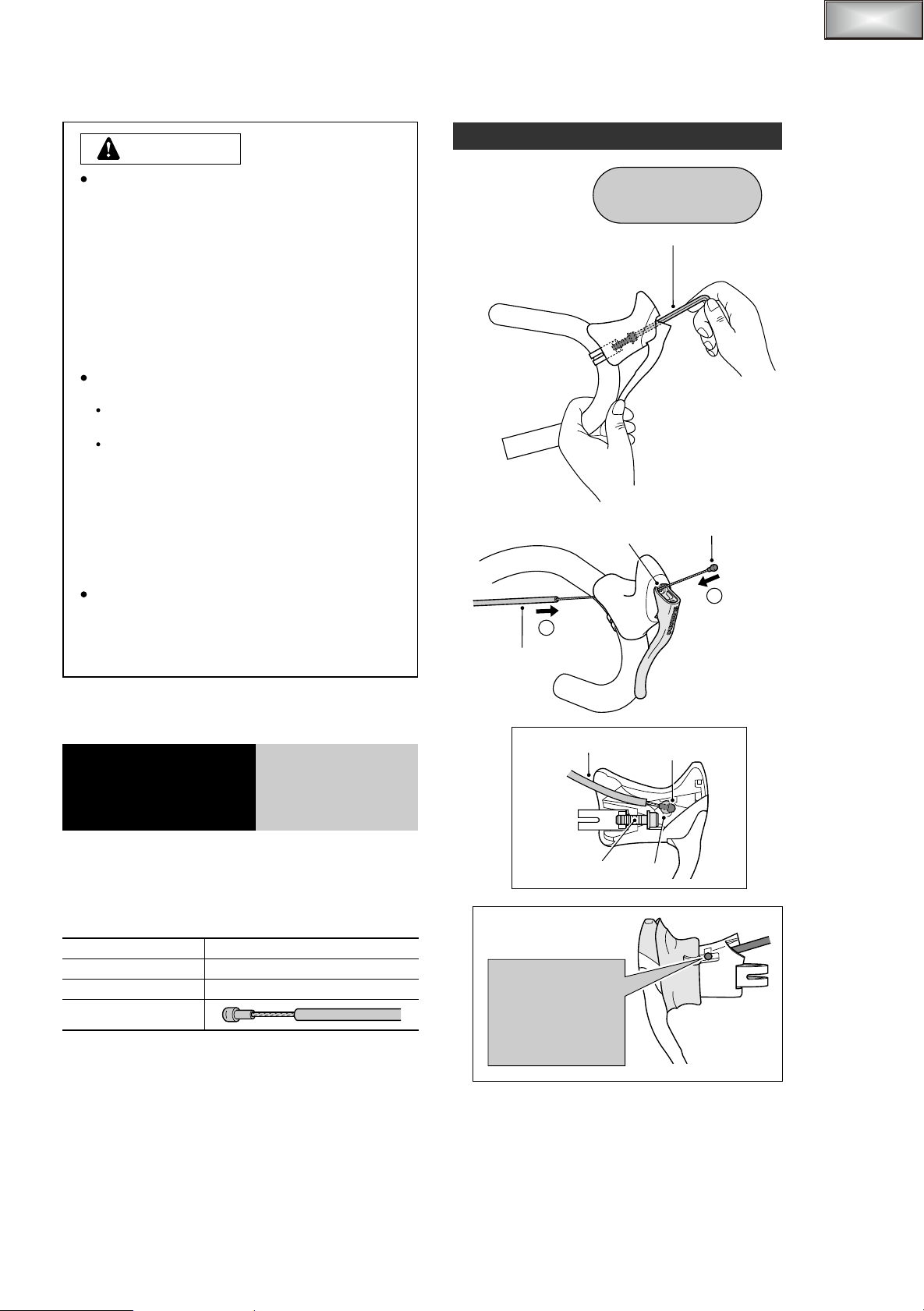

Temporarily secure the outer casing to the handlebar
(by using tape or similar material). Installation of the brake
Outer casing
Tape
A A
Then wrap the handlebar with handlebar tape.
Cut the cable at the length at which it is not pulled
tight when the handlebar is turned all the way to
the left and right.
Note:
If a squeaking noise occurs after a long period of
use, lubricate the parts.
A
FOR
WARD
1 mm or more
FOR
WARD
Installation of the brake itself
5 mm Allen key
The usual position
during installation is
when the head of the
centering adjustment
bolt is as shown in the
illustration.
Compress the arch‚ and set while the shoe is in firm
contact with the rim.
5 mm Allen key
Direction of
rim rotation
Brake shoe setting position
Tightening torque:
8 – 10 Nm
{69 – 87 in. lbs.}
Tightening torque:
5 – 7 Nm
{43 – 61 in. lbs.}

3.
4.
5.
6.
Please note: Specifications are subject to change for improvement without notice.
(English)
One Holland Irvine CA 92618 U.S.A. Phone [phone]
Industrieweg 24 NL-8071 CT Nunspeet‚ Holland Phone [phone]
3-77 Oimatsucho‚ Sakai‚ Osaka‚ Japan Phone [phone]
3
3
4
4
3
4
=
AB
+ = 3--4mm
AB
1
1
1
2
2
+ = 3--4mm
AB
=
AB
2
Set the quick lever to the closed position; then adjust the
shoe clearance (as shown in the illustration below) and
secure the cable.
Cable connection
Quick lever
Open
Closed
Centering of the brake shoe
Check
Depress about
10 times
Cable adjustment bolt
Depress the brake lever about 10 times as far as the grip
and check that everything
is operating correctly
and that the shoe
clearance is correct
before using the
brakes.
Turn the cable adjustment bolt to readjust the shoe
clearance.
Readjustment of the shoe clearance
Make a minor adjustment by using the centering
adjustment bolt.
Centering adjustment bolt
Cable bolt tightening torque:
6 – 8 Nm {52 – 69 in. lbs.}
Apr. 1999 by Shimano Inc. PIT. SZK. Printed in Malaysia
