SHINDAIWA
SPECIAL TOOLS
Effective 11/03 Item # 80821
IMPORTANT!
This Special Tool Catalog is specifically designed for viewing on our Web
site. The information described in this catalog may change without notice.
If a printed copy is made, be sure to check the Web site periodically at
www.shindaiwa.com and verify you have the most current version by
checking the part number shown at the bottom of this page.

This page left intentionally blank

Did you ever start to work on an engine and discover you needed a specially shaped tool or a specially sized tool to help
you complete your task? Did you ever not know where to find a listing of these tools, and what they did?
Now, in one convenient location, here is a catalog of Shindaiwa’s special tools. These tools are ones we offer to help you
work not only on Shindaiwa engines, but many other brands as well. We hope the illustrations and information help you
to better perform your job.
Note: Please reference the Shindaiwa Chainsaw Service Manual (part number 60654) and the Shindaiwa Grass Trim-
mers, Brushcutters and Lawn Edgers Service Manual (part number 60506) for information on engine specifications,
torque specifications, tolerances and wear limits.
Important: Please contact your distributor for current pricing information on all parts
and tools.
Caution: Always wear protective eyewear when repairing equipment.
Do you have an idea for a special tool to make your job easier?
you can write to Shindaiwa Inc. at
Shindaiwa Inc.
11975 SW Herman Road
Tualatin, Oregon 97062
or log on to www.shindaiwa.com and submit your idea in the “ask a tech.” question section.
Part numbers subject to change without notice.
1

Table of Contents
Chain Saw Tools ........................................................................................................................................................ 3
Trimmer and Brushcutter Tools ........................................................................................................................... 13
Trimmer, Brushcutter, Blower, Hedge Trimmer, Edger and Pump Tools ..................................................... 19
Miscellaneous Tools ............................................................................................................................................... 27
Hand Tools ........................................................................................................................................................... 28
Carburetor ............................................................................................................................................................ 30
Diagnostic ............................................................................................................................................................ 31
Adhesives/Lubricants ........................................................................................................................................ 33
Technical Literature ............................................................................................................................................ 35
Video ..................................................................................................................................................................... 38
Appendix................................................................................................................................................................... 38
2

CHAIN SAW TOOLS
3
Reference the Shindaiwa Chain Saw Service Manual (part number 60654) for
proper repair procedures.

300/300S, 360, 377
22154-96000
300/300S, 360, 377 Tool Set
22154-96100
22150-96600
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
4

22154-96100 FLYWHEEL PULLER ASSEMBLY EXTRACTOR, COMPLETO EXTRACTEUR, COMPLET 1
1 22154-96110 CLUTCH SHOE REMOVALTOOL EXTRACTOR EXTRACTEUR 1
2 22100-96121 CENTER BOLT PERNO BOULON 1
3 22102-96130 BOLT PERNO BOULON 2
4 22154-96410 HOLDER M SOPORTE M SUPPORT M 1
5 22154-96220 SET GAUGE CALIBRADOR DE HOJA JAUGE D’ÉPAISSEUR 1
6 22155-96521 T-WRENCH,3MM LLAVE,3MM CLÉ,3MM 1
7 22155-96531 T-WRENCH,4MM LLAVE,4MM CLÉ,4MM 1
22150-96600 PULLER M ASSEMBLY EXTRACTOR, M COMPLETO EXTRACTEUR, M COMPLET 1
8 22150-96620 BOLT (PULLER M) PERNO BOULON 1
9 22150-96610 PULLER M EXTRACTOR,M EXTRACTEUR,M 1
10 22154-96210 AIR GAP GAUGE (.012”- .014”) CALIBRADOR (.012”- .014”) JAUGE (.012”- .014”) 1
11 22155-96240 PISTON STOP,NYLON TRABADOR DE PISTON BLOQUEUR DU PISTON 1
12 22154-96460 A/V INSTALLER GUIA GUIDE 1
13 22154-96440 SEAL DRIVER INSTALADOR DE RETENEDORES POUSSOIR DE BAGUE 1
14 22154-96420 SEAL DRIVER INSTALADOR DE RETENEDORES POUSSOIR DE BAGUE 1
15 22154-96430 BEARING DRIVER INSTALADOR DE COJINETE POUSSOIR DE ROULEMENT 1
16 02301-01002 O-RING EMPAQUE,TIPO“O” JOINTTORIQUE 1
5
Index Part Number Qty.
No. Pieza No. Qty.
Indice Numero Part Name Descripción Nom de la pièce Cant.

488
22160-96000
488 Tool Set
6
1
2
3
4
56
7
8
10
11
12
13
9
22150-96101

Index Part Number Qty.
No. Pieza No. Qty.
Indice Numero Part Name Descripcion Nom de la piece Cant.
22150-96101 FLYWHEEL PULLER ASSEMBLY EXTRACTOR, COMPLETO EXTRACTEUR, COMPLET 1
1 20000-96114 LEVER PALANCA LEVIER 1
2 22100-96121 CENTER BOLT PERNO BOULON 1
3 22102-96130 BOLT PERNO BOULON 2
4 22160-96250 SPANNERWRENCH LLAVE DE GANCHO CLÉ 1
5 22150-96510 CHAIN BREAK SPRINGWRENCH LLAVE,FRENO RESORTE CL,É RESSORT DE FREIN 1
6 22160-96410 HOLDER SOPORTE SUPPORT 1
7 22155-96240 PISTON STOP,NYLON TRABADOR DE PISTON BLOQUEUR DU PISTON 1
8 22160-96440 ROD 6201 VARILLA TIGE 1
9 02301-01002 O-RING EMPAQUE,TIPO“O” JOINTTORIQUE 1
10 22155-96420 SEAL DRIVER M INSTALADOR DE RETENEDORES POUSSOIR DE BAGUE 1
11 22155-96521 T-WRENCH (3MM) LLAVE (3MM) CLÉ (3MM) 1
12 22155-96531 T-WRENCH (4MM) LLAVE (4MM) CLÉ (4MM) 1
13 22160-96210 SET GAUGE (.012”-.014”) CALIBRADOR (.012”- .014”) JAUGE (.012”- .014”) 1
7

72282-96000
575/577, 695 Tool Set
4
1
5
6
7
8
9
10
12
13
14
16
17
18
19
5
15
8
Chain Saw Tool Kit
22150-96101
3
2
11
20

22150-96101 FLYWHEEL PULLER EXTRACTOR, COMPLETO EXTRACTEUR, COMPLET 1
1 20000-96114 LEVER PALANCA LEVIER 1
2 22100-96121 CENTER BOLT PERNO BOULON 1
3 22102-96130 BOLT PERNO BOULON 2
4 22155-91580 CLUTCH SHOE TOOL EXTRACTOR EXTRACTEUR 1
5 72282-96300 PISTON PULLER SET EXTRACTOR ,PISTON EXTRACTEUR DE PISTON 1
6 22150-96440 HOLDER C SOPORTE C SUPPORT C 1
7 22150-96410 HOLDER M SOPORTE M SUPPORT M 1
8 22150-96600 PULLER ASSEMBLY M EXTRACTOR,M COMPLETO EXTRACTEUR,M COMPLET 1
9 22150-96460 COLLAR,OIL SEAL COLLAR COLLET 1
10 22150-96430 BEARING DRIVER INSTALADOR DE COJINETE POUSSOIR DE ROULEMENT 1
11 02301-01002 O-RING EMPAQUE,TIPO“O” JOINTTORIQUE 1
12 22150-96420 SEAL DRIVER M INSTALADOR DE RETENEDORES M POUSSOIR DE BAGUE M 1
13 22150-96450 SEAL DRIVER C INSTALADOR DE RETENEDORES C POUSSOIR DE BAGUE C 1
14 22155-96220 AIR GAP GAUGE CALIBRADOR JAUGE 1
15 22155-96210 SET GAUGE (.018-.020) CALIBRADOR (.018-.020) JAUGE (.018-.020) 1
16 22150-96510 CHAIN BREAK SPRINGWRENCH LLAVE,FRENO RESORTE CL,É RESSORT DE FREIN 1
17 22155-96240 PISTON STOP TRABADOR DE PISTON BLOQUEUR DU PISTON 1
18 22155-96521 T-WRENCH,3MM LLAVE (3MM) CLÉ (3MM) 1
19 22155-96531 T-WRENCH,4MM LLAVE (4MM) CLÉ (4MM) 1
20 22155-96540 T-WRENCH,5MM LLAVE (5MM) CLÉ (5MM) 1
Index Part Number Qty.
No. Pieza No. Qty.
Indice Numero Part Name Descripcion Nom de la piece Cant.
9

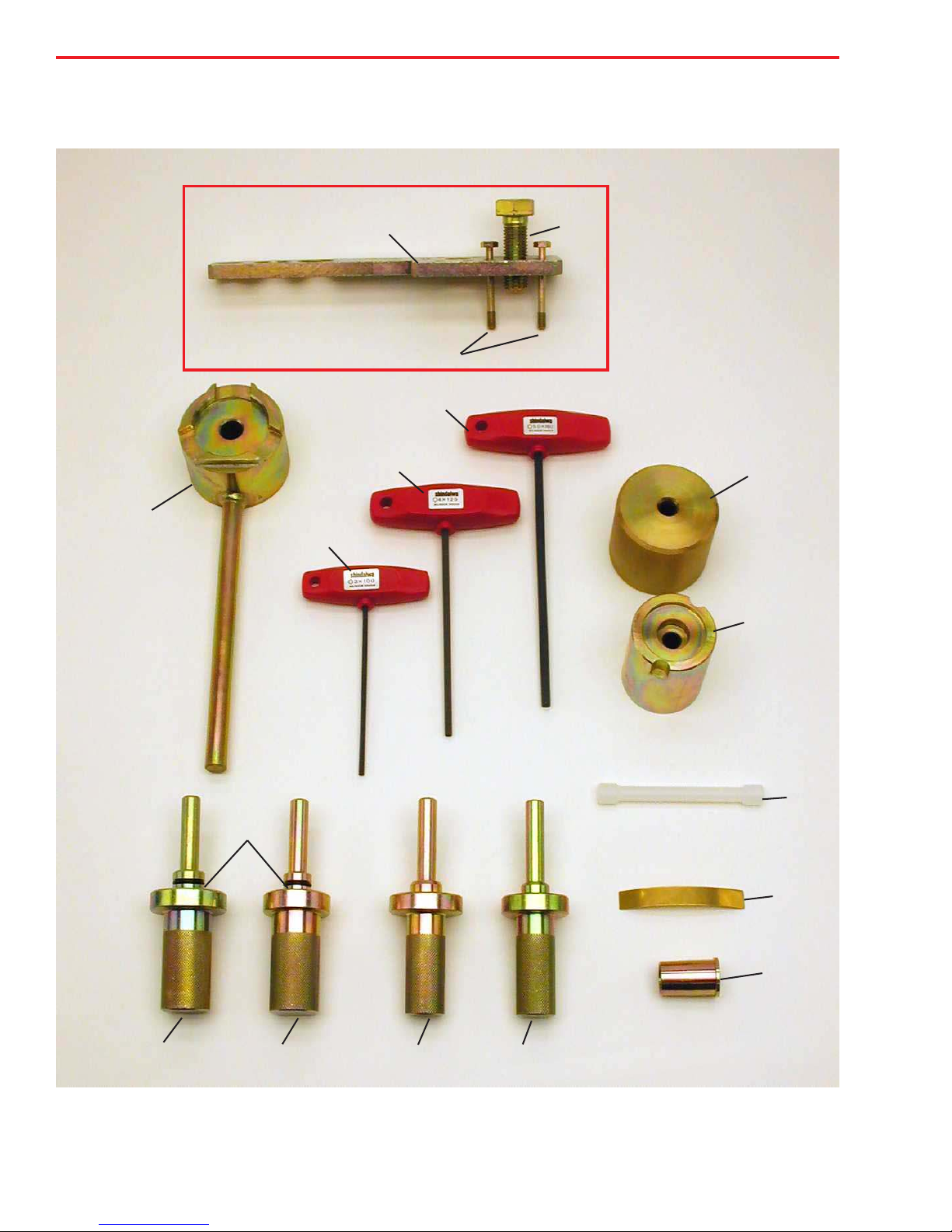

Chain Saw Tool Kit
80463
757 Tool Set
10
10
3
11 13
2
15
16
4
17
8
9
7
6
5
22150-96101
1
14
12

22150-96101 FLYWHEEL PULLER ASSY. EXTRACTOR, COMPLETO EXTRACTEUR, COMPLET 1
1 20000-96114 LEVER PALANCA LEVIER 1
2 22100-96121 CENTER BOLT PERNO BOULON 1
3 22102-96130 BOLT PERNO BOULON 2
422169-96580 CLUTCH REMOVAL TOOL EXTRACTOR EXTRACTEUR 1
522155-96521 T-WRENCH (3MM) LLAVE,3MM CLÉ,3MM 1
622155-96531 T-WRENCH (4MM) LLAVE,4MM CLÉ,4MM 1
722155-96540 T-WRENCH (5MM) LLAVE,5MM CLÉ,5MM 1
822169-96410 HOLDER,M SOPORTE M SUPPORT M 1
922169-96440 HOLDER,C SOPORTE C SUPPORT C 1
10 22169-96430 ROD 6202 VARILLA 6202 TIGE 6202 1
11 22169-96470 ROD 6203 VARILLA 6203 TIGE 6203 1
12 02301-01002 O-RING EMPAQUE,TIPO“O” JOINTTORIQUE 2
13 22169-96450 SEAL DRIVER NSTALADOR DE RETENEDORES POUSSOIR DE BAGUE 1
14 22169-96420 SEAL DRIVER NSTALADOR DE RETENEDORES POUSSOIR DE BAGUE 1
15 22155-96240 PISTON STOP,NYLON TRABADOR DE PISTON BLOQUEUR DU PISTON 1
16 22155-96220 AIR GAP GAUGE (.018-.020) CALIBRADOR (.018-.020) JAUGE (.018-.020) 1
17 22169-96460 COLLAR,OIL SEAL COLLAR COLLET 1
11
Index Part Number Qty.
No. Pieza No. Qty.
Indice Numero Part Name Descripcion Nom de la piece Cant.

Index Part Number Qty.
No. Pieza No. Qty.
Indice Numero Part Name Descripcion Nom de la piece Cant.
72282-96300 PISTON PULLER ASSY. EXTRACTOR , PISTON EXTRACTEUR DE PISTON 1
1 22155-96310 PULLER EXTRACTOR EXTRACTEUR 1
2 22155-96340 BOLT PERNO BOULON 1
3 22155-96320 BOSS REFUERZO AXE 1
4 11204-06120 SCREW SALIENTE MOYEU 2
522155-96360 GUIDE PIN PASADOR GUIDE DE L’AXE 1
622150-96360 GUIDE PIN PASADOR GUIDE DE L’AXE 1
722155-96350 PIN ADAPTER PASADOR ADAPTADOR ADAPTATEUR D’AXE 1
822150-96350 PIN ADAPTER PASADOR ADAPTADOR ADAPTATEUR D’AXE 1
451, 500, EC350
22102-96530 Set Pin 22100-96410 Stopper22102-96211 Set Gauge
Please reference the Horizontal Cylinder Chain Saw Service Manual (Part number 10065-5) for additional service related
information for these saws.
.012”-.014”
Miscellanious Chain Saw Tools
72282-96300
Piston Puller Assembly
Reference the Shindaiwa Chain Saw Service Manual (part number 60654) Section 7, for proper repair procedures.
Chain Saw Tools, All
72282-96300
12
6
3
7
8
4
2
1
5

TRIMMER & BRUSHCUTTER
TOOLS
13
Reference the Shindaiwa Trimmer, Brushcutter Service Manual (part number
60506) for proper repair procedures.

TRIMMERS & BRUSHCUTTERS
22035-96001
Lower Unit Tool Set - Small (7mm) - Fits T18, T20, T/C230, T2500, 65001
Trimmer Tool
1
2
3
4
5
6
7
8
9
TRIMMERS & BRUSHCUTTERS
80464
Lower Unit Tool Set - (8mm) - Fits T/C250*, T/C260
14
1
2
3
4
5
6
7
9
8
22035-96500 22035-96600
22420-96500 22420-96600

15
Index Part Number Qty.
No. Pieza No. Qty.
Indice Numero Part Name Descripcion Nom de la piece Cant.
22035-96500 PULLER ASSY. EXTRACTOR, COMPLETO EXTRACTEUR, COMPLET 1
122035-96520 BOLT,7MM,LH PERNO,7MM,LH BOULON,7MM,LH 1
222035-96510 HOLDER SOPORTE SUPPORT 1
22035-96600 PULLER ASSY. EXTRACTOR, COMPLETO EXTRACTEUR, COMPLET 1
3 22000-96630 NUT TUERCA ÉCROU 1
422000-96621 BOLT PERNO BOULON 1
522035-96610 HOLDER SOPORTE SUPPORT 1
622035-96310 BEARING DRIVER INSTALADOR DE COJINETE POUSSOIR DE ROULEMENT 1
722035-96210 BEARING DRIVER INSTALADOR DE COJINETE POUSSOIR DE ROULEMENT 1
822035-96410 BEARING DRIVER INSTALADOR DE COJINETE POUSSOIR DE ROULEMENT 1
922000-96101 BUSHING DRIVER* INSTALADOR DE BUJE POUSSOIR DE BAGUE 1
22420-96500 PULLER ASSY. EXTRACTOR, COMPLETO EXTRACTEUR, COMPLET 1
122000-96521 BOLT,8MM,LH PERNO,8MM,LH BOULON,8MM,LH 1
222035-96510 HOLDER SOPORTE SUPPORT 1
22420-96600 PULLER ASSY. EXTRACTOR, COMPLETO EXTRACTEUR, COMPLET 1
3 22000-96630 NUT TUERCA ÉCROU 1
422000-96621 BOLT PERNO BOULON 1
522000-96610 HOLDER SOPORTE SUPPORT 1
622420-96210 BEARING DRIVER INSTALADOR DE COJINETE POUSSOIR DE ROULEMENT 1
722420-96310 BEARING DRIVER INSTALADOR DE COJINETE POUSSOIR DE ROULEMENT 1
822420-96410 BEARING DRIVER INSTALADOR DE COJINETE POUSSOIR DE ROULEMENT 1
922000-96101 BUSHING DRIVER** NSTALADOR DE BUJE POUSSOIR DE BAGUE 1
*ForT/C250 and Lawn Edger gearcase repair procedure,please see Section 11 and SB-41 for service information
Index Part Number Qty.
No. Pieza No. Qty.
Indice Numero Part Name Descripcion Nom de la piece Cant.

TRIMMERS & BRUSHCUTTERS
22000-96003
Lower Unit Tool Set - Medium (8mm) - Fits T/C25, T/C27, T/C270, BP35, T350
1
2
3
4
5
6
7
8
9
TRIMMERS & BRUSHCUTTERS
22015-96001
Lower Unit Tool Set - Large (10mm) - Fits C35, C350, B40, B45, B450, RC45, B530
1
2
345
6
7
8
9
16
22000-96501 22000-96600
22015-96500 22015-96600

Index Part Number Qty.
No. Pieza No. Qty.
Indice Numero Part Name Descripcion Nom de la piece Cant.
22000-96501 PULLER ASSY. EXTRACTOR, COMPLETO EXTRACTEUR, COMPLET 1
1 22000-96521 BOLT,8MM,LH PERNO,8MM,LH BOULON,8MM,LH 1
2 22000-96510 HOLDER SOPORTE SUPPORT 1
22000-96600 PULLER ASSY. EXTRACTOR, COMPLETO EXTRACTEUR, COMPLET 1
3 22000-96630 NUT TUERCA ÉCROU 1
422000-96621 BOLT PERNO BOULON 1
522000-96610 HOLDER SOPORTE SUPPORT 1
622000-96210 BEARING DRIVER INSTALADOR DE COJINETE POUSSOIR DE ROULEMENT 1
722000-96310 BEARING DRIVER INSTALADOR DE COJINETE POUSSOIR DE ROULEMENT 1
822000-96410 BEARING DRIVER INSTALADOR DE COJINETE POUSSOIR DE ROULEMENT 1
922000-96101 BUSHING DRIVER** NSTALADOR DE BUJE POUSSOIR DE BAGUE 1
22015-96500 PULLER ASSY. EXTRACTOR, COMPLETO EXTRACTEUR, COMPLET 1
122015-96520 BOLT,10MM,LH PERNO,10 MM,LH BOULON,10 MM,LH 1
222015-96510 HOLDER SOPORTE SUPPORT 1
22015-96600 PULLER ASSY. EXTRACTOR, COMPLETO EXTRACTEUR, COMPLET 1
3 22000-96630 NUT TUERCA ÉCROU 1
422000-96621 BOLT PERNO BOULON 1
522015-96610 HOLDER SOPORTE SUPPORT 1
622015-96310 BEARING DRIVER INSTALADOR DE COJINETE POUSSOIR DE ROULEMENT 1
722015-96210 BEARING DRIVER INSTALADOR DE COJINETE POUSSOIR DE ROULEMENT 1
822015-96410 BEARING DRIVER INSTALADOR DE COJINETE POUSSOIR DE ROULEMENT 1
922000-96101 BUSHING DRIVER* NSTALADOR DE BUJE POUSSOIR DE BAGUE 1
17
Index Part Number Qty.
No. Pieza No. Qty.
Indice Numero Part Name Descripcion Nom de la piece Cant.

18
This page left intentionally blank
