Shinybow USA SB-5604UA User manual

SB-5604UA
ULTRA HD 4K2K
4x2 (Mirrored) HDMI Routing Switcher (4K@60Hz) w/ Audio
INSTRUCTION MANUAL
IMPORTANT WARRANTY INFORMATION.
If you remove the HDMI screw posts, you must use the provided HDMI Locking Post
replacement screws to keep the internal HDMI jack secure. Removing the HDMI
screws without installing the HDMI Locking Post replacement screws will void your
warranty.

SAFETY INFORMATION
1. To ensure the best results from this product, please read this manual and all other documentation before operating your equipment.
Retain all documentation for future reference.
2. Follow all instructions printed on unit chassis for proper operation.
3. To reduce the risk of re, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid.
4. Make sure power outlets conform to the power requirements listed on the back of the unit. Keep unit protected from rain, water and
excessive moisture.
5. Do not attempt to clean the unit with chemical solvents or aerosol cleaners, as this may damage the unit. Dust with a clean dry cloth.
6. Do not use the unit if the electrical power cord is frayed or broken. The power supply cords should be routed so that they are not
likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords and plugs, convenience
receptacles, and the point where they exit from the appliance.
7. Do not force switched or external connections in any way. They should all connect easily, without needing to be forced.
8. Always operate the unit with the AC ground wire connected to the electrical system ground. Precautions should be taken so that the
means of grounding of a piece of equipment is not defeated.
9. AC voltage must be correct and the same as that printed on the rear of the unit. Damage caused by connection to improper AC
voltage is not covered by any warranty.
10. Turn power off and disconnect unit from AC current before making connections.
11. Never hold a power switch in the “ON” position.
12. This unit should be installed in a cool dry place, away from sources of excessive heat, vibration, dust, moisture and cold. Do not use
the unit near stoves, heat registers, radiators, or other heat producing devices.
13. Do not block fan intake or exhaust ports. Do not operate equipment on a surface or in an environment which may impede the normal
ow of air around the unit, such as a bed, rug, carpet, or completely enclosed rack. If the unit is used in an extremely dusty or smoky
environment, the unit should be periodically “blown free” of foreign dust and matter.
14. To reduce the risk of electric shock, do not remove the cover. There are no user serviceable parts inside. Refer all servicing to
qualied service personnel. There are no user serviceable parts inside.
15. When moving the unit, disconnect input ports rst, then remove the power cable; nally, disconnect the interconnecting cables to
other devices.
16. Do not drive the inputs with a signal level greater than that required to drive equipment to full output.
17. The equipment power cord should be unplugged from the outlet when left unused for a long period of time.
18. Save the carton and packing material even if the equipment has arrived in good condition. Should you ever need to ship the unit,
use only the original factory packing.
19. Service Information Equipment should be serviced by qualied service personnel when:
A. The power supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the equipment.
C. The equipment has been exposed to rain.
D. The equipment does not appear to operate normally, or exhibits a marked change in performance.
E. The equipment has been dropped, or the enclosure damaged.
THIS SAFETY INFORMATION IS OF A GENERAL NATURE AND MAY BE SUPERSEDED BY INSTRUCTIONS CONTAINED WITHIN THIS MANUAL.

CONTENTS
INTRODUCTION & CONTENTS ......................................1
FEATURES ......................................................................2
SPECIFICATIONS ............................................................3
FRONT PANEL ...............................................................4
BACK PANEL ................................................................10
REMOTE CONTROL ....................................................12
EXTERNAL IR ................................................................14
ETHERNET / RS-232 SERIES CONTROLINTERFACE .15
TYPICAL APPLICATION ..............................................16
INTRODUCTION
The SB-5604UA is a professional 4x2 ULTRA HD HDMI
4K2K@60Hz Routing Switcher. HD Video supporting (4) HDMI
Inputs to (2) HDMI and (1) SPDIF Outputs. Supporting (4) Stereo
Audio, (2) Auxiliary Audio (analogue audio) and (1) Microphone
Inputs to (1) Stereo Audio (AR/AL) Output. These features can be
easily congured and controlled. Supports HD/3D/4K2K video up
to 60Hz frame rate. 6G signal supports a wide frequency range
of 25MHz ~ 600MHz (3840x2160) TMDS clock. HDMI 1.4/2.0
and CEC/HDCP 1.4/2.2 compliant, with CE/FCC and RoHS
certications. Menu function keys for control: Menu, Exit, EDID,
and Audio (Audio Breakaway). Control is provided via front panel
push buttons, IR remote, RS-232 or TCP/IP (not a web-browser).
A R-S232 Windows GUI interface is provided for switch control
(Windows only).

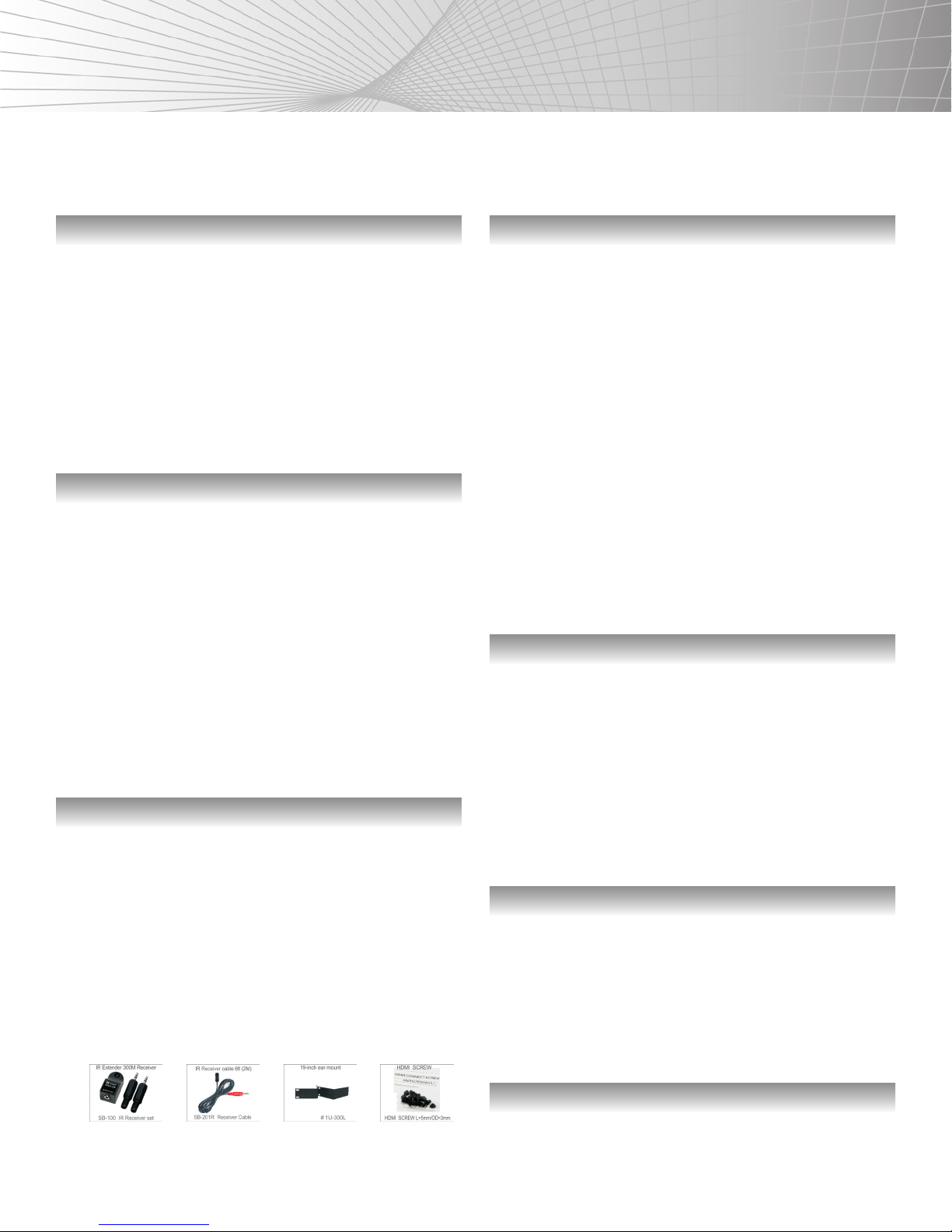

PACKAGE CONTENTS
Check that you have the following components;
• SB-5604UA Routing Switcher
• RS-232 V5604.1.0 / Ethernet V1.1.0 Protocol Instructions
• IR Remote Control (SW-5604UA)
• 19 in Ear mount bracket (Part # 1U-300L)
• SB-100 IR Extender Receiver Set
• CD Contents: Manual, Windows GUI, ISP V2.0 Windows driver
• RS-232 Cable 6.5 ft (2M)
• HDMI Locking Post Replacement Screws
• Users Guide
• Power Supply: Worldwide Universal 100~240VAC, AC 50/60Hz
• Optional:SB-100CIRExtenderReceiverCable(6.5ft(2M))
1
ULTRA HD 4K2K HDMI Switch Series
ThankyouforpurchasingtheSB-5604UA4x2HDMIroutingswitcher.Youwillndthisuniteasytoinstallandhighlyreliable
butitisessentialthatyoureadthismanualthoroughlybeforeattemptingtousethisUHDswitcher.
TABLE OF CONTENTS
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the
PSU if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. We assume no responsibility for any
infringements of patents or other rights of third parties which may
result from its use.
We assume no responsibility for any inaccuracies that may be
contained in this document. We make no commitment to update
or to keep current the information contained in this document.
We reserve the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means
— electronic, mechanical, magnetic, optical, chemical, manual,
or otherwise — without express written permission and consent.
© Copyright 2016. All Rights Reserved.
Version 1.1 SEPT 2016
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may
be trademarks of the companies with which they are associated.

FEATURES
• Switch support ULTRA HD 4x2 HDMI 4K2K@60Hz and 7x1 Audio/Microphone/Auxiliary audio.
• Inputs:
• UHD (4) In: (4) HDMI
• Audio (7) In: (4) Stereo audio, (1) Microphone and (2) Auxiliary Audio
• Outputs:
• UHD (2) Out: (1) HDMI 4K2K@60Hz, (1) HDMI 4K2K@30Hz, (1) SPDIF (5.1)
• Audio (1) Out: (1) Stereo audio (AR/AL)
• HDMI Digital Video TMDS Link speeds up to 6Gbps with a wide frequency range of 25MHz ~ 600MHz
• TMDS clock w/ embedded HDCP, DVI format, HDMI 1.4/2.0 and CEC/HDCP 1.4/2.2 compliant
• Worldwide EDID control modes for full SD/HD Audio and HD/3D/4K2K Video up to 4K2K@60Hz frame rates
• Input Video stream in RGB, YCC 4:4:4 or YCC 4:2:0 is converted to YCC 4:2:0
• Digital Audio Support: Dolby TrueHD, Dolby Digital, Dolby Digital Plug/ex, DTS, DTS-HD, DTS-HD Master, DTS-EX, PCM, PCM2,
LPCM2
• Supports ARC (Audio Return Channel) via SPDIF output port connected to a source device
• Audio Breakaway function to select Video source and another Audio, Microphone, Auxiliary audio source
• Support (1) Microphone and (2) Auxiliary Audio (Analog stereo audio) sources
• Audio output supports audio balance (0~+50) and volume control (1~100 levels) with mute audio functions
• Supports (14) worldwide control function keys: Full function front panel controls: (4) HDMI/(4) Audio/Menu/Enter/Lock/(2) AUX/MIC
• Support EDID Modes:
• a. Embedded EDID Modes: 720p/ 1080i/ 1080p/ 4K2K30Hz/ 4K2K60Hz
• b. External Modes: Learning mode
• Automatic scanning input & output status via LED display on the front panel
• Using the build-in HDMI signal booster function, the HDMI output is capable of driving cable lengths for 1080p up to 98 ft (30M) &
4K2K@60Hz up to 66 feet (20M)
• Provided IR remote control (Frequency 38KHz)
• Various User Interface Controls:
• Windows based GUI via RS-232 interface control driver for 2000/XP/WIN7-32/WIN7-64/WIN10
• Front panel push buttons
• IR wireless remote control
• Ethernet switch control
• Third party RS-232 control (via simple ASCII)
• Supports 1RU High 19” Rack Mount #1U-300L (with rack mount)
• Universal type power supply switch 100~240VAC, 50/60Hz
• The switcher will remember that last state during a power cycle.
• When power is removed and resorted, the last conguration will be invoked.
2
FEATURES
IMPORTANT WARRANTY INFORMATION.
If you remove the HDMI screw posts, you must use the provided HDMI Locking Post replacement screws to
keep the internal HDMI jack secure. Removing the HDMI screws without installing the HDMI Locking Post
replacement screws will void your warranty.
LOOK A PUPPY!! NOW READ THIS!!

SPECIFICATIONS
• Type of Switcher: (4) HDMI Inputs to (2) HDMI Outputs, (7) Audio Inputs to (1) Audio Output Box
• Inputs:
• UHD Inputs: (4) Ultra High Denition HDMI (4K2K@60Hz)
• Audio Inputs: RL/AUX/MIC (4) Stereo Audio AR/AL, (1) Microphone, (2) Auxiliary Audio (analogue audio)
• Outputs:
• UHD Output: (1) Ultra High Denition HDMI (4K2K@60Hz), (1) SPDIF (Digital Audio 5.1), (1) Ultra High Denition HDMI (4K2K@30Hz)
• Audio Output: (1) Stereo Audio AR/AL (with balance and volume control)
• HDMI/ HDCP/ CEC Support: HDMI 4K2K@60Hz, HDMI 1.4/2.0, HDCP 1.4/2.2 CEC Compliant
• Video Bandwidth: Double Data Rates: Bandwidth 25Mhz ~600Mhz, Switch total 6Gbps
• Digital Video Support:
• HD/3D/4K2K video up to 4K2K@60Hz frame rate
• Input Video stream in RGB, YCC 4:4:4 or YCC 4:2:0 is converted to YCC 4:2:0
• Digital Audio Support: HDMI Multi Audio Formats 5.1 / 7.1, MAT(MLP), Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS, DTS-
ES 6CH, DTS-HD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
• (7) EDID Management Functions:
• 1. Embedded EDID Modes: (1): 720p, (2): 1080i, (3): 1080p, (4): 4K2K@30Hz, (5): 4K2K@60Hz (UHD)
• 2. Select LEARNING Mode: Learning Destination EDID to Link Source
• SPDIF Audio Support: External HDMI Audio via SPDIF output
• Source Status: Input status LEDs indicates presence of a live signal
• IR External Distance: ~984 feet / 300M maximum
• Audio Breakaway: Output selects different Video or Audio functions from separate sources
• (14) Function Control Keys: HDMI source (1 thru 4), Audio source (1 thru 4), Menu, Lock, Enter, (2) AUX, MIC
• Switch Controls:
• Select & Function buttons on front panel (Data status via LCM panel show out)
• IR Remote Control (switch control)
• IR External port (switch control via 3.5mm OD Jack)
• RS-232 series interface (switch control)
• Ethernet series interface (switch control)
• HDMI Signal Booster: Distance for 1080p up to 98 ft (30M), 4K2K@60Hz up to 66 ft (20M)
• Infrared Frequency: 38Khz
• Firmware Update: Firmware update via RS-232
• HDMI I/O Connector: HDMI Type A - SMD 19pin female type
• Temperature: Operating Temperature 32°F - 100°F (0°C - 32°C)
• Rack Mount: 19 in 1U High Rack Mount bracket (P/N: 1U-300L)
• Dimensions (LxWxH): 11.96 x 5.91 x 1.73 in (304x150x44mm)
• Power Supply: AC 100~240VAC 50/60Hz (Universal type supply)
• Safety Approvals: CE, FCC, REACH
• Product Weight: 1.75 Kgs / 3.85 lb
As product improvements are continuous, specications are subject to change and without notice.
3
SPECIFICATIONS

4
FRONT PANEL
1. POWER SWITCH: The power switch turns the unit on and off. The LED will illuminate blue to indicate that the switcher is ON and
is receiving power. The switcher will remember that last state during a power cycle. When power is removed and resorted, the last
conguration will be evoked.
2. STATUS DISPLAY: Front panel status display shows current routing conguration. This same display also shows particular conguration
settings depending on your current function. In run mode (as shown above), the display shows each Output (destination) channel and
which input (source) is assigned.
3. VOLUME CONTROL BUTTON: Press VR button to adjust Audio output (AR/AL) volume control.
4. IR SENSOR: The IR sensor receives IR commands from the supplied remote control or third party IR emitter.
5. INPUTS STATUS DISPLAY: Input sources 1 to 4 LEDs illuminates blue to indicate that a video source is present on that input.
6. HDMI SOURCE SELECT BUTTONS: Separate HDMI Inputs 1 thru 4 select buttons are provided for each source selection and UP/DOWN/
RIGHT/LEFT control when you press the MENU button.
7. (4) AUDIO & (2) AUXILIARY AUDIO SOURCE SELECT BUTTONS: (4) Stereo Audio (R/L), (2) Auxiliary Audio & (1) Microphone select buttons
are provided each source selection.
8. MICROPHONE SOURCE SELECT BUTTON: One Microphone Audio select button is provided.
9. 19 INCH EAR MOUNT PAIR: Converts desktop to 19 inch rack mount. Bracket (part number: 1U-304L) INCLUDED. Image shows rack
mount bracket attached.
FRONT PANEL - FUNCTION KEYS

5
FRONT PANEL - SWITCH
10. FUNCTION KEY - SW:
HDMI Source Table: Audio Source Table: Auxiliary & Microphone Source Table:
Input-1 - HDMI (HD1) Input-1 - Audio (AUD1) Input-1 - Auxiliary Audio source - (AUX1)
Input-2 - HDMI (HD2) Input-2 - Audio (AUD2) Input-2 - Auxiliary Audio source - (AUX2)
Input-3 - HDMI (HD3) Input-3 - Audio (AUD3) Input-3 - Microphone source - (MIC)
Input-4 - HDMI (HD4) Input-4 - Audio (AUD4)
ToenabletheSWITCHoptiononaspecicOutput,performthefollowingsteps:
1. On the HDMI Source row, press HDMI 1 THRU 4 (the buttons will illuminate momentarily).
The new conguration will take effect. Press either function keys HDMI or AUDIO source to cancel the operation.
How to select the HDMI & AUDIO Input source:
To enable the SWITCH option on a specic HDMI and Audio output, perform the following steps:
1. Press HDMI 1 THRU 4 buttons. The screen will return to HDMI switch status.
2. On the Audio source row press AUDIO 1 THRU 4, AUXILIARY AUDIO 1 THRU 2 or the MICROPHONE button row (the button will
illuminate momentarily).
The new conguration will take effect. Press either function keys HDMI or AUDIO source to cancel the operation.
Example:
Select SW function:
1. Press HD1, HD2, HD3 or HD4 buttons to select the video HDMI source on the source row (the button will illuminate).
2. Press AUD1, AUD2, AUD3, AUD4, AUX1, AUX2 or MIC buttons for select the AUDIO source on the Audio source row.
Select only (1) VIDEO source and (1) AUDIO source output while using switch function.
FRONT PANEL - SWITCH

6
FRONT PANEL - FUNCTION KEY - MENU
11. FUNCTION KEY - MENU (SETUP EDID):
MENU mode to adjust the EDID, Projector On/Off, Learning modes & Reset status.
Congure desired matrices.
1. Press the MENU button. The LCM display will show the current status.
2. Press the UP / DOWN buttons to select 1.EDID mode (the button will illuminate) or press the MENU button to cancel the operation.
Presets are stored in local EDID using the MENU button.
3. Press the LEFT / RIGHT buttons, to cycle thru the EDID Embedded modes or press the MENU button to cancel the operation.
4. Press ENTER. The new conguration will be stored. Press MENU again or press EXIT to cancel the operation.
Operation completes.
FRONT PANEL - MENU (Setup EDID)
ADJUSTING LIST:
1. EDID
2. Projector
3. LRN-M2 (Second Learning Mode)
4. RESET
1. EDID
- 720p-60 1280x720
- 1080i-60 1920x1080
- 1080p-60 1920x1080
- 4K2K-30 3860x2160
- 4K2K-60 3860x2160
- LRN (Learning Output-1 EDID)

7
FRONT PANEL-FUNCTION KEY - MENU
11. FUNCTION KEY - MENU (PROJECTOR):
MENU mode to adjust the EDID, Projector, Learning M2 modes & Reset status.
Congure desired matrices.
1. Press the MENU button. The LCM display will display on current status.
2. Press the UP / DOWN buttons, to select 2.PROJECTOR mode (the button will illuminate) or press MENU to cancel the operation.
3. Press the LEFT / RIGHT buttons, to cycle thru the PROJECTOR SEND RS-232 protocol commands, or press MENU to cancel the
operation.
FUNCTION COMMAND RESPONSE
Projector ON PRJCMD 0x”user dene” PRJCMD 0x#OK;
FUNCTION COMMAND RESPONSE
Projector OFF PRJCMD 1x”user dene” PRJCMD 1x#OK;
4. Press ENTER. The new conguration will be stored.
Operation completes.
FRONT PANEL - MENU (AUDIO BREAKAWAY)
ADJUSTING LIST:
1. EDID
2. Projector
3. LRN-M2 (Second Learning mode)
4. RESET
COMMAND NOTES:
1. User dened is a total 14 bytes
2. X: Baud Rate (Range 0-3). User dened
commands are different for different brands of
projectors.
3. Projector Baud Rate:
0: 9600
1: 19200
2: 38400
3: 115200

8
FRONT PANEL-FUNCTION KEY - MENU
11. FUNCTION KEY - MENU (LRN-M2):
MENU mode to adjust the EDID, Projector, Learning M2 (Second Learning Mode) & Reset status.
Congure desired matrices.
1. Press the MENU button. The LCM display will display on current status.
2. Press the UP / DOWN (1 or 2) buttons, to select 3.LRN-M2 mode (the button will illuminate) or press MENU to cancel the operation.
Presets are stored in the local LRN-M2, by pressing the MENU button.
3. Press the LEFT / RIGHT (3 or 4) buttons, to cycle thru LRN-M2 to turn ON or OFF or press MENU to cancel the operation.
4. Press ENTER. The new conguration will be stored. Operation completes.
NOTE: When the Source has “Learned” the EDID data from a destination, it will save that EDID information into EPROM and the
EDID data will not change. To change a saved HDMI EDID, you have to select a new LEARNING destination to source or Disable the
LEARNING.
FRONT PANEL - (LRN-M2)
ADJUSTING LIST:
1. EDID
2. Projector
3. LRN-M2 (Second Learning mode)
4. RESET

9
FRONT PANEL-FUNCTION KEY - MENU/LOCK
11. FUNCTION KEY - MENU (SETUP RESET):
MENU mode to adjust the EDID, Projector, Learning M2 modes & Reset status.
Congure desired matrices.
1. Press the MENU button. The LCM display will display on current status.
2. Press the UP / DOWN buttons, to select 4.RESET mode (the button will illuminate) or press MENU to cancel the operation. Presets
are stored in the local RESET, by pressing the MENU button.
3. Press ENTER. The new conguration will be stored. The LCM display will show the SYSTEM RESET status.
Press MENU to cancel the operation.
Operation completes.
12. FUNCTION KEY - LOCK:
1. Press “Lock” Key to turn On or Off the connected projector.
2. The operation will take effect after the set up of the RS-232 protocol for turning On or Off the projector.
FRONT PANEL - MENU (RESET) / LOCK
ADJUSTING LIST:
1. EDID
2. Projector
3. LRN-M2 (Second Learning mode)
4. RESET

10
REAR PANEL
REAR PANEL - CONTROLS
1. DC POWER INLET: The switcher is tted with a DC power plug
input connector. Ensure that it is of an approved type and is of
sufcient current carrying connector capacity with the correct
voltage and connector polarity. 100~240Volt AC, 50/60Hz power
supply.
2. IR EXTENDER CONTROL: Supports one IR Extender. Extends a
maximum distance of up to ~984 feet/300M. When you plug the
external IR extender into the switcher, the front panel IR receiver
remains active.
3. PROJECTOR RS-232 CONNECTION: The projector’s RS-232 control
port allows for interfacing to a PC, such as a computer or touch
panel control, to the switcher via the DB-9pin female connector
for serial RS-232 control.
4. ETHERNET CONNECTION: ETHERNET control port allows for
TCP/IP interfacing to a PC, such as a computer or touch panel
control (not a web-browser), to the switcher via the RJ-45 female
connector to control switcher.
5. SWITCH RS-232 CONNECTION: The switcher’s RS-232 control
port allows for interfacing to a PC, such as a computer or touch
panel control, to the switcher via the DB-9pin female connector
for serial RS-232 control.
POWER SOCKET: Connector Type: IEC 60320 C13
IR EXTENDER JACK: Female Jack - inner OD Ø 3.5mm
REMOTE PORT: DB-9pin female connector
REMOTE PORT: Control the switcher RJ-45 female
connector
ETHERNET PORT:
Note: The Ethernet port and RS-232 port cannot
be used simultaneously. Any connection to the
Ethernet port will disable serial commands sent
to the RS-232 port.
This port also for Firmware updates
REMOTE PORT: DB-9pin female connector

11
REAR PANEL
REAR PANEL - I/O DEFINITIONS
6. (2) AUX INPUTS (Auxiliary Audio): Connects a Stereo/Auxiliary
AUDIO signal direct to the 3.5mm OD female jack. This jack
supports Auxiliary/Analog/Stereo Audio sources.
Audio: The auxiliary audio (Analog Stereo Audio).
7. (4) AUDIO INPUTS (Stereo Audio): Connects a Stereo Audio
input signal to the connector.
8. AUDIO OUTPUT (Stereo Audio): Connects a Stereo Audio output
signal to the connector.
9. (4) HDMI INPUTS: Connects a HDMI signal to the HDMI female
connector, which supports HDMI digital video and audio to a
HDMI display. If you remove the HDMI screw posts, you must
use the provided HDMI Locking Post replacement screws to
keep the internal HDMI jack secure. Removing the HDMI screws
without installing the HDMI Locking Post replacement screws will
void your warranty.
10. UHD 4K@60Hz HDMI OUTPUT-1: Connects a HDMI digital video/
audio signal direct to the female HDMI connector. If you remove
the HDMI screw posts, you must use the provided HDMI Locking
Post replacement screws to keep the internal HDMI jack secure.
Removing the HDMI screws without installing the HDMI Locking
Post replacement screws will void your warranty.
11. UHD 4K@30Hz HDMI OUTPUT-2: Connects a HDMI digital video/
audio signal direct to the female HDMI connector. If you remove
the HDMI screw posts, you must use the provided HDMI Locking
Post replacement screws to keep the internal HDMI jack secure.
Removing the HDMI screws without installing the HDMI Locking
Post replacement screws will void your warranty.
12. SPDIF OUTPUT: Connects a digital Audio (SPDIF) output signal
to the connector.
AUX CONNECTOR: OD Ø 3.5mm phone jack female
socket connector
Note: With the proper adapters, the switcher can
be used with Auxiliary Audio input signals.
Audio via (1) female RCA connector
Audio via (1) female RCA connector
HDMI digital video and audio female connector
HDMI digital video and audio female connector
HDMI digital video and audio female connector
Digital Audio SPDIF via (1) female RCA connector

12
Beforemakinganyconnectionstotheswitcher,observethefollowing:
• Ensure the main voltage supply matches the label on the supplied plug-pack (+/-10%).
• Ensure that the power switch is OFF.
• Ensure that all system grounds (earth) are connected to a common point.
• Avoid powering equipment within a system from multiple power sources that may be separated by large distances.
• Connect all audio video sources and destination equipment.
• Power up all source and destination audio-visual sources.
• To yield video/audio to an output, select the input source by using the front panel input buttons, the supplied IR remote control, or through
the RS-232 serial communication port.
• Upon power up the switcher will return to its last used setting before being powered down.
REMOTE CONTROL
IR REMOTE CONTROL KEY:
1. /2. POWER ON AND OFF: Turns on or off the scaler
3./4./5./6. HDMI SOURCES: HDMI-1, HDMI-2, HDMI-3, HDMI-4
7./8./9./10. AUDIO SOURCE: Audio-1, Audio-2, Audio-3, Audio-4
11./12./13./14. AUDIO SOURCE: Auxiliary and Microphone, Mute buttons
15./16./17./18. CONTROL KEYS: Up, Down, Right, Left
19./20/21. CONTROL KEYS: Menu, Lock, EDID, Enter buttons
22./23. Audio Volume control buttons
REMOTE CONTROL

13
IR REMOTE CUSTOM AND DATA CODES (NEC Standard)
HOW TO SETUP IR CODES: CUSTOM CODE: 6F 90
IR REMOTE: SW-5604UA
POWER ON: 6F90 A15E MUTE: 6F90 9E61
POWER OFF: 6F90 A25D UP: 6F90 A758
HDMI Source: DOWN: 6F90 A857
HDMI-1: 6F90 01FE LEFT: 6F90 A956
HDMI-2: 6F90 02FD RIGHT: 6F90 AA55
HDMI-3: 6F90 03FC MENU: 6F90 A55A
HDMI-4: 6F90 04FB LOCK: 6F90 B54A
Audio Source: EDID: 6F90 B748
Audio-1: 6F90 ED12 ENTER: 6F90 B34C
Audio-2: 6F90 EE11 Volume:
Audio-3: 6F90 D22D (-): 6F90 BE41
Audio-4: 6F90 D32C (+): 6F90 BD42
AUX-1: 6F90 B04F
AUX-2: 6F90 B14E
Microphone: 6F90 9F60
Example 1:
Select input HDMI-1
The IR Data Code: 6F90 01FE
Example 2:
MENU -> MOVE UP -> MOVE DOWN to next layer -> ENTER to conrm the selection.
The IR Data Code: 6F90 AA55 6F90 A758 6F90 A857 6F90 B347
REMOTE PROTOCOL COMMANDS

Note:
The External IR jack has voltage on the “Ring” portion of a 3-conductor plug. You must use a 3-conductor plug (aka: stereo plug).
Using a 2-conductor plug will short out the power supply. Always make connections with the switcher power off.
*** When you plug the External IR extender into the switcher, the front panel IR receiver remains active. ***
SB-100 IR Receiver Set
IR Receiver Cable 6ft (2M)
SB-201R Receiver Cable
1. SB-100 IR 300M Receiver Switcher IR EXT. In Cable (3C) IR Receiver (SB-100)
2. SB-201R IR 2M Receiver Switcher IR EXT. In Cable (2C) IR Receiver (SB-201R)
VCC (Ring)
Signal (center)
GND (Sleeve)
Tip Ring
Sleeve
Tip: Signal
Ring: VCC
Sleeve: GND
Ring
Tip (center)
Sleeve
SB-100 IR Receiver Set
Pin configuration for SB-201R IR Receiver 6 feet (2M) cable.
IR Receiver Cable 6ft (2M)
SB-201R IR Receiver Cable
Signal (center)
GND (Sleeve)
Tip Ring
Sleeve
Tip: Signal
Ring: NC
Sleeve: GND
Ring
Tip (center)
Sleeve
The SB-100 IR Receiver is required when using the port “ALL In” Jack.
SB-201R DISTANCE 6 feet (2M)
R o H S /9 5 /E C
IR EXT
RS-232
R S -23 2 IR E X T. in
POWE R
INPU T - 1
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
HDMI MATRIX SW IT CHE R
ONOFF
INPUT -2
INPUT -3
INPUT-4
SW IR
Distance: Max.(2M)
IR PN#: SB-XXXX
Control Switch SB-XXXX
IN P UT
DC 1 2V
R o H S /9 5 /E C
IR EXT .
RS -232
R S -23 2 IR E X T. in
ANI-100
IR Rx
POWE R
INPU T - 1
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
HDMI MATRIX SW IT CHE R
ONOFF
INPUT -2
INPUT -3
INPUT-4
SW IR
Distance: Max.300M
IR PN#: SB-XXXX
Control Switch SB-XXXX
SB-100 Maximum Distance ~ 984 feet (300M)
SB-100 Receiver and SB-101 Transmitter. Maximum distance ~ 984 feet (300M)
SB-201R Receiver Cable and SB-201T Transmitter Cable. Maximum distance 6 feet (2M)
IR EXTENDER PACKAGE:
HOW TO SETUP THE IR EXTENDER RECEIVER COMPONENTS
Pin configuration for SB-100 IR ~984 feet (300M) Extender Receiver
IR EXTENDER
14
IR EXTENDER

NOTE:
Controls the switcher
SPD: Speed
LINK: Ethernet link
RJ-45 Female 8P-8 Connector
ETHERNET SERIAL INTERFACE CONNECTS A PC OR CONTROL SYSTEM. VERSION COMPATIBLE V5604.1.0
RS-232 SERIAL INTERFACE CONNECTS A PC OR CONTROL SYSTEM. VERSION COMPATIBLE V5604.1.0
For a complete list of commands, please reference external document extended Ethernet / RS-232 Protocol Instruction Manual.
FUNCTION COMMAND VARIABLES
Select source Source xxx; xxx = Input Channel (001=Source1, 002=Source2.etc)
COMMAND EXAMPLE RESPONSE DESCRIPTION
Source 001; Source 001#ok; Select source number 1
ETHERNET SERIAL INTERFACE
Pin Ethernet Reference
1 TXOP TX +
2 TXON TX -
3 RXIP RX +
4 NC
5 NC
6 RXIN RX -
7 NC
8 GND
ETHERNET TCP/IP PROTOCOL COMMANDS ( ETHERNET / RS-232 CONTROL DRIVER V.36.1.0)
*** The Ethernet port and RS-232 port cannot be used simultaneously. Any connection to the Ethernet Control port will disable
serial commands sent to the RS-232 port.***
RS-232Conguration
RS-232 cable is a straight thru cable and not null-modem
Denition Pin Pin Denition
1 1 DCD
TX 2 2 RX
RX 3 3 TX
4 4 DTR
GND 5 5 GND
6 6 DSR
7 7 RTS
8 8 CTS
9 9 RI
RS-232
RS-232 Pin Diagram
RS-232 SERIAL INTERFACE PROTOCOL COMMANDS
The Shinybow switcher can be controlled via the RS-232 serial control port to allow for interfacing to a PC or similar third party control
system.
The serial communication parameters are 9600 baud, 8 bit, No Parity and 1 stop bit - this is often referred to as 9600 8N1. When the unit
recognizes a complete command it will perform the requested action - there is no delimiter character required.
15
ETHERNET & RS-232 SERIAL INTERFACE
PC
Shinybow
Device

INSTALLING DIAGRAM
Sample Connection:
1. Using IR External, RS-232 or Ethernet commands to control the SB-5604UA via a PC and the SB-100 IR receiver to transmit to the
SB-5604UA’s IR signal.
2. Using RS-232 series interface to control a projector via the SB-5604UA’s commands with a PC.
NOTE:
1. Switcher IR External Port: Use SB-100 IR signal Receiver.
2. Control Switch via a PC RS-232.
3. Control Switch via a PC Ethernet.
4. Control Projector via the SB-5604UA’s RS-232 series port.
Controls:
1. Switcher Controls support RS-232, IR Remote and Ethernet.
2. Projector Control via extra RS-232 series interface.
16
TYPICAL APPLICATION - 1 SWITCHER CONTROLS

INSTALLING DIAGRAM
Sample Connection:
Using (4) UHD 4K@60Hz HDMI sources switched to (2) UHD 4K2K@60Hz/4K2K@30Hz HDMI destinations with one SPDIF HDMI Audio
output.
NOTE:
1. (4) UHD 4K2K@60Hz Sources supported.
2. (1) UHD 4K2K@60Hz output.
3. (1) UHD 4K2K@30Hz output.
4. (1) SPDIF Digital Audio output
Application (2) UHD 4K@60Hz HDMI display TVs with SPDIF output.
17
TYPICAL APPLICATION - 2 HDMI I/O & SPDIF OUTPUT

INSTALLING DIAGRAM
Sample Connection:
Using (4) Stereo Audio (AR/AL), (2) Auxiliary Audio and (1) Microphone for a total of (7) Audio Source Inputs with Audio Volume control,
(1) Stereo Audio (AR/AL) Output.
NOTE:
1. (4) Stereo Audio source devices.
2. (2) Auxiliary audio source devices.
3. (1) Microphone source.
4. (1) Stereo Audio output.
Application: (4) Stereo Audio, (2) Auxiliary audio and (1) Microphone source with (1) Stereo Audio output.
18
TYPICAL APPLICATION - AUDIO SWITCH I/O
