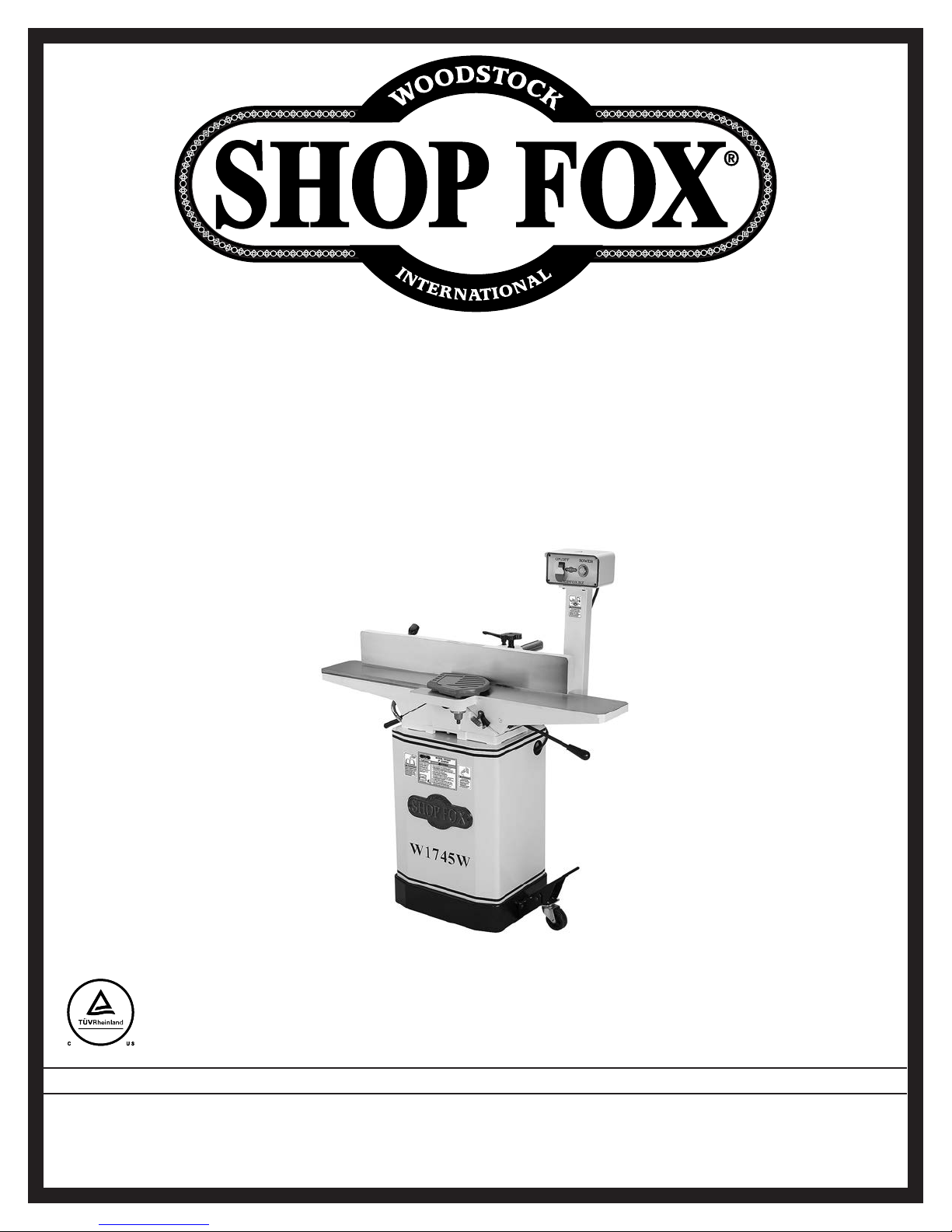

Shop fox W1745W User manual

OWNER'S MANUAL
(FOR MODELS MANUFACTURED SINCE 9/16)
MODEL W1745W
6" JOINTER
W/MOBILE BASE
Phone: [phone] • Online Technical Support: [email protected]
COPYRIGHT © FEBRUARY, 2016 BY WOODSTOCK INTERNATIONAL, INC. REVISED SEPTEMBER, 2016 (WK)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
#17784JH Printed in ChinaV2.09.16

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.
Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.
The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre-
hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.
The manufacturer will not be held liable for injury or property
damage from negligence, improper training, machine modifications or
misuse.
Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State of
California to cause cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement and other masonry products.
• Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip-
ment, such as those dust masks that are specially designed to filter
out microscopic particles.

SET UPELECTRICAL MAINTENANCE SERVICE
OPERATIONSSAFETYINTRODUCTION
USE THE QUICK GUIDE PAGE LABELS TO SEARCH OUT INFORMATION FAST!
INTRODUCTION .....................................2
Contact Info....................................... 2
Manual Accuracy.................................. 2
Machine Specifications .....................................3
Identification ..................................... 6
Controls & Components ......................... 7
SAFETY ...............................................8
Standard Machinery Safety Instructions ...... 8
Additional Safety for Jointers................ 10
ELECTRICAL ....................................... 11
Circuit Requirements .......................... 11
Grounding Requirements...................... 12
Extension Cords ................................ 12
SETUP............................................... 13
Unpacking ....................................... 13
Items Needed for Setup....................... 13
Inventory ........................................ 14
Cleaning Machine............................... 15
Machine Placement ............................ 16
Assembly......................................... 17
Dust Collection ................................. 24
Setting Outfeed Table Height ................ 25
Test Run.......................................... 26
Recommended Adjustments .................. 27
Tightening V-Belt ............................... 27
OPERATIONS....................................... 28
General .......................................... 28
Operation Overview ........................... 28
Stock Inspection & Requirements ........... 29
Setting Depth of Cut........................... 30
Squaring Stock .................................. 31
Surface Planing ................................. 32
Edge Jointing ................................... 33
Bevel Cutting ................................... 34
Rabbet Cutting ................................. 35
ACCESSORIES ...................................... 36
Jointer Accessories............................. 36
MAINTENANCE .................................... 37
General .......................................... 37
Cleaning & Protecting ......................... 37
Lubrication ...................................... 38
SERVICE ............................................ 39
General .......................................... 39
Inspecting Knives ............................... 39
Adjusting/Replacing Knives................... 40
Setting Fence Stops............................ 42
Adjusting Gibs .................................. 44
Calibrating Depth-of-Cut Scale .............. 45
Tensioning/Replacing V-Belts................. 46
Check/Adjusting Table Parallelism .......... 47
Troubleshooting................................. 49
Electrical Safety Instructions................. 51
Wiring Diagram ................................. 52
PARTS............................................... 53
Base Cabinet & Motor ......................... 53
Jointer Tables & Parts List.................... 55
Cutterhead & Parts List ....................... 56
Fence and Parts List ........................... 57
Labels & Cosmetics ............................ 58
Warranty ........................................... 61
Contents

-2-
Model W1745W (For Machines Mfd. Since 9/16)
INTRODUCTION
INTRODUCTION
Manual Accuracy
We are committed to customer satisfaction. If
you have any questions or need help, use the
information below to contact us.
IMPORTANT: Before contacting, please get the
original purchase receipt, serial number, and
manufacture date of your machine. This infor-
mation is required for all Technical Support
calls and it will help us help you faster.
Woodstock International Technical Support
Phone: [phone]
Email: [email protected]
We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.
Technical Documentation Manager
P.O. Box 2309
Bellingham, WA 98227
Email: [email protected]
Contact Info
We are proud to provide a high-quality owner’s
manual with your new machine!
We
made every effort to be exact with
the
instructions, specifications, drawings, and pho-
tographs contained inside. Sometimes we make
mistakes, but our policy of continuous improve-
ment
also means that sometimes the
machine
you receive will be slightly different than what
is shown in the manual
.
If you find this to be the case, and the difference
between the manual and machine leaves you
confused about a procedure
,
check our website
for an updated version. W
e post current
manuals
and
manual updates for free
on our website at
www.
woodstockint.com.

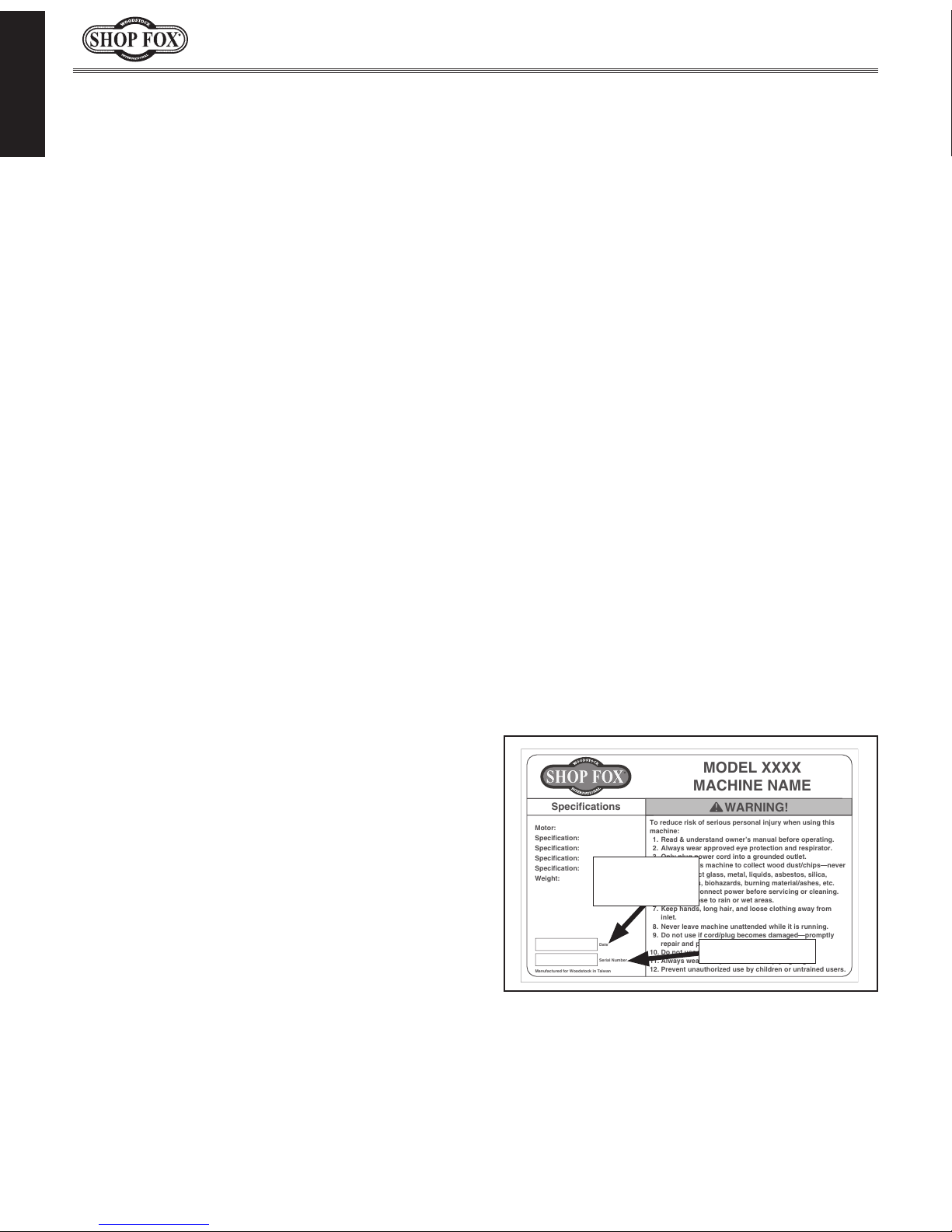

Alternatively, you can call our Technical Support
for help. Before calling, make sure you write
down the
Manufacture Date and Serial Number
from the machine ID label (see below). Also, if
available, have a copy of your original purchase
receipt on hand. This information is required for
all Tech Support calls.
MODEL XXXX
MACHINE NAME
Motor:
Specification:
Specification:
Specification:
Specification:
Weight:
Specifications
To reduce risk of serious personal injury when using this
machine:
1. Read & understand owner’s manual before operating.
2. Always wear approved eye protection and respirator.
3. Only plug power cord into a grounded outlet.
4. Only use this machine to collect wood dust/chips—never
use to collect glass, metal, liquids, asbestos, silica,
animal parts, biohazards, burning material/ashes, etc.
5. Always disconnect power before servicing or cleaning.
6. Do not expose to rain or wet areas.
7. Keep hands, long hair, and loose clothing away from
inlet.
8. Never leave machine unattended while it is running.
9. Do not use if cord/plug becomes damaged—promptly
repair and protect cord from future damage.
10. Do not use without dust bag or filters in place.
11. Always wear a respirator when emptying bags.
12. Prevent unauthorized use by children or untrained users.
Date
Serial Number
Manufactured for Woodstock in Taiwan
WARNING!
Manufacture
Date
Serial Number

-3-
Model W1745W (For Machines Mfd. Since 9/16)
INTRODUCTION
Machine Specifications
Model W1745W Machine Specifications, Page 1 of 3
MODEL W1745W
6" JOINTER WITH MOBILE BASE
Product Dimensions
Weight.......................................................................................................... 269 lbs.
Width (side‐to‐side) x Depth (front‐to‐back) x Height.............................. 46‐1/2 x 28‐1/2 x 51 in.
Footprint (Length x Width)......................................................................... 23‐1/2 x 15 in.
Shipping Dimensions
Carton #1
Type............................................................................................. Cardboard Box
Content................................................................................................. Machine
Weight................................................................................................... 189 lbs.
Length x Width x Height..................................................................... 53 x 21 x 15 in.
Carton #2
Type............................................................................................. Cardboard Box
Content.................................................................................................... Stand
Weight.................................................................................................... 99 lbs.
Length x Width x Height..................................................................... 21 x 17 x 29 in.
Electrical
Power Requirement.................................................................... 120V, Single‐Phase, 60 Hz
Full‐Load Current Rating......................................................................................... 12A
Minimum Circuit Size............................................................................................. 15A
Connection Type......................................................................................... Cord & Plug
Power Cord Included.............................................................................................. Yes
Power Cord Length............................................................................................... 6 ft.
Power Cord Gauge............................................................................................ 14 AWG
Plug Included....................................................................................................... Yes
Included Plug Type............................................................................................... 5‐15
Switch Type............................................................ Paddle Safety Switch w/Removable Key
Motors
Main
Type......................................................................... TEFC Capacitor‐Start Induction
Horsepower................................................................................................. 1 HP
Phase.............................................................................................. Single‐Phase
Amps.......................................................................................................... 12A
Speed.................................................................................................. 3450 RPM
Power Transfer ................................................................................... V‐Belt Drive
Bearings................................................................. Sealed & Permanently Lubricated

-4-
Model W1745W (For Machines Mfd. Since 9/16)
INTRODUCTION
Model W1745W Machine Specifications, Page 2 of 3
Main Specifications
Main Specifications
Bevel Jointing................................................................................. 0 – 45 deg. L/R
Maximum Width of Cut................................................................................... 6 in.
Maximum Depth of Cut................................................................................ 1/8 in.
Minimum Workpiece Length............................................................................. 8 in.
Minimum Workpiece Thickness....................................................................... 1/2 in.
Maximum Rabbeting Depth............................................................................ 1/2 in.
Number of Cuts Per Minute............................................................................ 14,700
Fence Information
Fence Length............................................................................................. 35 in.
Fence Width........................................................................................... 1‐1/2 in.
Fence Height............................................................................................... 5 in.
Fence Stops.................................................................................. 45, 90, 135 deg.
Cutterhead Information
Cutterhead Type........................................................................................ 3 Knife
Cutterhead Diameter................................................................................ 2‐1/2 in.
Cutterhead Speed................................................................................... 4900 RPM
Knife Information
Number of Knives.............................................................................................. 3
Knife Type................................................................................... HSS, Single‐Sided
Knife Length................................................................................................ 6 in.
Knife Width.............................................................................................. 3/4 in.
Knife Thickness......................................................................................... 1/8 in.
Knife Adjustment................................................................................. Jack Screws
Table Information
Table Length......................................................................................... 46‐1/2 in.
Table Width........................................................................................... 7‐1/2 in.
Table Thickness............................................................................. 1‐1/8 – 3‐3/8 in.
Floor to Table Height.............................................................................. 32‐1/2 in.
Table Adjustment Type................................................................... Handwheel/Lever
Table Movement Type...................................................................... Dovetailed Ways
Construction
Body Assembly........................................................................................ Cast Iron
Cabinet..................................................................................................... Steel
Fence Assembly....................................................................................... Cast Iron
Guard............................................................................................ Die Cast Metal
Table............................................................................. Precision‐Ground Cast Iron
Paint Type/Finish............................................................................. Powder Coated
Other Information
Number of Dust Ports......................................................................................... 1
Dust Port Size.............................................................................................. 4 in.
Mobile Base............................................................................................. Built‐In

-5-
Model W1745W (For Machines Mfd. Since 9/16)
INTRODUCTION
Model W1745W Machine Specifications, Page 3 of 3
Other
Country of Origin ............................................................................................... China
Warranty ....................................................................................................... 2 Years
Approximate Assembly & Setup Time ...................................................................... 1 Hour
Serial Number Location .................................................................................... ID Label
ISO 9001 Factory ................................................................................................... No
Certified by a Nationally Recognized Testing Laboratory (NRTL) ......................................... Yes
Features
Beds Slide on Dovetailed Ways
Center‐Mounted Fence with Positive Stops at 45, 90 and 135 Degrees
Handwheel‐Adjusted Outfeed Table, Lever‐Adjusted Infeed Table w/Depth Gauge
Pedestal‐Mounted, Easy‐Access Switch with Removable Safety Key
Built‐in Mobile Base
Built‐in Dust Chute with 4" Collection Hood
Rack and Pinion Fence Adjustment
Includes Free Pair of Safety Push Blocks and Knife‐Setting Jig
V‐Belt Drive
3‐Knife Cutterhead
Precision‐Ground Cast‐Iron Tables and Fence
Rabbeting Table

-6-
Model W1745W (For Machines Mfd. Since 9/16)
INTRODUCTION
Identification
A. Outfeed Table
B. Fence
C. Cutterhead Guard
D. Fence Tilt Handle
E. Fence Lock
F. Fence Adjustment Knob
G. Control Panel
H. Infeed Table
I. Infeed Table Adjustment Lever
J. Depth Scale
K. Locking Foot Pedal
L. Dust Port
M. Outfeed Table Handwheel
Become familiar with the names and locations of the controls and features shown below to better
understand the instructions in this manual.
For Your Own Safety Read Instruction Manual Before Operating Jointer
a) Wear eye protection.
b) Always keep cutterhead and drive guards in place and in proper operating condition. ALWAYS
replace cutterhead guard after rabbeting operations.
c) Never make jointing or rabbeting cutsdeeper than 1⁄8"or planing cuts deeper than 1⁄16"
d) Always use hold-down or push blocks when jointing material narrower than 3" or surface
planing material thinner than 3".
e) Never perform jointing, planing, or rabbeting cuts on pieces shorter than 8" in length.
A
C
F
DG
H
I
J
K
B
E
M
L

-7-
Model W1745W (For Machines Mfd. Since 9/16)
INTRODUCTION
Controls & Components
Refer to Figures 1–3 and the following descriptions to
become familiar with the basic controls and components
of this machine. Understanding these items and how they
work will help you understand the rest of the manual and
stay safe when operating this machine.
Control Panel (Figure 1):
ON/OFF Switch:Starts and stops the motor. The switch
can be disabled to prevent unauthorized use by removing
disabling key.
Power Indicator Light: Illuminates when machine is
plugged into power.
To reduce your risk of serious injury
or damage to the machine, read this
entire manual BEFORE using machine.
Table Movement Controls (Figure 2):
Depth Scale: Indicates depth of cut.
Infeed Table Adjustment Lever: Adjusts position of
infeed table, which controls depth of cut.
Outfeed Table Handwheel: Adjusts position of outfeed
table. Only used when setting outfeed table even with
cutterhead knives.
Fence Movement Controls (Figure 3):
Fence Adjustment Knob: Rotates to adjust lateral
position of fence along width of tables.
Tilt Lock: Secures fence tilt setting at desire angle.
45° Fence Stop: Stops fence at 45°inward and 45°degree
outward (135°).
Note: Even when fence is resting against stops, tilt
lock must be tightened before starting machine.
90° Fence Stop: Stops fence at 90° when engaged.
Note: Even when fence is resting against stops, tilt
lock must be tightened before starting machine.
Fence Lock: Tightens to secure fence position along
width of tables; loosens to allow adjustment.
Figure 3. Fence movement controls.
Figure 1. Pedestal-mounted controls.
Power
Indicator
Light
ON/OFF
Switch
Figure 2. Table movement controls.
Infeed Table
Adjustment
Lever
Outfeed Table
Handwheel
Depth Scale
Fence Lock
Fence
Adjustment
Knob
45° Fence
Stop
90° Fence
Stop Tilt
Lock

-8-
Model W1745W (For Machines Mfd. Since 9/16)
SAFETY
Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury.
Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.
This symbol is used to alert the user to useful information about
proper operation of the equipment or a situation that may cause
damage to the machinery.
NOTICE
SAFETY
OWNER’S MANUAL.
Read and understand this
owner’s manual BEFORE using machine.
TRAINED OPERATORS ONLY.
Untrained operators
have a higher risk of being hurt or killed. Only
allow trained/supervised people to use this
machine. When machine is not being used,
disconnect power, remove switch keys, or
lock-out machine to prevent unauthorized
use—especially around children. Make
workshop kid proof!
DANGEROUS ENVIRONMENTS.
Do not use
machinery in areas that are wet, cluttered,
or have poor lighting. Operating machinery
in these areas greatly increases the risk of
accidents and injury.
MENTAL ALERTNESS REQUIRED.
Full mental
alertness is required for safe operation of
machinery. Never operate under the influence
of drugs or alcohol, when tired, or when
distracted.
ELECTRICAL EQUIPMENT INJURY RISKS. You can
be shocked, burned, or killed by touching live
electrical components or improperly grounded
machinery. To reduce this risk, only allow an
electrician or qualified service personnel to
do electrical installation or repair work, and
always disconnect power before accessing or
exposing electrical equipment.
DISCONNECT POWER FIRST. Always disconnect
machine from power supply BEFORE making
adjustments, changing tooling, or servicing
machine. This eliminates the risk of injury
from unintended startup or contact with live
electrical components.
EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating
or observing machinery to reduce the risk of
eye injury or blindness from flying particles.
Everyday eyeglasses are not approved safety
glasses.
Standard Machinery Safety Instructions
For Your Own Safety,
Read Manual Before Operating Machine
The purpose of safety symbols is to attract your attention to possible hazardous conditions. This
manual uses a series of symbols and signal words intended to convey the level of importance of the
safety messages. The progression of symbols is described below. Remember that safety messages by
themselves do not eliminate danger and are not a substitute for proper accident prevention mea-
sures—this responsibility is ultimately up to the operator!
SAFETY
Standard Machinery Safety Instructions
