Showven Circle Flamer X-F1800 User manual

USER MANUAL
CIRCLE FLAMER X-F1800
V1.2
Showven Technologies Co.,Ltd.

1
CIRCLE FLAMER X-F1800
USER MANUAL
★ Please read this manual carefully before operating this product.
★ Warranty card attached in the manual, please keep it well.
▲WARNING
• Unauthorized repair are prohibited, it may cause serious incident.
• Make sure power supply in consistent with the rated voltage of the equipment, and the socket must well grounded. Unplug
and turn off the machine when not use.
• Before connect the power cable, communication DMX cable should well connected and ensure the command keep at firing
OFF status. And safety lock stay at test mode.
• The device can only be placed horizontally. Safety distances are marked on the device (at least 15m in all projection direc
tions, at least 5m to the other sides of the device).
• After turning on the device, no person allows to stay in the danger area. Ensure all persons that are part of the show be
informed about the safety distance, risks and functions of the device.
• Always have a CO2 fire extinguisher and an extinguishing blanket in case of needed.
• If there be any doubt as to the safety operation of the device in any circumstances, the device should be taken out of service
immediately. Be sure the device is in good operating condition before use. If fail to fire correctly, immediately shut down
and check it accordingly.
• Be sure to use high quality flame fluid, otherwise, it is easily lead to failure or danger. Be careful when refill the flame fluid
tank. Please keep flame fluid away from heat source, sparks, fire or other possibility of ignition. Do not smoke!
• The operator responsible for the control of Circle Flamer must always have a clear view of the device, so that he/she can
stop the show immediately when there is danger. The main AC power switch should near operator. So that operator can
turn off the power of all devices in case of abnormal.
• The device shall not be altered and applied to other use purpose.
• Notes for use of Battery power supply: CIRCLE FLAMER X-F1800 with stable internal circuit design, please support X-F1800
with battery voltage higher than 12V. The driving speed of motor won’t change because of the decrease of battery power
supply. Battery options: 12V lead-acid battery (above 30AH, with more than 24h standby). For Lithium battery, please use
battery with output above 30A. Socket type: NEUTRIK-NL4FX, 4 pin sound coupliers (1+ connect 12V anode, 1- connect
12V cathode). Connecting power cables should above 14AWG.
▲Foreword
Thanks for choosing SHOWVEN CIRCLE FLAMER X-F1800. Please read following manual carefully and completely before
operating this product. Operate according to instructions is very important for safety, and can elongate the service life of the
machine.
Strictly follow the instruction in the manual when operate Circle flamer X-F1800. If you have any doubts, please contact
SHOWVEN technologies Co., Ltd by [email protected].
We assume the person who use or come in contact with the device are familiar with how the device should be handled. This
includes proper use, maintenance and repair of the machine as defined in this user manual.

2
▲Technical Specifications
▲Functional Characteristics
•Compact pumping system ensure compact size of machine.
•Double electromagnetic valves design for additional safety.
•Tilt protection, the tilt sensor will be activated when machine slant Over 45° .
•Unique safety lock design, device can't firing when locked, avoid spurious triggering.
•Intelligent control system: pressure monitoring, safety warning, no fuel alarming, system failure warning etc..
•High performance nozzle, reliable and durable.
•High-accuracy swiveling head driving and controlling system, allows for fast and precise flame bursts.
•Strengthened and rustproof metal panel, water-proof design.
•Neutrik PowerCON TRUE1 and DMX socket.
•Standard battery connector configuration, support 12V battery power supply.
•Fitted with fireworks igniter signal port, can be triggered by fireworks igniter.
•Flame effects up to 8-10m (no wind), with 210° (±105°) swiveling angles.
•As much as 70 preset flame sequences are available. It is easier and stable to running the CIRCLE FLAMER when controlled
by SHOWVEN original host controller ZK6200/6300.
MODEL Circle Flamer X-F1800
Dimension 590 x 360 x 370mm
Input AC100-240V,50-60Hz
Work power 380W
Interface Double DMX Interface;
9V-60V Fireworks igniter signal port
Control Standard DMX
Effect Maximum Height 8-10m (no wind)
Effect Angles 210° (±105°)
Fuel ISOPROPANOL, ISOPAR G,H,L,M, BIOETHANOL
Fuel Bottle Capacity 10L
Weight (no fuel) 30Kg
Fuel Consumption Rate 60ml/s
Disclaimers:
SHOWVEN technologies Co., Ltd excludes liability for unsafe situations, accidents and damages resulting from:
1. Ignoring warnings or regulations as shown on circle flamer or this manual.
2. Use for other applications or circumstances other than those indicated herein.
3. Changes to the circle flamer, including use of non-original spare parts.
4. Removed safety cover without authorization from SHOWVEN.
5. Use this machine by unqualified or untrained personnel.
6. Improper use of machine.

3
▲Overview of Control Panel
▲Structure of Circle Flamer
1. LCD screen operate panel
2. Safety Lock
3. Indicator Light
4. DC 5V output
5. 3-pin DMX socket
6. 5-pin DMX socket
7. 110V/220V Power socket
8. Fuse
9. ON/OFF switch
10. 12V Battery socket
11. DC 9V-60V fireworks igniter signal port
1. Handle
2. Firing Nozzle
3. Top Panel
4. Fuel Bottle Area
5. Control Panel
6. Safety Loop
• Connection dimension diagram of bottom bracket of the flamer
203.5
352
540
M10
φ34 fixing hole
241
M10
1
8
9
10
11
2
3
4
5
6
7

4
▲Operation Panel
3. Welcome Interface
4. Main Interface
F1800-A181023
A180921016
DMX Address 1
P: 100 V: 13.6

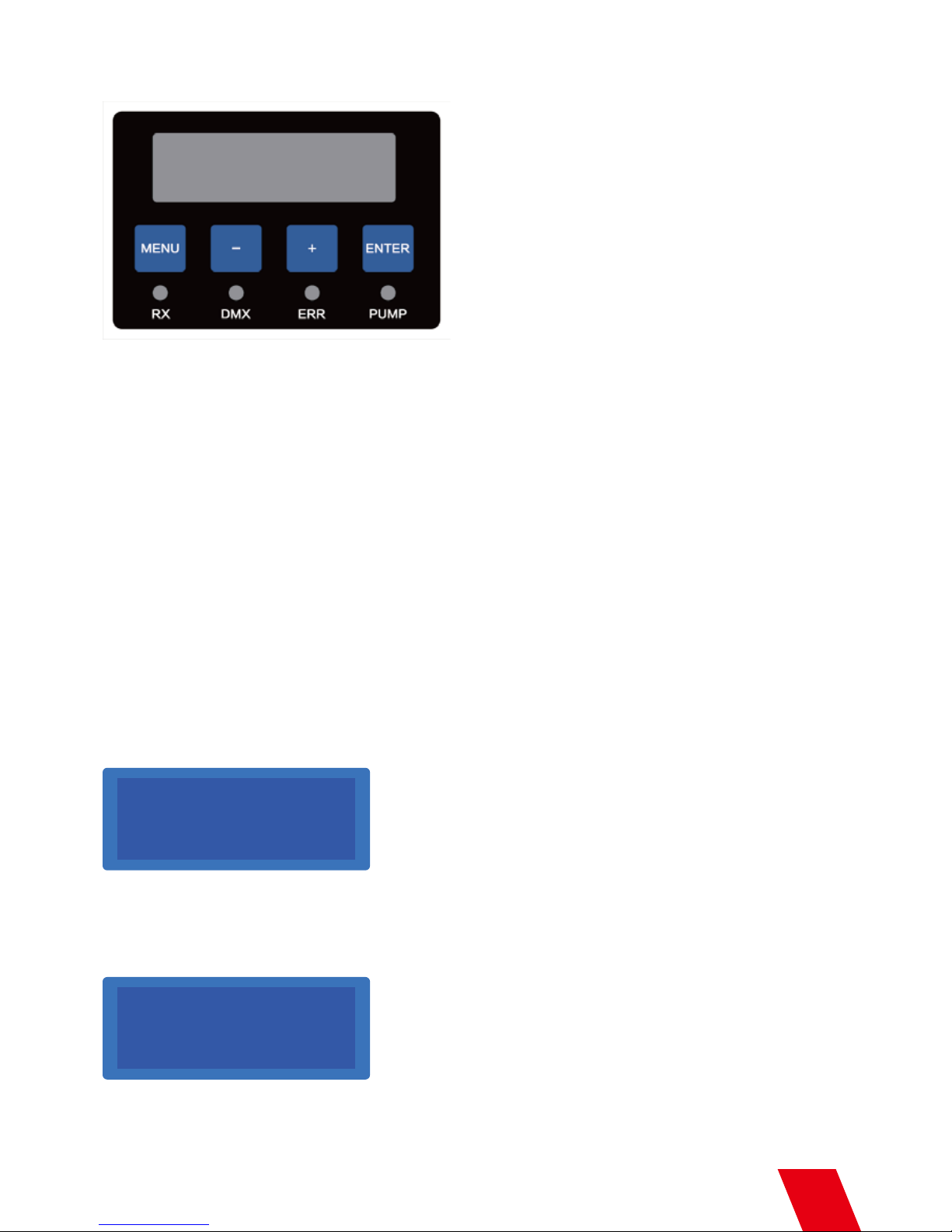

1. LED Display Area
RX: Radio receiving (reserved);
DMX: DMX signal. Flash means DMX signal available, otherwise no DMX signal;
ERR: Light on when there is an error;
PUMP: Light on when pump is running.
2. Button Funtions:
MENU: Switch interface to setup parameter;
+: Parameter Up;
-: Parameter Down;
ENTER: Confirm and save parameters (screen will flash when parameters saved);
Note: screen display will switch to main interface if don't press button for a long time.
First Line: Product model and software version number;
Second Line: Equipment factory number.
First Line: DMX address;
Second Line: Pressure100 (e.g. 100=10bar); V: 13.6 means internal voltage is 13.6V.

5
Explanation
Safety lock located at TEST MODE.
Pressuriser for about 13s, pressure value failed to reach 100%, system will report E1.
Possible fault: No fuel, pump failure, pipeline problem etc.
Pipeline can't release pressure leads to pressure relief error.
Possible fault: pressure release valve failure, pipeline problem or control systemproblem etc.
Possible fault: swiveling nozzle stuck, motor failure etc.
Battery voltage＞15V or ＜10V for continuous 5s, machine stops running.
Possible fault: the battery is low.
if the machine slant over 45° , it stops running，system will report E6.
Alert Message
E0 System Lock
E1 Pressure Err
E2 P Relief Err
E3 Motor Err
When Ext Ignite is ON, device will pressuriser automatically when switch safety lock to
USER MODE; decompression when switch to TEST MODE. 9V-60V fireworks ignitor
signal will trigger related firing sequences.
E4 Ext Ignition
E5 Voltage Err
E6 Tip Err
DMX signal blocked in factory mode.E7 Factory Mode
5. Alert Message
Press “MENU” to switch through setup menu.
Menu Range Explanation
Set DMX Address 1~512 DMX address setup
Angle Limit
MAXI. ANGLE : NO.1 - NO.15 Restrict nozzle rotate angles：Set by "+"
and "-" , and confirm by "ENTER"
MINI. ANGLE : NO.1 - NO.15
6. Interface setup

6
▲Operation Instructions
Please read the safety distance print on the top panel of CIRCLE FLAMER carefully.
Press “MENU” 3s enter advanced interface, press “MENU” to switch interface, press “MENU” 3s can back to main
interface.
7. Advanced Interface
1. Direction explanation
Contents DescriptionItems
Drive Test
Ext Ignite
Set Ext Sequence
Language
Mode Select
Tip Setting
Reset Parameter
ON / OFF
1~70
Chinese / English
Factory Mode / Normal Mode
ON / OFF
YES / NO
Trigger through 5-60V fireworks ignitor
signal
Preset sequence triggered by fireworks
ignitor
Language switch
Factory mode is for test in factory only
Turn ON/OFF tip over function
Reset default parameter settings
Swiveling and stop at target angle.
Pump running 1s, if pressure reached the
target value, the pump will not running.
Ignite 1s
Release pressure 1s
Safety lock located at user mode, release
pressure for 5s, open jet valve and close to
check the working status of jet valve.
OFF / Motor/ Pump / Igniter / Relief Valve / Jet Valve
1. Motor
2. Pump
3. Igniter
4. Relief Valve
5. Jet Valve

7
(1) 1 to 15 is the firing angle of circle flamer, Far Right is position 15, Middle is position 8, Far Left is position 1.
(2) Audience side and control side are indicated in above picture.
(3) Safety distances for CIRCLE FLAMER are indicated in above picture. At least 15m in all projection directions, at least 5m
to the other sides of the device.
Immediately upon receiving the machine, carefully unpack the carton, check the machine received in good condition. Ensure
safety operation of machine, please do following below operation procedures when operate CIRCLE FLAMER.
Note: in order to indicate correct direction, please place the top panel correctly.
Before operate machine please locate safety
lock at TEST MODE.
TEST MODE: operator can test the rotate of
nozzle, but the fuel ejection function disabled,
so there is no fuel eject and flames.
USER MODE: the device can generate flames
normally. Please strictly follow the safety
distance requirement, remove all human,
animal or flammable objects in the danger area.
The device can only be placed
horizontally, if placed on truss, please
locked with extra safety ropes.
Operation Schematic diagram and explanation Explanation
1. Installation
2. Locate safety lock at
TEST MODE
Please fueling with high quality fuel according
to requirement of this manual.
3. Fueling
Two kind of power supply optional:
1. 110V/220V main power supply
2. 12V battery power supply
Please confirm safety lock located at TEST
MODE before switch on the POWER ON/OFF.
4. Power and DMX cable
connection
5. Switch ON the
machine
2. Quick Operation Sheet

8
CIRCLE FLAMER occupy 6 channels.
Detail information please refer to the table of
page18.
6. Set DMX address
Host controller: Press”pre-heat” button (light on).
DMX console: switch DMX value of channel 6 to
50-200.
7. Pressuriser
Reconfirm safety lock located at TEST MODE before
test. In this status, the nozzle will rotate, and igniter
will activated, but there is no flame.
When use DMX console to test the sequence,
suggest to set CH1 at 128, so that nozzle stay at
straight up position after each sequence.
Host controller: Press “pre-heat” key (light off).
DMX console: switch DMX value of channel 6 to
0-49/201-255.
8. Check device status
in TEST MODE
9. Pressure Relief
Host controller: Press”pre-heat” button (light on).
DMX console: switch DMX value of channel 6 to
50-200.
11. Pressuriser
Set firing sequence
Host controller: Press “FIRING” key.
DMX console: switch DMX value of channel 3 to
254-255.
12. Firing
Relief pressure when show finished or CIRCLE
FLAMER not use for a long period.
Host controller: Press “pre-heat” key (light off).
DMX console: switch DMX value of channel 6 to
0-49/201-255.
13. Pressure Relief
Before switch to USER MODE, Please strictly follow
the safety distance requirement, remove all human,
animal or flammable objects in the danger area.
10.Switch safety lock to
USER MODE
Set DMX Address
1
1

9

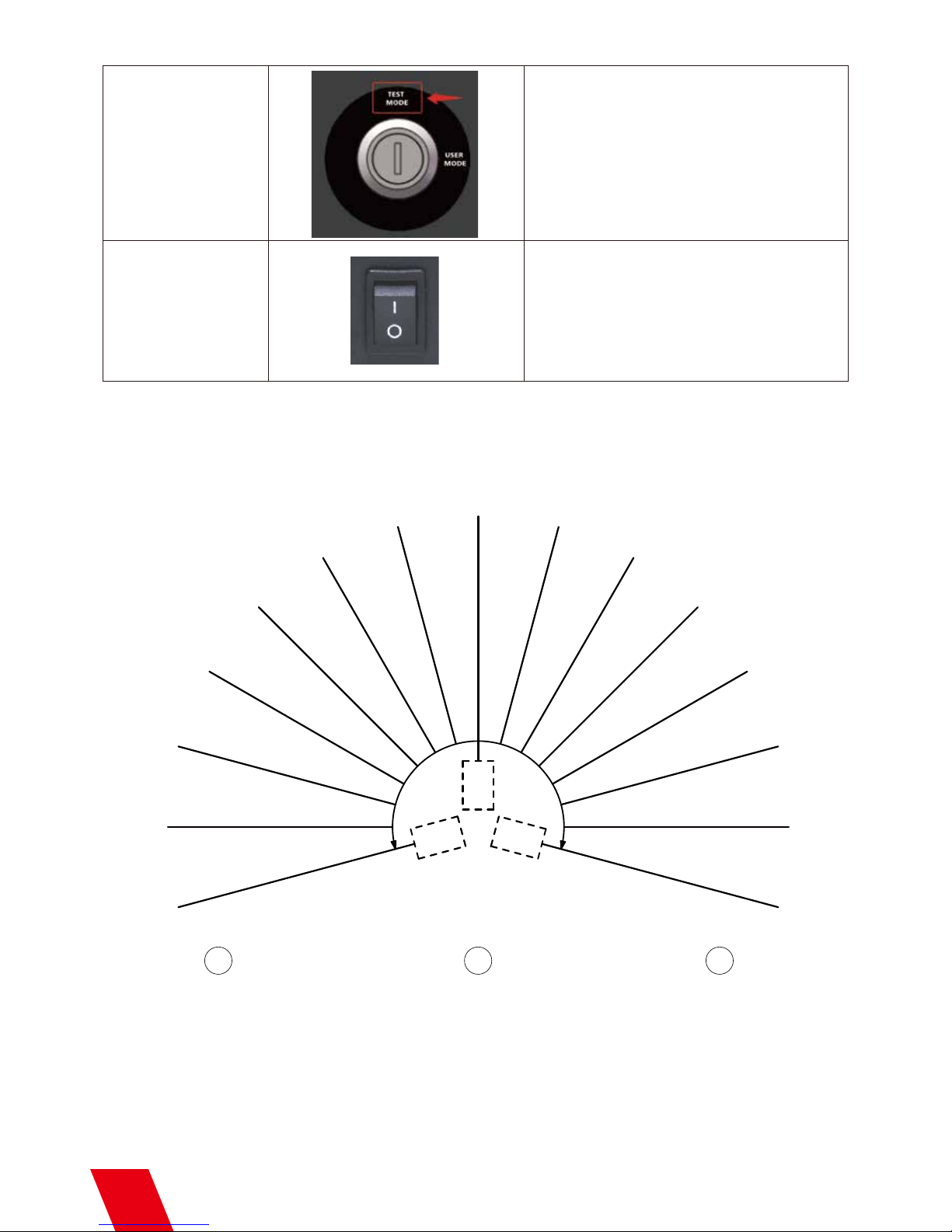

3. Firing Angles
The firing angle for CIRCLE FLAMER is ±105°, from the Audience Side view, there are altogether 15 firing angles as below.
Guarantee safety use for next time.
14. Switch safety lock
to TEST MODE
Power off CIRCLE FLAMER, tear down power cable
and DMX cable, pack up the device when it is
cooled down.
15. Power off
NO.8（0°)
NO.1（-105°)
NO.2（-90°)
NO.3（-75°)
NO.4（-60°)
NO.5（-45°)
NO.6（-30°)
NO.7（-15°)
NO.9（15°)
NO.10（30°)
NO.11（45°)
NO.12（60°)
NO.13（75°)
NO.14（90°)
NO.15（105°)
L M R

10
4. Drive time for Effects
Time needed for the motor drive from NO.8 to relevant angle.
For example for the motor drive from 0°to 45°, it need 90ms, when operator design a show to synchronize to music, this
drive time must be calculated.
Angle
-90°
-75°
-60°
-45°
-30°
-105°
-15°
15°
30°
45°
60°
75°
0°
90°
105°
Drive time needed
150ms
130ms
110ms
90ms
70ms
170ms
50ms
50ms
70ms
90ms
110ms
130ms
0ms
150ms
170ms
No
NO.2
NO.3
NO.4
NO.5
NO.6
NO.1
NO.7
NO.9
NO.10
NO.11
NO.12
NO.13
NO.8
NO.14
NO.15

11
5. Control of Circle Flamer
Single Ignition Sequence List
Circle Flamer X-F1800 has 70 preset sequences, you can use related channel and sequence No. to access certain sequence.
Below, you can find sequence list and single ignitions.
Sequence
No.
1
2
3
4
5
6
8
9
10
11
12
7
13
14
Firing Time
(For reference)
0.19s
0.19s
0.19s
0.19s
0.19s
0.19s
0.19s
0.19s
0.19s
0.19s
0.19s
0.19s
0.19s
0.19s
15
17
18
19
20
21
16
22
24
25
26
27
28
23
29
30
Ignition
angle
-90°
-75°
-60°
-45°
-30°
-105°
-15°
15°
30°
45°
60°
75°
0°
90°
105°
-90°
-75°
-60°
-45°
-30°
-105°
-15°
15°
30°
45°
60°
75°
0°
90°
105°
Description Nozzle
Movement
Single Ignition SHORT flame
Single Ignition SHORT flame
Single Ignition SHORT flame
Single Ignition SHORT flame
Single Ignition SHORT flame
Single Ignition SHORT flame
Single Ignition SHORT flame
Single Ignition SHORT flame
Single Ignition SHORT flame
Single Ignition SHORT flame
Single Ignition SHORT flame
Single Ignition SHORT flame
Single Ignition SHORT flame
Single Ignition SHORT flame
Single Ignition SHORT flame
Single Ignition LONG flame
Single Ignition LONG flame
Single Ignition LONG flame
Single Ignition LONG flame
Single Ignition LONG flame
Single Ignition LONG flame
Single Ignition LONG flame
Single Ignition LONG flame
Single Ignition LONG flame
Single Ignition LONG flame
Single Ignition LONG flame
Single Ignition LONG flame
Single Ignition LONG flame
Single Ignition LONG flame
Single Ignition LONG flame
Static
Static
Static
Static
Static
Static
Static
Static
Static
Static
Static
Static
Static
Static
Static
Static
Static
Static
Static
Static
Static
Static
Static
Static
Static
Static
Static
Static
Static
Static
0.19s
0.56s
0.56s
0.56s
0.56s
0.56s
0.56s
0.56s
0.56s
0.56s
0.56s
0.56s
0.56s
0.56s
0.56s
0.56s
CH5 DMX
Reference Value
3-5
6-7
8 10
11-12
13-15
16-17
21-22
23-25
26-28
29-30
31-33
18-20
34-35
36-38
39-40
44-45
46-48
49-50
51-53
54-56
41-43
57-58
62-63
64-66
67-68
69-71
72-73
59-61
74-76
77-79

12
Step Sequences List
No.
31
32
33
34
35
36
38
39
40
41
42
37
43
44
Firing Duration
(For reference)
CH5 DMX
Reference
Value
2.57s
2.57s
1.00s
1.00s
0.9s
0.9s
1.30s
1.35s
1.35s
8.90s
8.90s
1.30s
2.01s
2.01s
45
47
48
49
50
46
Step 6>10
Ignition angle NO. Description Nozzle
Movement
Step from 1-15 SHORT flame Step sequence
Step from 15-1
Step 5>8>11
Step 11>8>5
Step 6>10
Step 10>6
Step 12>10>8>6>4
Step 8>6>10>4>12
Step 8>10>6>12>4
Step from 1-15
Step from 15-1
Step 4>6>8>10>12
Step 5>8>11
Step 11>8>5
Step 4>6>8>10>12
Step 12>10>8>6>4
Step 8>6>10>4>12
Step 8>10>6>12>4
Step 10>6
LONG flame Step sequence
SHORT flame Step sequence
SHORT flame Step sequence
SHORT flame Step sequence
SHORT flame Step sequence
SHORT flame Step sequence
SHORT flame Step sequence
SHORT flame Step sequence
SHORT flame Step sequence
LONG flame Step sequence
LONG flame Step sequence
SHORT flame Step sequence
LONG flame Step sequence
LONG flame Step sequence
LONG flame Step sequence
LONG flame Step sequence
LONG flame Step sequence
LONG flame Step sequence
LONG flame Step sequence
1.35s
3.01s
3.01s
2.67s
2.67s
1.35s
80-81
82-84
85-86
87-89
90-91
92-94
97-99
100-101
102-104
105-107
108-109
95-96
110-112
113-114
115-117
120-122
123-124
125-127
128-130
118-119
L->R
R->L
L->R
R->L
L->R
R->L
R ->L
M>L>R>L>R
M>R>L>R>L
L->R
R->L
L->R
L->R
R->L
L->R
L->R
R->L
M>L>R>L>R
M>R>L>R>L
R->L
Wave Sequence List
No.
51
52
53
54
55
56
58
59
60
61
62
57
Firing Duration
(For reference)
1.99s
1.99s
4.14s
4.14s
2.18s
2.18s
2.16s
1.12s
1.12s
1.24s
1.24s
2.16s
CH5 DMX
Reference
Value
131-132
133-135
136-137
138-140
141-142
143-145
148-150
151-152
153-155
156-158
159-160
146-147
Ignition angle NO. Description Nozzle
Movement
Wave 5 -->11 Middle wave sequence
Wave 11-->5
Big wave 1--15
Big wave 15--1
Wave 8-->1
Wave 8-->15
Wave 15-->8
Wave 8-->11
Wave 8-->5
Wave 5-->8
Wave 11>--8
Wave 1-->8
Middle wave sequence
LONG wave sequence
LONG wave sequence
Middle wave sequence
Middle wave sequence
Middle wave sequence
SHORT wave sequence
SHORT wave sequence
SHORT wave sequence
SHORT wave sequence
Middle wave sequence
L->R
R->L
L->R
R->L
M->L
M->R
R->M
M->R
M->L
M->L
R->M
L->M

13
Function
Manual Angle setup:
(0~255) angle change from -105° to 105°, (128) is straight upward (0°).
Manual Speed setup: (0) Max Speed, (1~254) Speed increase, (255) Max Speed.
Firing Ignition ON/OFF: (0~253) Ignition OFF, (254~255) Ignition ON..
Firing Duration setup: 0 and 255 is permanent fire (10s is limit duration time);
1~254 is 10~2540ms duration time (Manual firing duration = DMX Value * 10ms).
Program sequence setup: (0-2) no preset sequence; (3-255) preset sequence.
DMX value = 2 + Sequence No.*2.55 (ROUND OFF).
Firing Pressure setup: (0~49) Pressure Relief Mode (Emergency Stop), (50~200) Pressure Armed
Mode, (201~255) Pressure Relief Mode (Emergency Stop)
6. DMX CONTROL
Channel
CH1
CH2
CH3
CH4
CH5
CH6
Additional Sequences List
No.
63
64
65
66
67
68
70
69
Firing Duration
(For reference)
0.60s
0.60s
1.38s
1.38s
1.85s
1.85s
4.18s
4.18s
CH5 DMX
Reference Value
161-163
164-165
166-168
169-170
171-173
174-175
179-181
176-178
Ignition
angle NO. Description Nozzle
Movement
Step 2>14 SHORT flame Step sequence
Step 14>2
Step 2>14
Step 14>2
Step 8>14
Step 8>2
Step 8>2
Step 8>14
SHORT flame Step sequence
LONG flame Step sequence
LONG flame Step sequence
SHORT flame Step sequence
SHORT flame Step sequence
LONG flame Step sequence
LONG flame Step sequence
L->R
R->L
L->R
R->L
M->L
M->R
M->R
M->L
-90°
-75°
-60°
-45°
-30°
-105°
-15°
15°
30°
45°
60°
75°
0°
90°
105°
> Channel 1 (CH1): Angle Setup
Angle No.
2
1
3
4
5
6
7
10
8
0
18
36
54
73
91
109
165
128
9 146
12
11
13
14
183
201
219
237
15 255
Angle DMX value

14
DMX Value = 2 + Sequence No.*2.55
CH2: Speed Setup
DMX value
Speed
0
Max Speed
1-254
Incremental of Speed
255
Max Speed
> Channel 2 (CH2): Speed Setup
> Channel 5 (CH5): Program Sequence setup
CH3: Ignition
0-253 254-255
CIRCLE FLAMER ignites
Manual Firing Duration setup
DMX value 1
10ms
0
Permanent
2
20ms
3
30ms
4
40ms
254
............
2540ms
255
PermanentFiring Duration
> Channel 4 (CH4): Firing Duration setup
Firing sequence mode/related firing channel
DMX value 0~2
N/A
3~5
1
6~7
2
8~10
3
............ 179~181
70Sequence No.
11~12
4
The second channel defines the rotate speed. It work together with Channel 1 for manual firing.
DMX value
Ignition CIRCLE FLAMER won’t ignite
> Channel 3 (CH3): Ignition ON/OFF
The third channel activates the actual ignition. If the DMX value of this channel higher than 253, the CIRCLE FLAMER will
ignite.
The fourth channel is the firing duration setup.
Below formula can be used to calculate the firing duration (ms):
DMX Value = t/10
• Channel Explanation
DMX value=127.5+（∠*1.2145）
1. The first channel controls the firing angle. It defines to which angle the nozzle of CIRCLE FLAMER move to. The angle can
be chosen anywhere between -105° to +105° (DMX value 0 to 255).
2. The DMX value for angle of 0° is 127.5 (round up 128). Use this value, following formula can be used to calculate all other
angles ∠in degree. Please always note the prefix of the angle.
The fifth Channel allows to firing a preset sequence. Three DMX values can be used for one of the programmed firing
sequence from above sequence list (refer to above sequence list table).
Below formula can be used to calculate firing sequence:

15
• Example of DMX console control:
• Example of firing with fixed duration by DMX console:
• Example of Wave Firing by DMX console:
1. Set nozzle straight up
(CH1 Angle = 128, CH2 Speed = 0, CH3 Ignition = 0, CH4 Firing duration = 0, CH6 Compression mode = 50~200)
2. Set firing duration 1s
(CH1 Angle = 128, CH2 Speed = 0, CH3 Ignition = 0, CH4 Firing duration = 100, CH6 Compression mode = 50~200)
3. Firing 1s
(CH1 Angle = 128, CH2 Speed = 0, CH3 Ignition = 255, CH4 Firing duration = 100, CH6 Compression mode = 50~200)
CH6:Firing Pressure Setup
DMX value
State
0-49
Pressure Relief
50-200
Pressure Armed
201-255
Pressure Relief
> Channel 6 (CH6): Firing Pressure Setup
The sixth channel can set the working mode of pump.
When the safety lock located at TEST MODE, set DMX value between 50-200 to test the system. For safety, the pump will
not working.
When the safety lock located at USER MODE, the pump can be activated by set DMX value between 50-200. The device can
make ignitions in Pressure Armed state.
1. Set nozzle straight up
(CH1 Angle = 128, CH2 Speed = 0, CH3 Ignition = 0, CH4 Firing duration = 0, CH5 Program sequence = 0, CH6 Compres
sion mode = 50~200)
2. Set preset Sequence No. 31
(CH1 Angle = 128, CH2 Speed = 0, CH3 Ignition = 0, CH4 Firing duration = 0, CH5 Program sequence DMX value = 80,
CH6 Compression mode = 50~200)
3. Ignition
( CH1 Angle = 128，CH2 Speed = 0，CH3 Ignition = 255，CH4 Firing duration = 0，CH5 Program sequence DMX value
= 80, CH6 Compression mode = 50~200)
1. Set firing nozzle to the start point
(CH1 Angle = 0, CH2 Speed = 255, CH3 Ignition = 0, CH6 Compression mode = 50~200)
2. Set up firing speed
(CH1 Angle = 0, CH2 Speed = 50, CH3 Ignition = 0, CH6 Compression mode = 50~200)
3. Set firing end point and ignition
(CH1 Angle = 255, CH2 Speed = 50, CH3 Ignition = 255, CH6 Compression mode = 50~200)
4. Firing Nozzle will firing and make movement from start point to end point
NOTE: After firing, The DMX value of CH3 must fall below 254, before an ignition can be made again. CH1 defines the
nozzle position after firing.
NOTE: After firing, The DMX value of CH3 must fall below 254, before an ignition can be made again.
NOTE: After firing, The DMX value of CH3 must fall below 254, before an ignition can be made again.

16
MODEL ZK6200
Dimension 390×300×110mm
Weight 3.5kg
Input 110-240Vac, 50/60Hz
Work power 15W
Work Temp. -10℃~ 50 ℃
Interface 2*CAN port
2* media port (music trigger)
2*MIDI port (music trigger)
1* DMX512 input
1*DMX512 output.
Support Max. 200m communication cable
3350 mAH Li-battery (5h battery life when fully charged)
7. Operating with SHOWVEN host controller ZK6200/ZK6300
1) Hardware description
2) SHOWVEN host controller introduction
3) Operational Panel
a) Standard DMX512 signal output.
b) Support 18units CIRCLE FLAMER (ZK6200) or 54units CIRCLE FLAMER (ZK6300) at the same time.
c) 5 standard dynamic modes: Synchronization, Center to Ends, Ends to Center, Left to Right, Right to Left. And an user defin
able Special Effect mode, support 8 files, each file support 36000 lines maximum (effects lasts for 30min).
d) Multi trigger sources: manual, music or midi input.
e) RDMX monitoring function: system can send back circle flamer working status info such as pressure, warming etc. and
display on the screen.
f) Emergency stop function.

17
a) Cable Connection Area
d) LCD display Area
e) Edit/Control Area

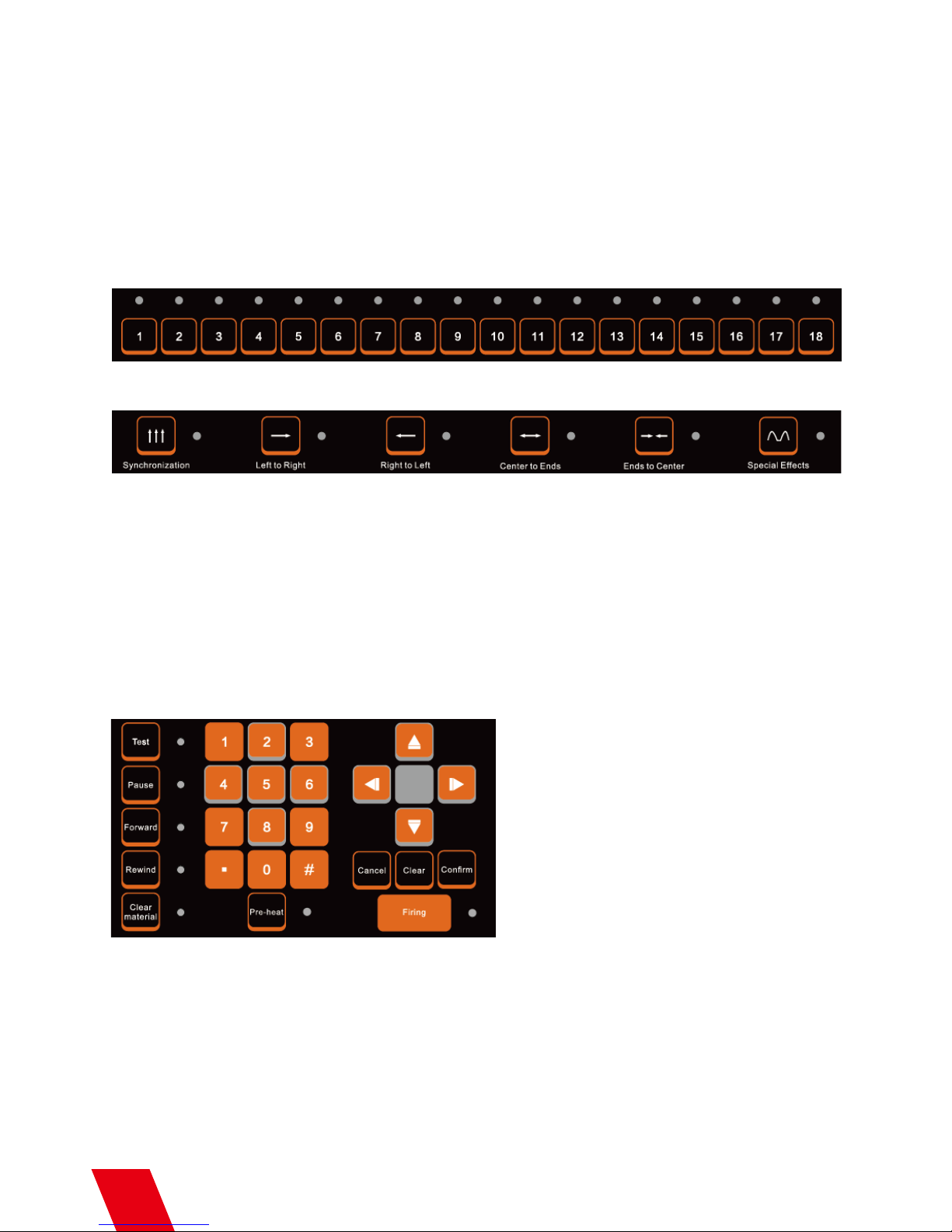

b) Manual firing operation region
c) Mode Selection Area
AC Input: AC Power Input;
CAN: CAN communication input/output;
MIDI In: Midi time synchronous signal input;
DMX 512: DMX signal input/output;
LAN: network interface;
USB: program download interface, SparkularEdit200 software port.
F1: Main menu;
F2: File selection;
F3: Configuration;
F4: About host controller.
There are 5 standard dynamic mode and 1 special effects mode. Each mode support 8 files, it can be switched easily on the
mode selection area.

18
CIRCLE FLAMER No. DMX Address
11
27
313
419
525
631
737
843
949
10 55
11 61
12 67
13 73
14 79
15 85
16 91
17 97
18 103
Set circle flamer DMX address as below:
Note: wrong DMX address setup may leads to circle flamer out of control.

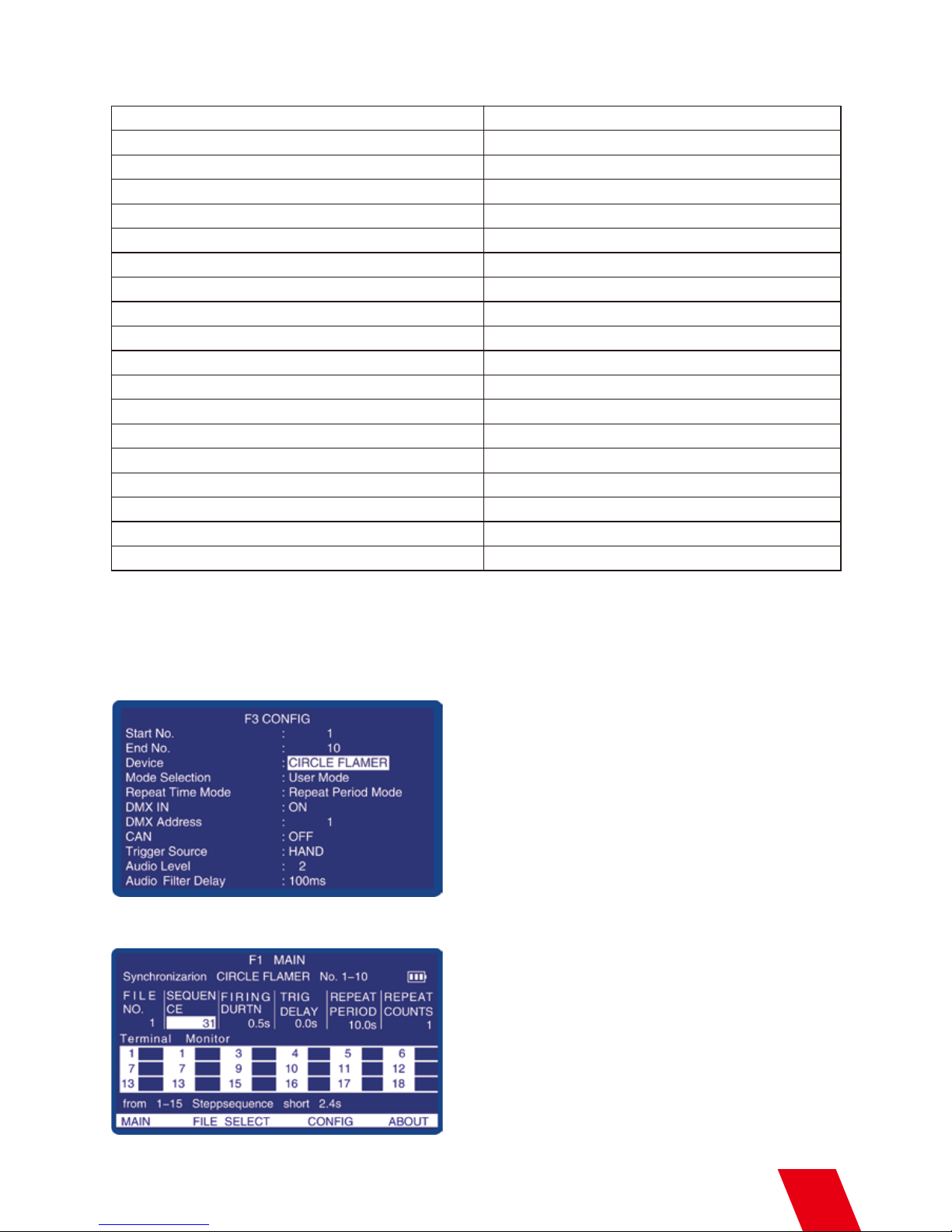

1. Press “F3” enter host controller configuration menu, DEVICE choose “CIRCLE FLAMER” as below.
2. Set Start No. and End No. of device.
Setup of Host controller:
Press “F1” back to main interface.

19
▲Maintenance
Press “PRE-HEAT”, activate the compression of device.
1. Manual firing: Enter SEQUENCE No.99, press 1-18 to firing each unit, CIRCLE FLAMER can only firing at vertical upward.
2. Sequence firing: eg: firing at SEQUENCE 31, entering 31 at SEQUENCE, entering FIRING DURATION (Firing duration
normally set at 0.5s, even the sequence firing duration is longer than 0.5s, the SEQUENCE will fully executed) , set the
repeat counts, press “FIRING” to activate the device.
NOTE: Put safety lock at “TEST MODE” to check the signal connection and nozzle rotation status before use the device for
firing.
For Emergency stop, press “PRE-HEAT”, device will enter pressure relief mode, and stop emergently.
1. To maintain the system in good performance and running status, it is
recommended to running the device at least once per month.
2. Maintenance of the nozzle: Nozzle need to be cleaned up , and it is
recommended that once every six months (depending on the environ
ment and frequency of use). In the process of using the equipment, if
the flame shape is seriously deformed or the fuel injection line is signifi
cantly deformed or coarsened, the nozzle should be removed immedi
ately for cleaning.
3. Maintenance of the O-ring: If it is found that the O-ring of the nozzle
is damaged or ageing when cleaning the nozzle, the O-ring should be
replaced in time (material and size of O-ring: fluororubber O-ring, the
outermost diameter is 14 mm, and the line diameter is 2 mm).
4. In order to lubricate the pipeline and pump it is highly recommended
to add 10-20ml castor oil per 10L canister.
5. Software can be upgraded with download cable from SHOWVEN.
6. Switchable power input design, switchable between 110V and 220V
as show below (voltage will show on it). The power supply is located
on the side of the electric control, and you should remove the cover
in order to change it.
