USER MANUAL
SPARKULAR® WAVER
V1.1
2023/05/09
Showven Technologies Co., Ltd.

Thanks for choosing SPARKULAR® WAVER, we wish it will sparks up your show.
Please read the following manual carefully before operating this product.
ΔSafety Instructions
\Unauthorized repair are prohibited, it may cause serious incident.
\Please keep the device dry.
\Make sure lid of feeding hopper are well covered when use SPARKULAR®WAVER.
\Accidentally burning of consumable can only use sands to extinguish.
\Consumable should keep away from moisture and stored in a dry sealed environment.
\Check whether there is consumable aggregate in the output nozzle both before and after
each show, if any, please clean it up, or it will affect the firing effect, damage machine, even
cause serious incident.
\There will be some sparks drop to ground, make sure there are no flammable objects such as
carpet on the ground within the safety radius of the machine.
\Suggest to use HC8200 MEDIUM for indoor events.
\The SPARKULAR®WAVER power supply cable maximum allowed cascade of 6pcs (220V
version) / 3pcs (110V version), exceed connecting may result in damage or even cause fire.
\Cover the output nozzle of SPARKULAR®WAVER is forbidden, inspect the machine before
each show, making sure no objects or material will block the output nozzle.
\Never touch the nozzle of SPARKULAR®WAVER danger of getting burnt.
\Never touch the sparks which shooting out from the nozzle.
Safety Distance
\Safety distance for SPARKULAR® WAVER divided into two parts safety radius around
machine (a) and safety distance at firing direction (b). No person and flammable materials are
allowed to stay inside the safety isolation zone when SPARKULAR® WAVER was armed.
\The safety radius around machine depends on effect height (consumable HC8200 type), with
a radius of 1m or 1.5m.
\For safety distance at firing direction equals to maximum firing height + 1m. SPARKULAR®
WAVER with maximum 90 waving firing angles, when firing wave sequence the safety
isolation zone is a three-dimensional sector area.
HC8200 Type
Max. Effect Height
Safety Radius around
SPARKULAR (a)
Safety Distance at
Firing Direction (b)
Medium
3.5m
1m
4.5m
LARGE
4.5m
1.5m
5.5m
\The SPARKULAR® WAVER safety isolation zone is a three-dimensional space with a cross-
section of 180° sector enclosed by a and b (check below diagram). We can understand it as a
safety area formed by a safety column with diameter of a, height of b rotate of ± 90 degrees.
Unauthorized persons and objects are strictly prohibited from entering. Depending on the
firing sequence / angles the sector area changes accordingly.
\For angled firing, the safety distance both around machine and firing direction should shift
accordingly.
\In windy environment, increase the safety distance according to the wind direction and speed.

\Sparks and consumables from the machine can lead to serious eye injury. Always wear safety
goggles when enter the safety zone.
ΔDescription
SPARKULAR® WAVER is 180 degree waving spark effect originally developed by SHOWVEN. It
can firing in any single direction between -90 to 90 degree or in waving sequences etc. Various
editable sparks effect brings infinite creativity to your stage.
ΔTechnical Specifications
\DIMENSION: 300 290 273mm
\WEIGHT: 15.5kg
\VOLTAGE: AC200-240V / AC100-120V, 50/60Hz
\WORK POWER: 500W
\EFFECT HEIGHT ADJUSTBLE: YES
\EFFECT ANGLE ADJUSTBLE: -90°~ 90° (180° waving angles)
\INTERFACE: 3-pin and 5-pin XLR, POWER IN/OUT
\CONTROL: 6 DMX channels
\WORK TEMP.: -20 C~40 C
\CONSUMABLE AND EFFECT HEIGHT: LARGE (3-4.5m), MEDIUM (2.5-3.5m)

ΔStructure of SPARKULAR® WAVER
1. Feeding Hopper Lid
2. Output Nozzle
3. ARM alarming light
4. Display Screen
5. Power Switch
6. Fuse
7. Power IN
8. Power OUT
9. 3-PIN DMX IN
10. 5-PIN DMX IN
11. 5-PIN DMX OUT
12. 3-PIN DMX OUT
Bottom panel

ΔOperation Panel
1. Keypad area
MENU: Press enter setting interface
UP: Parameter up
DOWN: Parameter down
MONI: Status monitoring of main part inside machine
2. Monitoring Interface
From this interface, we can check the voltage and motor status of machine.

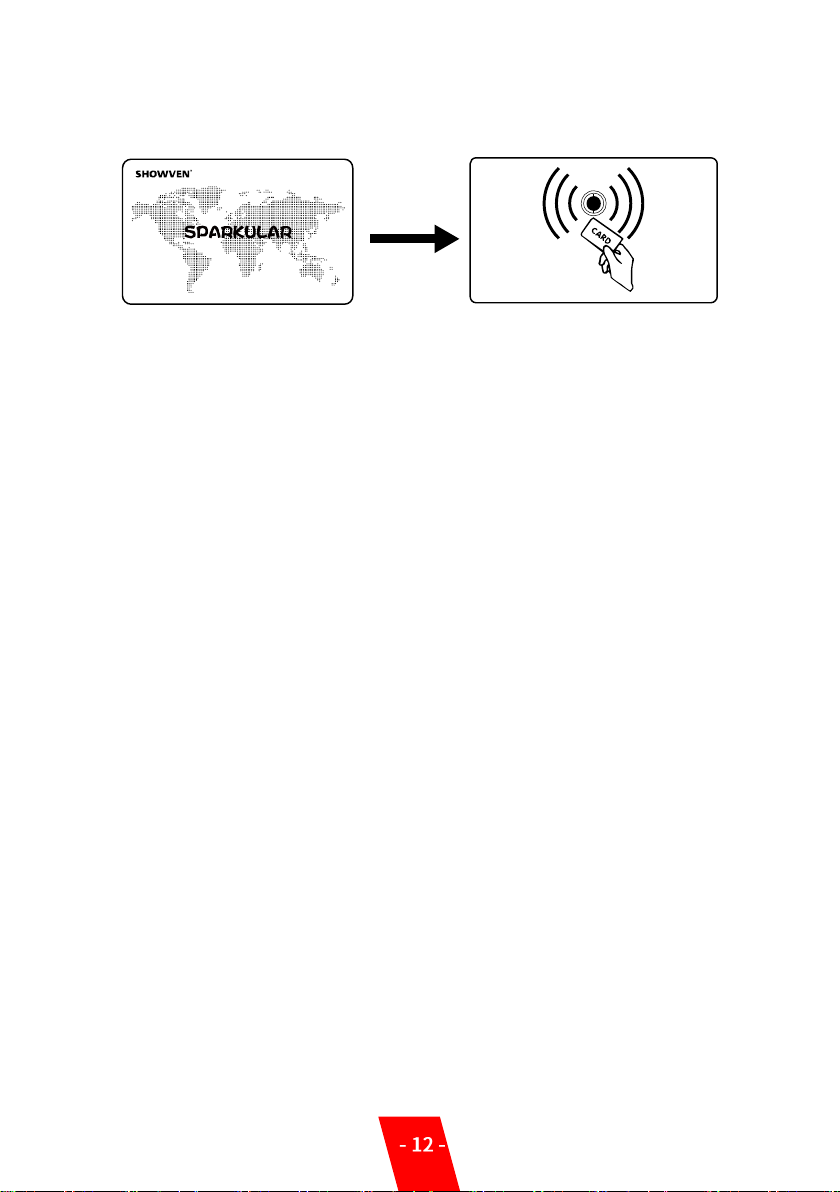

3. RFID area
RFID card come with consumable HC8200 bags, swiping card to identify parameters and types
of granules. The RFID card is disposable, one card can only use one time. Each card can increase
single machine 20min working time, the maximum recharge time for SPARKULAR®WAVER is
30min.

4. ARM alarming light
ON:DMX connected or wireless remote function ON.
BLINK: DMX armed, ready for firing
OFF: No DMX connection and wireless remote function OFF.
ΔDisplay Interface
1. Main Interface:
Background color of DMX area: red means DMX connected.
Background color of TEMP area: red means heating chamber temp. reached setting temp.
machine is ready for firing.
Indicator light status on power switch: flash means machine is heating up, long on means temp.
reached setting temp.
2. Error information
3. Set Up Menu
Press “MENU” enter setup menu, press LEFT, RIGHT to choose main menu, advanced menu or
factory menu. Press “EIDT”can entering related menu and setting up related parameters.
Error information
Explanation
E0 System IC
Systematic error
E1 Motor condition
Blower motor, shaft motor or feeding motor error
E2 Temp. Sensor
Temperature sensor is not connected or damaged
E3 P Temp. Over
Machine shutdown due to chassis over temperature
E4 Time Remain
Firing time is insufficient, please swipe RFID card
E5 K Temp. Over
Machine shutdown due to heating chamber over temperature
E6 Heat Fail
Heating fail, problem on heating PCB or mainboard
E7 Tip Over
Tilt sensor activated when machine slant over 45 degrees

4. Main Menu
Parameters in main menu show in below table, press “UP”/ “DOWN”to change the value,
please remember to press “SAVE”to save the setting.
5. Advanced Menu
Options
Range
Default
Explanation
Set DMX Address
1-512
1
Set DMX Address
Manual Heat
ON/OFF
OFF
Manual heat ON/OFF setting
Manual Fountain
ON/OFF
OFF
Manual Fountain ON/OFF setting
Sequence
2 - 72
2
Preset sequence setting
Max. Angle
-90°~90°
-90°
Max. Angle limit
Min. Angle
-90°~90°
90°
Min. Angle limit
Invert
ON/OFF
OFF
When turned on, all angles will be mirrored.
Head to middle
ON/OFF
ON
When ON and Channel 1 DMX value is 0, output
nozzle will back to middle position after running a
preset sequence.
Options
Range
Default
Explanation
Set Temperature
500-620
580
Setup SPARKULAR®heat chamber
temperature
Auto Clear Delay
0.1-0.9s
0.1s
Automatic clear material time
setting
Wireless 2.4G
ON/OFF
OFF
2.4G wireless function setting
LCD Backlight
ON/OFF
ON
LCD backlight setting
Density
50-100
100
Feeding amount
Mode Selection
Factory Mode
User Mode
User Mode
Factory mode is for engineer only.
When in Factory mode machine
can’t controlled by DMX console
Default Parameter
ON/OFF
OFF
Parameters reset to default setting
Motor Protect
ON/OFF
ON
Motor protect function

*For better performance of SPARKULAR® WAVER, please don’t change the default value
without permission from SHOWVEN®.
6. DMX Channel Mode
SPARKULAR WAVER occupies 6 operational channels. First channel is for effect height, second
channel for effect trigger and clear material etc.
Channel
Function
Value
CH1
Manual Angle setup
0~255: angle change from -90° to 90°
128: straight upward (0°)
CH2
Manual Nozzle
Waving Speed setup
0 and 255: Max Speed
1~254: Speed increase
CH3
Firing ON/OFF
0~15: Firing OFF
16~90: Firing height low
91~170: Firing height medium
171~255: Firing height high
Maxi. Single firing duration is 60s
CH4
n/a
Reserved
CH5
Preset sequence setup
0-2: no preset sequence
3-255: preset sequence
DMX value = 2 + Sequence No.*2.55 (ROUND OFF)
CH6
Mode setup
0~49:Heating Up OFF (Emergency Stop)
50~200: Heating Up ON
201~255: Heating Up OFF (Emergency Stop)

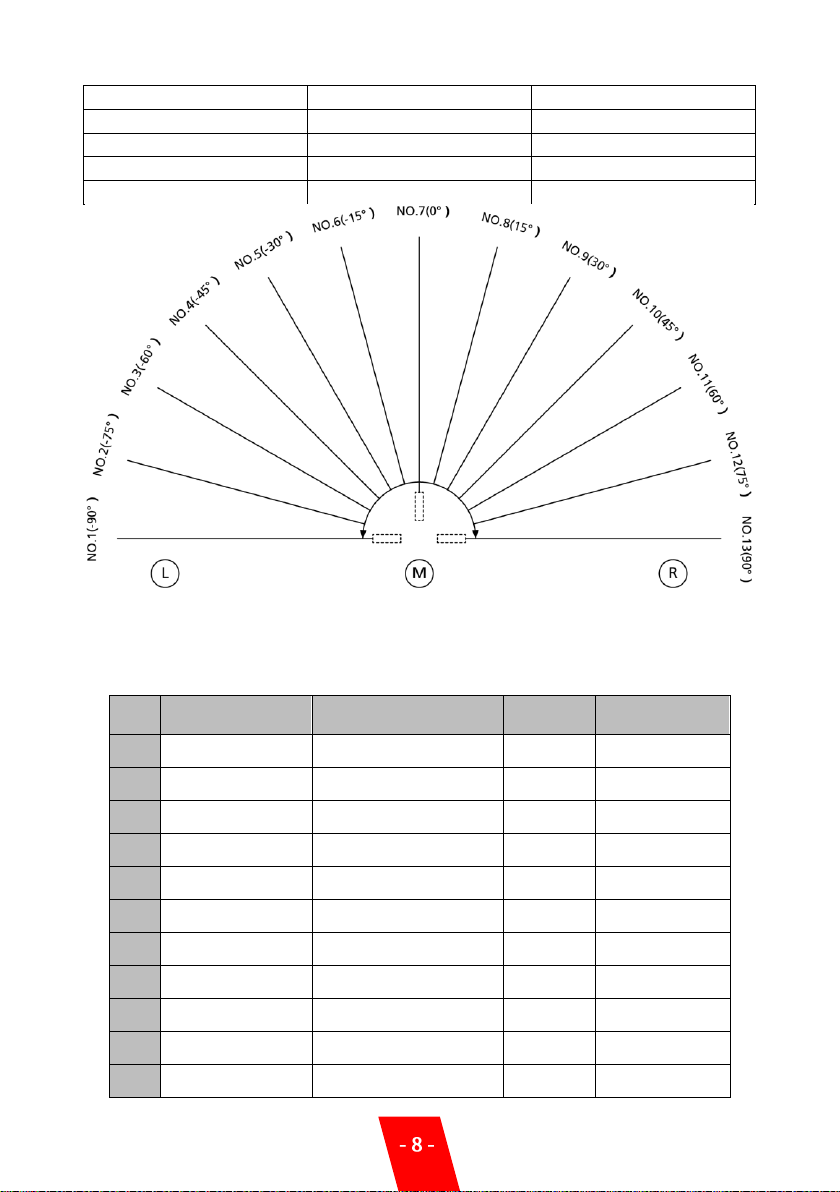

Channel 1 (CH1): Manual Angle Setup
SPARKUALR WAVER output nozzle can be stayed at any angle between -90° to 90°, below is a
list of typical angles used in our preset sequence with related DMX value.
Angle No.
Angle
DMX value
1
90°
5
2
75°
24
3
60°
47
4
45°
66
5
30°
85
6
15°
108
7
0°
128 or 0
8
-15°
148
Tip Over
ON/OFF
ON
Tilt function switch, when machine
slant over 45 degree it will stop
working.
Standby Switch
ON/OFF
OFF
When ON, the machine can firing
only when heating up was finished
Motor Disabled
ON/OFF
OFF
Motor can’t waving when OFF
Key Sound
ON/OFF
ON
Keypad press sound setting

9
-30°
169
10
-45°
190
11
-60°
213
12
-75°
234
13
-90°
255
7. Firing Sequence
SPARKULAR WAVER has 72 preset sequences, operator use related channel DMX value or
sequence No. to access certain sequence. Below, you can find sequence list.
No.
Ignition angle
Description
Firing
Duration
CH5 DMX
Reference Value
1
Any angle
Clear material
Depends
on CH3
3-5
2
-90°
Fixed angle firing
Depends
on CH3
6-7
3
-75°
Fixed angle firing
Depends
on CH3
8-10
4
-60°
Fixed angle firing
Depends
on CH3
11-12
5
-45°
Fixed angle firing
Depends
on CH3
13-15
6
-30°
Fixed angle firing
Depends
on CH3
16-17
7
-15°
Fixed angle firing
Depends
on CH3
18-20
8
0°
Fixed angle firing
Depends
on CH3
21-22
9
15°
Fixed angle firing
Depends
on CH3
23-25
10
30°
Fixed angle firing
Depends
on CH3
26-28
11
45°
Fixed angle firing
Depends
on CH3
29-30

12
60°
Fixed angle firing
Depends
on CH3
31-33
13
75°
Fixed angle firing
Depends
on CH3
34-35
14
90°
Fixed angle firing
Depends
on CH3
36-38
15
(-90° ) ~ 90°
Slow waving once
8s
39-40
16
90° ~ (-90°)
Slow waving once
8s
41-43
17
90° ~ (-90°) ~ 90°
Slow waving 3 times
14s
44-45
18
75° ~ (-75°)~ 75°
Slow waving 3 times
12s
46-48
19
60° ~ (-60°) ~ 60°
Slow waving 3 times
10s
49-50
20
45° ~ (-45°) ~ 45°
Slow waving 3 times
17s
51-53
21
30° ~ (-30°) ~ 30°
Slow waving 3 times
12s
54-56
22
15° ~ (-15°) ~ 15°
Slow waving 3 times
7s
57-58
23
90° ~ (-90°) ~ 90°
Medium waving 6 times
12s
59-61
24
75° ~ (-75°) ~ 75°
Medium waving 6 times
10s
62-63
25
60° ~ (-60°) ~ 60°
Medium waving 6 times
8s
64-66
26
45° ~ (-45°) ~ 45°
Medium waving 6 times
7s
67-68
27
30° ~ (-30°) ~ 30°
Medium waving 6 times
5s
69-71
28
15° ~ (-15°) ~ 15°
Medium waving 6 times
3s
72-73
29
60° ~ (-60°) ~ 60°
Fast waving 10 times
5s
74-76
30
45° ~ (-45°) ~ 45°
Fast waving 10 times
5s
77-79
31
30° ~ (-30°) ~ 30°
Fast waving 10 times
4s
80-81
32
15° ~ (-15°) ~ 15°
Fast waving 10 times
3s
82-84
33
75° ~ 0° ~ 75°
Fast waving 10 times
4s
85-86
34
60° ~ 0° ~ 60°
Fast waving 10 times
3s
87-89
35
45° ~ 0° ~ 45°
Fast waving 10 times
2s
90-91
36
30° ~ 0° ~ 30°
Fast waving 10 times
2s
92-94
37
(-75° ) ~ 0° ~ (-75° )
Fast waving 10 times
5s
95-96
38
(-60° ) ~ 0° ~ (-60° )
Fast waving 10 times
4s
97-99
39
(-45° ) ~ 0° ~ (-45° )
Fast waving 10 times
3s
100-101
40
(-30° ) ~ 0° ~ (-30° )
Fast waving 10 times
3s
102-104
41
90° ~ 0° ~ 90°
Slow waving twice
11s
105-107
42
75° ~ 0° ~ 75°
Slow waving twice
10s
108-109
43
60° ~ 0° ~ 60°
Slow waving twice
8s
110-112
44
45° ~ 0° ~ 45°
Slow waving twice
6s
113-114
45
30° ~ 0° ~ 30°
Slow waving twice
5s
115-117
46
(-90° ) ~ 0° ~ (-90° )
Slow waving twice
11s
118-119
47
(-75° ) ~ 0° ~ (-75° )
Slow waving twice
10s
120-122
48
(-60° ) ~ 0° ~ (-60° )
Slow waving twice
8s
123-124
49
(-45° ) ~ 0° ~ (-45° )
Slow waving twice
6s
125-127
50
(-30° ) ~ 0° ~ (-30° )
Slow waving twice
5s
128-130
51
90° ~ 0° ~ 90°
Medium waving 5 times
7s
131-132
52
75° ~ 0° ~ 75°
Medium waving 5 times
6s
133-135
53
60° ~ 0° ~ 60°
Medium waving 5 times
5s
136-137
54
45° ~ 0° ~ 45°
Medium waving 5 times
4s
138-140
55
30° ~ 0° ~ 30°
Medium waving 5 times
3s
141-142
56
(-90° ) ~ 0° ~ (-90° )
Medium waving 5 times
7s
143-145
57
(-75° ) ~ 0° ~ (-75° )
Medium waving 5 times
6s
146-147
58
(-60° ) ~ 0° ~ (-60° )
Medium waving 5 times
5s
148-150
59
(-45° ) ~ 0° ~ (-45° )
Medium waving 5 times
4s
151-152
60
(-30° ) ~ 0° ~ (-30° )
Medium waving 5 times
3s
153-155
61
(-90° ) ~ (-45°) ~ (-
90° )
Slow waving 3 times
10s
156-158
62
(-90° ) ~ (-30°)~ (-
90° )
Slow waving 3 times
13s
159-160

63
90° ~ 45° ~ 90°
Slow waving 3 times
10s
161-163
64
90° ~ 30° ~ 90°
Slow waving 3 times
12s
164-165
65
90° ~ 0°
Slow waving gradually
decreases angle
18s
166-168
66
(-90° ) ~ 0°
Slow waving gradually
decreases angle
19s
169-170
67
90° ~ (-90° )
Slow waving gradually
decreases angle
41s
171-173
68
0° ~ 90°
Slow waving once
5s
174-175
69
90° ~ 0°
Slow waving once
5s
176-178
70
0° ~ (-90° )
Slow waving once
5s
179-180
71
(-90° ) ~ 0°
Slow waving once
5s
181-183
72
0°
Fixed angle firing
Depends
on CH3
184-185
DMX control example 1: firing sequence No. 42
1. Set output nozzle straight up
CH1 = 128, CH2 = 0, CH3 = 0, CH4 = 0, CH5 = 0, CH6 = 128
2. Set preset Sequence No. 42
CH1 = 128, CH2 = 0, CH3 = 0, CH4 = 0, CH5 = 108, CH6 = 128
3. Firing 1s
CH1 = 128, CH2 = 0, CH3 = 255, CH4 = 0, CH5 = 108, CH6 = 128
DMX control example 2: firing sequence No. 8, firing time 10s
1. Set output nozzle straight up
CH1 = 128, CH2 = 0, CH3 = 0, CH4 = 0, CH5 = 0, CH6 = 128
2. Set preset Sequence No. 8
CH1 = 128, CH2 = 0, CH3 = 0, CH4 = 0, CH5 = 21, CH6 = 128
3. Firing
CH1 = 128, CH2 = 0, CH3 = 255, CH4 = 0, CH5 = 21, CH6 = 128
Keep 10s.
4. Firing OFF
CH1 = 128, CH2 = 0, CH3 = 0, CH4 = 0, CH5 = 0, CH6 = 128
8. Wireless Control Mode:
When use remote controller, please disconnect DMX cable connection, set machine to Wireless
2.4G to ON status. Match machine with remote controller by Press “A”on remote controller
when machine at Wireless Control interface.
A: OFF / SET, Firing OFF, SET means match machine with remote controller.
B: Firing, vertical up (0°)
C: Firing, according to the sequence setting on machine
D: Clear Material 3s.
Please replace the battery when the indicator light on remote controller is weak.
Battery mode: 9V stacked battery.
ΔOperation Guide
1. Install SPARKULAR®WAVER
a) SPARKULAR® WAVER can only be installed horizontally.
b) Make sure the machine is securely installed to avoid tipping.
c) Check carefully the output nozzle of each machine, make sure the output nozzle is in good
shape and there is no powder aggregate.

2. Fill SPARKULAR® WAVER
a) Open powder bags and fill the feeding hopper.
b) Choose correct consumable according to the application scenario. SPARKULAR®WAVER
can only use HC8200 LARGE and MEDIUM.
c) Please be noted that there may sparks or remains fall to the ground. Make sure no
flammable material on ground in the safety zone.
d) Maximum effect height: HC8200 LARGE is 4.5m, HC8200 MEDIUM is 3.5m.
e) Make sure the lid of hopper is locked tight after filling.
3. Connect Power / DMX cable
a) Connect a power cable to the POWER IN socket of SPARKULAR® WAVER. Connect the other
end of power cable to the power source. Make sure power supply in consistent with the
rated voltage of the equipment, and the socket must well grounded.
b) If connect machine in sequence, please connect a power link cable to the POWER OUT of
previous machine, connect the other end of the power link cable to POWER IN of the next
machine.
c) The SPARKULAR® WAVER power supply cable maximum allowed cascade is 6 units (220V
version) / 3pcs (110V version). Do not connect exceed units to a single electrical circuit.
d) Power ON all SPARKULAR®WAVER.
e) Assign DMX address for each unit of SPARKULAR® WAVER. If use SHOWVEN host controller
or FXcommander to control the machine please allocate a unique DMX address for each
unit of machine.
If use remote controller to control SPARKULAR® WAVER wirelessly, please set machine to
wireless ON status and match machine with remote controller. For DMX cable control please
execute below operations (f to h).
f) Connect a DMX cable to the DMX IN socket of first unit of SPARKULAR® WAVER, connect
the male connector end of DMX cable to your DMX controller (FXcommander, HOST
CONTROLLER, light console etc).
g) Connect a DMX cable to the DMX OUT of previous machine, and the other end of to the
DMX IN of next machine. Connect all devices in series in this way.
h) Suggest to plug in a DMX terminator into the DMX OUT in last unit of machine to improve
signal reliability. Signal amplifier is required for long distance (>200m) DMX signal
transmission (SHOWVEN DMX splitter 8 with bidirectional signal transmission, thus can get
signal feedback from device).
4. Activate SPARKULAR®WAVER by swipe RFID card
a) Swipe an RFID card. Read the card as show below. SPARKULAR®WAVER shows time remain
if read successfully. SPARKULAR®WAVER report E4 when remaining time is less than 10
minutes.

b) Please note each RFID card come with 200g package HC8200 can increase single machine
20min working time, the maximum recharge time for SPARKULAR®WAVER is 30min, when
time remain reached 30min, it can’t recharge anymore RFID card.
C N .00000001
5. Programming and Firing
a) Programming SPARKULAR® WAVER, set the firing sequences etc.
b) Heating up, it takes around 5min, it varies according to the voltage and environment
temperature.
c) Make sure the prescribed safety zone of related firing sequences are clear.
d) Suggest to clear material before firing.
e) Firing. In order to prevent overheat in the heating chamber and protect machine, the
maximum continuous firing time for SPARKULAR®WAVER is 60s.
f) The operator should always have a clear view of the device, so that he/she can stop the
show immediately when there is danger.
g) Running preset sequence No.1 to clear material for SPARKULAR®WAVER after show, clear
material will remove the remaining particles from heating chamber.
NOTE:
If use SHOWVEN HOST CONTROLLER ZK6200/6300 to control the firing, please press “F3”to choose “CIRCLE
FLAMER-6CH”, then set the firing sequence, as for preset sequence the firing duration is fixed, so please set
firing duration 1s. Please do allocate different DMX address for each unit of SPARKULAR WAVER (6 channels),
otherwise it will cause signal interference.
6. Turn Off and clean up
a) Power off SPARKULAR®WAVER, allow SPARKULAR®WAVER to cool down.
b) Disconnect all POWER and DMX cables.
c) Empty the remaining HC8200 in hopper, and store the remaining HC8200 in a dry sealed
bottle for next time use. Never touch the output nozzle of SPARKULAR® WAVER when
empty the hopper. DANGER OF GET BURNT!
d) Operators can use handheld vacuum cleaner to empty the feeding hopper. Do make sure
the machine was cool down when clean it. Do NOT use high-power vacuum cleaners to
avoid hot consumables being sucked into the vacuum cleaner from the heating chamber
and cause fire.
e) Clean the surroundings to remove powder residues.

ΔMaintenance
a) Empty the feeding hopper before shipment of machine.
b) Empty the feeding hopper if long time not use, for high humidity environment we suggest
to empty feeding hopper after each show.
c) Clear material both before and after the show.
ΔWarranty Instructions
\Sincere thanks for your choosing our products, you will receive quality service from us
\The product warranty period is one year. If there are any quality problems within 7 days after
shipping out from our factory, we can exchange a brand new same model machine for you
\We will offer free of charge maintenance service for machines which with hardware
malfunction (except for the instrument damage caused by human factors) in warranty period.
Please don't repair machine without factory permission
Below situations NOT included in warranty service:
\Damage caused by use other type of consumable which is not from SHOWVEN®or
SHOWVEN®authorized distributor.
\Damage caused by improper transportation, usage, management, and maintenance, or
damage caused by human factors;
\Disassemble, modify or repair products without permission;
\Damage caused by external reasons (lightning strike, power supply etc.)
\Damage caused by improper installation or use;
For product damage not included in warranty range, we can provide paid service.
Invoice is necessary when applying for maintenance service from SHOWVEN®.

Showven Technologies Co., Ltd.
Tel: [phone]
Web: www.showven.cn E-mail: [e-mail]
Add: Liuyang Economic Development Zone, Changsha, 410300, Hunan Province,
P.R.China
Distributor:
www.techni-lux.com
Phone: [phone]
Fax: [phone]
Email: [email protected]
- -
-
