7ML19985JD01 Test Chain – INSTRUCTION MANUAL Page 1
Safety Notes1
Special attention must be paid to warnings and notes highlighted from the rest of the text
by grey boxes.
Unit Repair and Excluded Liability
• The user is responsible for all changes and repairs made to the device by the user or
by the user’s agent.
• All new components are to be provided by Siemens Milltronics Process Instruments
Inc.
• Restrict repair to faulty components only.
• Do not reuse faulty components.
The Manual
This instruction manual is intended to provide the basic guidelines for installation,
operation and maintenance of the calibration test chain and storage reel compartment.
This manual will help you set up your test chain for optimum performance. We always
welcome suggestions and comments about manual content, design, and accessibility.
Please direct your comments to [email protected]. For a selection of
Siemens Milltronics weighing manuals, go to www. siemens.com/processautomation.
Under Weighing Technology , select Continuous Weighing Systems and select the manual
archive listed under the product family.
1. This symbol is used when there is no corresponding caution symbol on the product.
WARNING: relates to a caution symbol on the product, and means
that failure to observe the necessary precautions can result in
death, serious injury, and/or considerable material damage.
WARNING:1means that failure to observe the necessary
precautions can result in death, serious injury, and/or considerable
material damage.
CAUTION: means that failure to observe the necessary precautions can
result in considerable material damage.
Note: means important information about the product or that part of the operating
manual.
Notes:
• Please follow the installation and operating procedures for a quick, trouble free
installation and to ensure the maximum accuracy and reliability of your test chain.
• This manual applies to the test chain only.
Test Chain.book Page 1 Tuesday, April 19, 2005 9:34 AM

Page 2 Test Chain – INSTRUCTION MANUAL 7ML19985JD01
Application Examples
The application examples used in this manual illustrate typical installations that use the
test chain. Other configurations may also apply.
In all examples, substitute your own application details. If you require more information,
please contact your Siemens Milltronics representative. For a complete list of Siemens
Milltronics representatives, go to: www. siemens.com/processautomation.
Test Chain Calibration
Test chain calibration is used extensively for testing mechanical belt scales, and to
calibrate high capacity electronic belt scales and weighfeeders that cannot be calibrated
to material tests.
During the calibration, the test chain is applied to the conveyor belt and is secured at both
ends so that the chain remains stationary over the weigh length. The chain rolls on the
surface of the moving belt conveyor, providing dynamic scale loading of a known weight
value, and thus supplying the calibration reference.
Advantages
The roller test chain simulates live material loading by causing the belt’s structure to
deflect in much the same manner as when material is present.
A much greater test load can be applied to high capacity belt scales and weighfeeders
because most weighbridge designs can only accommodate a limited number of static
weights applied to the suspension. The high capacity test load is especially important on
systems using mechanical weighing elements and lever systems because they calibrate
the systems with test load values close to normal operating loads.
CAUTION: Please consider the following:
• Ensure accessibility to the top (load) side of the conveyor belt in the scale area.
• Secure and remove the test chains each time they are used.
• Provide routine inspection and maintenance.
• Lubricate regularly and repair as necessary to ensure safe reliable service.
• Weigh and measure chain annually to determine the correct and accurate load
value (required to compensate for wearing and stretching of the test chain
components).
Test Chain.book Page 2 Tuesday, April 19, 2005 9:34 AM

7ML19985JD01 Test Chain – INSTRUCTION MANUAL Page 3
Technical Data and Specifications
The test chain assembly is available in two components: the test chain and the reel.
Test Chain Design and Features
• Chains are configured as single width or double width roll sets in pitches of 4” (10
cm) or 6” (15 cm) between adjacent rolls.
• Chain rollers are provided with oil impregnated bronze bushings.
• Side plates, pins, and end shackles are made from C1018 and C1020 cold rolled steel.
• End Shackles are fitted with Eye links for attachment of wire rope.
• Rollers are made from C1010 hot rolled steel.
• Roll bars/Cotter pins are made from 304 stainless steel.
• Connection links are retained by stainless steel roll bars.
• A brass plate bearing the calibrated weight in lb/ft or kg/m is fixed to the end
shackle.
• The chain is sprayed with a rust inhibitor.
• Nickel plated chains are available on special request.
Single Roller Bushed Test Chain
test chain
roller
test chain
shackle
pitch
roller
diamete
r
roller pin (st. steel)
roller shaft (removable)
test chain
link
shaft length
chain length to center
line of last roller
washer
Test Chain.book Page 3 Tuesday, April 19, 2005 9:34 AM

Page 4 Test Chain – INSTRUCTION MANUAL 7ML19985JD01

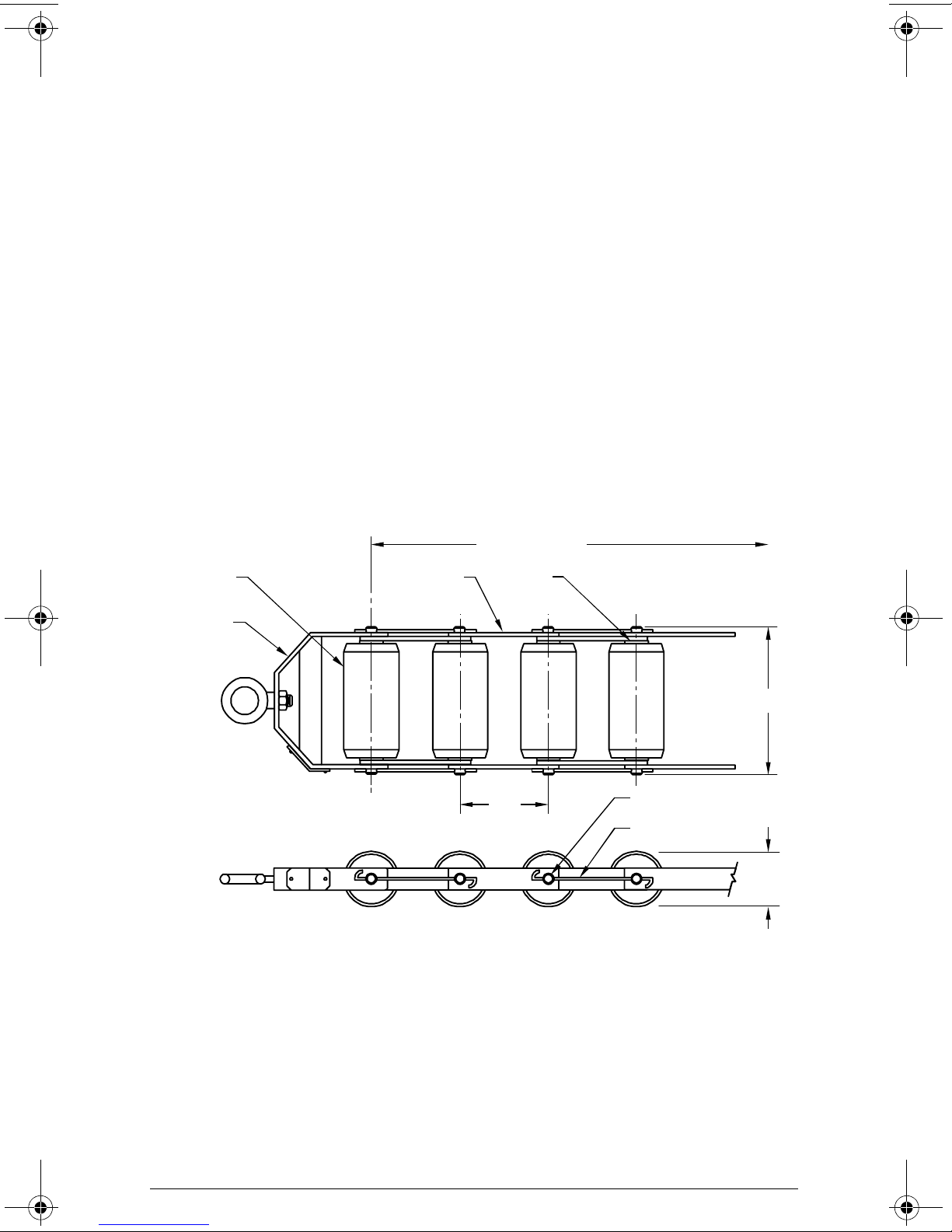

Double Roller Bushed Test Chain
Chain Position and Restraints
Chain position is critical to accurate scale calibration. To ensure proper position, please
account for the following:
• The pitch should be evenly divisible into the conveyor idler spacing.
• Rollers should straddle the idlers.
• Chain placement must be repeatable. Make sure that the chain extends a minimum
two rollers before and after the weighing mechanism.
The use of appropriate chain restraints will help control longitudinal stability and is
critical to ensure proper and safe usage. Restraints should do the following:
• Be attached to the chain at one end and fixed to posts mounted to each side of the
conveyor at about one belt width from the end of the chain.
• Form a “V” shape when viewed from above.
• Cross over and clear the belt edges by approximately one to two inches (2.5 to 5.0
cm).
Tension in the restraints should:
• Prevent chain movement along the belt
• Not lift the ends of the chain
Notes: Turnbuckles are recommended to permit adequate adjustment of tension to
ensure the chain is fully extended and each roller is turning freely
test chain
roller
test chain
shackle
pitch
roller pin (st. steel)
roller shaft (removable)
test chain
link
shaft length
chain length to center
line of last roller
washer
roller
diameter
Test Chain.book Page 4 Tuesday, April 19, 2005 9:34 AM

7ML19985JD01 Test Chain – INSTRUCTION MANUAL Page 5
Chain Position and Restraints (cont’d)

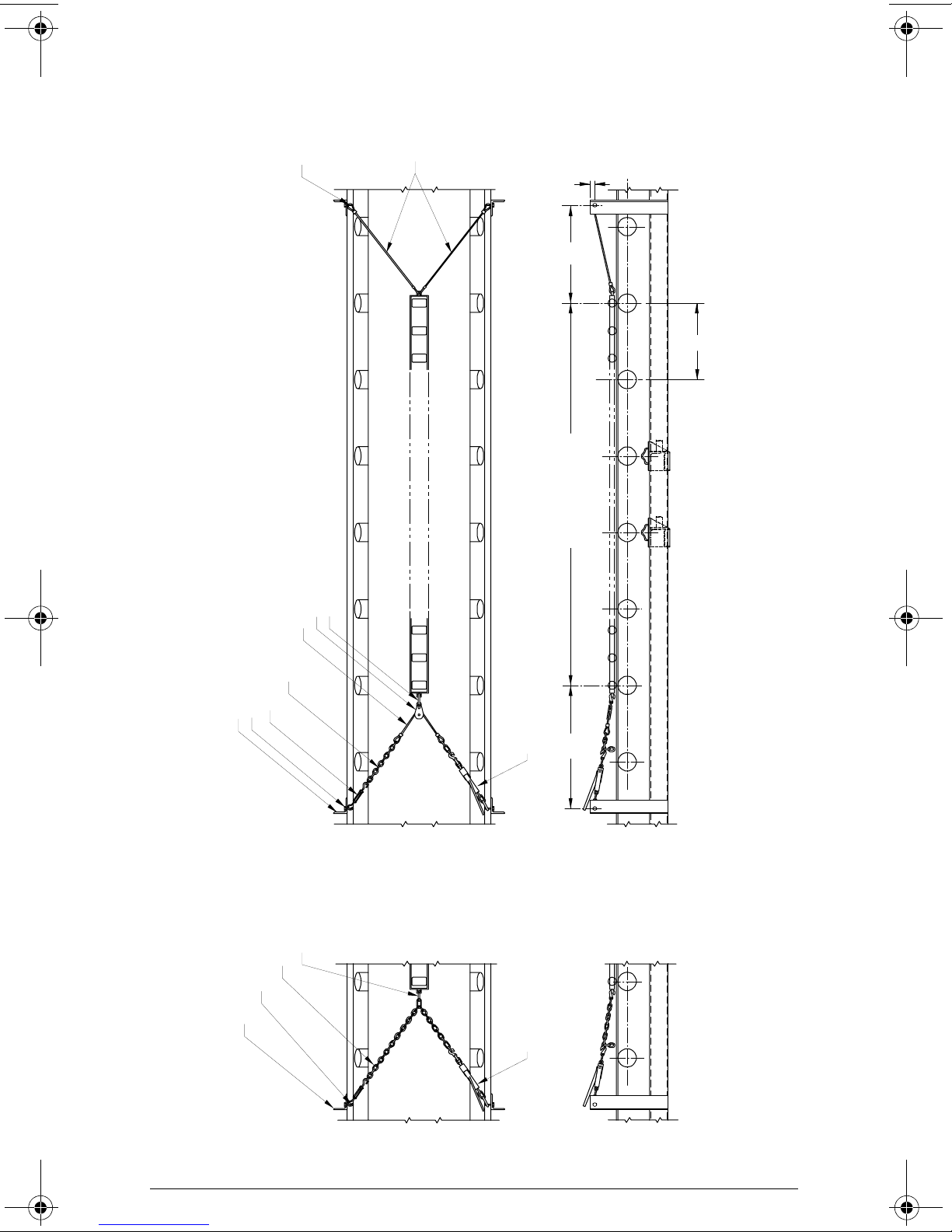

3" X 3" (7.5 X 7.5 cm) mill angle
3" X 3" (7.5 X 7.5 cm) mill angle
eye bolt
chain
chain
heavy duty hook
heavy duty hook
load binder load binder
cable
pulley
eye bolt
equal length cable
belt width
5 x idler spacing
belt width
idler spacing
1.5" (38mm)
eye bolt
turnbuckle
Test Chain.book Page 5 Tuesday, April 19, 2005 9:34 AM

Page 6 Test Chain – INSTRUCTION MANUAL 7ML19985JD01
Chain Reel
Location
On incline conveyors, the chain reel must be carefully installed upstream of the scale
weighbridge so the chain rolls out with the movement of the belt. "Upstream" is when you
look from the conveyor tail or infeed end towards the head or discharge end of conveyor.
On a level conveyor, locate the reel prior to the scale position.
Facilitate chain payout over the scale by jogging the belt until the chain rolls into position.
Mount the reel to the conveyor about 4 to 4.5 idler spaces from the scale center line. This
places the support legs of the reel about 1.5 spaces from the end of the test chain for easy
attachment to the restraining device.
Once the chain has been secured at both ends, the cable from the reel can be detached
and the belt restarted for the calibration process.
Reel Size and Compartment Diameters
The size of the reel is determined by the requirements of the specific conveyor
application and the selected chain loading. The width of the conveyor (18” [46 cm]
through 72” [183 cm] belt conveyor), its incline, and its general construction determine the
reel cross member length and section sizing for that member.
Compartment disc diameter is determined by the following:
• Chain length, pitch, and roll diameter
• Wire rope and chain wrap around the reel drum
• Chain wrap around the successive wraps of chain
• The number of rolls in a given wrap increase with each revolution of the reel
• The number of wraps the reel disc holds depends on the given chain parameters
• As few as one to two wraps, to as many as nine wraps
• Overall wrap diameter varies from about 12” (30.5 cm) for the shortest chain to
about 49” (124.5 cm) for the longest chain.
Specifications
• 6" (15 cm) pitch test chain, 20 ft
(609 cm) long
• 42 rollers long, 41 pitches long
• roll diameter: 3.75" (9.5 cm)
• disc diameter: 36" (91.5 cm)
Test Chain.book Page 6 Tuesday, April 19, 2005 9:34 AM

7ML19985JD01 Test Chain – INSTRUCTION MANUAL Page 7
Standard Motorized Test Chain Storage Reel
36" (91.4 cm) or
4" (10.15 cm) shed 40 pipe
conveyer
2" (5 cm) pillow block (typ)
10" (25.4 cm) X 20Lb/ft (or kg/m
equiv.)
30" (76.2 cm) X 3" (7.62 cm) X
25" (63.5 cm)
by Siemens Milltronics
by customer
conveyer stringer
connecting
bracket by
customer
12.25"(31.1cm)
21"(53.3cm)
13.25"(33.7cm)
beltline
23.5"(59.7cm)
tosuit
23.5"(59.7cm)
Eyebolt (2) req’d
Spae-Naur
#EYB-14 or equiv.
gusset (by
customer)
"D"
dimension
to
center
line
ofbeltscale
42" (106.5 cm) dia. disc (typ)
Test Chain.book Page 7 Tuesday, April 19, 2005 9:34 AM

Page 8 Test Chain – INSTRUCTION MANUAL 7ML19985JD01
Reels may have from one to three chain compartments (widths vary according to the
width of the specific test chain).
• Compartment width is one to two inches wider than the length of the chain roller
pins or shafts. Each compartment is made of ¼” (6.5 mm) thick discs available in
diameters of 36”, 42”, and 48" (91.5, 107, 122 cm), depending on the chain length.
• Each disc has a small through-hole adjacent to the 4” (10 cm) diameter shaft centre.
This is used to insert the wire rope and fittings needed to attach the test chain to the
reel.
• Reels are supplied with 30 feet (9.14 m) of ¼” (6.5 mm) wire rope and two clamps per
chain.
• Reels are painted standard grey epoxy and are shipped bolted to wooden skids
• Reel frame construction is all mild steel structural components that are welded and
bolted. The disc compartments are welded to a 4” (10 cm) diameter tube, or pipe,
serving as the rotating drum. A solid cold rolled drive shaft is welded to the drum
assembly for attachment to the gear-motor and pillow blocks for mounting to the
main support frame.
• A curved slide plate is welded to a cross member to prevent chain snagging at the
cross member.
Reel Horsepower
• Motor horsepower varies with application loading and are available in 0.75, 1. 1.5, 2,
3, and 5
• Of primary concern is the ability of the reel to handle the total test chain weight and
the associated forces needed to pull the chain along the belt and up the reel.
• The gear-motor horsepower is based on these force requirements and the
intermittent usage for the calibration process.
• Typical reel gear-motors have NEMA D rated starting characteristics, a totally
enclosed non-ventilated (TENV) housing, intermittent (30-minute duty) motor
operating at either 230 or 460 volts, 3 cycle, 50 or 60 Hz. (other voltages are also
available).
• The gearing ratios are approximately 180 to 200:1 with output RPMs in the 8 to 10
RPM range. Depending on the chain parameters, this affords an average chain
rollout time of about 3 minutes to 30 seconds.
Note:
• Motor starters, push button stations, and support legs from the reel to the
conveyor frame are supplied by others.
• Vertical support legs from the reel frame to the conveyor are to be supplied by
others. Provision is made for direct attachment to the customer-furnished
supports by short vertical leg sections from the reel support cross members.
Test Chain.book Page 8 Tuesday, April 19, 2005 9:34 AM

7ML19985JD01 Test Chain – INSTRUCTION MANUAL Page 9
Chain load range for each gear-motor
Test Chain and Reel Selection
A calibration range is generally targeted between 50% to 80% of the maximum design
load. Use the belt scale’s design information to determine chain requirements.
Example
The next larger chain is the preferred choice to retain the desired percent of maximum
loading. In our example, the calculation is performed at 60%:
166.67 * .60 = 100 kg/m (67.05 lb/ft)
Using the nominal kg/m value of 100, the next larger chain is selected from the chart of
available test chains. The value selected is equivalent to 104 kg/m (70 lb/ft). Test Chain
design size is based at 62.5% belt loading.
The length is based on the idler spacing. The test chain should extend no less than two
fixed idlers beyond each end of the scale mounted idlers. Nominal chain length = (# of
scale idlers + 3) * idler spacing:
1 + 3 * 1 = 4m (13 ft.)
Chain Load Horsepower
Up to 800 lbs 0.75
800 to 1100 lbs 1
1100 to 1800 lbs 1.5
1800 to 2400 lbs 2
2400 to 3600 lbs 3
3600 to 5000 lbs 5
Belt Scale Design Information
Belt Scale's Capacity: 1500 MTPH
Design Load Maximum: 166.67 kg/m
Idler Spacing: 1.0 m
Type of Belt Scale 1 weigh idler (MSI)
Belt Width: 1400 mm
Belt Speed: 2.5 m/sec
Test Chain.book Page 9 Tuesday, April 19, 2005 9:34 AM

Page 10 Test Chain – INSTRUCTION MANUAL 7ML19985JD01
• Note that some chain pitches do not divide evenly into the nominal chain length. The
selected chain may require to be increased by a pitch or two to accommodate
construction.
• Stamped value is derived from the actual manufactured results.
• The motorized storage reel is sized for a 1400 mm belt width with a conveyor width
outside to outside of stringer channels of 1820 mm, “C” dimension as given by
others.
Installing Test Chain and Reel
The Siemens Milltronics test chain storage reel requires a support steel structure for
installing above the conveyor. Locate an area suitable for the storage reel for flat or
inclined conveyors upstream of the belt scale’s location toward the head pulley. For
declined conveyors, the reel should be located to the upper side of the conveyor,
approach end. Use this structure to gravity feed the test chain into place.
Once the location has been selected, ensure that the reel is centered over the center line
of the belt and that it will clear the maximum material bed depth anticipated for the
application. Material loads should not come in to contact with any portion of the storage
reel.
Installation Guidelines
A 30 foot (9.14 m) length of stainless steel wire rope is supplied with clips. One end of the
cable is attached to the test chain shackle. The other end is attached to the spool piece of
the reel.
CAUTION:
• Be sure to arrange proper transportation to carry the components to the conveyor
to avoid injury to personnel during handling.
• Break larger size test chains into sections for ease of handling. These sections
must be re-assembled prior to use and installing on the storage reel.
• Mechanical assistance may be required to lift the chains onto the conveyor.
Notes:
• Support legs, gussets, brackets, and mounting bolts are to be supplied by
customer.
• A mechanical engineer should oversee the installation and verify the support
structure.
• Provision for AC power is required for wiring of gear motor. Ensure the power
source is available. All wiring must be done in conjunction with approved conduit,
boxes, and fittings; and done to procedure in accordance with all governing
regulations.
Test Chain.book Page 10 Tuesday, April 19, 2005 9:34 AM

7ML19985JD01 Test Chain – INSTRUCTION MANUAL Page 11
Installing
Position local control station within direct viewing of the storage reel and the belt scale.
Minimum requirements for the control station (supplied by customer):
• Forward / Reverse or Raise / Lower
• Three position (on, off, on) spring return configuration
Upright posts constructed of angle iron may be placed at opposite end of the test chain.
These may be welded to main conveyor stringers on both sides, for securing the test
chain’s free end while in use.
Use eye hooks attached to the posts to secure the wire rope cables from the test chain
shackle. This positions the test chain, allowing it to track centrally on the belt.
Refer to installation or outline diagrams, and review all areas of the installation to ensure
that the safety aspects of the mechanics have been met. All welding, hardware,
fasteners, wiring, location, and other aspects must be sound and secure.
Operation Guidelines
1. Using the control station lower the test chain onto the conveyor belt. Spread the test
chain out until it spans across the weigh idler suspension: two idlers from the
approach side to two idler on the retreat side of the weigh suspension. (This is often
referred to as the A2 approach idlers to R2 retreat idlers. Refer to “Chain Position
and Restraints” on page 4).
2. Secure both ends of the test chain using wire rope cables attached to the eye bolts
of the frame on the storage reel and at opposite end. The test chain should lay flat
on the center roll of each idler, with the links of the chain in a horizontal position to
the conveyor belt.
Notes:
• Follow the calibration details for the manufacture’s belt scale to perform a
Zero calibration.
• Check for and adjust to a acceptable repeatability and error. Ensure the
free end of the chain has been released from the storage reel.
• Frequency of calibration is determined by the repeatability of the span
results and the monitoring of the scale’s performance.
CAUTION: During this step of the operation, the conveyor belt must be stopped, to
prevent injury to operating personnel.
Test Chain.book Page 11 Tuesday, April 19, 2005 9:34 AM

Page 12 Test Chain – INSTRUCTION MANUAL 7ML19985JD01
3. Run conveyor at the normal operating belt speed and observe the performance of
the test chain. The rollers of the chain should run freely without incident and track
centrally to the middle of belt. No side motion or “snaking” should be observed.
4. Continue to run the conveyor and perform the span calibration as outlined in the
scale manufacturer’s manual.
Ensure the following upon completing the exercise:
• Stop the conveyor
• Retrieve the test chain by using the control station to raise the test chain into the
storage reel.
• Leave the wire rope cable attached to the shackle.
• During raising, ensure the chain shackle is free to move and does not bind onto any
portion of the storage reel. Once completely retrieved, secure the free end of the
chain using the wire rope.
Maintenance
Test Chain
• Check all parts of the test chain regularly.
• Ensure the links and rollers are free to move on shafts.
• Replace broken or missing retaining pins.
• Ensure wire rope anchoring cables are not frayed or twisted
• Ensure clips are tight on the cable.
• Lubricate the chain with light machine oil to prevent rusting and ensure safe and
free movement. Either submerge the chain in a oil bath, or spray with common
lubricants or rust prohibitor.
• Place a hood or cover over the storage reel to minimize negative effects of dirt or
debris falling onto the test chain.
• Annual verification of the chain should be made against a known, certified platform
with scale and length to precision measurements. Recalculate with the following
measurements.
Note: Snaking causes the results to be non repeatable and varying. Eliminate by
readjusting the wire rope guide cable (stays) until the problem is solved. Tension
should not be applied to the retrieving cable.
CAUTION: Disable the gear motor by removing power from the unit. This prevents
any unauthorized or accidental release of the chain during normal belt operation. The
test chains should never be released while material is on the belt.
Test Chain.book Page 12 Tuesday, April 19, 2005 9:34 AM

7ML19985JD01 Test Chain – INSTRUCTION MANUAL Page 13
Storage Reel
All components should be inspected. Pillow block bearings supporting reel to be
lubricated during periodic maintenance. Motor and gearbox must be obstruction free.
This assembly in whole or in part must never be used for anything other than its intended
purpose.
Test Chain Mass (without shackles) Lb or Kg
Length stretched, reference from center of first
roll to center of last roll.
Ft or M
Roller Pitch: from technical data. Ft or M
Weight of 1 link: Lb or Kg
Mass + weight of 2 links
Stretched length + 1 Pitch
Lb/ft or Kg/M
Chain Length Ft
or M
Test Chain.book Page 13 Tuesday, April 19, 2005 9:34 AM

Notes
Notes.fm Page 1 Thursday, October 11, 2001 8:48 AM

IQ300IX.fm Page 5 Tuesday, October 2, 2001 1:43 PM

*7ml19985JD01* Rev. 1.0
www.siemens.com/processautomation
Siemens Milltronics Process Instruments Inc.
1954Technology Drive, P.O. Box 4225
Peterborough, ON, Canada K9J 7B1
Tel: [phone] Fax: [phone]
Email: tec[email protected]
Siemens Milltronics Process Instruments Inc. 2005
Subject to change without prior notice
Printed in Canada
