Siemens SIMATIC ET 200SP User manual

Digital output module
DQ 8x24VDC/0.5A ST
(6ES7132-6BF00-0BA0)
___________________
___________________
___________________
___________________
___________________
___________________
___________________
___________________
SIMATIC
ET 200SP
Digital output module
DQ 8x24VDC/0.5A ST
(6ES7132-6BF00-0BA0)
Manual
07/2014
A5E03574575
-AC
Preface
Documentation guide
1
Product overview
2
Wiring up
3
Parameters/address space
4
Interrupts/diagnostics alarms
5
Technical specifications
6
Parameter data record
A

Siemens AG
Industry Sector
Postfach 48 48
90026 NÜRNBERG
GERMANY
A5E03574575-AC
Ⓟ
07/2014 Subject to change
Copyright © Siemens AG 2012 - 2014.
All rights reserved
Legal information
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
indicates that minor personal injury can result if proper precautions are not taken.
NOTICE
indicates that property damage can result if proper precautions are not taken.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will
be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to
property damage.
Qualified Personnel
The product/system described in this documentation may be operated only by
personnel qualified
for the specific
task in accordance with the relevant documentation, in particular its warning notices and safety instructions.
Qualified personnel are those who, based on their training and experience, are capable of identifying risks and
avoiding potential hazards when working with these products/systems.
Proper use of Siemens products
Note the following:
WARNING
Siemens products may only be used for the applications described in the catalog and in the relevant technical
documentation. If products and components from other manufacturers are used, these must be recommended
or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and
maintenance are required to ensure that the products operate safely and without any problems. The permissible
ambient conditions must be complied with. The information in the relevant documentation must be observed.
Trademarks
All names identified by ® are registered trademarks of Siemens AG. The remaining trademarks in this publication
may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the
information in this publication is reviewed regularly and any necessary corrections are included in subsequent
editions.

Digital output module DQ 8x24VDC/0.5A ST (6ES7132-6BF00-0BA0)
4Manual, 07/2014, A5E03574575-AC
Preface
Purpose of the documentation
This device manual supplements the system manual ET 200SP distributed I/O system
(http://support.automation.siemens.com/WW/view/en/58649293).
Functions that relate generally to the system are described in this manual.
The information provided in this manual and in the system/function manuals supports you
when commissioning the ET 200SP distributed I/O system.
Conventions
Please pay particular attention to notes highlighted as follows:
Note
A note contains important information on the product described in the documentation, on the
handling of the product and on the section of the documentation to which particular attention
should be paid.
Security information
Siemens provides products and solutions with industrial security functions that support
the secure operation of plants, solutions, machines, equipment and/or networks.
They are important components in a holistic industrial security concept. With this in mind,
Siemens’ products and solutions undergo continuous development. Siemens recommends
strongly that you regularly check for product updates.
For the secure operation of Siemens products and solutions, it is necessary to take suitable
preventive action (e.g. cell protection concept) and integrate each component into a holistic,
state-of-the-art industrial security concept. Third-party products that may be in use should
also be considered. You can find more information about industrial security on the Internet
(http://www.siemens.com/industrialsecurity).
To stay informed about product updates as they occur, sign up for a product-specific
newsletter. You can find more information on the Internet
(http://support.automation.siemens.com).

Digital output module DQ 8x24VDC/0.5A ST (6ES7132-6BF00-0BA0)
Manual, 07/2014, A5E03574575-AC 5
Table of contents
Preface ................................................................................................................................................... 4
1 Documentation guide .............................................................................................................................. 6
2 Product overview .................................................................................................................................... 8
2.1 Properties.......................................................................................................................................8
3 Wiring up .............................................................................................................................................. 10
3.1 Terminal assignment....................................................................................................................10
3.2 Schematic circuit diagram............................................................................................................11
4 Parameters/address space ................................................................................................................... 12
4.1 Parameters...................................................................................................................................12
4.2 Explanation of the parameters .....................................................................................................14
4.3 Address space .............................................................................................................................15
5 Interrupts/diagnostics alarms................................................................................................................. 16
5.1 Status and error display ...............................................................................................................16
5.2 Interrupts ......................................................................................................................................18
5.3 Diagnostics alarms.......................................................................................................................19
6 Technical specifications ........................................................................................................................ 20
6.1 Technical specifications ...............................................................................................................20
A Parameter data record .......................................................................................................................... 24
A.1 Parameter assignment and structure of the parameter data record............................................24

Digital output module DQ 8x24VDC/0.5A ST (6ES7132-6BF00-0BA0)
6Manual, 07/2014, A5E03574575-AC
Documentation guide
1

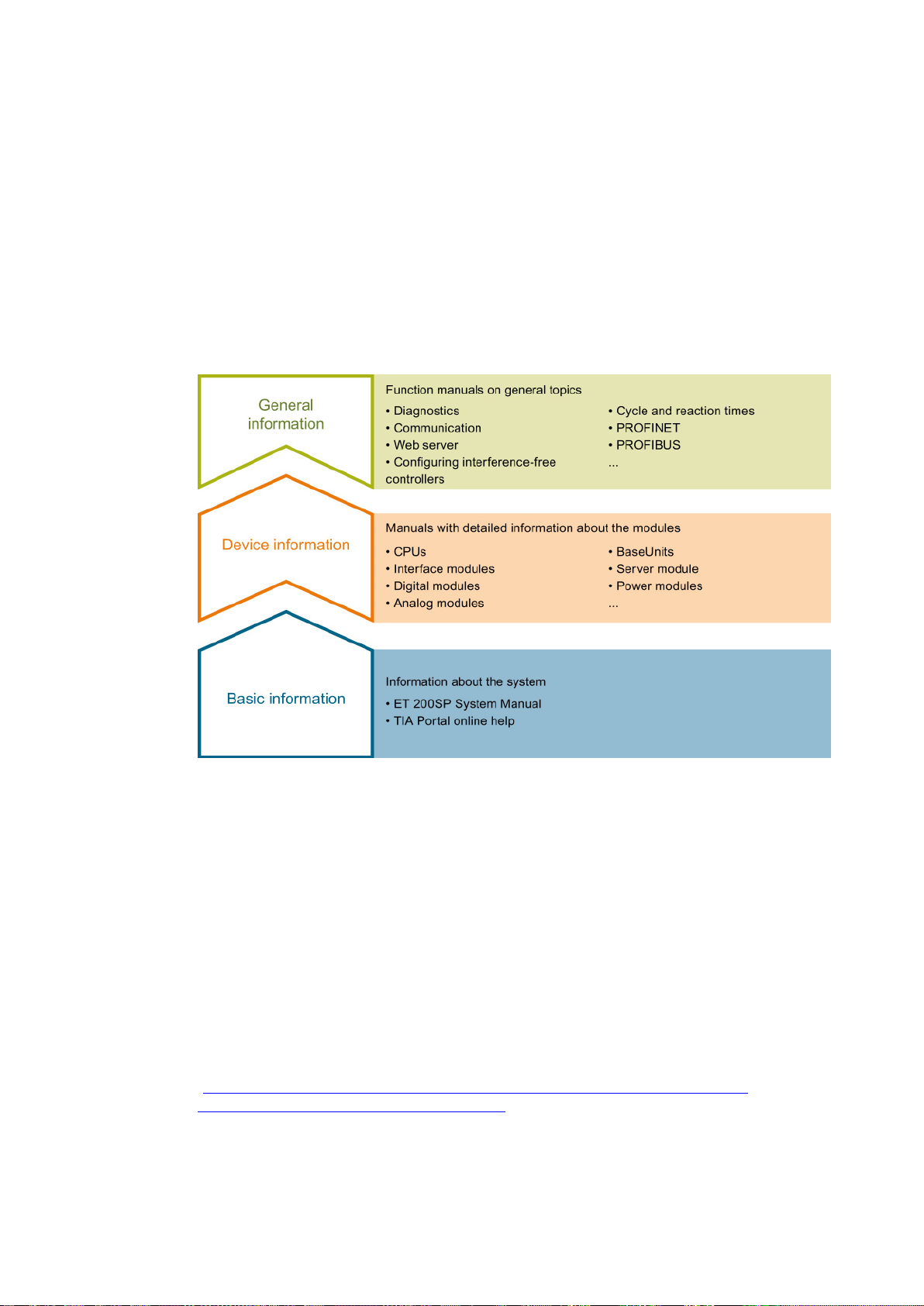

The documentation for the SIMATIC ET 200SP distributed I/O system is arranged into
three areas.
This arrangement enables you to access the specific content you require.
Basic information
The System Manual and Getting Started describe in detail the configuration, installation,
wiring and commissioning of the SIMATIC distributed I/O system. ET 200SP. The STEP 7
online help supports you in the configuration and programming.
Device information
Manuals contain a compact description of the module-specific information, such as
properties, terminal diagrams, characteristics, technical specifications.
General information
The function manuals contain detailed descriptions on general topics regarding the
SIMATIC ET 200SP distributed I/O system, e.g. diagnostics, communication, Motion Control,
Web server.
You can download the documentation free of charge from the Internet
(http://w3.siemens.com/mcms/industrial-automation-systems-simatic/en/manual-
overview/tech-doc-et200/Pages/Default.aspx).
Changes and supplements to the manuals are documented in a Product Information.

Documentation guide
Digital output module DQ 8x24VDC/0.5A ST (6ES7132-6BF00-0BA0)
Manual, 07/2014, A5E03574575-AC 7
Manual Collection ET 200SP
The Manual Collection contains the complete documentation on the SIMATIC ET 200SP
distributed I/O system gathered together in one file.
You can find the Manual Collection on the Internet
(http://support.automation.siemens.com/WW/view/en/84133942).
My Documentation Manager
The My Documentation Manager is used to combine entire manuals or only parts of these
to your own manual.
You can export the manual as PDF file or in a format that can be edited later.
You can find the My Documentation Manager on the Internet
(http://support.automation.siemens.com/WW/view/en/38715968).
Applications & Tools
Applications & Tools supports you with various tools and examples for solving your
automation tasks. Solutions are shown in interplay with multiple components in the system -
separated from the focus in individual products.
You can find Applications & Tools on the Internet
(http://support.automation.siemens.com/WW/view/en/20208582).
CAx Download Manager
The CAx Download Manager is used to access the current product data for your
CAx or CAe systems.
You configure your own download package with a few clicks.
In doing so you can select:
●Product images, 2D dimension drawings, 3D models, internal circuit diagrams,
EPLAN macro files
●Manuals, characteristics, operating manuals, certificates
●Product master data
You can find the CAx Download Manager on the Internet
(http://support.automation.siemens.com/WW/view/en/42455541).

Digital output module DQ 8x24VDC/0.5A ST (6ES7132-6BF00-0BA0)
8Manual, 07/2014, A5E03574575-AC
Product overview
2
2.1
Properties
Article number
6ES7132-6BF00-0BA0

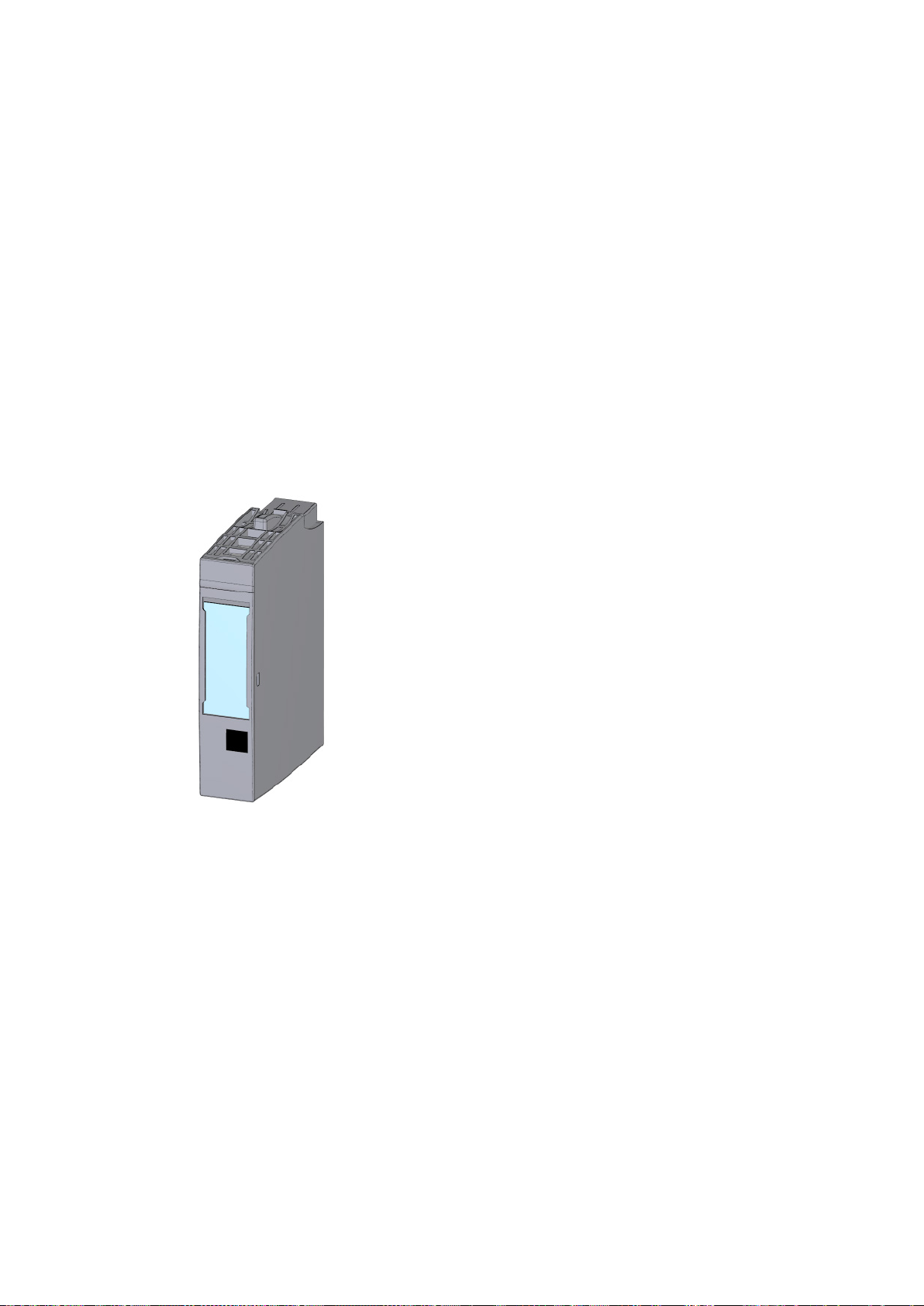

View of the module
Figure 2-1 View of the module DQ 8×24VDC/0.5A ST
Properties
The module has the following technical properties:
●Digital output module with 8 outputs
●Supply voltage L+
●Output current 0.5 A per channel
●Source output (PNP)
●Module-oriented selectable diagnostics
●Substitute value output

Product overview
2.1 Properties
Digital output module DQ 8x24VDC/0.5A ST (6ES7132-6BF00-0BA0)
Manual, 07/2014, A5E03574575-AC 9
●Suitable for solenoid valves, DC contactors, and indicator lights
●Safety-related shutdown
The module supports the following functions:
●Firmware update
●I&M identification data
●Configuration in RUN
●PROFIenergy
Table 2- 1 Version dependencies of other module functions
Function
Product version
of the module as of
Firmware version
of the module as of
Value status
1
V1.1.0
You can configure the module with STEP 7 (TIA Portal) and with a GSD file.
Accessories
The following accessories must be ordered separately:
●Labeling strips
●Color identification labels
●Reference identification label
●Shield connector
See also
You can find additional information on the accessories in the ET 200SP distributed
I/O system (http://support.automation.siemens.com/WW/view/en/58649293) system manual.

Digital output module DQ 8x24VDC/0.5A ST (6ES7132-6BF00-0BA0)
10 Manual, 07/2014, A5E03574575-AC
Wiring up
3
3.1
Terminal assignment
General terminal assignment

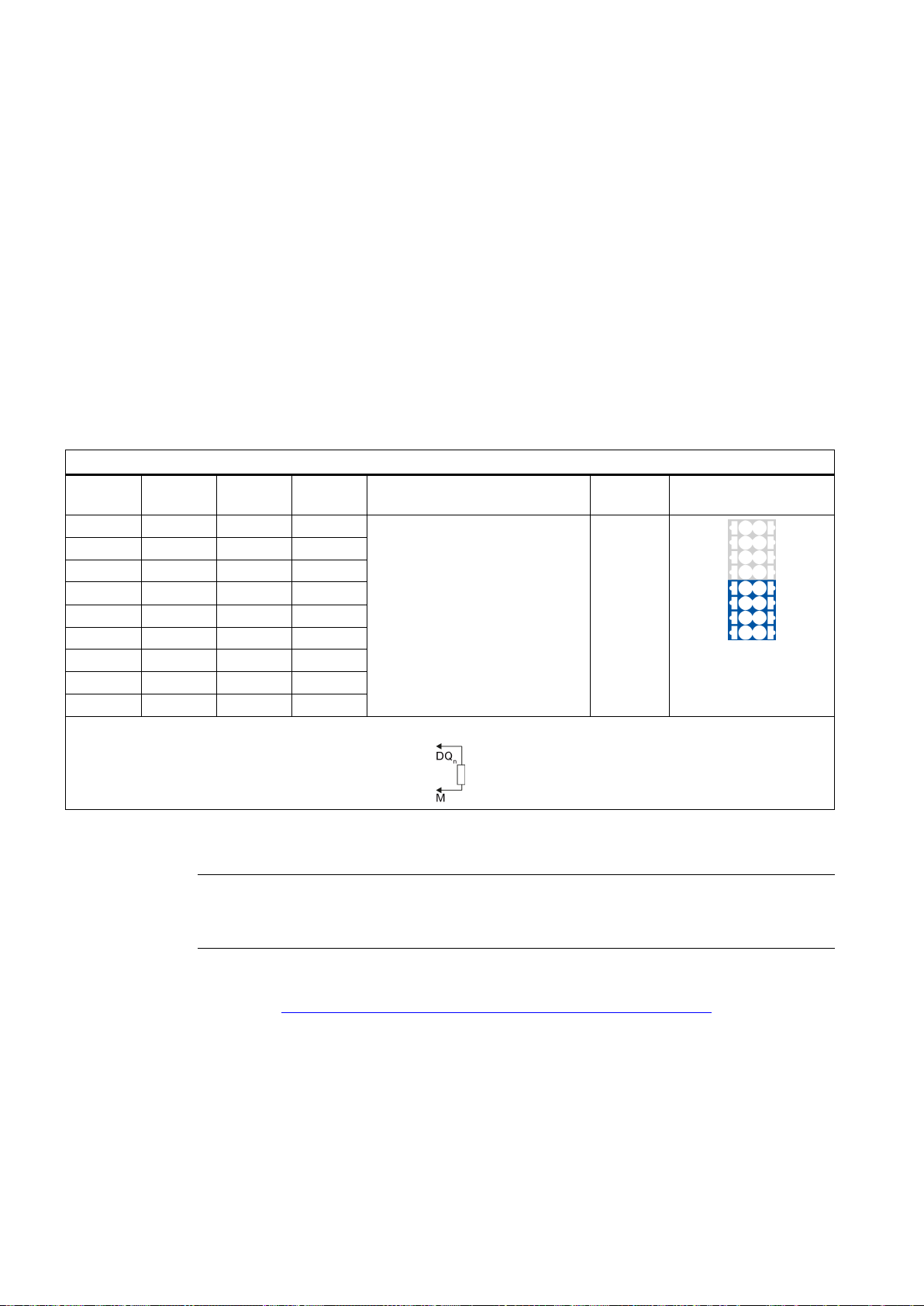

Table 3- 1 Terminal assignment
Terminal assignment for DQ 8×24VDC/0.5A ST (6ES7132-6BF00-0BA0)
Terminal
Assignment
Terminal
Assignment
Explanation
BaseUnit
1
Color identification label
(terminals 1 to 16)
1
DQ
0
2
DQ
1
•DQn: Output signal, channel n
•M: Ground
A0
CC02
6ES7193-6CP02-2MA0
3
DQ2
4
DQ3
5
DQ
4
6
DQ
5
7
DQ6
8
DQ7
9
M
10
M
11
M
12
M
13
M
14
M
15
M
16
M
L+
24 VDC
M
M
2-wire
1Usable BaseUnit types, can be identified by the last two digits of the article number.
Note
The first BaseUnit of an ET 200SP station must be a light
-
colored BaseUnit. Also keep this in
mind during the configuration.
You will find additional information on the BaseUnit types in the ET 200SP distributed
I/O system (http://support.automation.siemens.com/WW/view/en/58649293) system manual.

Wiring up
3.2 Schematic circuit diagram
Digital output module DQ 8x24VDC/0.5A ST (6ES7132-6BF00-0BA0)
Manual, 07/2014, A5E03574575-AC 11
3.2

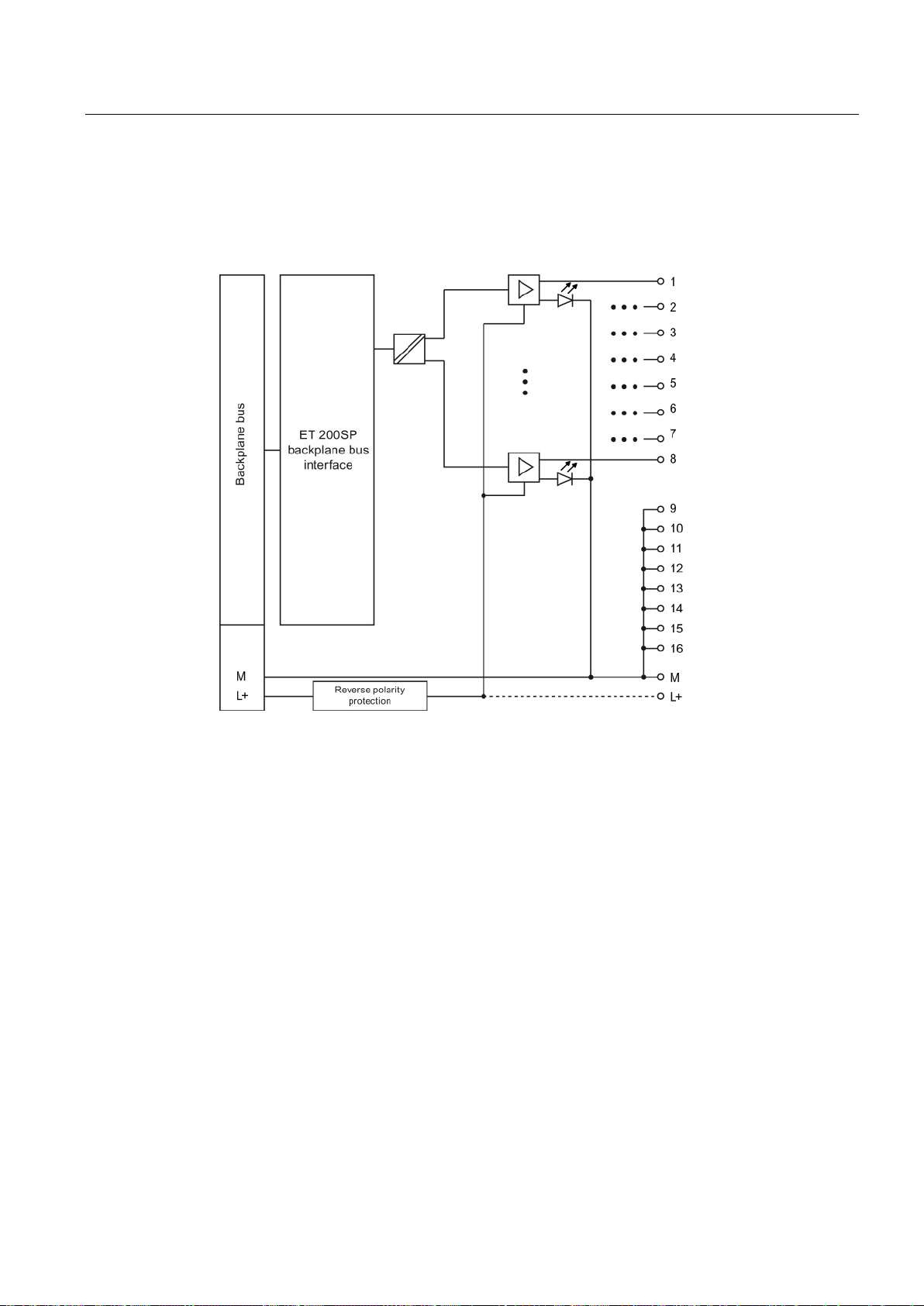

Schematic circuit diagram
Schematic circuit diagram
Figure 3-1 Block diagram DQ 8×24VDC/0.5A ST

Digital output module DQ 8x24VDC/0.5A ST (6ES7132-6BF00-0BA0)
12 Manual, 07/2014, A5E03574575-AC
Parameters/address space
4
4.1
Parameters
Parameters for DQ 8x24VDC/0.5A ST
The effective range of the parameters depends on the type of configuration. The following
configurations are possible:
●Central operation with an S7-1500 CPU
●Distributed operation on PROFINET IO in an ET 200SP system
●Distributed operation on PROFIBUS DP in an ET 200SP system
When assigning parameters in the user program, use the "WRREC" instruction to transfer
the parameters to the module using the data records; refer to the section Auto-Hotspot.
The following parameter settings are possible:
Table 4- 1 Settable parameters and their defaults (GSD file)
Parameters
Value range
Default
Configuration
in RUN
Effective range
with configuration software,
e.g. STEP 7 (TIA Portal)
GSD file
PROFINET IO
GSD file
PROFIBUS DP 1
Diagnostics
No supply voltage L+
•Enable
•Disable
Disable yes Module Module
Diagnostics
Short-circuit to ground
•Enable
•Disable
Disable yes Module Module
Diagnostics
Short-circuit to L+
•Enable
•Disable
Disable yes Module Module
Diagnostics
Wire break
•Enable
•Disable
Disable yes Module Module
Operating mode •Channel disabled
•Channel enabled
Channel
enabled
yes Channel Channel
Reaction to
CPU STOP
•Turn off
•Keep last value
•Output substitute value
Turn off yes Channel Module

Parameters/address space
4.1 Parameters
Digital output module DQ 8x24VDC/0.5A ST (6ES7132-6BF00-0BA0)
Manual, 07/2014, A5E03574575-AC 13
Parameters
Value range
Default
Configuration
in RUN
Effective range
with configuration software,
e.g. STEP 7 (TIA Portal)
GSD file
PROFINET IO
GSD file
PROFIBUS DP 1
Substitute value •0
•1
0 yes Channel Channel
Potential group •Use potential group
of the left module
•Allow new potential
group
Use potential
group of the
left module
no Module Module
1
Due to the limited number of parameters at a maximum of 244 bytes per ET 200SP station with a
PROFIBUS GSD configuration, the configuration options are restricted. If required, you can assign these
parameters using data record 128 as described in the "GSD file PROFINET IO" column (see table above).
The parameter length of the I/O module is 16 bytes.

Parameters/address space
4.2 Explanation of the parameters
Digital output module DQ 8x24VDC/0.5A ST (6ES7132-6BF00-0BA0)
14 Manual, 07/2014, A5E03574575-AC
4.2
Explanation of the parameters
Diagnostics no supply voltage L+
Enabling of the diagnostics for no or insufficient supply voltage L+.
Diagnostics short-circuit to ground
Enabling of the diagnostics if a short-circuit of the actuator supply to ground occurs.
Diagnostics short-circuit to L+
Enabling of the diagnostics if a short-circuit of the actuator supply to L+ occurs.
Diagnostics wire break
Enabling of the diagnostics if the line to the actuator is broken.
Operating mode
Determines whether a channel is enabled or disabled.
Reaction to CPU STOP / substitute value
Specifies the behavior of the module if the CPU changes to STOP.
Potential group
Specifies that a BaseUnit with voltage supply feed-in is located in this slot
(see system manual ET 200SP distributed I/O system
(http://support.automation.siemens.com/WW/view/en/58649293)).

Parameters/address space
4.3 Address space
Digital output module DQ 8x24VDC/0.5A ST (6ES7132-6BF00-0BA0)
Manual, 07/2014, A5E03574575-AC 15
4.3
Address space
Configuration options
The following configurations are possible:
●Configuration 1: Without value status
●Configuration 2: With value status
Evaluating the value status
An additional byte is allocated in the input address space if you enable the value status
for the digital module. Bits 0 to 7 in this byte are assigned to a channel. They provide
information about the validity of the digital value.
Bit = 1: No fault is present on the channel.
Bit = 0: Channel is disabled or there is a fault/error on the module.
If a fault/error occurs on a channel with this module, the value status for all channels is 0.
Address space
The following figure shows the assignment of the address space for the
DQ 8×24VDC/0.5A ST with value status (Quality Information (QI)).
The addresses for the value status are only available if the value status is enabled.

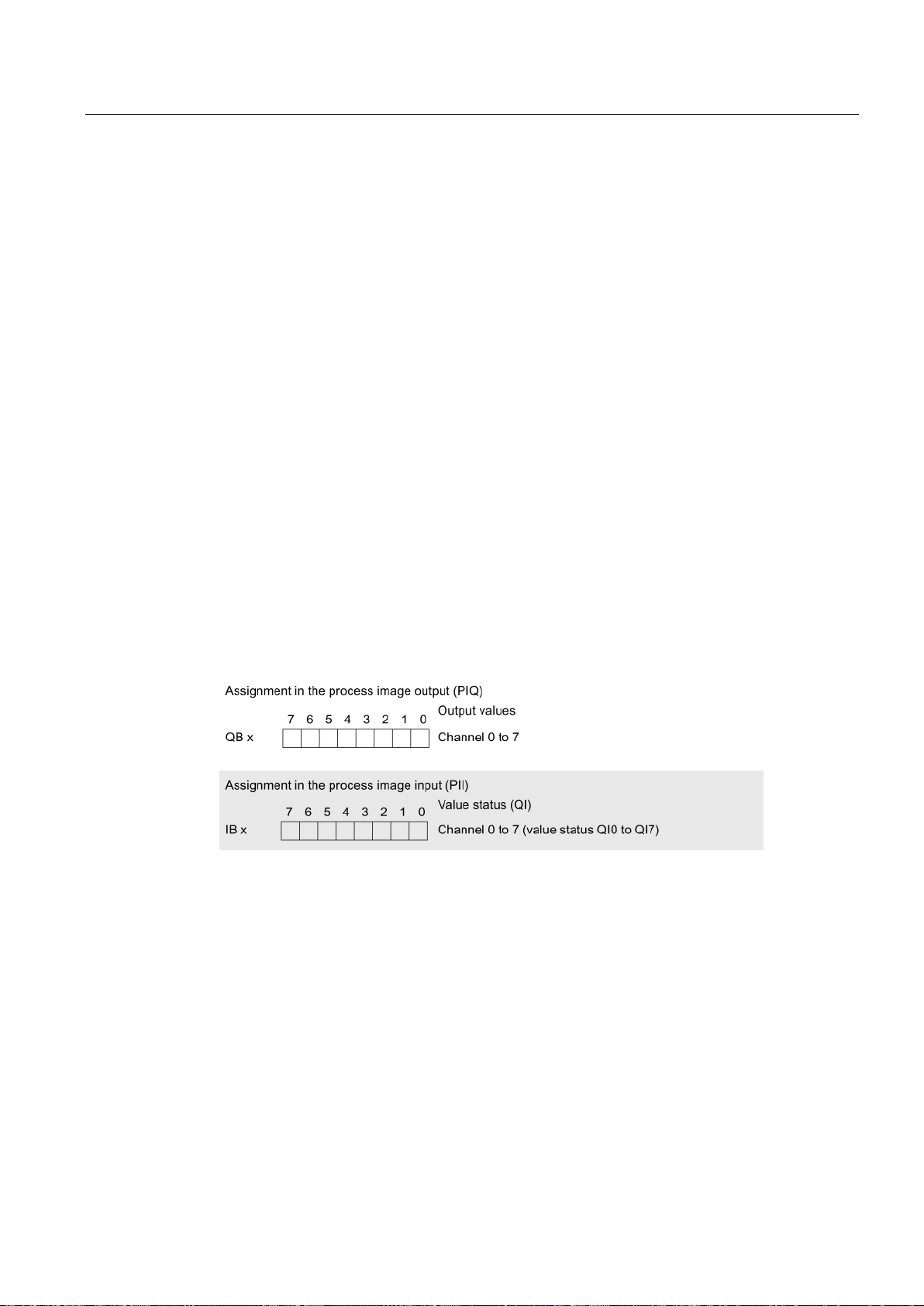

Figure 4-1 Address space of the DQ 8×24VDC/0.5A ST with value status

Digital output module DQ 8x24VDC/0.5A ST (6ES7132-6BF00-0BA0)
16 Manual, 07/2014, A5E03574575-AC
Interrupts/diagnostics alarms
5
5.1
Status and error display
LED display

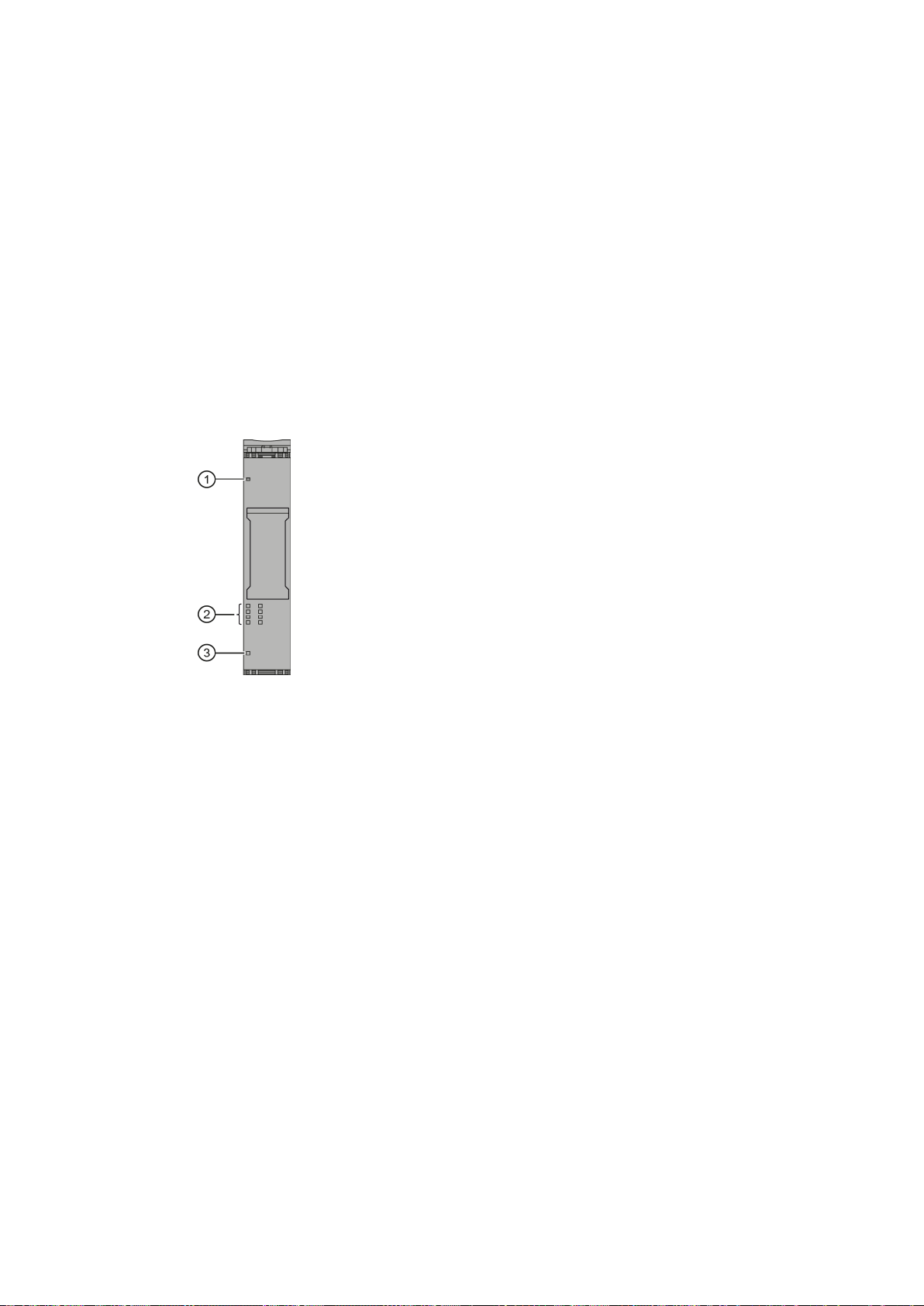

The figure below shows the LED displays of the DQ 8x24VDC/0.5A ST.
①
DIAG (green/red)
②
Channel status (green)
③
PWR (green)
Figure 5-1 LED display
Meaning of the LED displays
The following tables show the meaning of the status and error displays. Measures for
dealing with diagnostics alarms can be found in the section Diagnostics alarms (Page 19).

Interrupts/diagnostics alarms
5.1 Status and error display
Digital output module DQ 8x24VDC/0.5A ST (6ES7132-6BF00-0BA0)
Manual, 07/2014, A5E03574575-AC 17
DIAG LED
Table 5- 1 DIAG LED fault/error display
DIAG LED
Meaning
off
Backplane bus supply of the ET 200SP not OK
Flashes
Module parameters not assigned
on
Module parameters assigned and no module diagnostics
Flashes
Module parameters assigned and module diagnostics
Channel status LED
Table 5- 2 Status display of the channel status LED
Channel status
LED
Meaning
off
Channel deactivated or activated and process signal = 0
on
Channel activated and process signal = 1
PWR LED
Table 5- 3 Status display of the PWR LED
PWR LED
Meaning
off
No supply voltage L+
on
Supply voltage L+ present

Interrupts/diagnostics alarms
5.2 Interrupts
Digital output module DQ 8x24VDC/0.5A ST (6ES7132-6BF00-0BA0)
18 Manual, 07/2014, A5E03574575-AC
5.2
Interrupts
The digital output module DQ 8×24VDC/0.5A ST supports diagnostics interrupts.
Diagnostics interrupt
The module generates a diagnostics interrupt for the following events:
●Channel temporarily unavailable
●Short-circuit
●Wire break
●Parameter assignment error
●No load voltage

Interrupts/diagnostics alarms
5.3 Diagnostics alarms
Digital output module DQ 8x24VDC/0.5A ST (6ES7132-6BF00-0BA0)
Manual, 07/2014, A5E03574575-AC 19
5.3
Diagnostics alarms
A diagnostics alarm is output for each diagnostics event and the DIAG LED on the
module flashes. The diagnostics alarms can, for example, be read from the diagnostics
buffer of the CPU. You can evaluate the error codes with the user program.
Table 5- 4 Diagnostics alarms, their meaning and how to deal with them
Diagnostics alarm
Error code
Meaning
Remedy
Channel temporarily
unavailable
1FHFirmware update is currently in progress
or has been canceled.
The module does not output any process
or substitute values in this state.
•Wait for firmware update
•Restart the firmware update
Short-circuit 1H•Short-circuit of actuator supply to
ground
•Short-circuit of actuator supply to L+
Correct the process wiring
Wire break 6HActuator circuit impedance too high. Use a different actuator type or wire
differently, e.g. use cables with a larger
cross-section
Wire break between the module and
actuator
Connect the cable
Channel not connected (open) •Disable diagnostics
•Connect a resistor to the actuator
contacts in the load resistance range
Parameter assignment
error
10H•The module cannot evaluate
parameters for the channel.
•Incorrect parameter assignment.
Correct the parameter assignment
No load voltage 11HNo or insufficient supply voltage L+ •Check supply voltage L+
on the BaseUnit
•Check BaseUnit type

Digital output module DQ 8x24VDC/0.5A ST (6ES7132-6BF00-0BA0)
20 Manual, 07/2014, A5E03574575-AC
Technical specifications
6
6.1
Technical specifications
Technical specifications of DQ 8×24VDC/0.5A ST
6ES7132-6BF00-0BA0
Product type designation
DQ 8x24VDC/0.5A ST
General information
Firmware version
V1.1
Usable BaseUnits
BU type A0
Color code for module-specific color identification label
CC02
Product function
I&M data
Yes
Engineering with
STEP 7 TIA Portal can be configured/integrated as of version
V11 SP2 / V13
STEP 7 can be configured/integrated as of version
V5.5 SP3 / -
PROFIBUS as of GSD version/GSD revision
GSD revision 5
PROFINET as of GSD version/GSD revision
V2.3 / -
Installation type/mounting
Rack mounting possible
Yes
Front installation possible
Yes
Rail mounting possible
Yes
Wall/direct mounting possible
No
Supply voltage
Type of supply voltage
DC
Rated value (DC)
24 V
Valid range low limit (DC)
19.2 V
Valid range high limit (DC)
28.8 V
Reverse polarity protection
Yes
Input current
Current consumption, max.
35 mA; no load
Power loss
Power loss, typ.
1 W
Address area
Address space per module
Address space per module, max.
1 byte; + 1 byte for QI information
